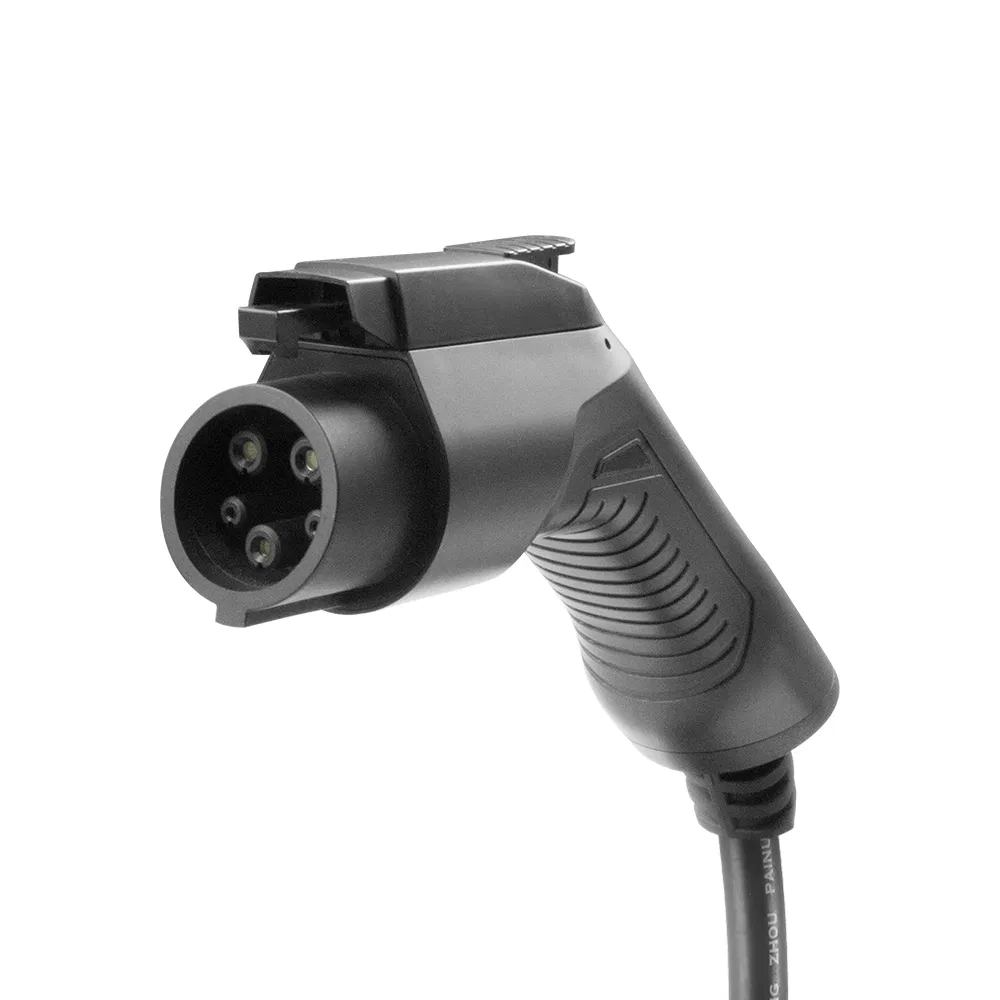

Besen 32A EV Connector Charging Plug Type 1

Customization:	Available
Grounding:	Isolated Ground
Rated Current:	32A

Send Inquiry

Product Description

Basic Specifications

Model NO.

BS-EVP001-L

IP Grade

IP 66

Operating Voltage

250V

Withstand Voltage

2000V

Standard

American Standard

Function

AC Plug, Charger Plug

Certification

CCC

Interface Type

AC/DC

Shape

AC 32A

Application

Industrial

Transport Package

Carton

Specification

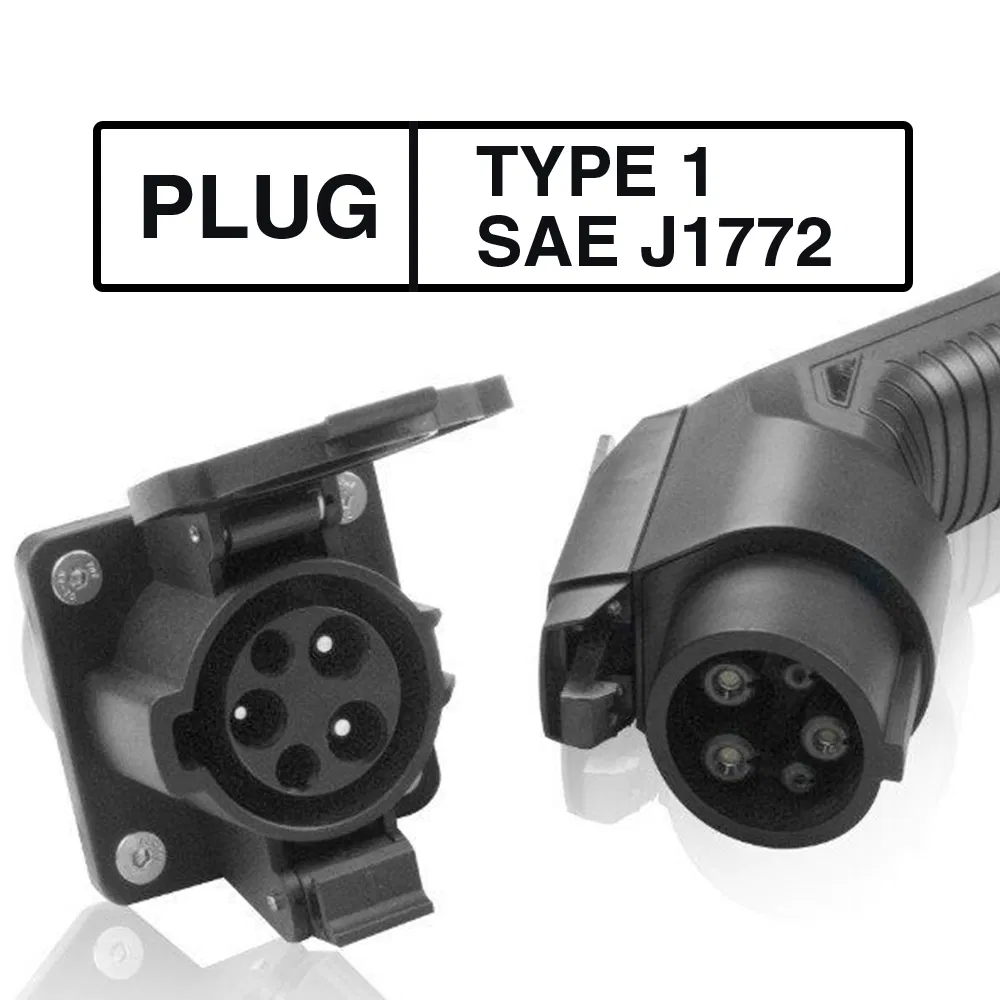

J1772

HS Code

8536690000

Production Capacity

10000/Month

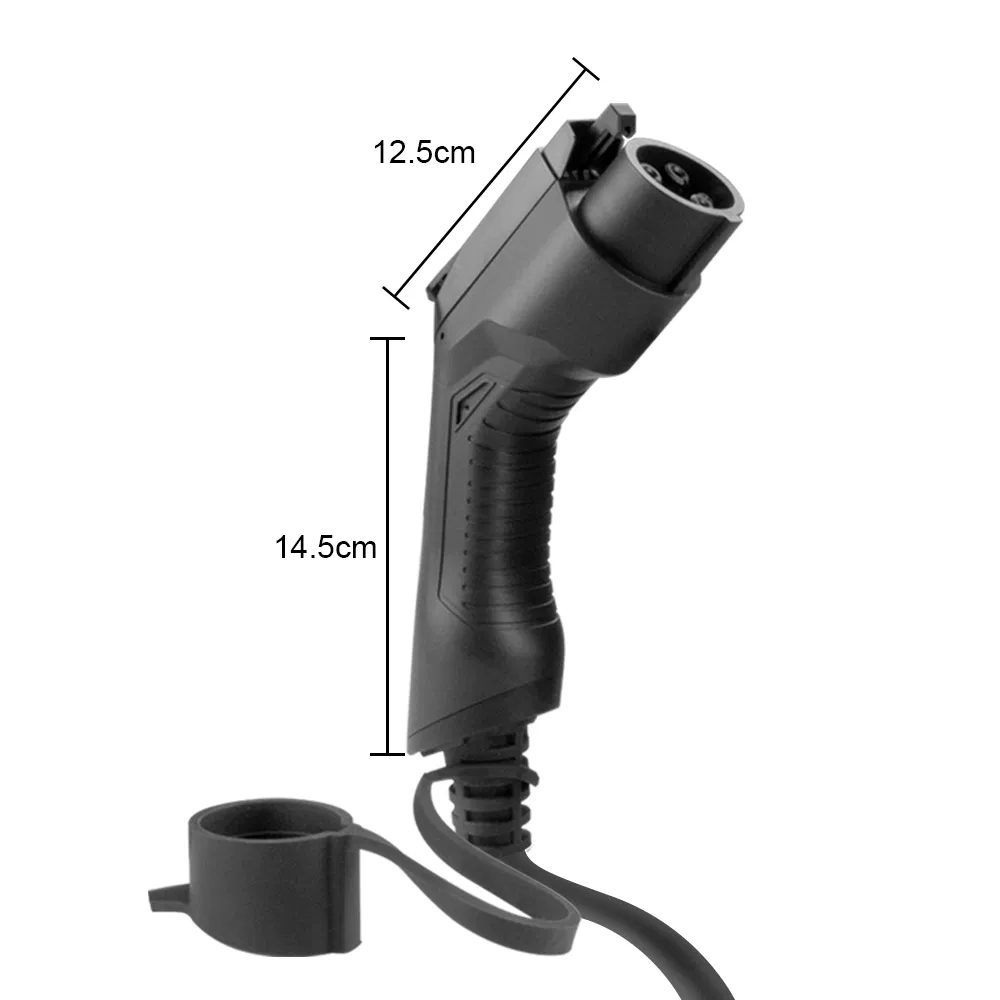

EV Connector Charging Plug Type 1 Main View

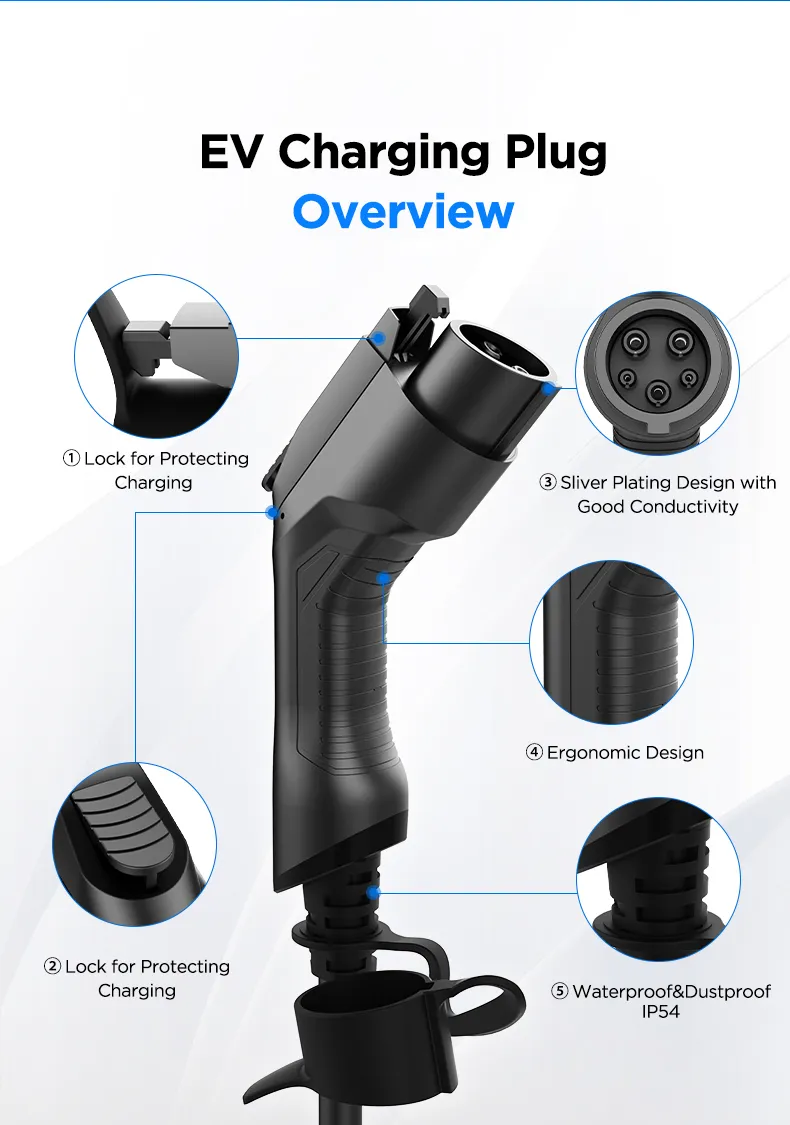

EV Connector Charging Plug Type 1 Detail

Technical Parameters

Rated Current	SAE J1772/Type 1 (16A/32A/40A/48A/50A)
Rated Current Phase	1 Phase
Operate Voltage	AC 220V ± 10 %
Mechanical life	No-load plug in /out >20000 times
Insulation Resistance	>1000M Ω (DC500V)
Terminal Temperature Rise	<50K
Withstand Voltage	2000V
Contact Impedance	0.5m Ω Max
UV Resistant	Yes
Coupled Insertion Force	45N<100n
Working Temperature	-30ºC~+50ºC
Plug Material	PC+nylon alloy, flame retardant grade UL94 V-O
Terminal	Copper alloy, silver plating
Sealing Gasket	Rubber or silicon rubber
Impact of External Force	Ability to withstand 1M height drop and the rolling of a 2T-vehicle
Customization	Wire length, wire diameter, color, laser-printed logo, etc

Frequently Asked Questions

Q1: What is the protection rating of this EV charging plug? A: This connector features an IP66 rating, ensuring high resistance to dust and powerful water jets, making it suitable for various outdoor environments.

Q2: What is the expected mechanical lifespan of the connector? A: The plug is designed for durability with a mechanical life of over 20,000 cycles for no-load plug-in and plug-out operations.

Q3: Can this plug withstand extreme weather and physical impact? A: Yes, it operates within a temperature range of -30ºC to +50ºC and can withstand a 1-meter drop or the rolling pressure of a 2-ton vehicle.

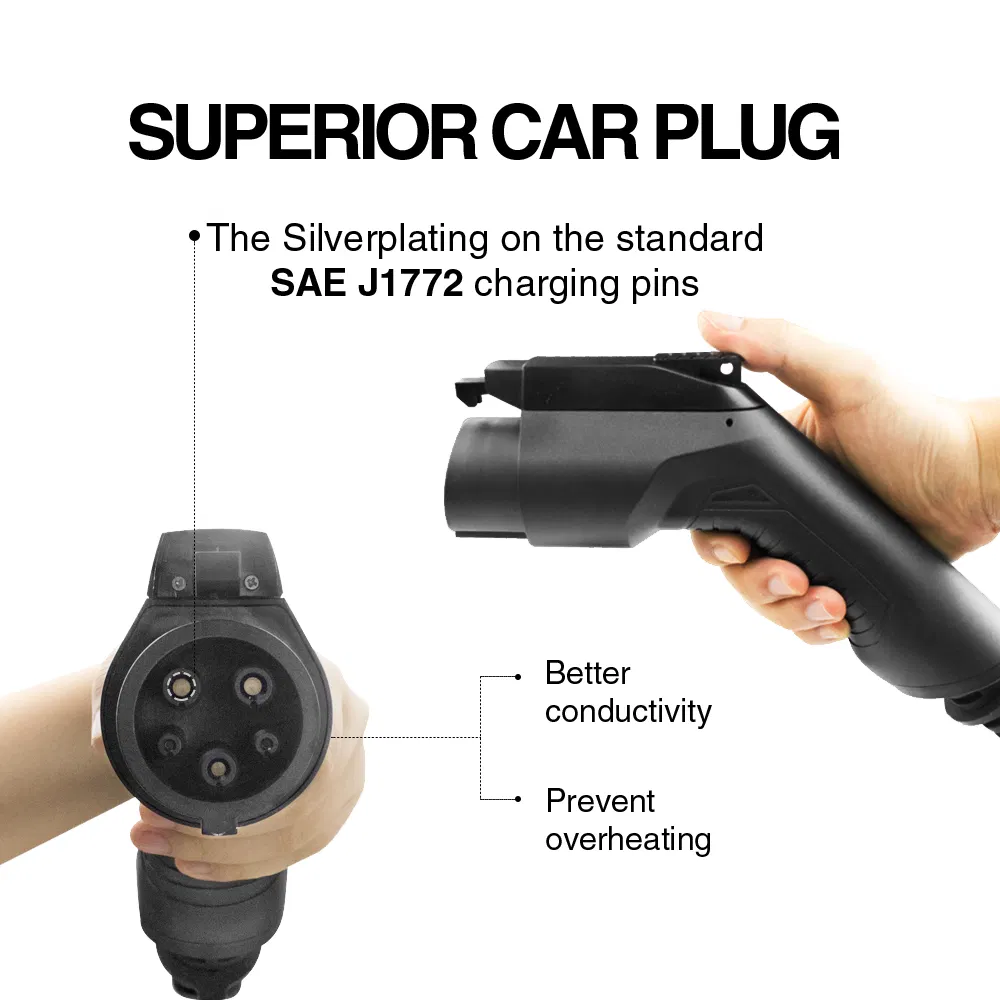

Q4: What materials are used for the contact terminals? A: The terminals are made from a high-quality copper alloy with silver plating to ensure optimal conductivity and prevent overheating.

Q5: Is the product customizable for specific requirements? A: Yes, we offer customization options for wire length, wire diameter, color, and laser-printed branding to meet your specific needs.

Q6: Does the material provide fire safety and UV protection? A: Absolutely. The plug uses PC+Nylon alloy with a flame retardant grade of UL94 V-O and is fully UV resistant for long-term outdoor use.
