Ecopowermax Solar Smart UPS Energy Storage System Station
Ecopowermax Solar Smart UPS Energy Storage System Station
Ecopowermax Solar Smart UPS Energy Storage System Station
Ecopowermax Solar Smart UPS Energy Storage System Station
Ecopowermax Solar Smart UPS Energy Storage System Station
1 / 5
Ecopowermax Solar Smart UPS Energy Storage System Station
Ecopowermax Solar Smart UPS Energy Storage System Station
Ecopowermax Solar Smart UPS Energy Storage System Station
Ecopowermax Solar Smart UPS Energy Storage System Station
Ecopowermax Solar Smart UPS Energy Storage System Station

Ecopowermax Solar Smart UPS Energy Storage System Station

Customization: Available
Nominal Capacity: 7680wh
Size: 940X770X590mm
Send Inquiry

Product Description

Basic Info & Packaging
Model NO.
EP12000iL
Weight
100kg
Warranty
5 Years
Inverter Type
Bi-Directional Inverter
Super Fast Charging
70mins Fully Charged
Battery Expansion
Yes, Max 245kwh
Three-Phase Output
Yes
Package Size
97.00cm * 87.00cm * 70.00cm
Product Advantages
1

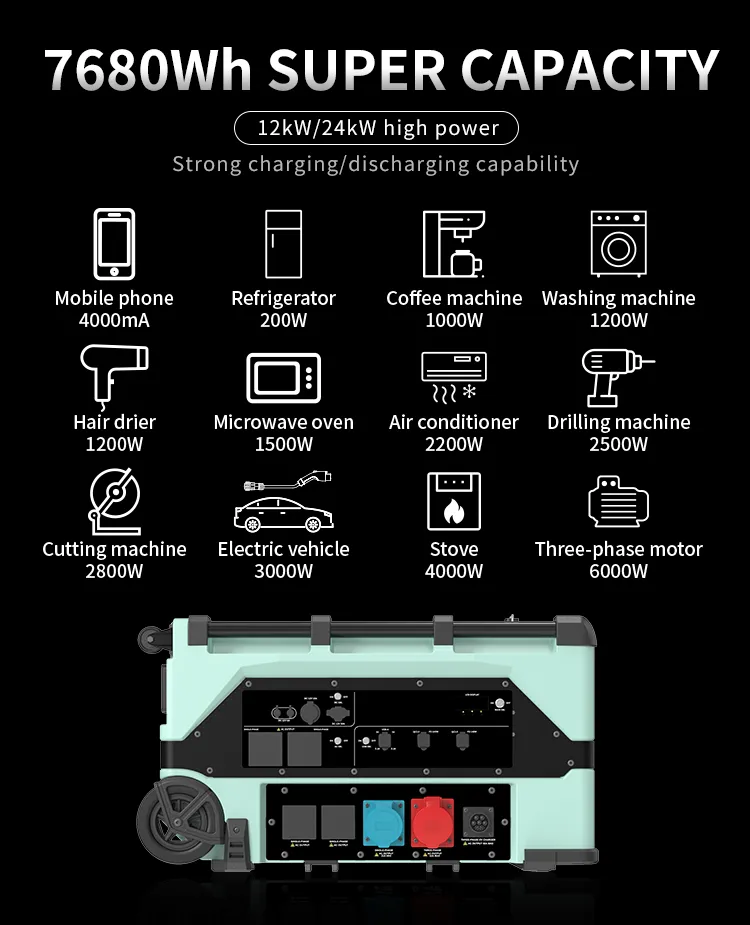

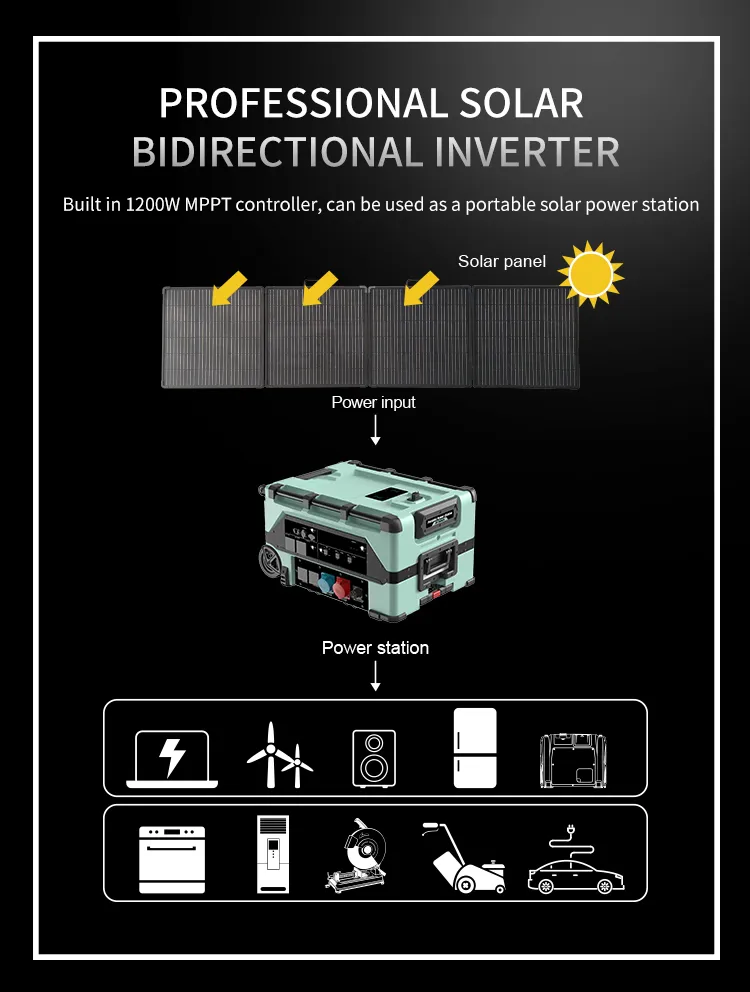

Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.
2
Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.
3

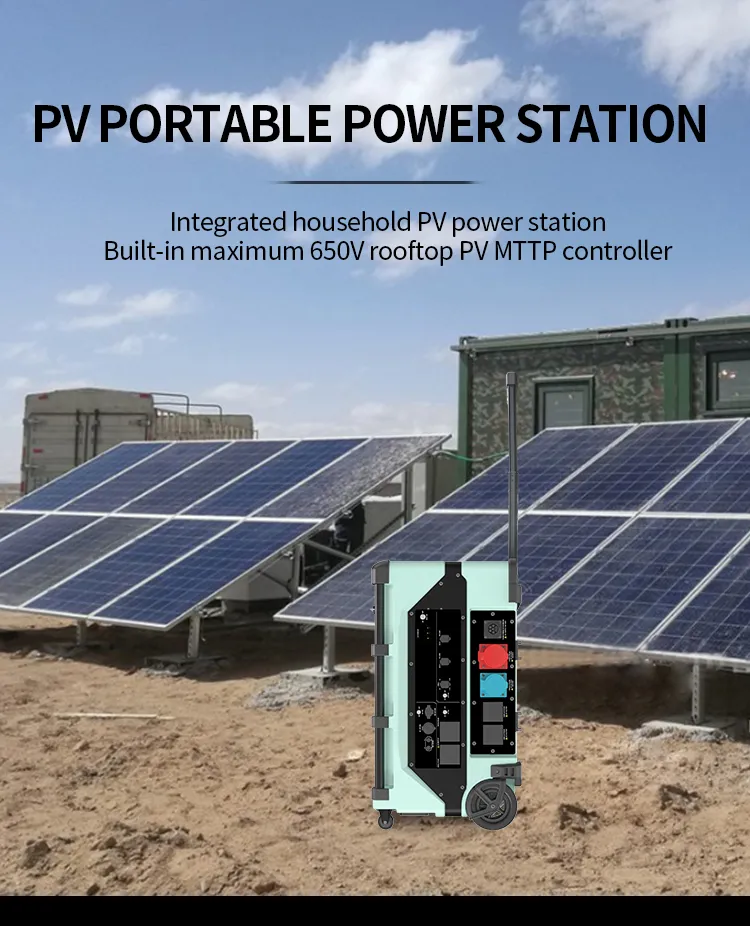

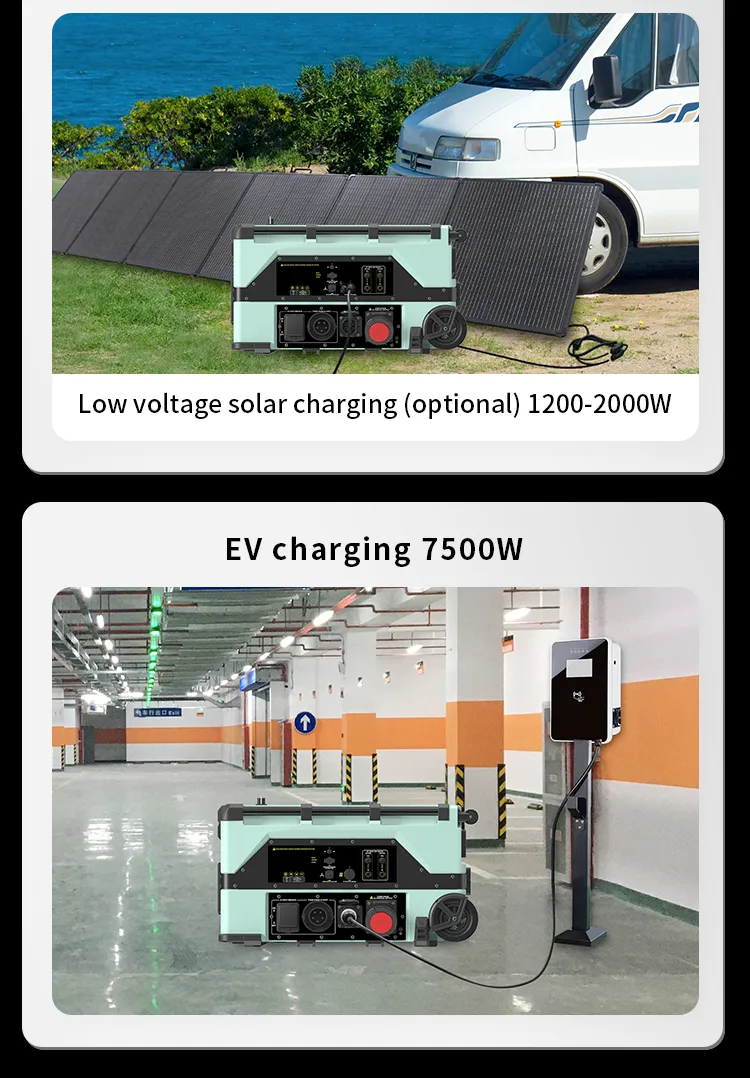

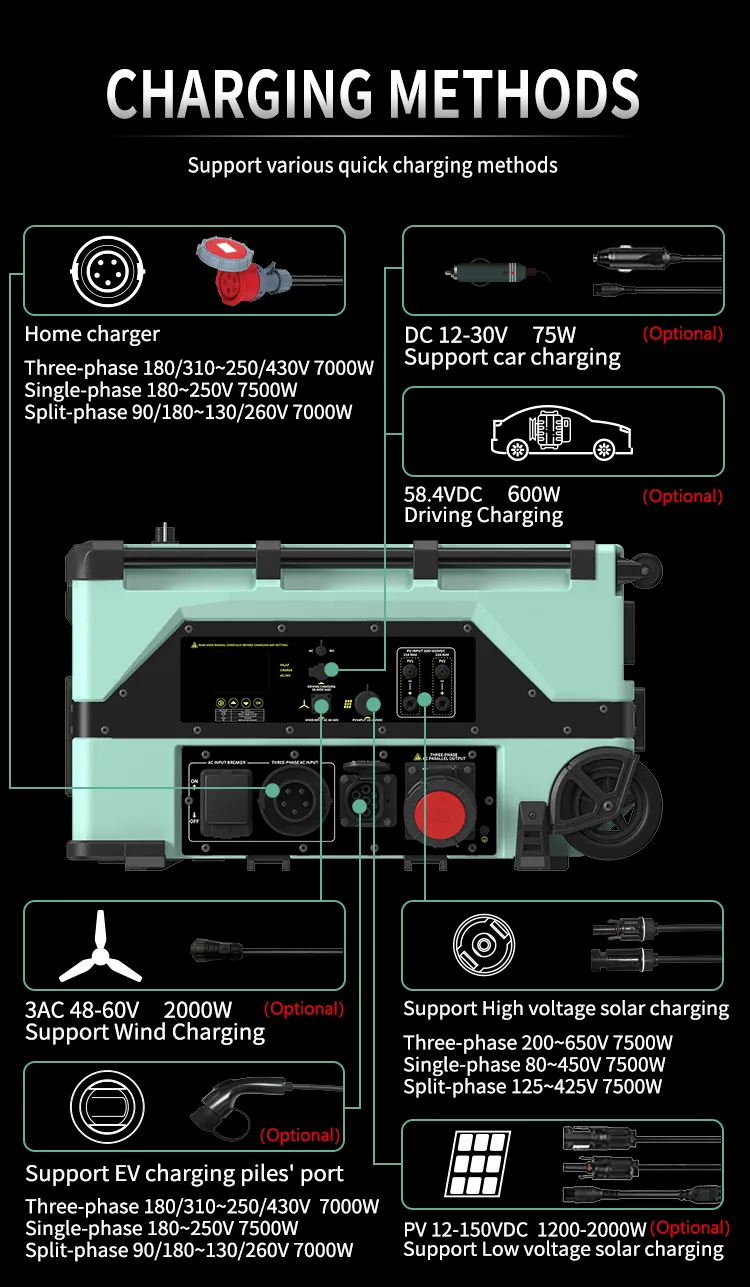

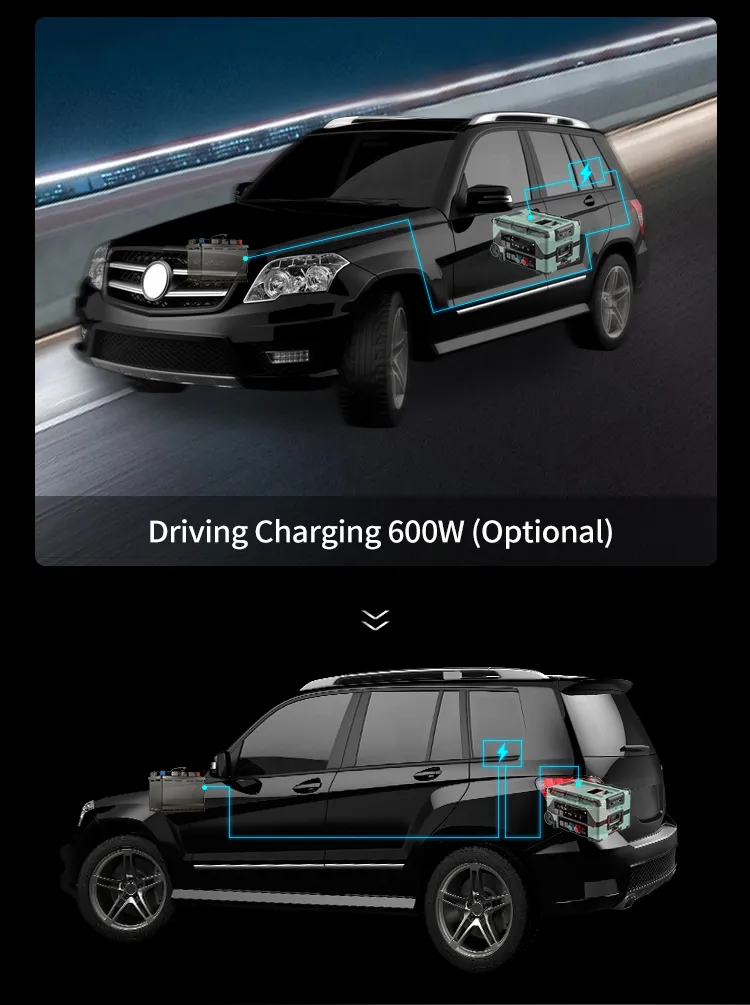

Support various fast charging methods such as utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.
4
Up to 31 extra batteries can be stacked and connected for expansion, with a total capacity of 245kWh.
5

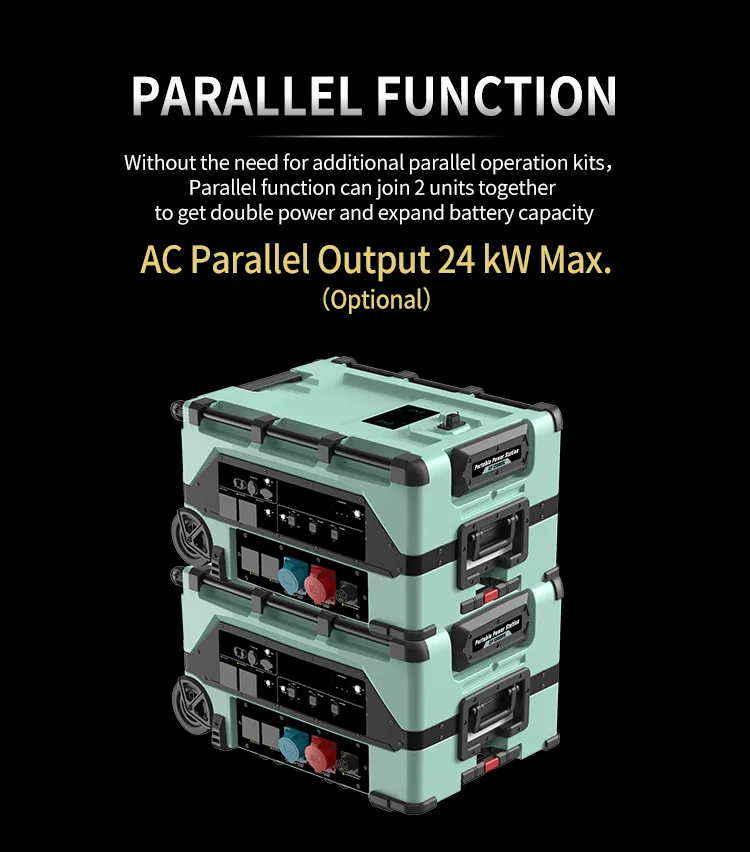

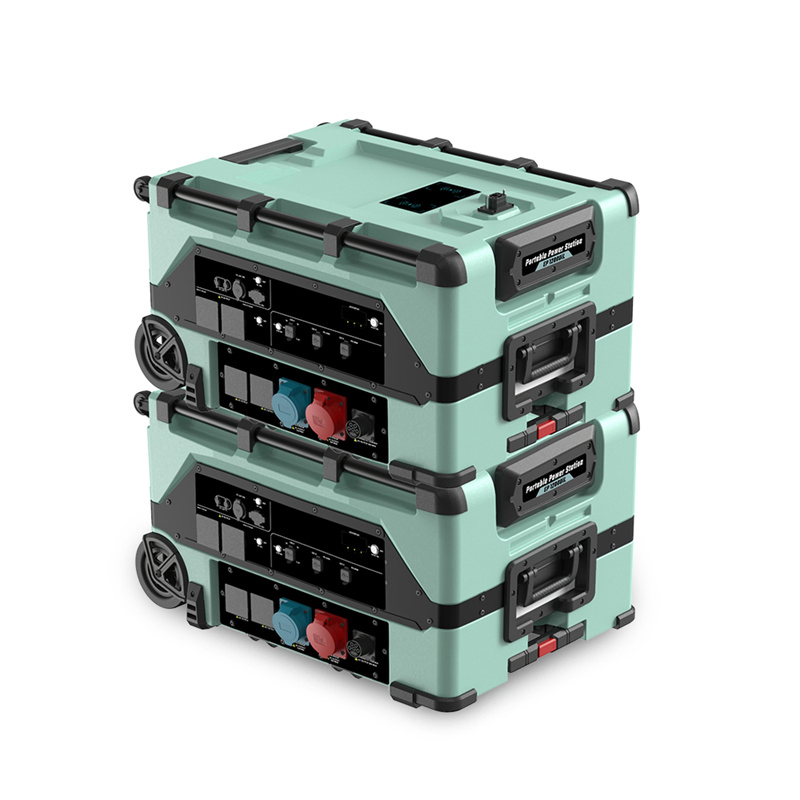

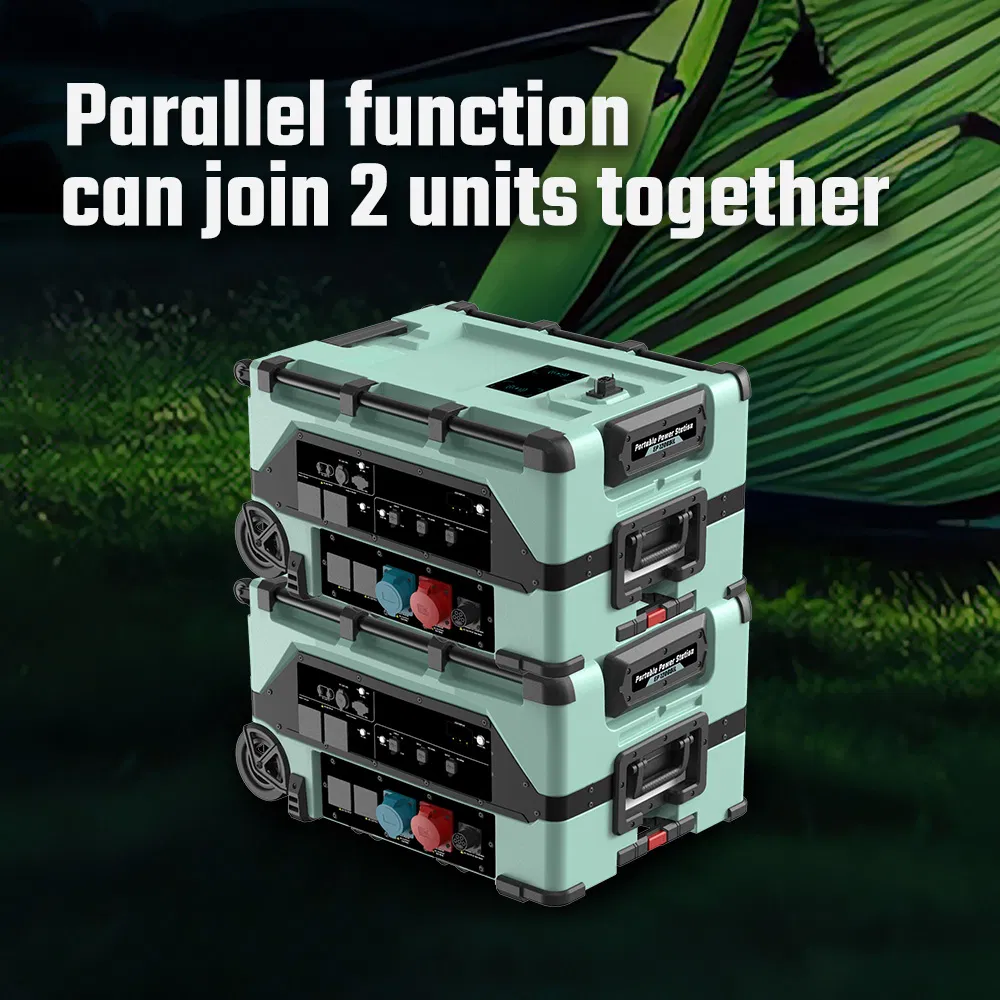

Stacked parallel patented technology, join 2 units for 24kW continuous output.
6
Built-in EV charger, charges cars up to 22kW.
7
IP53 Unit and IP66 Battery Pack protection grade.
8
Intelligent control and monitoring via smartphone APP.

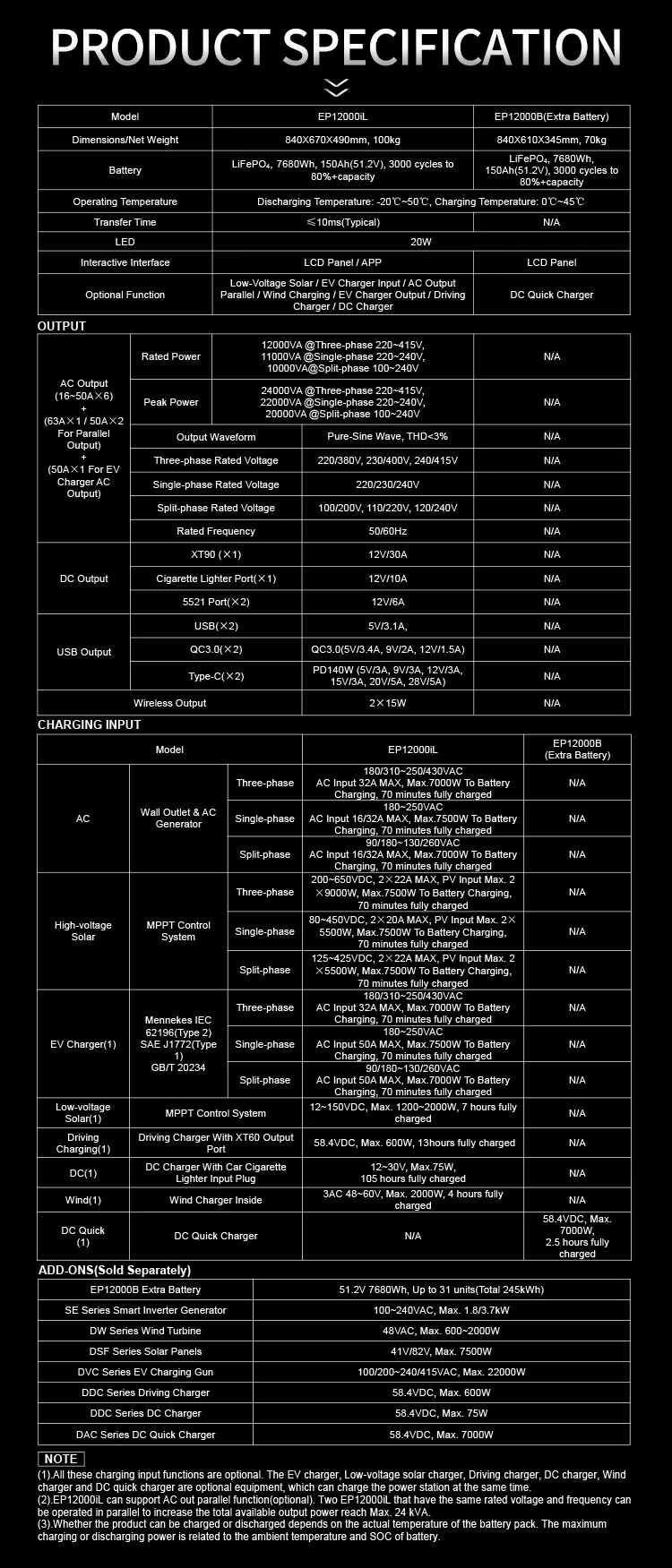

Technical Specifications
Category EP12000iL Specifications
AC Output Rated Power 12000VA (3-Phase) / 11000VA (Single-Phase) / 10000VA (Split-Phase)
Peak Power 24000VA (3-Phase) / 22000VA (Single-Phase) / 20000VA (Split-Phase)
Waveform Pure-Sine Wave, THD < 3%
Battery Type LiFePO4 (7680Wh / 150Ah / 51.2V)
Life Cycle 3000 cycles to 80%+ capacity
Charging AC Input 7500W Max (Fully charged in 70 mins)
Solar Input 7500W Max (Fully charged in 70 mins)

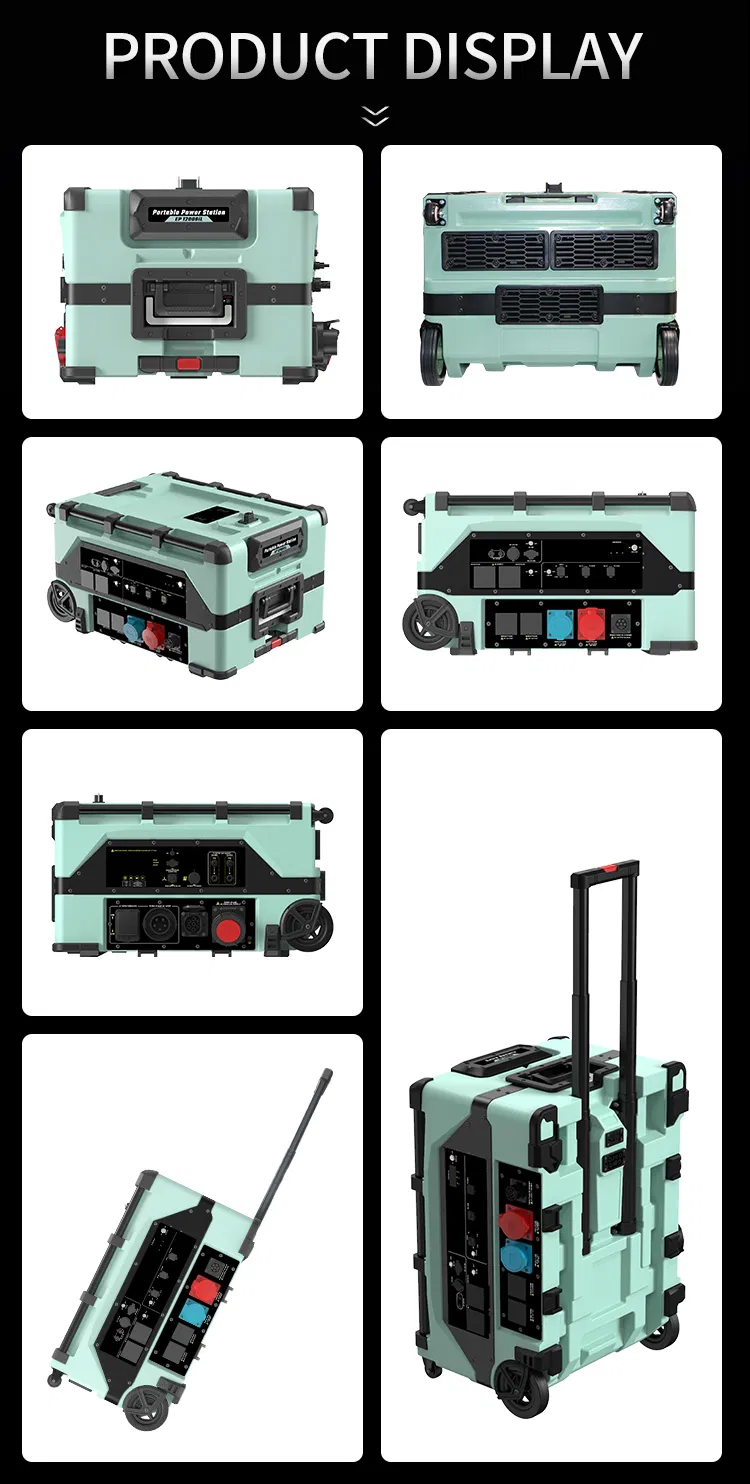

Detailed Product Display

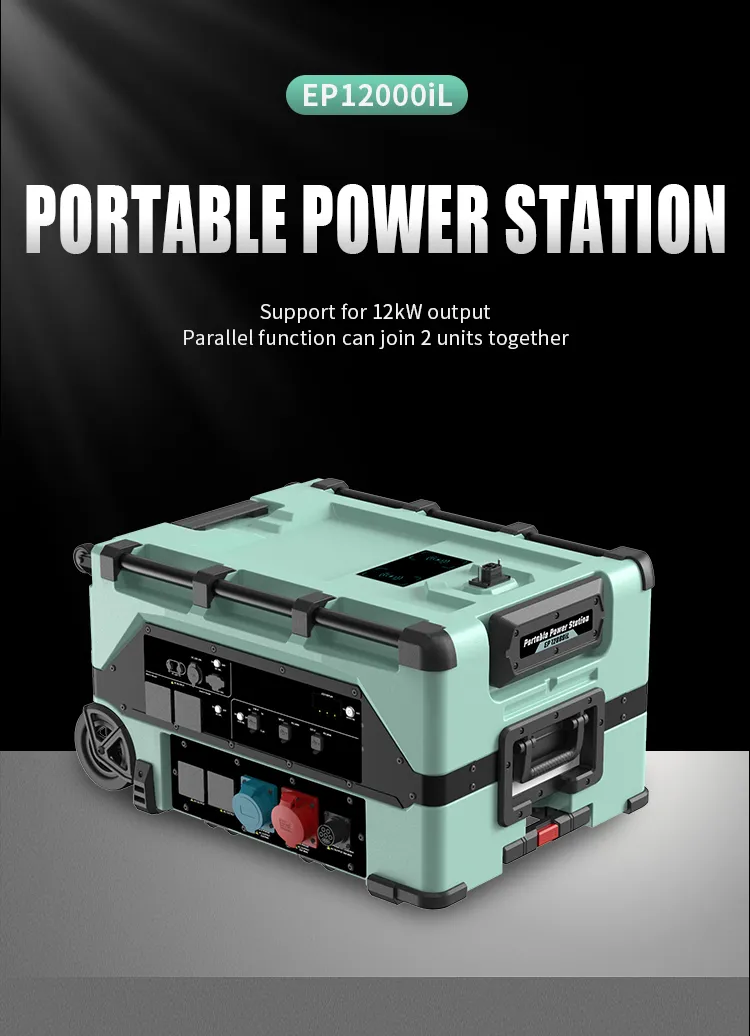

EP12000iL View 1
EP12000iL View 2
EP12000iL View 3
EP12000iL View 4

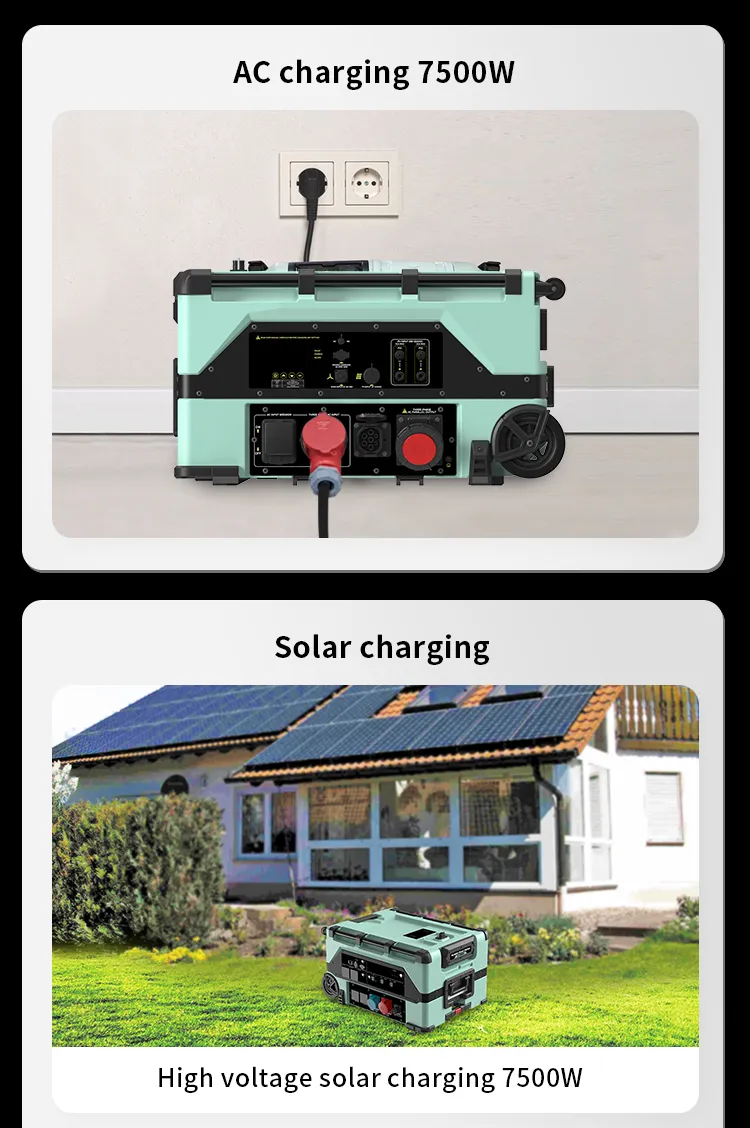

EP12000iL View 5
EP12000iL View 6
EP12000iL View 7
EP12000iL View 8

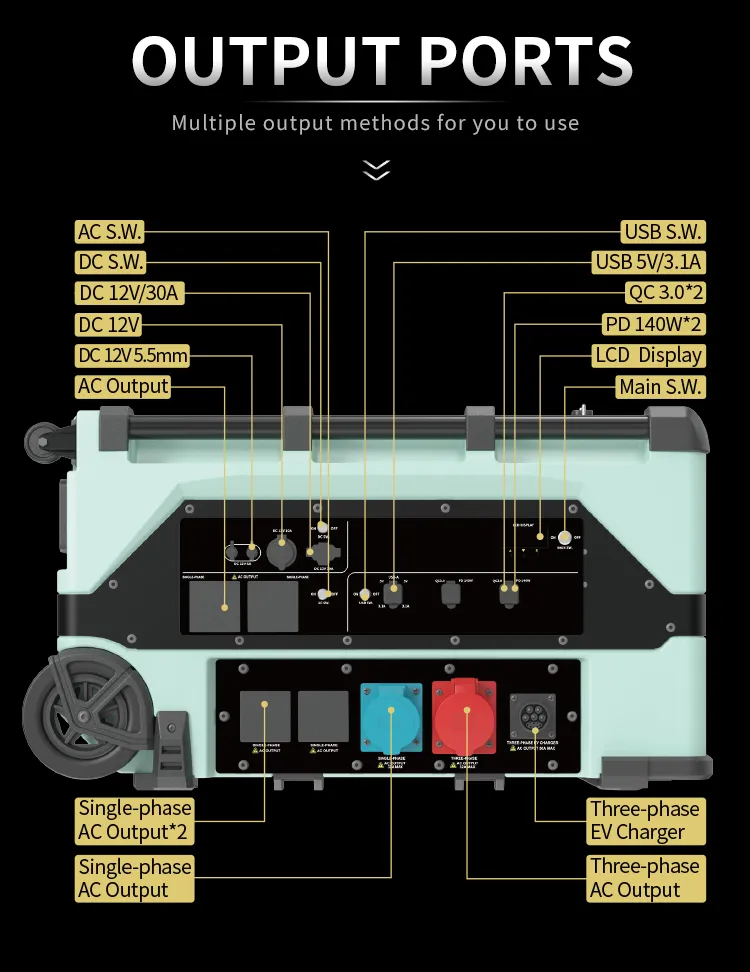

EP12000iL View 9
EP12000iL View 10

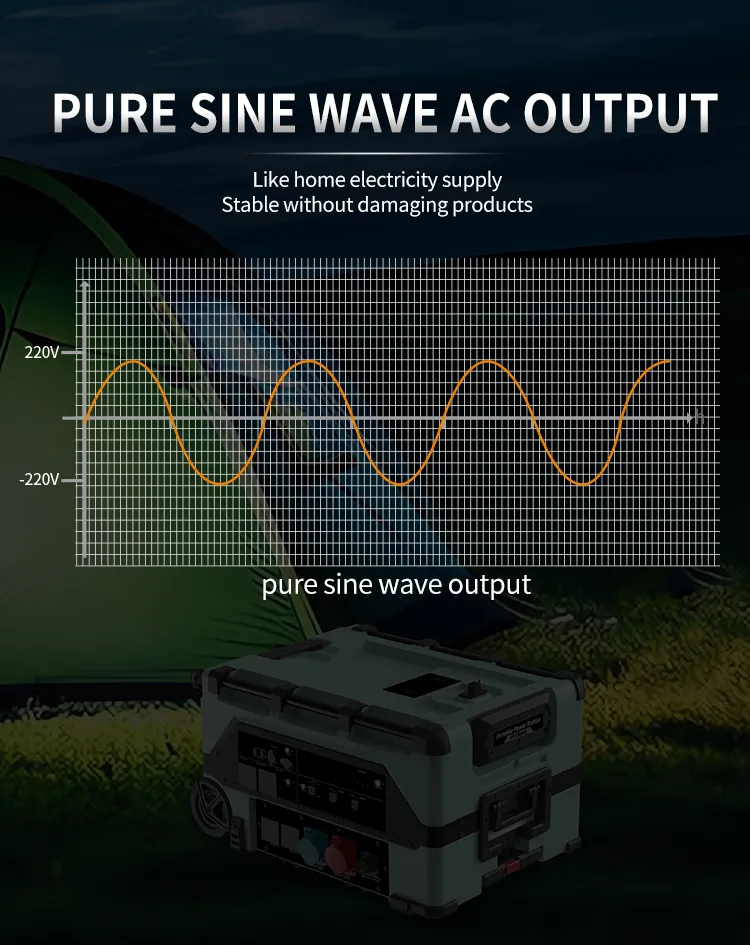

EP12000iL View 11

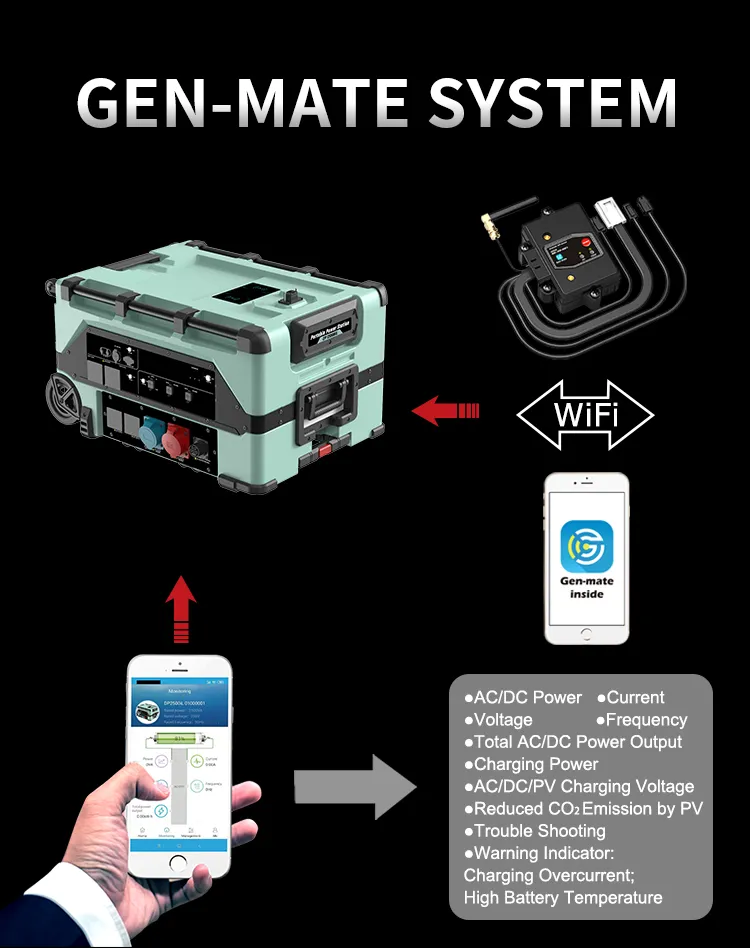

EP12000iL View 12
EP12000iL View 13

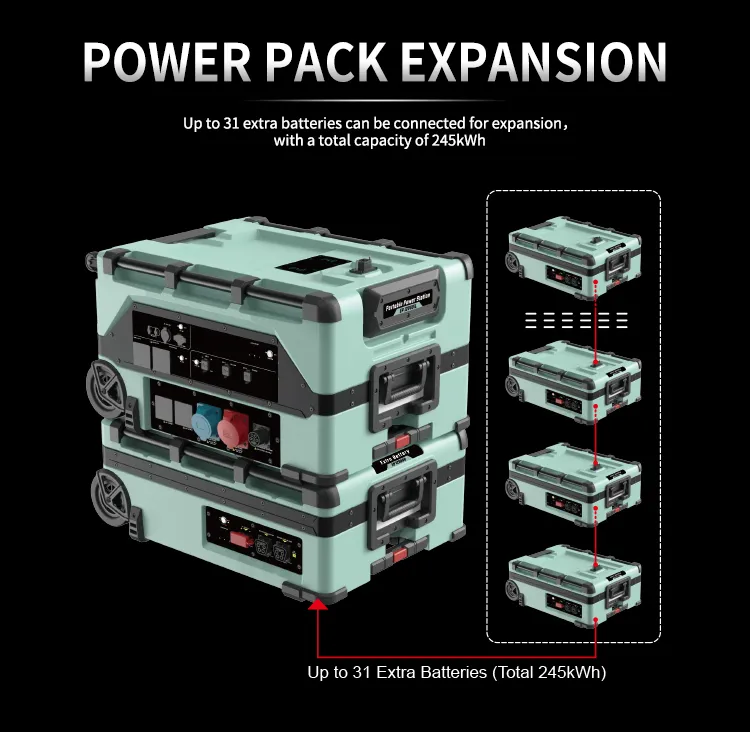

EP12000iL View 14

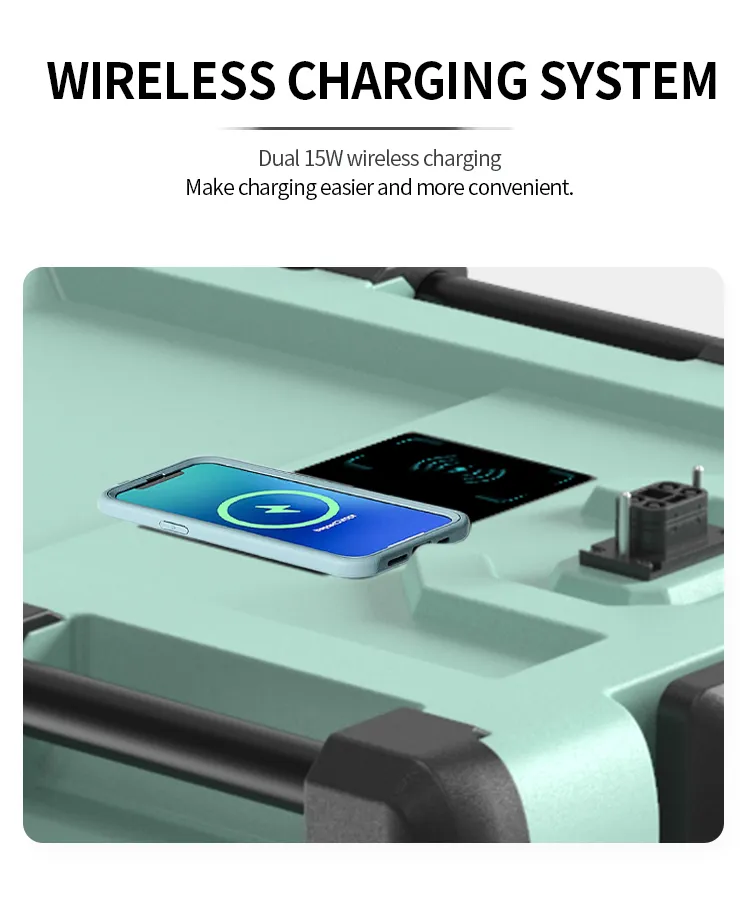

EP12000iL View 15

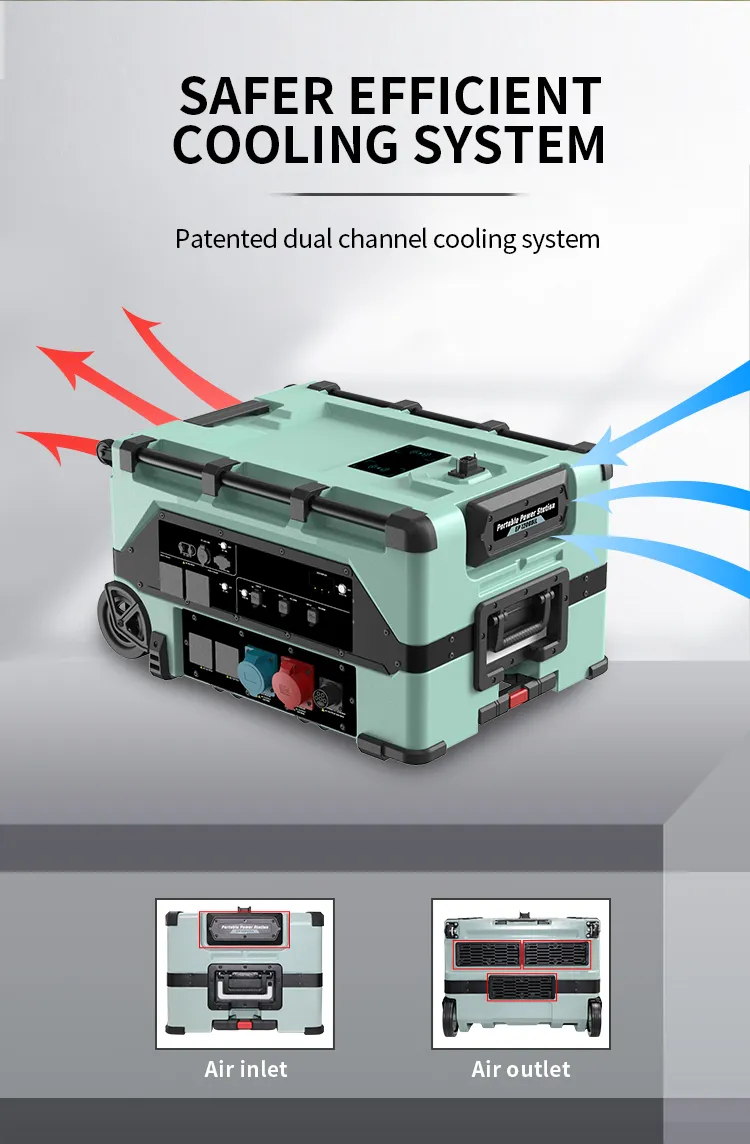

EP12000iL View 16
EP12000iL View 17
EP12000iL View 18
System Capabilities
System Flow
Input Options
Output Options
Expansion Diagram
About Our Technology

Devoted to the research and development of intelligent electromechanical products, we emphasize independent innovation. Our strategy involves securing critical patents in power equipment, IoT, and intelligent controller fields. Currently holding over 70 critical patents, we maintain a leading position in technical superiority. Our products have established an excellent reputation in European and North American markets by delivering high quality and performance.

Product Quality
Technical Specs
Certification
Frequently Asked Questions
How long does it take to fully charge the EP12000iL?
Under optimal conditions using AC fast charging or high-voltage solar input, the system can be fully charged in as little as 70 minutes.
What is the maximum expanded capacity of this system?
The system supports stacking up to 31 extra battery units (EP12000B), allowing for a massive total capacity of up to 245kWh.
Does the system support three-phase power output?
Yes, the EP12000iL supports continuous three-phase AC output at 12kW, as well as single-phase (11kW) and split-phase (10kW) configurations.
Can I charge my electric vehicle directly from this unit?
Yes, the unit features a built-in electric vehicle charger that can replace standard charging stations, supporting car charging at up to 22kW.
Is the system weather-resistant for outdoor use?
The main unit has an IP53 protection grade, while the battery packs are rated at IP66, providing robust protection against dust and water.
What kind of battery technology is used?
The system uses premium LiFePO4 (Lithium Iron Phosphate) batteries, known for their safety and long lifespan, rated for 3000+ cycles to 80% capacity.
