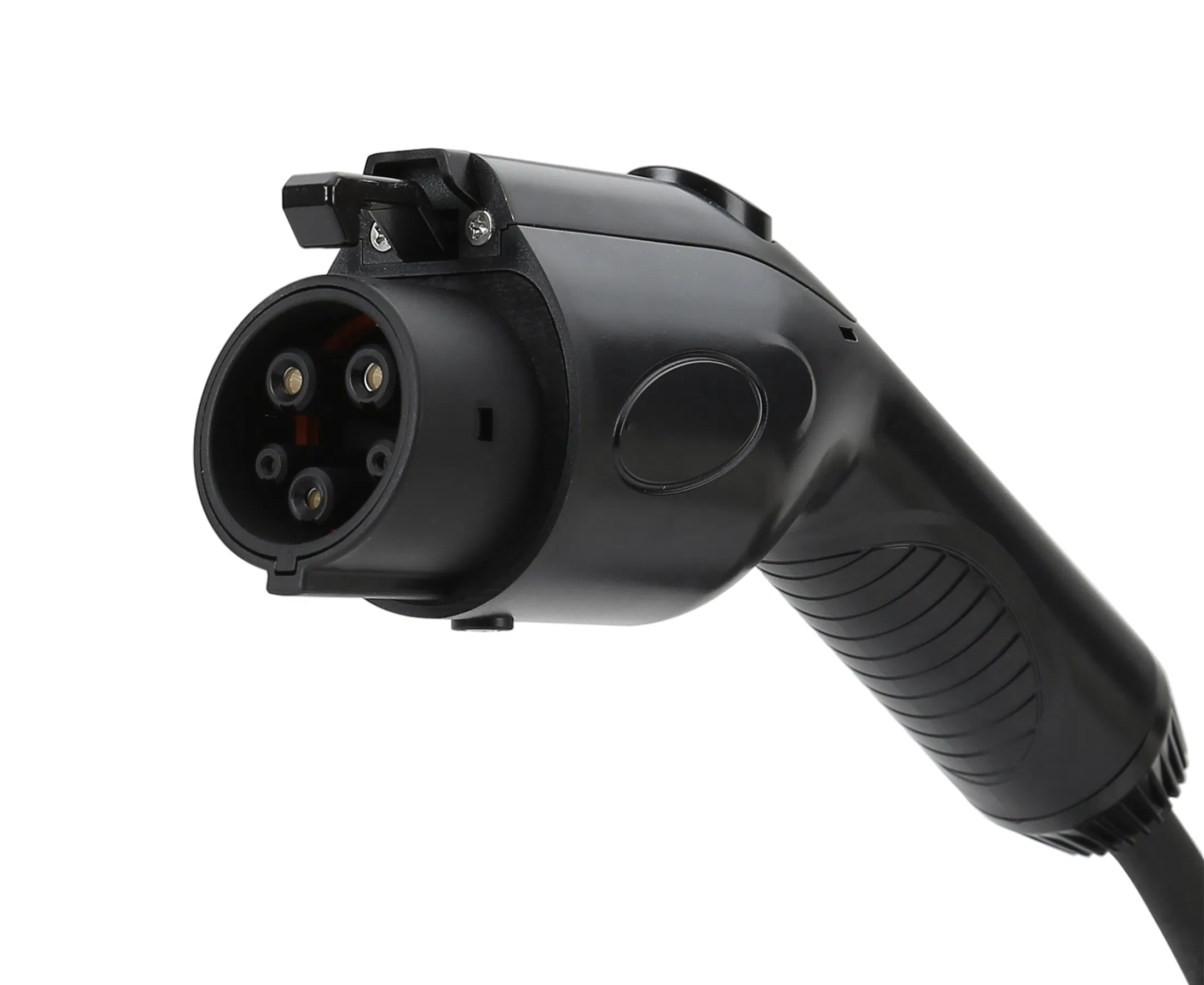

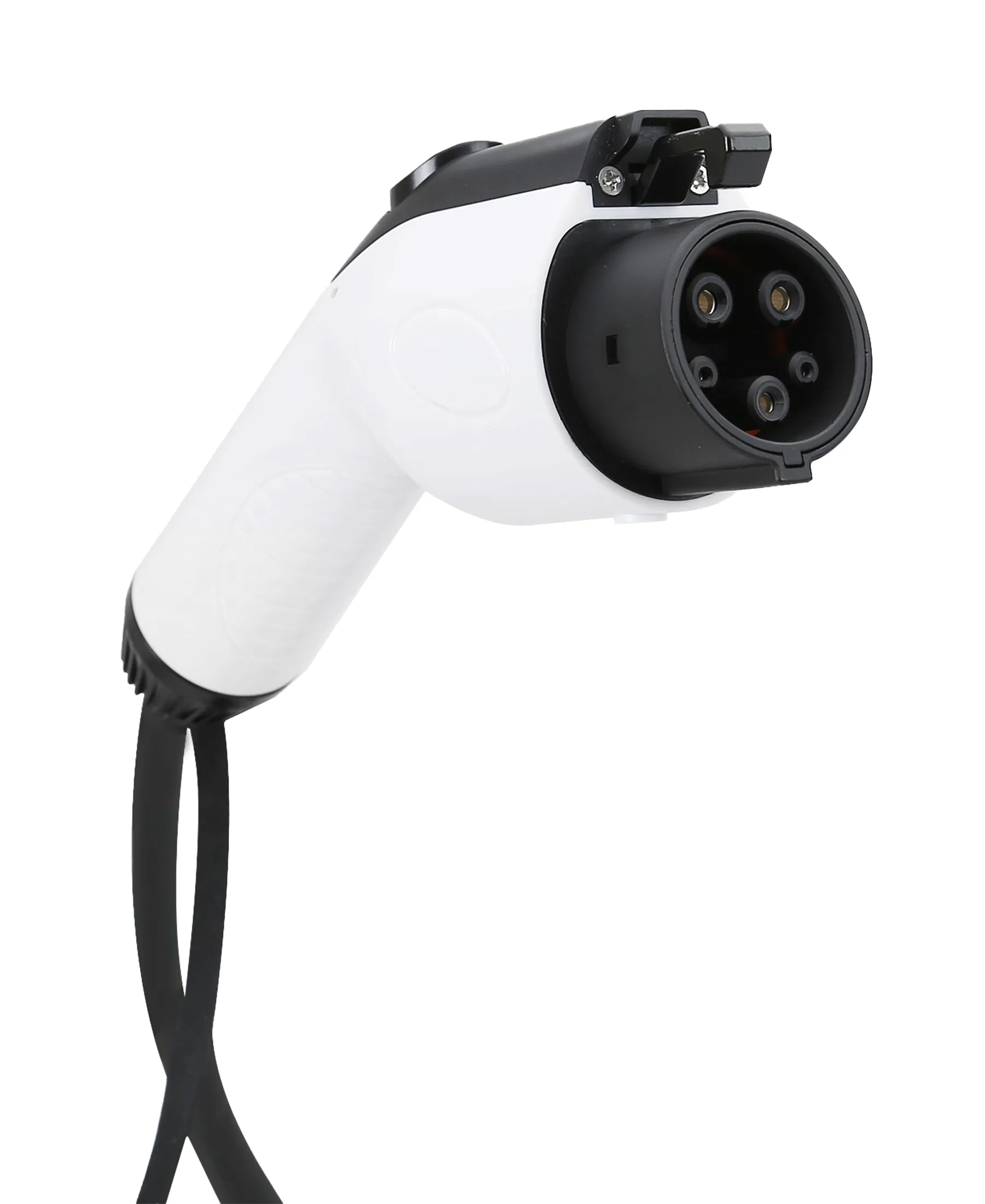

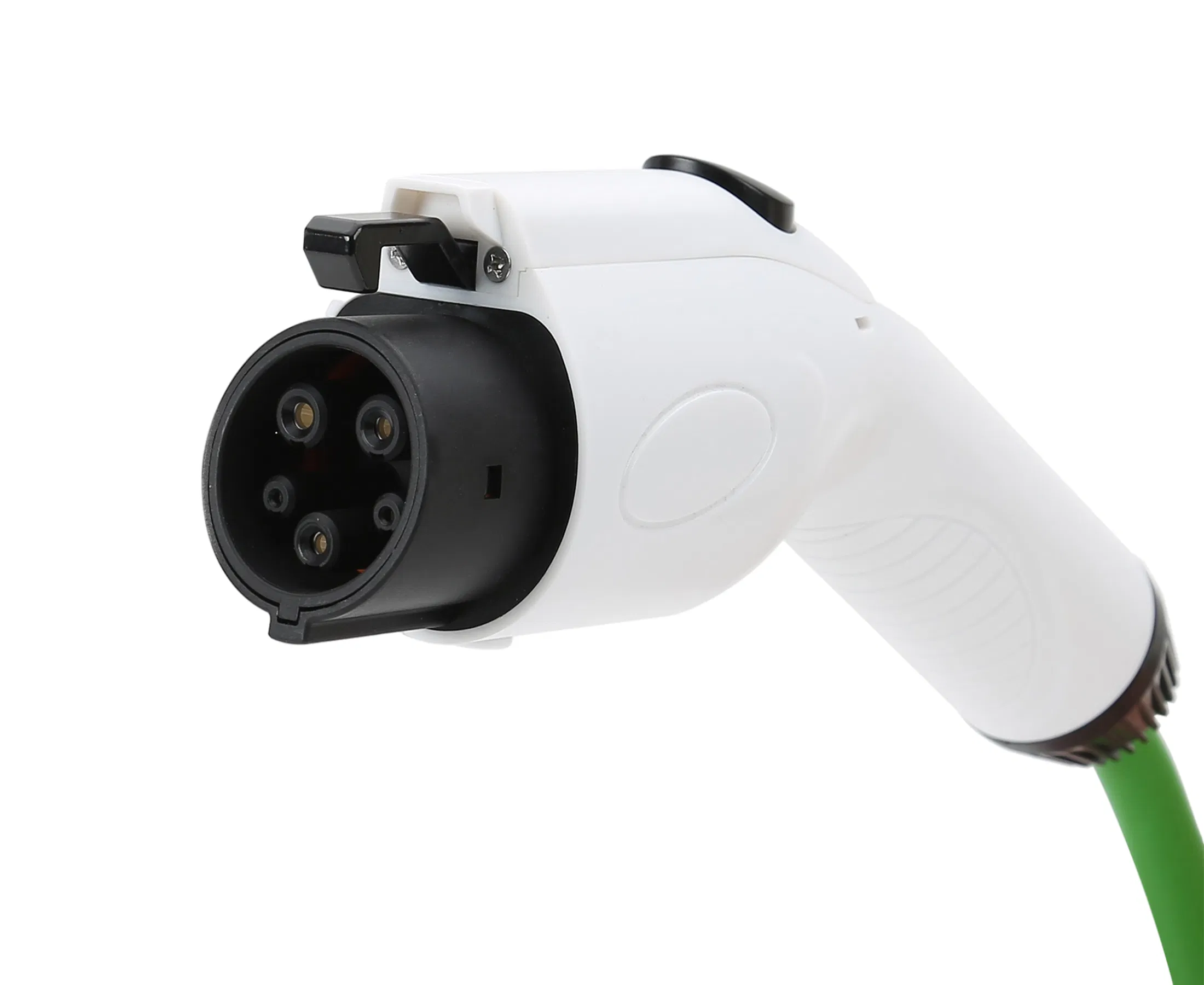

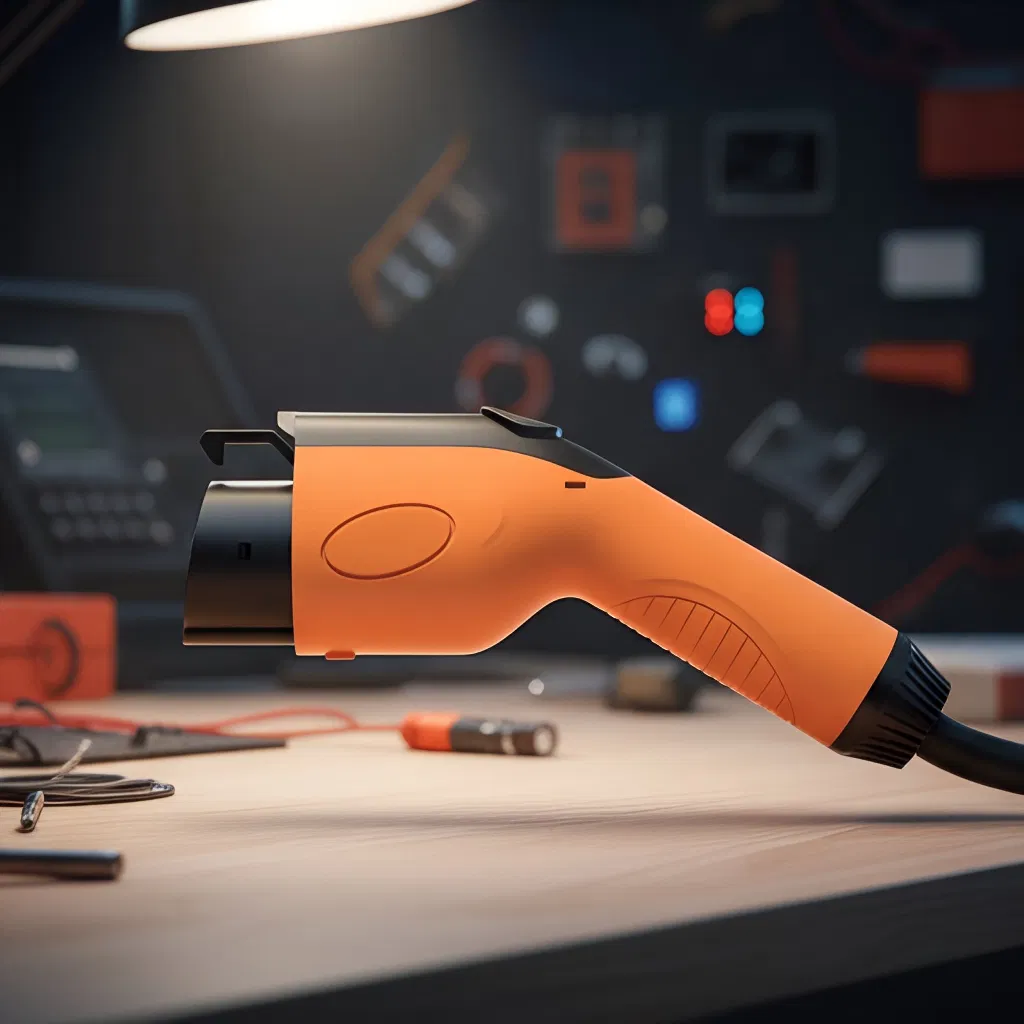

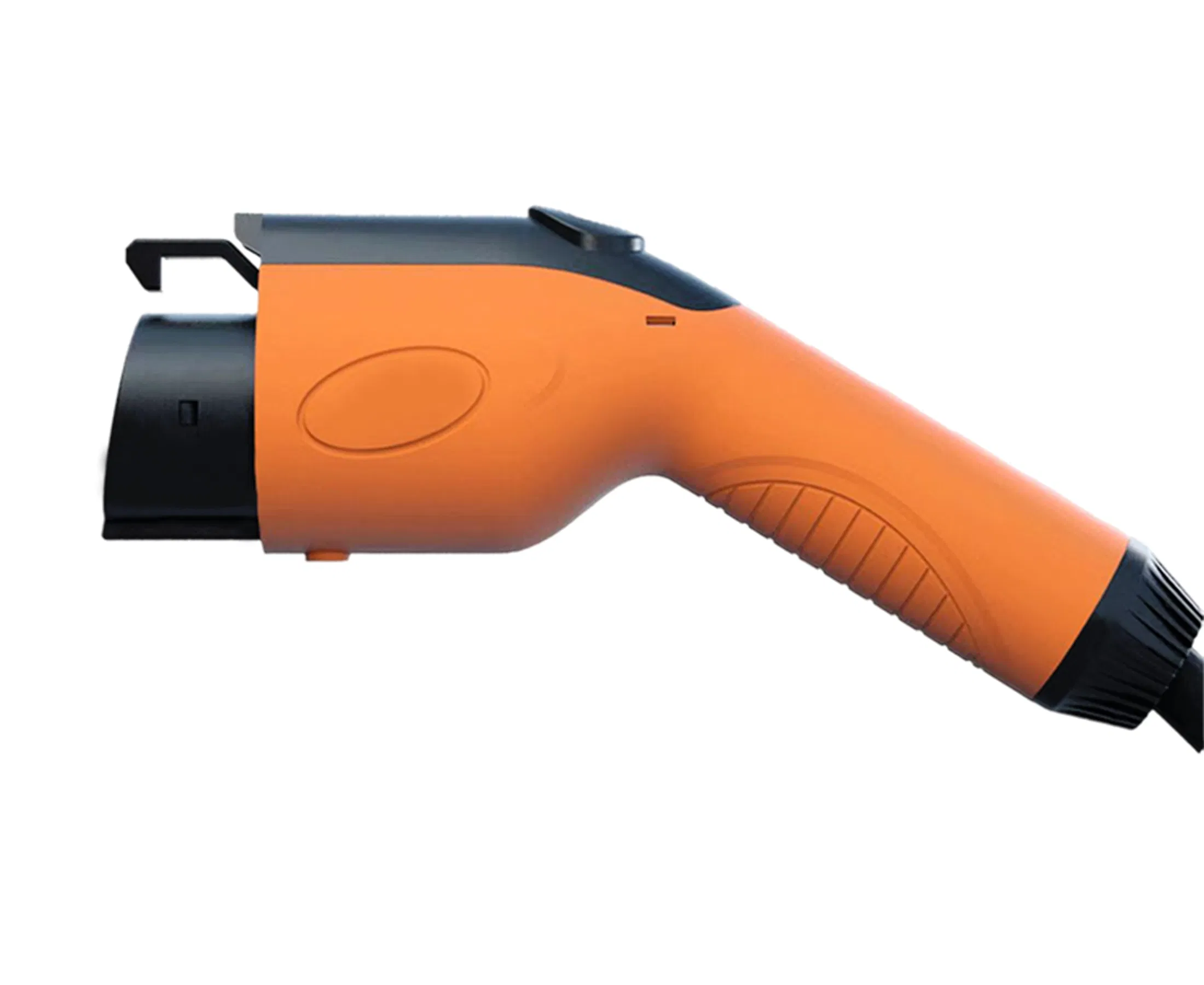

Year Warranty Electric Vehicle Station Type 1 EV Charging Plug
Year Warranty Electric Vehicle Station Type 1 EV Charging Plug
Year Warranty Electric Vehicle Station Type 1 EV Charging Plug
Year Warranty Electric Vehicle Station Type 1 EV Charging Plug
Year Warranty Electric Vehicle Station Type 1 EV Charging Plug
1 / 5
Year Warranty Electric Vehicle Station Type 1 EV Charging Plug
Year Warranty Electric Vehicle Station Type 1 EV Charging Plug
Year Warranty Electric Vehicle Station Type 1 EV Charging Plug
Year Warranty Electric Vehicle Station Type 1 EV Charging Plug
Year Warranty Electric Vehicle Station Type 1 EV Charging Plug

Year Warranty Electric Vehicle Station Type 1 EV Charging Plug

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
T1
Type
Fast EV Charging Station
Certification
CE, TUV
Warranty
1 Year
Specification
16A/32A/40A
Capacity
10000PCS/Month
Origin
China
Package
Woven Bag/Case/Carton Box
★

Product Details

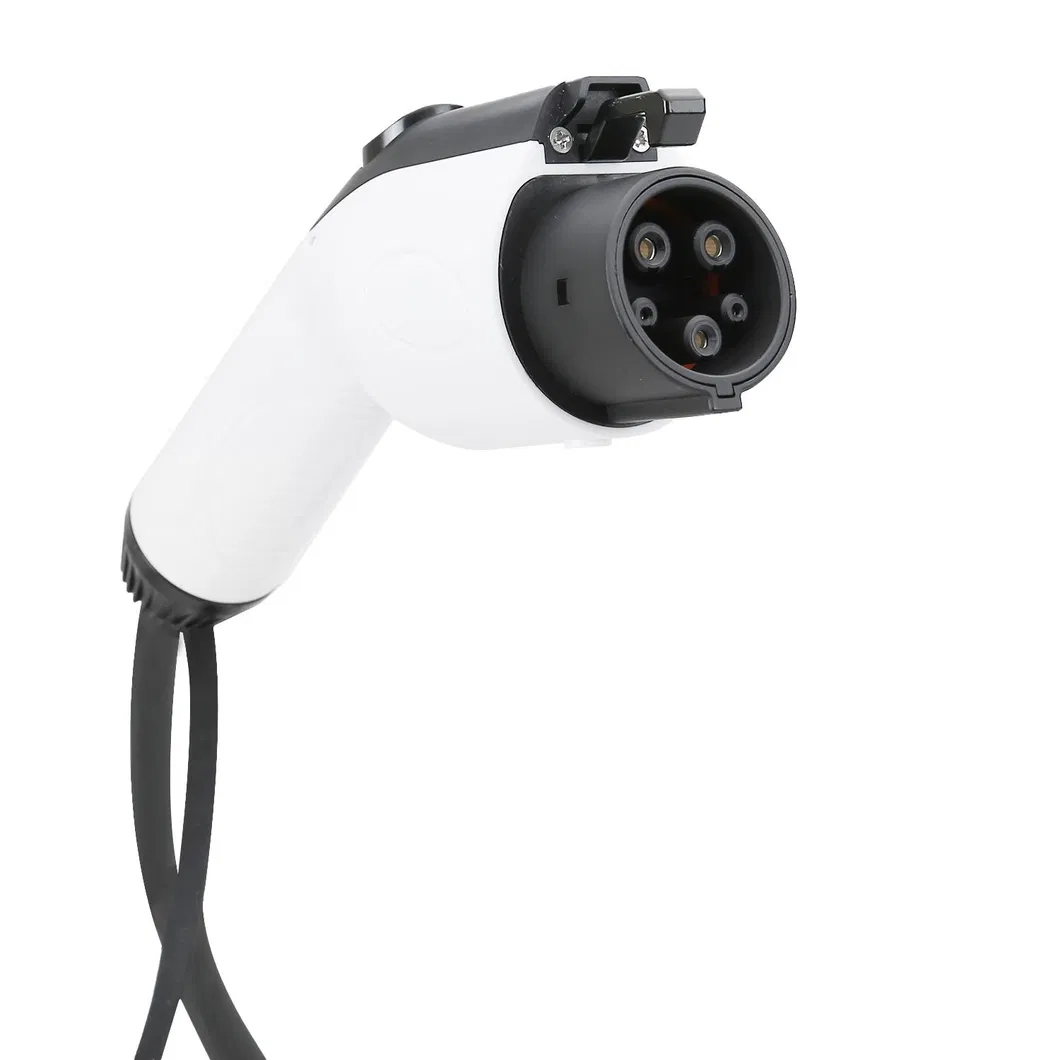

EV Charging Plug
Product Name SAE J1772 Charger plug
Length 5m or customized length
Electrical Performance
Rated current 16A/32A/40A
Operation Voltage 110V/220V
Insulation resistance > 500M Ohm(DC500V)
Terminal temperature rise < 50K
Withstand voltage 2000V
Mechanical & Material
Mechanical life > 10000 times (no-load)
Impact resistance 1M drop support
Operating Temp -30°C to +50°C
Case material Thermoplastic, UL94 V-0 flame retardant
Terminal Copper alloy, silver plating
⚙

Cable Specifications

Rated current Cable specification Options
16A 3*2.5MM²+1*0.75MM² TPU/TPE Shell: Black/White
Cable: Black/White/Orange
32A/40A 3*6MM²+1*0.75MM² TPU/TPE
📷

Product Showcase

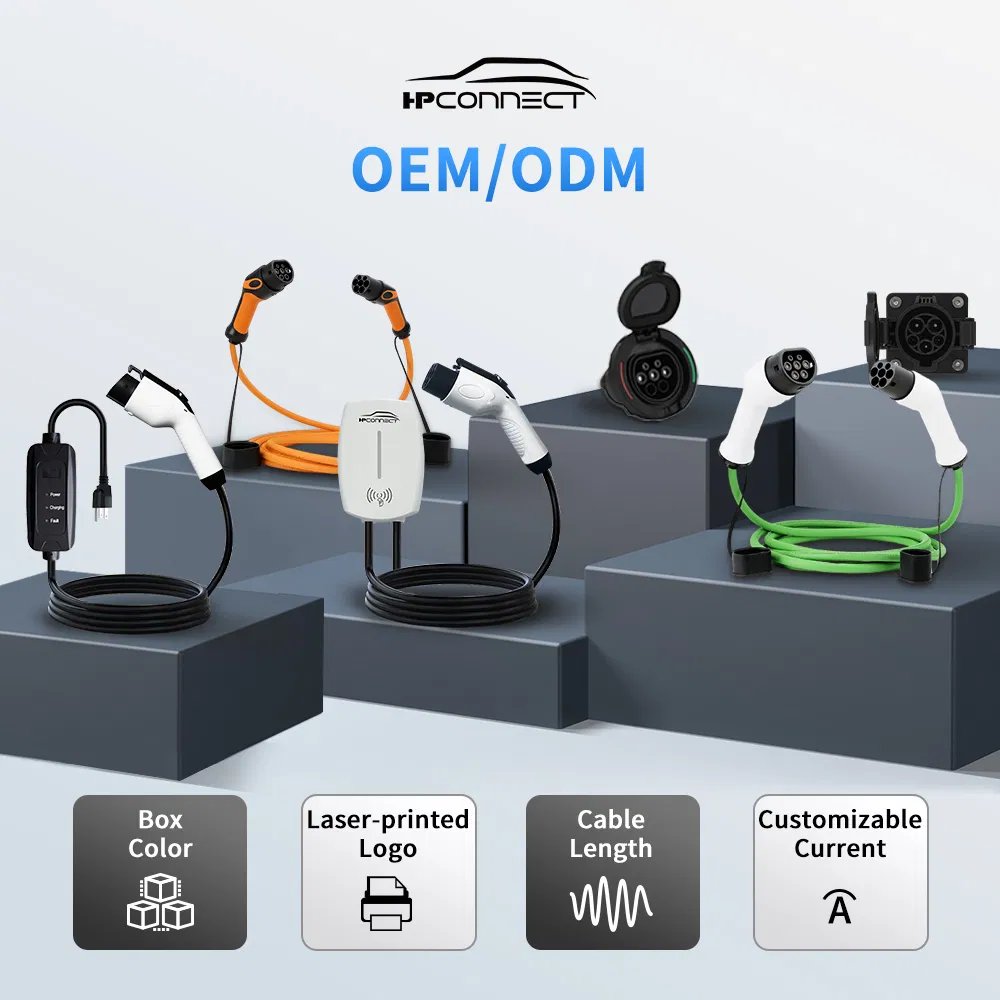

EV Station Detail 1

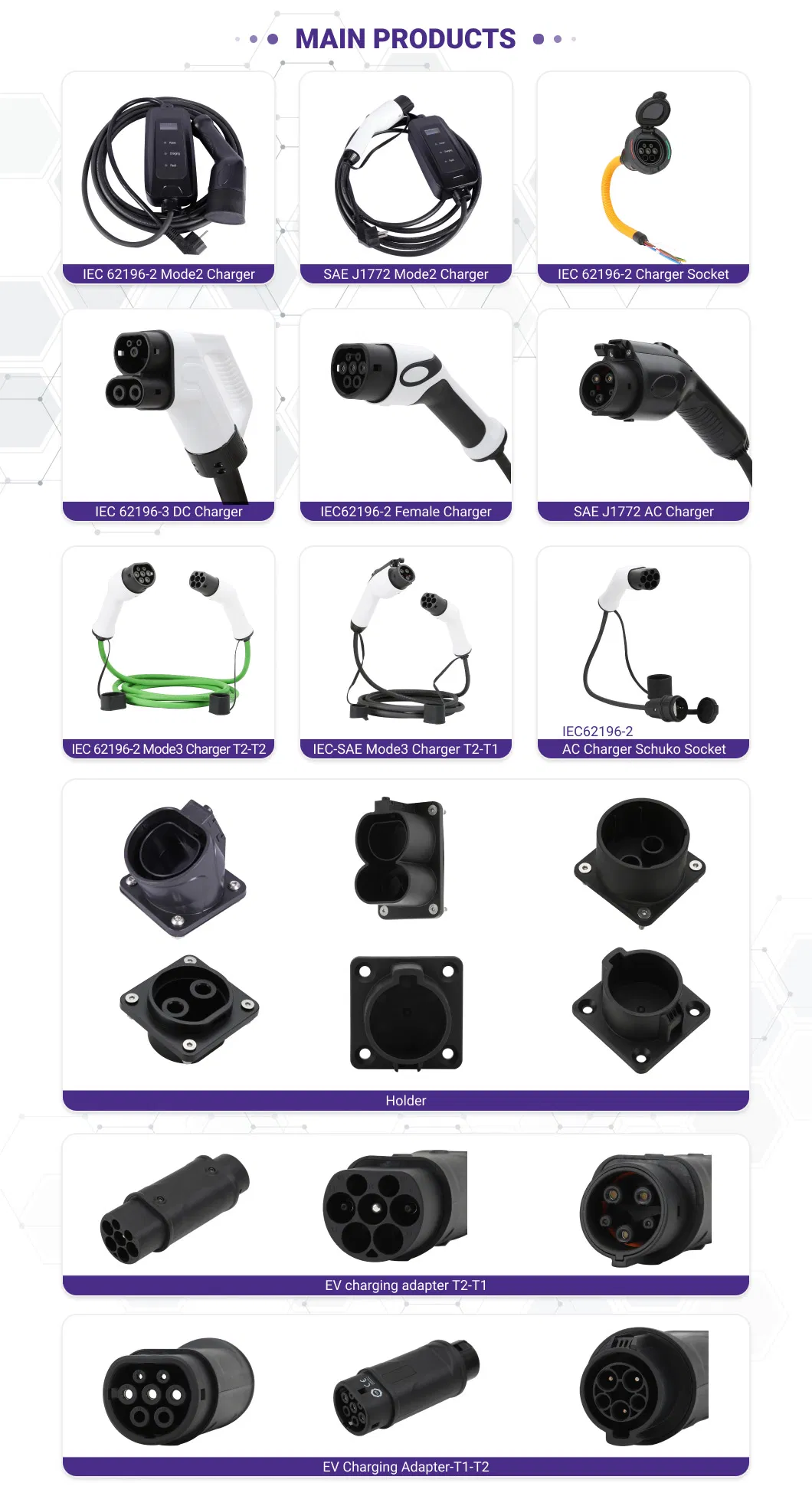

EV Station Detail 2
EV Station Detail 3
EV Station Detail 4

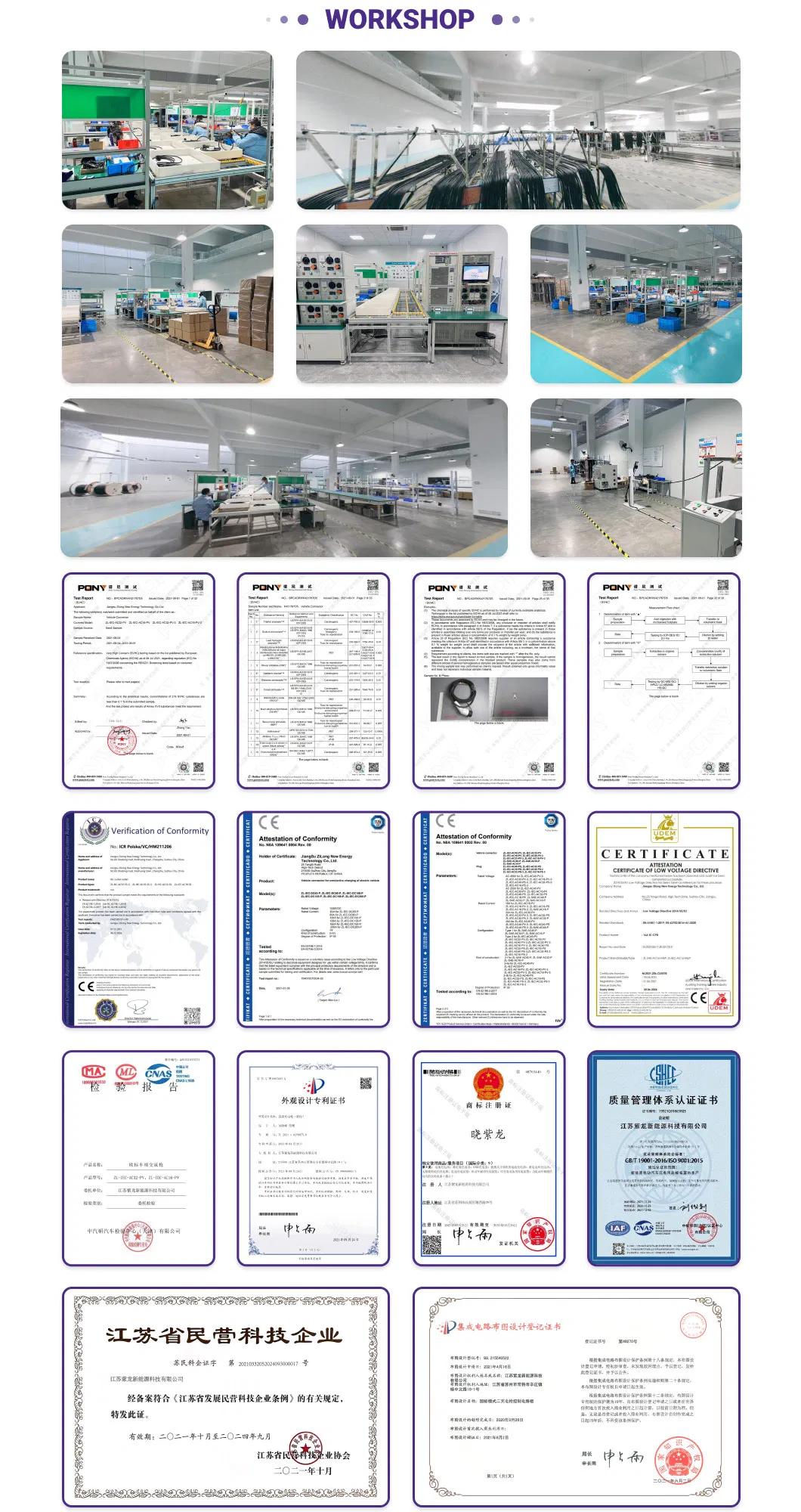

EV Station Detail 5
EV Station Detail 6
EV Station Detail 7
EV Station Detail 8
?

Frequently Asked Questions

Is this charger compatible with all electric vehicles?
This is a Type 1 (SAE J1772) charging plug, which is standard for most American and Asian electric vehicles. Please ensure your vehicle supports Type 1 input.
What is the difference between 16A and 40A options?
The amperage (16A, 32A, or 40A) determines the charging speed. Higher amperage allows for faster energy transfer, provided your vehicle's onboard charger supports it.
Can I customize the cable length?
Yes, while the standard length is 5 meters, we offer customization to meet your specific requirements.
What materials are used for the charging plug?
The plug uses high-quality thermoplastic with a UL94 V-0 flame retardant rating and copper alloy terminals with silver plating for superior conductivity.
Does the product come with certifications?
Yes, our charging plugs are CE and TUV certified, ensuring they meet international safety and quality standards.
What is the operating temperature range?
Our chargers are designed to operate reliably in extreme conditions, ranging from -30°C to +50°C.
