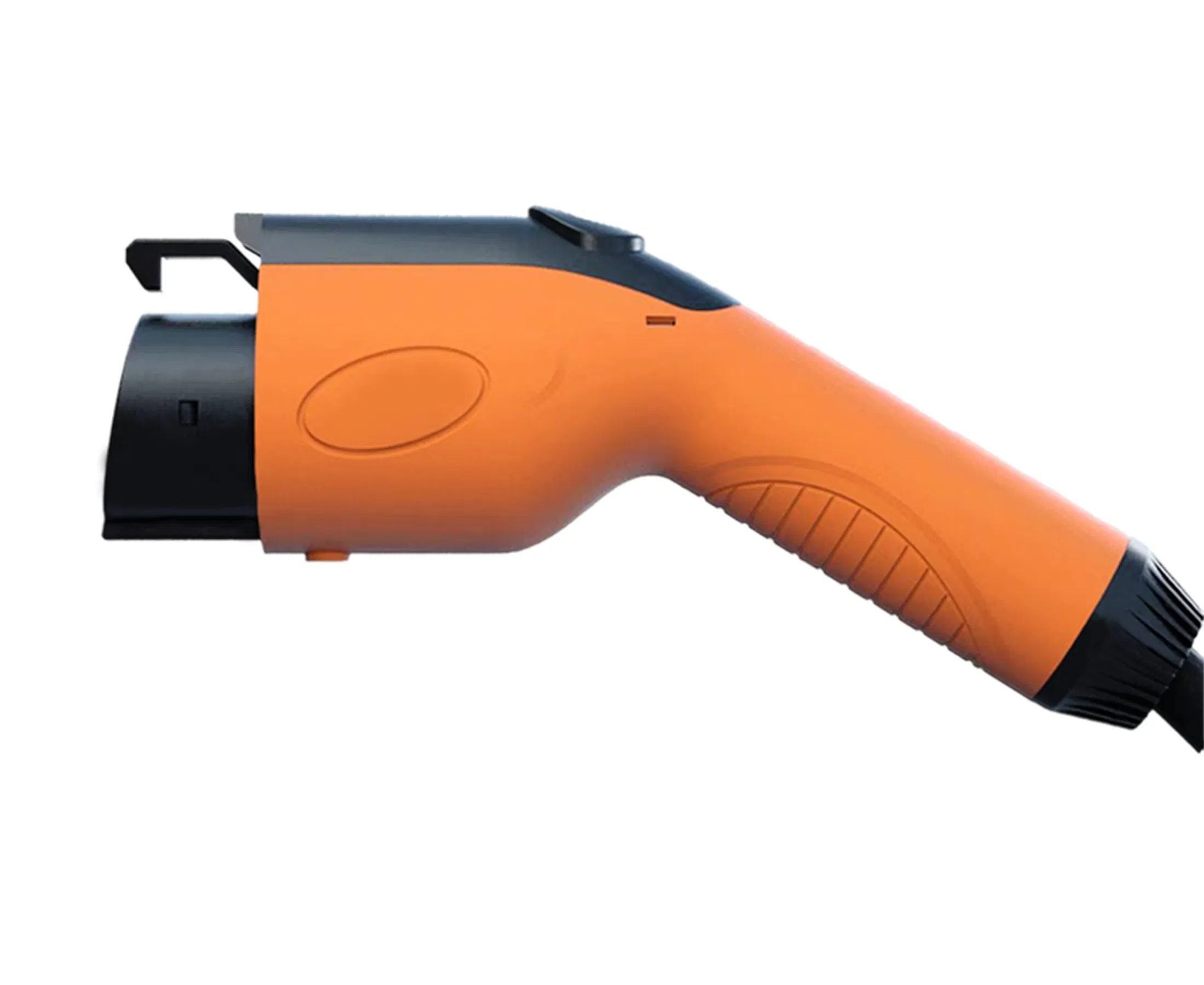

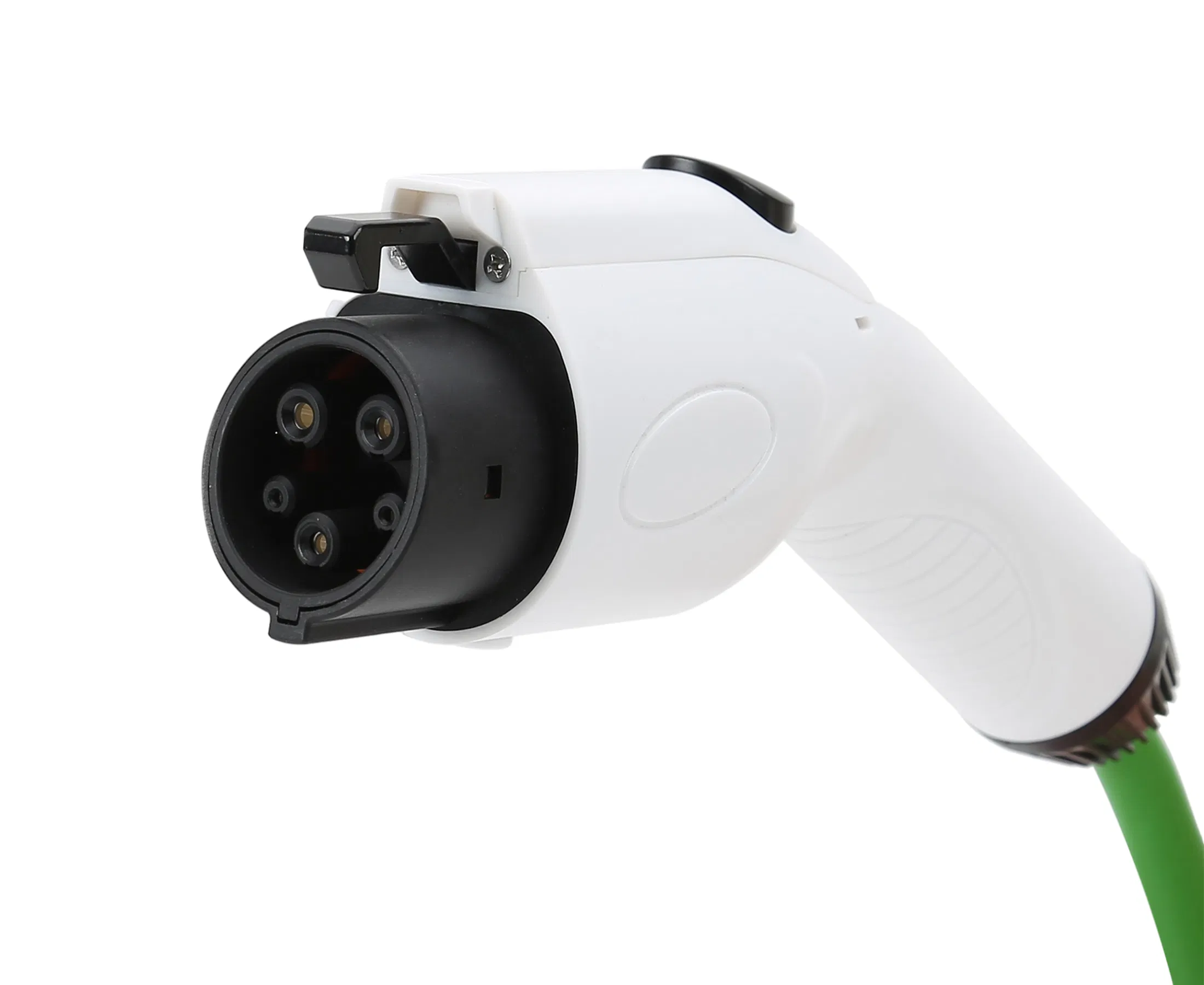

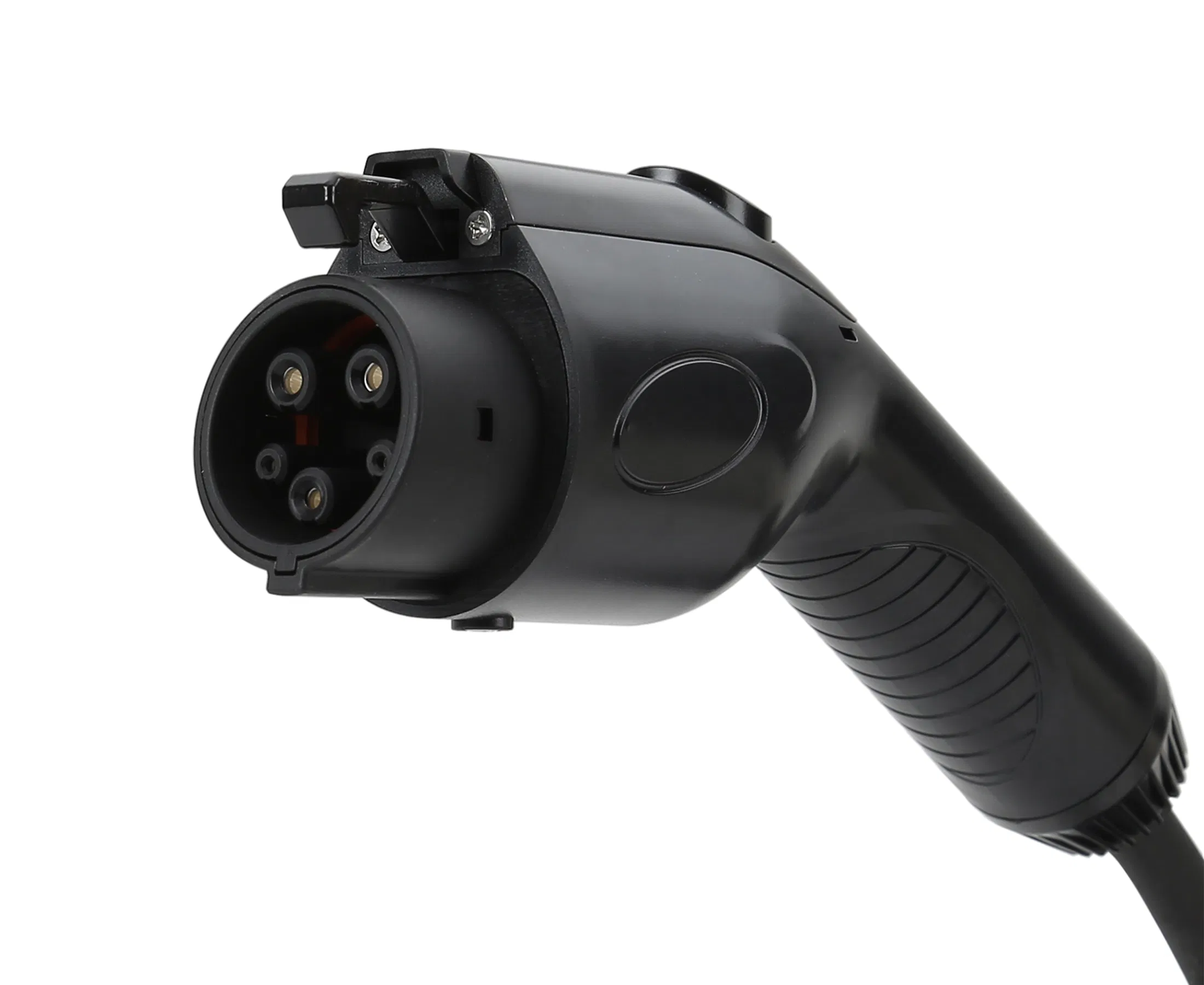

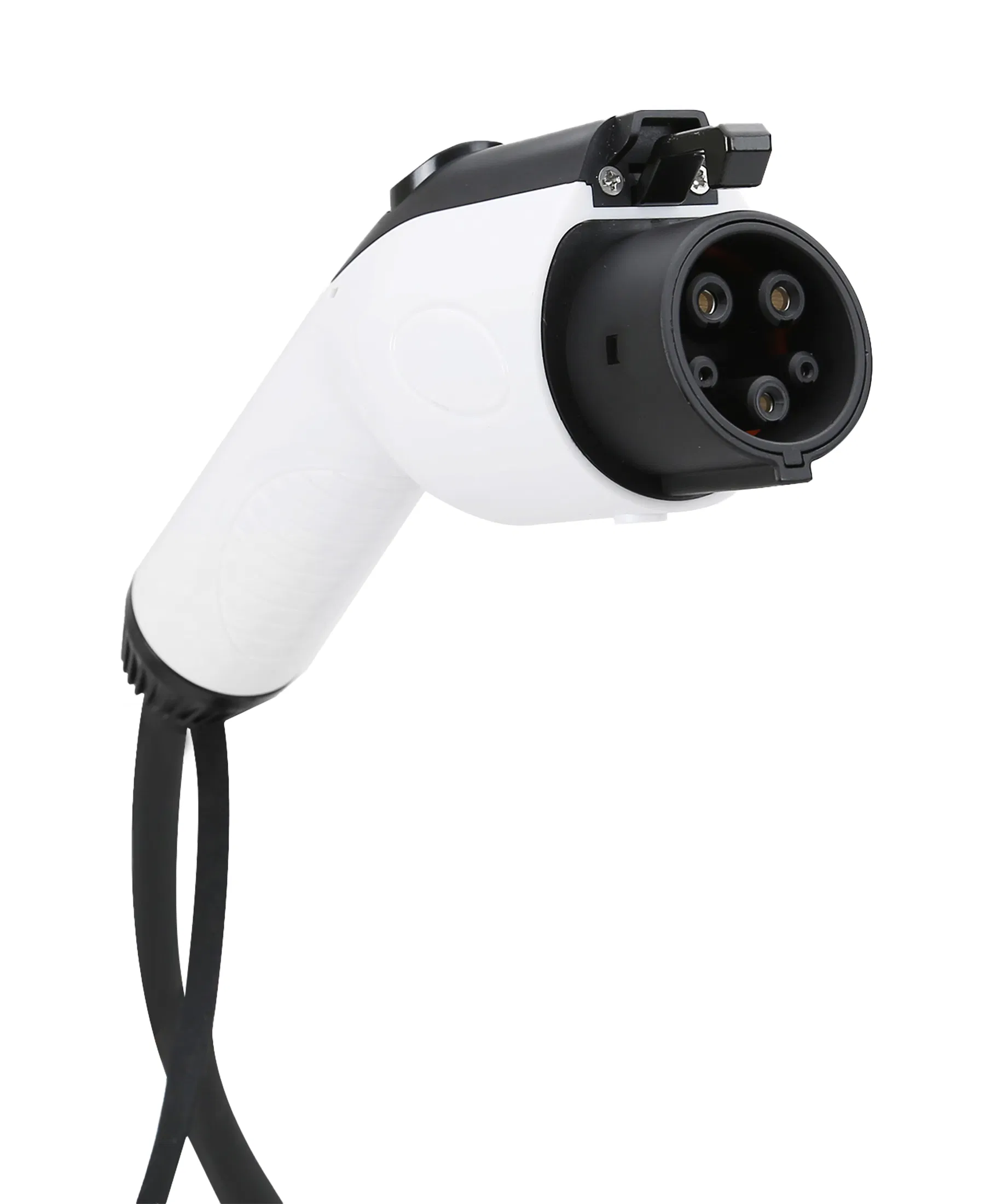

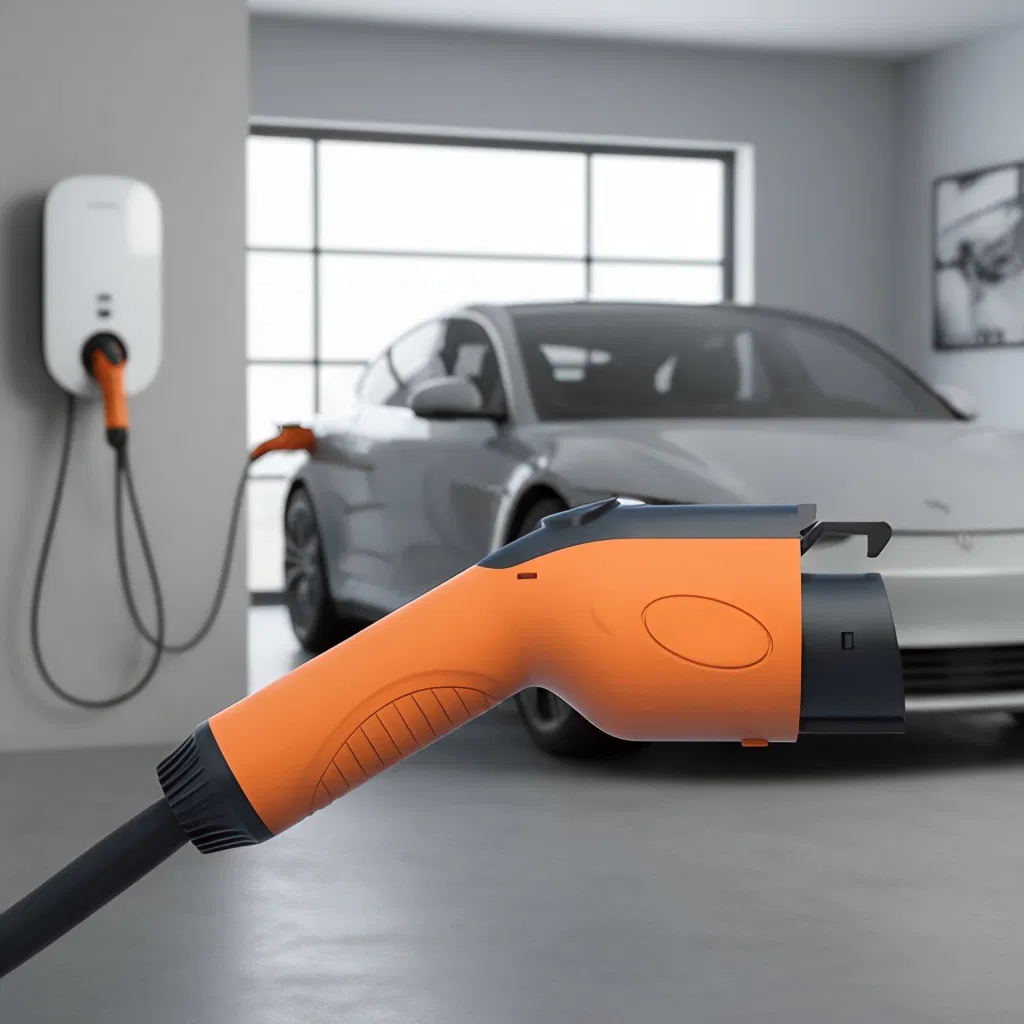

Fast Charging Station TUV Approved Hpconnect/OEM Type 1 EV Charger Plug
Fast Charging Station TUV Approved Hpconnect/OEM Type 1 EV Charger Plug
Fast Charging Station TUV Approved Hpconnect/OEM Type 1 EV Charger Plug
Fast Charging Station TUV Approved Hpconnect/OEM Type 1 EV Charger Plug
Fast Charging Station TUV Approved Hpconnect/OEM Type 1 EV Charger Plug
1 / 5
Fast Charging Station TUV Approved Hpconnect/OEM Type 1 EV Charger Plug
Fast Charging Station TUV Approved Hpconnect/OEM Type 1 EV Charger Plug
Fast Charging Station TUV Approved Hpconnect/OEM Type 1 EV Charger Plug
Fast Charging Station TUV Approved Hpconnect/OEM Type 1 EV Charger Plug
Fast Charging Station TUV Approved Hpconnect/OEM Type 1 EV Charger Plug

Fast Charging Station TUV Approved Hpconnect/OEM Type 1 EV Charger Plug

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.T1
Service1 Year Warranty
TypeFast EV Charging Station
CertificationCE, TUV
Warranty1 Year Warranty
Transport PackageWoven Bag/Case/Carton Box
Specification16A/32A/40A
TrademarkOEM
OriginChina
Capacity10000PCS/Month
⚡

Product Description

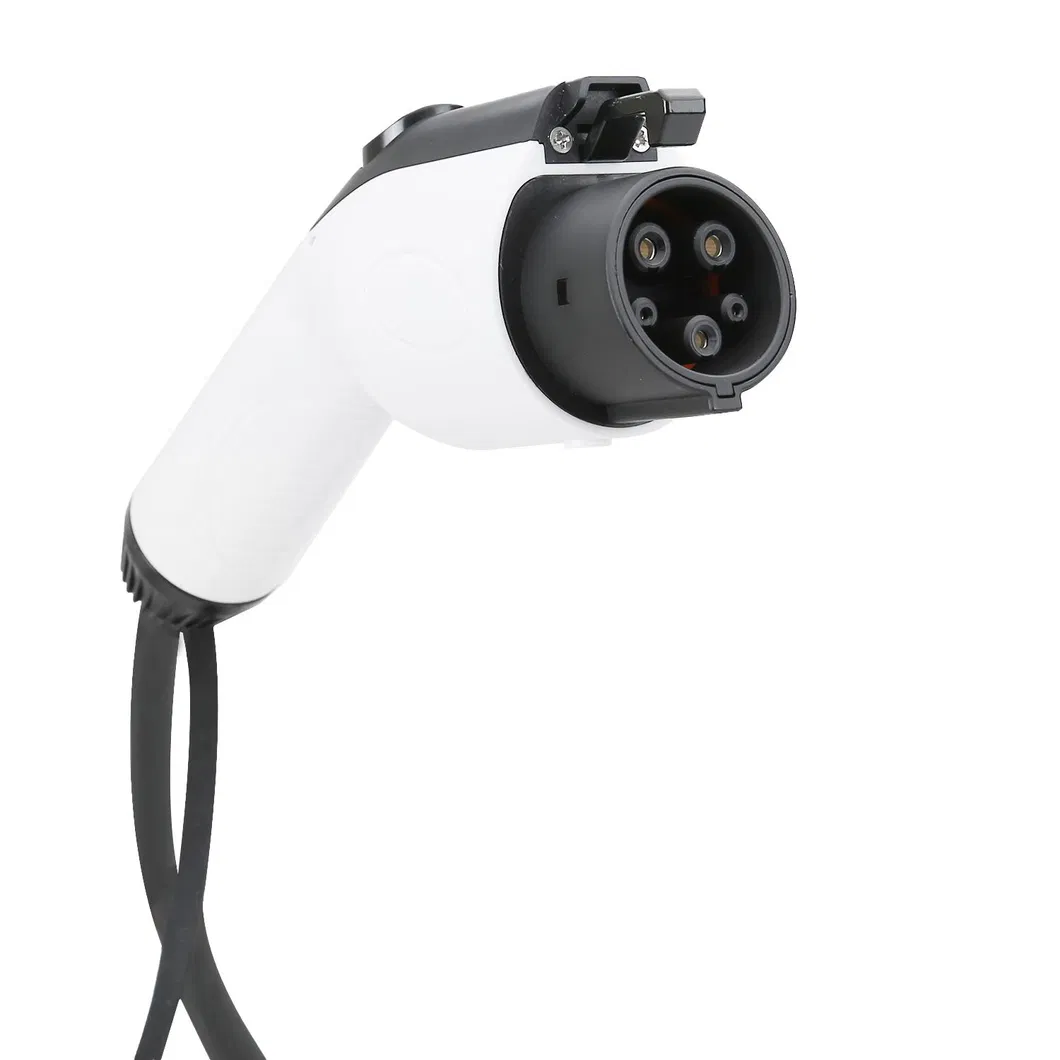

Fast Charging Station Type 1 EV Charger Plug
Technical Parameters
Product NameSAE J1772 Charger plug
Length5m or customized length
Electrical Performance
Rated current16A/32A/40A
Operation Voltage110V/220V
Insulation resistancemore than 500M Ohm(DC500V)
Contact resistance0.5m Ohm max
Withstand voltage2000V
Mechanical & Environmental
Mechanical lifeno-load plug in/out > 10000 times
Operating Temperature-30°C ~ +50°C
Case materialThermoplastic, flame retardant UL94 V-0
TerminalCopper alloy, silver plating
📏

Cable Specifications

Rated Current Cable Specification Remarks
16A 3*2.5MM²+1*0.75MM² TPU Shell color: black/white optional;
Cable color: Black/white/orange optional
32A/40A 3*6MM²+1*0.75MM² TPU

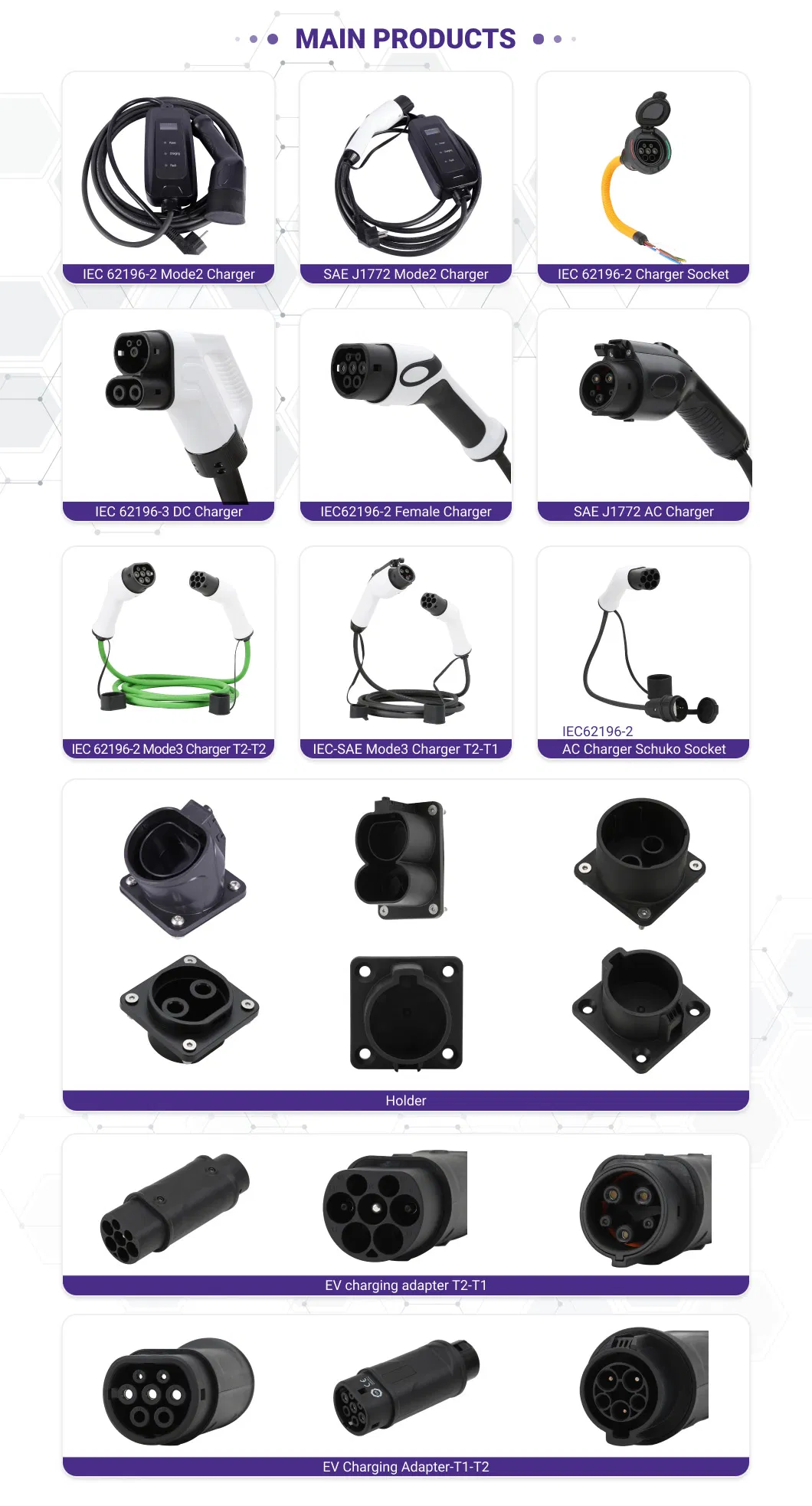

EV Charger Detail 1 EV Charger Detail 2 EV Charger Detail 3

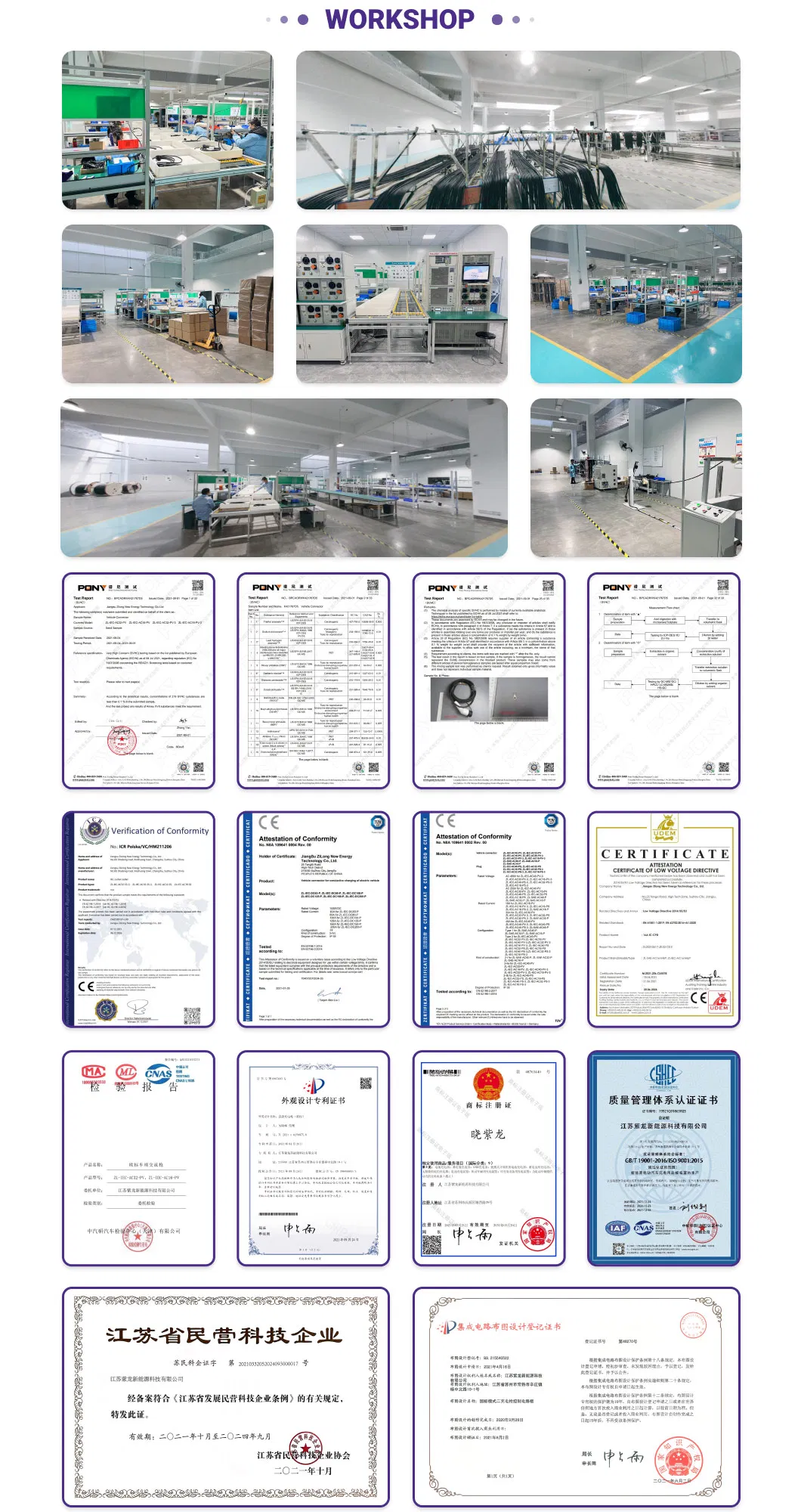

EV Charger Detail 4 EV Charger Detail 5 EV Charger Detail 6
EV Charger Detail 7 EV Charger Detail 8
❓

Frequently Asked Questions

What is the standard of this EV charging plug?
This is a SAE J1772 standard Type 1 charger plug, suitable for North American and compatible international electric vehicles.
What current options are available for this model?
We provide 16A, 32A, and 40A options to meet different charging speed requirements.
Is the cable length customizable?
Yes, while the standard length is 5 meters, we can provide customized lengths based on your specific needs.
Can this charger withstand extreme weather conditions?
Yes, it has an operating temperature range of -30°C to +50°C and is built with high-quality flame retardant materials.
What certifications does the product have?
Our T1 model is fully certified with CE and TUV, ensuring high safety and quality standards.
What is the durability of the plug?
The plug is designed for longevity with a mechanical life of over 10,000 no-load plug-in/out cycles.
