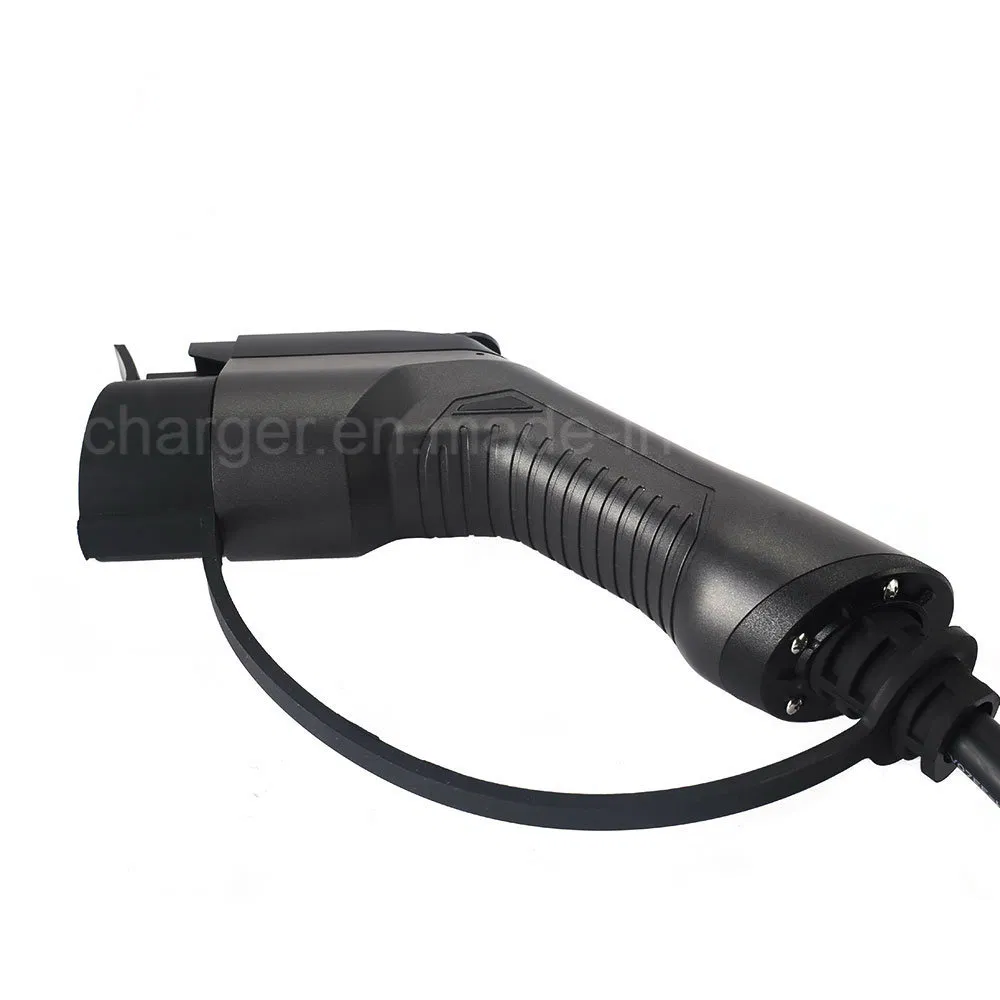

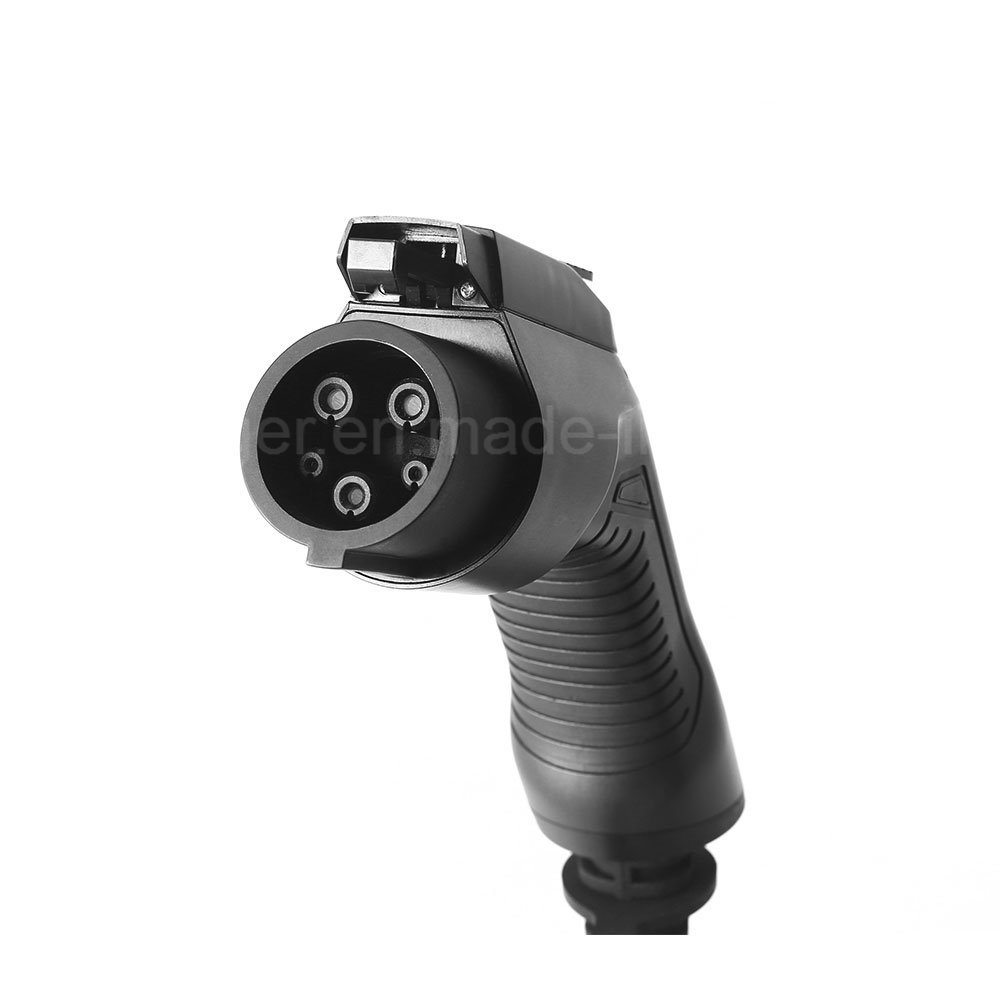

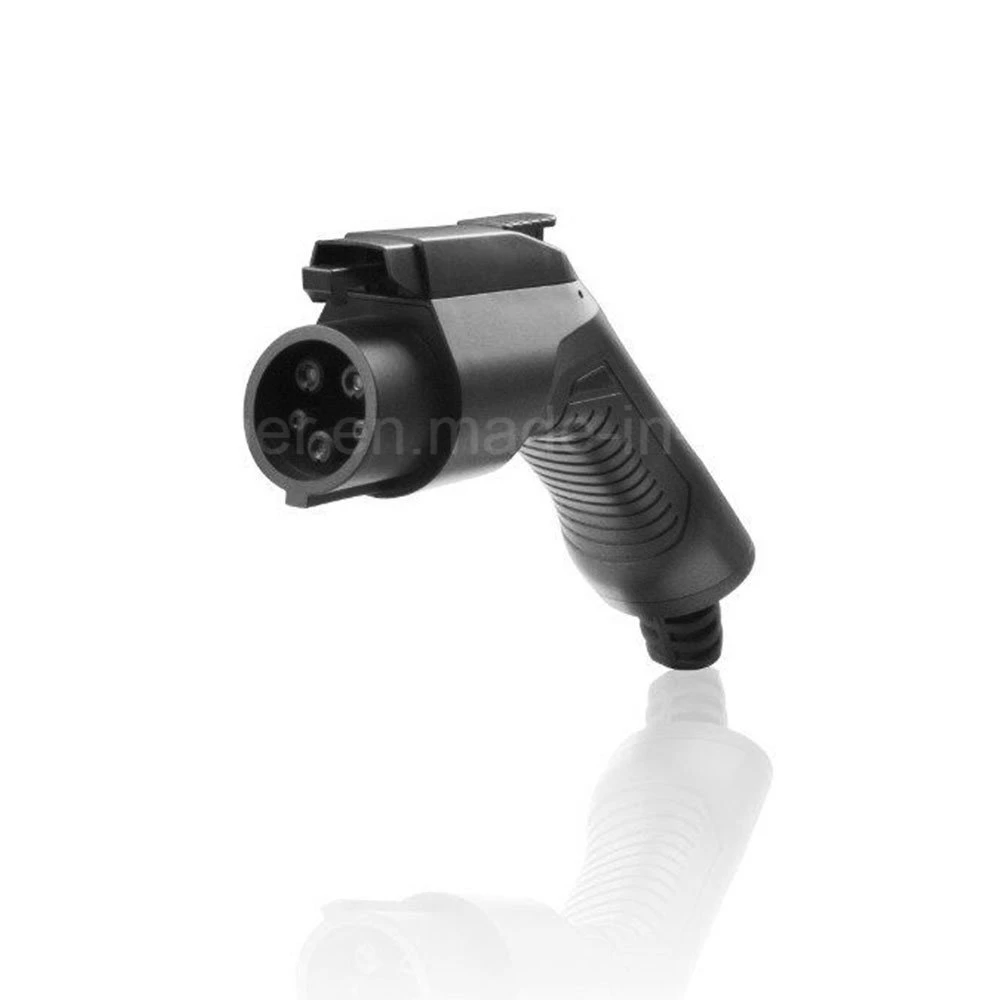

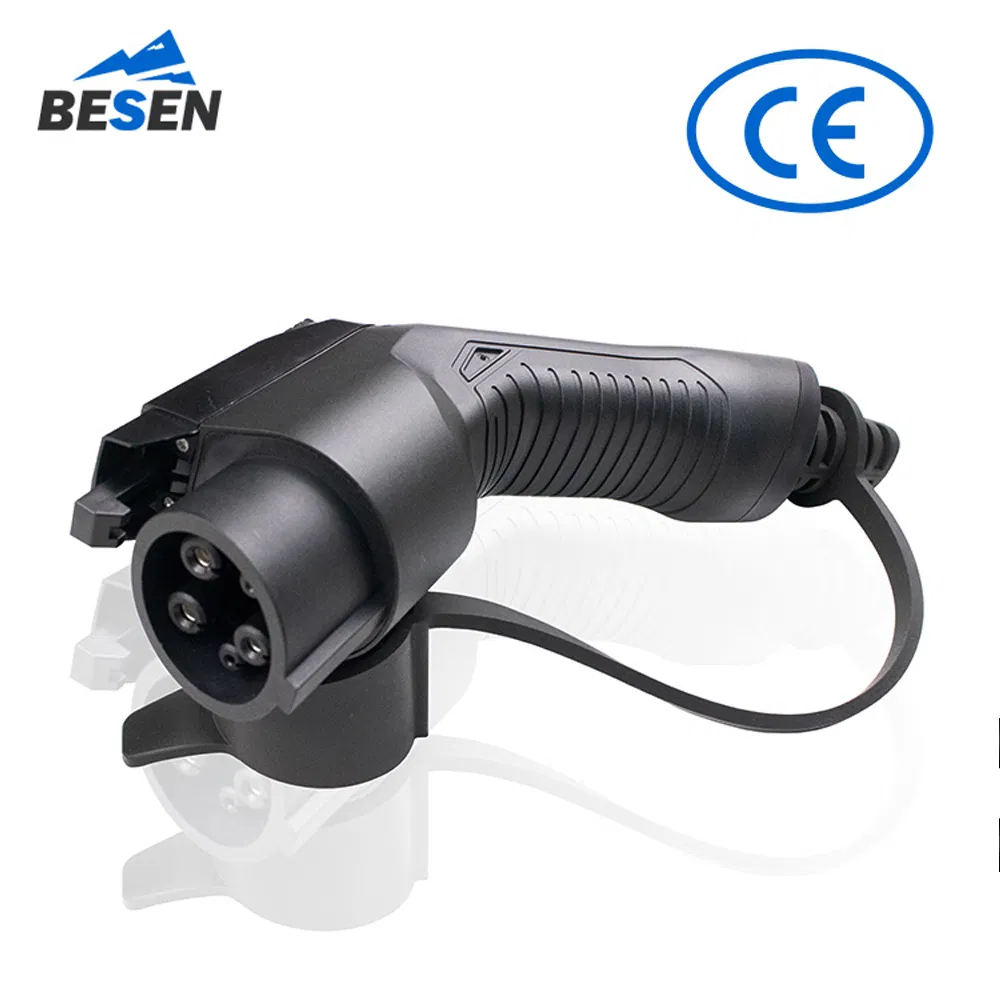

SAE J1772 Type 1 32A EV Electric Charger EV Charging Socket Plug

1 / 5

SAE J1772 Type 1 32A EV Electric Charger EV Charging Socket Plug

Customization:	Available
Grounding:	Isolated Ground
Rated Current:	32A

Send Inquiry

Product Description

Basic Information

Model NO.

BS-EVP001-L (32A)

IP Grade

IP 66

Operating Voltage

250V

Withstand Voltage

2000V

Standard

American Standard

Function

AC Plug, Charger Plug

Certification

CCC

Interface Type

AC/DC

Shape

AC 32A

Application

Industrial

Transport Package

Carton

Specification

J1772

Origin

China

HS Code

8536690000

Production Capacity

10000/Month

Packaging & Delivery

Package Size

30.00cm * 18.00cm * 15.00cm

Gross Weight

5.000kg

Lead Time

45 days (1 - 1000 Pieces) / To be negotiated (> 1000 Pieces)

Product Description

Rated Current	SAE J1772/Type 1 (16A/32A/40A/48A/50A)
Rated Current Phase	1 Phase
Operate Voltage	AC 220V ± 10 %
Mechanical life	No-load plug in /out > 20000 times
Insulation Resistance	> 1000M Ω (DC500V)
Terminal Temperature Rise	< 50K
Withstand Voltage	2000V
Contact Impedance	0.5m Ω Max
UV Resistant	Yes
Coupled Insertion Force	45N < 100n
Working Temperature	-30ºC to +50ºC
Plug Material	PC+nylon alloy, flame retardant grade UL94 V-O

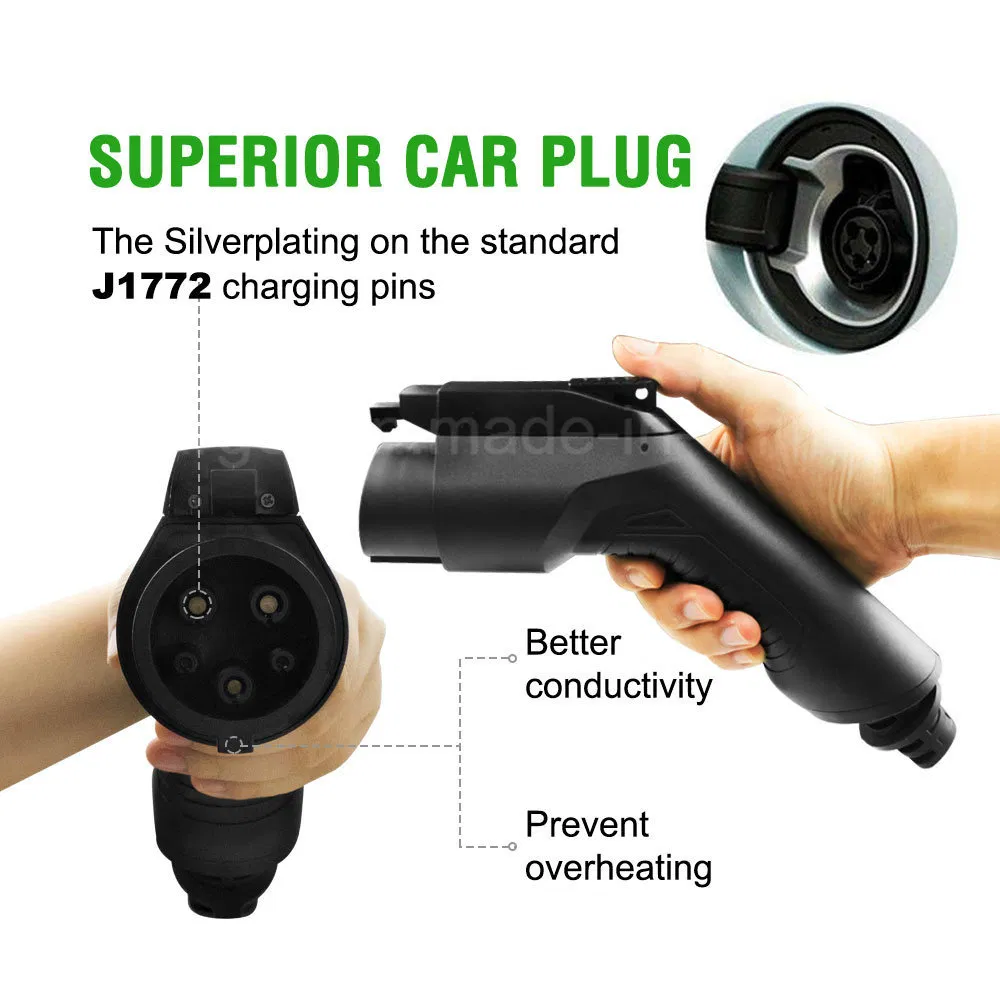

Terminal	Copper alloy, silver plating
Sealing Gasket	Rubber or silicon rubber
Impact of External Force	Withstand 1M height drop and 2T-vehicle rolling
Customization	Wire length, diameter, color, laser logo, etc.

Frequently Asked Questions

What is the waterproof rating of this EV charging plug?

The plug features an IP66 rating, which provides superior protection against dust and powerful water jets, making it suitable for various industrial and outdoor environments.

Is the plug compatible with North American electric vehicles?

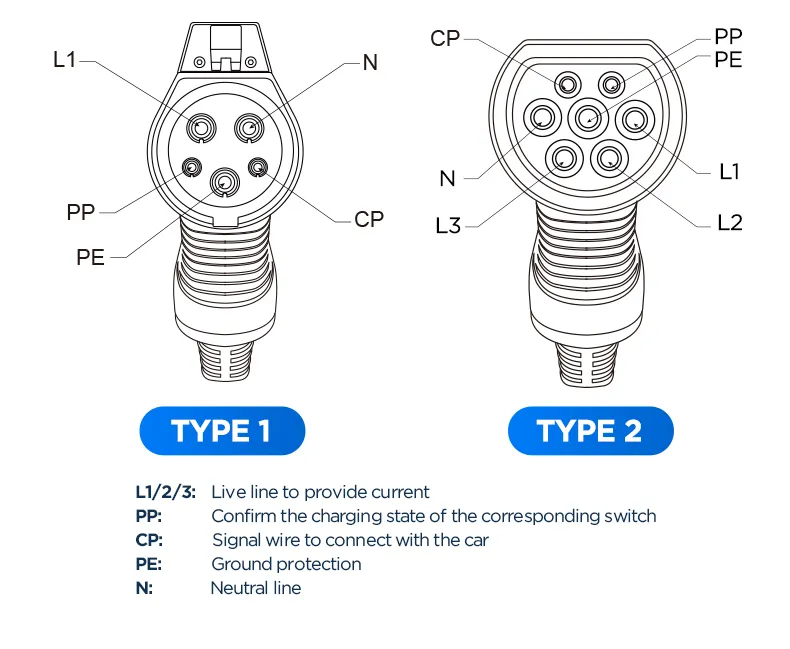

Yes, it adheres to the SAE J1772 (Type 1) American Standard, which is the standard for electric vehicle conductive charge couplers in North America.

What is the mechanical durability of the connector?

The connector is designed for long-term use, with a mechanical life of over 20,000 no-load plug-in and plug-out cycles.

How does the plug perform under extreme physical stress?

It is built to be highly rugged, capable of withstanding a 1-meter drop and the pressure of a 2-ton vehicle rolling over it without losing functionality.

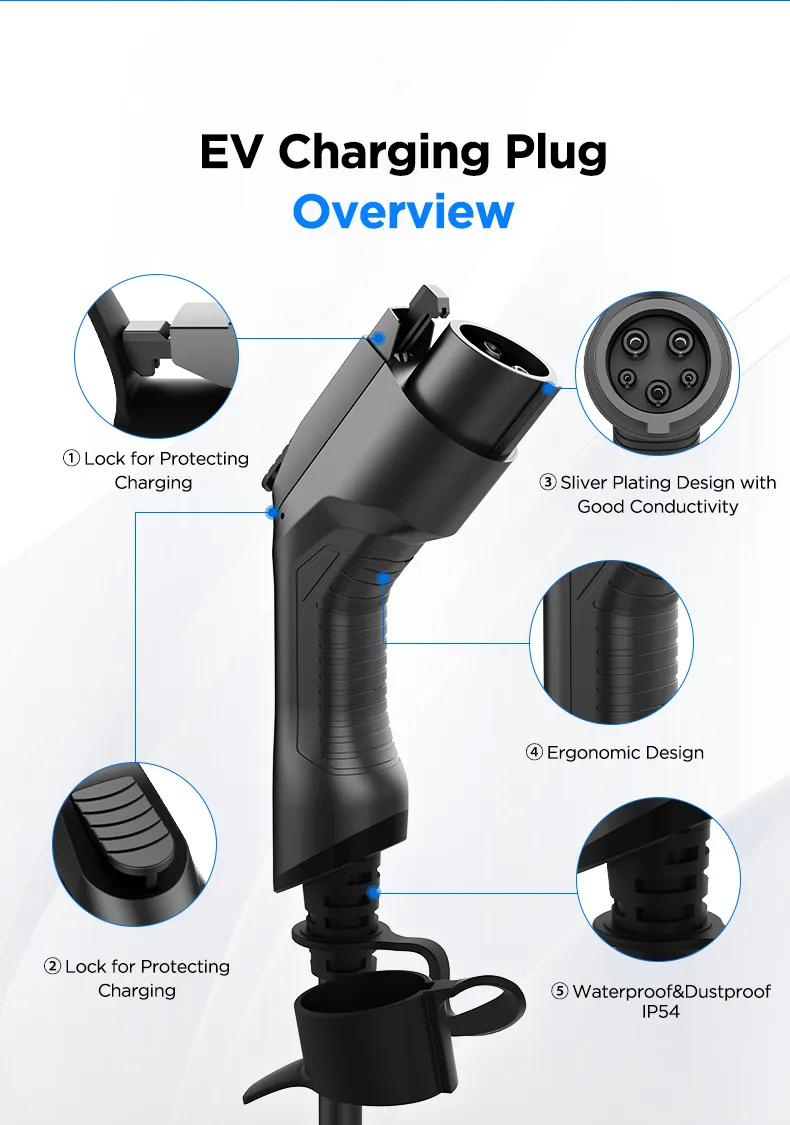

What materials are used in the construction of the plug?

The shell is made from PC+nylon alloy with a UL94 V-0 flame-retardant grade. The terminals are constructed from copper alloy with high-quality silver plating for optimal conductivity.

Can I request customization for the charging cable?

Yes, customization options are available for wire length, wire diameter, color, and laser-printed logos to meet specific project requirements.
