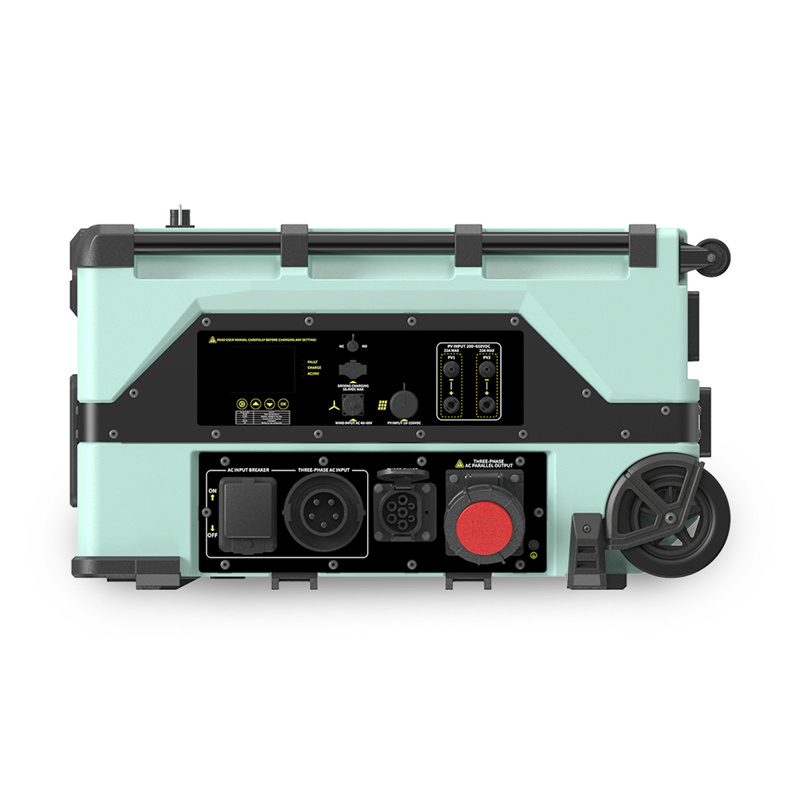

Smart Power Hybrid Solar off Grid All in One Solar Power System

Customization:	Available
Weight:	100kg
Warranty:	5 Years

Basic Information

ModelEP12000iL

Cycle Life3000 Cycles

Nominal Capacity7680Wh

Charging ModesAC, Solar, EV, Wind, DC

CertificatesCE, RoHS, IEC62619, UN38.8

InverterBi-Directional

Three-PhaseSupported

APP FunctionSmart Control

PortabilityDrawbar & Wheels

Product Advantages

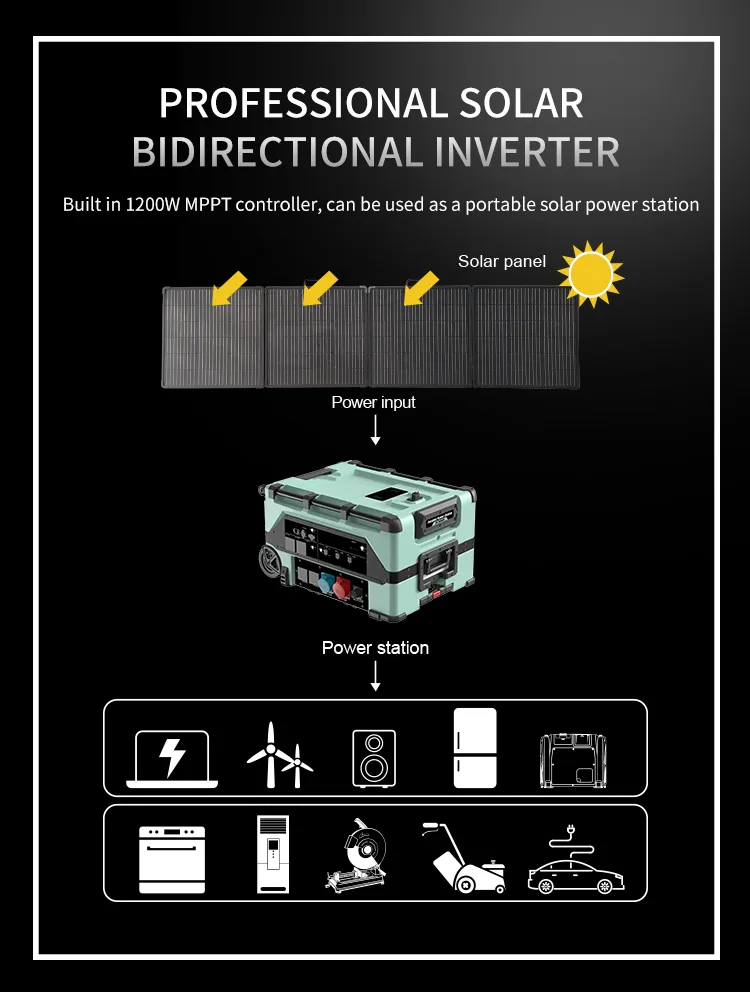

Built-in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, supporting 12kW output and 8.5kW charging.
Supports continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.
Multiple fast charging: Utility, high/low-voltage solar, EV charger, AC generator, and wind turbine.

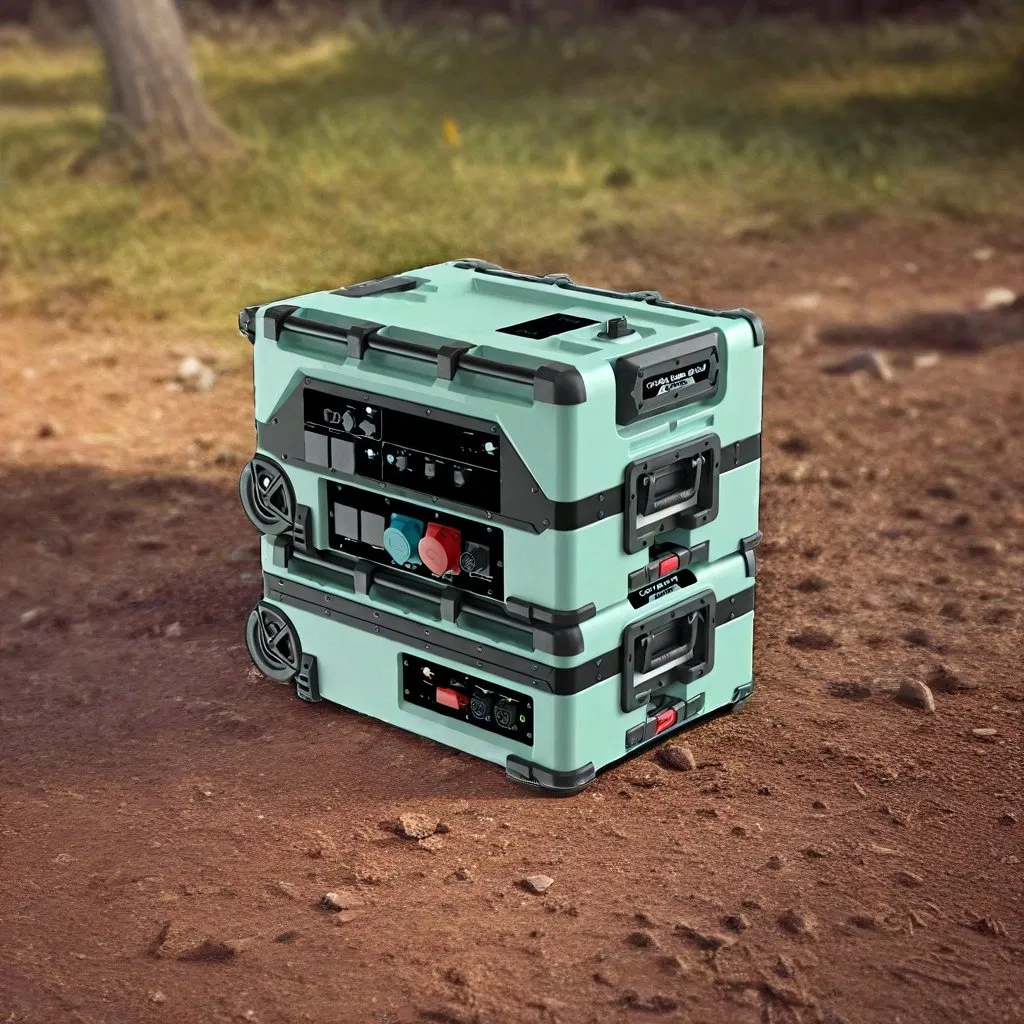

Expandable capacity up to 245kWh by connecting up to 31 extra batteries.

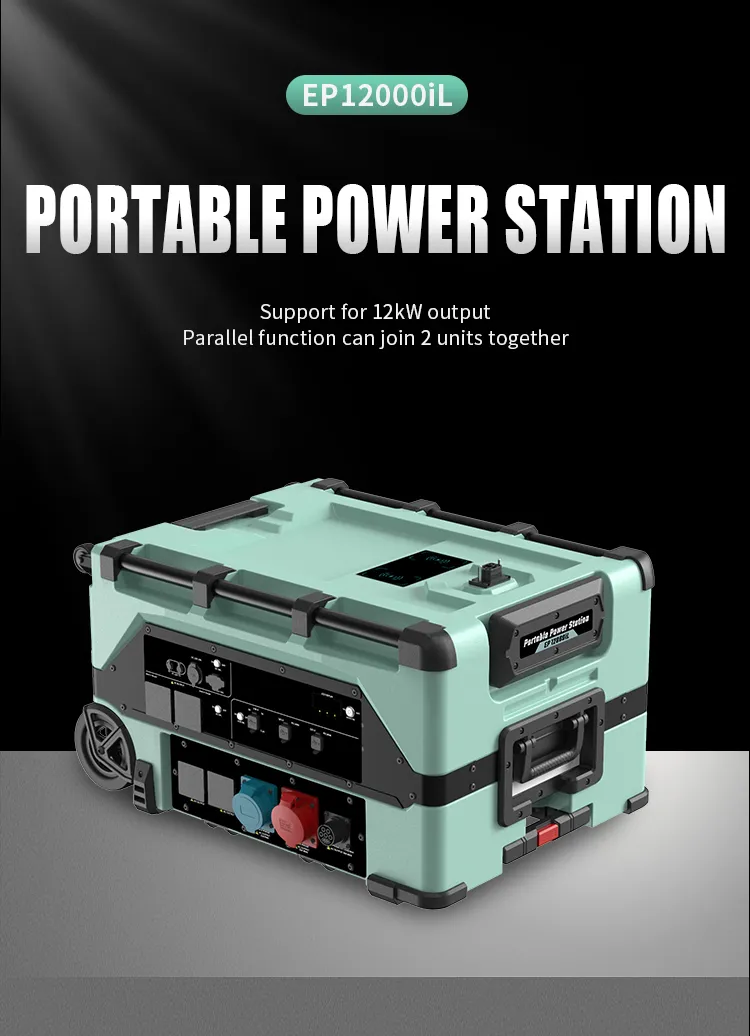

Patented parallel technology allows joining 2 units for 24kW continuous output.
Built-in EV charger, capable of charging vehicles at up to 22kW.
Rugged design with IP53 unit protection and IP66 battery pack protection.

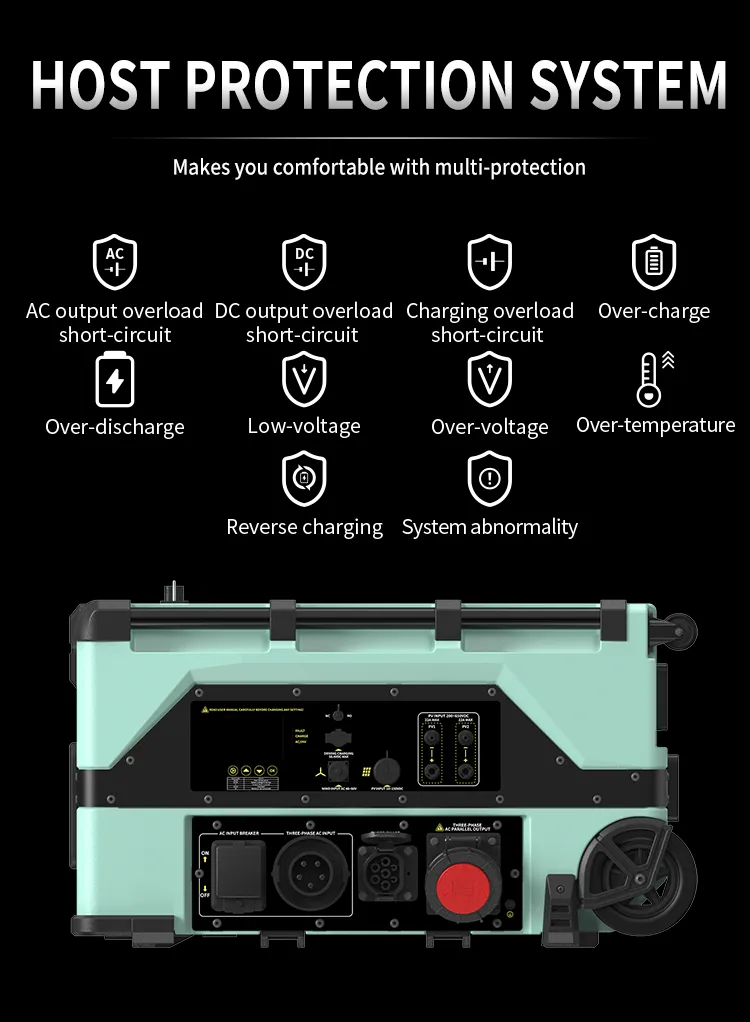

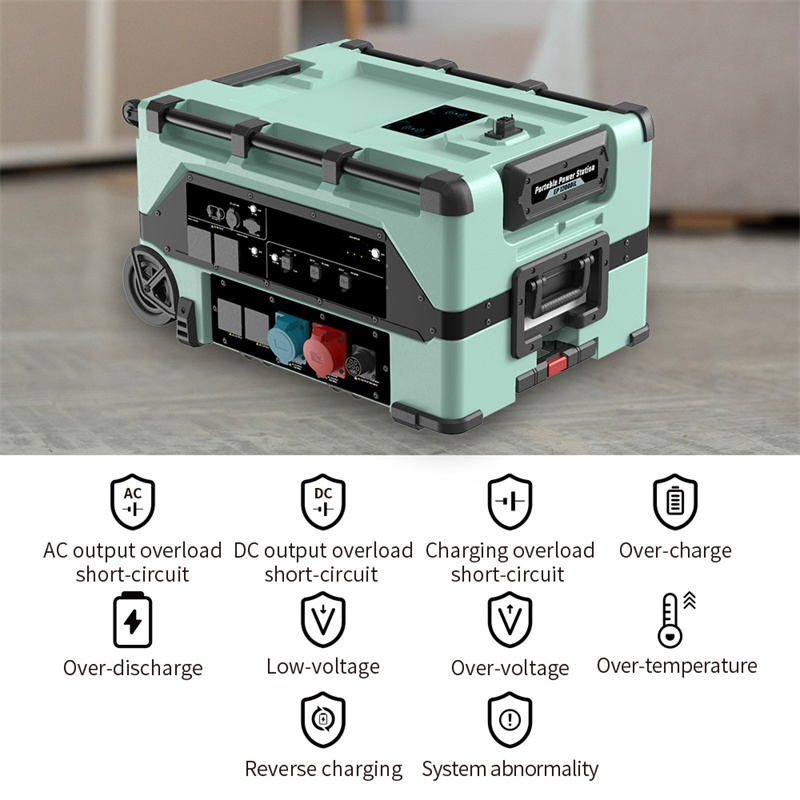

Advanced safety: V-0 level flame-retardant casing and intelligent APP monitoring.

Product Parameters

Output Specifications		Rating / Range
AC Output Power	Three-phase	12000VA (220~415V)
	Single-phase	11000VA (220~240V)
	Split-phase	10000VA (100~240V)
Peak Power		Up to 24000VA
Output Waveform		Pure Sine Wave (THD < 3%)

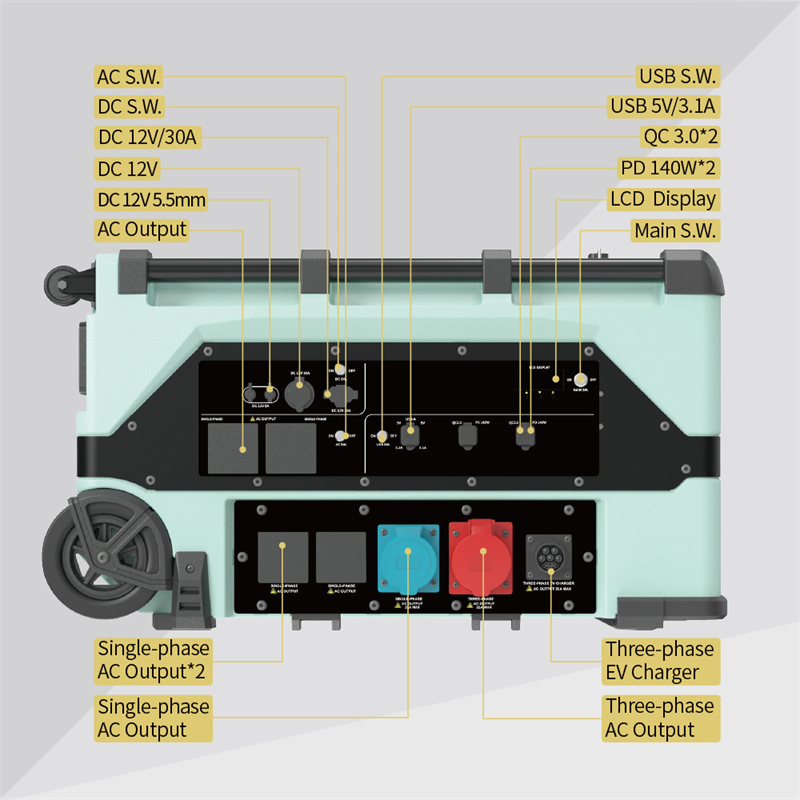

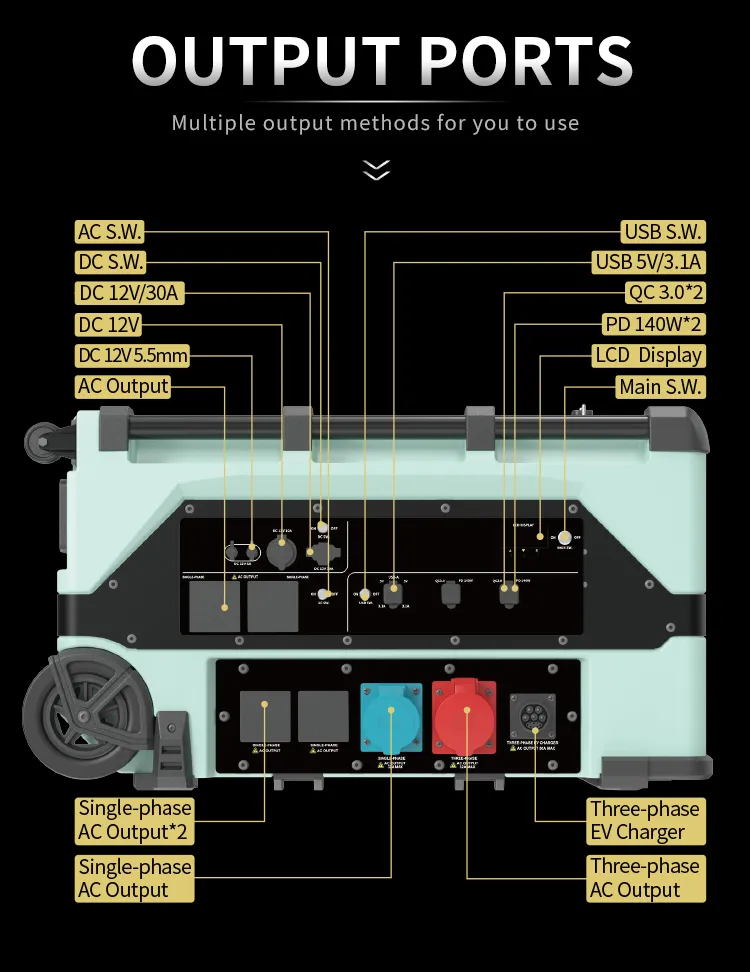

USB Output		PD 140W, QC3.0, 5V/3.1A

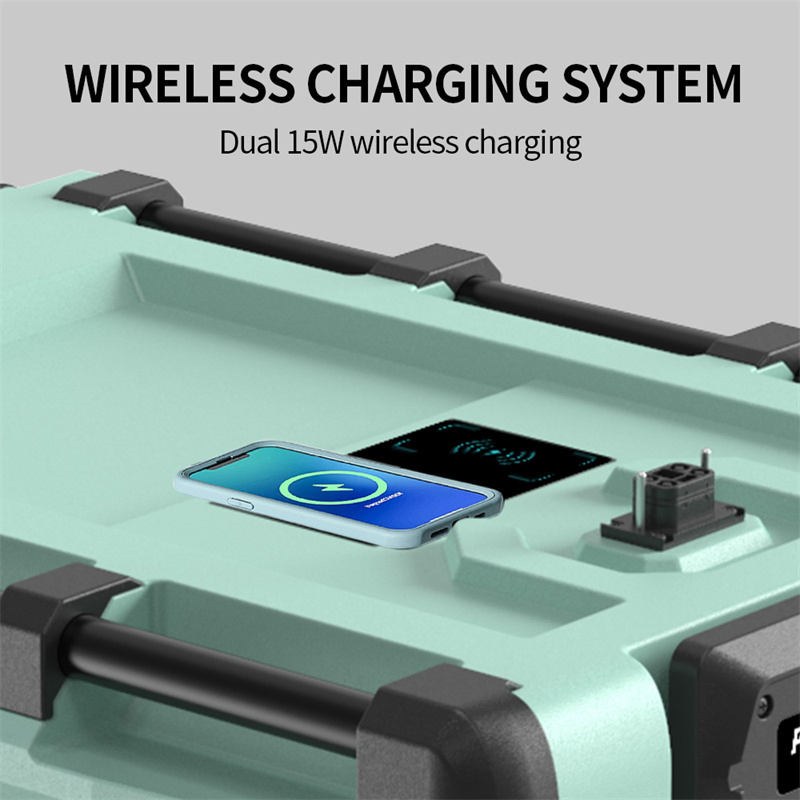

Wireless Charging		2 x 15W

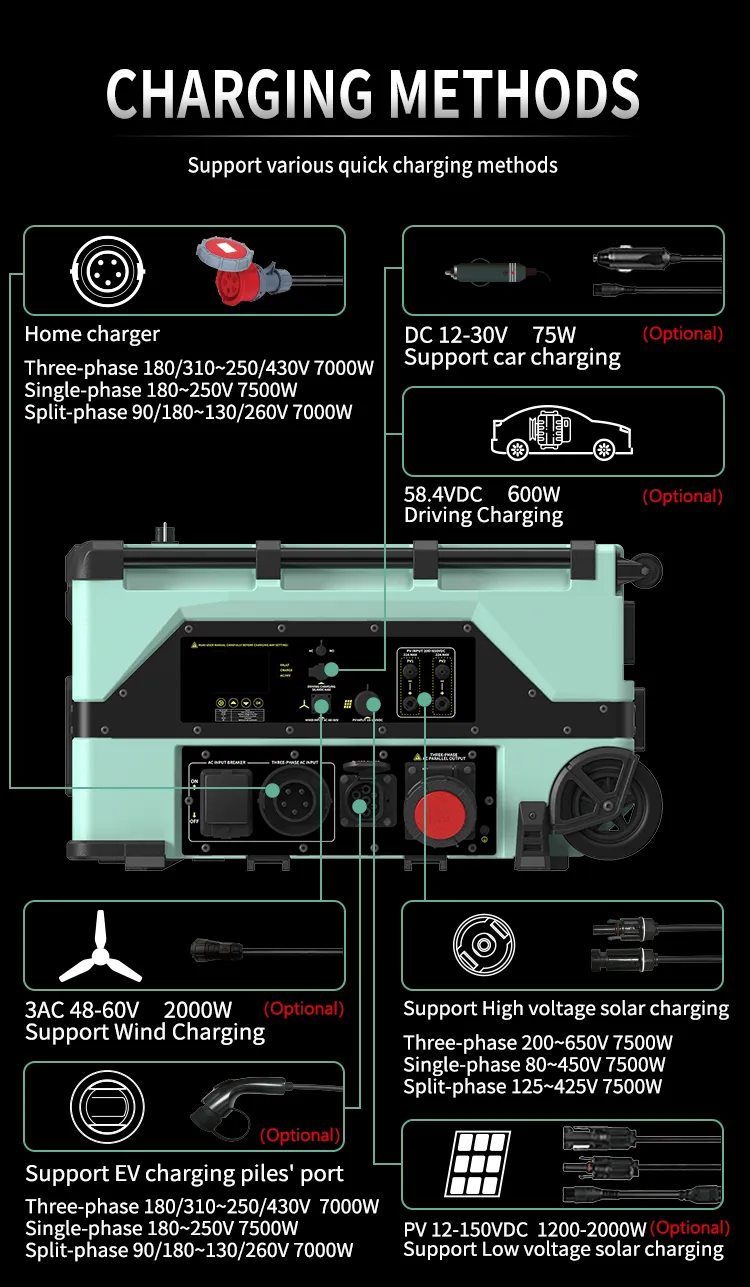

Charging Method	Input Details	Full Charge Time

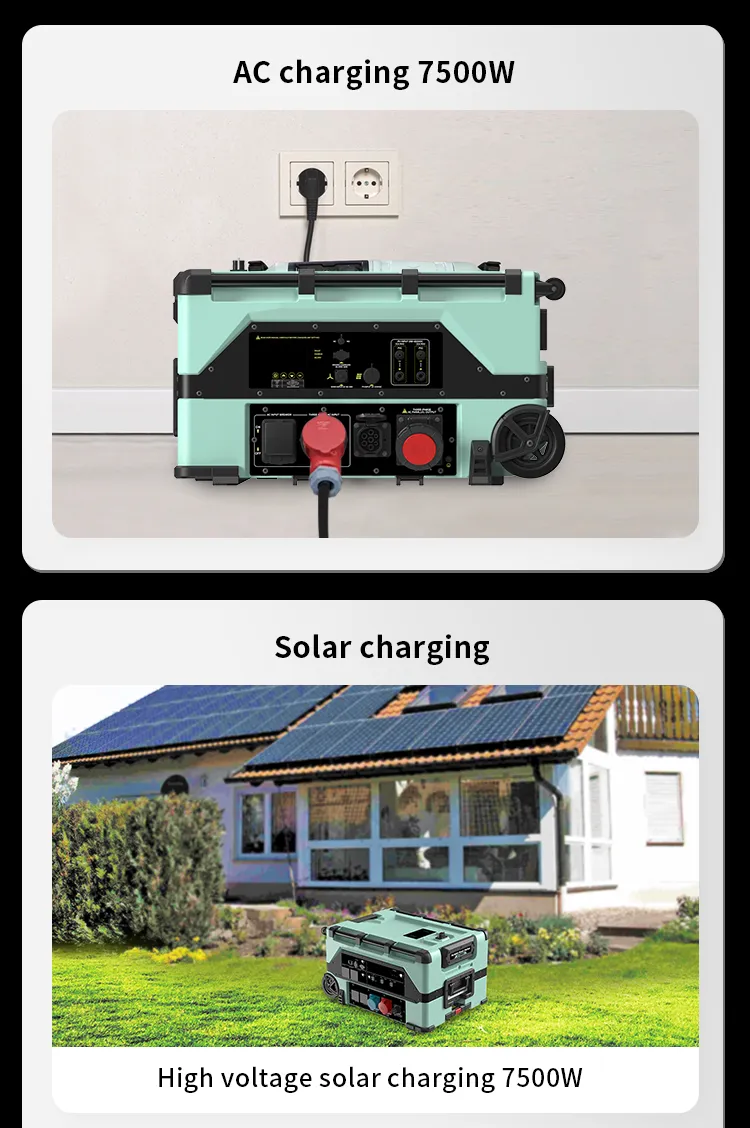

AC Wall / Generator	Max 7500W (Single Phase)	~70 Minutes
High-Voltage Solar	2 x 9000W Max PV Input	~70 Minutes
EV Charger Input	Type 1 / Type 2 / GB/T	~70 Minutes
Wind Charging	Max 2000W	~4 Hours

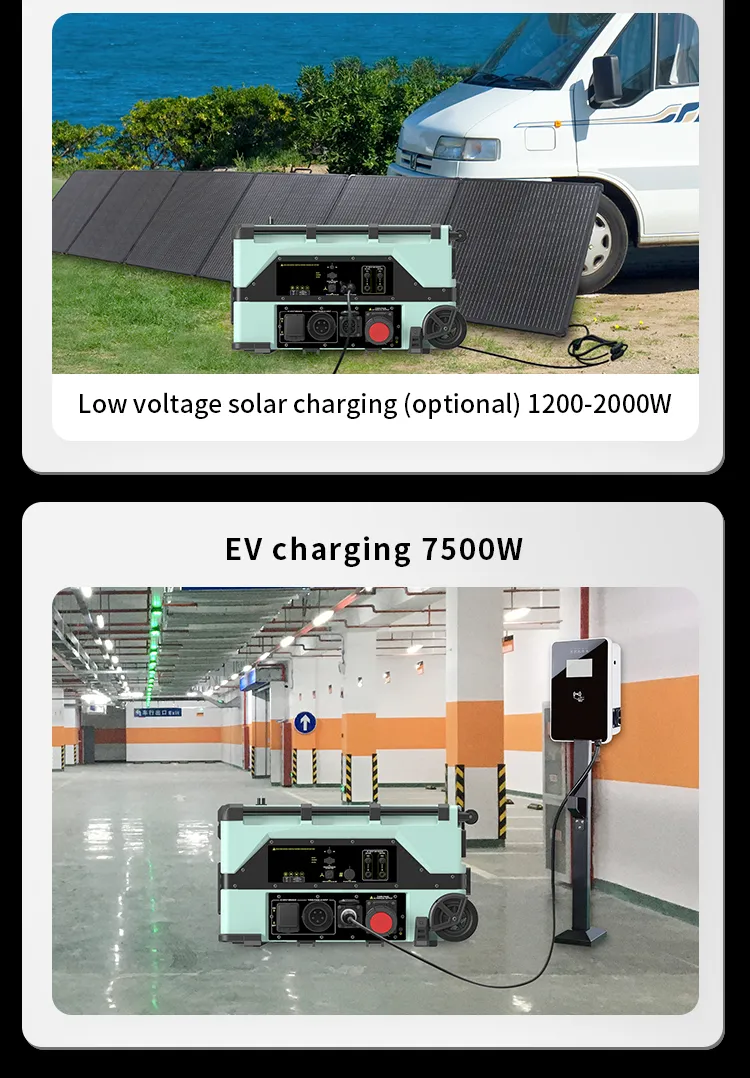

Low-Voltage Solar	Max 2000W	~7 Hours

Detailed Photos

About Us

Founded in March 2015, we are a high-tech enterprise integrated with research, manufacturing, and sales. We specialize in providing innovative products and services in inverter generators, Internet of Things (IoT), power equipment, and electrical automation products.

We are dedicated to the development of intelligent electromechanical solutions. With more than 70 critical patents in power equipment and intelligent controllers, we maintain a leading position in the global market. Our products are recognized in Europe and North America for their superior quality and competitive performance.

Frequently Asked Questions

What is the maximum output power of the EP12000iL?

The system provides a continuous output of 12kW and can reach a peak power of 24kW, supporting three-phase, single-phase, and split-phase AC.

How long does it take to fully charge the battery?

Using high-power AC or solar fast charging, the 7680Wh battery can be fully charged in approximately 70 minutes.

Is the system expandable for larger energy needs?

Yes, you can stack up to 31 extra battery units to reach a total capacity of 245kWh, suitable for large-scale backup needs.

Can I use this system to charge my Electric Vehicle (EV)?

Absolutely. It features a built-in EV charger compatible with Type 1, Type 2, and GB/T standards, offering charging speeds up to 22kW.

What is the durability and protection rating?

The main unit has an IP53 rating, while the battery packs are rated IP66, making the system highly resistant to dust and water in outdoor environments.

How can I monitor the system's performance?

You can monitor and control the unit via the integrated LCD panel or through a dedicated smartphone APP via Bluetooth/Wi-Fi.
