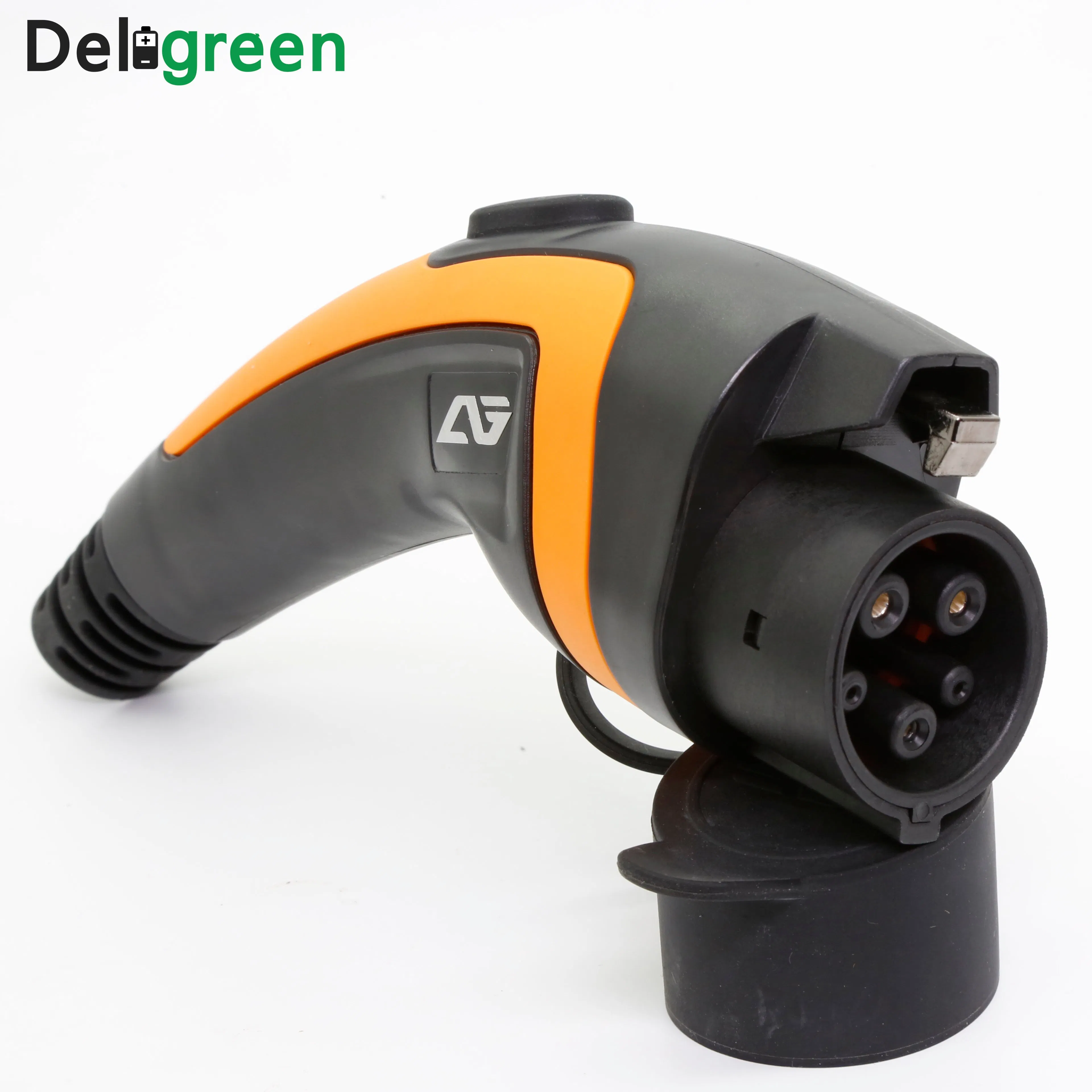

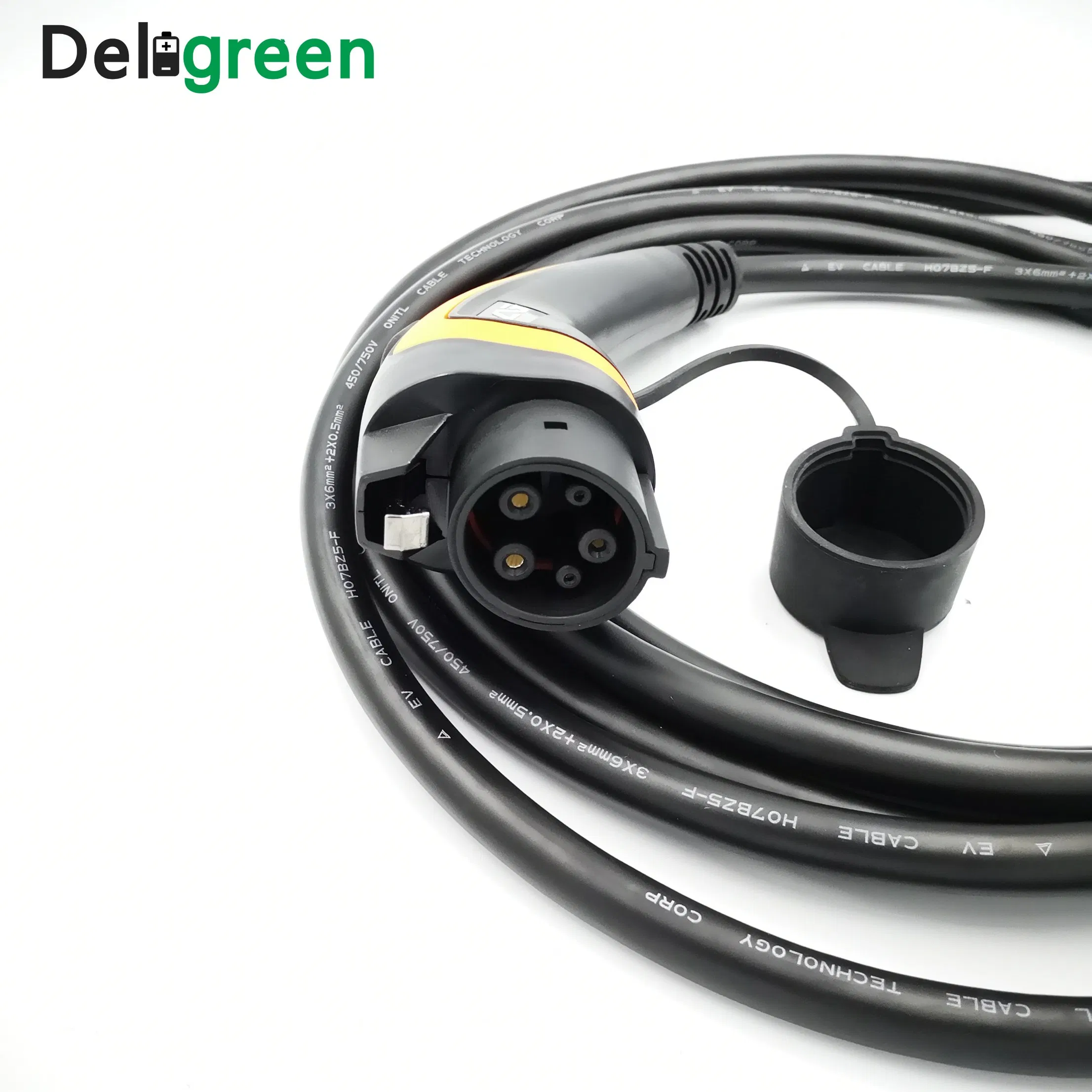

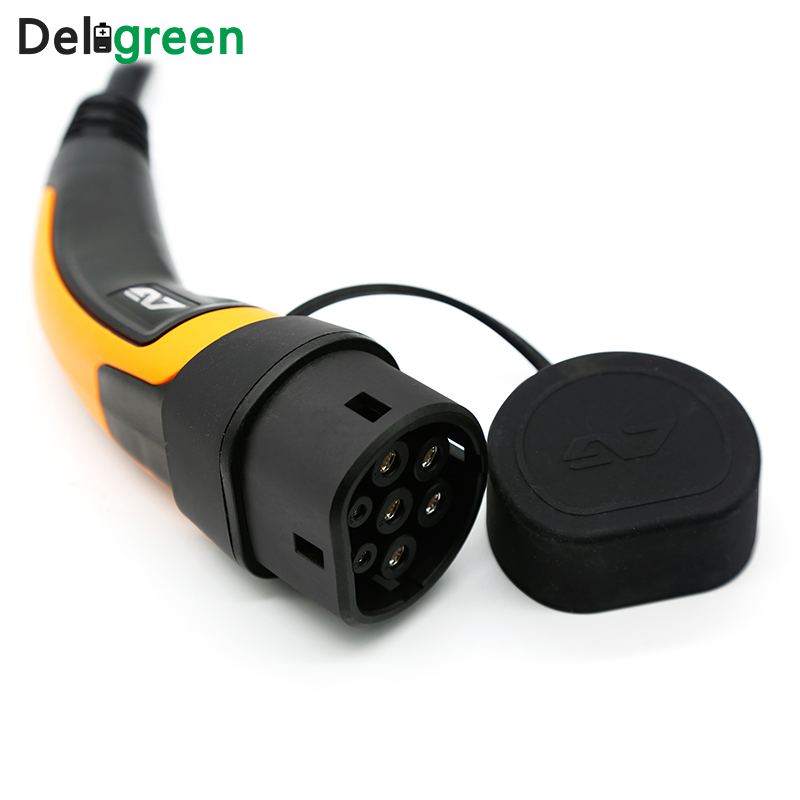

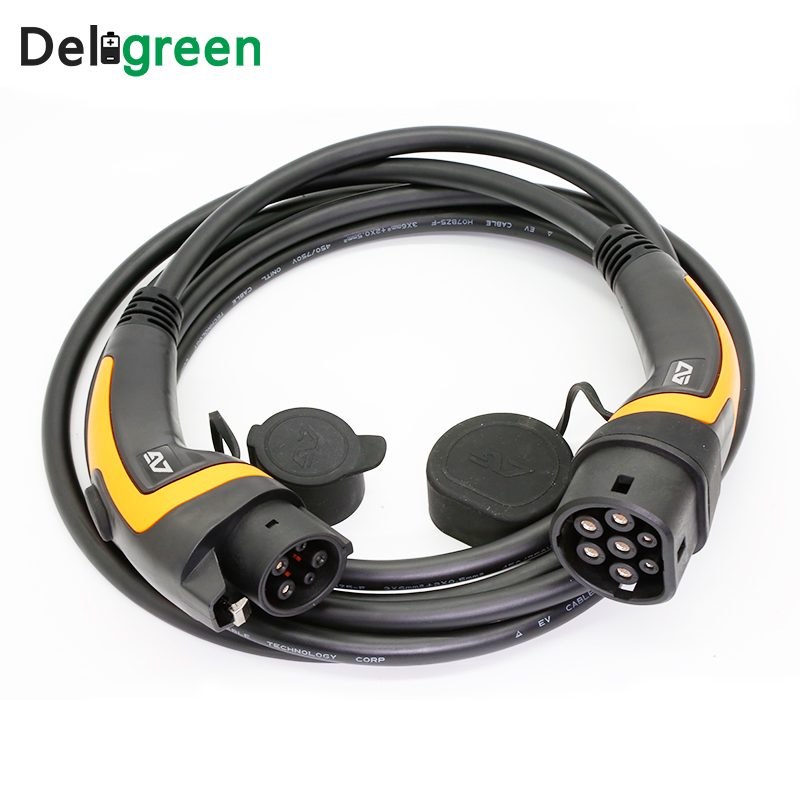

EV Cable Type 1 and Type 2 Electric Vehicle Tethered Charging Plug

Customization: Available
Contact Pin: Copper Alloy, Silver or Nickel Plating
Certificate: TUV-Ce, RoHS, Ce

Product Description

Basic Specifications

Model NO.
TYPE 1 TO TYPE 2
Size
35*33*32mm
Over Voltage
Yes
Leakage Protection
Yes
Lightning
Yes
Operating Temp
-30c ~ +50c
Cable Length
5m
Type
Fast EV Charging Station
Certification
CE, ISO, TUV
Warranty
12 Months
Production
10000 Piece/Month
Origin
China

Product Overview

EV Cable Type 1 and Type 2 Electric Vehicle Tethered Charging Plug

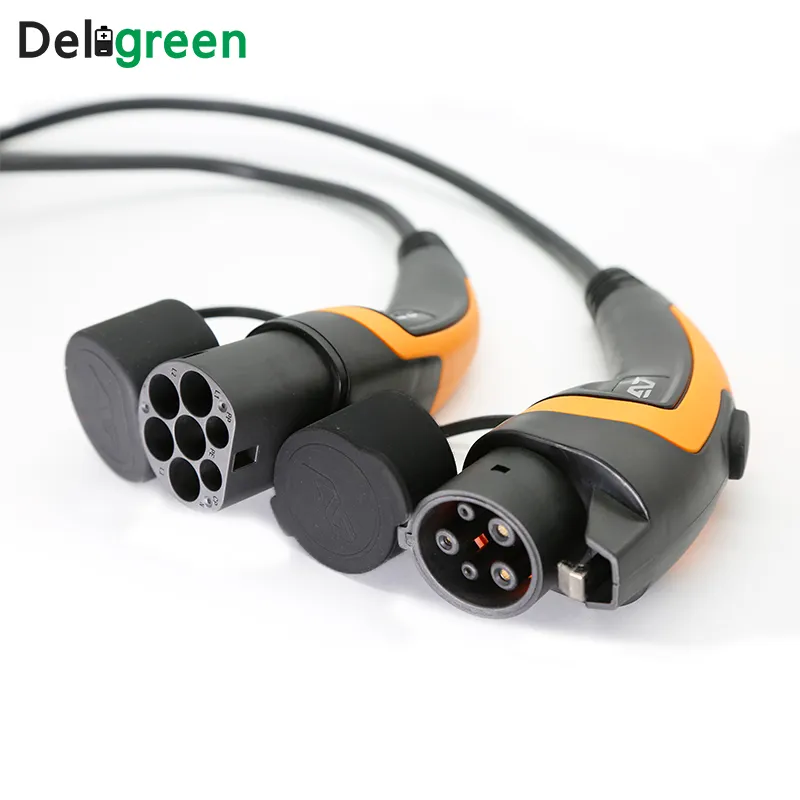

EV Cable Charging Plug
Brief Introduction:
You can connect any Type 2 cable from charging station to a Type 1 electric car port. The product has a nice appearance, handheld ergonomic design and is easy to plug.

Key Features

  • Conform to the provisions and requirements of IEC 62196-2 2016 2-IIb, SAE J1772-2012, IEC 62196-2 2016 2-I.
  • Using riveting pressure process with none screw, providing a beautiful and smooth appearance.
  • Hand-held design conforms to ergonomic principles for convenient plugging.
  • XLPO insulation prolongs aging resistance life-span; TPU sheath improves bending life and wear resistance.
  • Excellent protection performance with IP55 grade (working condition).
  • Double color coating technology allows for personalized customization (Orange, Blue, Green, Grey).

Technical Data

Mechanical Properties
Mechanical life: no-load plug > 10000 times
Impact of external force: can afford 1m drop and 2t vehicle run over pressure
Insertion force: < 100N
Electrical Performance
Rated current: 16A Pins temperature rise: < 50K
Rated voltage: 250V Withstand voltage: 2500V
Insulation resistance: > 1000MΩ (DC500V) Contact impedance: 0.5mΩ Max

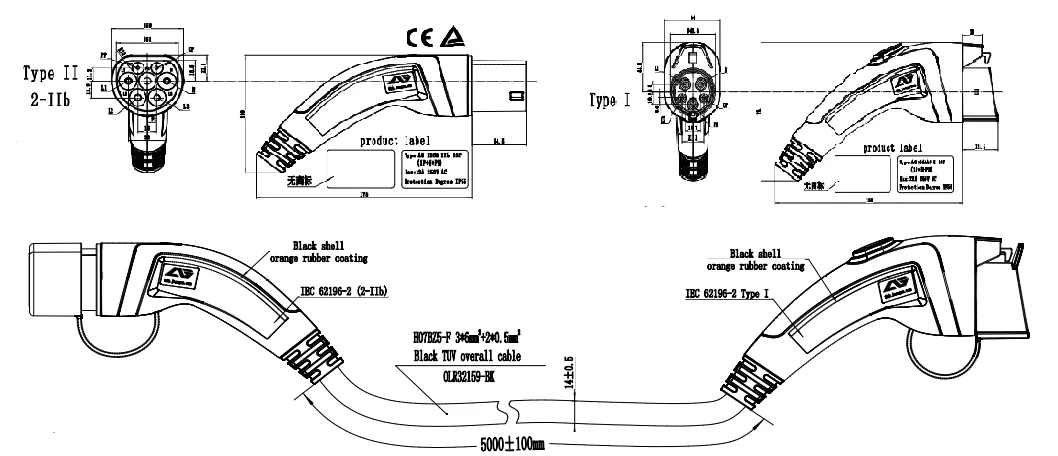

Technical Drawing & Application

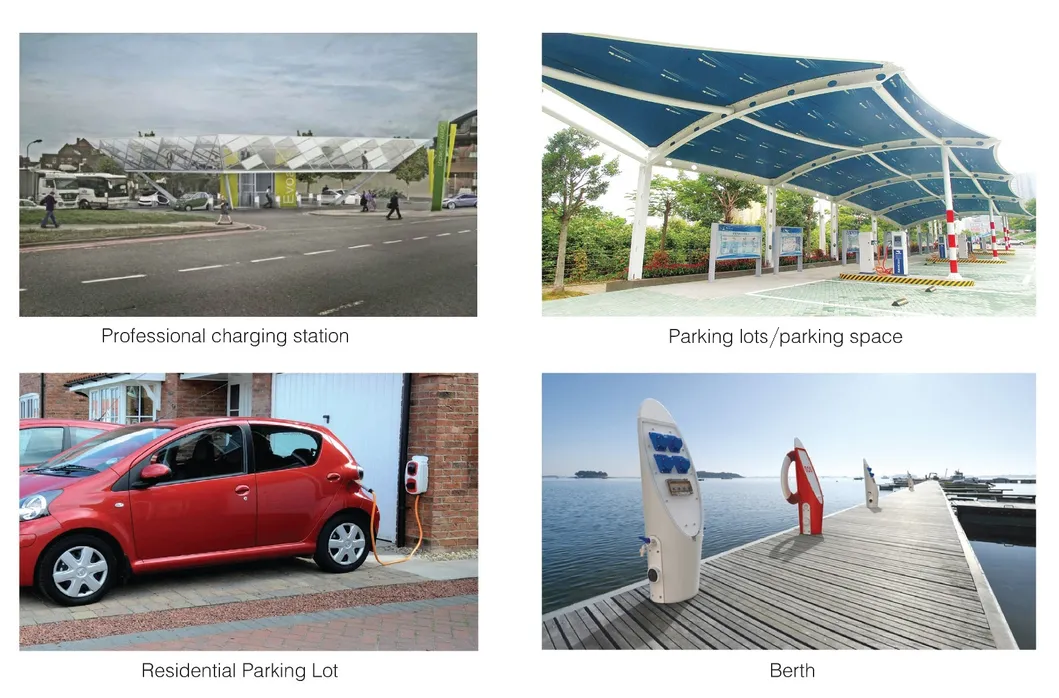

Technical Drawing Application Scenario

Related Products

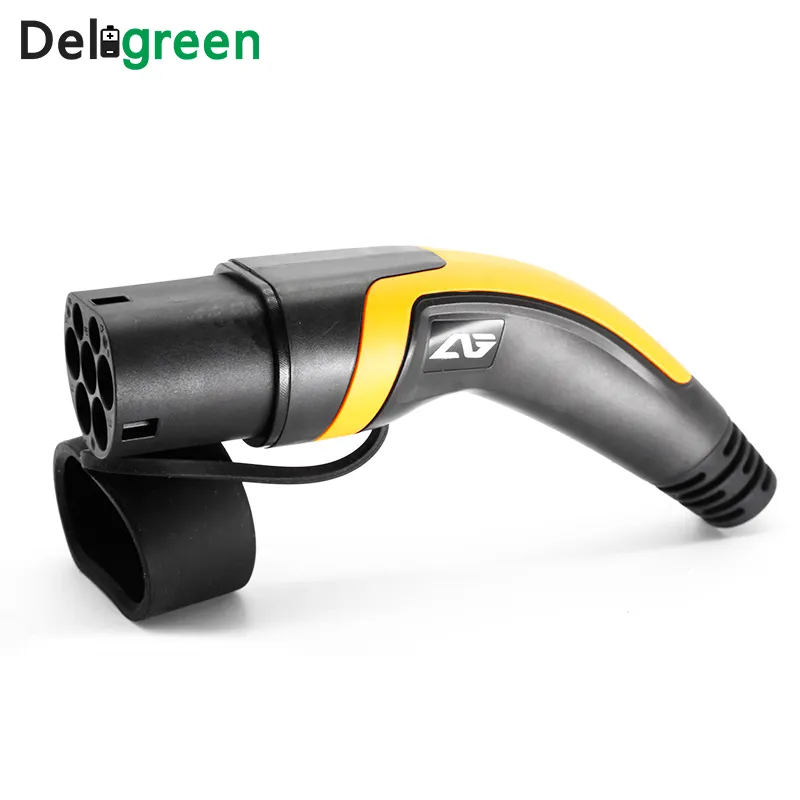

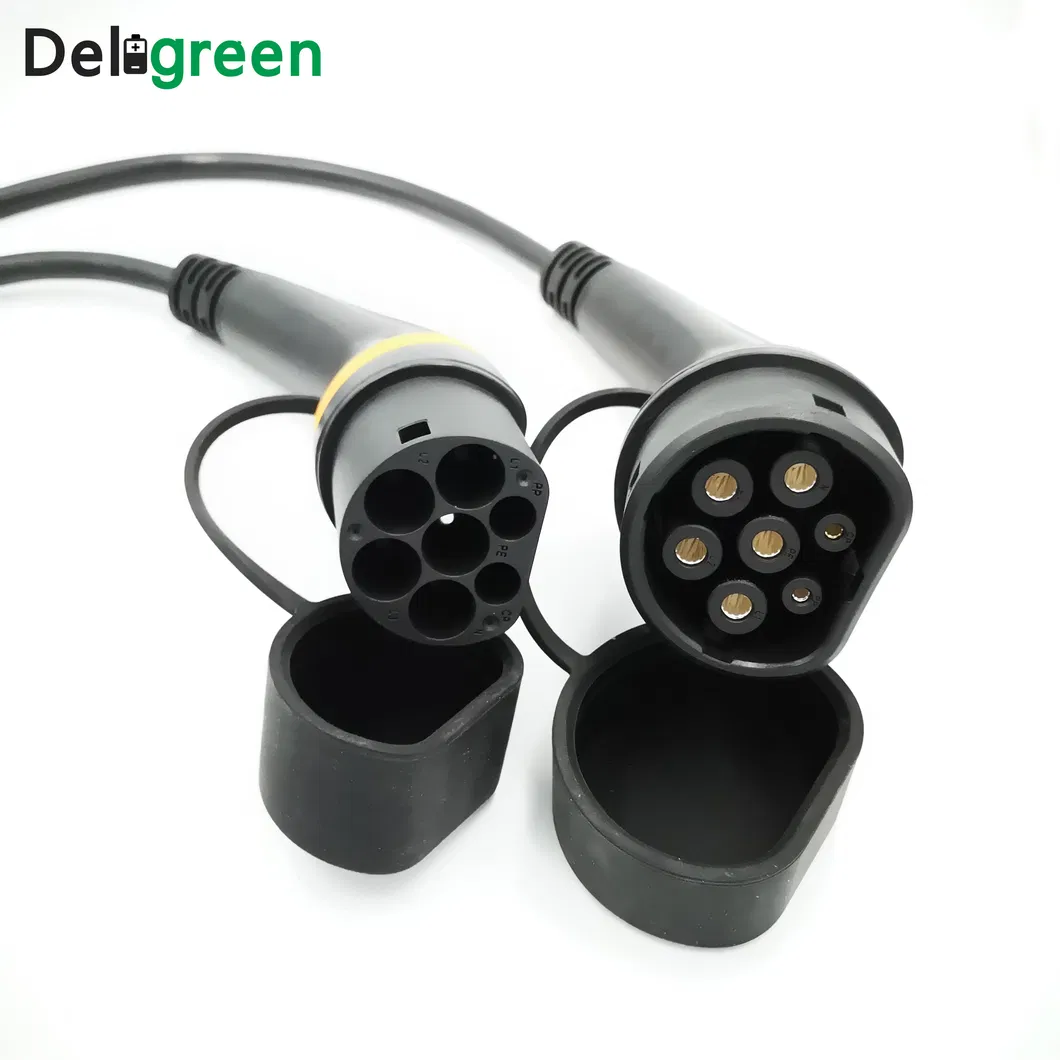

Related Product 1 Related Product 2 Related Product 3

Certifications & Professional Service

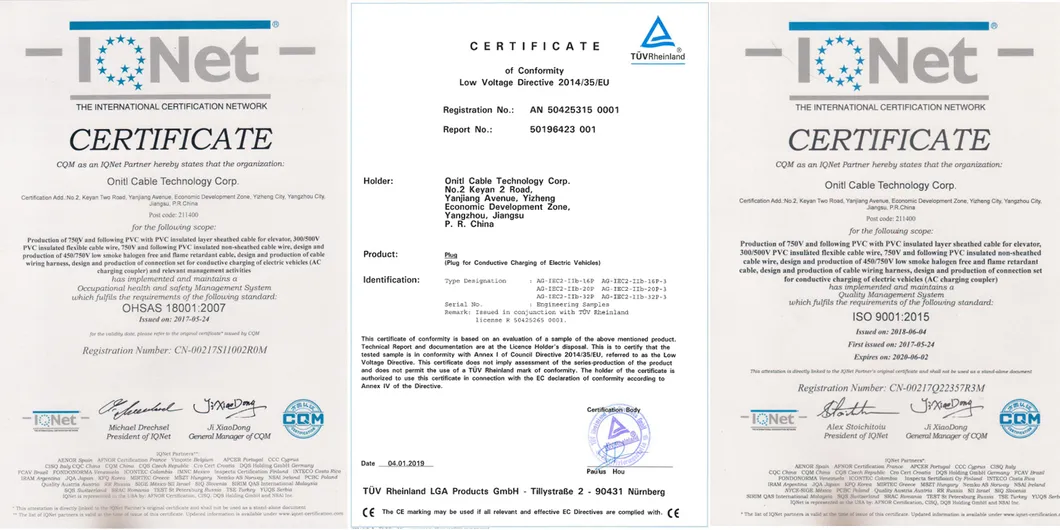

Certification Documents Service Process

Frequently Asked Questions

Which amp of EV connectors do you have?
We provide a wide range including 16A, 32A, 40A, 50A, and 63A.
Do you have three phase EV cable?
Yes, both single phase and three phase options are available.
Can I customize the logo and color?
Yes, logo printing (MOQ 100pcs) and custom colors like blue, orange, green, and grey (MOQ 200pcs) are available at no extra fee.
What is your warranty policy?
We offer a 3-year warranty with free replacement for any defective goods. We respond to warranty issues within 1 business day.
What is the typical lead time for orders?
Sample orders ship in 2-5 days. Volume orders take 7-10 days, while customized logo/color orders take approximately 4 weeks.
What shipping methods are used?
For goods under 100KG, we use DHL/UPS/FedEx. Over 100KG, we ship by air or sea.
