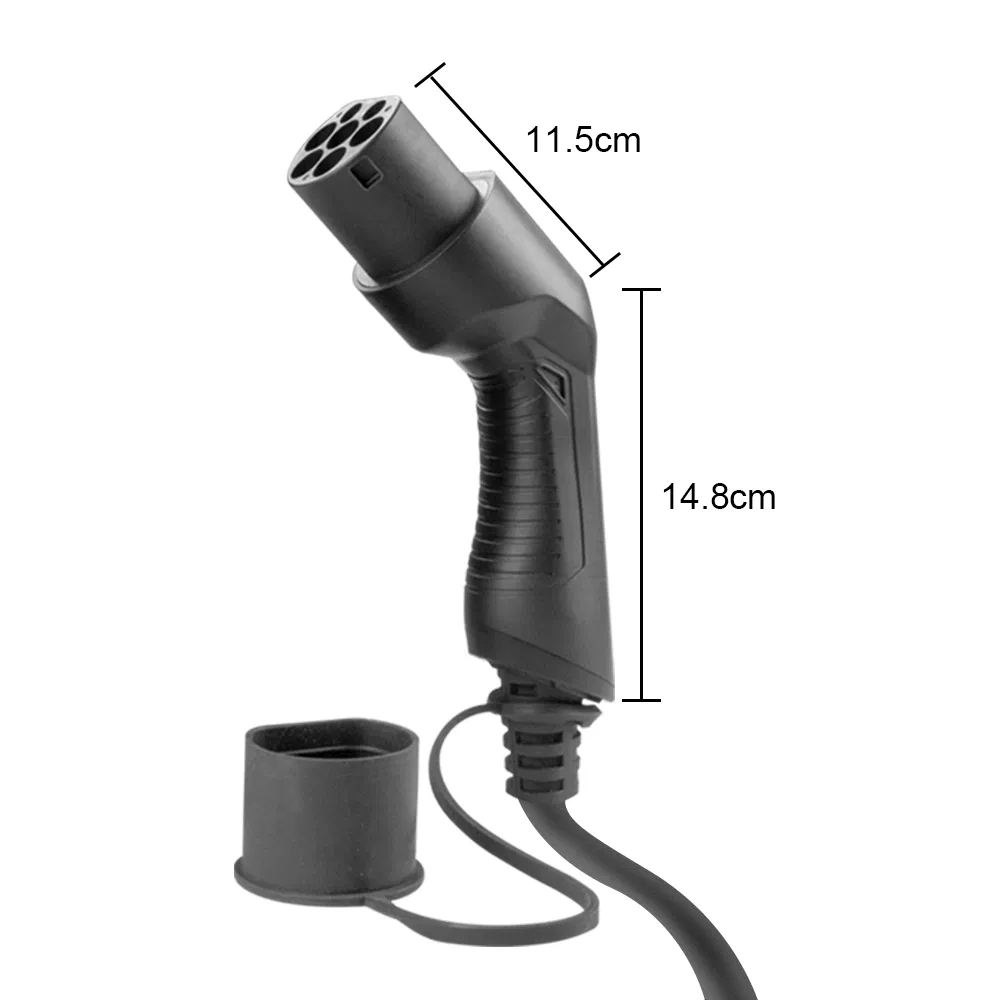

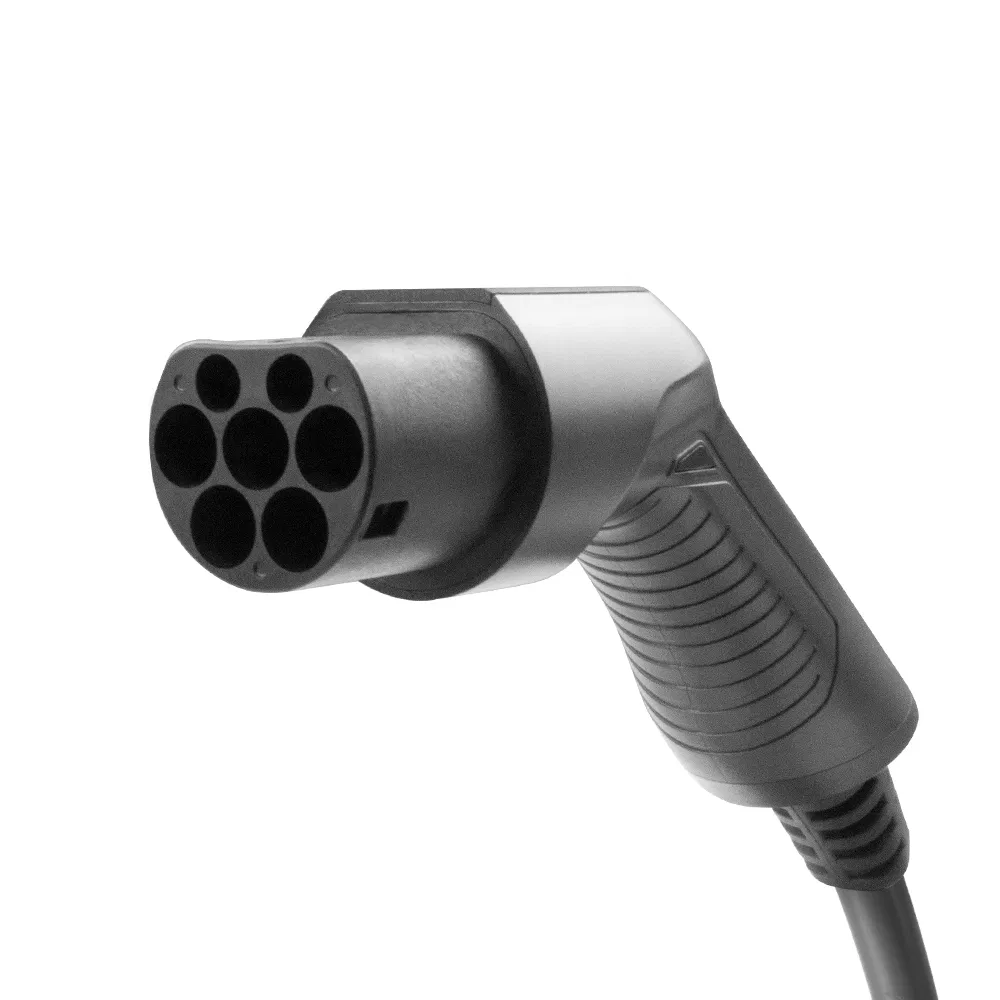

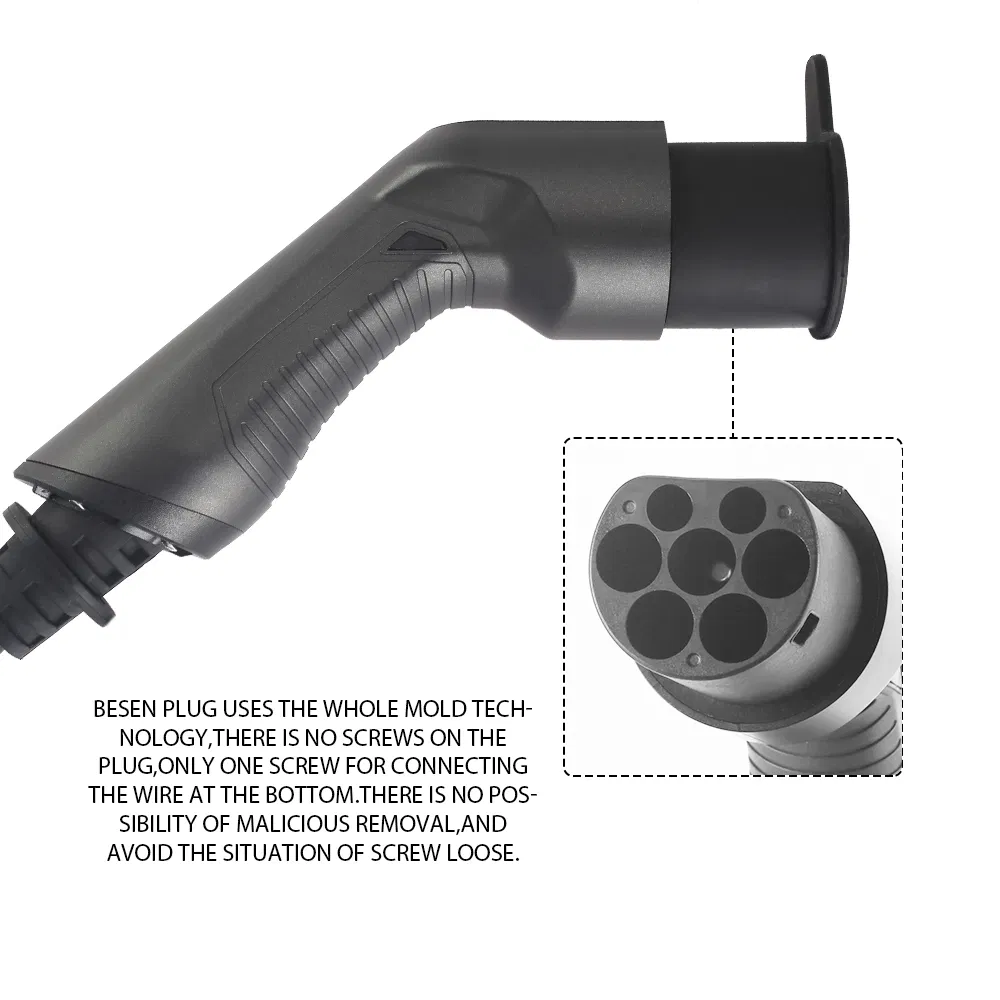

EV Power Connector Charging Plug Male Type 2 32A

1 / 5

EV Power Connector Charging Plug Male Type 2 32A

Customization:	Available
Grounding:	Isolated Ground
Rated Current:	32A

Send Inquiry

Product Description

Basic Information

Model NO.

BS-EVP001-M(32A)

IP Grade

IP 66

Operating Voltage

250V

Withstand Voltage

2000V

Standard

European Standard

Function

AC Plug, Charger Plug

Certification

CCC

Interface Type

AC/DC

Application

Industrial

Transport Package

Carton

Specification

IEC62196-2

Origin

China

Product Description

Rated Current	IEC 62196-2/Type 2 (16A/32A)
Rated Current Phase	3 Phase
Operate Voltage	AC 380V ± 10 %
Mechanical life	No-load plug in /out >20000 times
Insulation Resistance	>1000M Ω (DC500V)
Terminal Temperature Rise	<50K
Withstand Voltage	2000V
Contact Impedance	0.5m Ω Max
UV Resistant	Yes
Coupled Insertion Force	45N<100n
Working Temperature	-30ºC~+50ºC
Plug Material	PC+nylon alloy, flame retardant grade UL94 V-O
Terminal	Copper alloy, silver plating
Sealing Gasket	Rubber or silicon rubber
Impact of External Force	Ability to withstand 1M height drop and the rolling of a 2T-vehicle

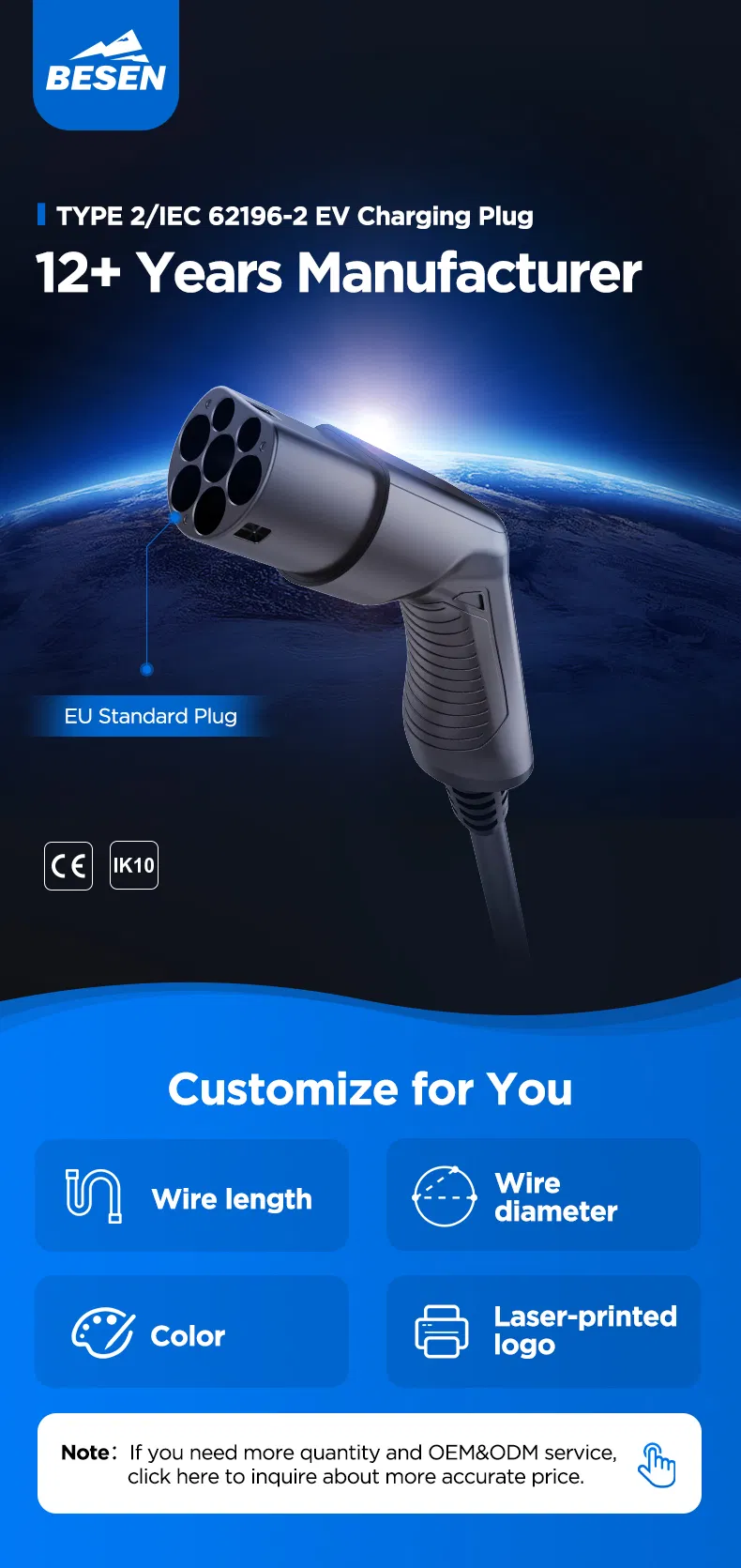

Customization	Wire length, wire diameter, color, laser-printed logo, etc

Key Features: High-performance EV connector with IP66 protection, designed for industrial-grade durability and safety standards.

Frequently Asked Questions

What is the waterproof rating of this EV plug?

This EV power connector is rated IP66, providing high-level protection against dust and powerful water jets, making it suitable for various environmental conditions.

Which charging standard does this connector follow?

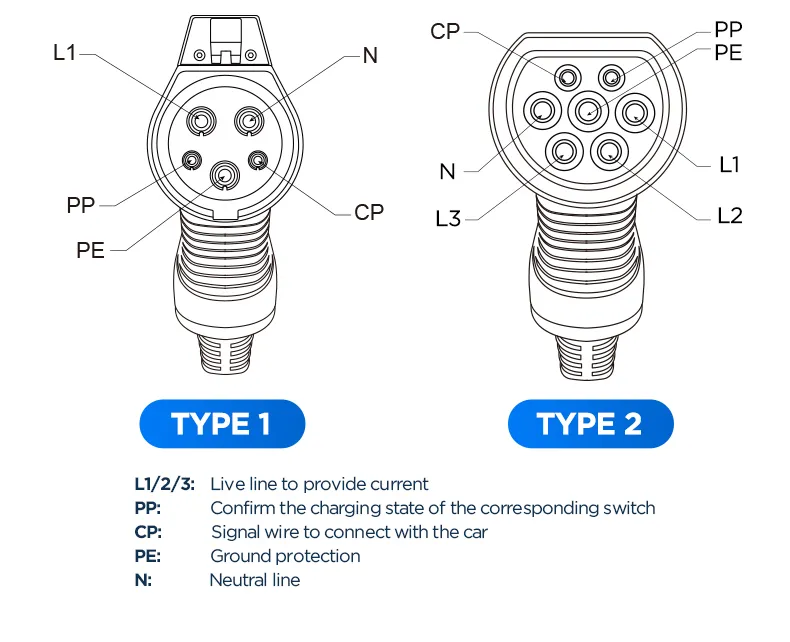

It complies with the European Standard IEC 62196-2 (Type 2), supporting both 16A and 32A current options.

How durable is the plug for daily use?

The plug features a mechanical life of over 20,000 no-load plug-in/out cycles and is designed to withstand a 1-meter drop and the rolling of a 2-ton vehicle.

What materials are used in the construction?

The plug is made from PC and nylon alloy with a UL94 V-0 flame retardant grade. The terminals are copper alloy with silver plating for optimal conductivity.

Is this connector suitable for extreme temperatures?

Yes, the operating temperature range for this connector is -30ºC to +50ºC, ensuring reliable performance in both cold and hot climates.

Are there customization options available?

Yes, we offer customization for wire length, wire diameter, color, and laser-printed logos to meet specific industrial requirements.
