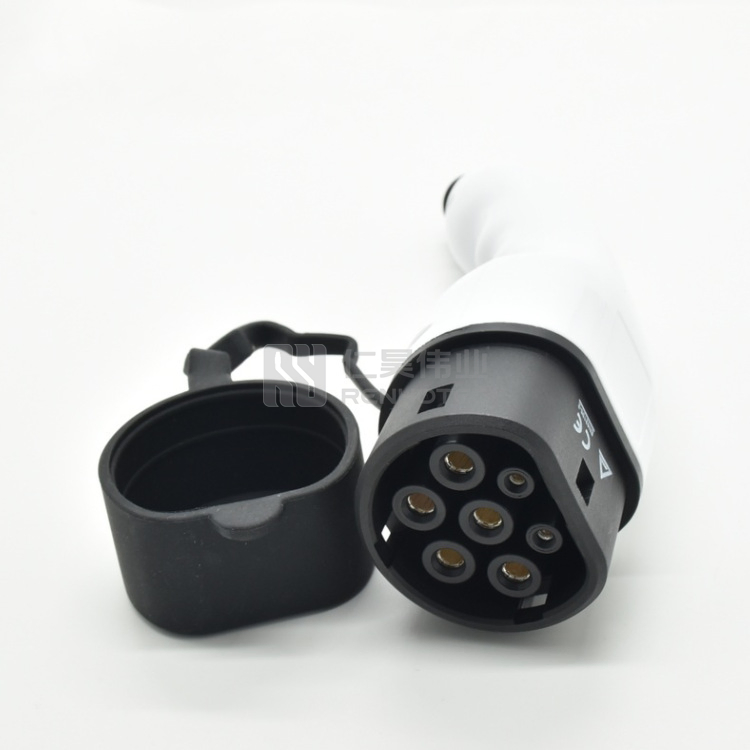

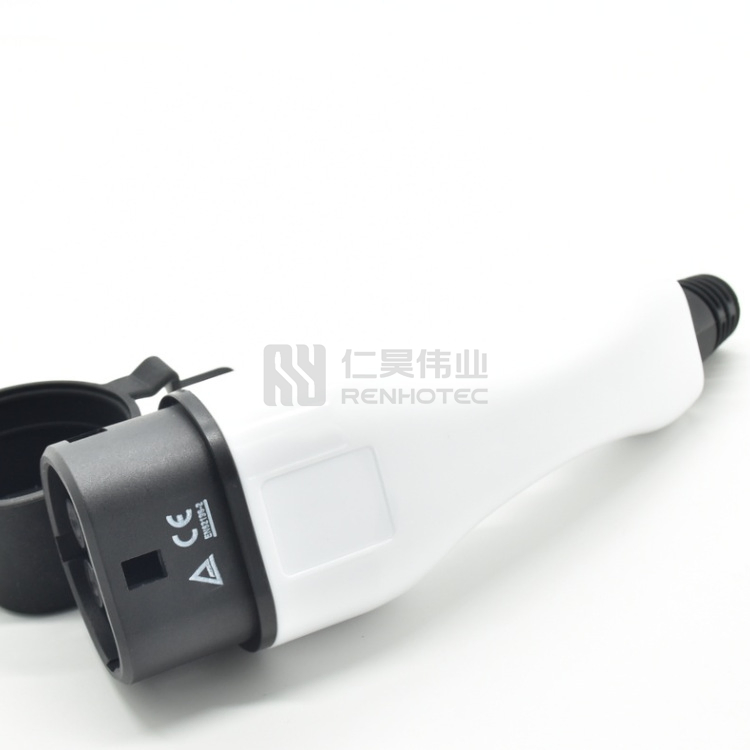

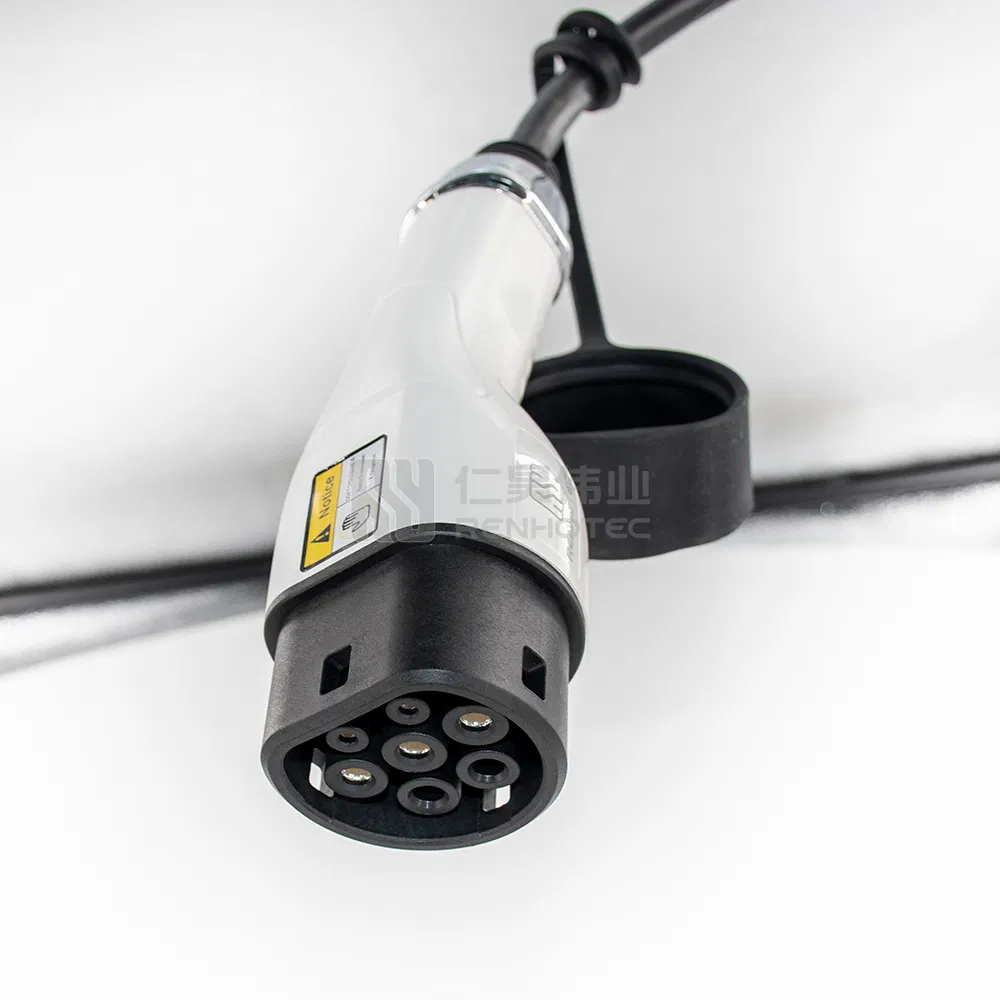

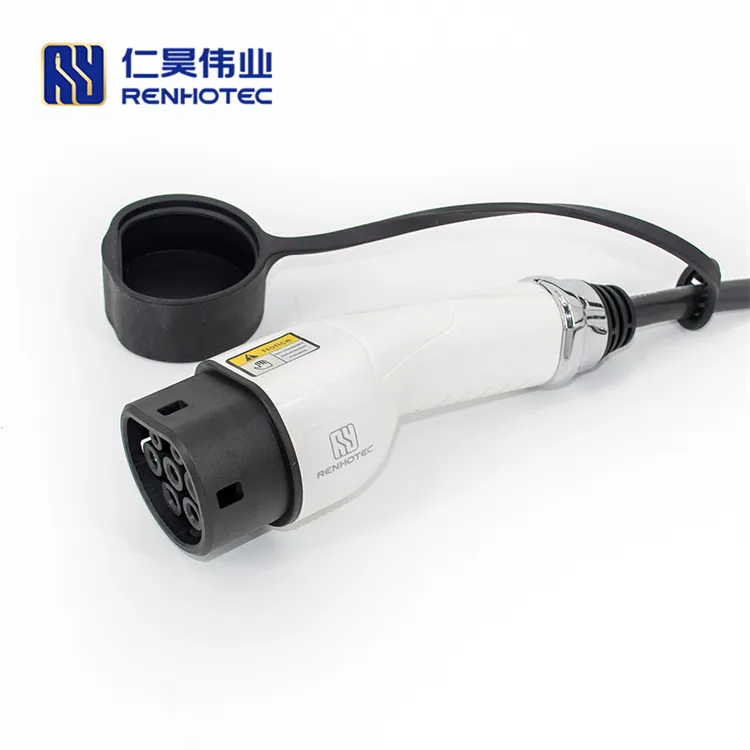

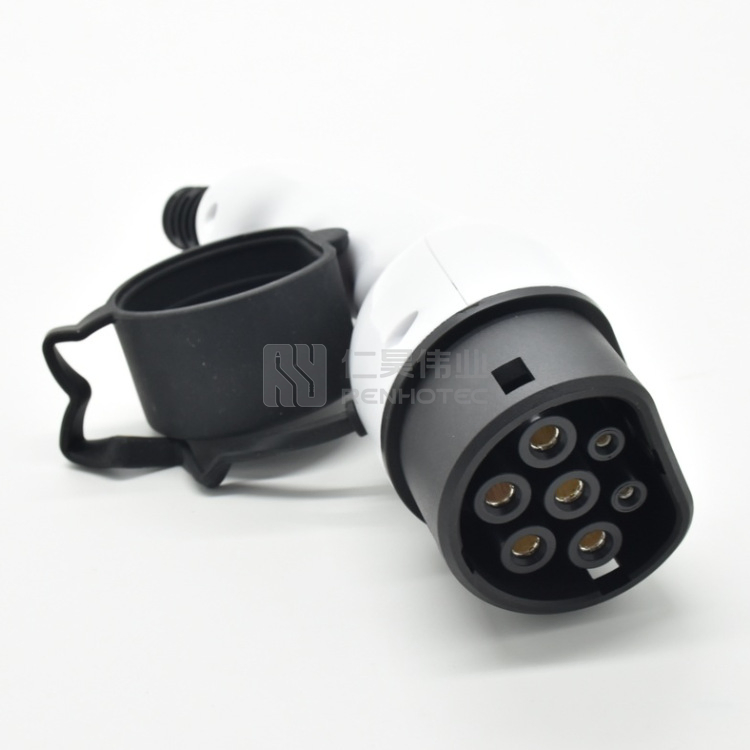

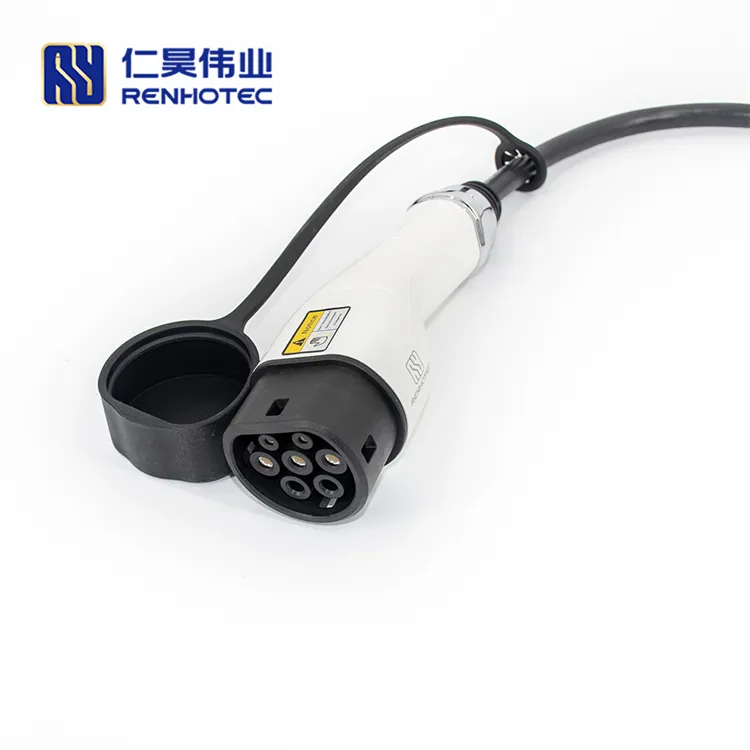

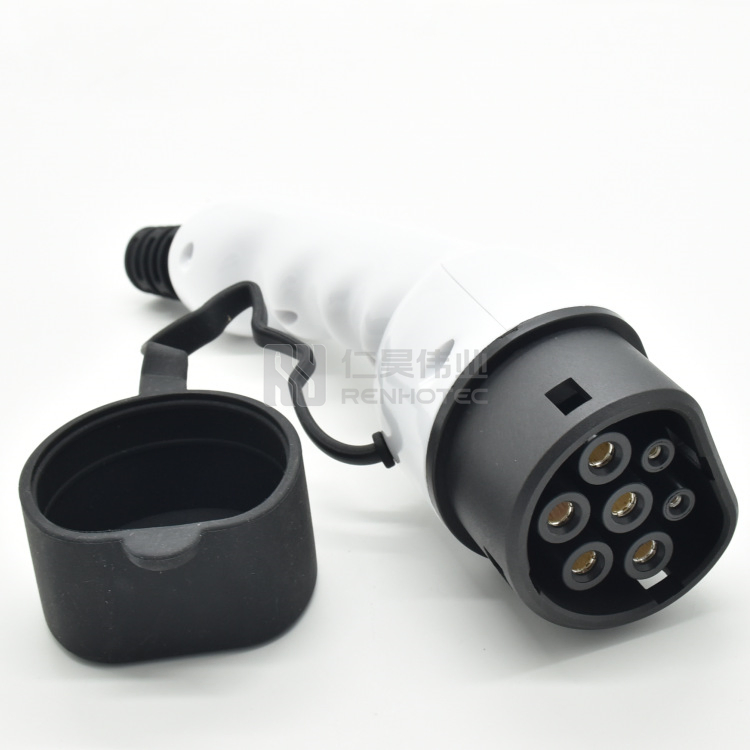

Type 2 EV Charging Cable Plug for Car 16A /32A 1p/3p

1 / 5

Type 2 EV Charging Cable Plug for Car 16A /32A 1p/3p

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.	Type 1 to Tesla adapter
Customized Services	Acceptable
Rated Current	16A / 32A
Rated Voltage	250V
IP Degree	IP65 / IP55
Mechanical Life	>10000 Times
Cable Length	5m / 10m / Customized

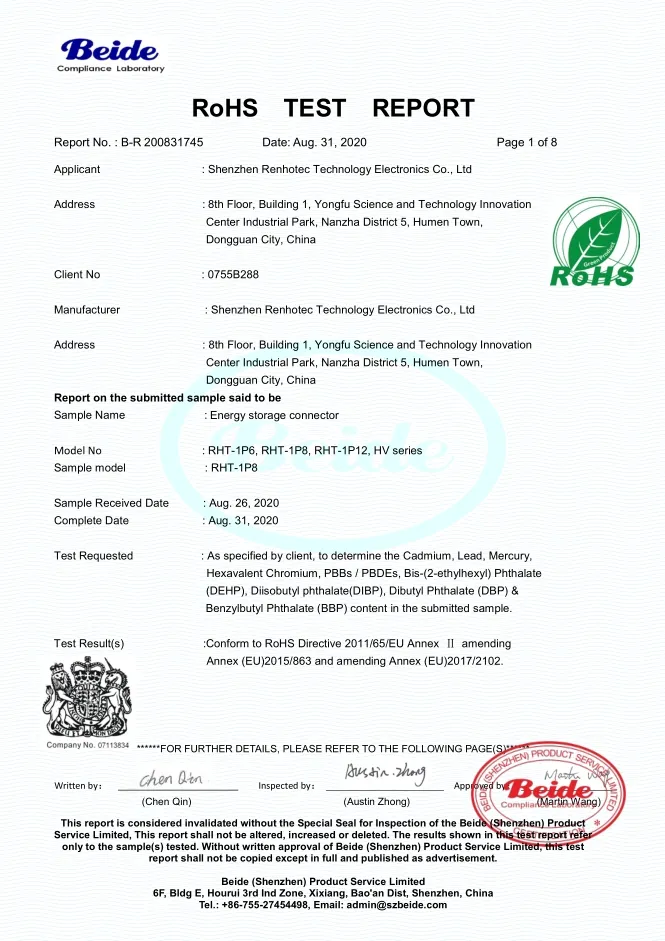

Certification	CE, ISO, TUV, RoHS
Warranty	24 Months

Full Series EV Charger

All types of High Voltage Connectors from professional manufacturing standards.

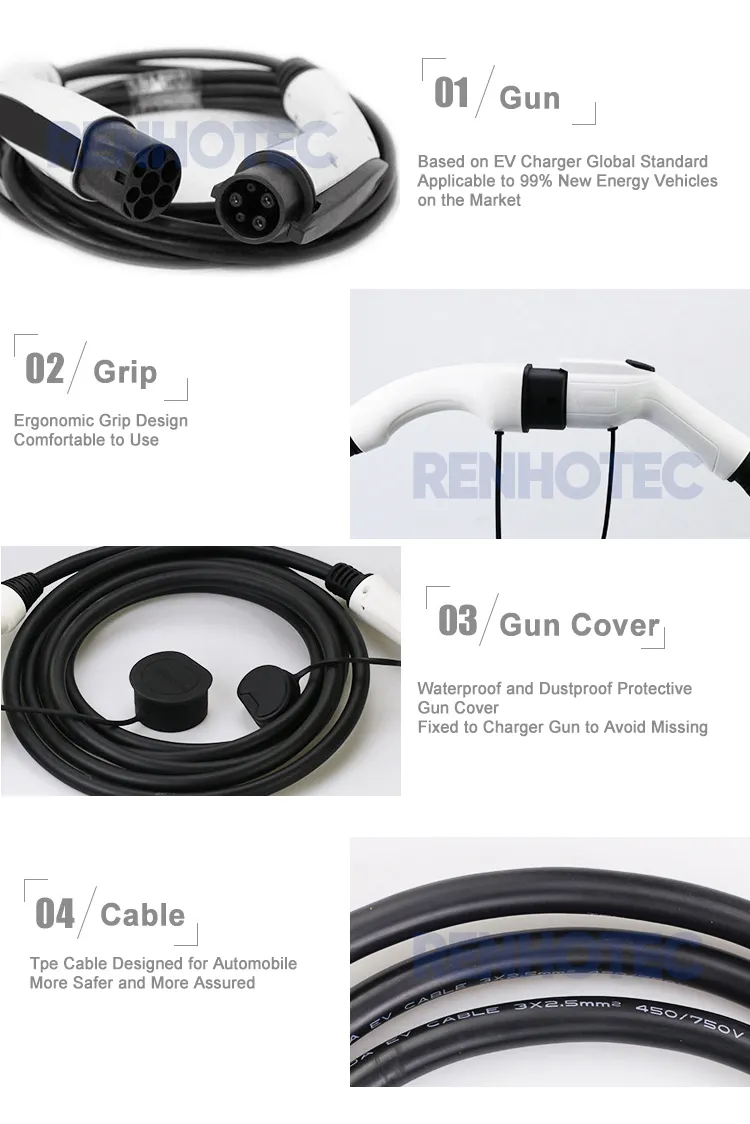

Product Features

Products comply with GB/T20234-2011 standard.
Various types available: DC charging connectors (125A, 250A) and AC charging connectors (16A, 32A).
Humanized design with excellent grasp feel and easy operation.
High protection degree: IP55/IP65 for safe charging.
Advanced material: Thermoplastic shell with UL94-V0 flame retardant grade.
Durability: Exceeds 10,000 insertion/withdrawal cycles in non-charged state.

Technical Specification

Feature	Details
Model Series	GB/T Series / SAE J1772 / Type 1 / Type 2 Series
Connector Type	Plug / Receptacle / Dummy Socket
Current Rating	16A / 32A / 70A / 80A / 125A / 200A / 250A
Operating Temperature	-30ºC to +50ºC
Insulation Resistance	≥1000MΩ

Material & Environmental Performance

Material: Shell and Insulator made of High-grade Thermoplastics; Sealing ring made of Rubber. Contacts are Copper Alloy with Gold-plating for signal and power contacts.

Environmental: Relative Humidity of 98% at 40ºC. IP55 protection maintained during the charging process.

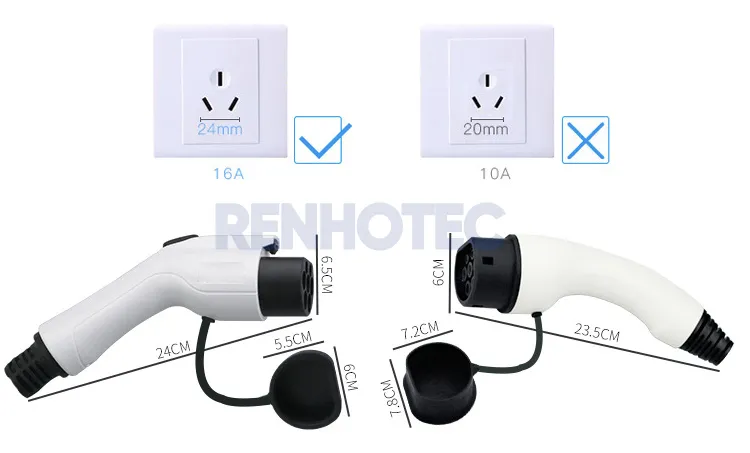

Note: Sizes are manually measured; please refer to the actual product for exact specifications.

Packaging & Shipping

Packing Details: Standard individual PE bags with labels; OEM customized packaging is available.

Shipping Methods: Supports Express (FedEx, DHL, UPS, TNT), Air, Sea, or Rail transport.

Lead Time: 1-7 working days for samples; 7-15 working days for mass production.

Frequently Asked Questions

Q1: Which standards do your EV charging connectors comply with? A: Our products fully comply with the GB/T20234-2011 standard, ensuring safety and compatibility for various electric vehicle models.

Q2: What is the mechanical lifespan of the charging plug? A: The plug is designed for high durability, exceeding 10,000 insertion and withdrawal cycles under non-charged states.

Q3: Can these connectors be used in extreme weather conditions? A: Yes, they have an operating temperature range of -30ºC to +50ºC and feature an IP55/IP65 protection rating against water and dust.

Q4: Do you offer customization for cable length and branding? A: Yes, we provide OEM and customized services, including specific cable lengths (5m, 10m, or others) and tailored packaging solutions.

Q5: What certifications do your products hold? A: Our products are certified by CE, ISO, TUV, and RoHS, ensuring they meet international quality and environmental standards.

Q6: What is the warranty period for the EV adapters? A: We provide a 24-month warranty and offer 24-hour online after-sales support for all our charging products.
