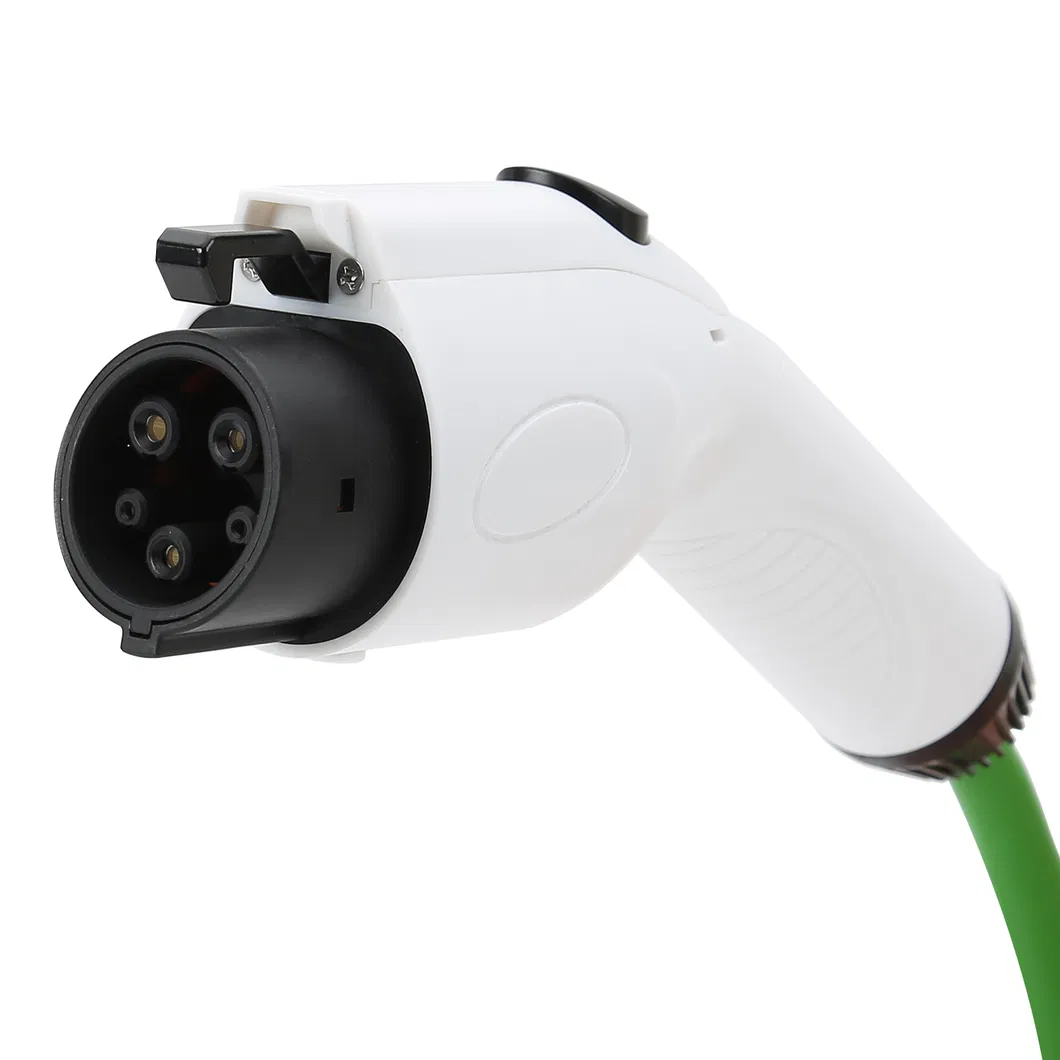

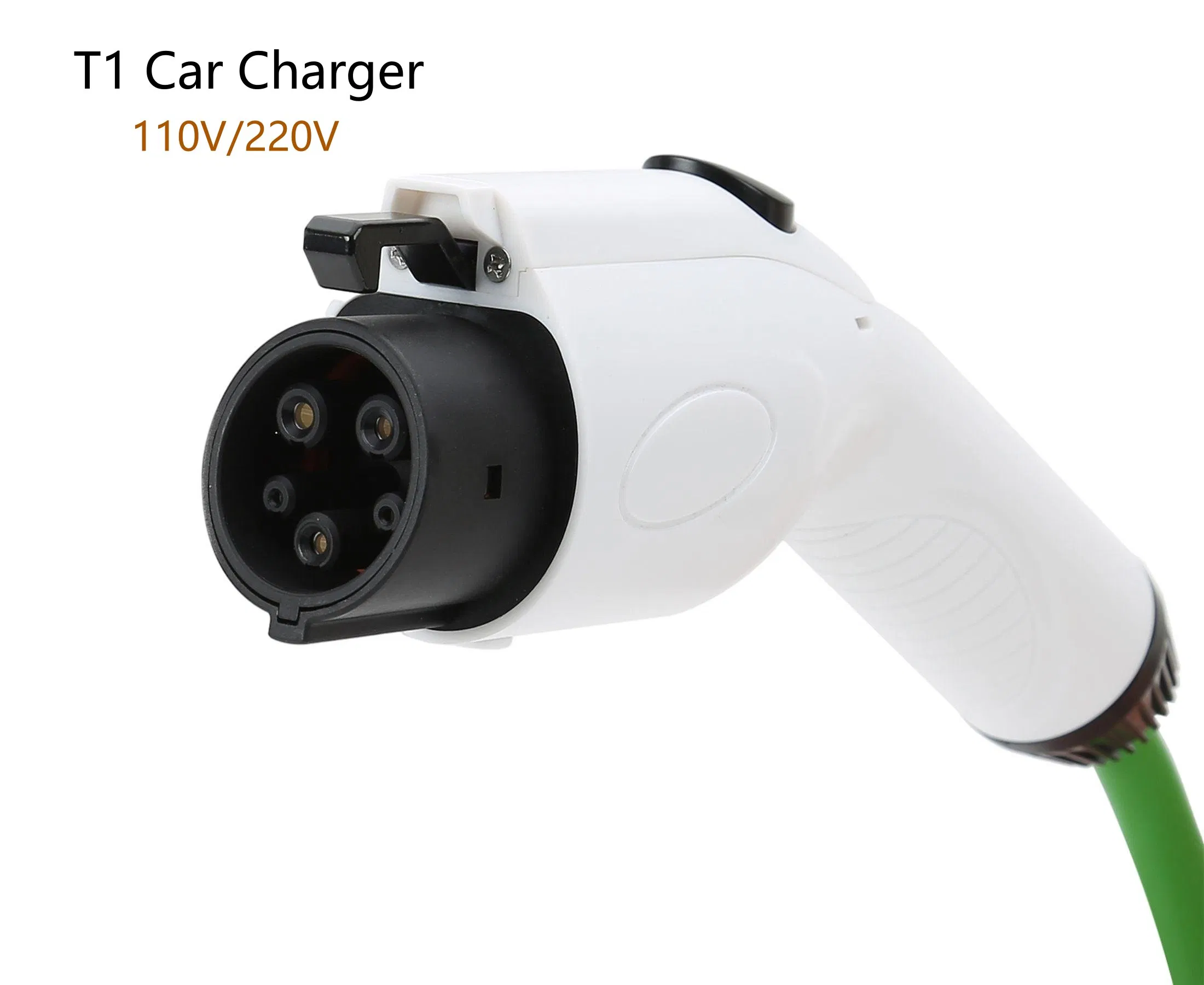

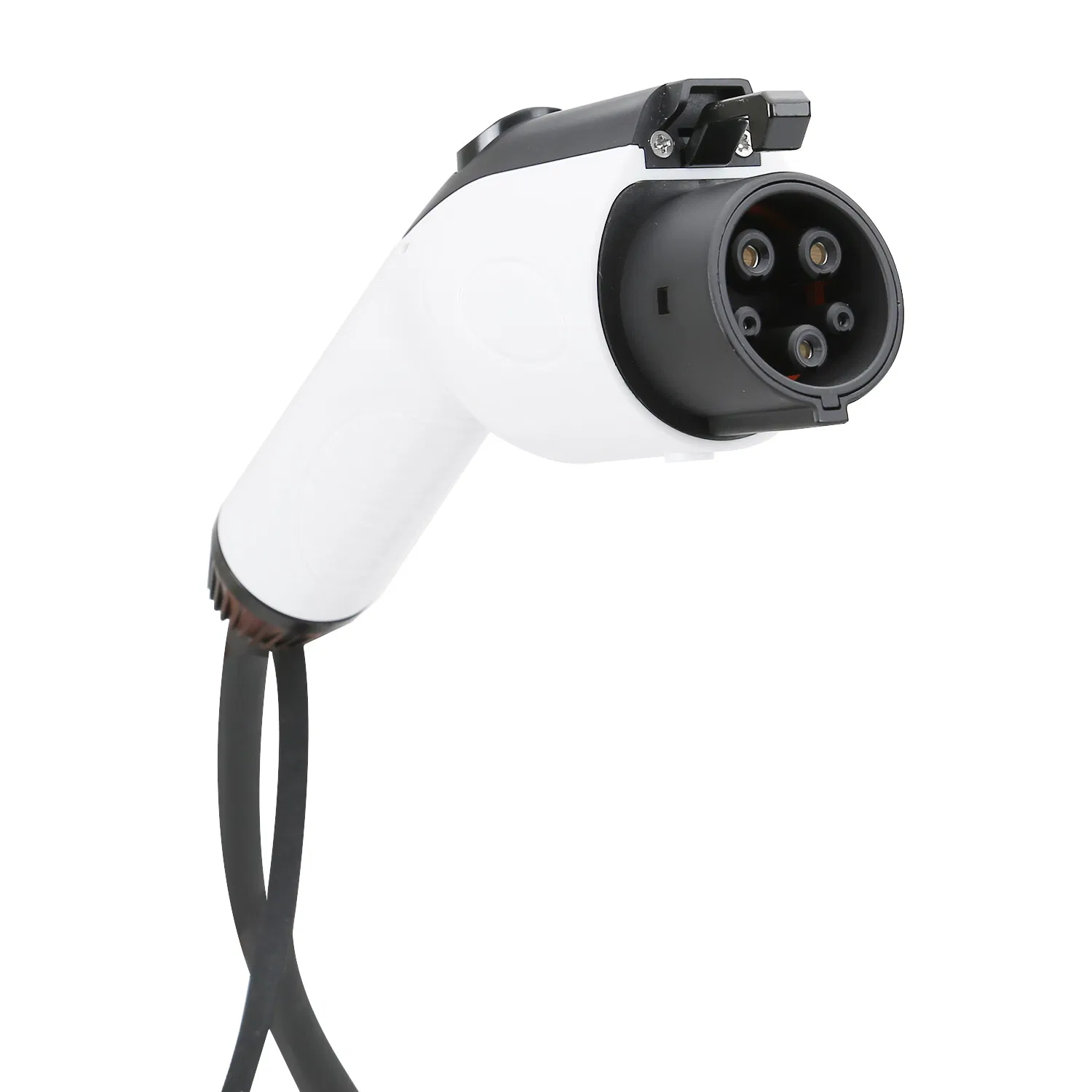

Versatile Type 1 EV Charging Plug 110V and 220V Electric Vehicle Charging

1 / 4

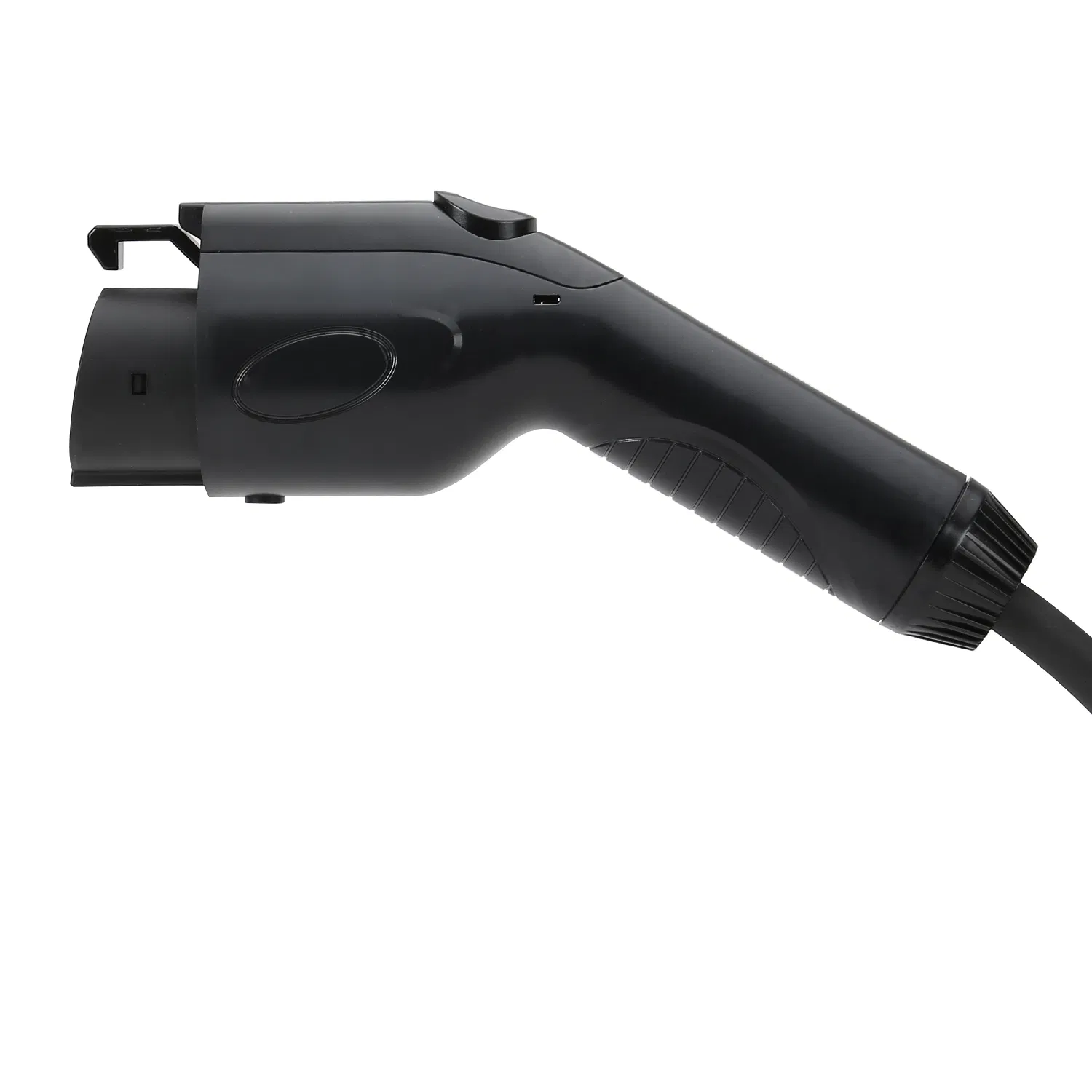

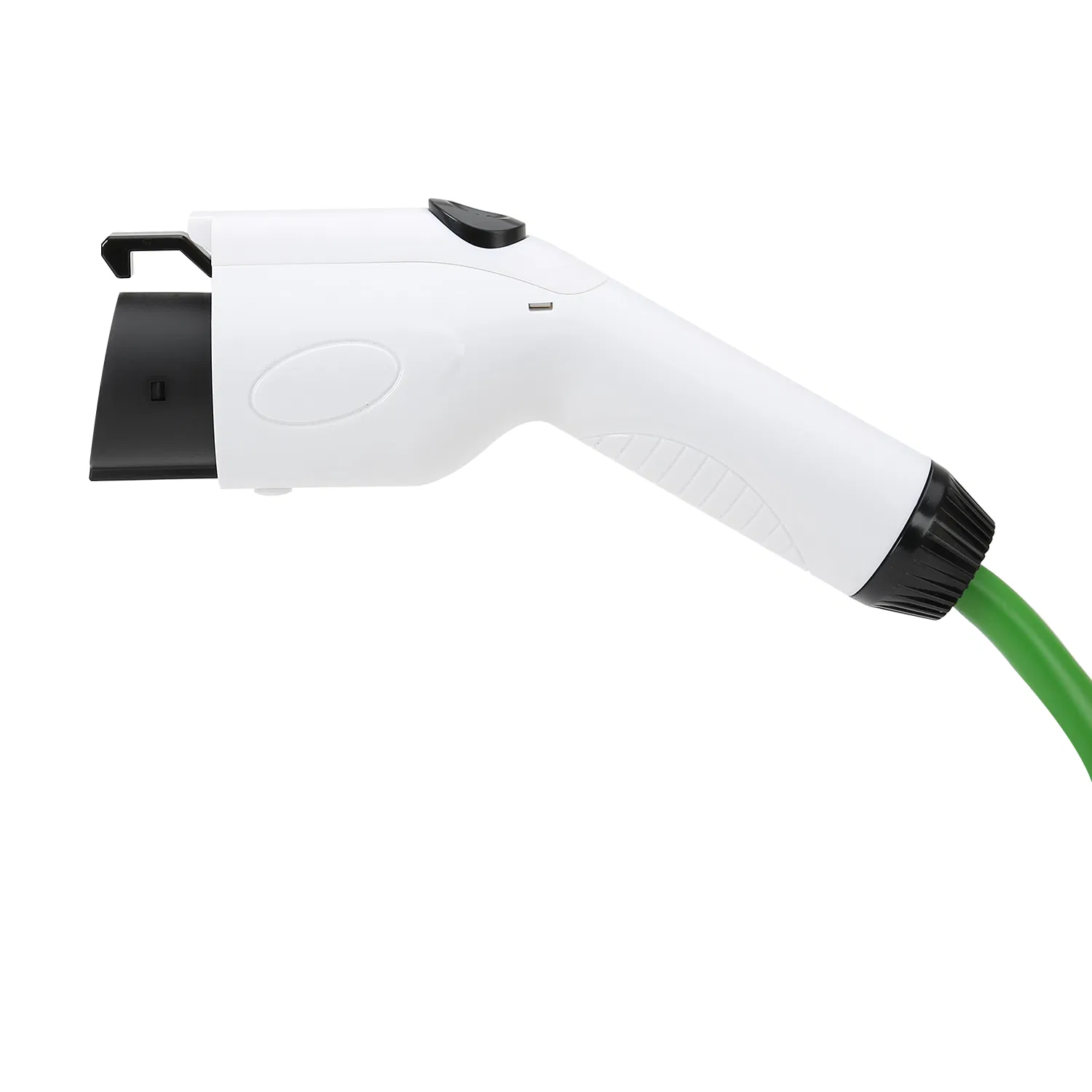

Versatile Type 1 EV Charging Plug 110V and 220V Electric Vehicle Charging

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Interfaces

One Pile with One Charge

Location

Private Use

Installation

Wall Mounted

Charge Method

Normal Charge

Rated Current

16A/32A/40A

Voltage

110V/240V

After-Sales

2 Year Warranty

Type

Fast EV Charging Station

Certification

CE, ISO, TUV, RoHS

Package Size

42.50cm * 42.50cm * 41.00cm

Gross Weight

2.000kg

⚙️ Technical Specifications

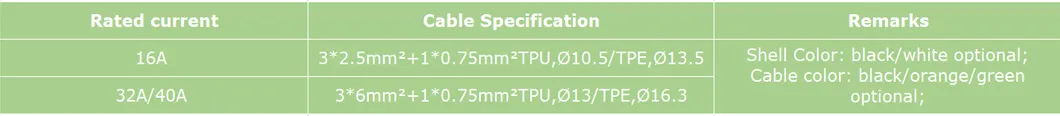

Product Name	SAE J1772 AC Charger
Length	5m or customized length
Electrical Performance
Rated current	16A/32A/40A
Operation Volatge	110V/240V
Insulation resistance	> 500M Ohm (DC500V)
Contact resistance	0.5m Ohm max
Terminal temperature rise	< 50K
Withstand voltage	2000V
Mechanical & Environmental
Mechanical life	No-load plug in/out > 10000 times
Coupled insertion force	45N~100N
Operating Temperature	-30°C ~ +50°C
Case material	Thermoplastic, flame retardant UL94 V-0
Terminal Material	Copper alloy, silver plating

🌟 Key Features

Easy to Use Charge at home, at work, or anywhere with a socket. No complex installation is required—just an intuitive plug-and-charge process wherever you are.

Safe & Reliable Equipped with Earthing detection and precision engineering. The internal circuit board automatically detects and corrects issues including voltage instability, leakage, current fluctuations, and temperature spikes even during lightning storms.

High Compatibility Designed specifically for electric cars using the IEC 62196 standard, providing a maximum charging speed of 3.6 kW per hour.

❓ Frequently Asked Questions

What is the charging speed of this Type 1 EV charger?

This car charger offers a maximum charging speed of 3.6 kW per hour, designed for efficient home and workplace charging.

Does this charger require professional installation?

No installation is required. It features an intuitive plug-and-charge design, allowing you to charge anywhere with a compatible socket.

What safety protections are built into the device?

The charger includes Earthing detection and a smart circuit board that protects against unstable voltage, overcurrent, leakage, and extreme temperatures.

What is the operating temperature range for this station?

The device is designed to operate reliably in environmental temperatures ranging from -30°C to +50°C.

What is the warranty period for the T1 model?

The product comes with a comprehensive 24-month warranty (2 years) for peace of mind.

Which certifications does the charger hold?

The charger is fully certified with CE, ISO, TUV, and RoHS standards, ensuring international quality and safety compliance.
