Zap Charger
1 / 5

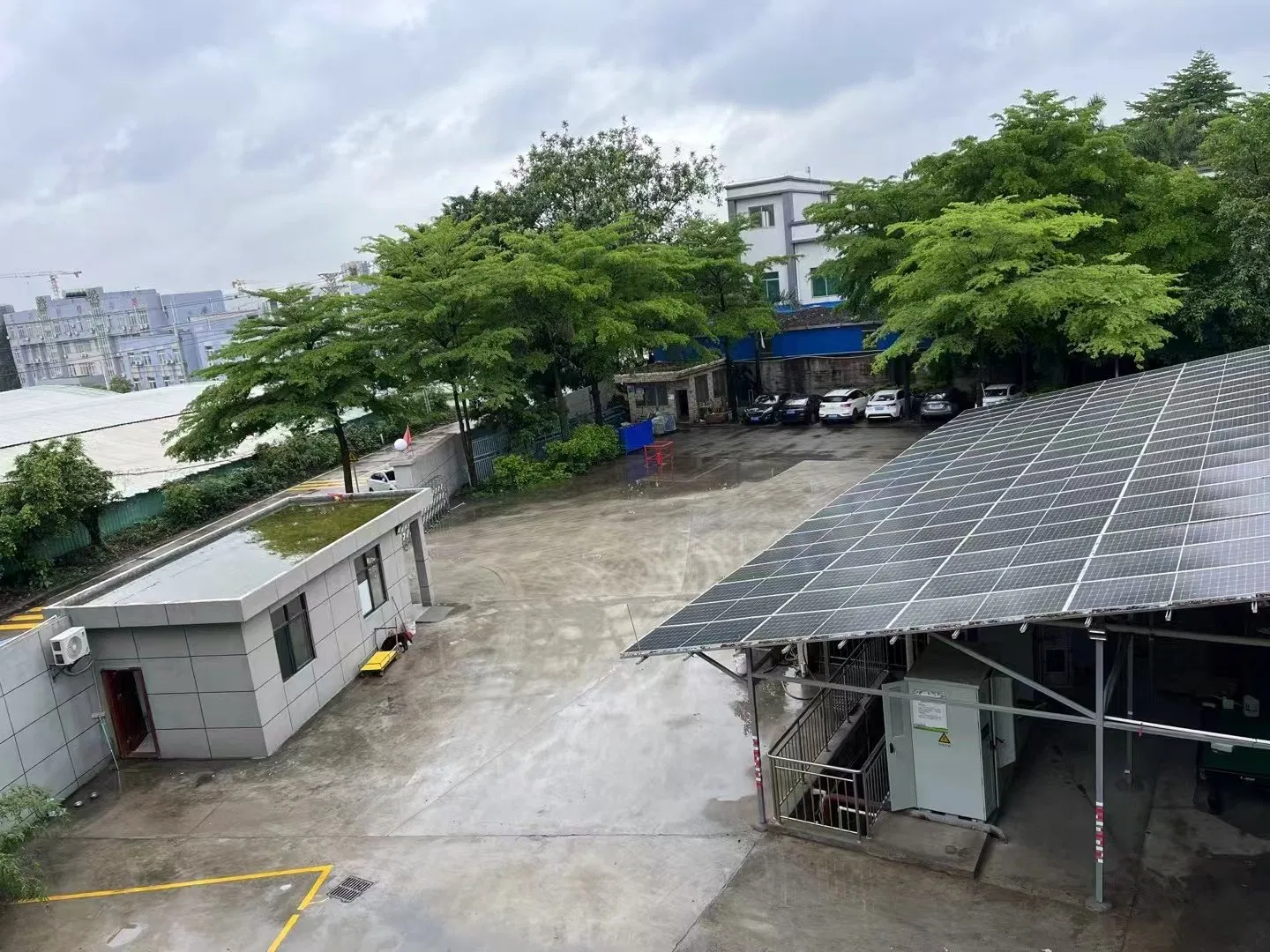

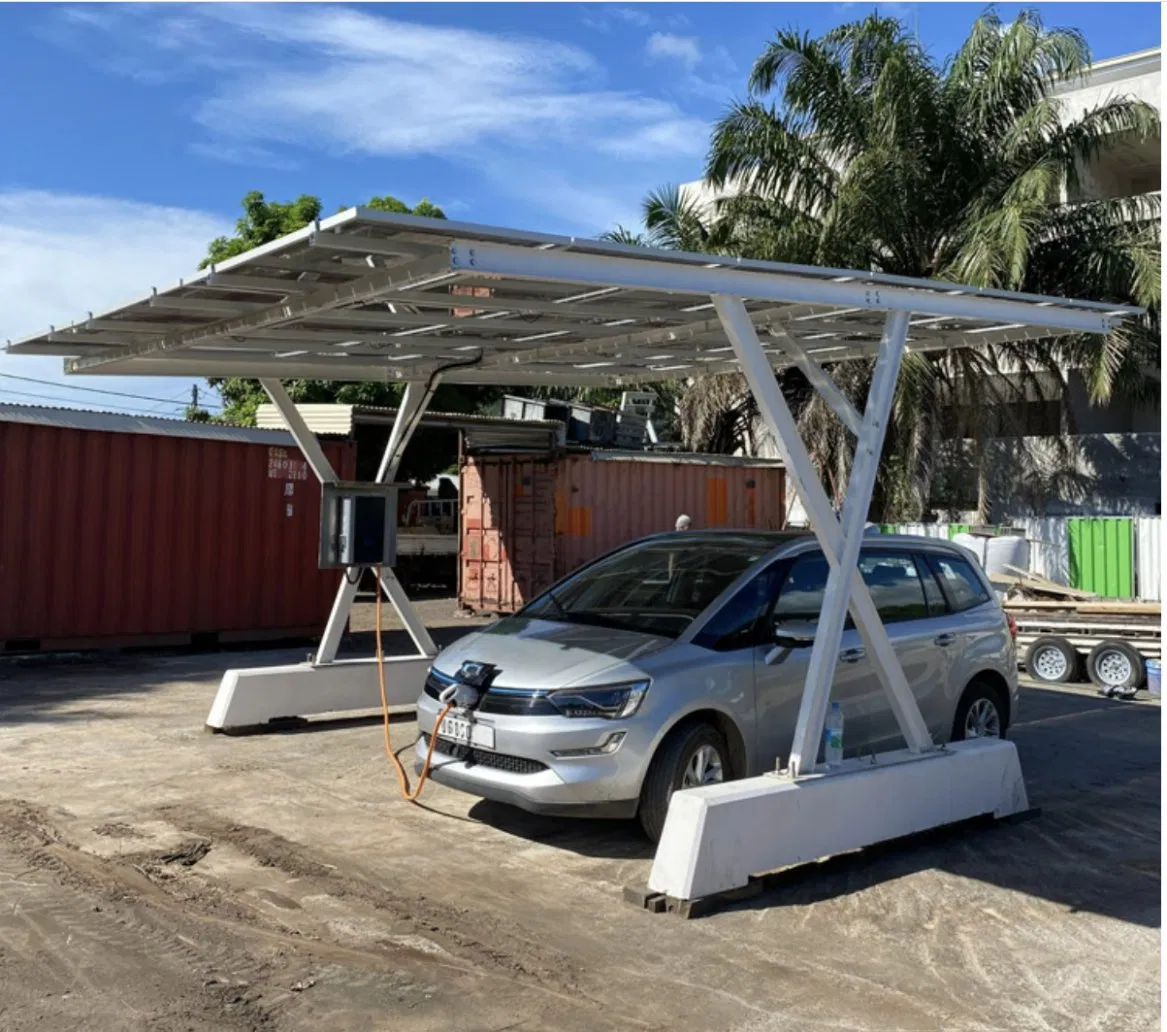

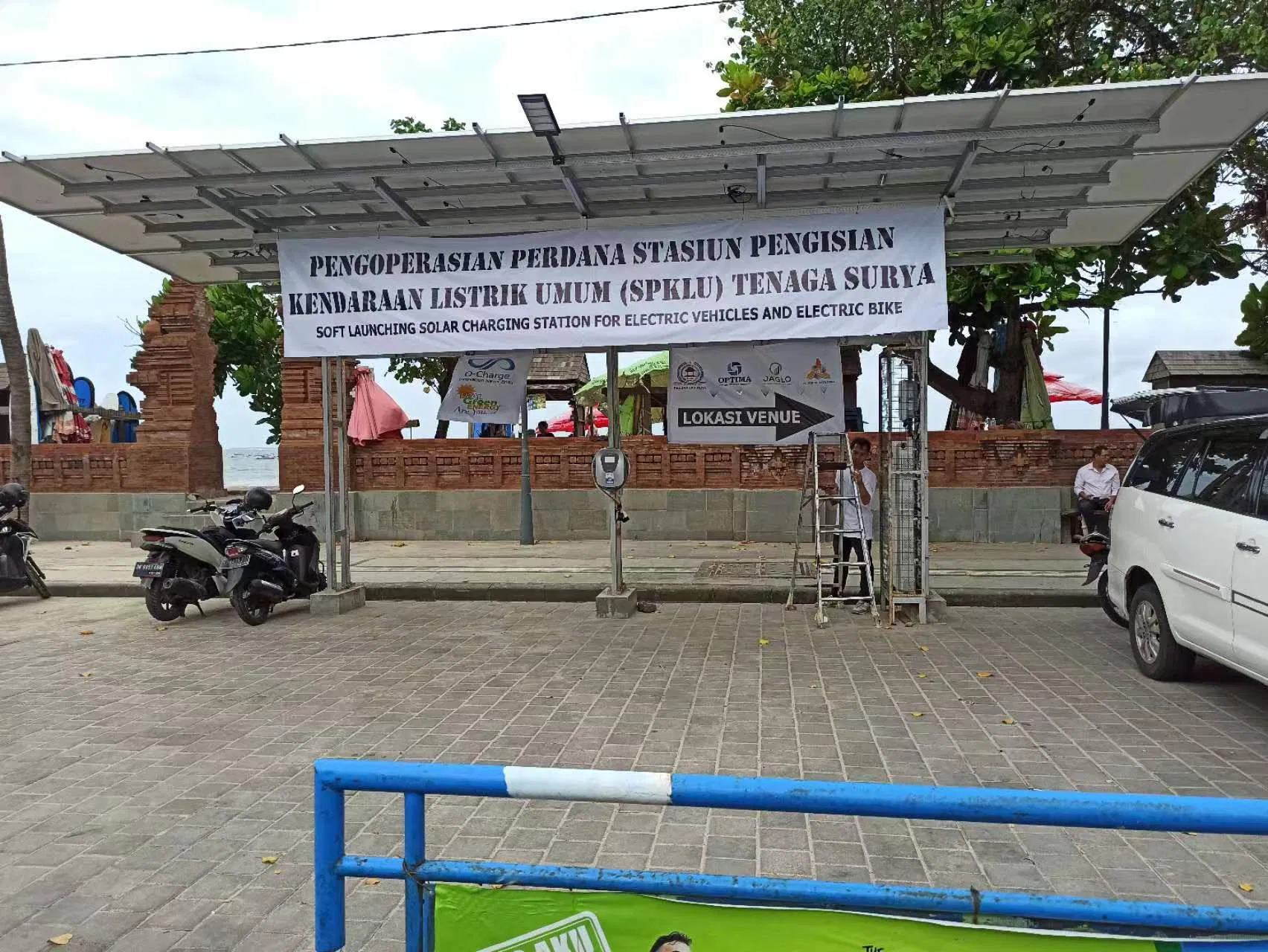

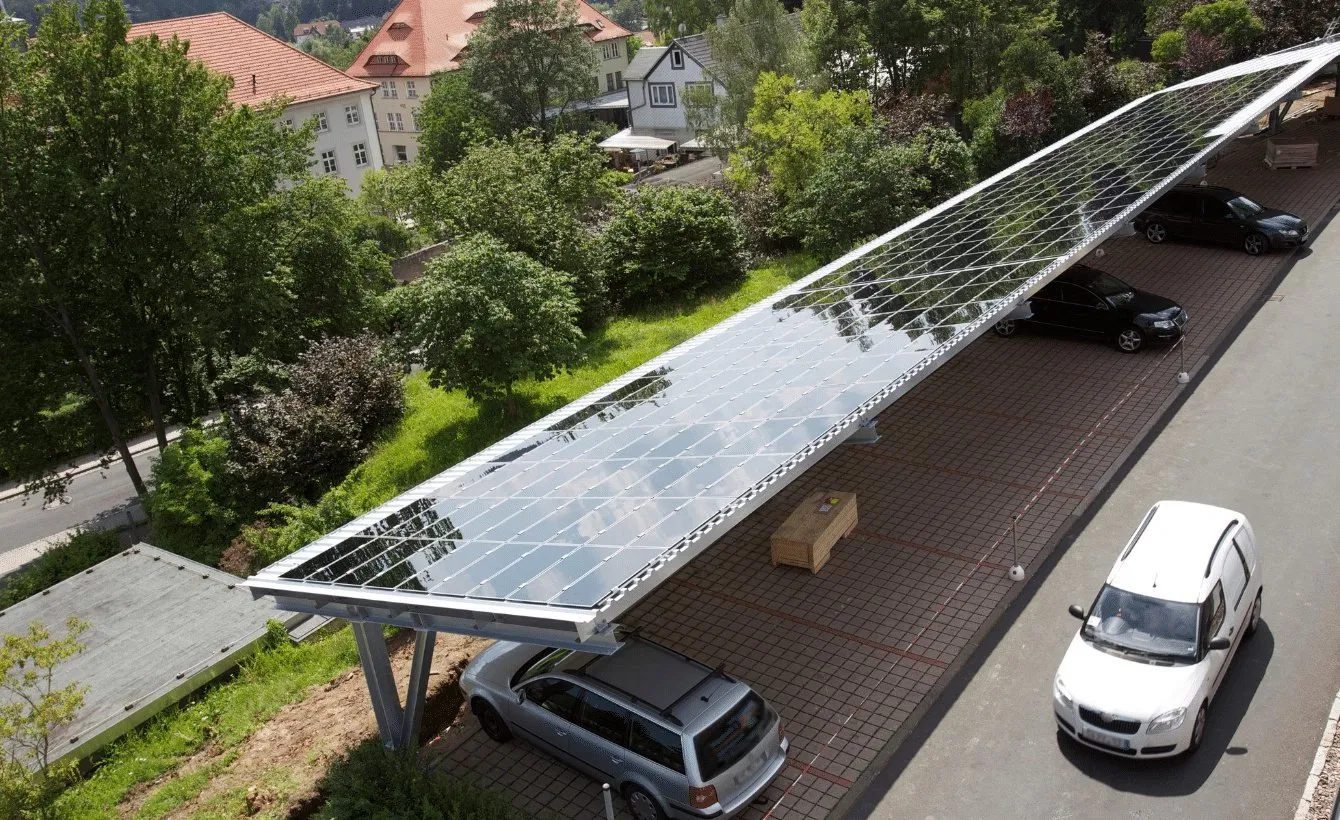

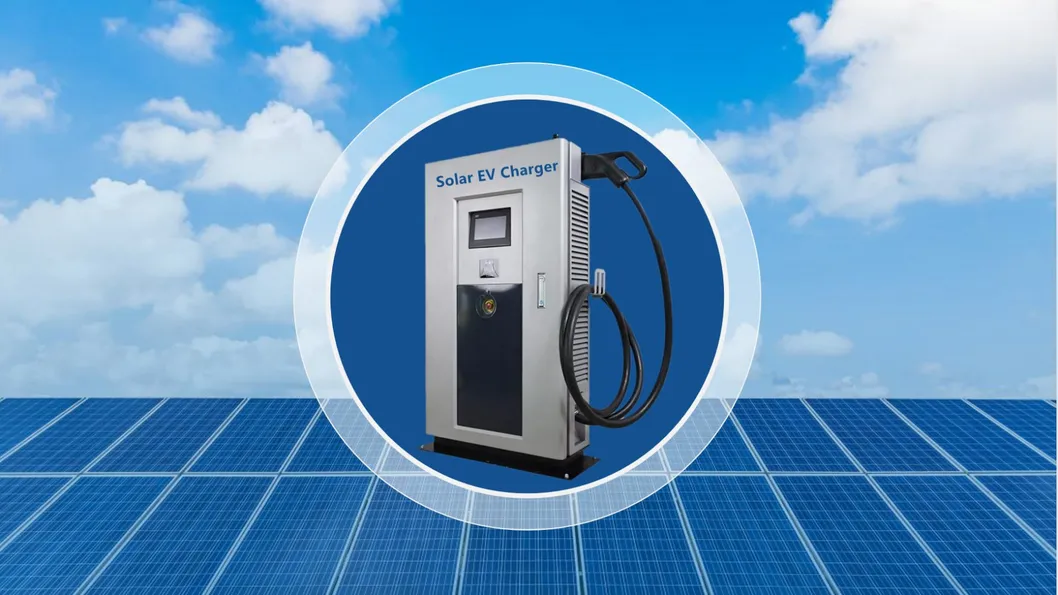

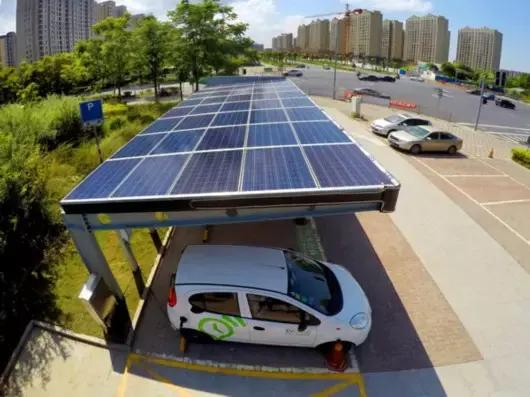

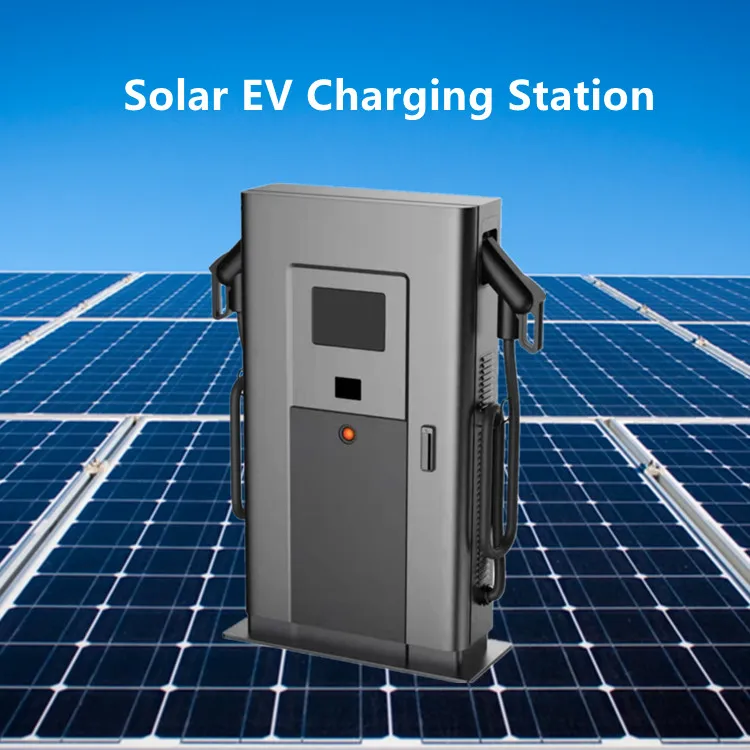

EV solar charging is a great solution, which allows EV owner to end their reliance on the high-cost fossil-fuel-powered energy grid. Use the green energy generated from your solar panels at home to charge your electric vehicle in the most efficient and sustainable way. With two modes (On-Grid and Off-Grid) to choose from, you decide when to go fully green or charge with a mix of green and grid energy.
For personal use, home use, EV fleet, EV bus, electric heavy truck, light vehicle and charger sharing.
| MODEL | 60KW | 120KW | 180KW |
|---|---|---|---|
| INPUT | |||
| Nominal Input Voltage | 380 VAC ± 15% | ||
| Acceptable Input Voltage Range | 3-phase, 3ph + N + PE | ||
| Frequency Range | 50 - 60 Hz | ||
| Maximum Input Current | 100A | 260A | 300A |
| OUTPUT | |||
| Output Current Range | 2 ~ 200A | 2 ~ 250A | 2 ~ 250A |
| Output Voltage Range | 200~750VDC (600~750VDC constant power) | ||
| Efficiency | > 94% | ||
| PROTECTION | |||
| Safety Protection | Over/Under voltage, overload, short circuit, earth leakage, lightning, overheat | ||
| PHYSICAL | |||
| IP Protection | IP54 | ||
| Dimension (D x W x H) | 750 x 530 x 1685 mm | ||
| Net Weight (kgs) | 275 | 310 | 328 |

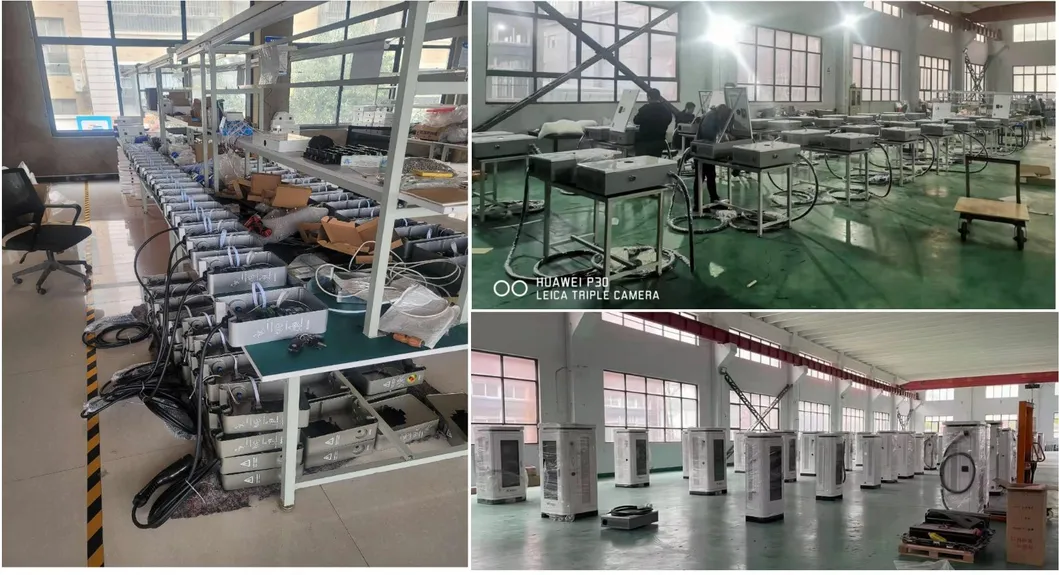

Established in 2015, we are a professional EV charger, DC power supply and battery storage solution provider. We focus on providing customers with professional charging equipment that is safer, more efficient and more stable.

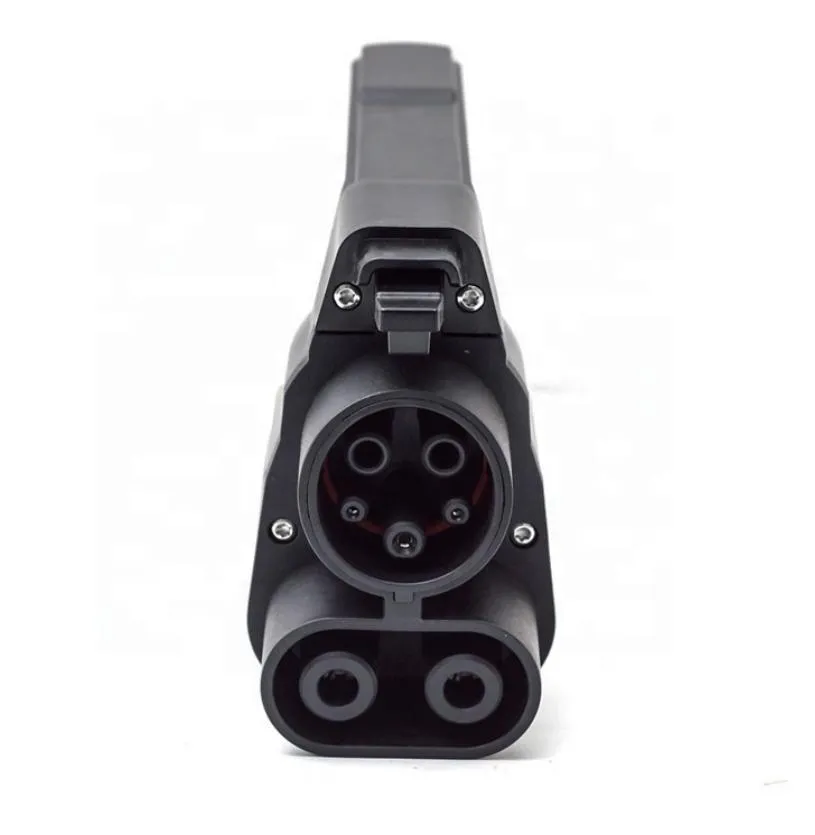

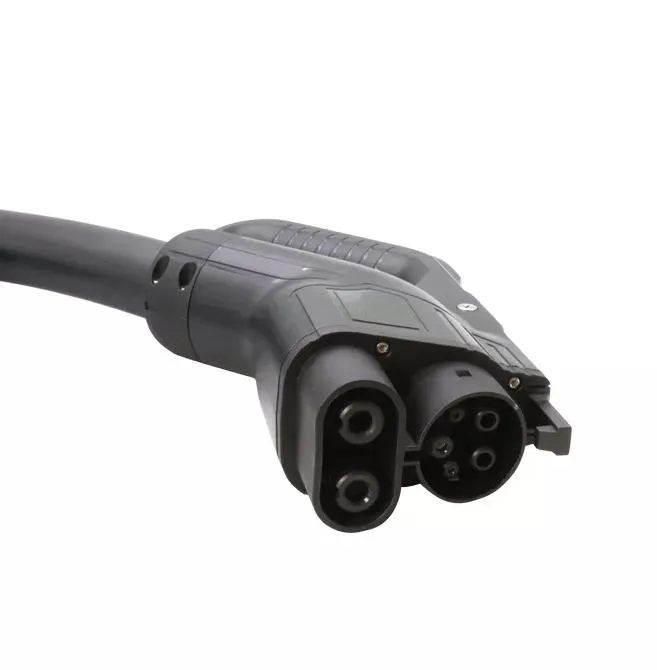

Our products serve household and commercial markets including all kinds of EV Connectors, Charging Sockets, emergency rescue systems, V2H/V2V chargers, and Public multi-standard DC fast chargers. With advanced equipment and professional technical teams, we offer comprehensive OEM and ODM services.
