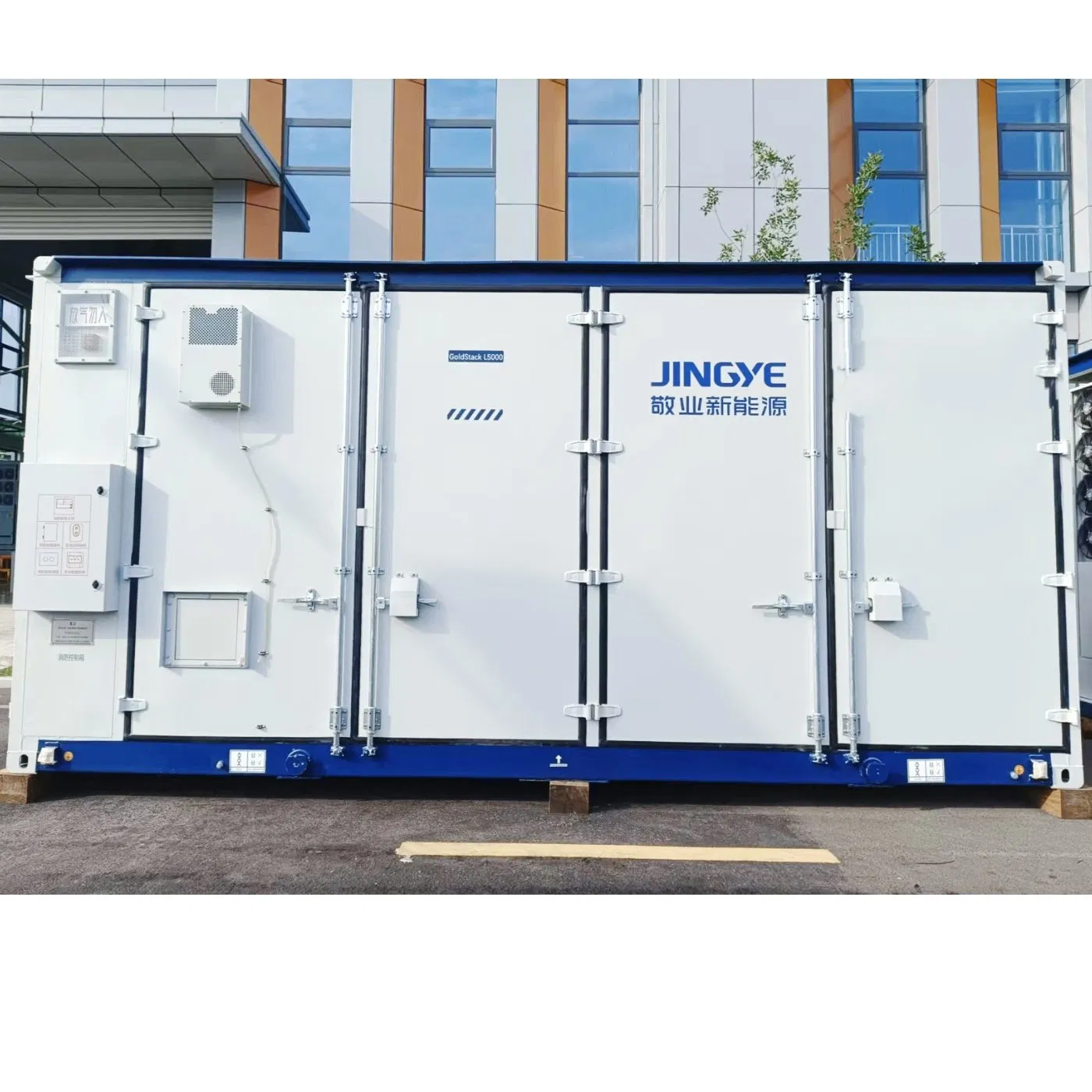

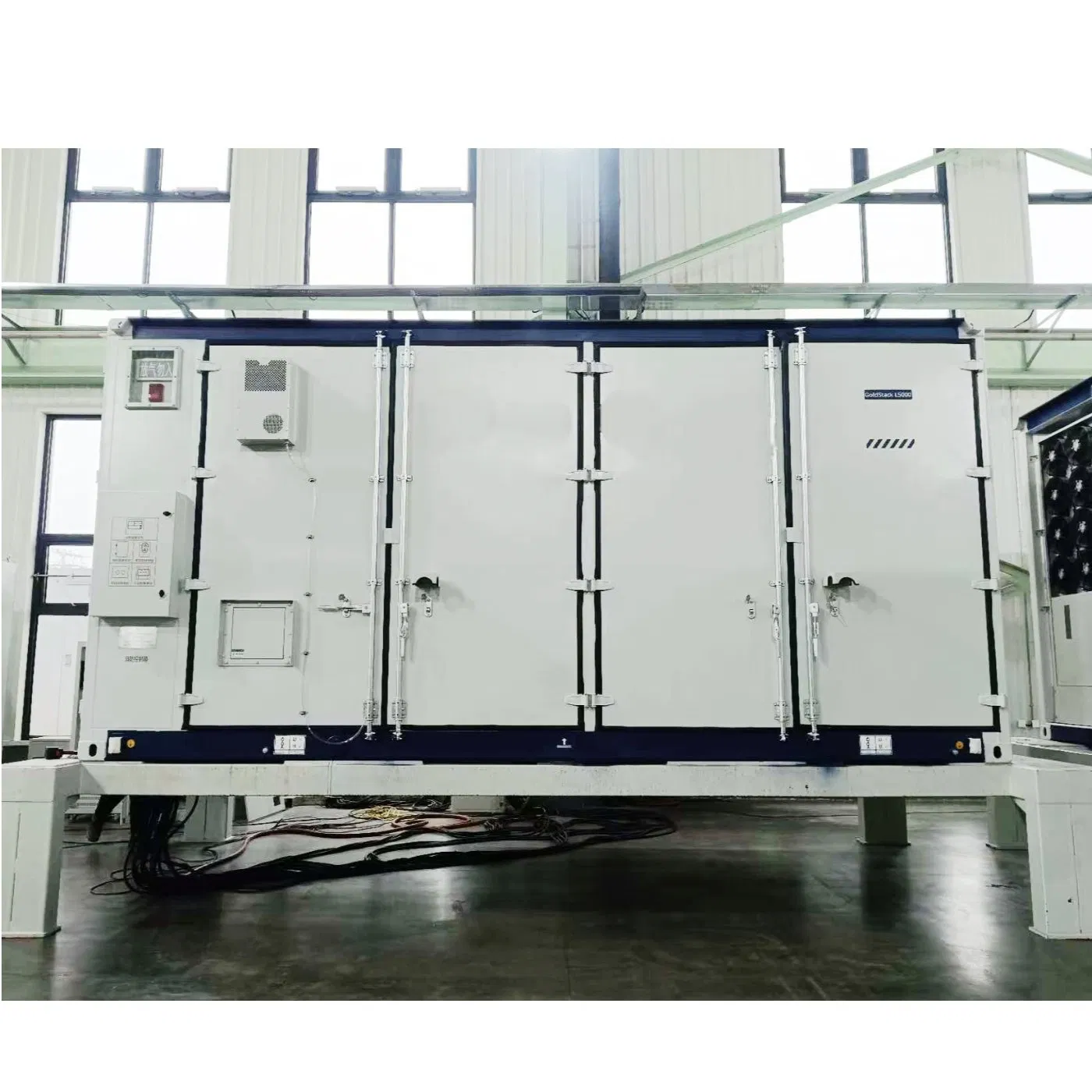

Fast-Charging Solar Storage Battery 5015kwh Containerized Ess System

1 / 5

Fast-Charging Solar Storage Battery 5015kwh Containerized Ess System

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

Send Inquiry

Product Description

Basic Product Information

Model NO.

5.015MWh

Nominal Voltage

1331.2V

Warranty

3 Years

Nominal Capacity

5015kWh

Cycle Life

9000 Cycles

Rated Power

5mwh

Voltage Range

1164.8V - 1497.6V DC

IP Rating

IP54

Cooling System

Liquid Cooling

Product Description

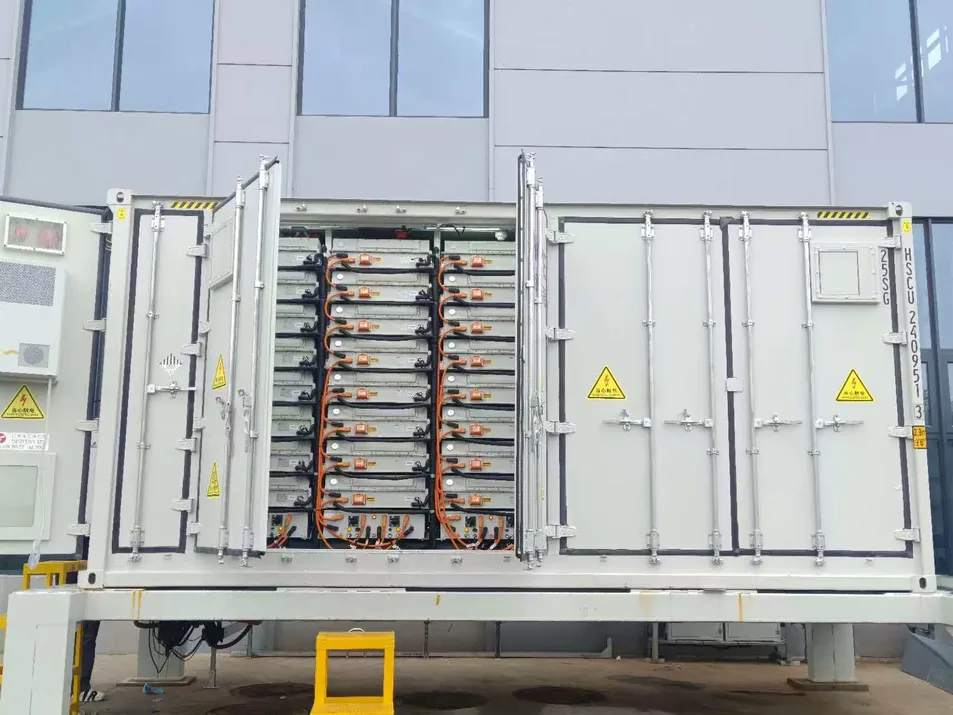

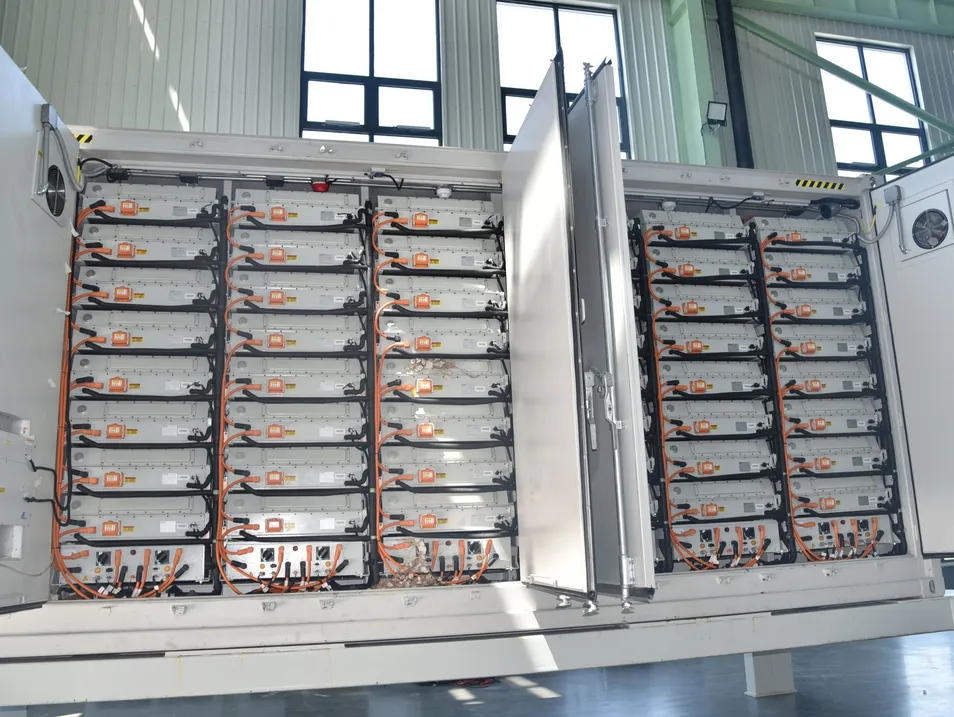

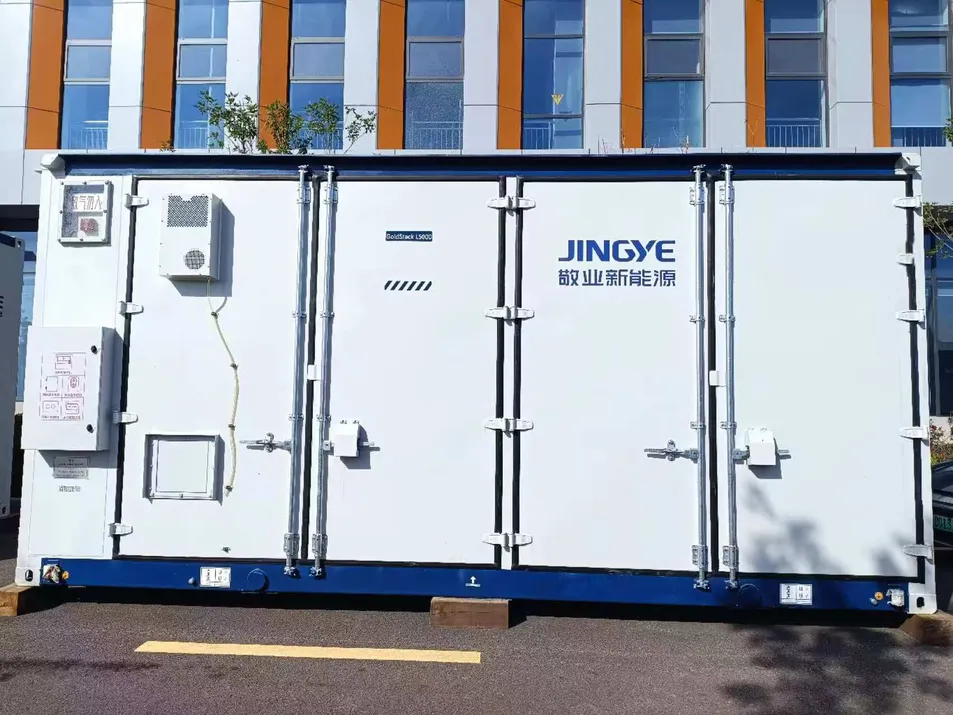

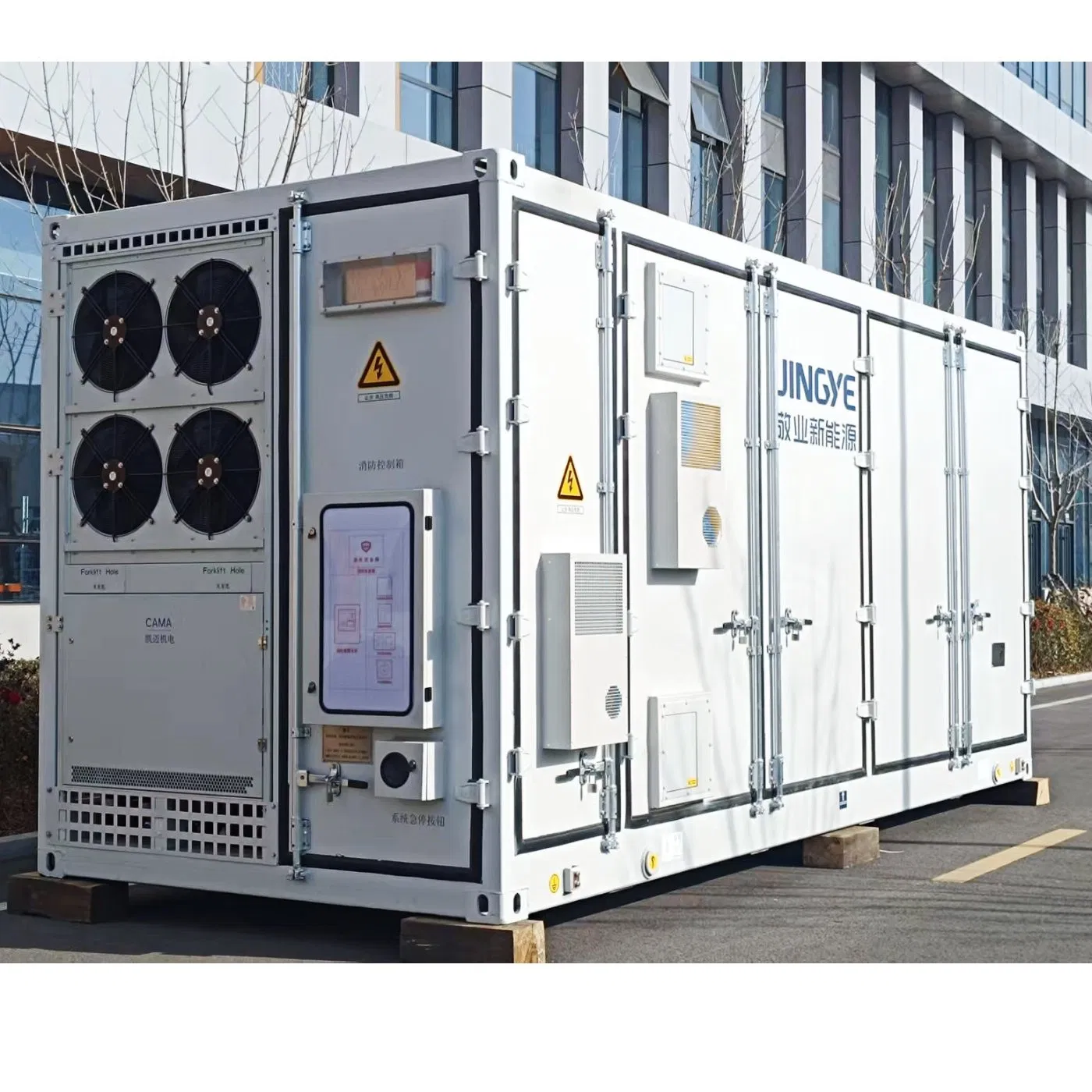

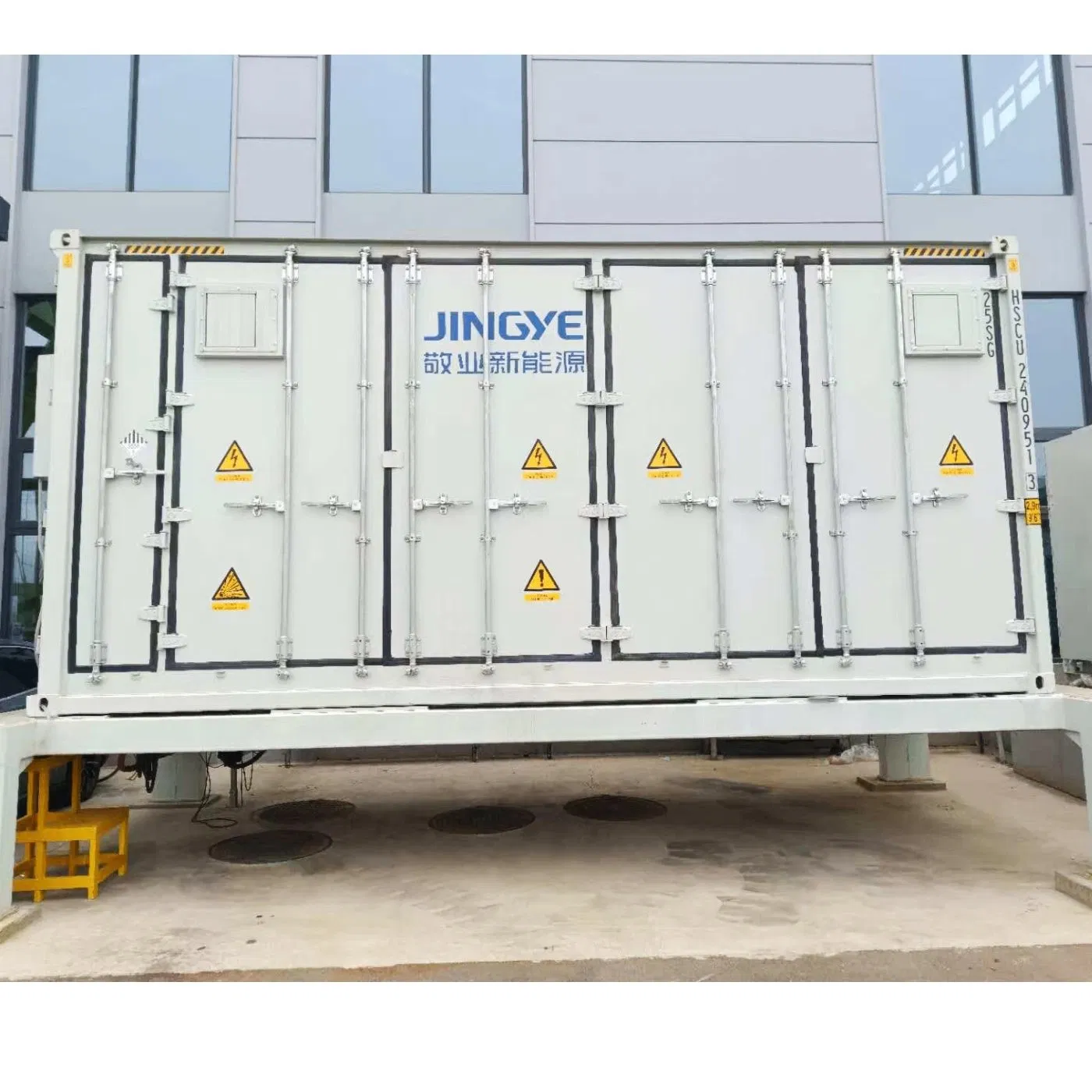

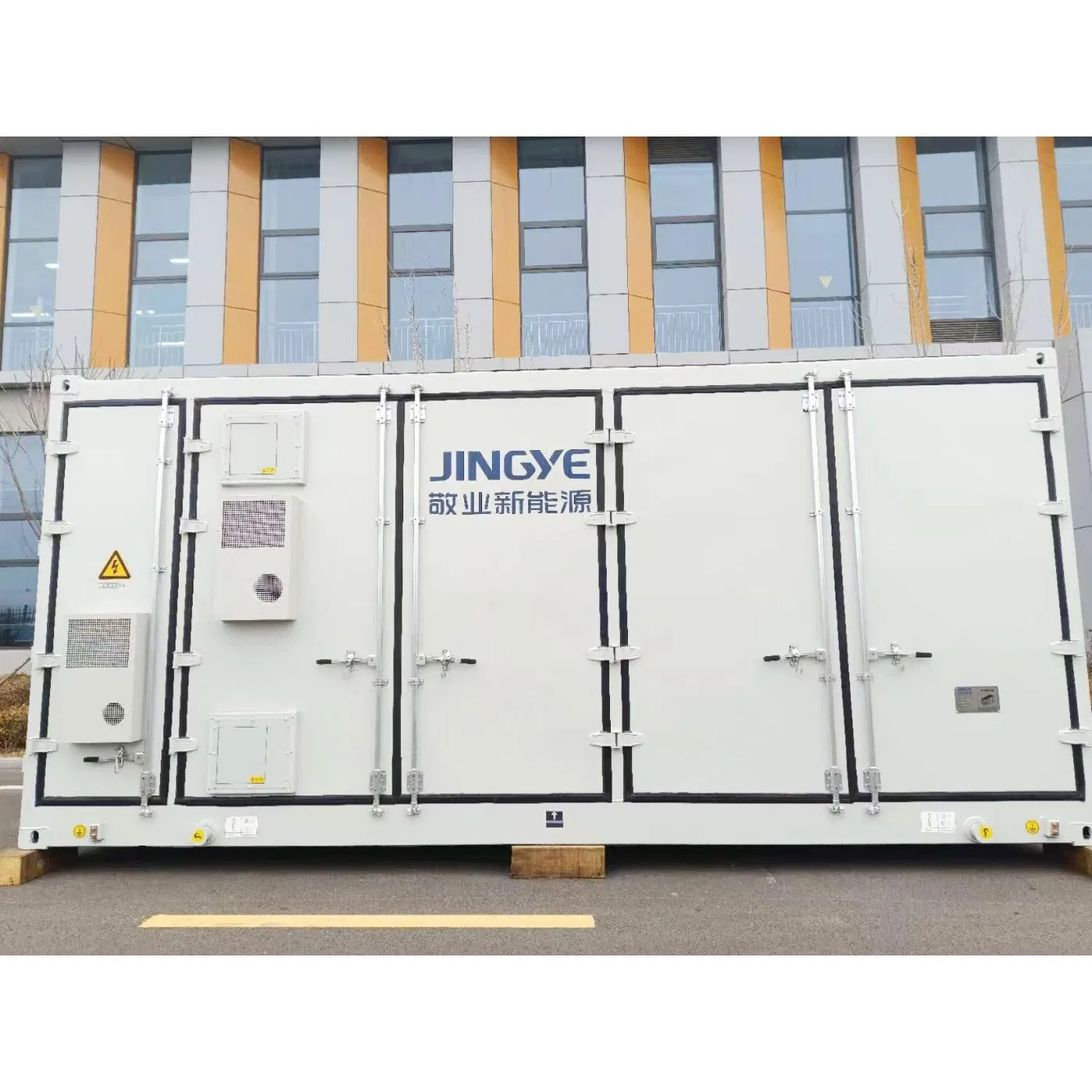

Energy Storage Containerized System

This 5015KWh Liquid Cooling energy storage system is based on high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, advanced management systems (BMS), fire protection, and high-precision thermal management systems. The entire system is integrated into a standard 20-foot container, ensuring safety and ease of deployment for various industrial and environmental conditions.

Key Features & Advantages

Advanced Battery Technology: High-efficiency lithium iron phosphate batteries with long cycle life (9000+ cycles).
Intelligent Management: Sophisticated BMS ensures real-time monitoring and product safety.
Precise Thermal Control: Industrial-grade liquid cooling maintains temperature differences within 3℃ inside PACKs.
Modular Safety: Includes three-level automatic fire extinguishing (perfluorohexane or aerosol) and comprehensive environmental monitoring.

Technical Specifications

Parameter Item	Technical Specification
Configuration	12(1P104S4)
Rated Power / Capacity	5MWh
Rated Voltage	1331.2VDC
Voltage Range	1164.8V - 1497.6VDC
Charging/Discharge Power	≤ 2.5MW
Dimensions (LWH)	6058 x 2438 x 2896mm
Operating Temperature	-30℃ to 60℃ (Discharge)
IP Rating	IP54
Communication	Ethernet, CAN, ModbusRTU

Manufacturing Capacity & Global Presence

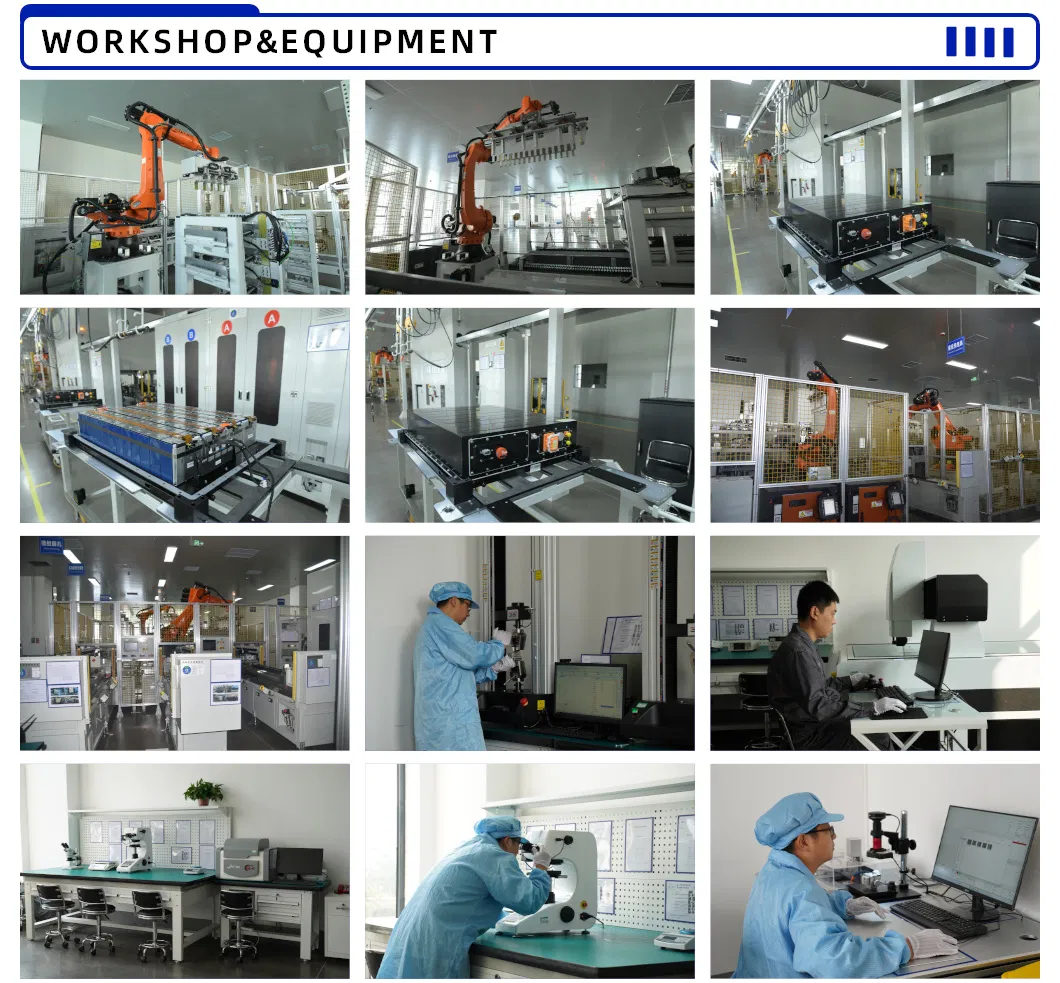

Equipped with highly automated production lines, the facility boasts an annual capacity of 5 GWh for energy storage systems and 2.4 million CCS busbars. These solutions are extensively utilized in smart grids, renewable energy storage (wind/solar), and commercial applications.

Frequently Asked Questions

Q1: What are the primary energy storage solutions offered?

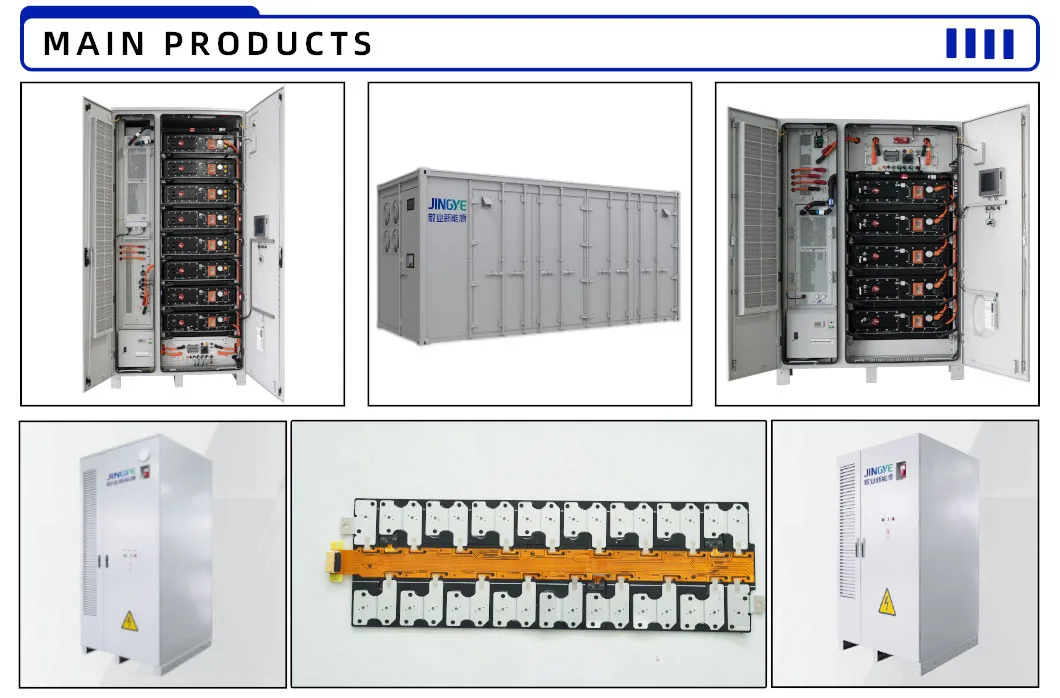

We specialize in 5MWh Liquid Cooling Energy Storage Containers, Commercial & Industrial cabinets, CCS Integrated Busbars, and high-density Battery Packs.

Q2: Is customization available for specific site requirements?

Yes, we provide flexible customization services tailored to diverse process types, environmental conditions, and capacity needs.

Q3: How is the delivery timeline managed?

With a fully automated production line and a dedicated technical team, we ensure stable production and reliable on-time delivery for large-scale projects.

Q4: What makes liquid cooling better than air cooling?

Liquid cooling provides higher thermal consistency (internal temp diff ≤3℃), which significantly extends battery life and improves safety in high-power applications.

Q5: Are you a manufacturer or a trading company?

We are a formal source factory with standardized production processes, offering competitive pricing and direct quality control from the manufacturing floor.

Q6: What certifications do the systems hold?

Our products meet rigorous international standards for safety and performance, suitable for global deployment in smart grids and industrial sites.
