China Manufacturer Electric Car EV Charging Pile System 30kw DC Fast Charging

1 / 5

China Manufacturer Electric Car EV Charging Pile System 30kw DC Fast Charging

Customization:	Available
Charge Method:	Quick Charge, Portable
Installation:	Movable, Portable

Send Inquiry

Product Description

Basic Specifications

Start Mode

APP Control, Remote Control, RFID Card

Input Voltage

380VAC

Output Voltage

200-750VDC

Output Power

30kw

Output Current

100A

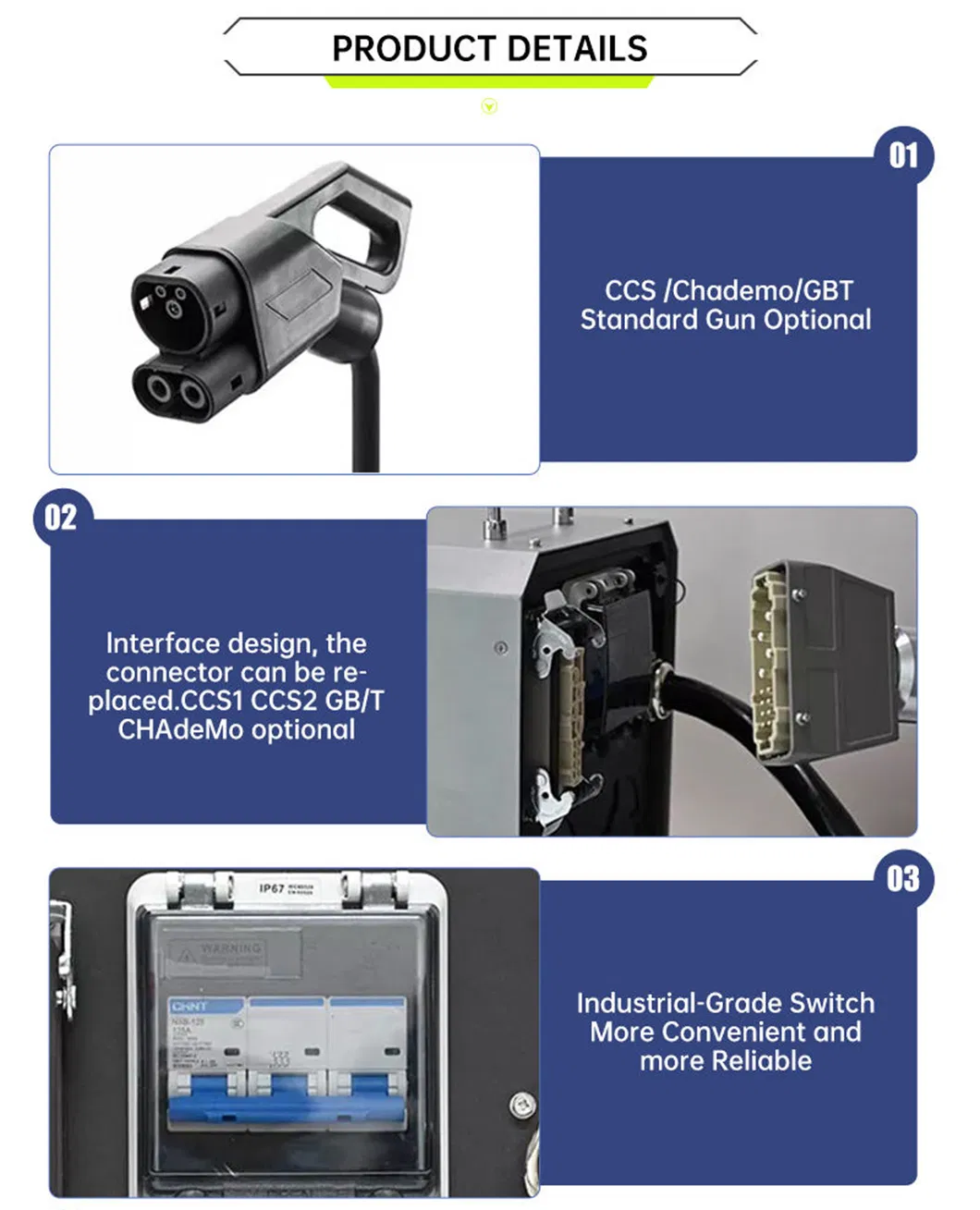

Connectors

Gbt

Standard

GB, EN 61851, EN 61000

Type

Fast EV Charging Station

Certification

CE, ROHS

Warranty

12 Months

IP Level

IP44

Packing

Wooden or Carton Box

★

Product Description

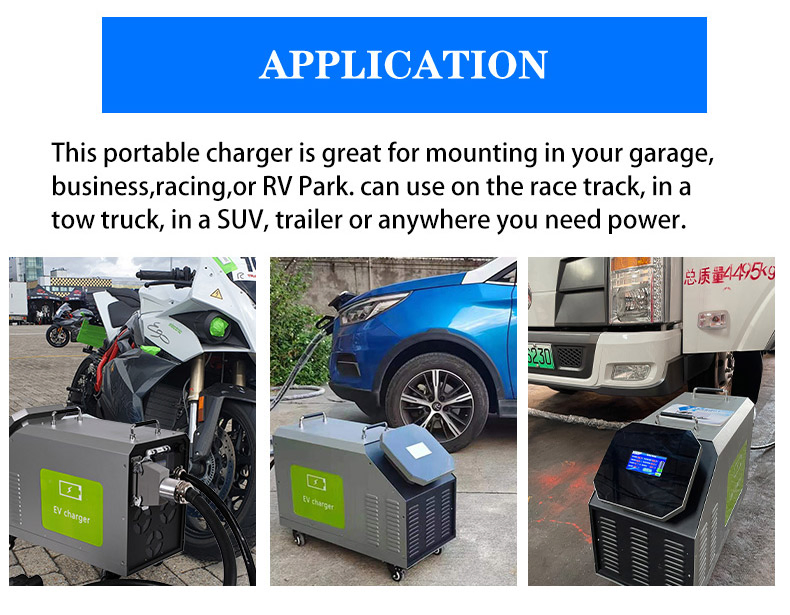

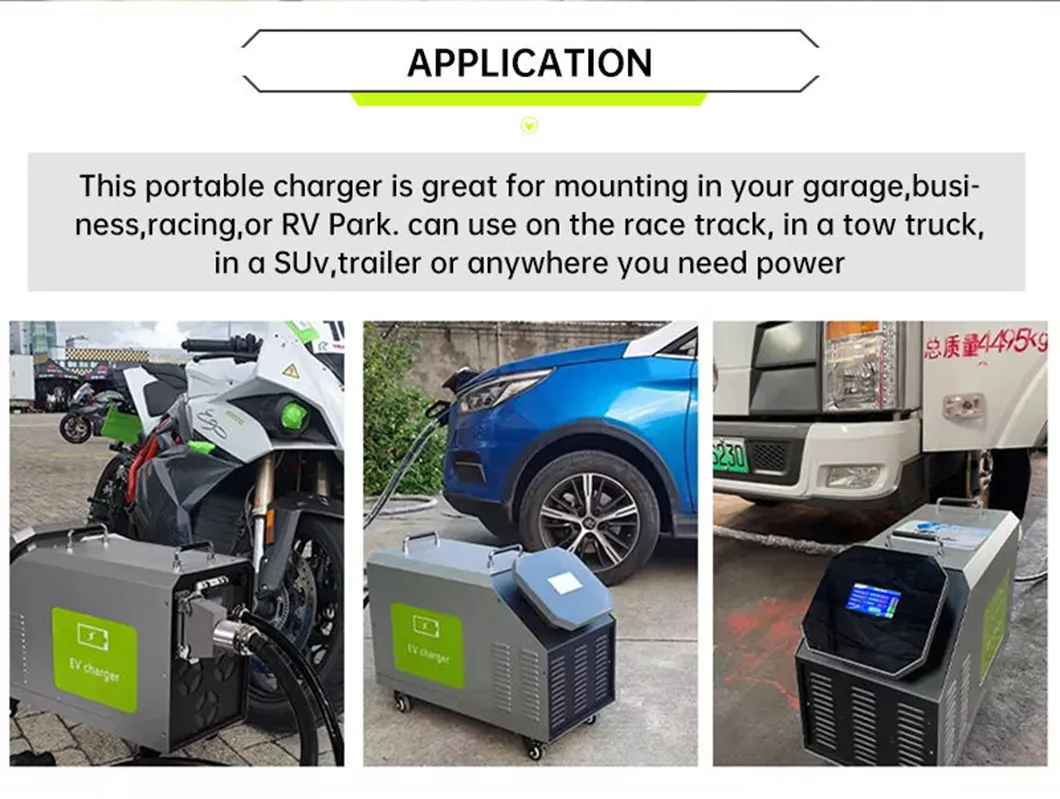

30kw Portable DC Fast Charger

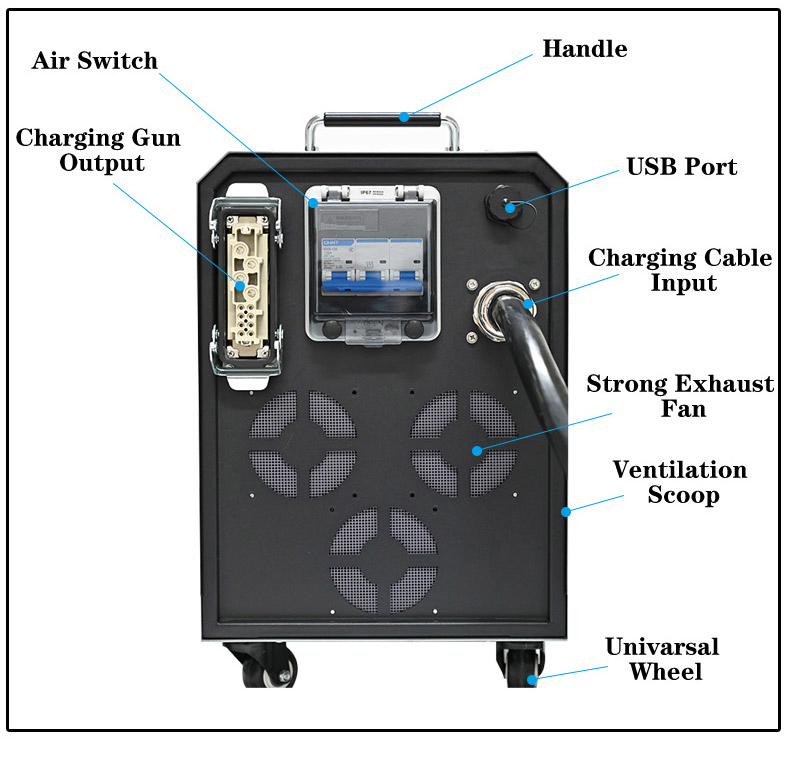

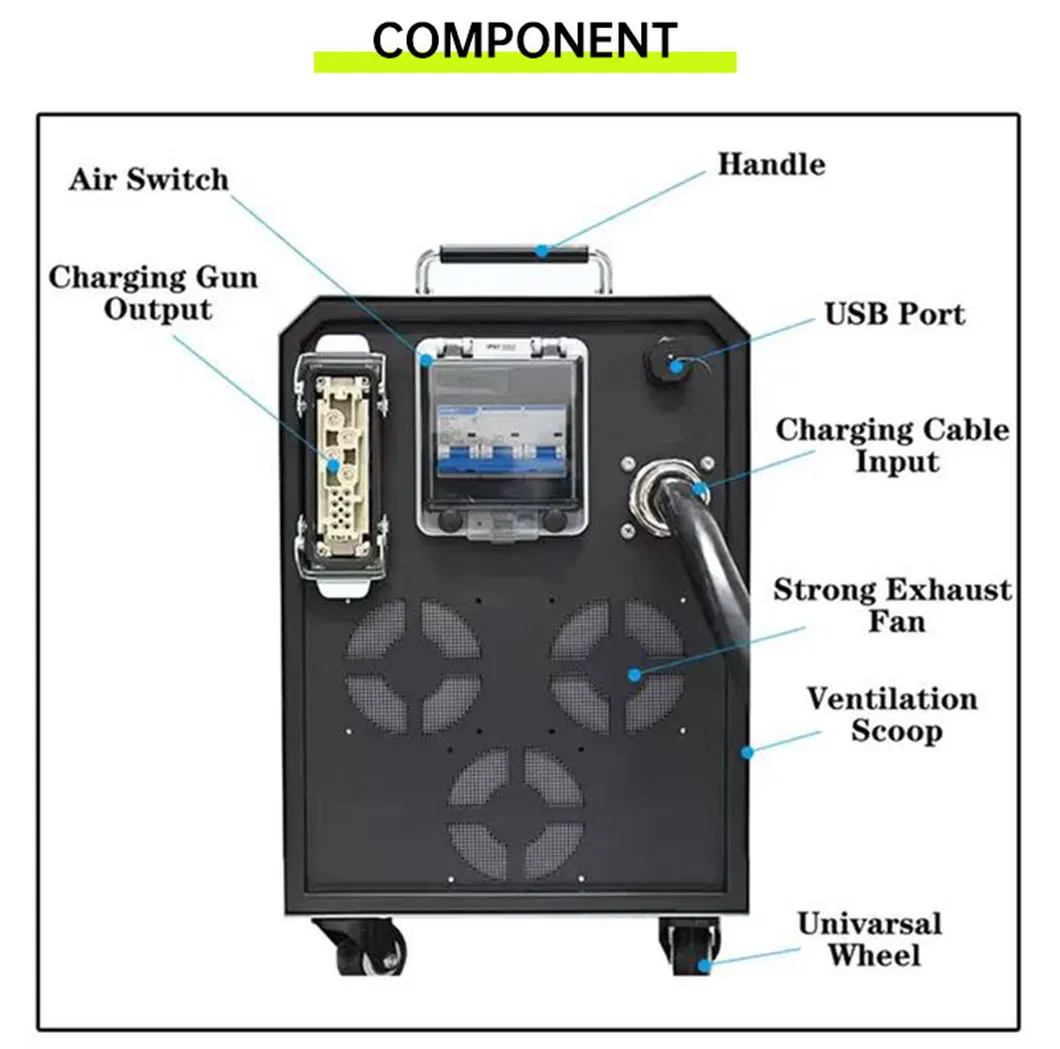

This 30kw portable charger is designed for ease of use and flexibility. With an input voltage of 380V, it can charge electric vehicles at any time and anywhere. It features an intelligent control module, power module, and lightning protection unit.

High efficiency: ≥95%
Wide voltage output range: 200-750Vdc
Compact, lightweight, and unrestricted movement

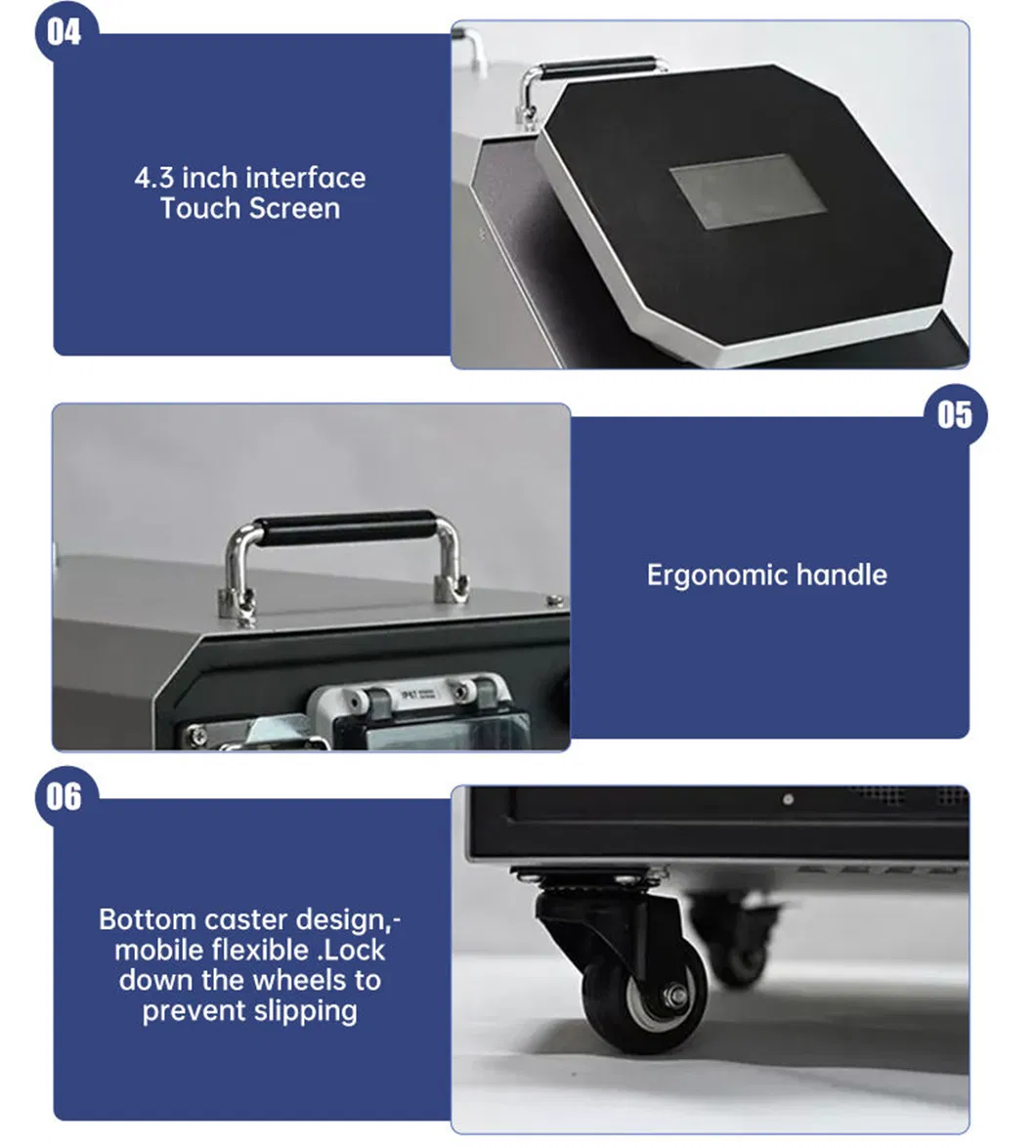

Intelligent and friendly user interface

📋

Production Parameters

Technical Data		30KW Specification
AC Input	Input Rating	380Vac±10%
	AC Input Connection	3P + N + PE
	Max. Input Current	45A
	Frequency	50 / 60 Hz
DC Output	Output Voltage Range	200-750Vdc
	Max. Output Power	30KW
	Max. Output Current	100A
Mechanical	Dimension	570×190×350mm
Mechanical	Weight	58KG
Environmental	Operating Temp	-40~85ºC
Environmental	IP Level	IP44

🖼️

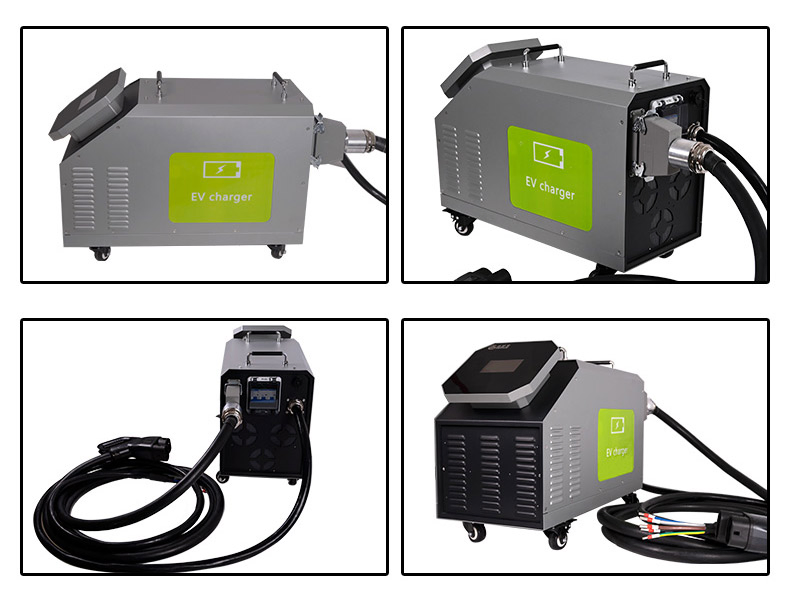

Detailed Product Gallery

Frequently Asked Questions

Are you a professional manufacturer?

Yes, we are a professional manufacturer specializing in new and sustainable energy applications with over 18 years of experience.

What is the warranty period for this charging station?

The product comes with a 12-month warranty. During this period, we provide technical support and replacement parts.

How long is the delivery time?

Generally, delivery takes 3 to 7 working days after receiving advance payment, depending on the order quantity and items.

What is the difference between the Movable and Wallbox Chargers?

The main difference is the protection level: Wallbox chargers are IP54 (suitable for outdoor use), while Movable chargers are IP43 (not recommended for rainy outdoor use).

Do you test the products before delivery?

Yes, we perform 100% testing on all goods before they are delivered to ensure quality and safety.

What are your terms of payment?

Typically, we require a 50% deposit via T/T, with the remaining 50% paid before delivery. We provide photos of products and packaging prior to final payment.
