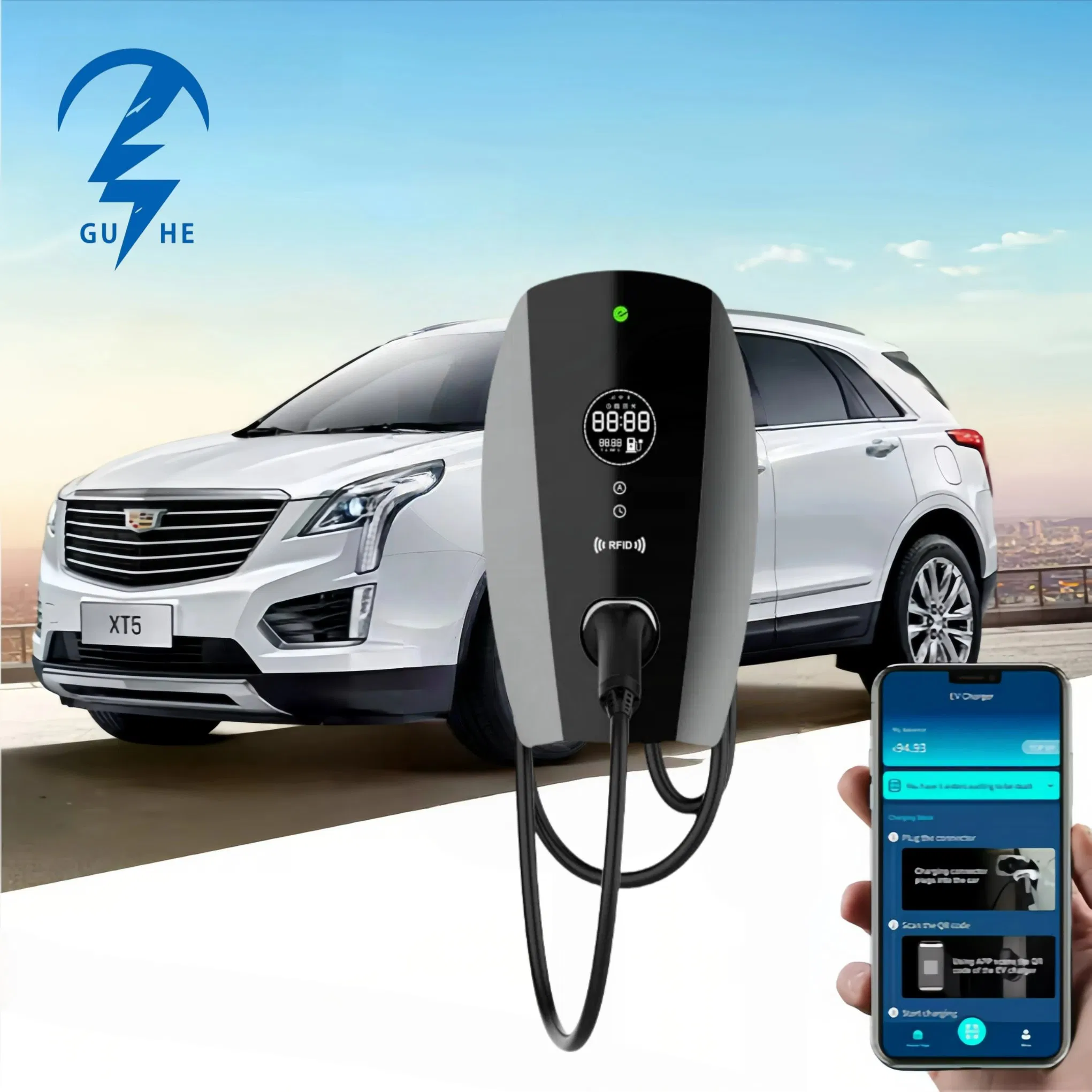

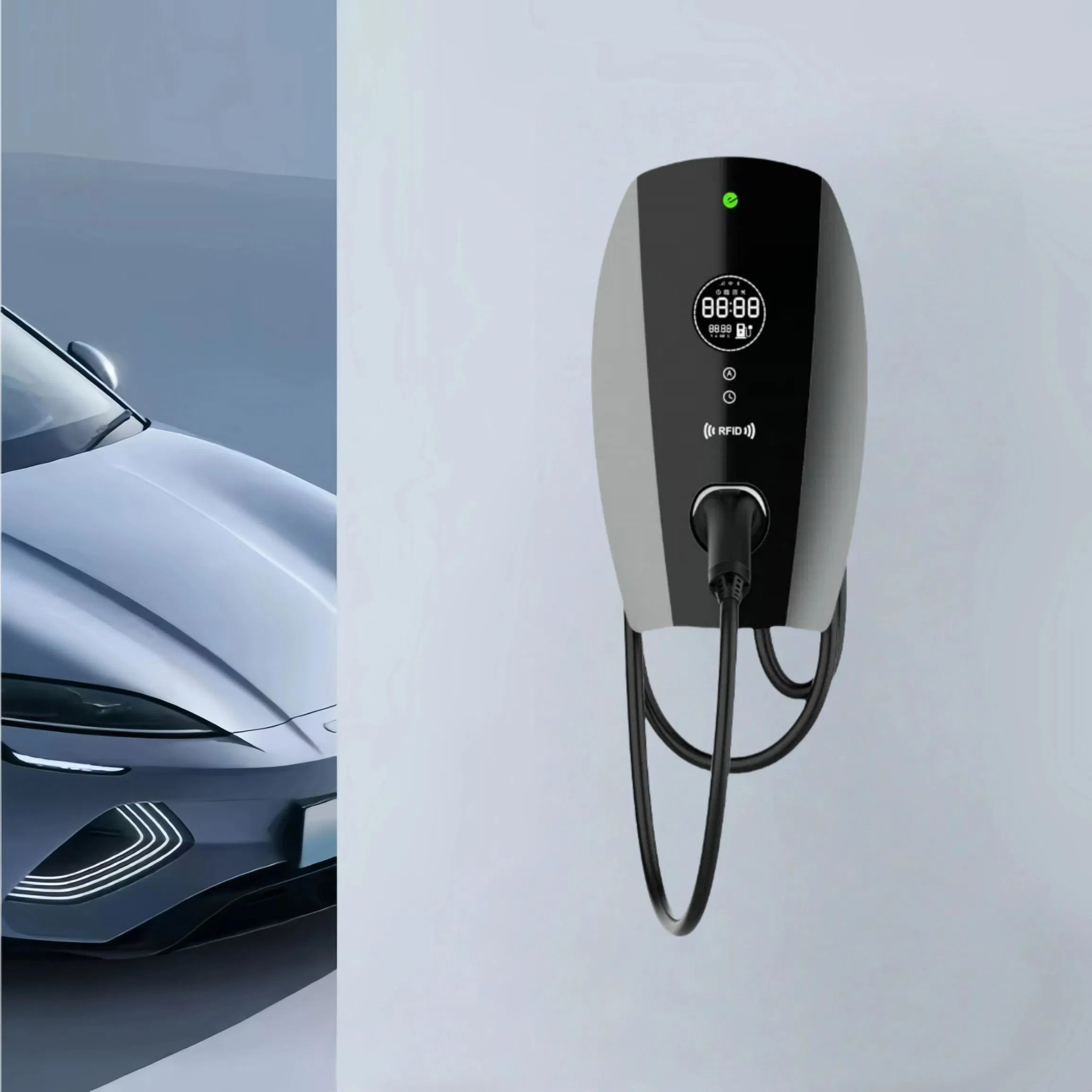

Guhe 22kw AC EV Charger Pile IP54 Waterproof Electric Vehicle Charging Station for Home Use

1 / 5

Guhe 22kw AC EV Charger Pile IP54 Waterproof Electric Vehicle Charging Station for Home Use

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

Smart Charging

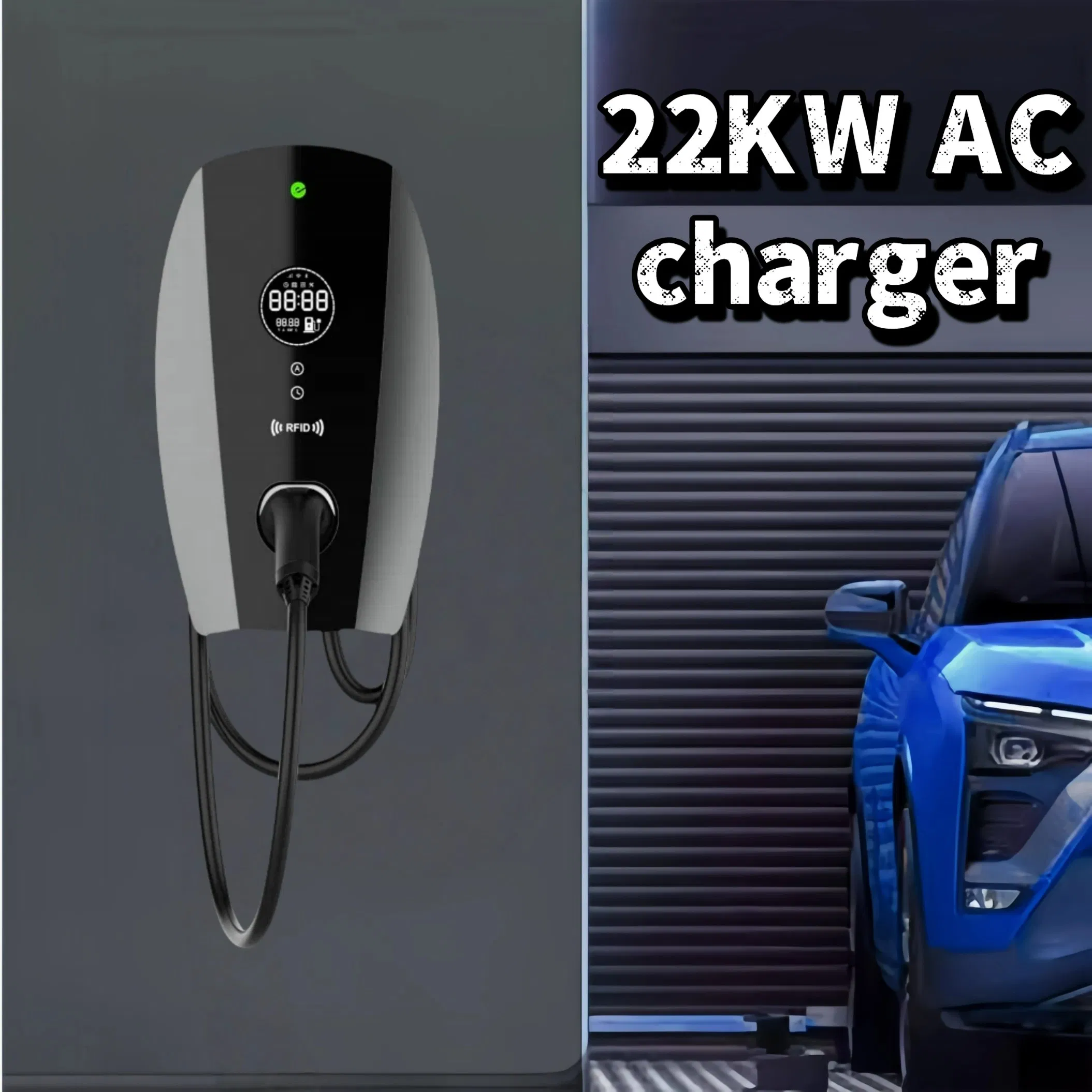

22kW AC Type 2 Smart EV Charger

Experience high-efficiency charging with our 32A, 22kW Smart Charger designed for both residential and commercial applications. Fully compatible with OCPP 1.6J for seamless network integration.

4-Inch LCD Screen for real-time data
OCPP 1.6J Protocol support
IP54 Waterproof Rating
App, RFID, and Plug-and-Play control

Protection & Control

🛡️ Multiple Protections

Emergency Stop Button
Leakage Protection (AC 30mA & DC 6mA)
Over Temperature & Lightning Protection
Over Current & Over Voltage Protection
Short Circuit Protection

📱 Multiple Control Methods

App Remote Control (WiFi & Bluetooth)
RFID Card Control
Plug-in & Charging

Technical Specifications

Model	ZAU311C-CS
Power Output	22kW
Rated Voltage	AC 400V ±15%
Rated Current	32A (Three Phases)
Operating Frequency	50/60Hz
Communication	OCPP 1.6 JSON
Ingress Protection	IP54
Impact Protection	IK10
LCD Display	4 inches VA Screen (Options for 7" TFT)
Cable Length	5m Standard
Operating Temp	-20℃ to +55℃
Product Size	405mm * 220mm * 95mm

Packing & Delivery

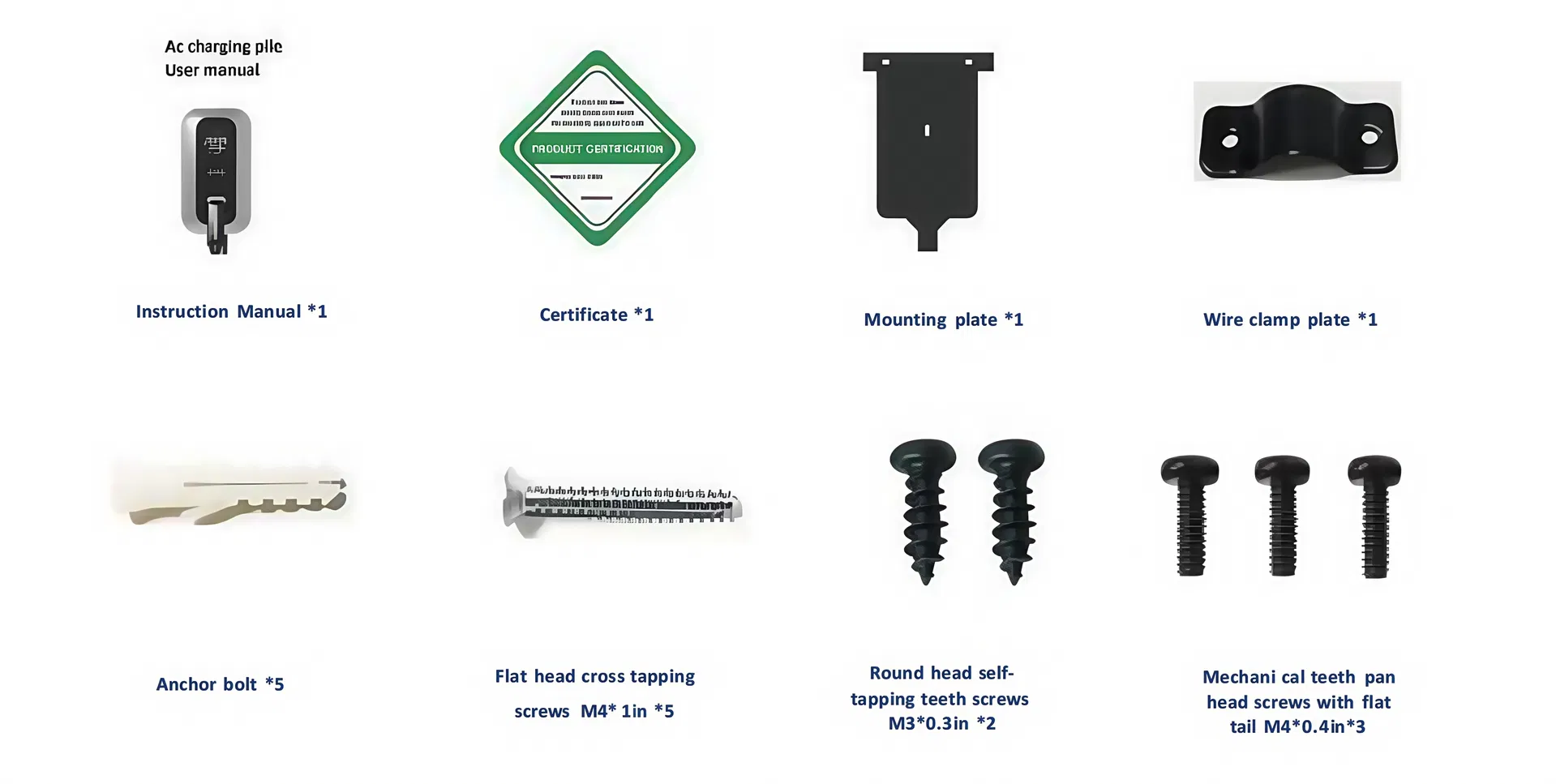

Standard Accessories Pack:

1× Socket AC EV Charger, 1× Instruction Manual, 1× Certificate Label, 1× Mounting Plate, 1× Wire Clamp Plate, 5× Anchor Bolts, and necessary screw sets.

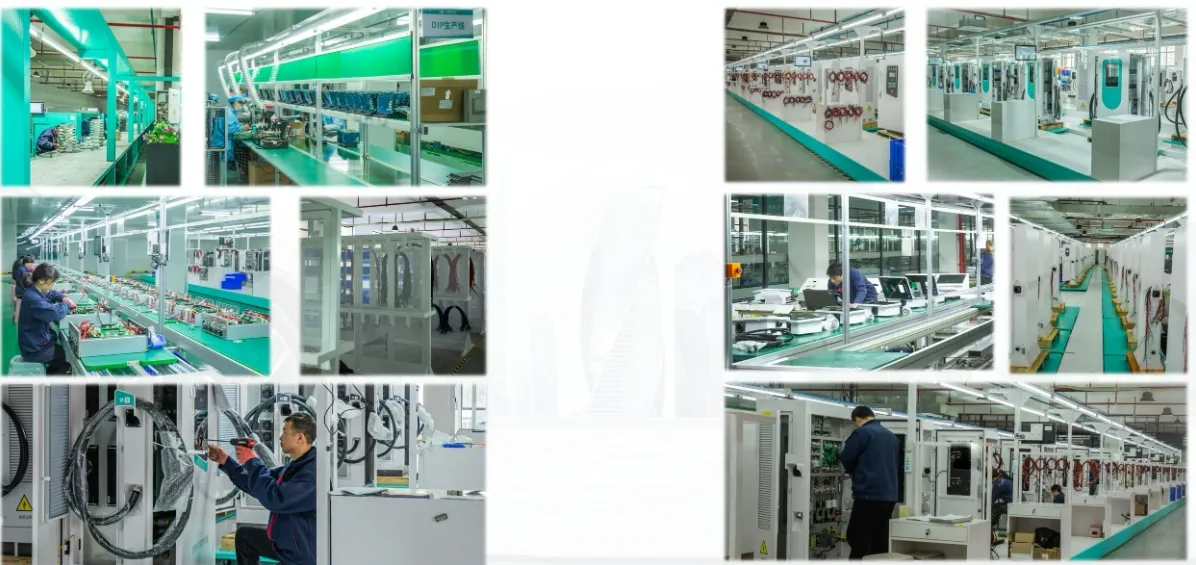

Manufacturing & Service

After-Sales Service

24-Month Warranty against manufacturing defects
Free Core Components Replacement
Lifetime Technical Support

Quality Assurance

IATF 16949 Certified Factory
Professional Testing Lab
2-Hour Endurance Test for every unit

Frequently Asked Questions

How long is the standard charging cable?

The standard charging cable is 5 meters long. However, we can provide customized lengths such as 7m, 10m, or longer based on your requirements.

Can I customize the charger with my own logo?

Yes, we offer full customization services including color, logo, RFID card design, and APP interface customization.

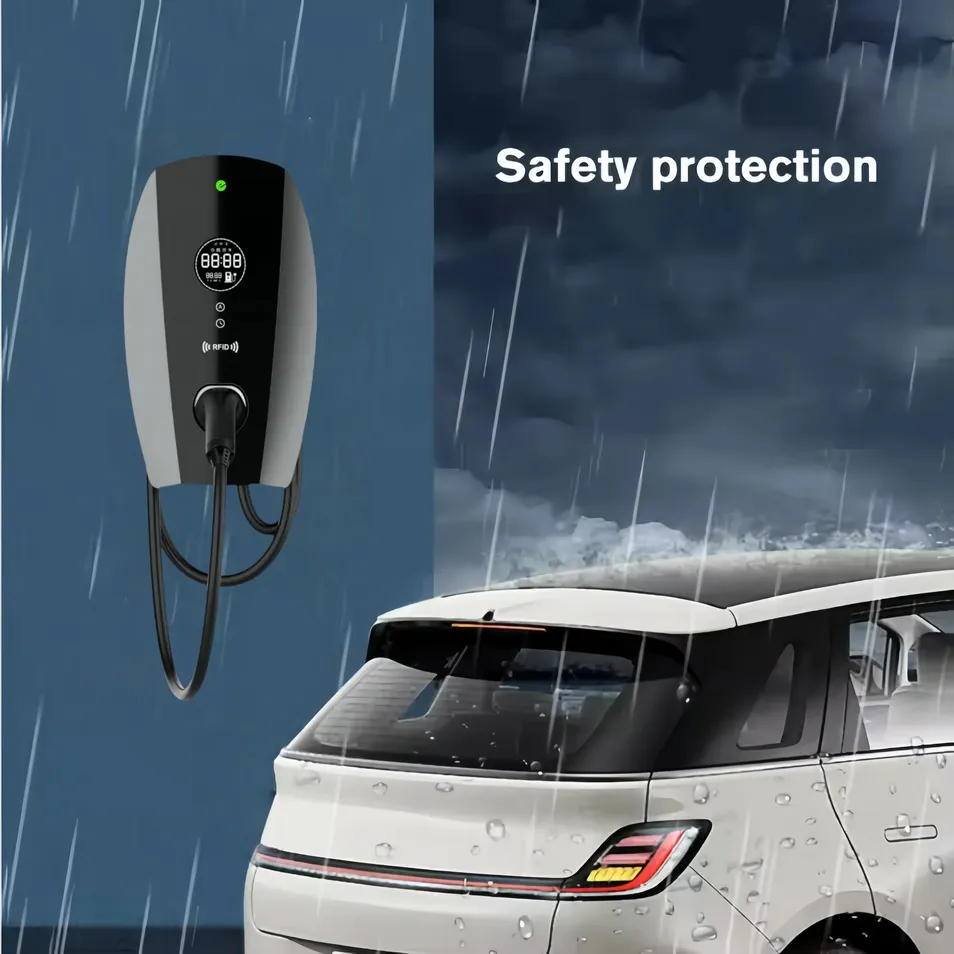

Is this charger suitable for outdoor installation?

Yes, the charger has an IP54 rating, making it waterproof and dustproof, suitable for both indoor and outdoor commercial or private use.

Does the charger support OCPP 1.6J?

Yes, it supports the OCPP 1.6 JSON protocol, which allows it to connect to most third-party charging management platforms.

What kind of protection does the charger have against electrical faults?

The charger includes comprehensive safety features: AC 30mA & DC 6mA leakage protection, emergency stop, over-temperature, lightning, over-current, and short-circuit protection.

What is the shipping method for international orders?

For small orders (less than 5 units), we typically ship via express services like DHL or FedEx. For larger quantities, sea freight is recommended for cost-efficiency.
