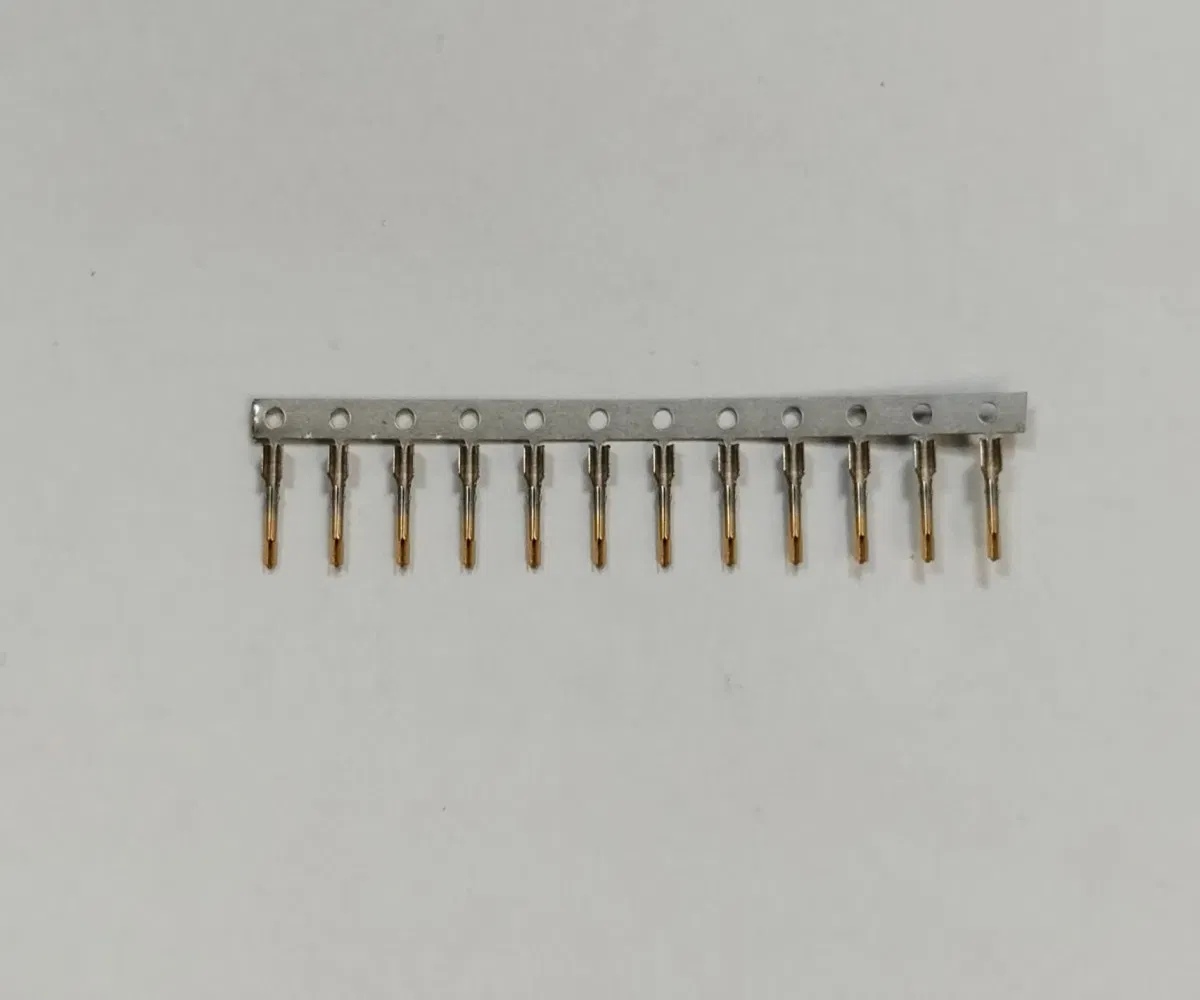

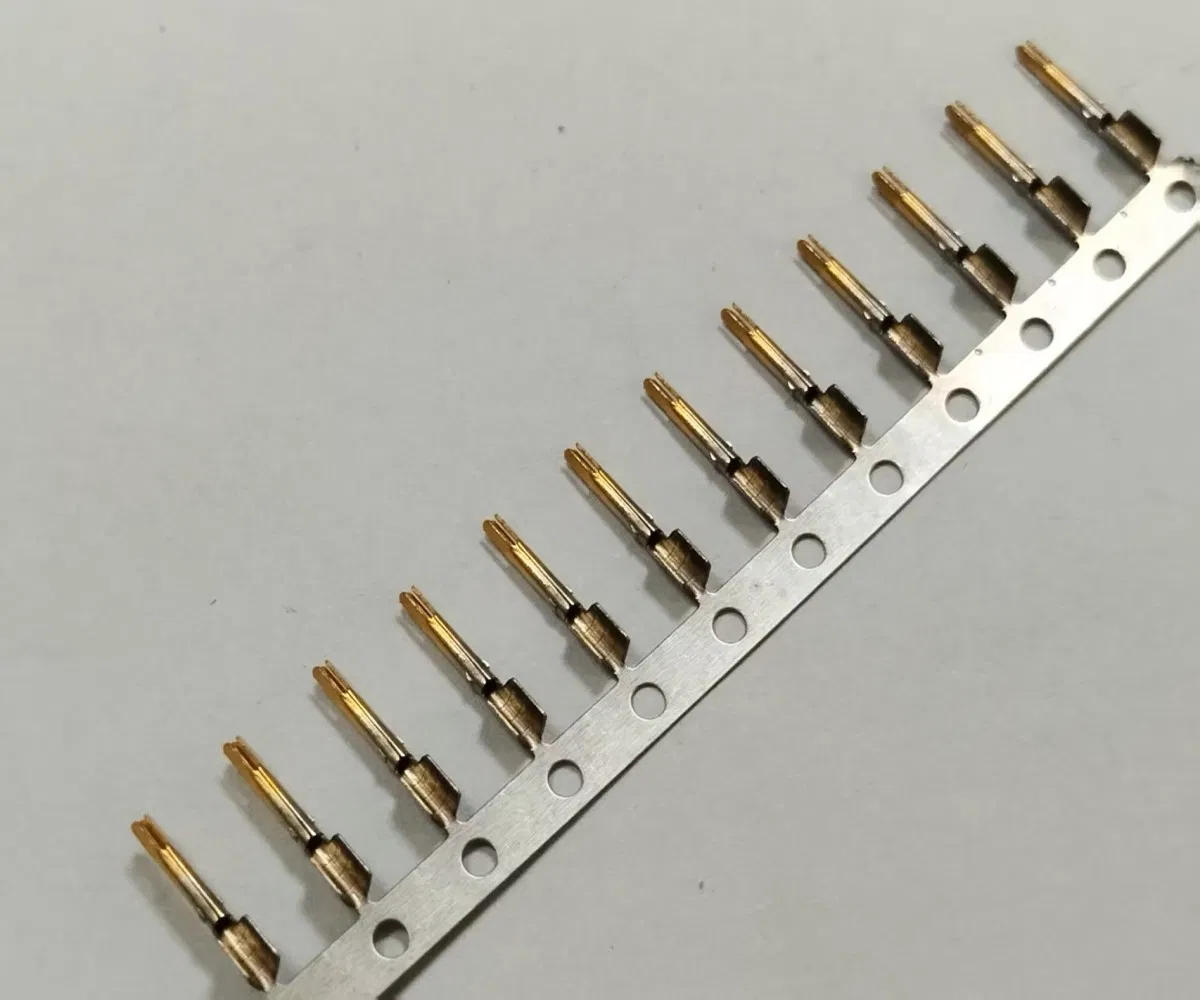

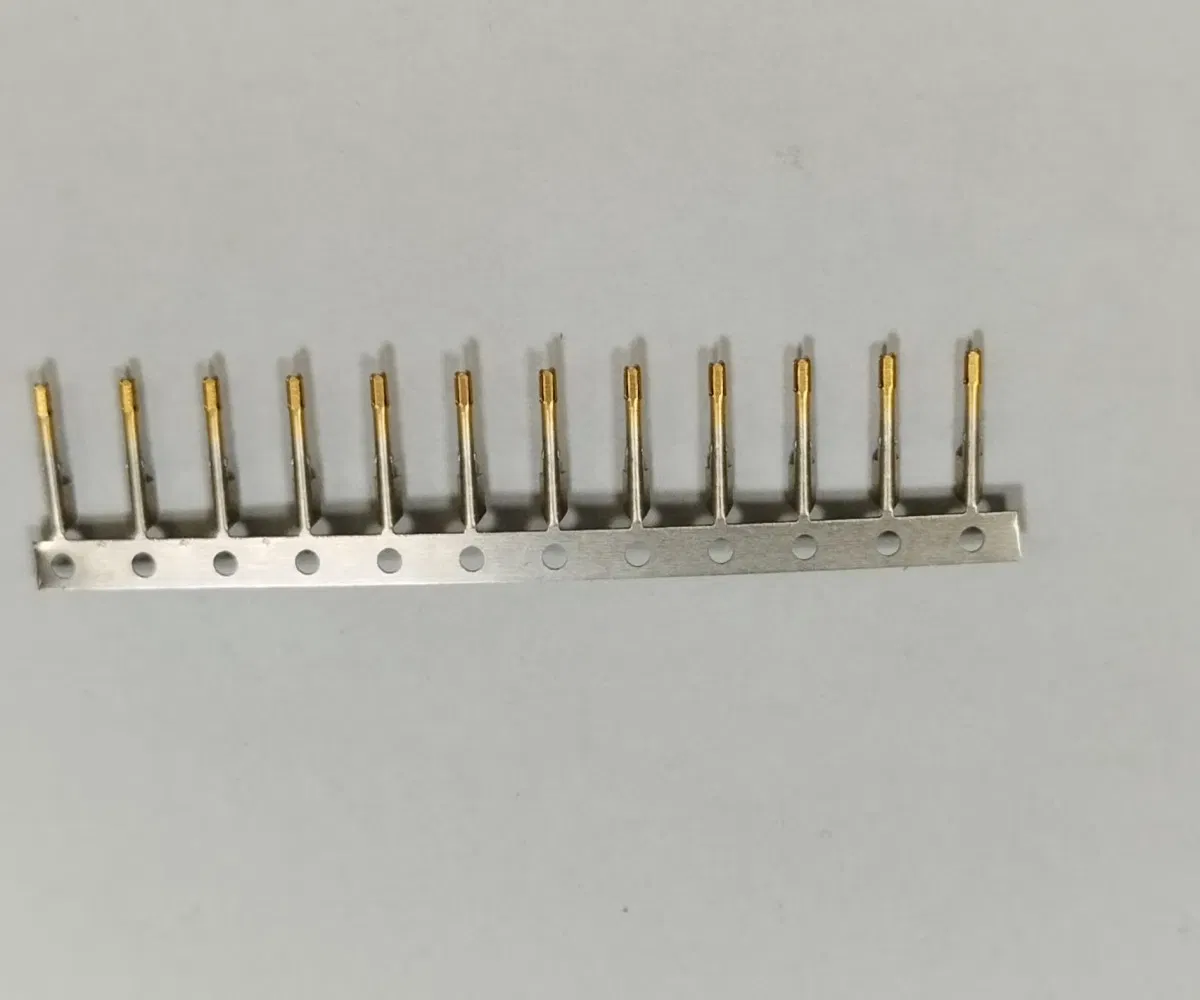

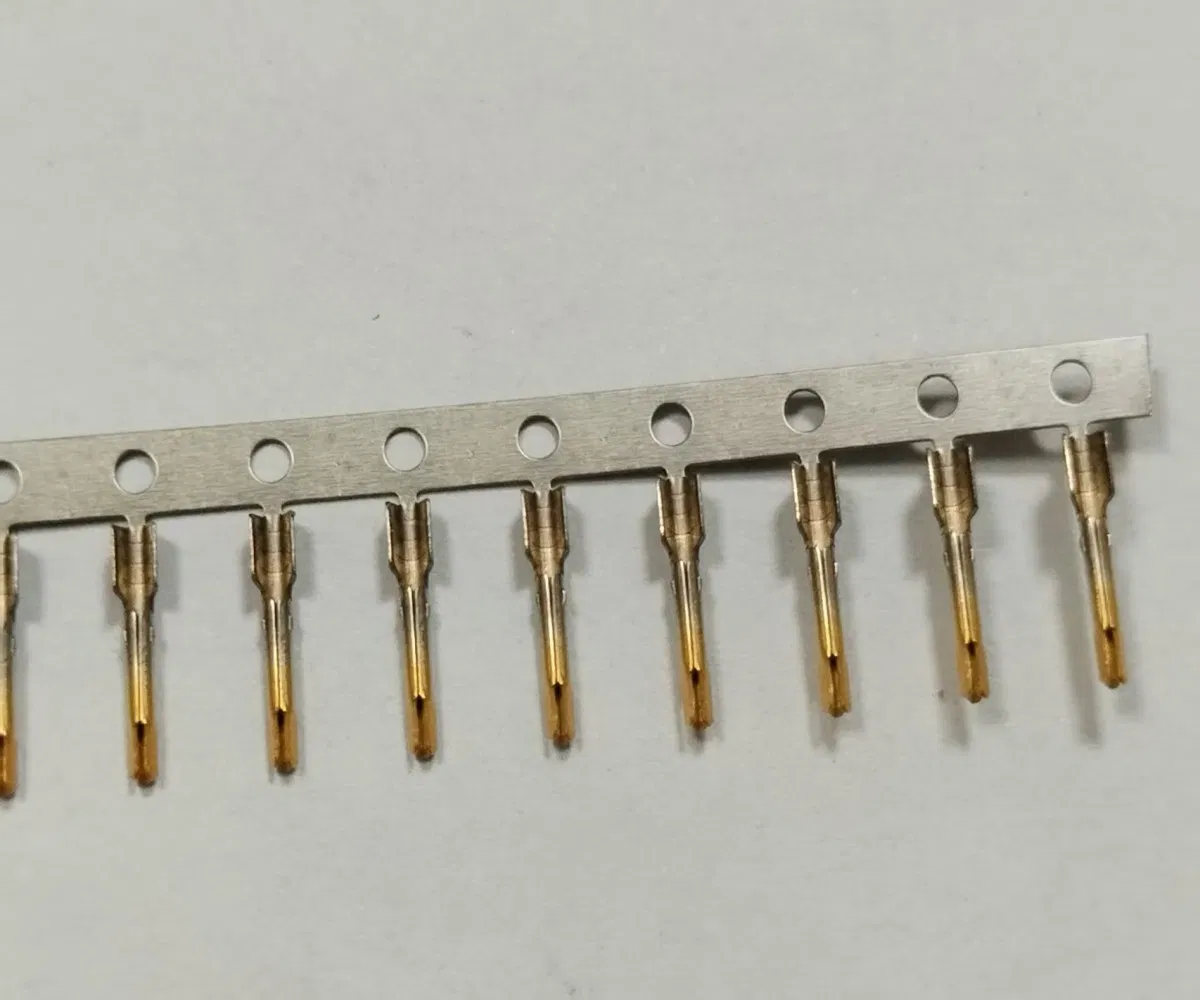

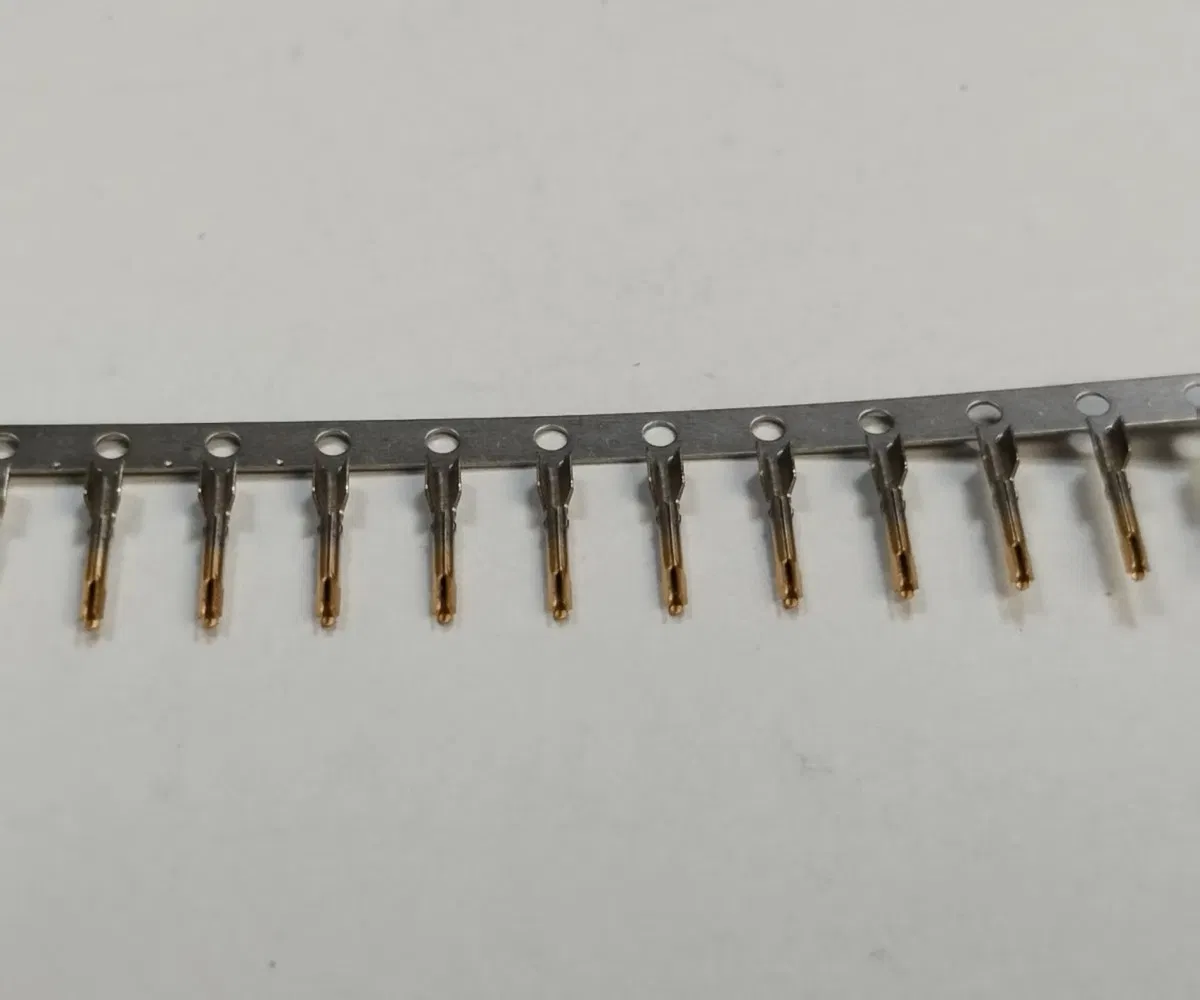

Heavy-Duty EV Charging Port Terminals, Silver-Plated for Fast & Efficient Power Transfer

1 / 5

Heavy-Duty EV Charging Port Terminals, Silver-Plated for Fast & Efficient Power Transfer

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

DJ-F05-21

Material

High-Strength Copper Alloy (C14410/C14500)

Surface Processing

Silver Plating (Matte Tin Optional)

Voltage Rating

up to 1000V DC

Current Capacity

5A - 20A

Temperature Range

-40°c to +180°c

Contact Resistance

≤0.25mΩ

Sealing Level

IP68 (Optional)

Certification

IATF 16949, ISO 26262, GB/T 18487.1

Industry

Metal Stamping Parts

Power Up Faster: Robust EV Charging Inlet Terminals

Speed and reliability define the EV experience. Our NEV-CP Series terminals are the critical interface within your vehicle's charging port, engineered to withstand the immense power of DC fast charging. They enable rapid energy transfer, reduce charging times, and are built for a lifetime of durable, safe connections.

Parameter	Specification
Rated Current (DC)	200 A (Continuous)
Rated Voltage (DC)	1000 V DC
Peak Current (10s)	400 A
Contact Resistance	≤ 0.2 mΩ
Operation Temperature	-40°C to +140°C
Mating Cycles	≥ 10,000 cycles
Contact Material	C14500 Tellurium Copper
Sealing Rating	IP6K9K (When Mated)

EV Charging Port Terminals Silver-Plated

⚡ Engineered for Extreme Power Handling

Ultra-Low Resistance Design: Fabricated from high-strength, high-conductivity tellurium copper (C14500), minimizing voltage drop and heat generation.
Superior Silver Plating: Features a thick silver layer for the lowest contact resistance and exceptional resistance to arcing.
High-Temp Housing: Premium Polyphenylene Sulfide (PPS) insulation provides thermal stability and UL94 V-0 flame retardancy.

🛡️ Unmatched Durability and Safety

High-Cycle Life: Precision design ensures over 10,000 mating cycles with stable electrical performance.
Environmental Sealing: Meets IP6K9K standards, offering protection against dust and high-pressure water jets.
Thermal Management: Promotes excellent heat dissipation to prevent overheating during prolonged sessions.

🌍 Global Standard Compliance

Compatible with major global charging standards including GB/T, CCS, and CHAdeMO. Utilizing multi-stage progressive dies and automated optical inspection (AOI) to guarantee precision.

🚗 Primary Applications

EV On-board DC Fast Charging Inlets (Sockets)
AC Charging Ports (Type 1, Type 2, GB/T)
Commercial Vehicle Charging Connections
Charging Station Connector Heads (Plug Side)

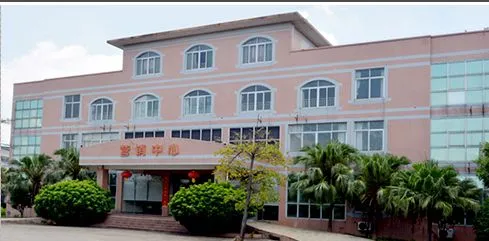

About Our Production

Founded in 1991, our manufacturing facility covers 100,000 square meters and employs over 400 specialists. We provide complete stamping machine and metal stamping part solutions, specializing in terminals, connectors, and precision metal processing for the new energy and battery fields.

Quality Certificates

Frequently Asked Questions

Q1: What is the maximum voltage and current capacity of these terminals?

The terminals are rated for up to 1000V DC and can handle a continuous current of 200A, with peak handling up to 400A for short durations.

Q2: What materials are used for the contact and housing?

The contacts are made from high-conductivity C14500 Tellurium Copper with silver plating. The housing uses high-temperature PPS (Polyphenylene Sulfide) which is UL94 V-0 flame retardant.

Q3: How many times can the charging inlet be plugged and unplugged?

Our precision-engineered design guarantees a lifespan of over 10,000 mating cycles while maintaining low insertion force and high electrical stability.

Q4: Are these terminals waterproof?

Yes, when properly mated, the terminals meet IP6K9K standards, providing full protection against dust and high-pressure/steam jet cleaning.

Q5: Which global charging standards are these compatible with?

They are designed to be fully compatible with major international standards including CCS (Combined Charging System), CHAdeMO, and GB/T protocols.

Q6: Can the design be customized for specific vehicle requirements?

Absolutely. we offer tailored designs for specific inlet configurations, plating thicknesses, and mechanical performance characteristics to meet unique OEM specifications.
