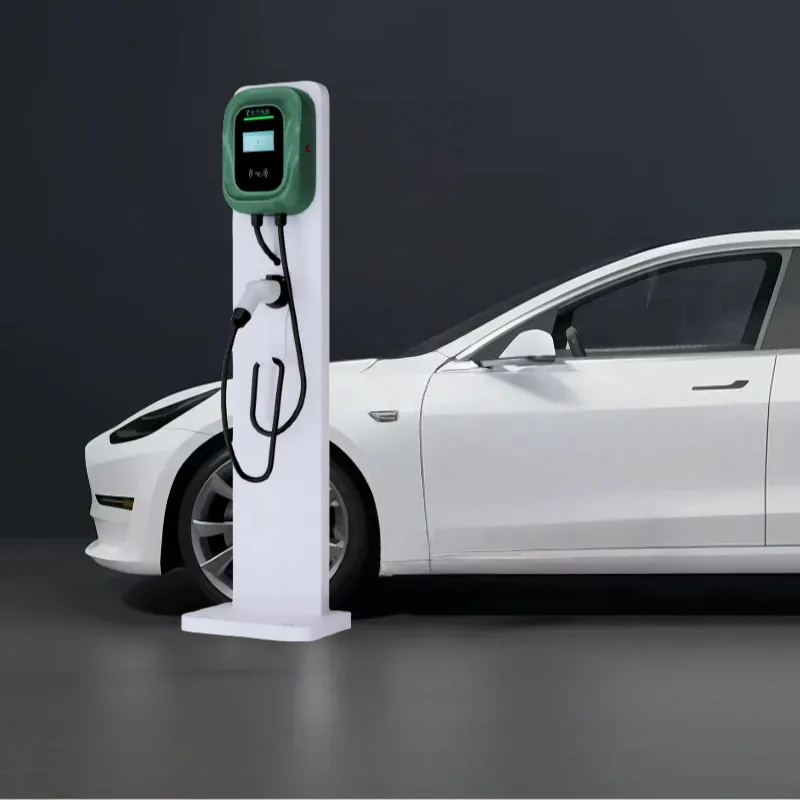

Guhe IP54 Waterproof Home Residential Commercial for Taxi 22kw AC EV Electric Vehicle Car Charge Charging Station Charger

1 / 5

Guhe IP54 Waterproof Home Residential Commercial for Taxi 22kw AC EV Electric Vehicle Car Charge Charging Station Charger

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

22kW 4 Inches LCD Screen AC Type 2 Smart Charger

32A, 22kW Smart Charger for Home or Commercial (with OCPP 1.6J) Use. Designed for efficient and intelligent electric vehicle charging.

📋 Basic Information

Model NO.	GHAC22K-X
Interfaces	One Pile with One Charge
Location	Private & Public

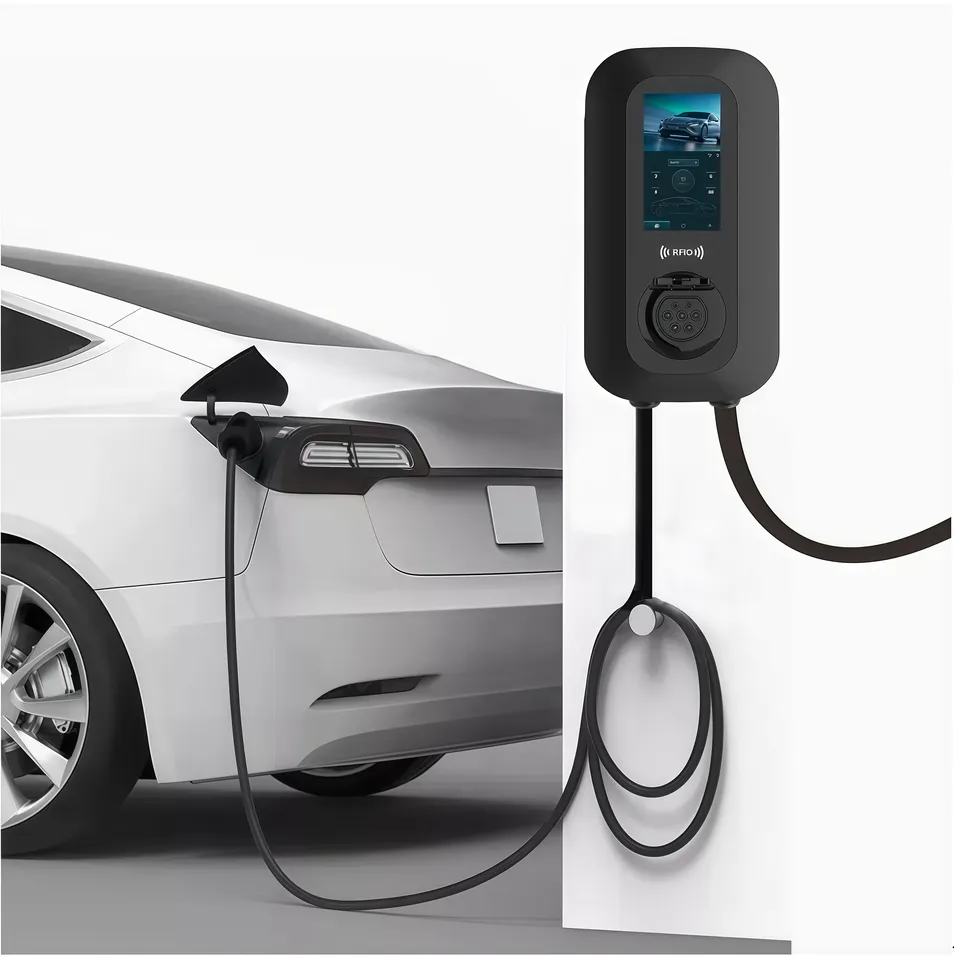

Installation	Wall Mounted
Charge Method	Normal Charge
Transport Package	Carton Box
Origin	China
Production Capacity	5000/Month

🛡️ Protection & Control System

⚡ Multiple Protections

IP54 for Outdoor Use
Emergency Stop Button
Leakage Protection
Over Temperature Protection
Lightning Protection
Over/Under Voltage Protection
Short Circuit Protection

📱 Multiple Control

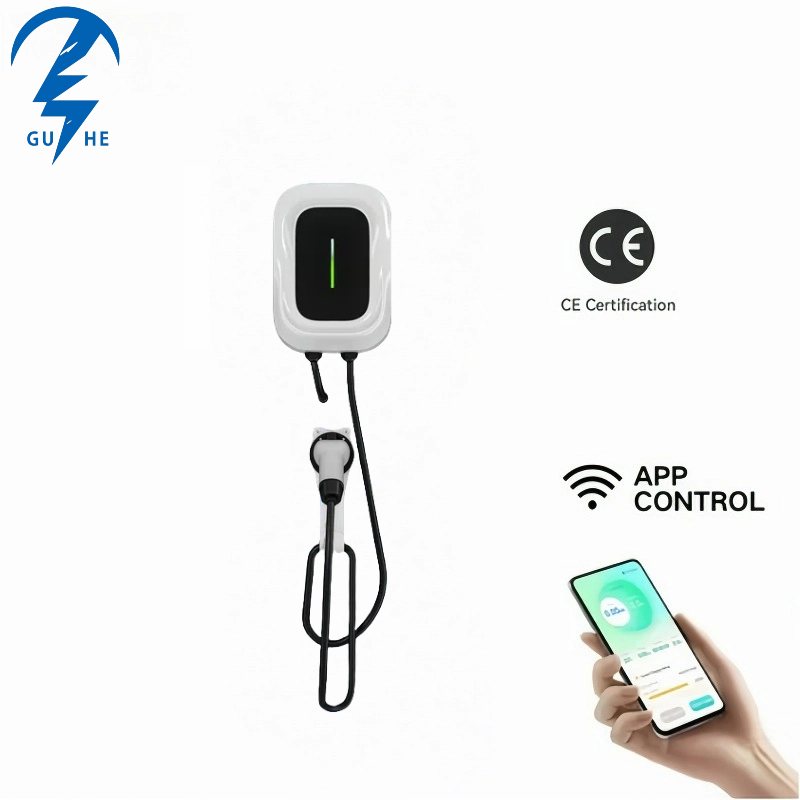

App Remote Control via WiFi, Bluetooth
RFID Card Control
Plug-in & Charging

⚙️ Technical Specification

Rated Power	22kw
Input Voltage	AC380V±20%
Output Current	32A
Input Frequency	50/60Hz
HMI	4.3 - inch color LCD screen + LED Light
Networking Mode	Ethernet, 4G, Bluetooth, WiFi
Charging Mode	Automatic full-charge, scheduled charging
Startup Mode	App/WeChat code scanning, IC card swiping
IP Rating	IP54
Operating Temperature	-20°C - +50°C
Product Dimensions	250350122mm

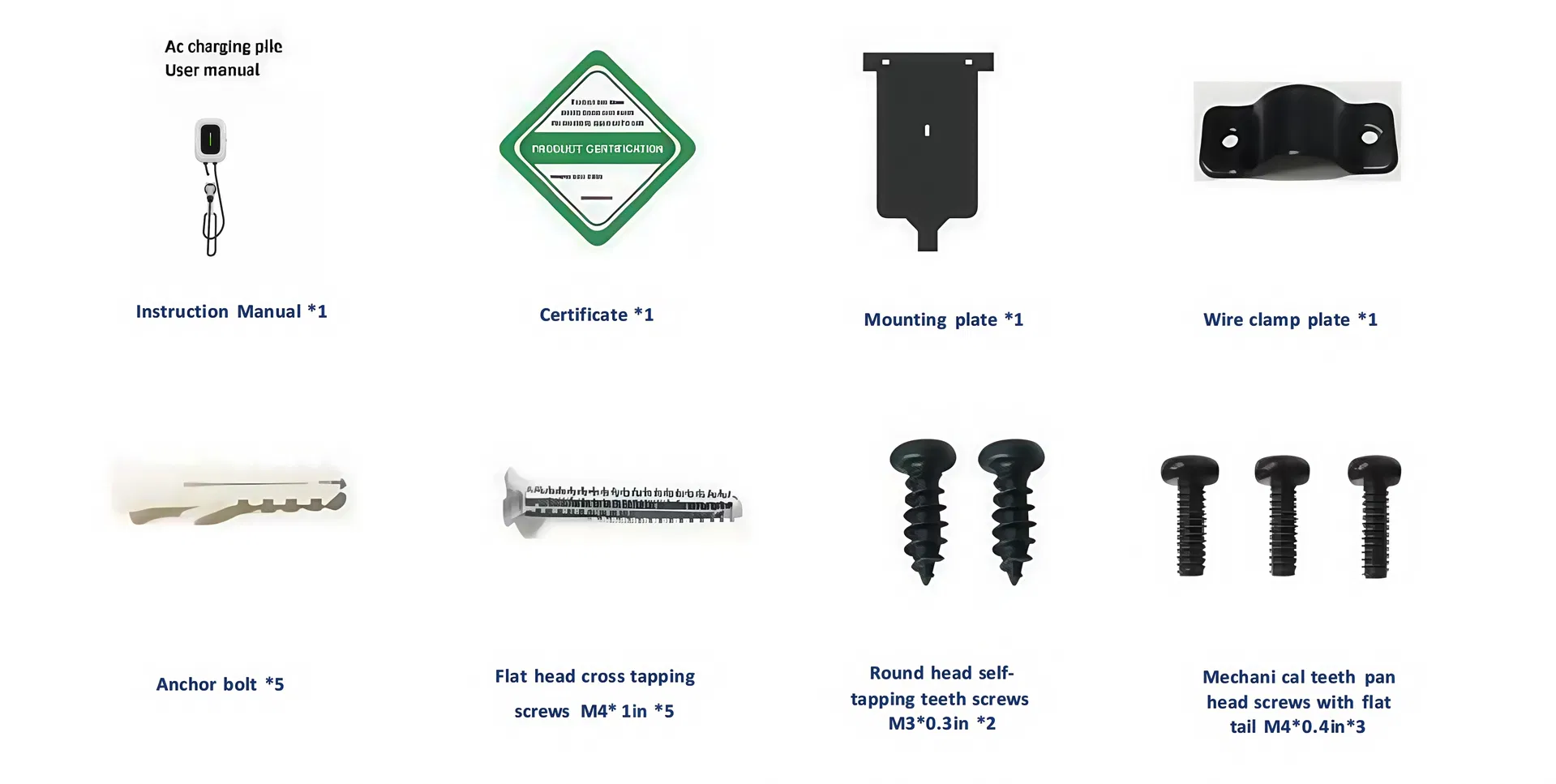

📦 Packing & Delivery

Standard Package

1× AC EV Charger
1× Instruction Manual
1× Mounting Plate
1× Wire Clamp Plate

Installation Kit

5× Anchor Bolts
5× Flat Head Tapping Screws
2× Round Head Screws
3× Mechanical Pan Head Screws

🛠️ After Sales Service

24-Month Warranty

Against Manufacturing Defects

Parts Replacement

Core Components Replacement for Free

Technical Support

Free Technical Support on Working Days

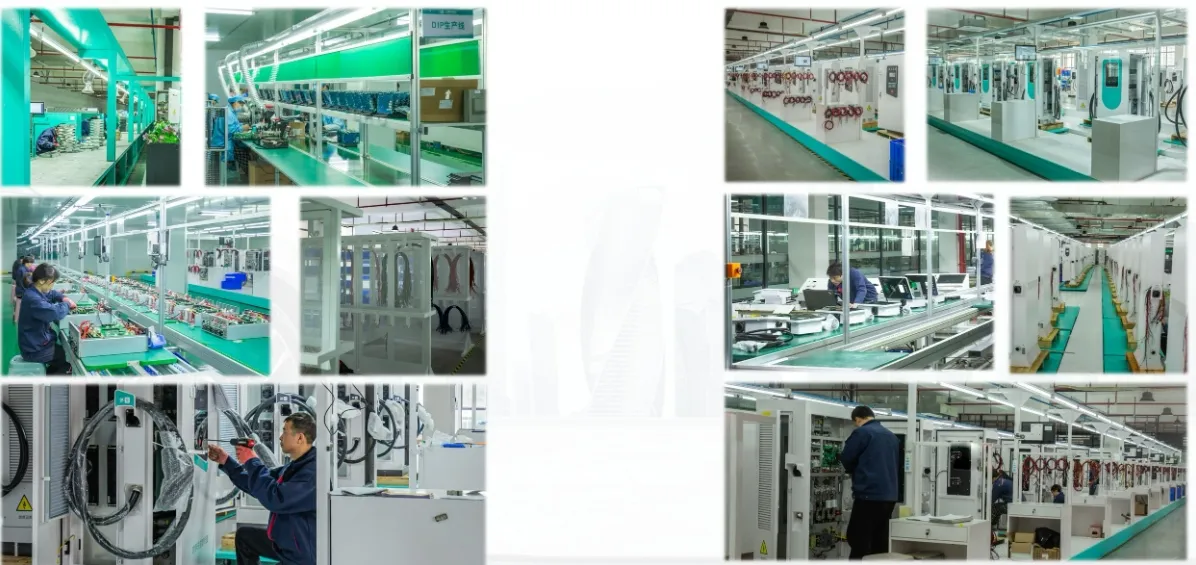

🏢 Professional Manufacturing

Focus: New Energy Products, including AC/DC Chargers, Solar Panels, Inverters, and Power Storage.
Capacity: 5,000 units/month.

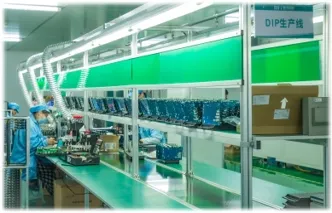

Factory Advantages: ITAF 16949 Certified, Professional Testing Lab, 2-hour endurance test for all products.

📜 Certifications

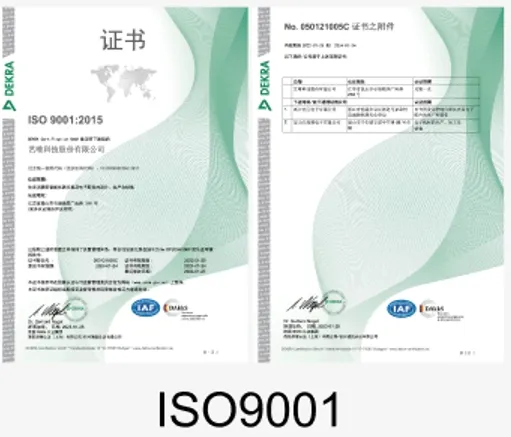

ISO9001

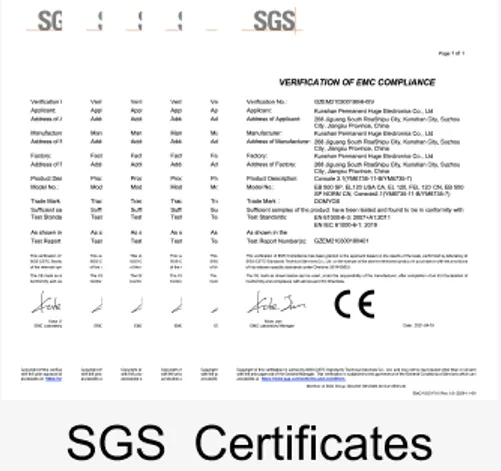

SGS Certificates

TUV Certificates

❓ Frequently Asked Questions

Q: How long is the charging cable? A: The standard charging cable is 5m, but it can be customized to 7m, 10m, or longer upon request.

Q: Is it possible to customize the charger? A: Yes. We offer customization for color, logos, RFID cards, and the APP interface to suit your branding.

Q: How will you ship products to us? A: For orders less than 5 units, we ship via express (DHL/SF). For more than 5 units, we typically ship via sea freight.

Q: What is the weather resistance rating for outdoor use? A: This charger is IP54 rated, providing excellent protection against dust and water splashes, making it suitable for both indoor and outdoor installation.

Q: Does the charger support smart networking? A: Yes, it supports multiple networking modes including Ethernet, 4G, Bluetooth, and WiFi, and is compatible with OCPP 1.6J.

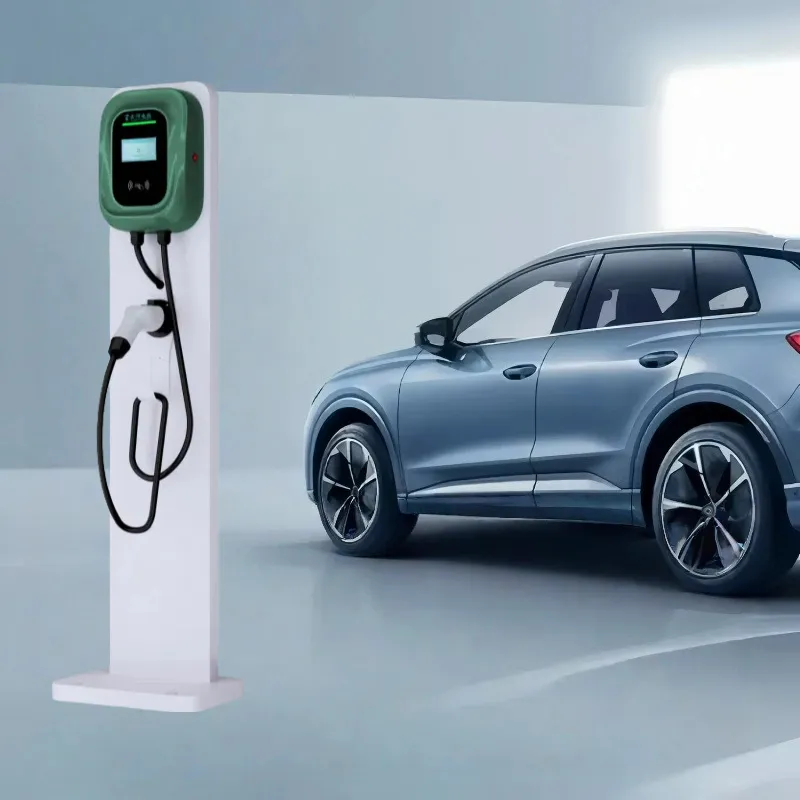

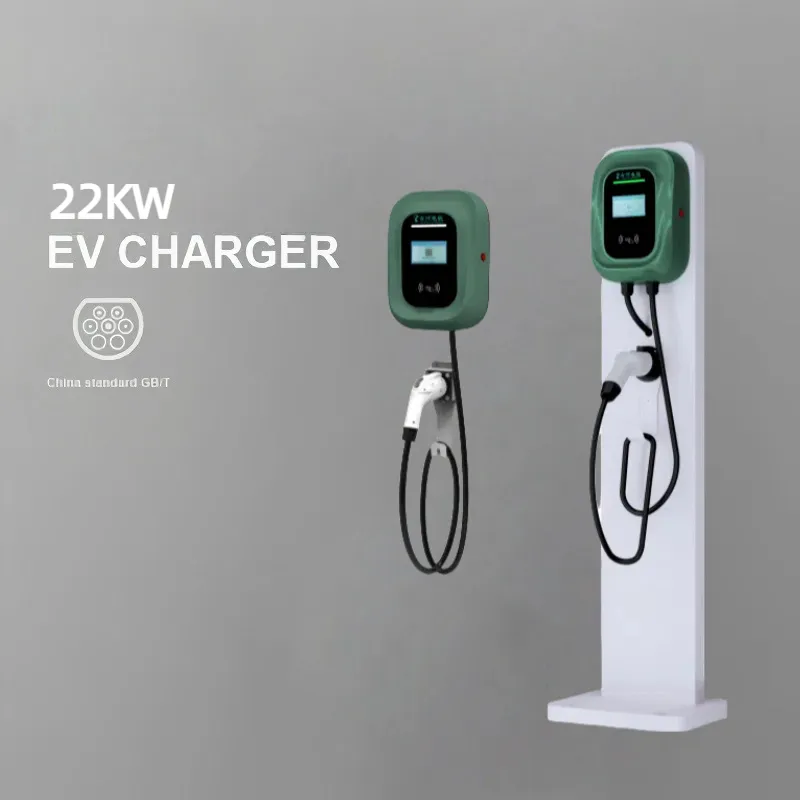

Q: What installation methods are available? A: The charger supports both vertical pedestal installation and wall-mounted installation depending on your site requirements.
