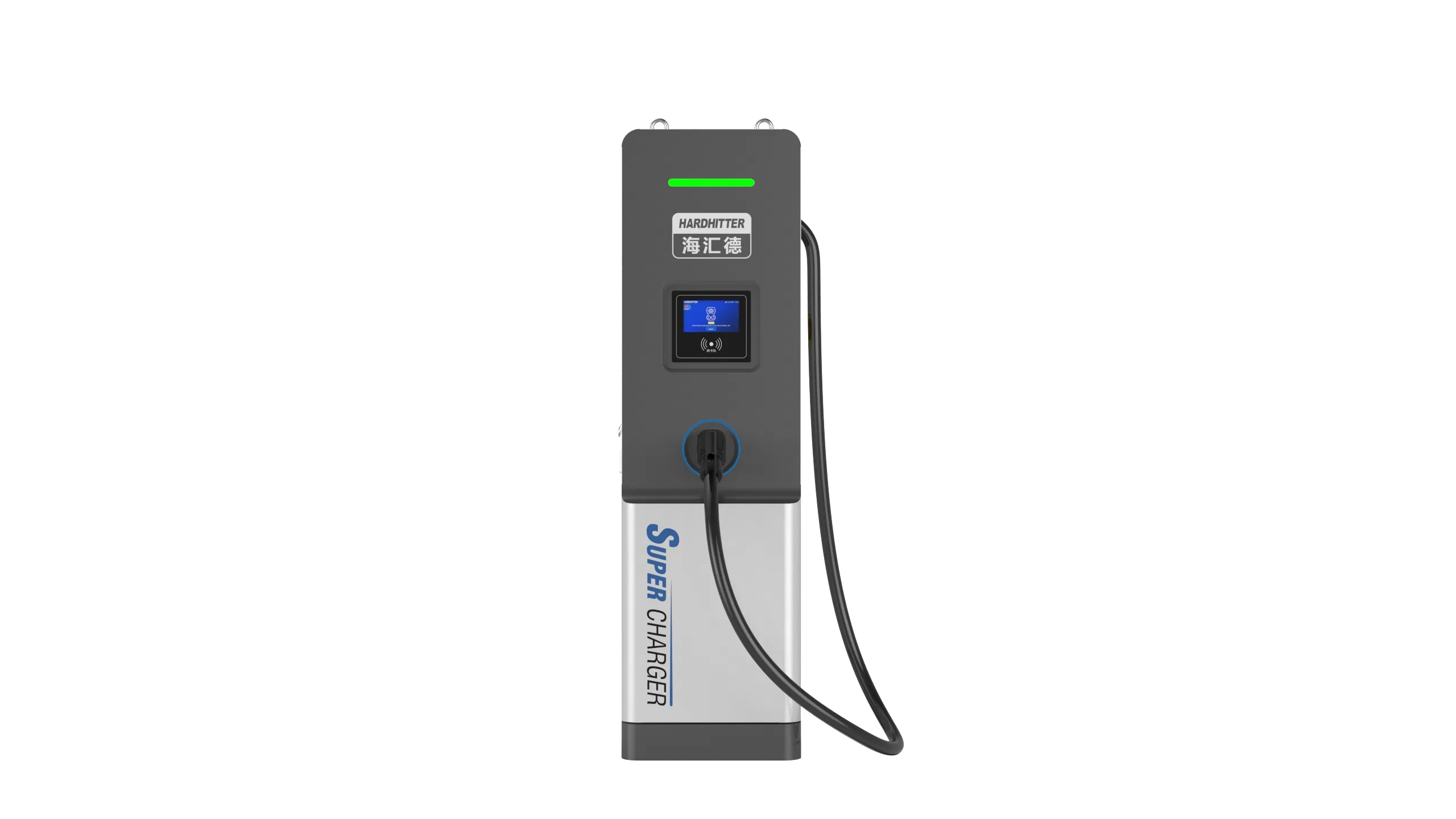

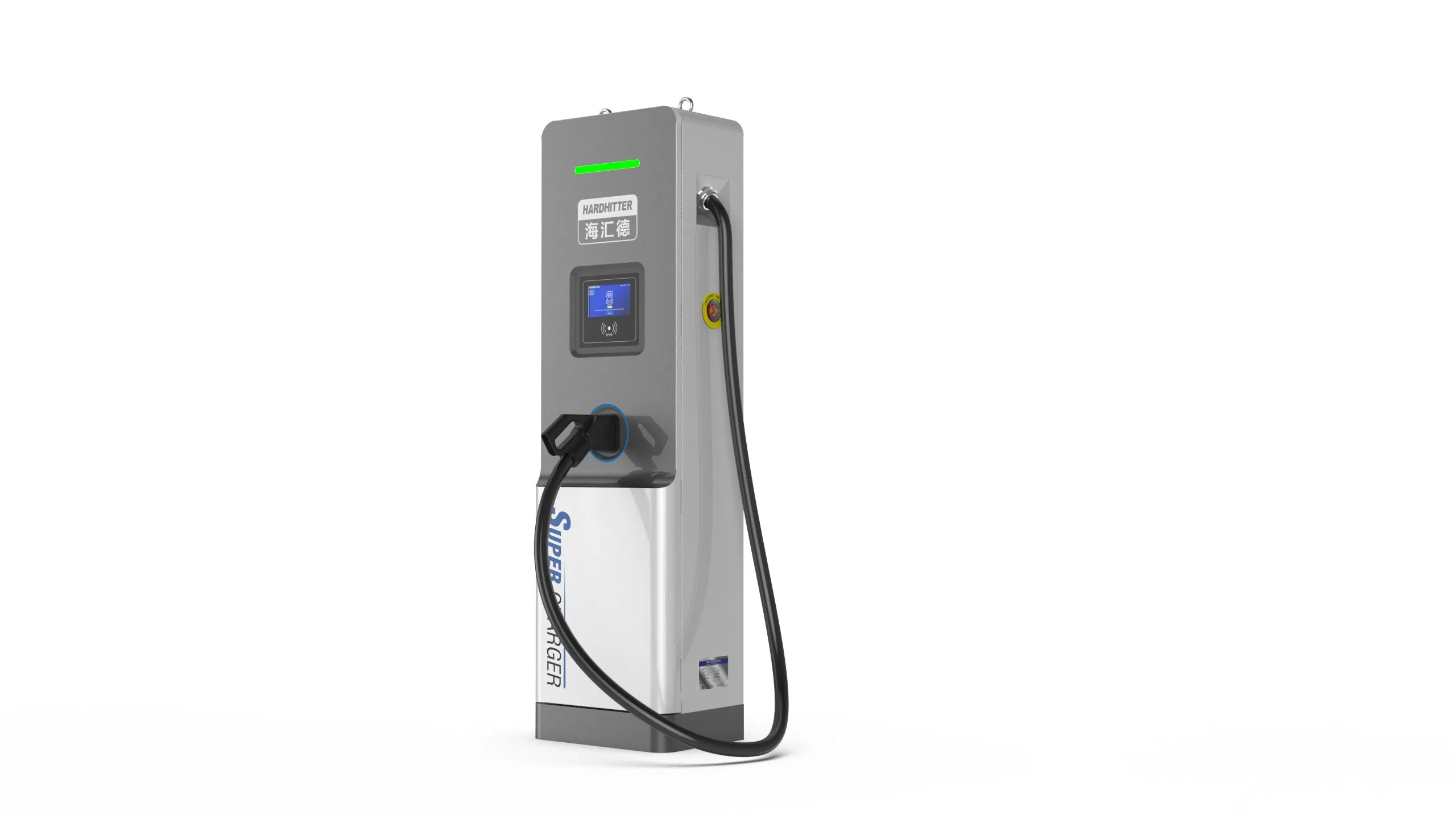

Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
1 / 5
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging

Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info

Model NO.
HQC21-HMI-111-E
Charging Interfaces
One Pile with One Charge
Location
Public Use
Installation
Floor Type
Charge Method
Quick Charge
Output Voltage
200~1000V
Output Current
600A(GB/T), 500A(CCS2)

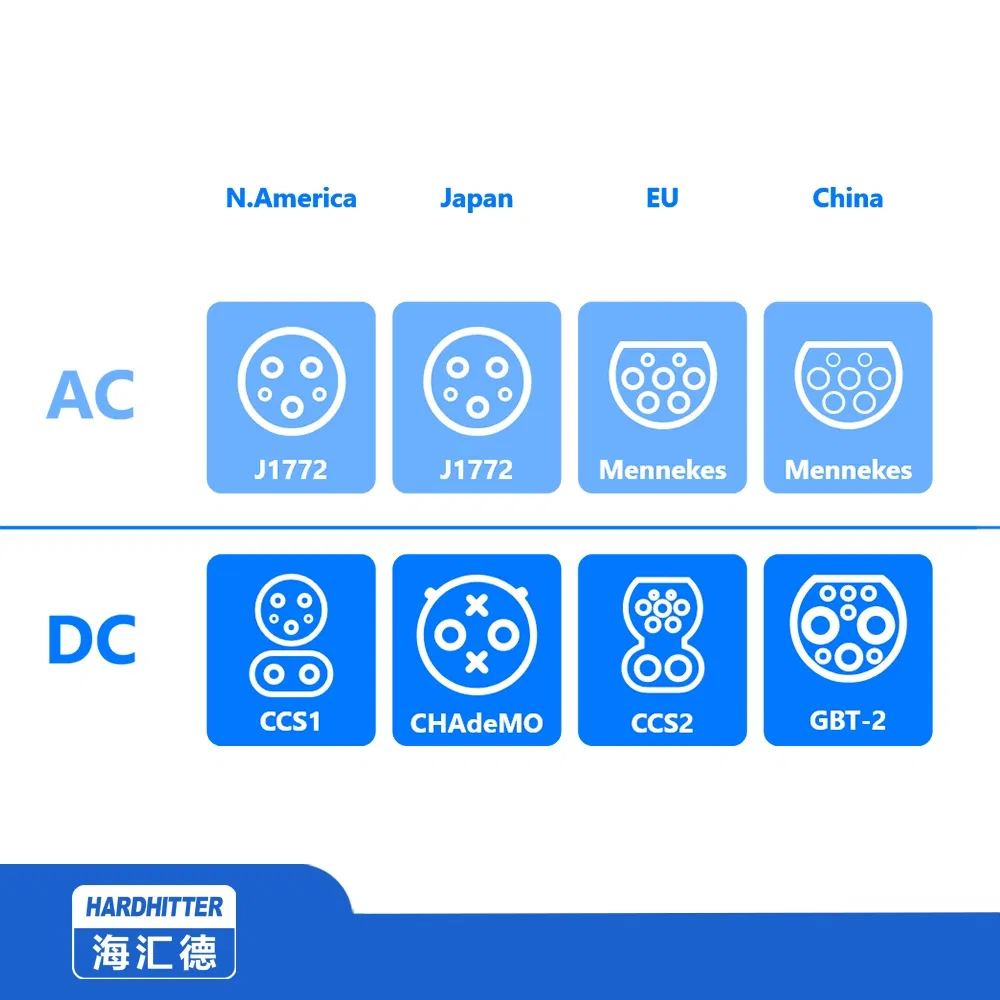

Charging Interface
GB/T, CCS2
Protection Level
IP55
Weight
≈140kg

Product Parameters

Output Voltage200~1000V
Output Current600A(GB/T), 500A(CCS2)
Interface7 Inch Touch Screen, LED
Start ModeSwipe Card, Scan Code, Plug and Charge, Platform remote start, button Start
Operation Temperature-40°C~+60°C
Altitude≤2000m
Dimensions500*350*1900mm(W*D*H)
Gun Thread LengthCar: 4.5m / Bus: 6m
Communication InterfaceCAN
Wiring MethodBottom Incoming

Product Features

  • High power: Single gun rated current 600A, peak current 800A, maximum charging power up to 600kW.
  • High protection: Electrical components and heat dissipation system are designed separately, with a protection level of up to IP55.
  • Low noise: Equipped with a high-efficiency liquid cooling heat dissipation system, noise is less than 50dB under standard conditions.
  • High safety: Adopting intelligent temperature control correction algorithm to accurately control charging gun temperature.
  • Strong compatibility: Compatible with a full series of charging cabinets and prefabricated compartments.
  • Fast charging speed: Maximum output power of 600kW, providing over 300 kilometers of travel after just 5 minutes of charging.

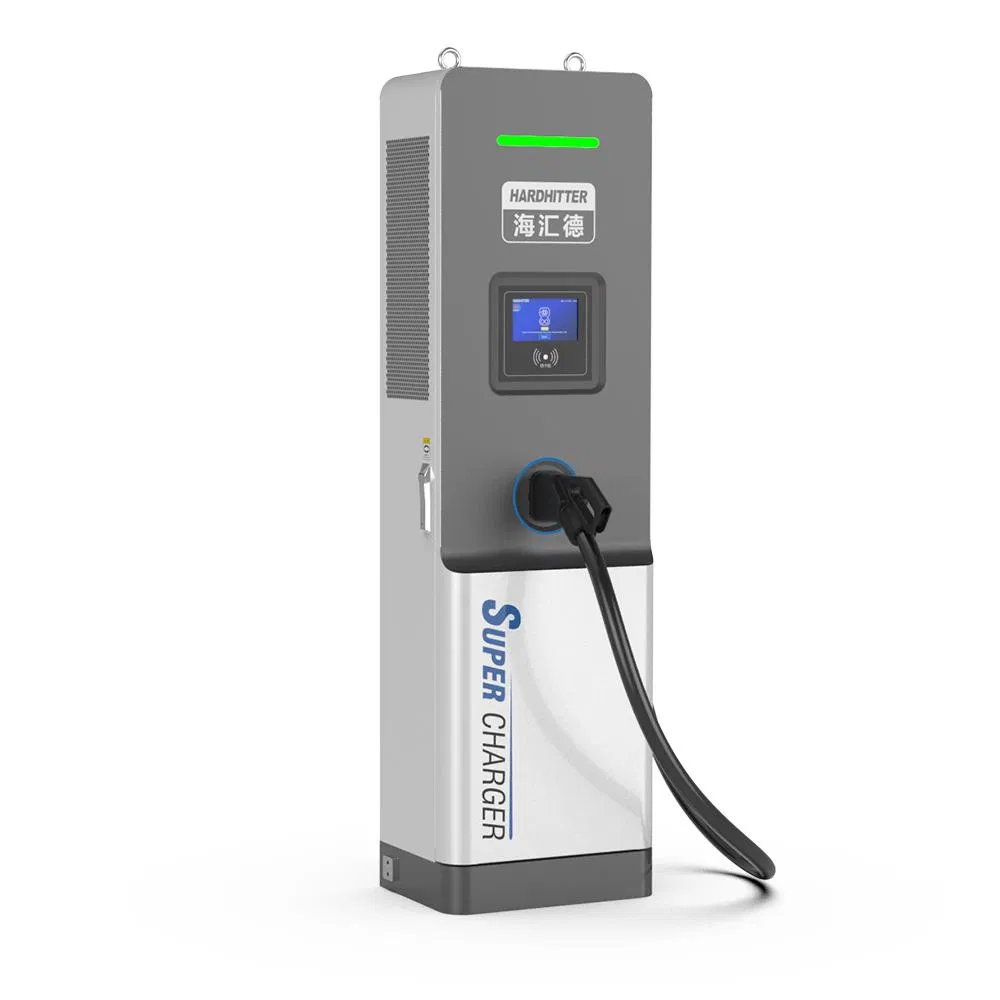

Super Charging Terminal View 1

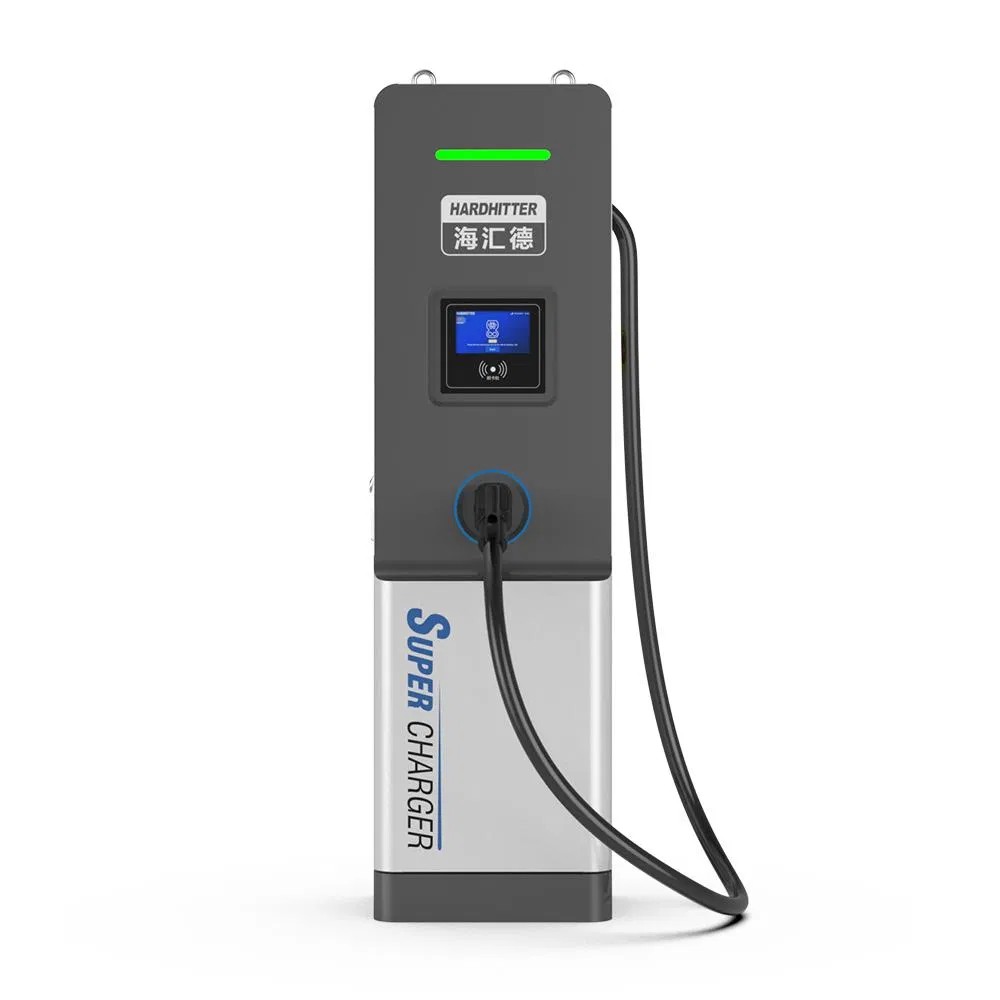

Super Charging Terminal View 2

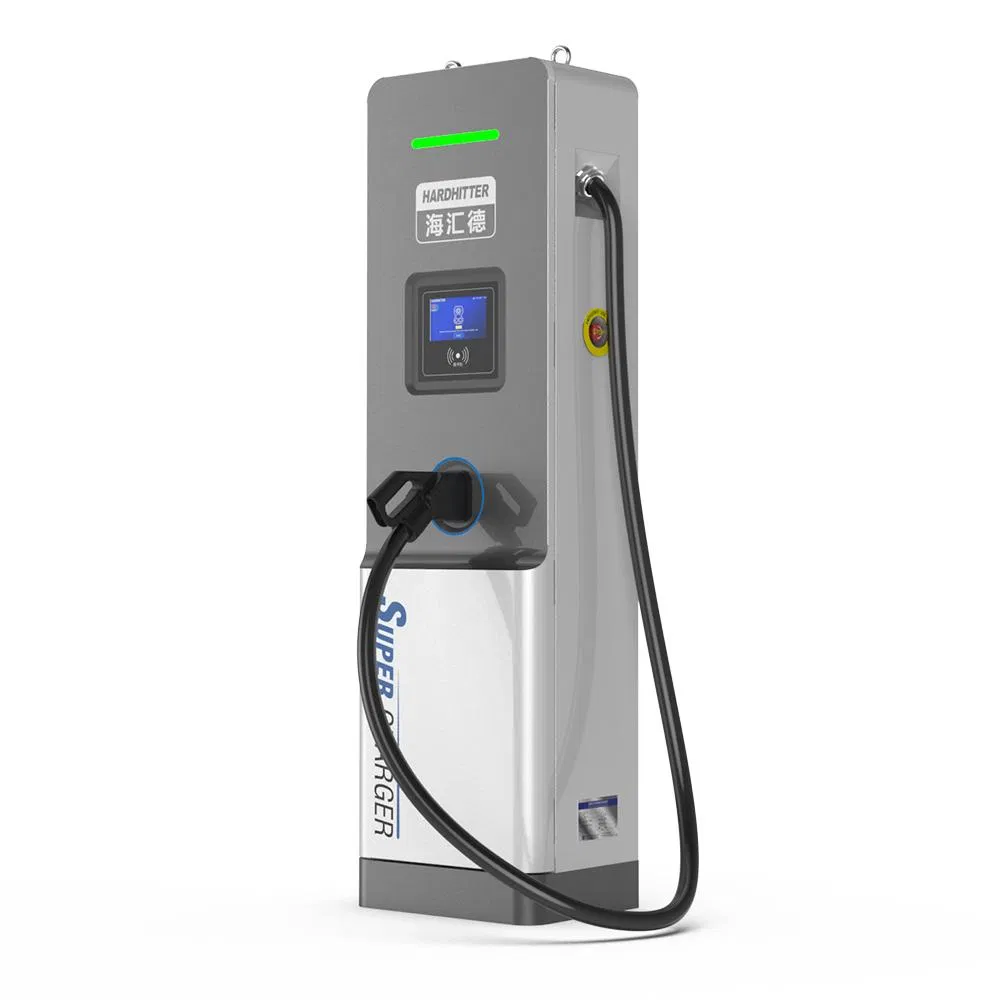

Super Charging Terminal View 3

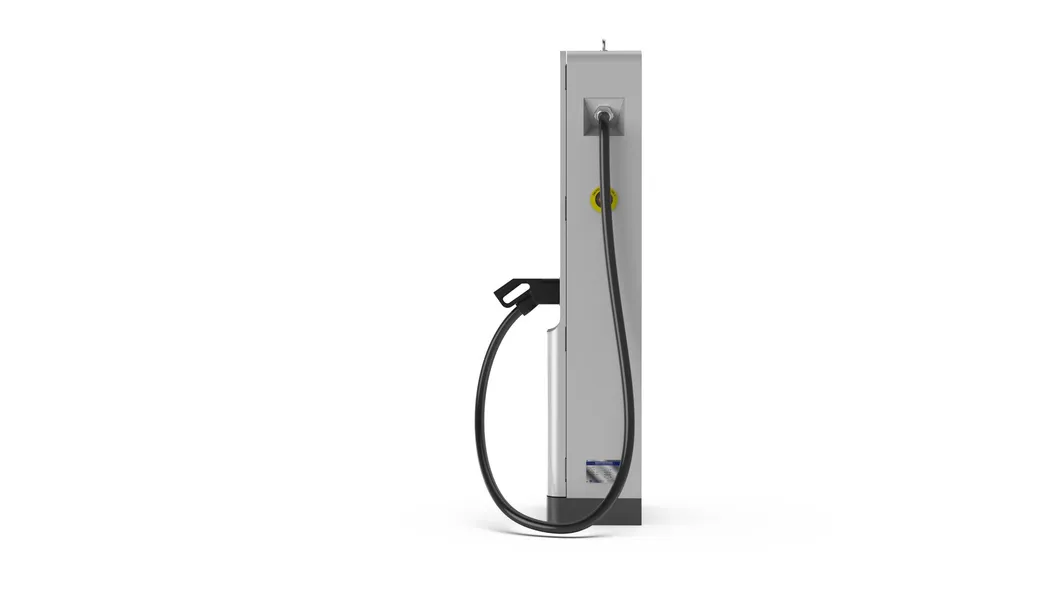

Terminal Application 1

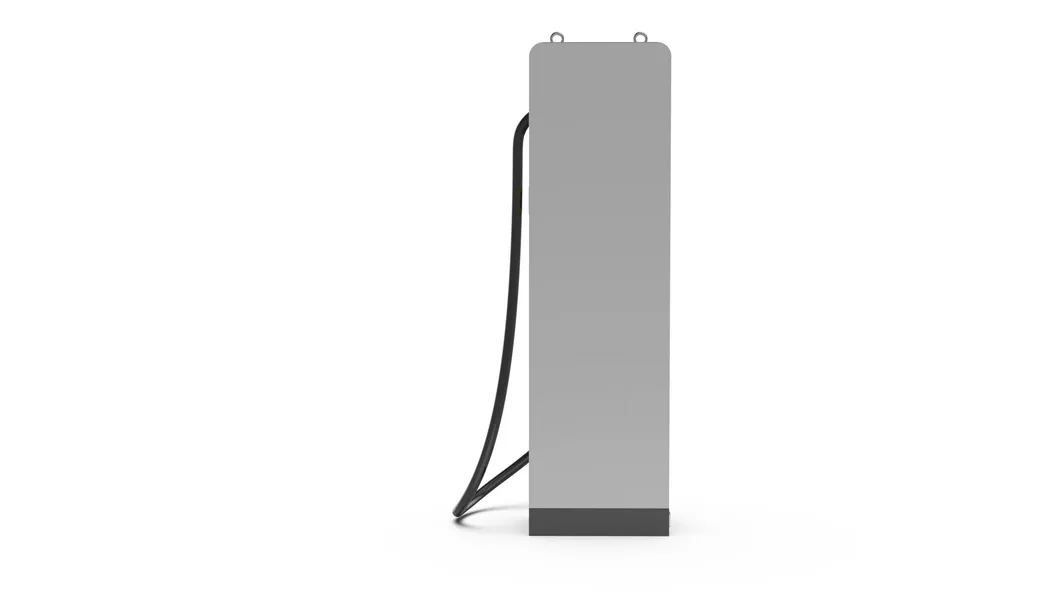

Terminal Application 2

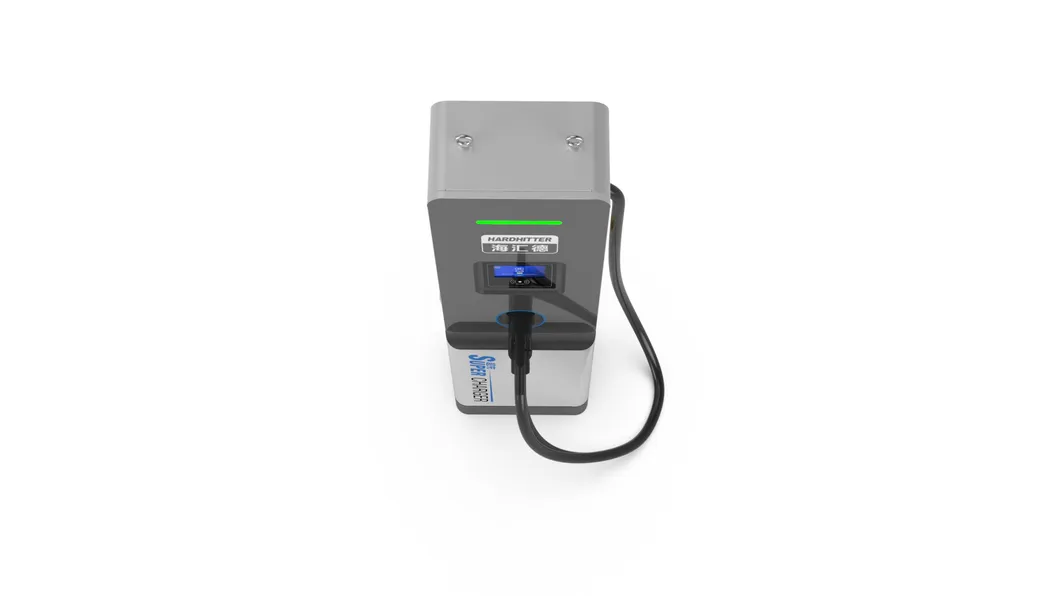

Terminal Application 3

Facility & Production

Frequently Asked Questions

How about your lead time?
Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Do your products have quality certification?
Yes, we have a strict quality control system. Our EV charging products have passed CE and TUV certifications.
How long is the warranty?
The warranty for our products is 12 months upon receipt of shipment under normal circumstances.
Can you provide customized services?
Yes, we have been involved with OEM and ODM projects since 2012 and can provide professional customized services for our clients.
Can the EV charger charge all electric vehicles on the road?
Yes, all models of our EV Chargers work with all Electric Vehicles. Tesla vehicles may require the use of a J1772 to Tesla adapter.
Does the EV Charger need any APPs or internet?
Some models are standalone (using RFID cards or plug-and-play), while others are Wi-Fi connected and compatible with Apps and OCPP 1.6j applications.
