■ Basic Info.
Model NO.RSDC1000-240KW
Output Power240kw
AC Input Frequency50 /60 Hz
DC Output Voltage200-1000VDC
Power Factor≥0.99
Efficiency≥96%
Protection GradeIP54
Warranty24 Months
■ Product Description

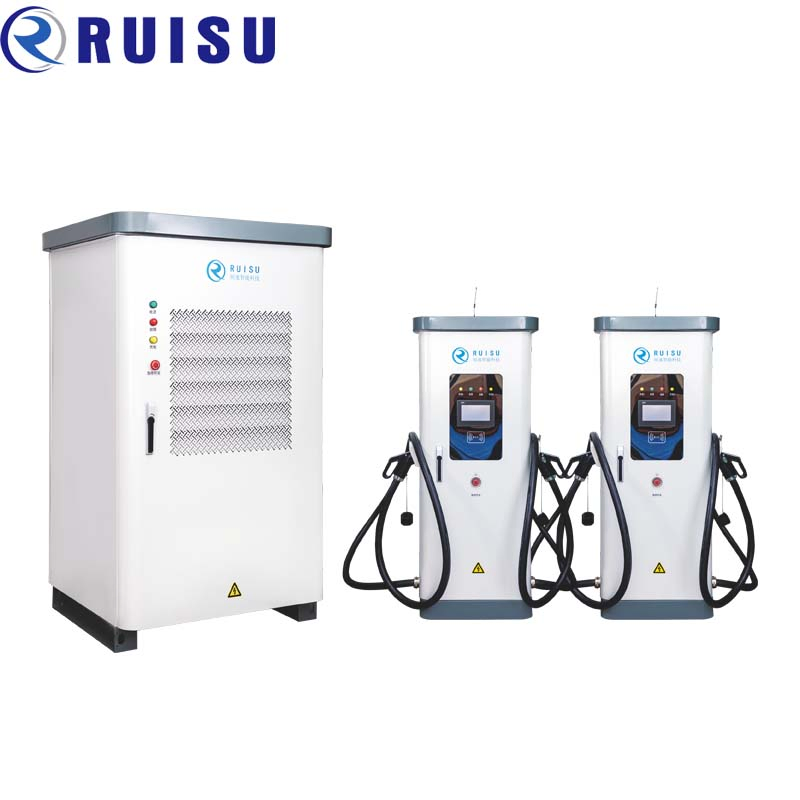

| Product Type | 240KW Split DC Charger |
| Product Model | RSDC1000-240KW |

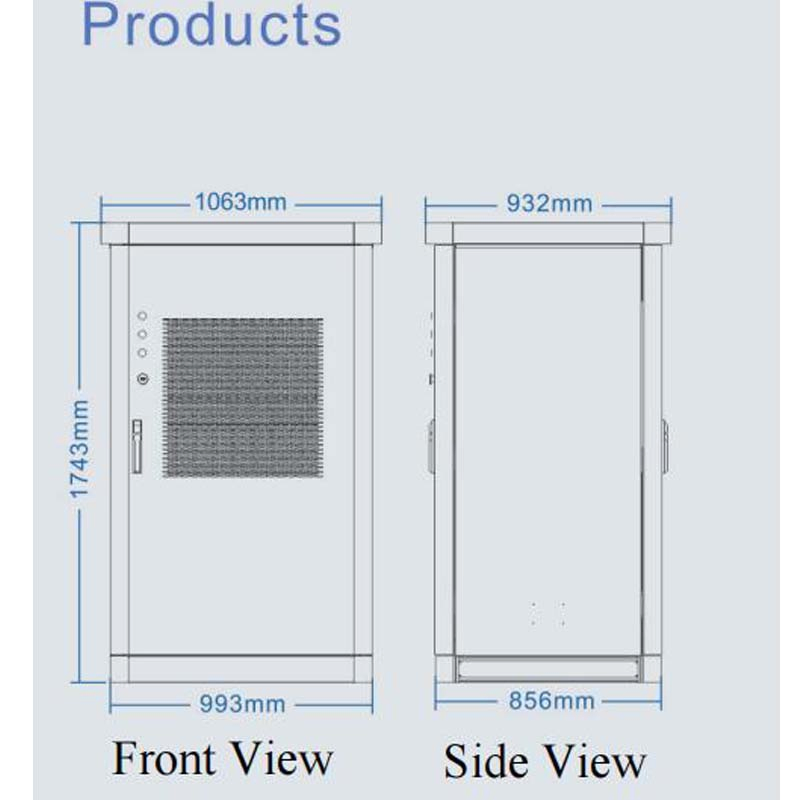

| Dimension (H*W*D) | Main cabinet: 1743*1063*932mm; Split cabinet: 1670*692*392mm |
| Display Mode | 7" Color Touch Screen |
| AC Input Voltage Range | 260-470VAC, 3P+N+PE (Wye connection) |
| Current Harmonics (THDI) | ≤5% |
| DC Output Current | 100A (single gun) |
| Length of Charging Gun | 5m (Standard) |
| Noise (dB) | <=65 |
| Charging Operation | Swiping card / Scanning code |
| BMS Auxiliary Power | 12/24V |
| Working Temperature | -20ºC ~ 50ºC |
| Protection Function | Lightning, over-load, short-circuit, over-temperature, electric leakage, emergency stop |
■ Key Features & Advantages
✔

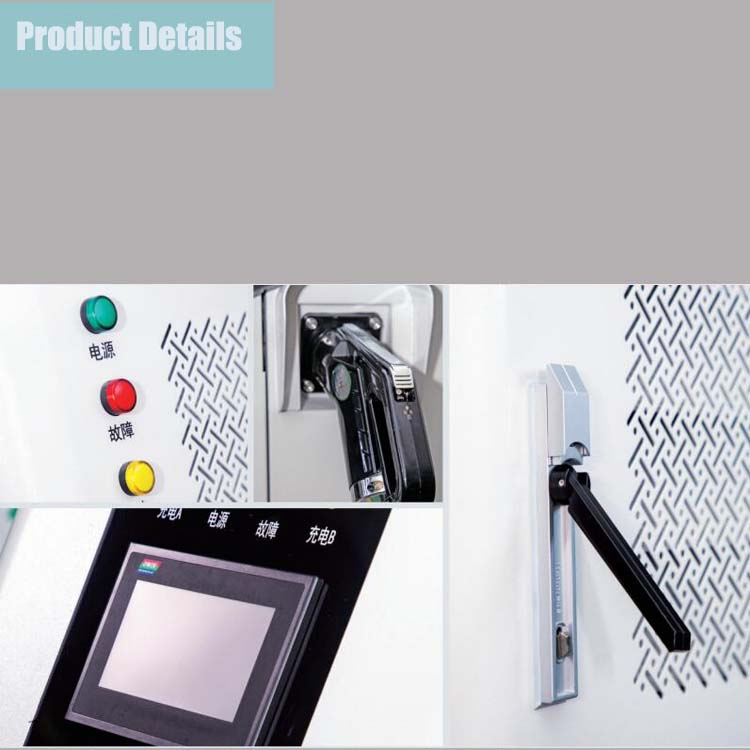

Friendly visual interface with multiple information displays including prompt info and IC card details.
✔
Advanced electric-energy acquisition and charge accounting system. Supports IC card and WeChat for convenient payment.
✔
Automatic stop and indicator alerts once the electric vehicle battery is full.
✔
Comprehensive safety protection: triggers alarm and stops charging in case of over-voltage, short-circuit, or leakage.
✔
Robust industrial design with IP54 protection grade, suitable for diverse outdoor temperature environments.
■ Frequently Asked Questions
What is the output power of this charging station?
This model provides a high-capacity output of 240KW, designed for fast EV DC charging.
Is the charging station suitable for outdoor use?
Yes, it features an IP54 protection grade and a sheet metal shell, making it durable for outdoor environments.
How can users pay for the charging service?
The system supports multiple payment methods, including RFID swiping cards, WeChat Official Accounts, and Alipay via code scanning.
What safety protections are included?
The charger includes lightning protection, over-load protection, short-circuit protection, over-temperature protection, and an emergency stop button.
What is the warranty period for the 240KW DC Charger?
The product comes with a standard warranty of 24 months.
Does the system support intelligent power distribution?
Yes, it supports Equipartition, Intelligent Distribution, and Switching to optimize power delivery to vehicles.
