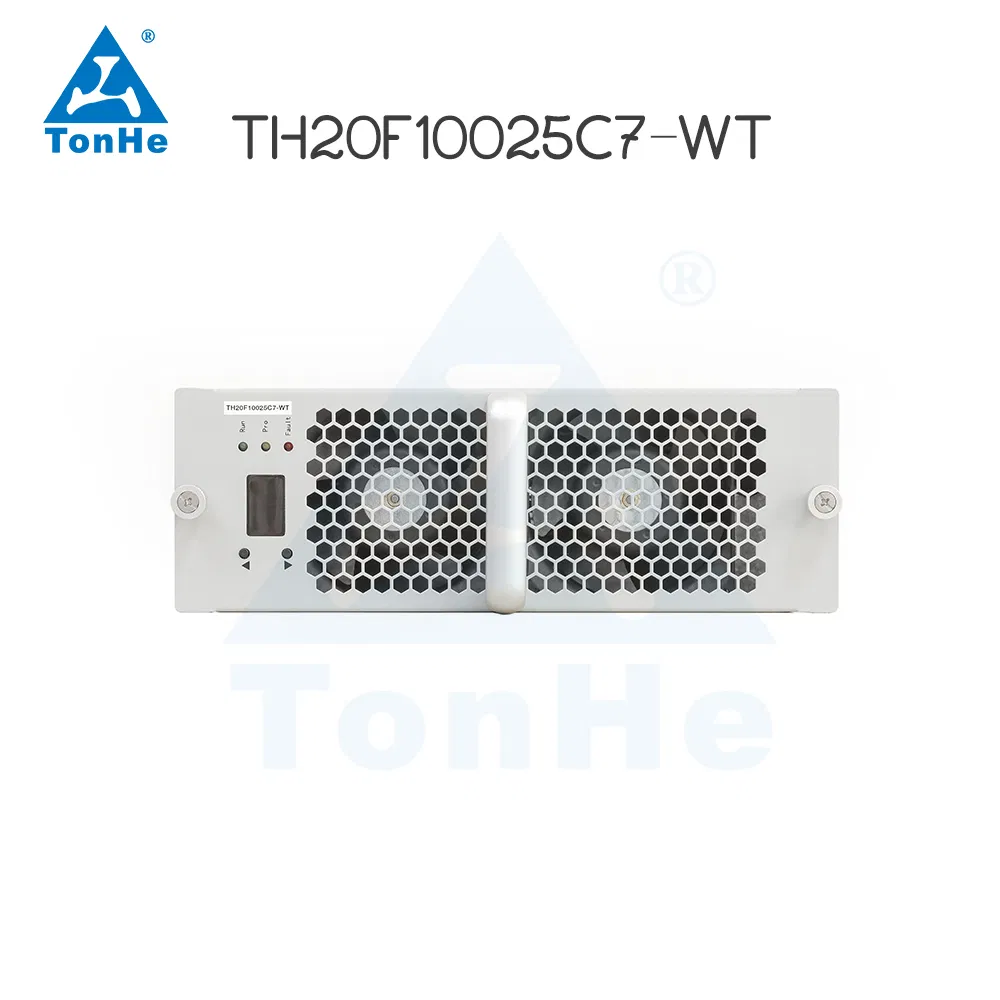

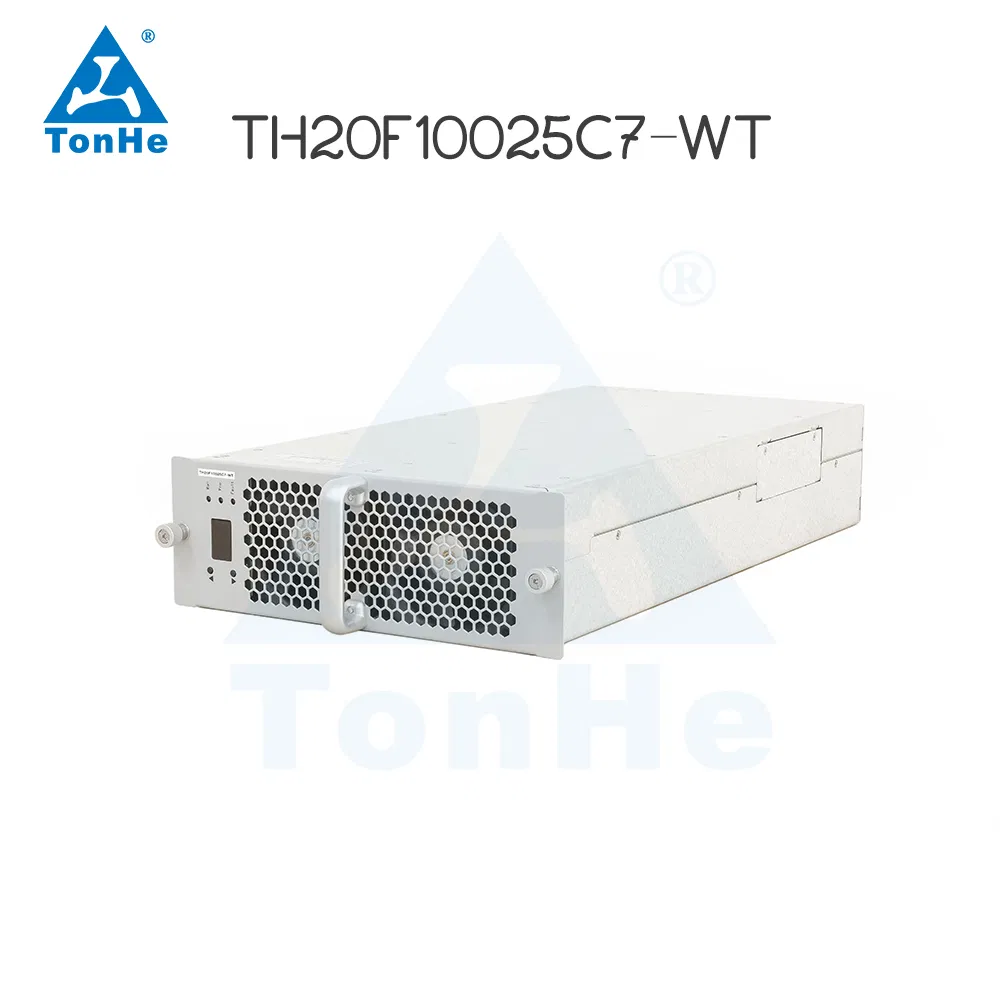

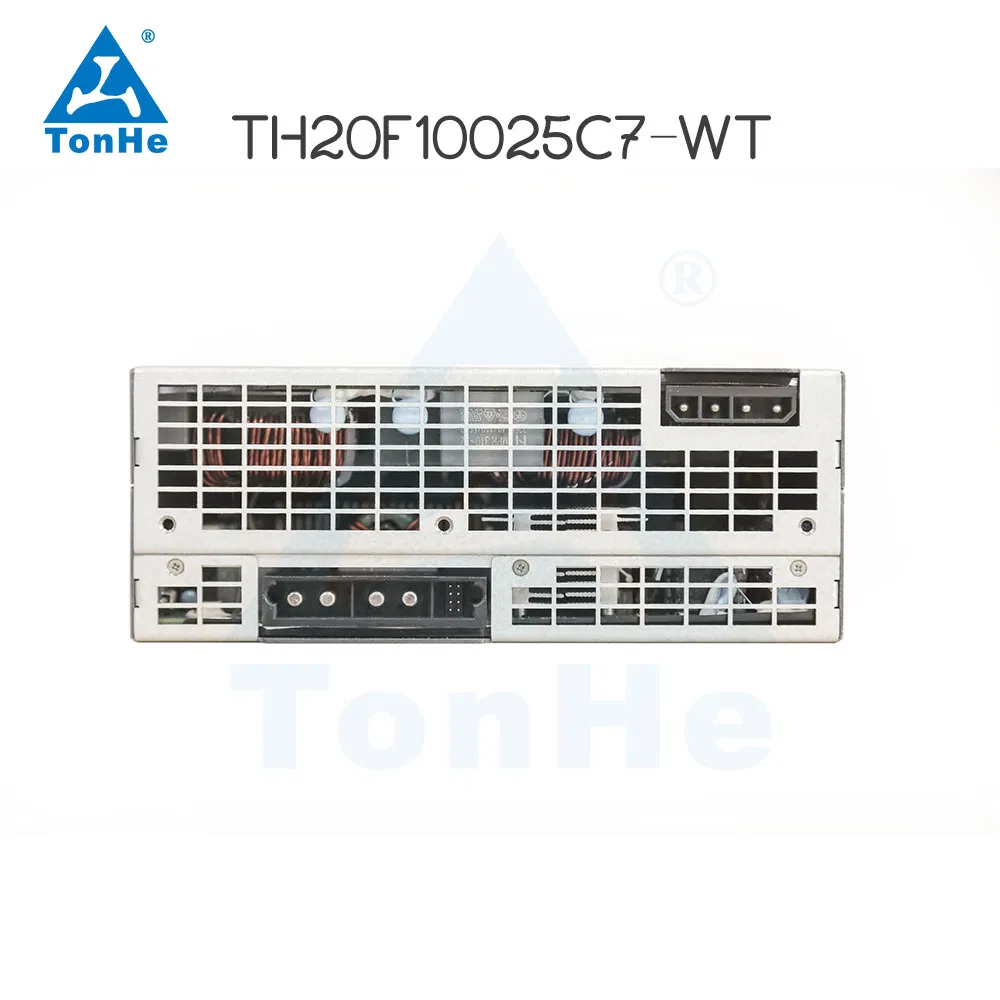

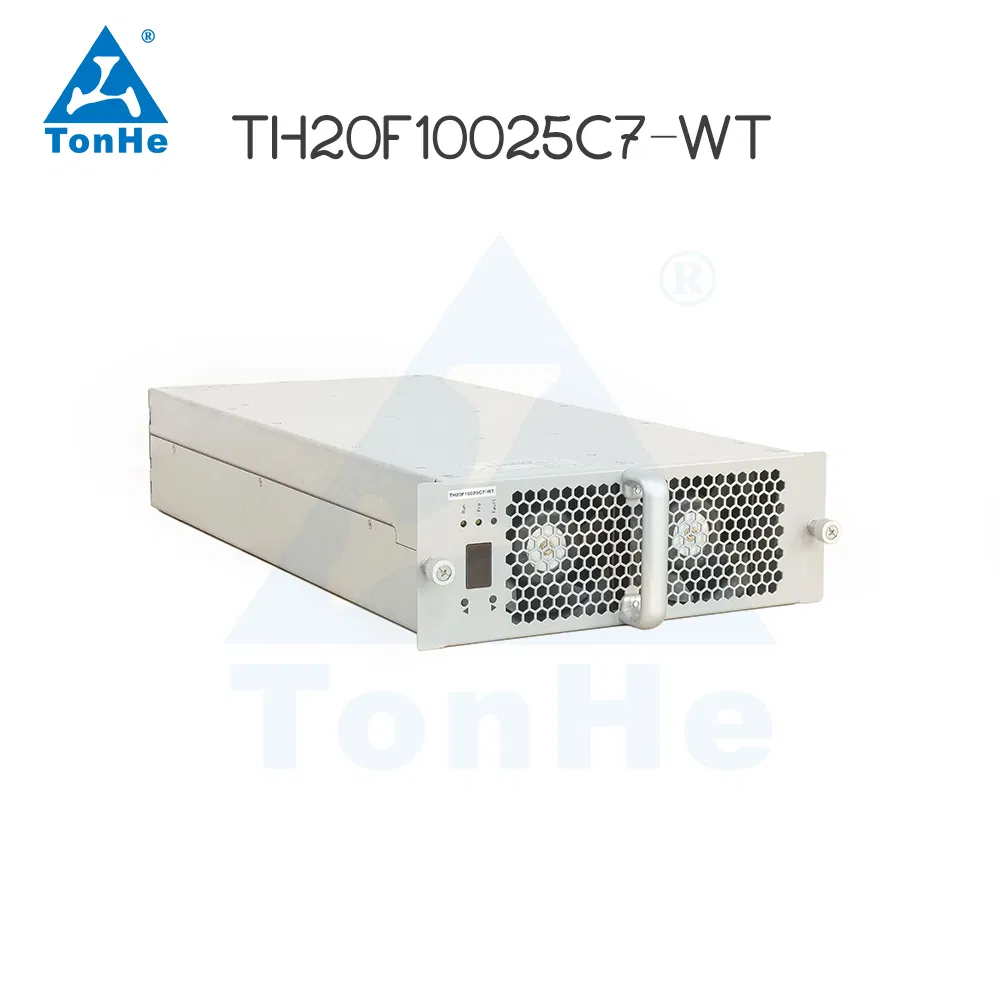

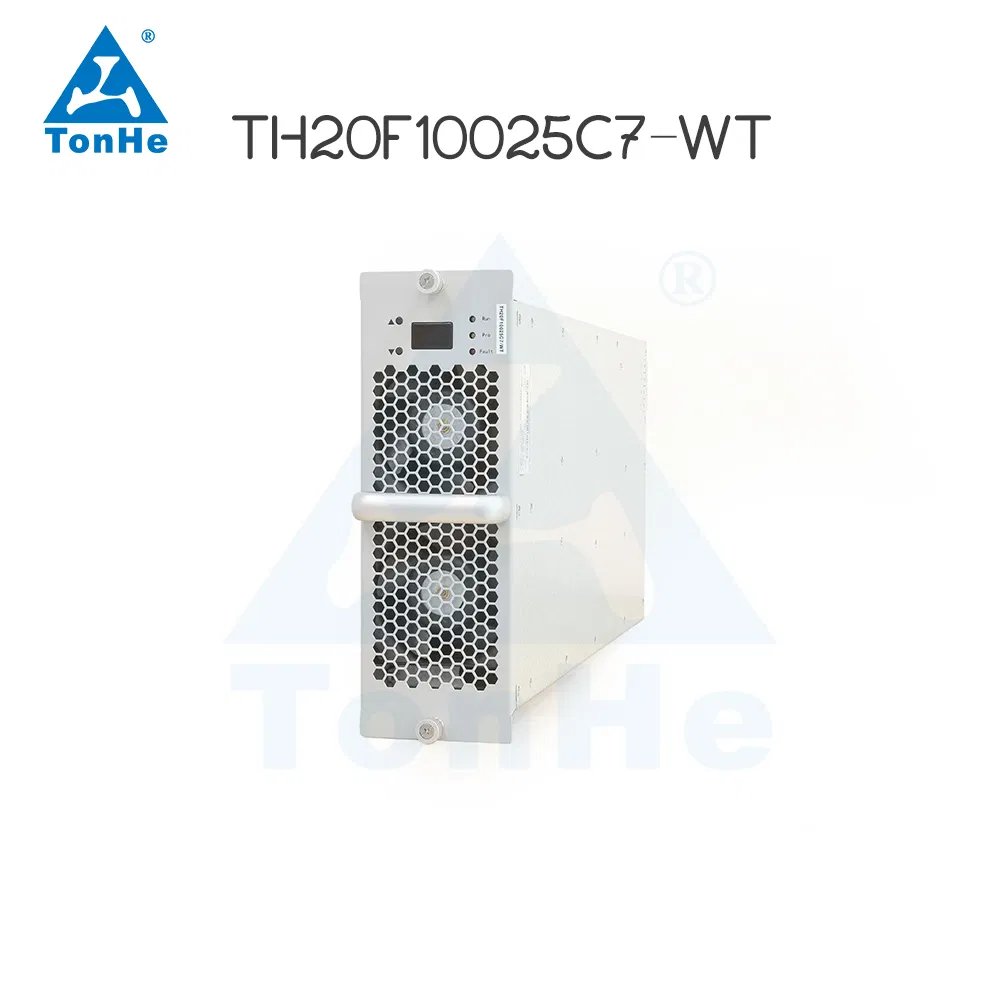

20kw Output Power Acdc EV Charging Module EV Charger Electric Power Station Module

1 / 5

20kw Output Power Acdc EV Charging Module EV Charger Electric Power Station Module

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.	TH20F10025C7	IP Degree	IP54
Installation	Wall Mounted	Charge Method	Quick Charge
Cooling Method	Fan Cooling	Application	DC Fast Charging Station
Peak Efficiency	≥96%	Can Bus Protocol	CAN
Transport Package	Wooden Box	HS Code	8504401991

⭐

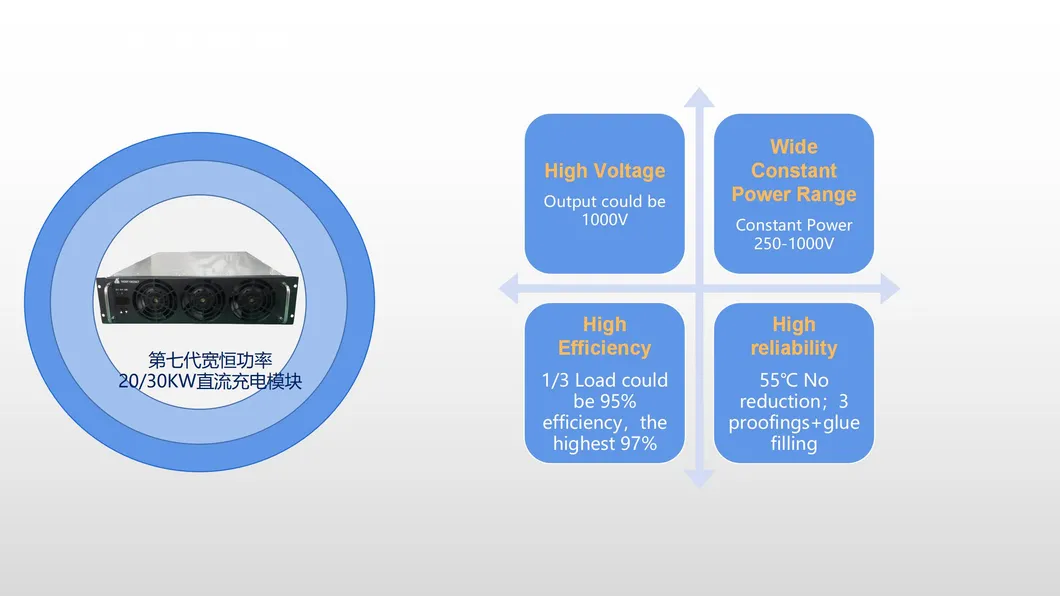

Product Characteristics

✔ Wide Constant Power Range: 300-1000V

✔ Ultra low standby power: <10W

✔ Ultra low THD: ≤4%

✔ Operating Temp: -40~75ºC

✔ Input Range: 380V±25%

✔ Conversion Efficiency: ≥96%

📊

Performance Data

Parameter		Specifications
AC Input	Input Voltage	Rated 380VAC, 3-phase, Range 285-475VAC
	Input Frequency	50±5Hz
	Input Power Factor	≥0.99
DC Output	Rated Power	20kW
	Voltage Range	50~1000VDC
	Constant Power Range	300-1000VDC
	Soft Start Time	3-8S
Physical	Dimension	46021884mm (LWH)
Physical	Weight	≤13kg
Reliability	MTBF	500,000 hours

📜

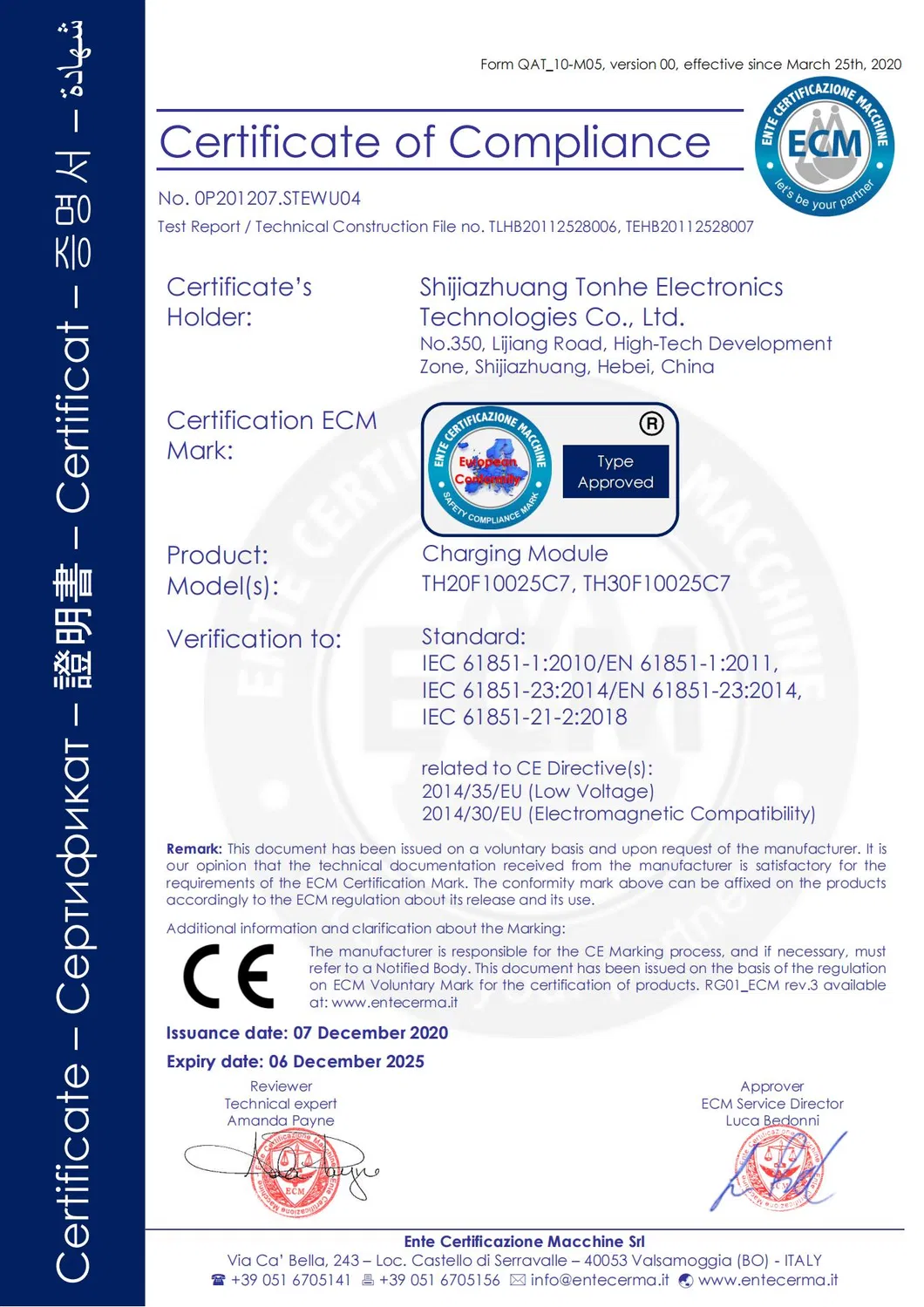

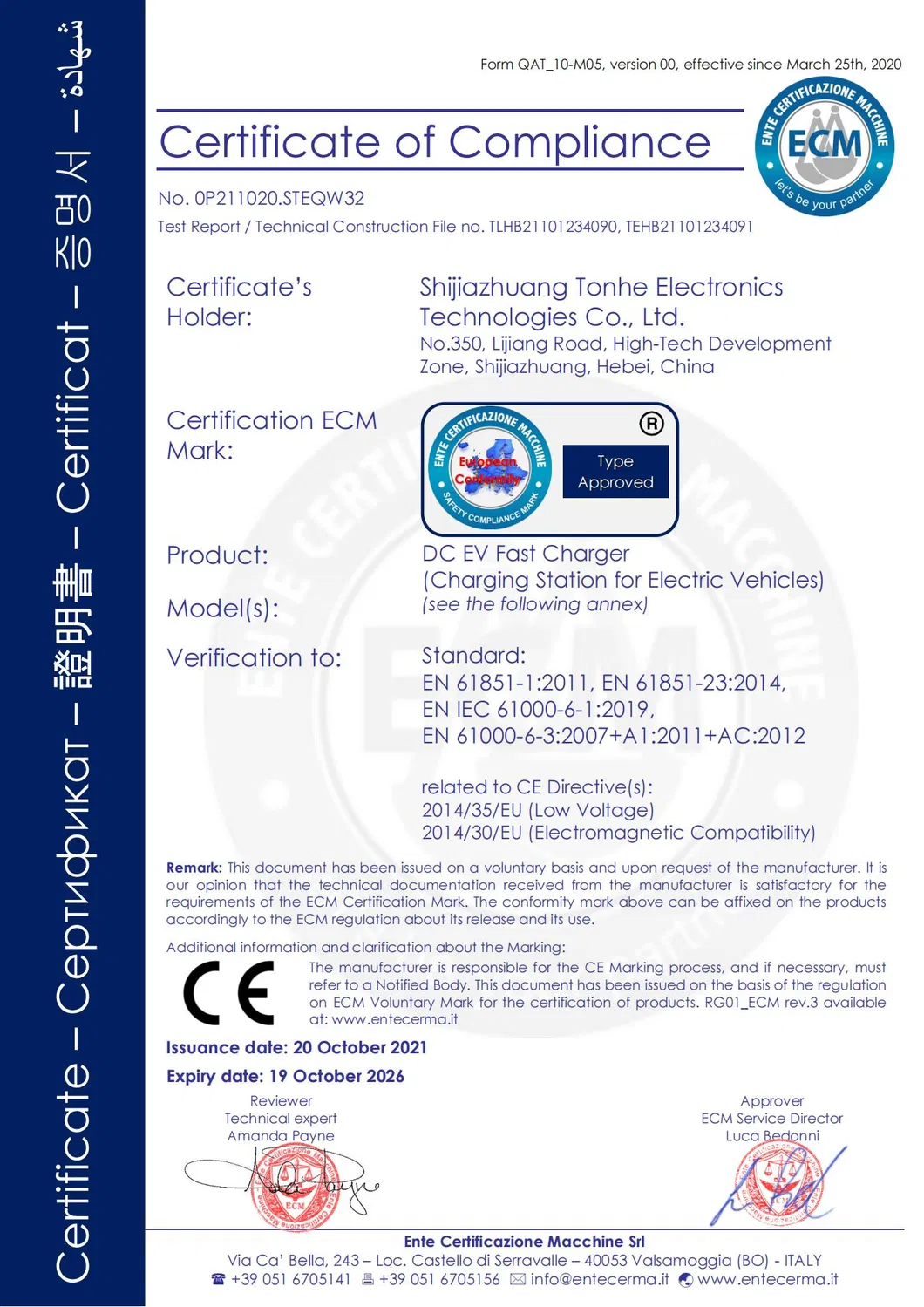

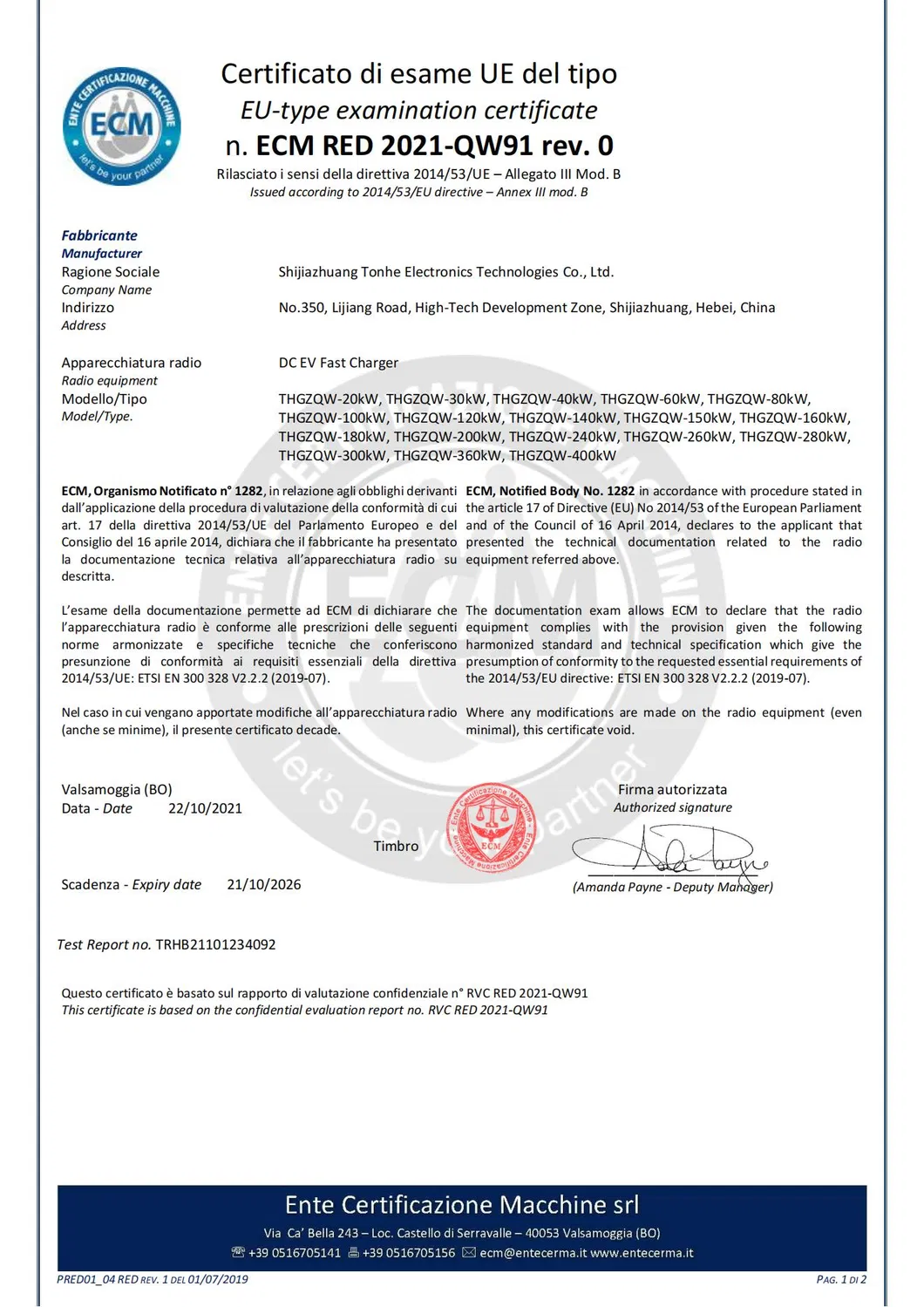

Product Certification

🏭

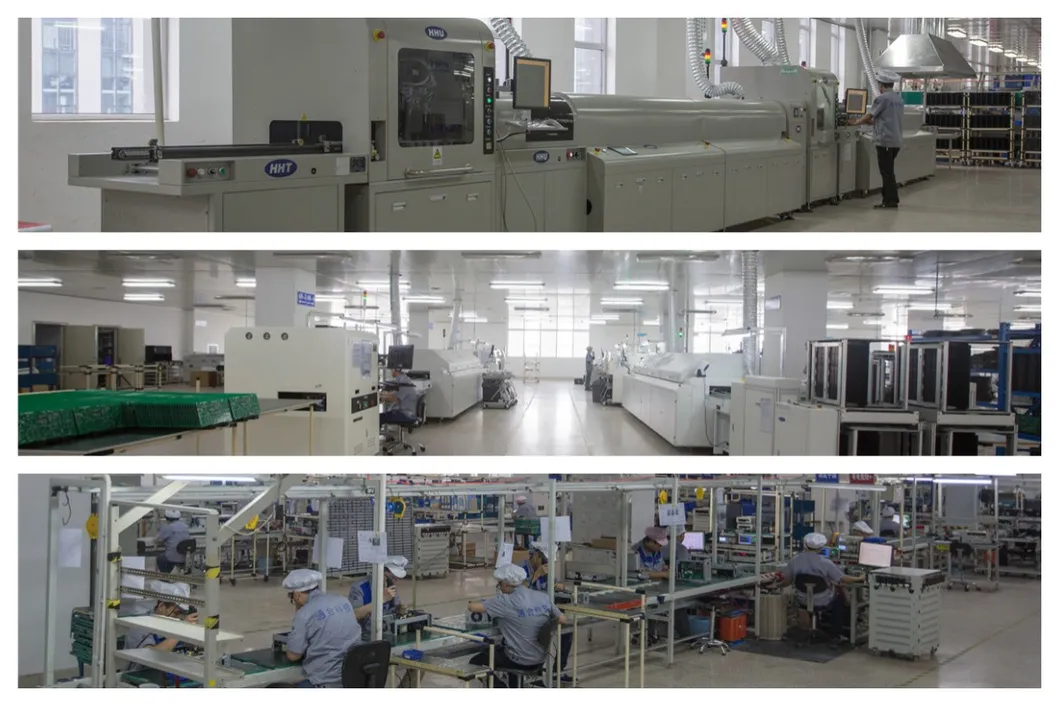

Manufacture & Laboratory

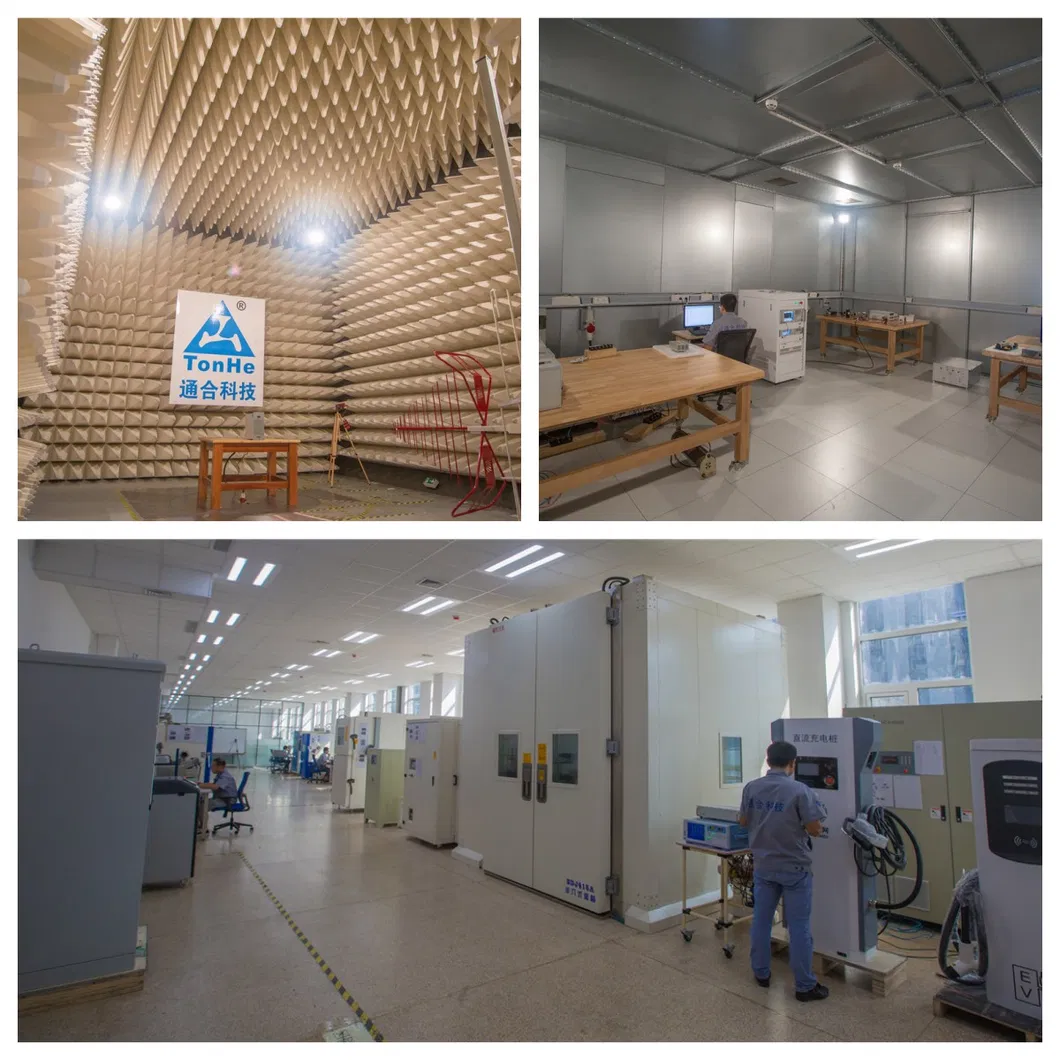

Our advanced testing facilities include a 18m³ walk-in high and low temperature lab and an Anechoic Chamber designed for CISPR22, CISPR24, and IEC61000 standards. The test hall is equipped with programmable AC power supplies and DC electronic loads to ensure peak performance.

🌍

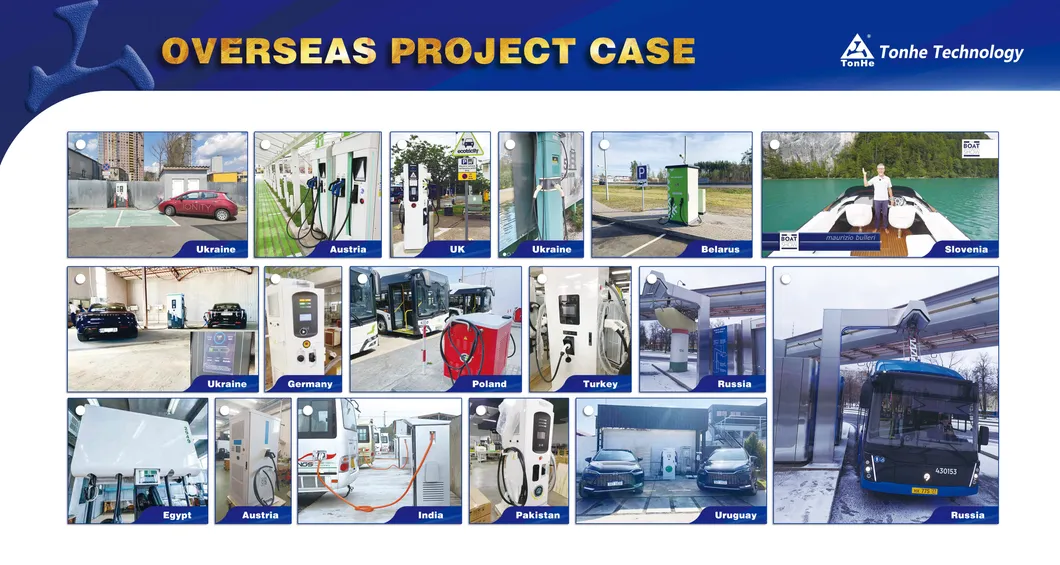

Exhibitions & Successful Cases

❓

Frequently Asked Questions

What are the module CAN baud rate and voltage levels?

The module uses 125Kbs at a 5V voltage level.

Do the modules support glue filling for extra protection?

Yes, all series modules can support glue filling based on requirements.

What are the installation requirements for the charging module?

The charging module can be installed horizontally, side-standing, or upside down. For upside-down installation, a front panel without a handle is recommended.

What is your typical delivery time?

We generally require about 7 days for modules and 35 days for standard charging piles. Large or customized orders are coordinated based on workshop capacity.

What is the standard warranty period?

The standard warranty is 12 months upon the receipt of the shipment.

What certifications do the products carry?

Our products are qualified according to ISO, TUV, and CE standards, following strict quality management systems including IATF16949.
