40kw DC Bus Input 1000V DC DC EV Charging Module Liquid Cooled Power Module

1 / 4

40kw DC Bus Input 1000V DC DC EV Charging Module Liquid Cooled Power Module

Customization:	Available
Connector Type:	CCS1, CCS2, CHAdeMO, GB/T
Installation:	Floor Type

Send Inquiry

Product Description

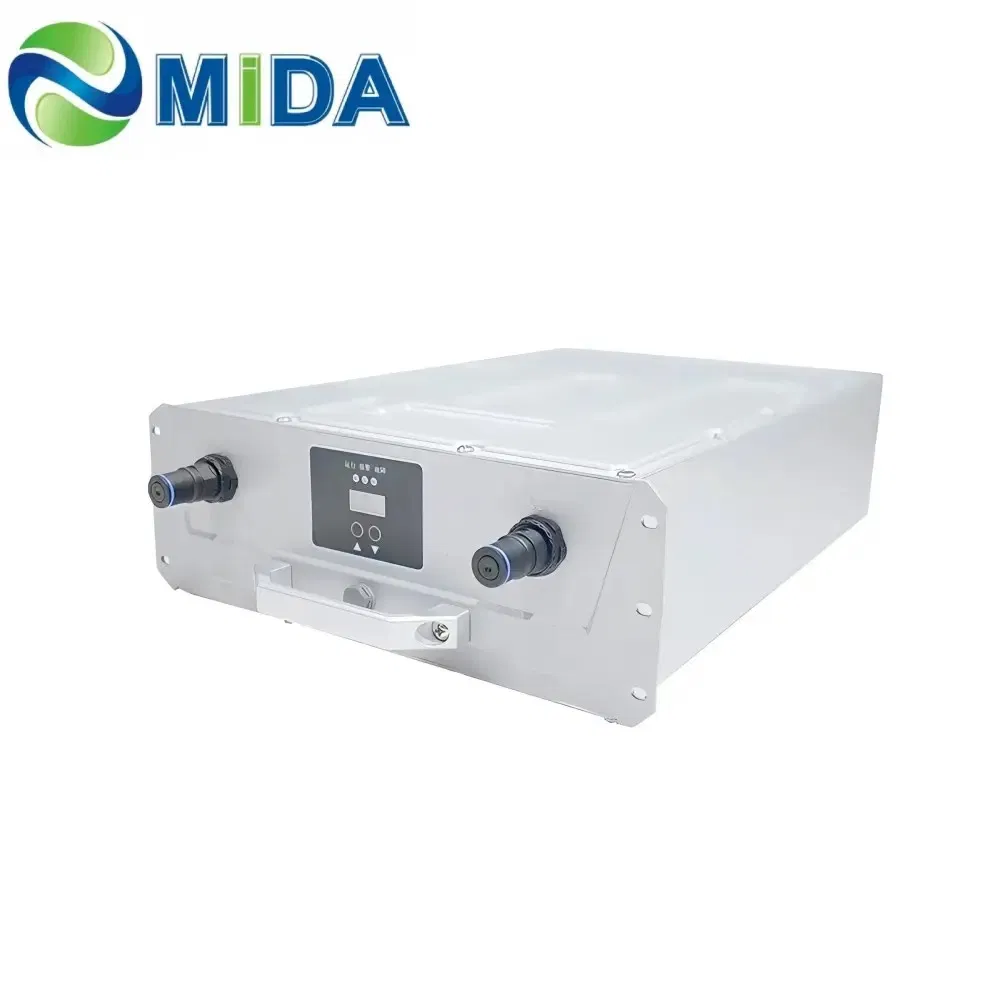

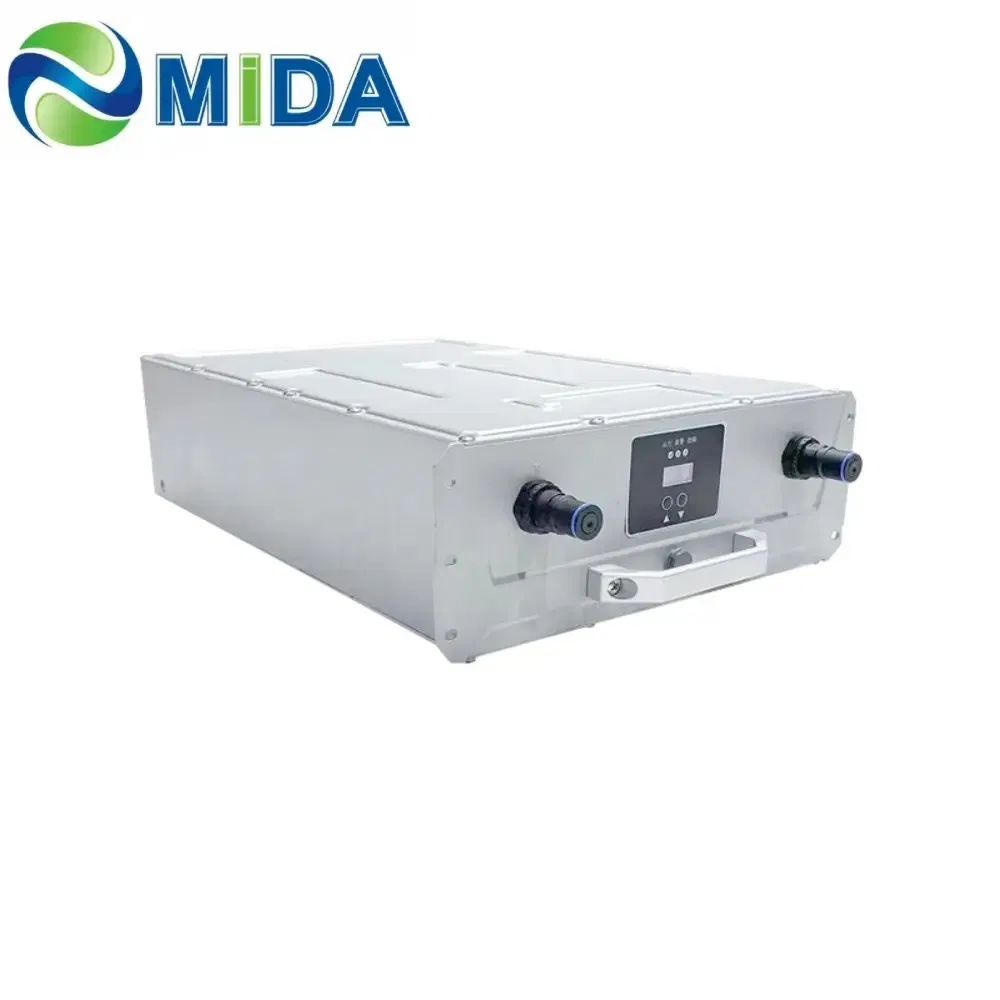

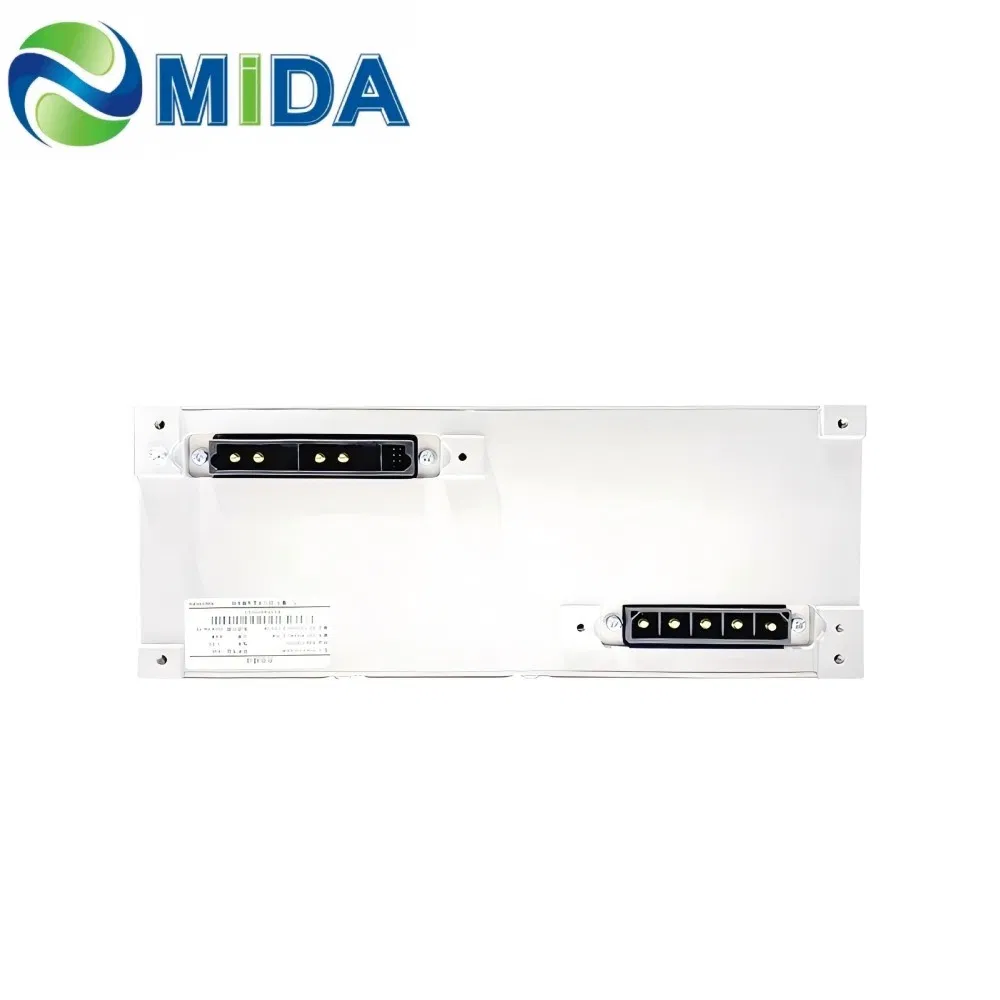

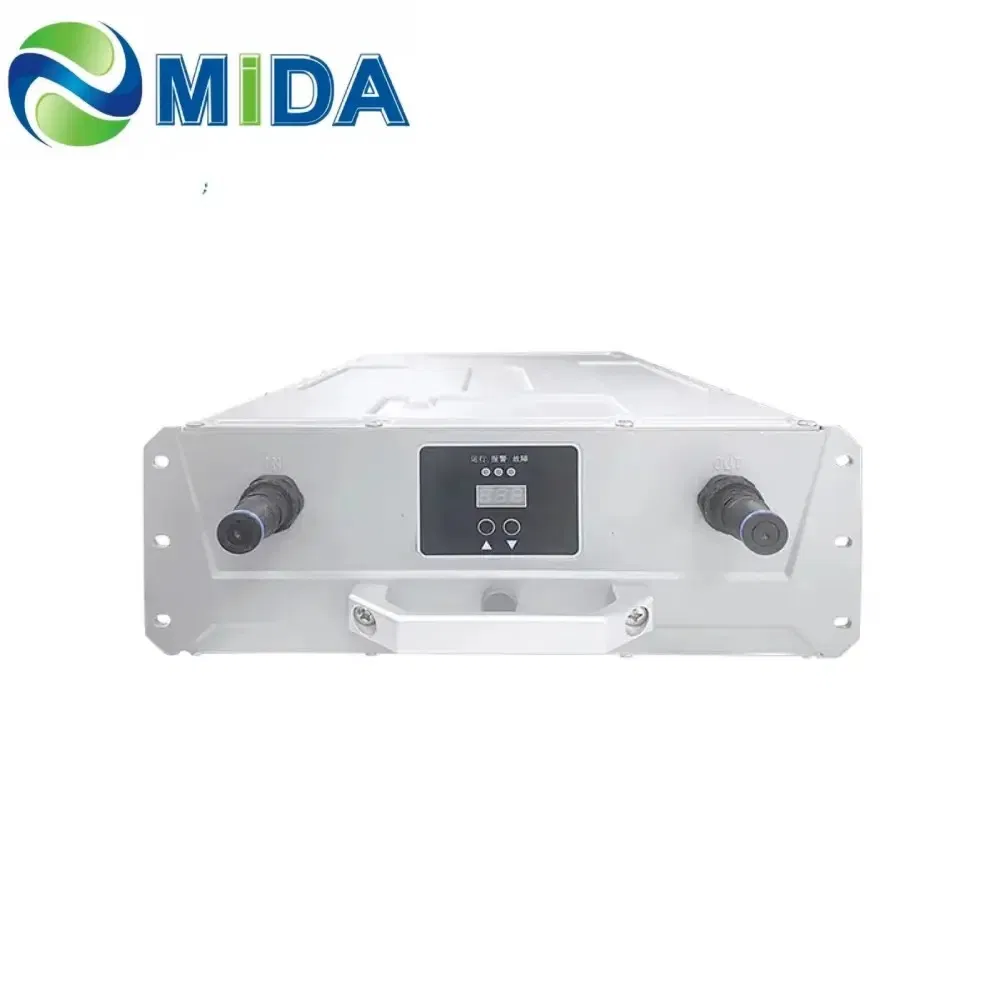

40kW DC Bus Input 1000V DC EV Charging Module

LRG1K0135G 40kW Liquid cooling charging Module is specially designed for EV DC chargers with liquid cooling requirements. This high-performance power module is equipped with high efficiency, zero noise operation, and high power density.

1Model: LRG1K0135G 40kW

2Input Voltage: 260VAC~530VAC

3Output Range: 300V~1000V

4Peak Efficiency: ≥ 96%

5Protocol: CAN Communication

Advantages & Technical Highlights

Multiple Options

High power LRG1K0135G 40kW with output voltage up to 1000V, compatible with a wide range of EV batteries.

Secure & Safe

Wide input voltage range (270-480V AC) and wide operating temperature range (-30°C to +50°C).

High Reliability

Overall temperature monitoring with defense against moisture, salt spray, and fungus. MTBF > 100,000 hours.

Low Energy Consumption

Unique sleep mode (<2W), high conversion efficiency up to 96%, and intelligent parallel mode.

Product Specifications

Parameter		UR100040SW-SiC 40kW Details
AC Input	Input Rating	260Vac ~ 530Vac, 3-Phase + PE
	Input Frequency	50/60±5Hz
	Input Power Factor	≥ 0.99
	Overvoltage Protection	530±10Vac
DC Output	Rated Power	30kW / 40kW Options
	Voltage Range	150Vdc ~ 1000Vdc
	Peak Efficiency	≥96%
	Current Accuracy	≤±1%
Mechanical	Dimensions	46021884mm (LWH)
	Weight	≤13kg
	Cooling Method	Liquid Cooling / Fan Cooling Options

Advanced Application Compatibility

This 40kw Charging Module supports DC and DC dual input modes, combining battery charging via power grid and vehicle charging by battery. It meets the size requirements for unified modules and is future-proof for high-voltage EV trends.

Core Features

●POST Function: Integrated Power-On Self-Test for system safety.
●Full Protection: OVP, OCP, OPP, OTP, UVP, and Short Circuit protection.
●Versatile Support: Compatible with CCS1, CCS2, CHAdeMO, and GB/T standards.
●Parallel Capability: Connect multiple modules for ultra-high power charging stations.

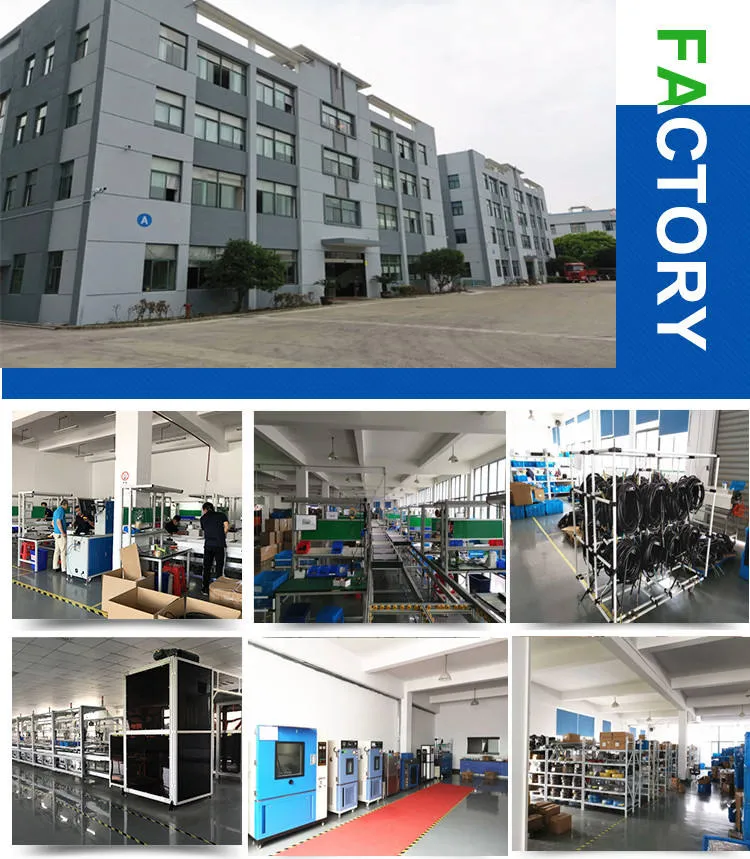

Manufacturing & Quality Display

Frequently Asked Questions (FAQ)

Q1: What is the peak efficiency of the 40kW charging module?

The module achieves a peak efficiency of ≥ 96%, ensuring minimal energy loss during the power conversion process.

Q2: Can these modules be connected in parallel?

Yes, multiple charger modules can be connected in a parallel manner to one power supply cabinet to reach higher power outputs like 120kW, 180kW, or even 600kW.

Q3: What charging standards are compatible with this power module?

The module supports all major international standards including CCS1, CCS2, CHAdeMO, and GB/T, as well as energy storage systems.

Q4: How does the liquid cooling system benefit the module?

Liquid cooling allows for zero noise operation, better heat dissipation in high-power scenarios, and increased protection against environmental factors like salt spray and dust.

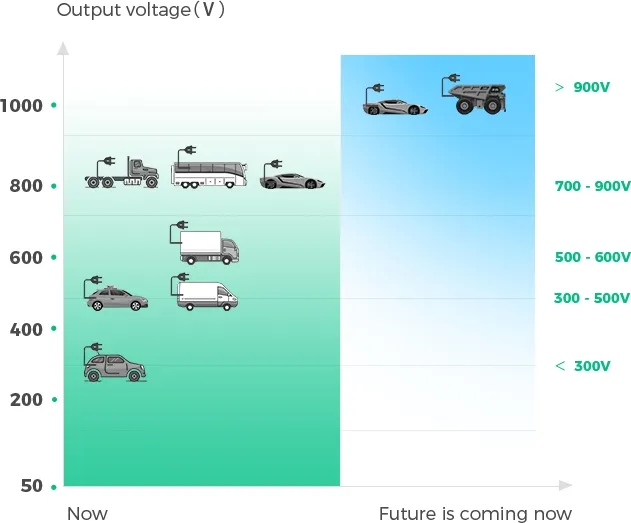

Q5: What is the output voltage range?

It offers an ultra-wide output range from 150VDC to 1000VDC, making it compatible with current EVs and future high-voltage electric vehicle platforms.

Q6: What safety certifications do the products hold?

The products are designed to meet rigorous safety standards and hold certifications such as CE, TUV, UL, and PSE.
