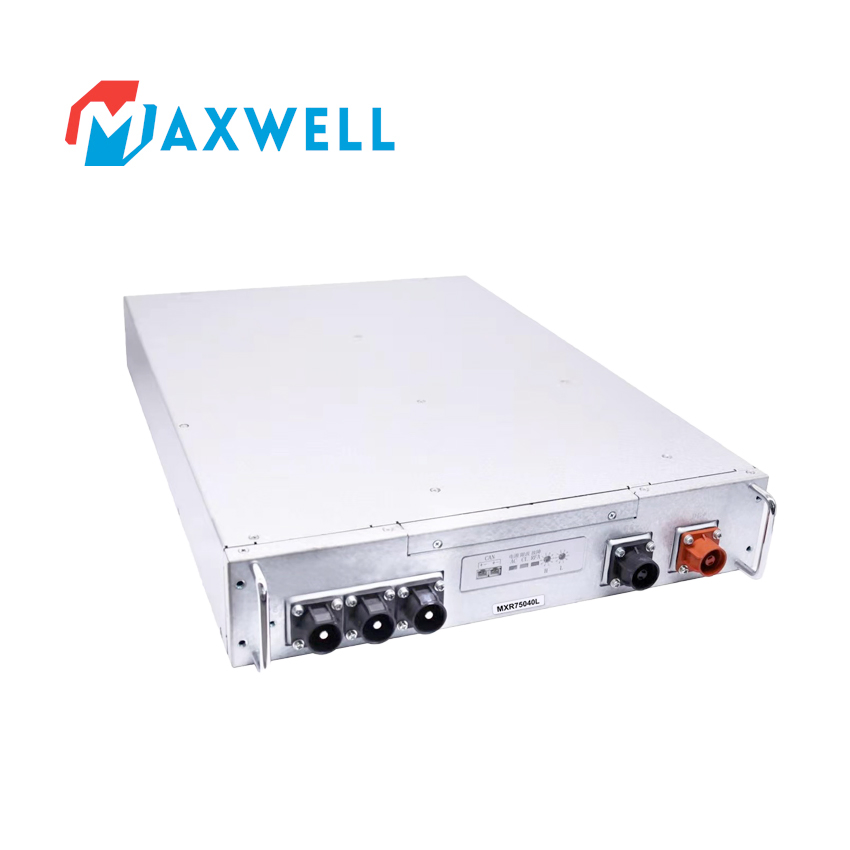

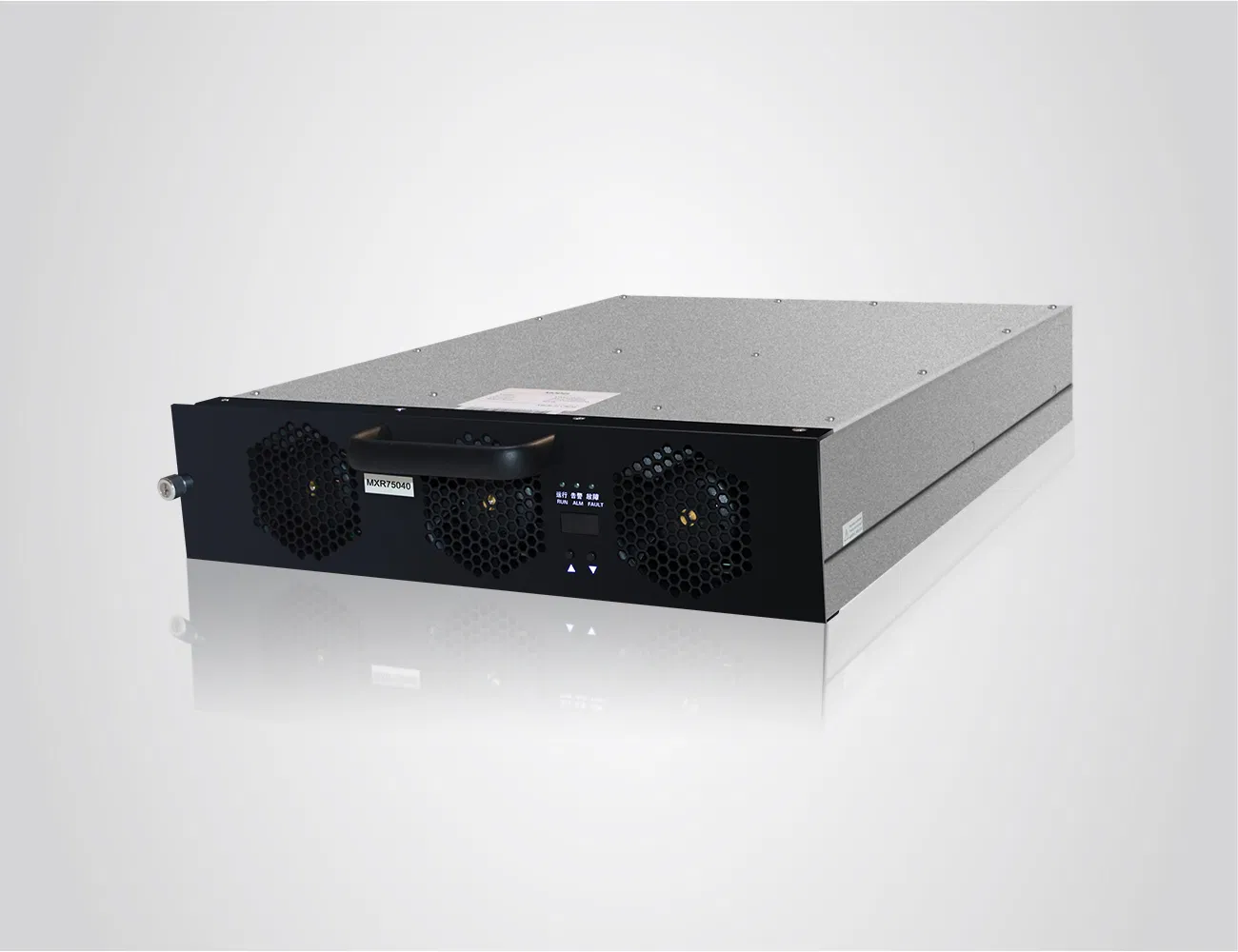

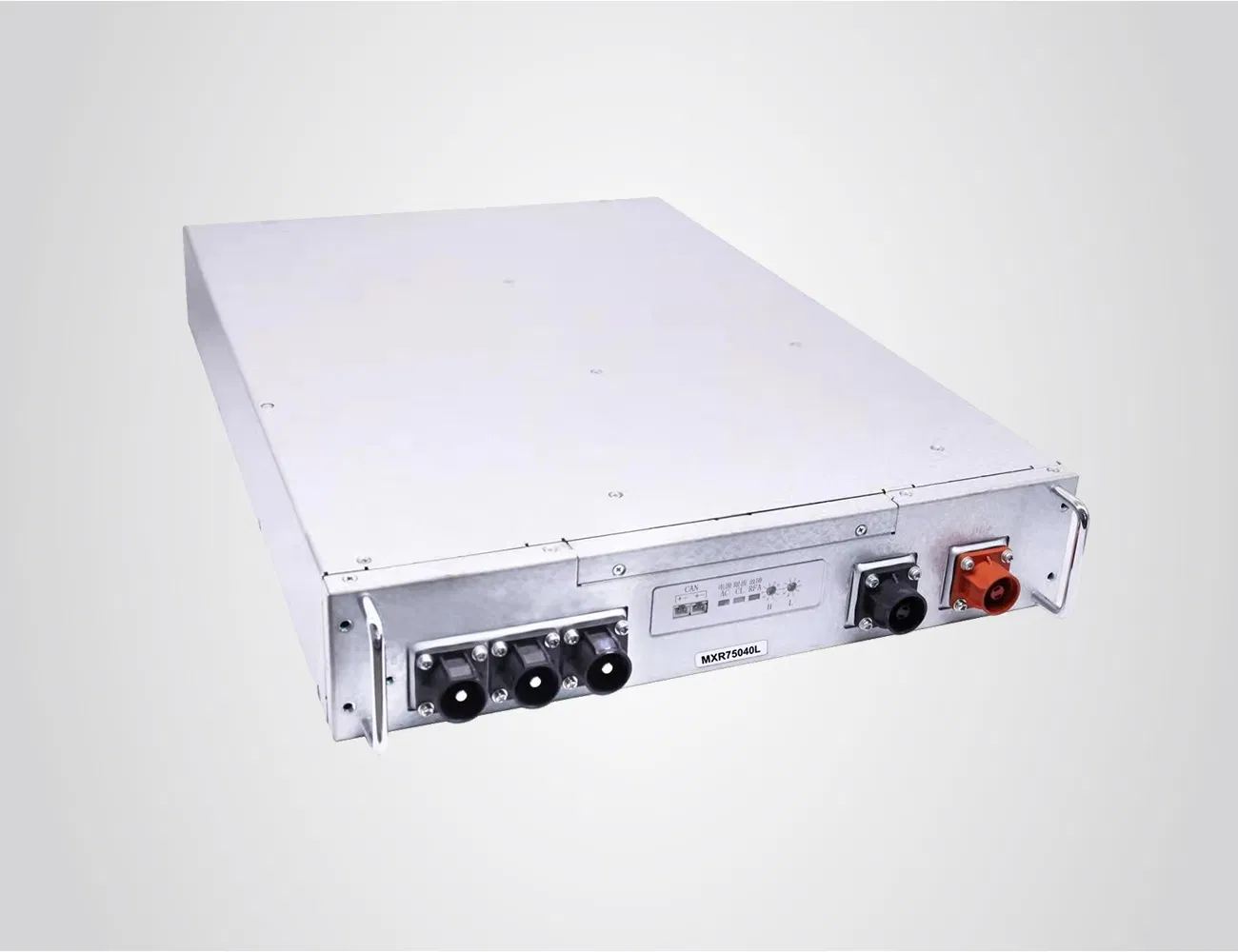

Mxr75040L 30kw@750V Liquid Cooling EV Charging Module with High Efficiency Power

1 / 5

Mxr75040L 30kw@750V Liquid Cooling EV Charging Module with High Efficiency Power

Customization:	Available
Type:	Fast EV Charging Station
Weight:	<25kg

Send Inquiry

Product Description

Product Overview

Model NO.	MXR75040L
Cooling Method	Liquid Cooling
Rated Output Power	30kw
Communication	Can Bus
Parallel Quantity	<60 Pieces
Rated Output Current	91A
Output Voltage Range	200-750VDC
Certification	CE, ISO, TUV, RoHS
Specification	37073520

Detailed Description

✓

MXR75040L is a high-performance charging power module designed to address industry shortages. It features ultra-high full-load operating temperatures and an ultra-wide constant power range.

✓

Key characteristics include high reliability, superior efficiency, high power factor, and high power density.

✓

Engineered for low noise, low standby power consumption, and excellent EMC performance, making it ideal for modern charging infrastructure.

Input Characteristics

Rated Input Voltage	380Vac/480Vac, three-phase

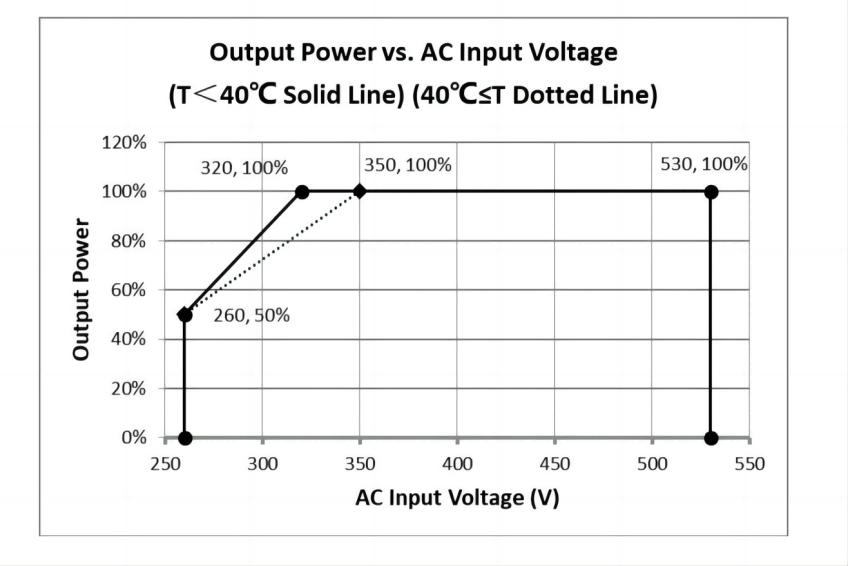

Input Voltage Range	530-320Vac (full load)
Input Current	<63A
Grid Frequency	45Hz-65Hz
Power Factor	≥0.99
ITHD	≤5%

Output Characteristics

Output Power	30kw
Peak-to-peak Noise	≤±0.5%
Voltage Accuracy	≤±0.5%
Current Accuracy	≤±1%
Effectiveness	≥94.5%

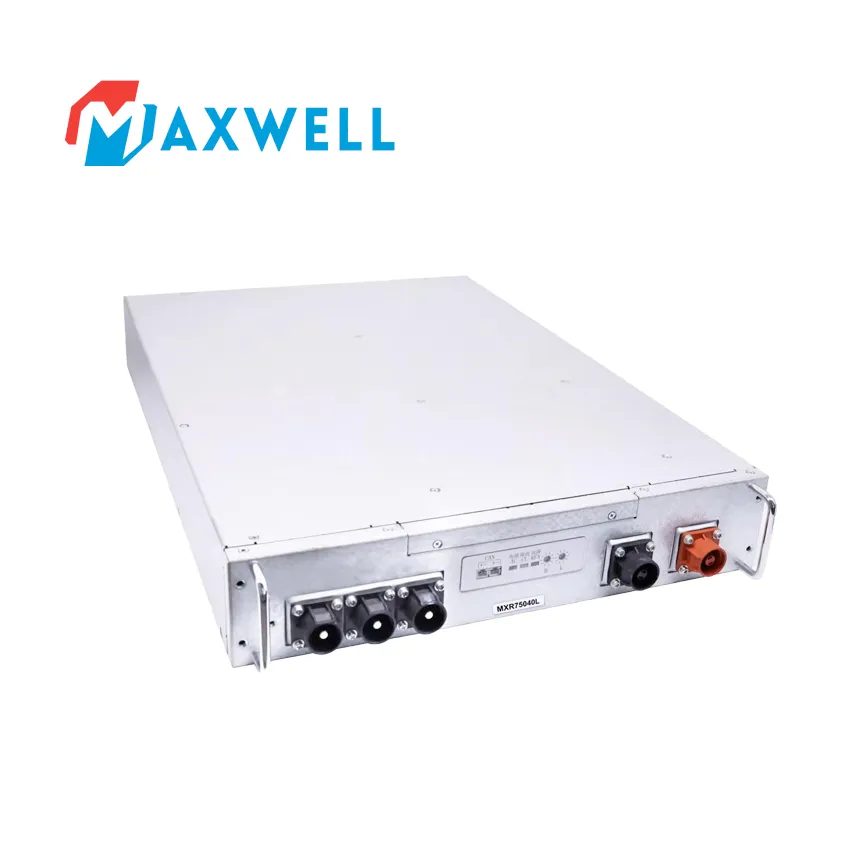

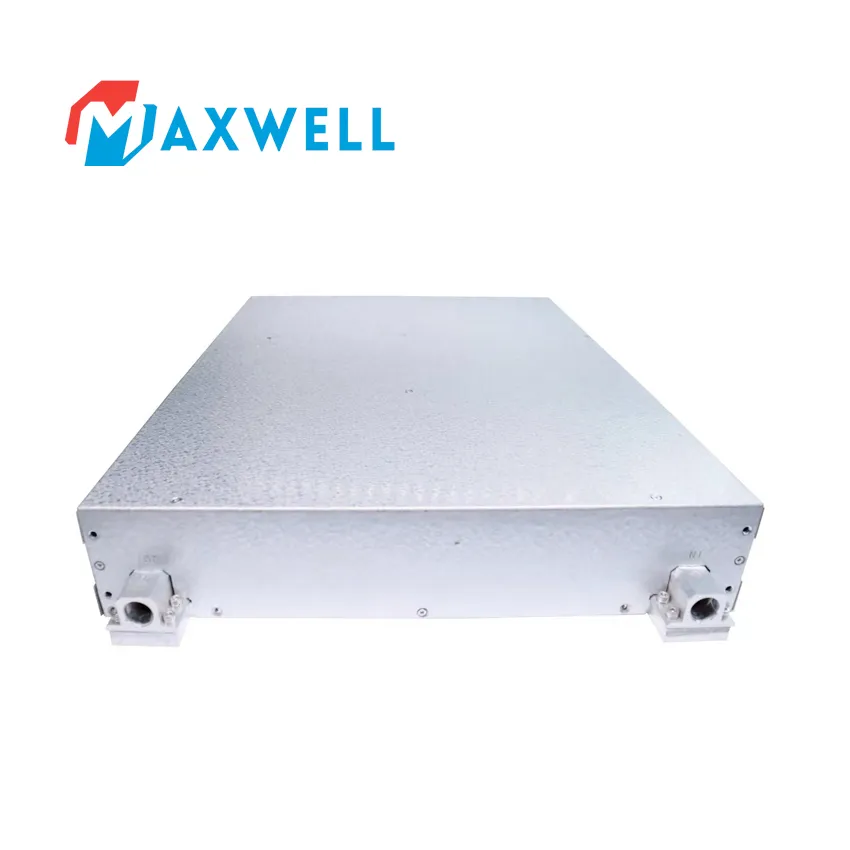

Detailed Photos

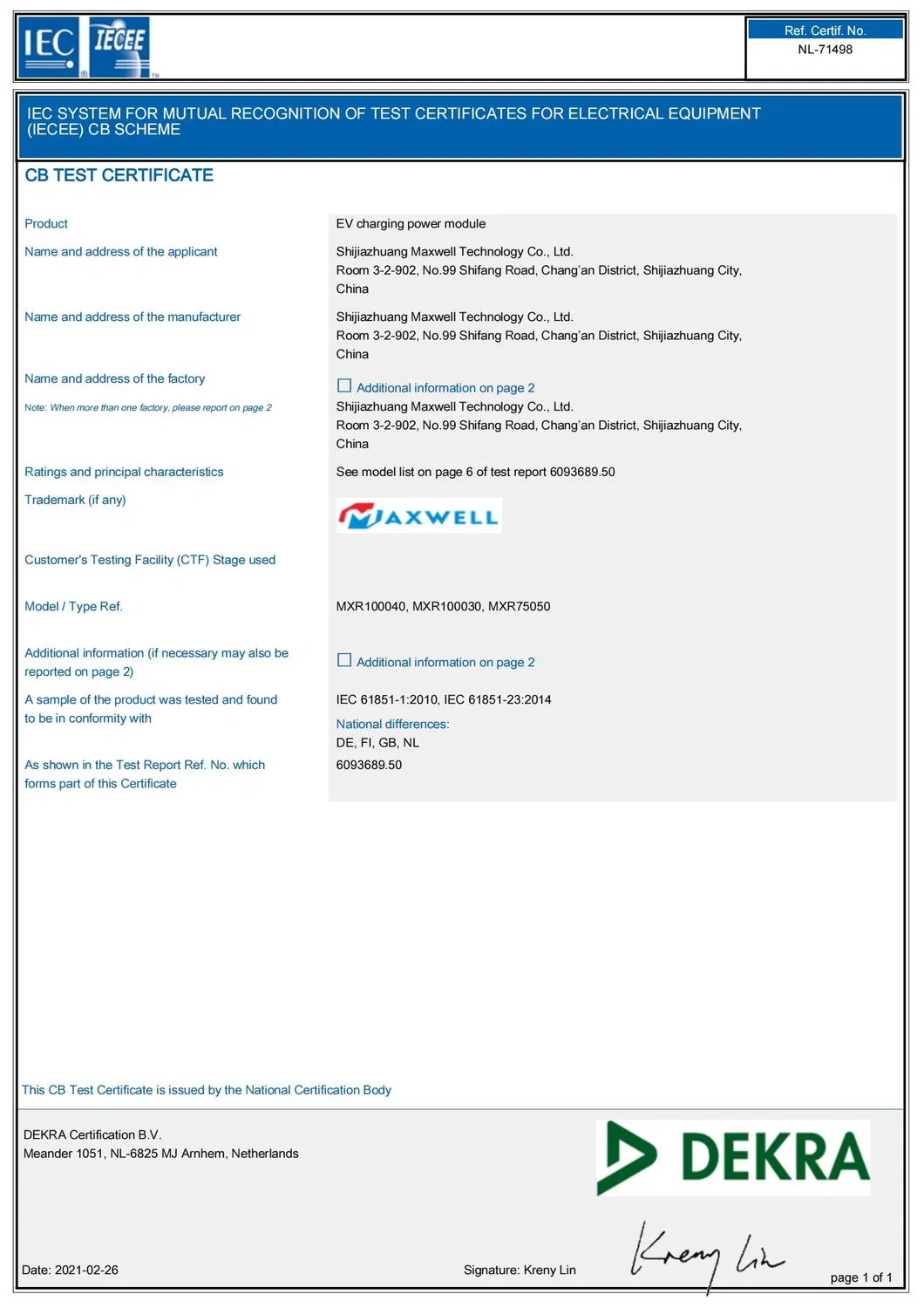

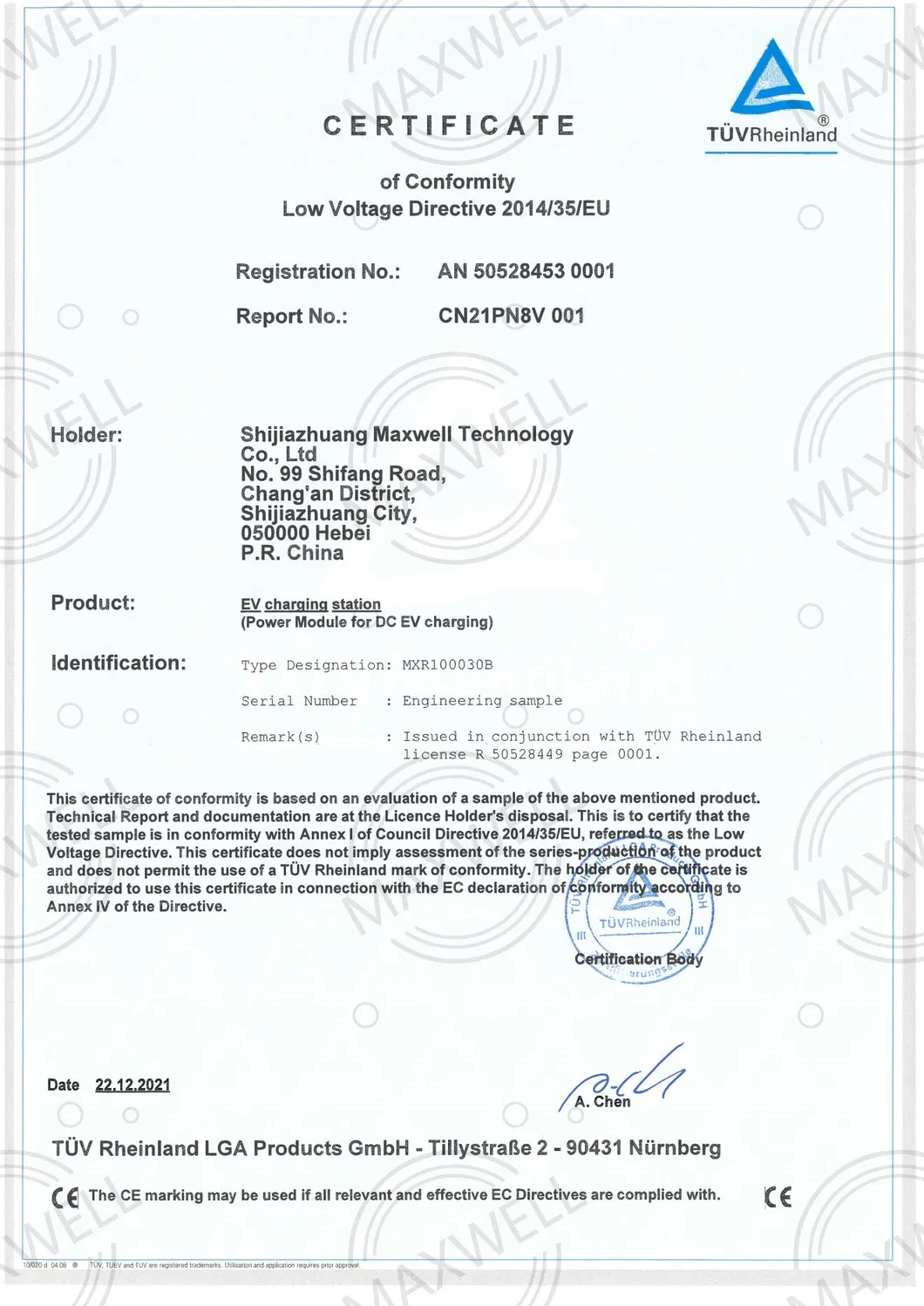

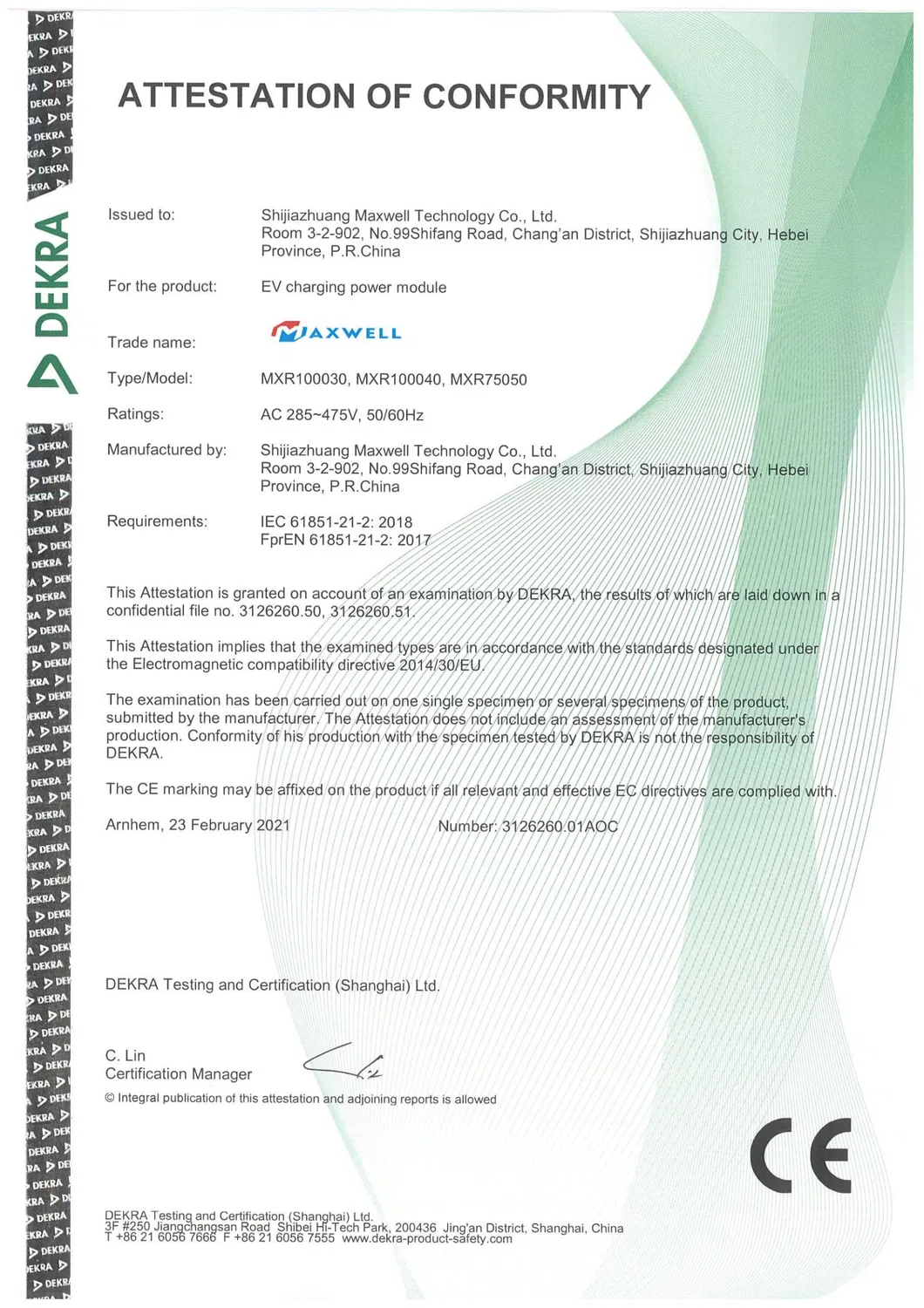

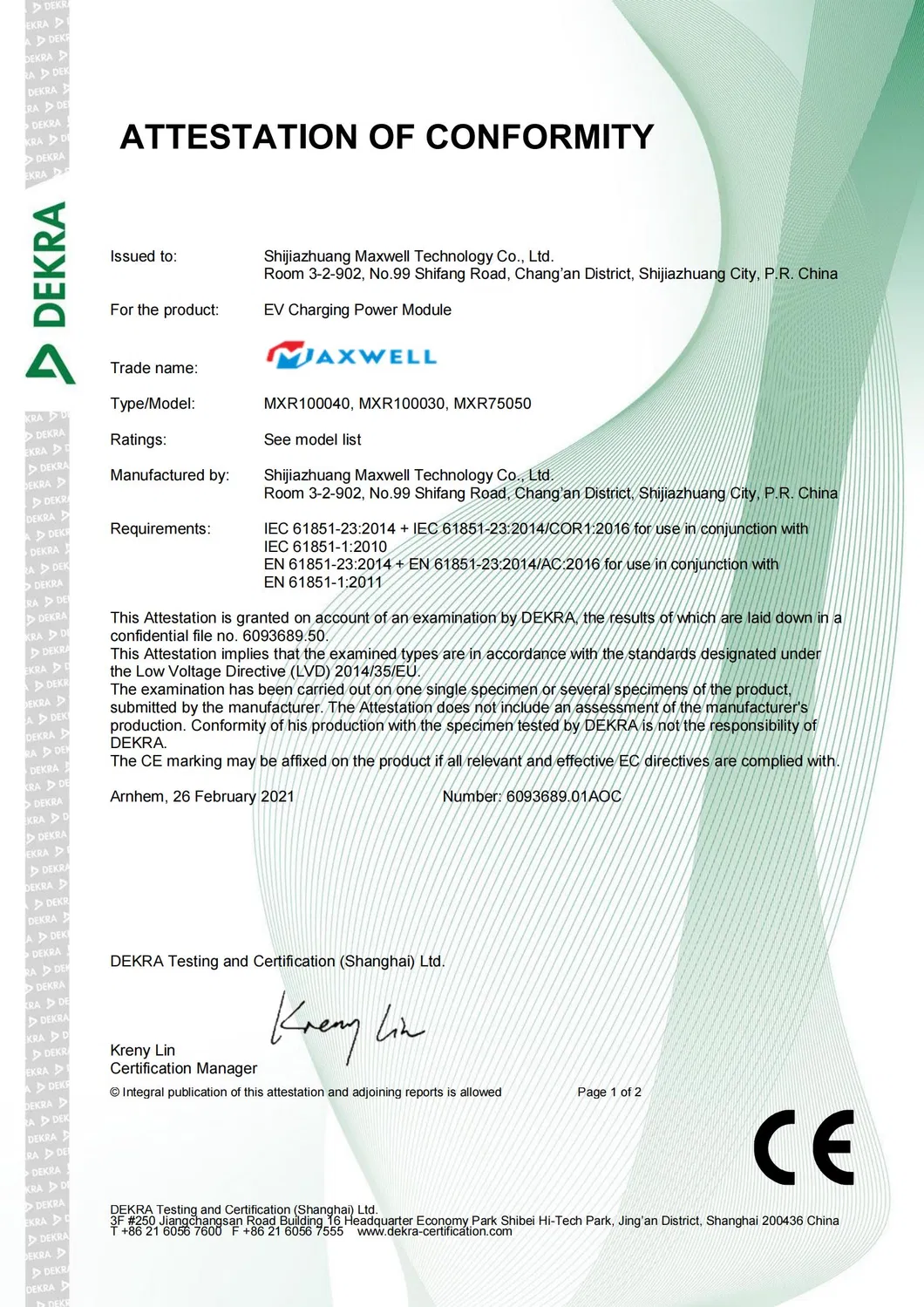

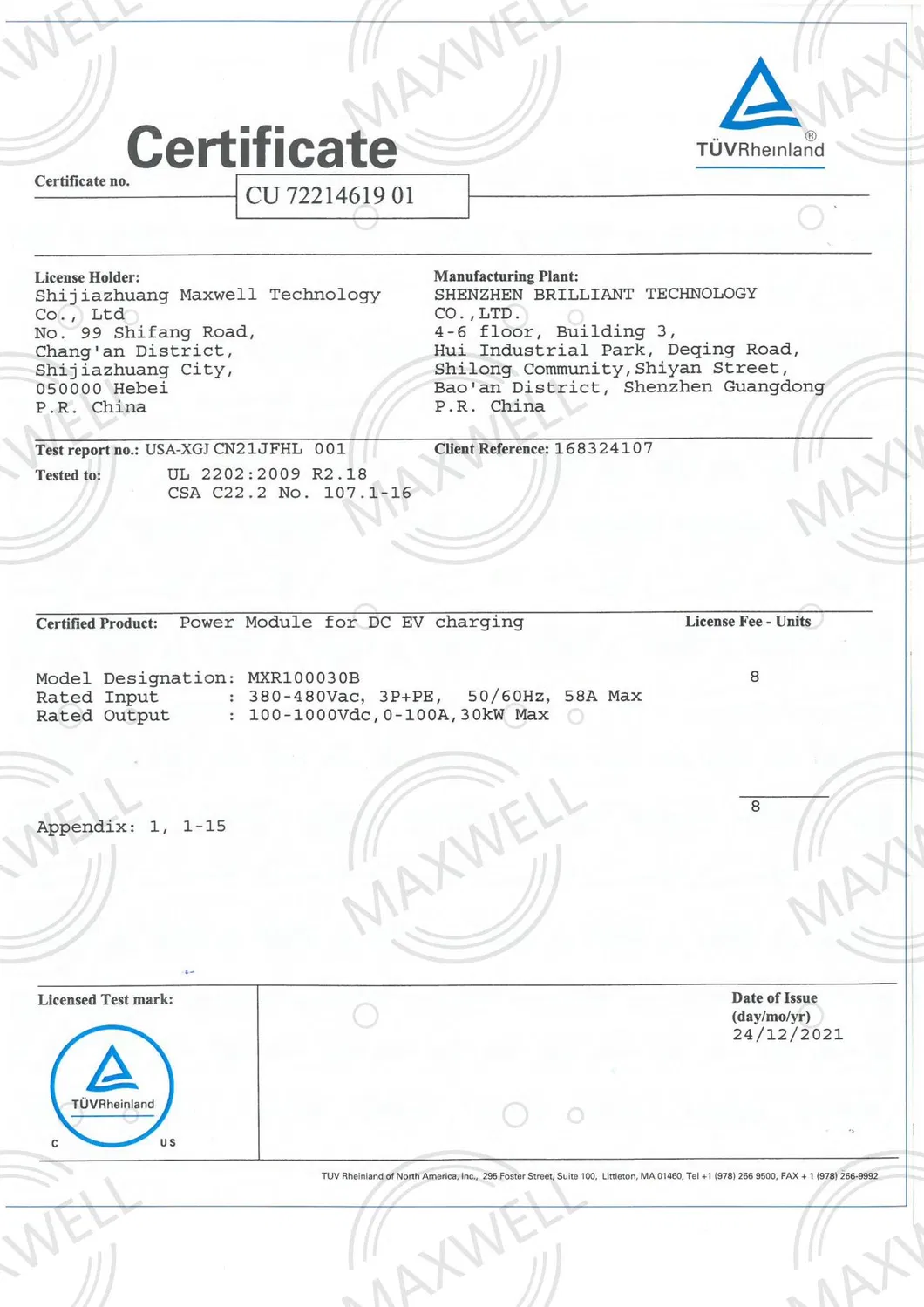

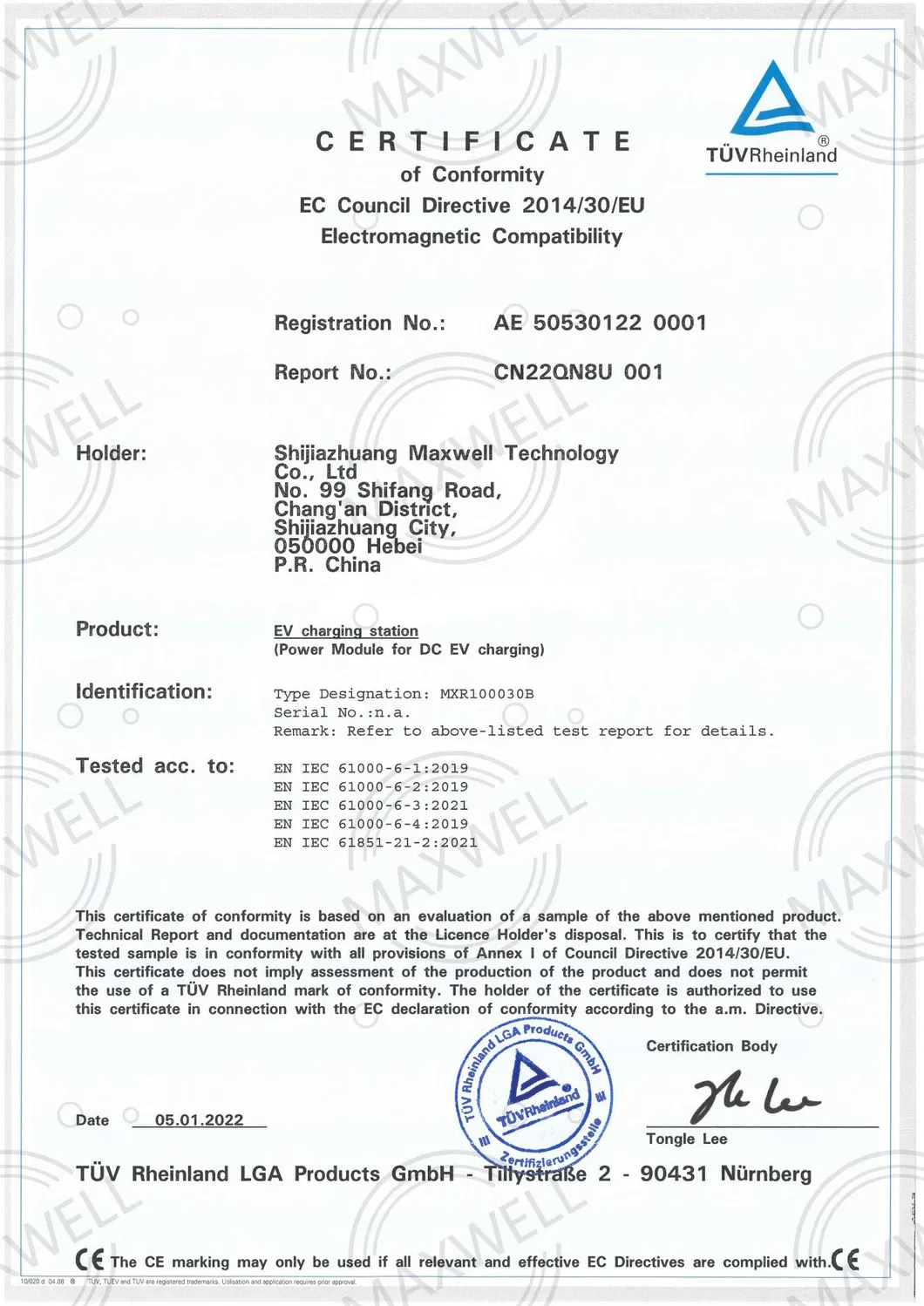

Compliance & Certifications

Packaging & Shipping

Frequently Asked Questions

What are the main advantages of the MXR75040L module?

The module offers a liquid cooling design, ultra-high full-load operating temperature, and an ultra-wide constant power range. It is highly efficient (≥94.5%) with low noise and excellent EMC performance.

Which charging standards are your modules compatible with?

Our DC charging solutions comply with global standards including CCS (Combined Charging System), CHAdeMO, and GB/T standards.

What safety protections are integrated into the power module?

The module includes over/under voltage protection and surge protection on the input side. The DC output side is protected against over/under voltage, over-current, and short-circuits.

Can these modules be used in parallel?

Yes, these modules support parallel operation with a quantity of up to 60 pieces, making them suitable for high-power DC charging stations.

What kind of after-sales technical support do you provide?

We provide comprehensive technical training, including written materials and videos. Our team offers professional online support and site guidance for maintenance and parts replacement.

What is the typical delivery time for orders?

Under normal circumstances, delivery is typically made within 2 to 3 weeks after order confirmation.
