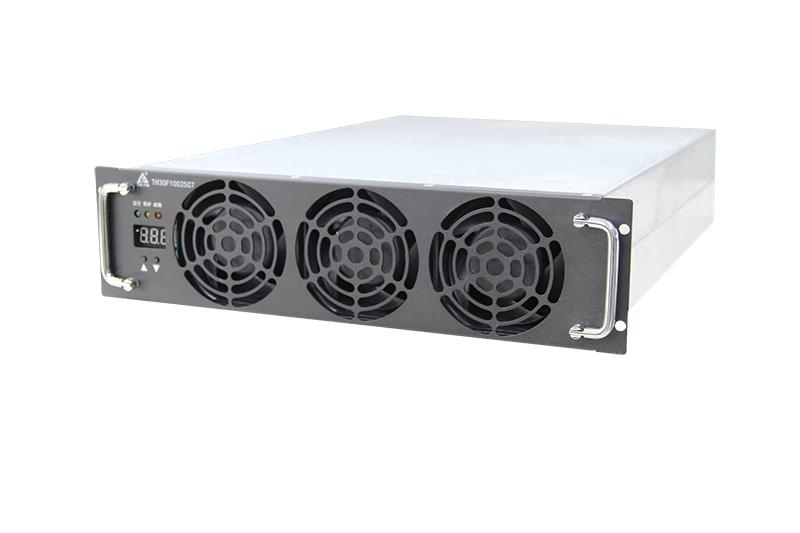

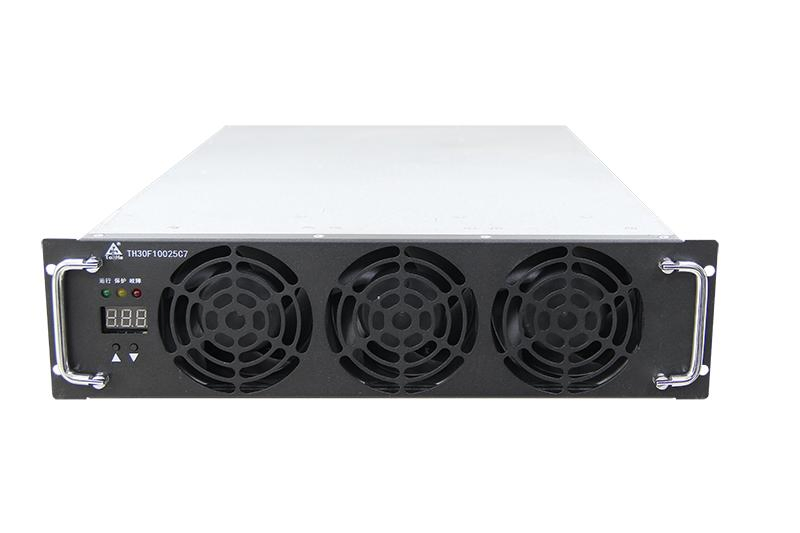

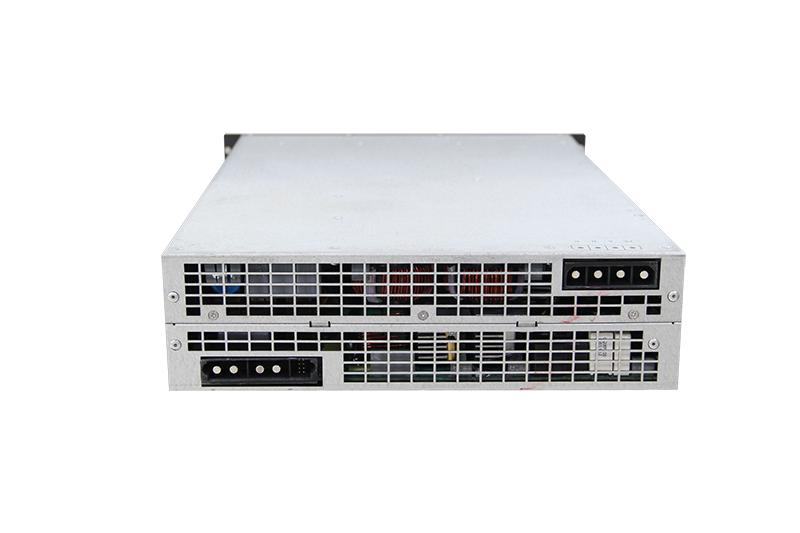

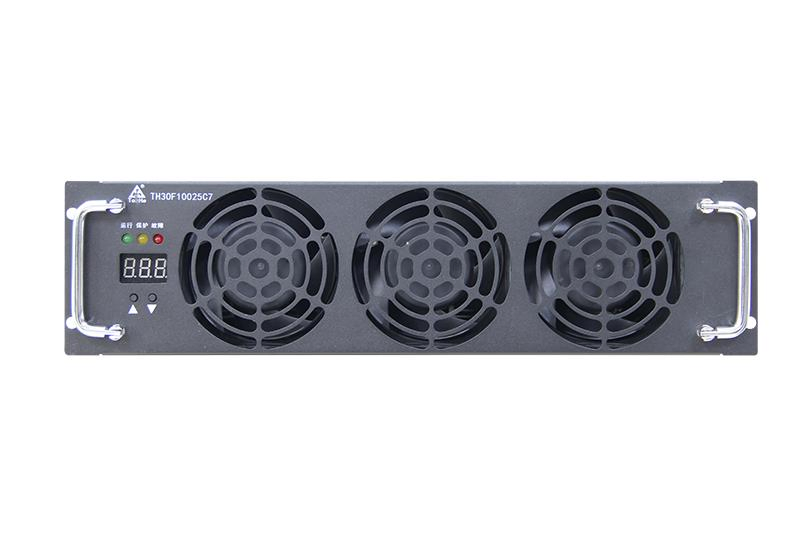

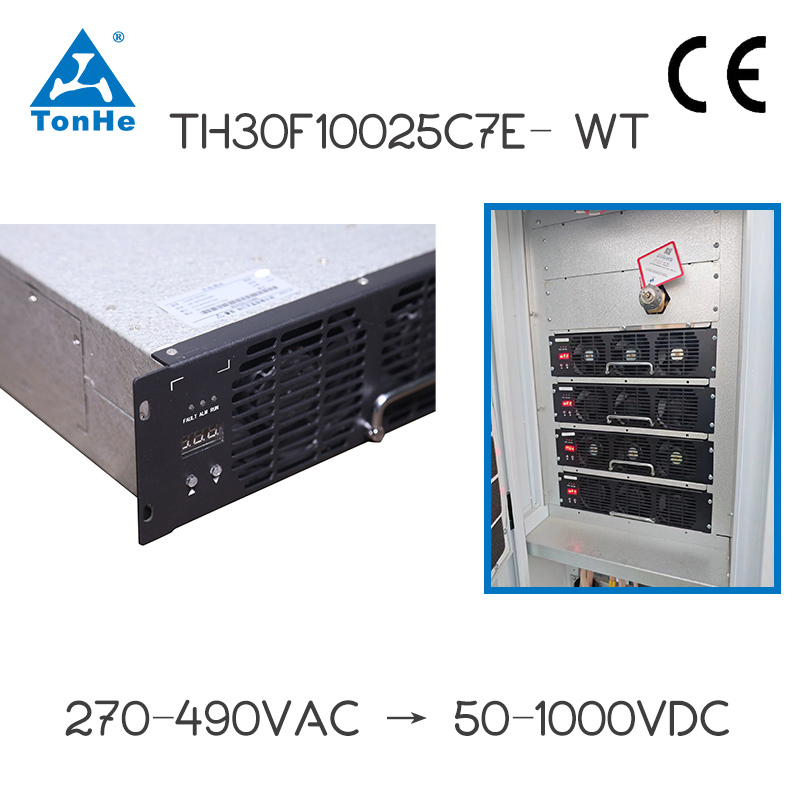

30kw/1000V Charging Module DC Power Module for EV Charger

Basic Info

Model NO.TH30F10025C7

LocationPublic Use

InterfacesMultiple Charges

Start ModeRFID Authentic

Output Voltage150-1000VDC

Output Current2-120A

EfficiencyMore Than 96%

ProtocolCAN Bus

CertificationCE, ISO

Warranty12 Months

Specification435*300*84mm

HS Code8504401991

Packaging & Delivery

📦

Package Size: 45.00cm * 32.00cm * 10.00cm
Gross Weight: 20.000kg | Transport Package: Wooden Box

Input Features

Item	Parameters	Remark
Operating Voltage(AC)	285~475V (Rated 380V)	See voltage/power curve
Input Frequency(HZ)	45~55	-
Power Factor	Full load ≥0.99	-
THD	Full load ≤5%	-
Standby Consumption	<12W	-

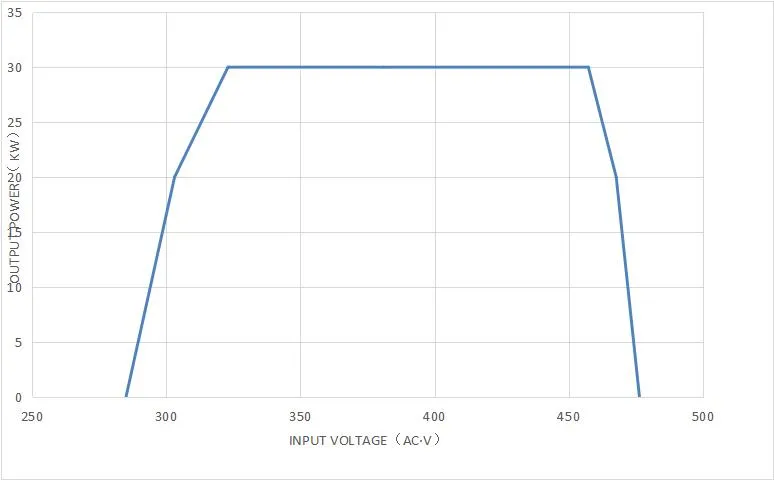

Input Voltage / Output Power Curve

Output Features

Item	Parameter	Remark
Output Voltage Range(DC)	150~1000V	-
Max Output Current(A)	120	-
Constant Power Interval	250~500VDC, 500~1000VDC	-
Current Limit Range	2~120A (Setable)	See V/I curve
Stabilization Accuracy	Voltage ≤±0.5% \| Current ≤±1%	-
Peak Efficiency	≥95.5%	-
Communication Protocol	CAN	-

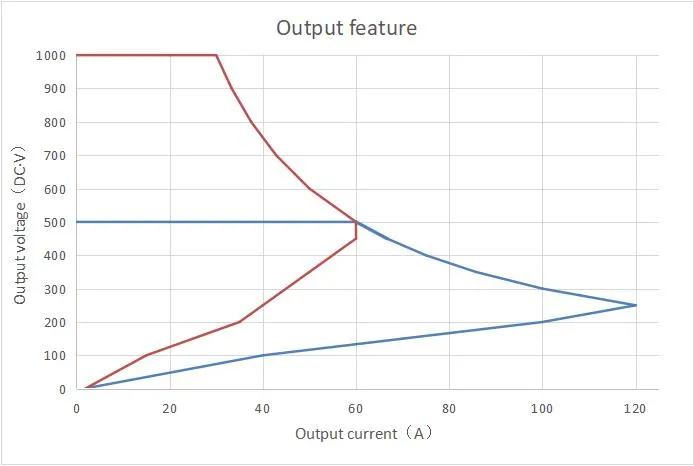

Output Voltage / Current Curve

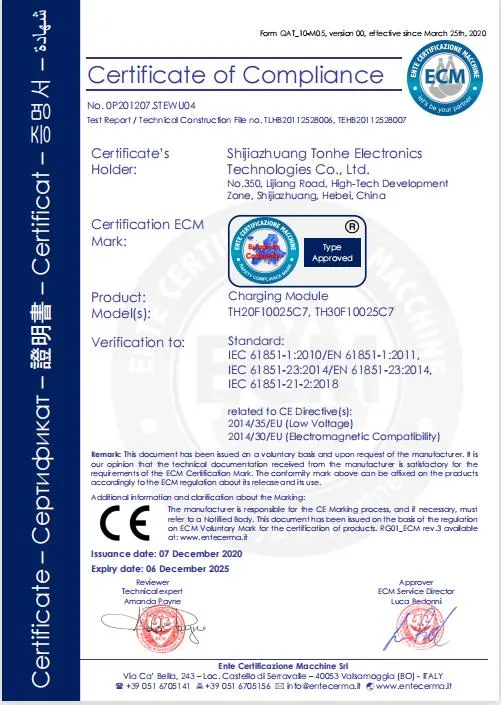

CE Certificate

Manufacturing & Test Center

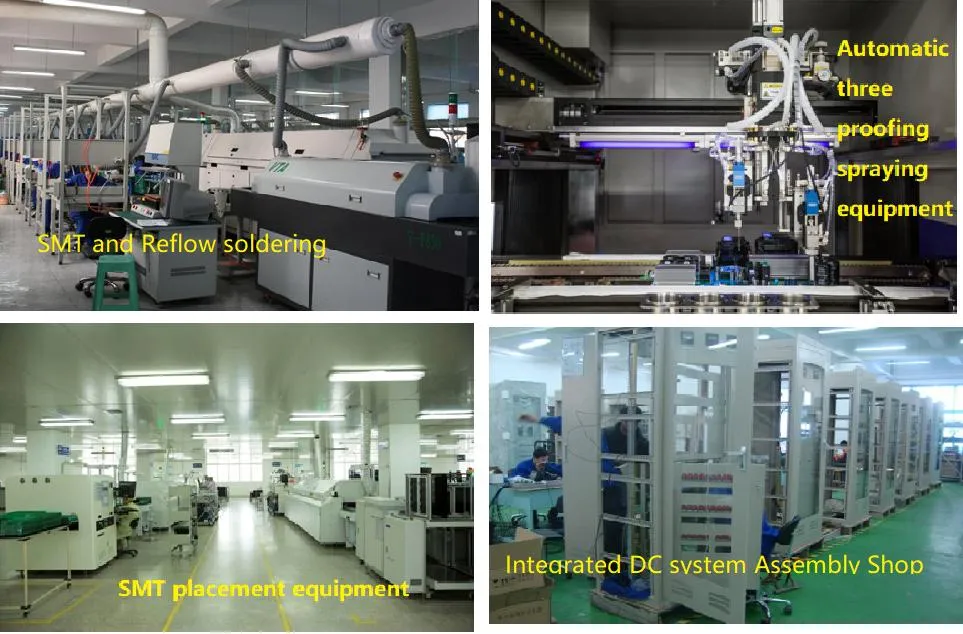

Manufacturing Center

18m³ High & Low Temperature Lab

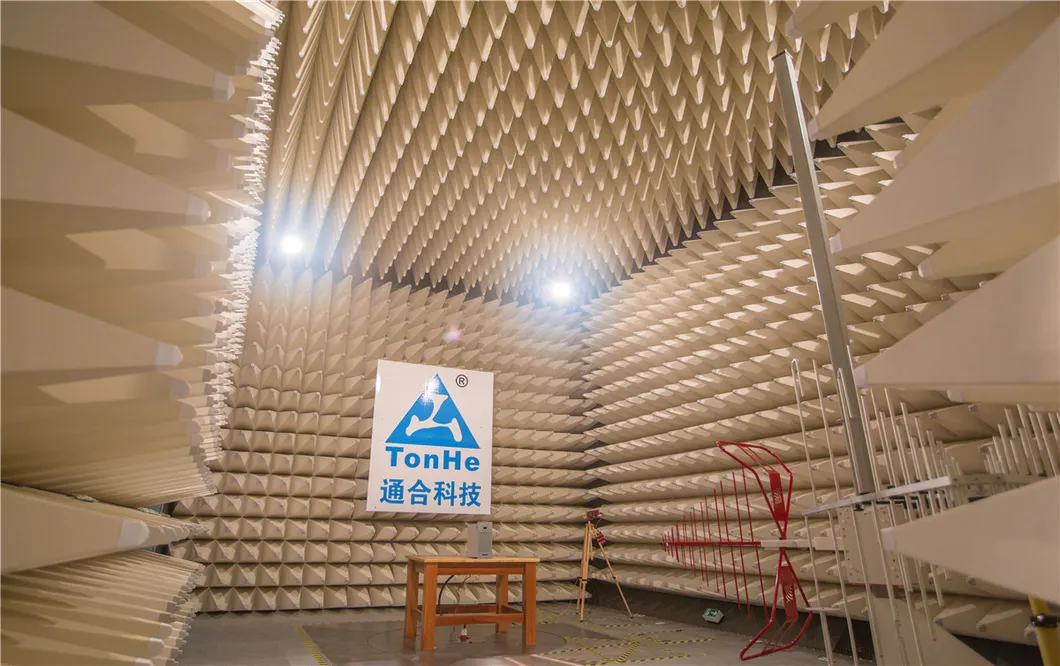

Anechoic Chamber (FARNKONIA)

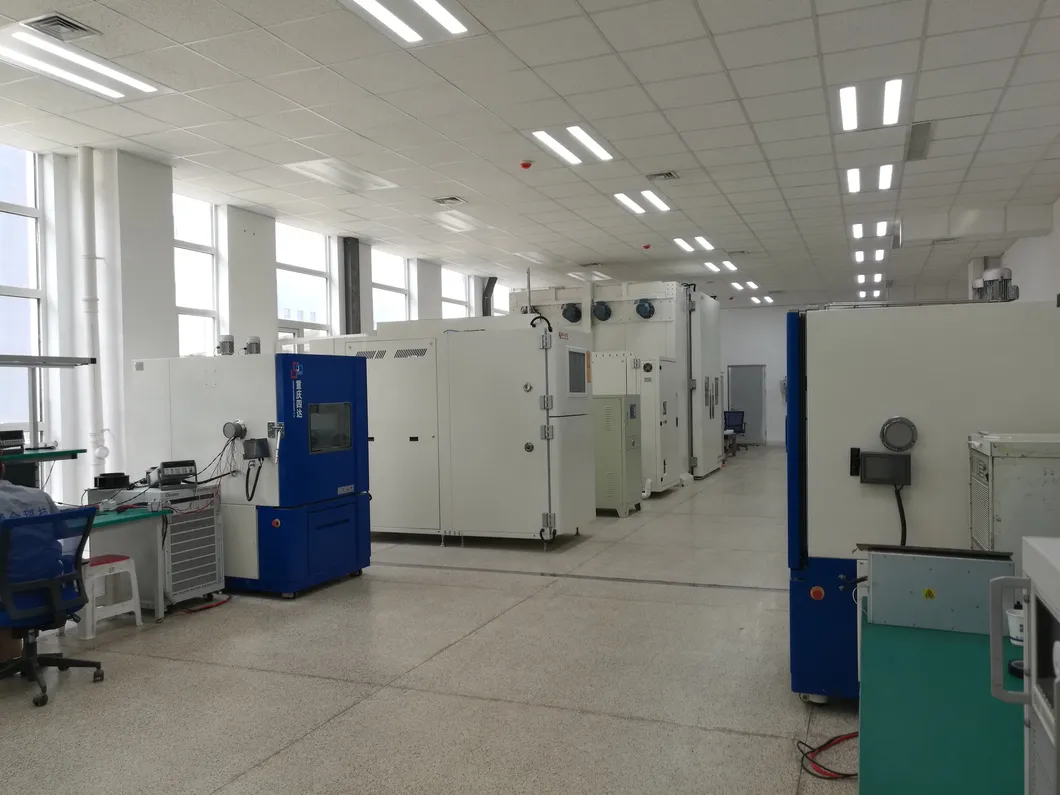

Professional Test Hall

Frequently Asked Questions

Q1: What is the output voltage range of this charging module? A: The module provides a wide output voltage range from 150VDC to 1000VDC, suitable for various EV charging requirements.

Q2: What is the maximum efficiency of the TH30F10025C7 module? A: The peak efficiency is greater than 96%, ensuring minimal energy loss during the charging process.

Q3: How does the module handle communication? A: It uses the standard CAN Bus protocol for reliable and real-time communication within the charging system.

Q4: Does the module support parallel operation? A: Yes, it supports current sharing for modules in parallel, with an imbalance of ≤±5% when the average current is above 5A.

Q5: What certifications does this product hold? A: The charging module is fully certified with CE and ISO standards, meeting international quality and safety requirements.

Q6: What are the standby power consumption levels? A: The module is designed for energy efficiency with a very low standby power consumption of less than 12W.
