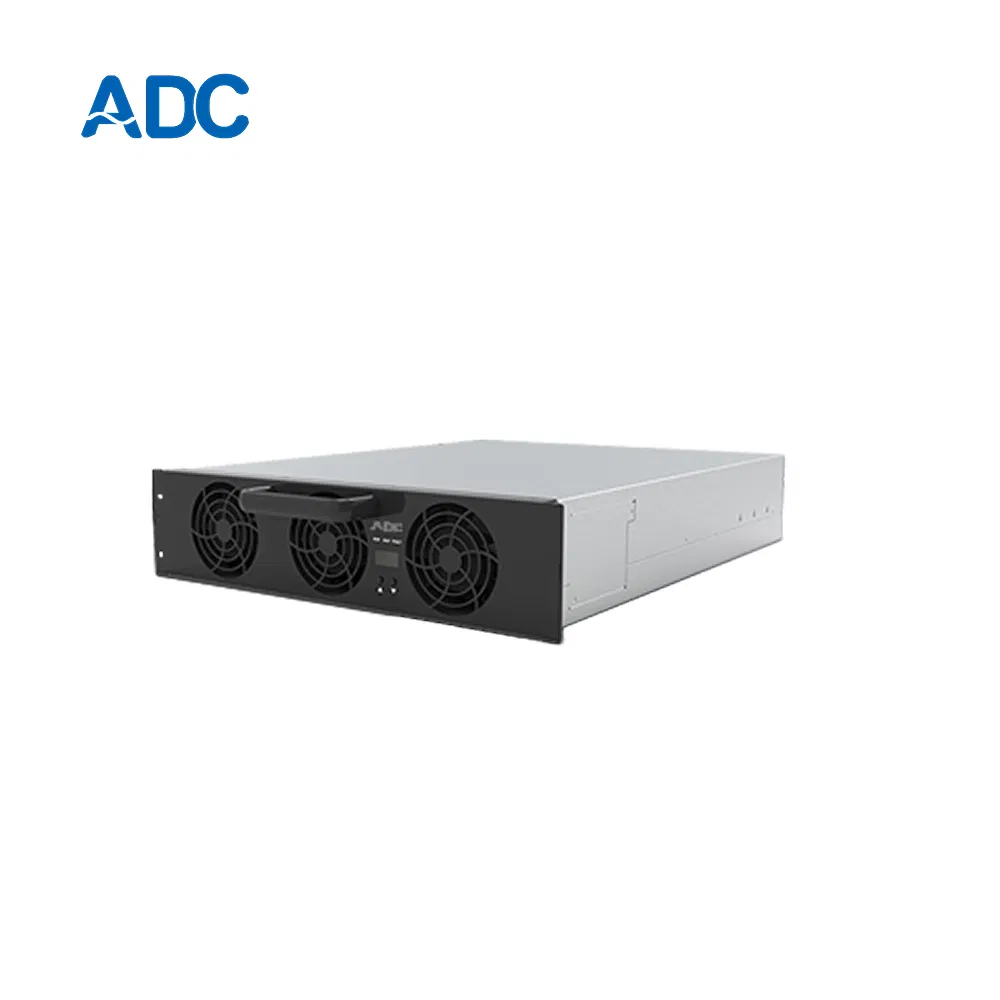

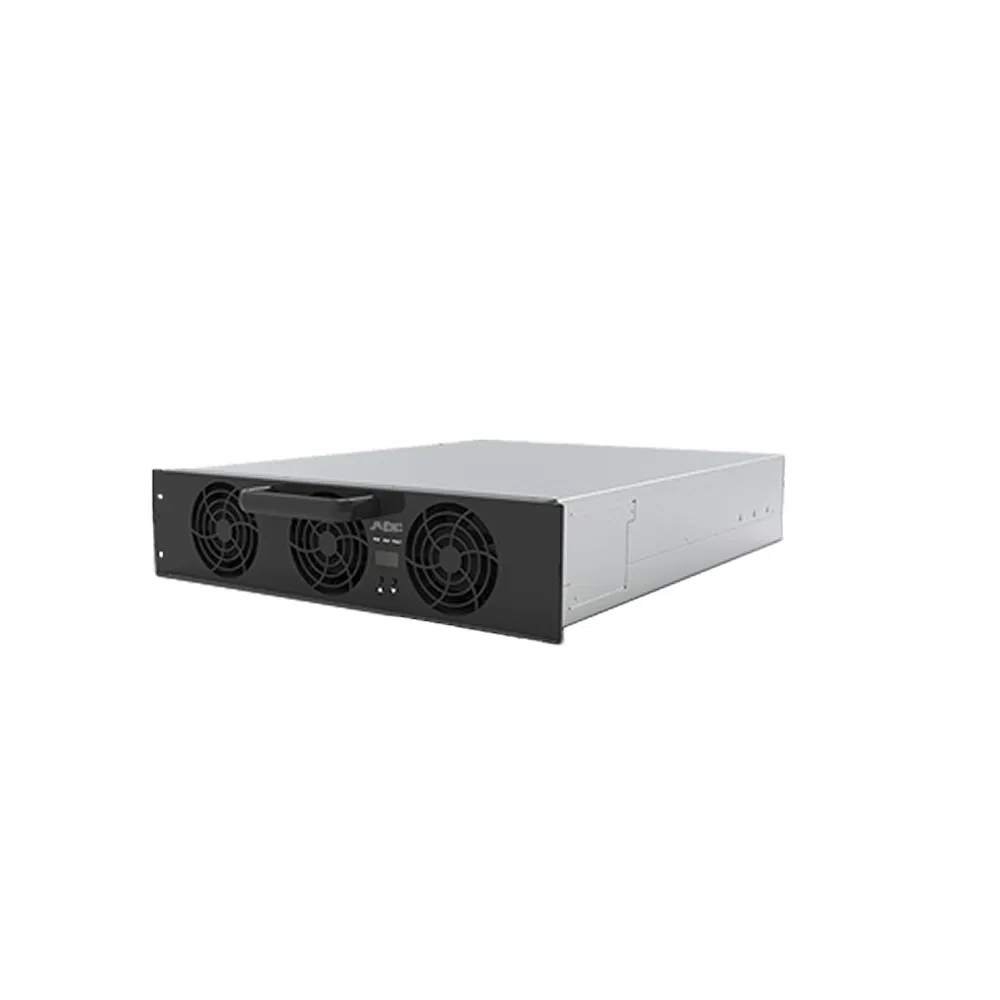

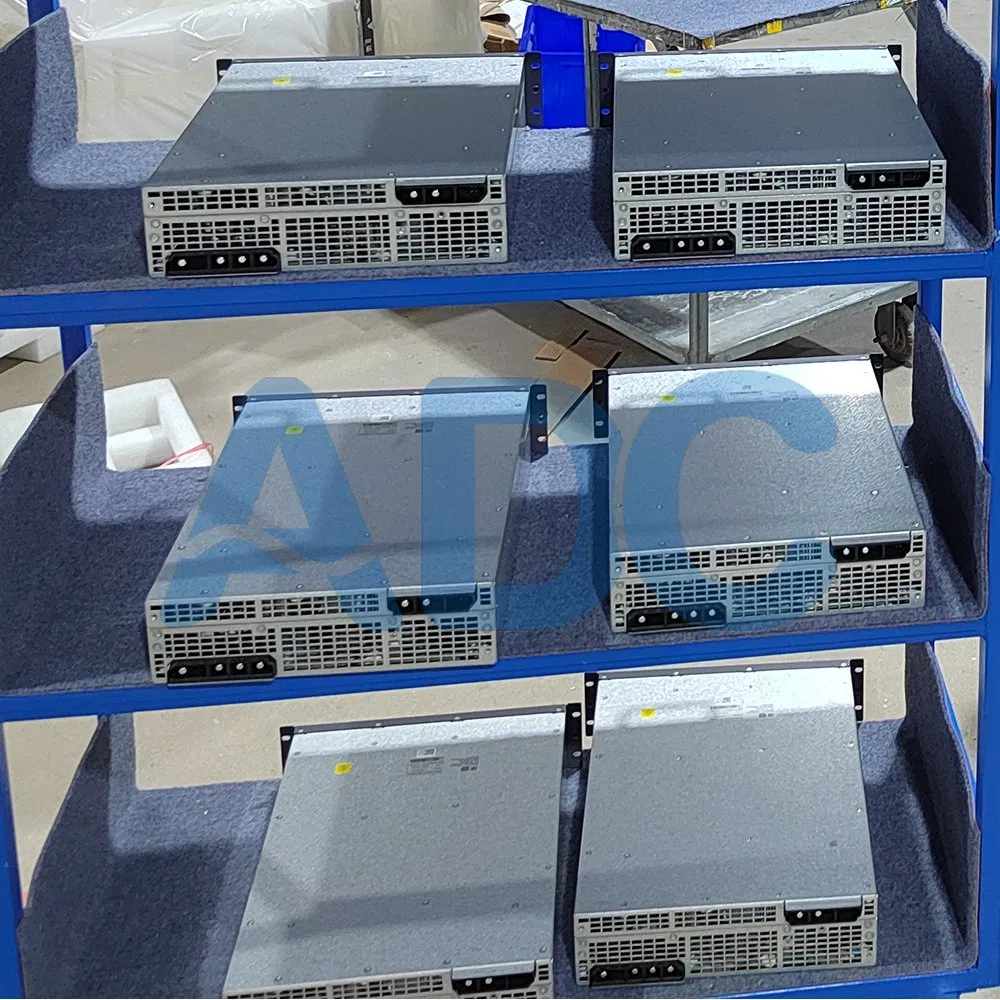

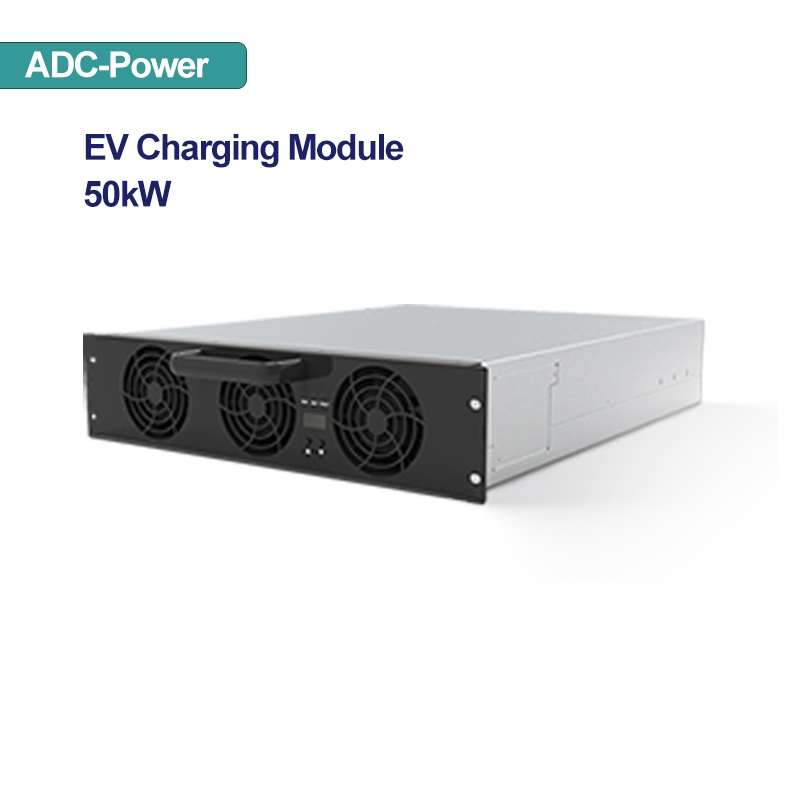

30kw 40kw AC to DC Converter Rectifier EV Charging Power Module

Basic Information

Model NO.

ADC1000V50KW-MF

Location

Public Use

Efficiency

>95%

Start Mode

RFID, Mobile, Credit Card

Weight

≤15kg

Warranty

12 Months

Cooling Mode

Fan Cooling

Power Factor

≥0.99

Product Description

We provide efficient and durable EV charging modules with high conversion efficiency, wide voltage range, and smart protection. Perfect for DC chargers, fast-charging stations, and energy storage systems.

Specification

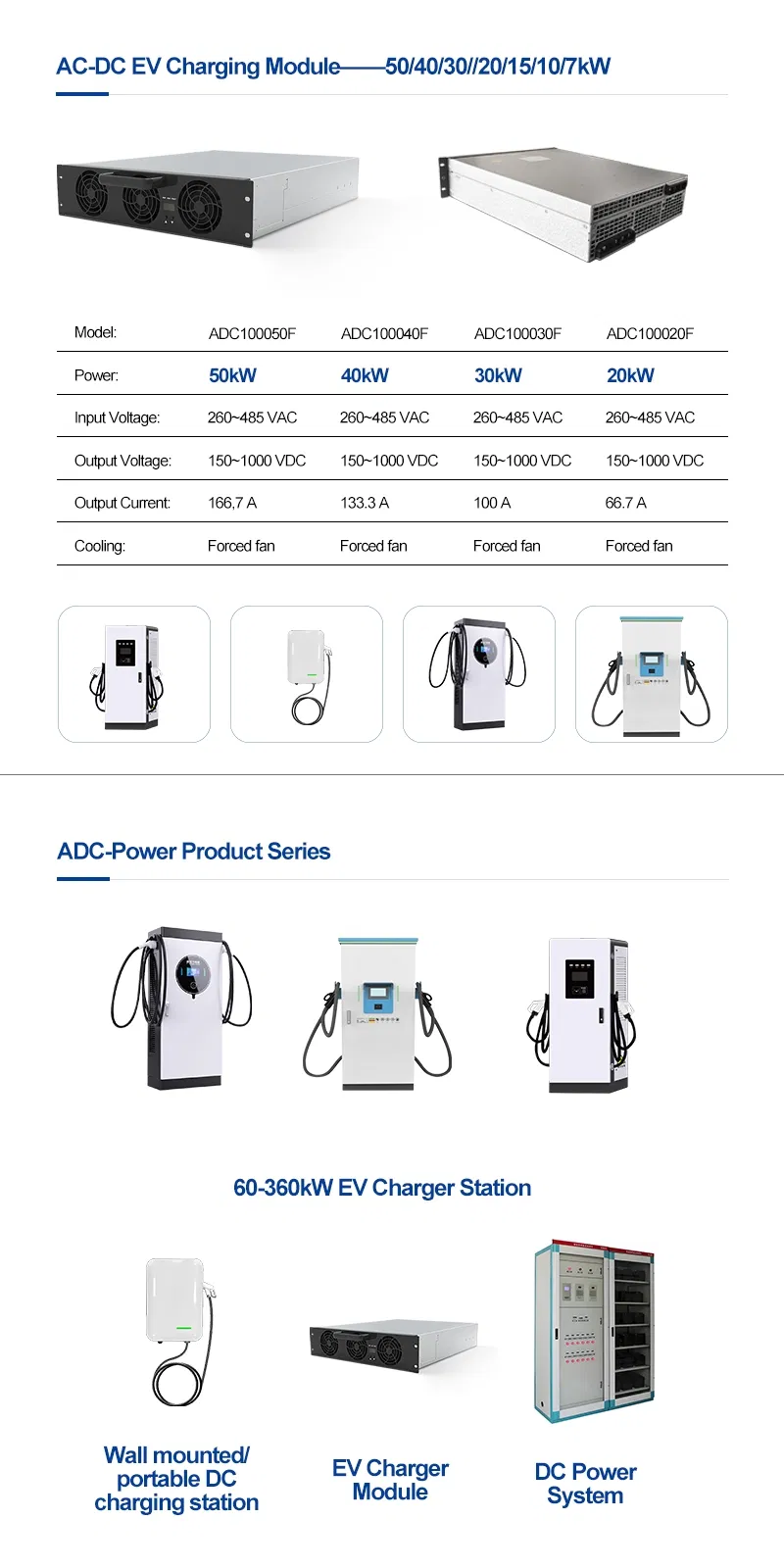

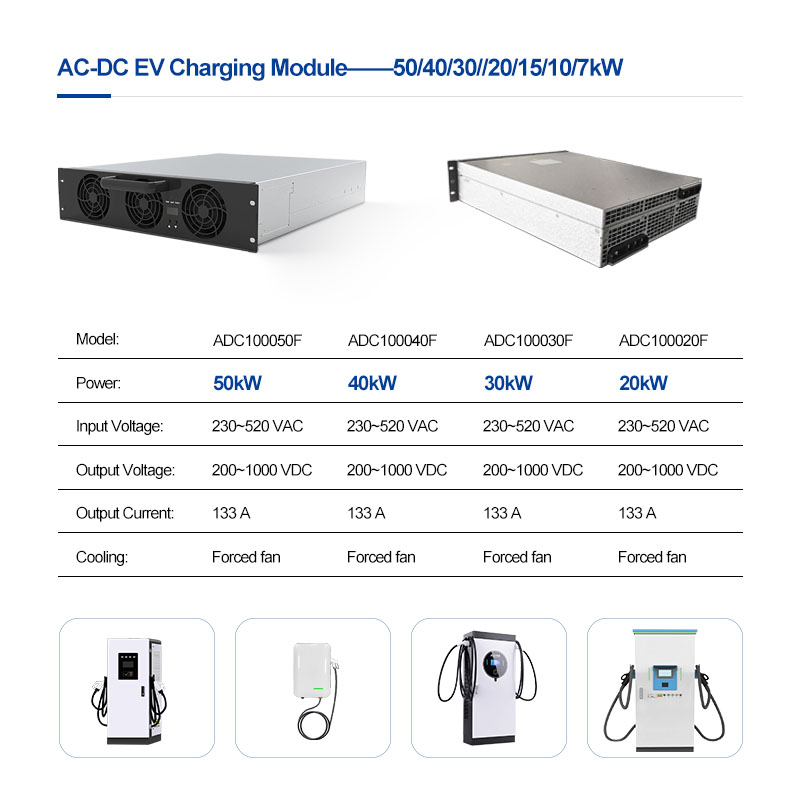

Model Parameter	ADC1000V20KW-MF	ADC1000V30KW-MF	ADC1000V40KW-MF	ADC1000V50KW-MF
AC Input
Input Frequency	50±10Hz
THD	≤5%
Power factor	Rated output load PF > 0.99
Max. input current	<42A	<60A	<60A	<60A
DC Output
Output voltage range	150~1000VDC

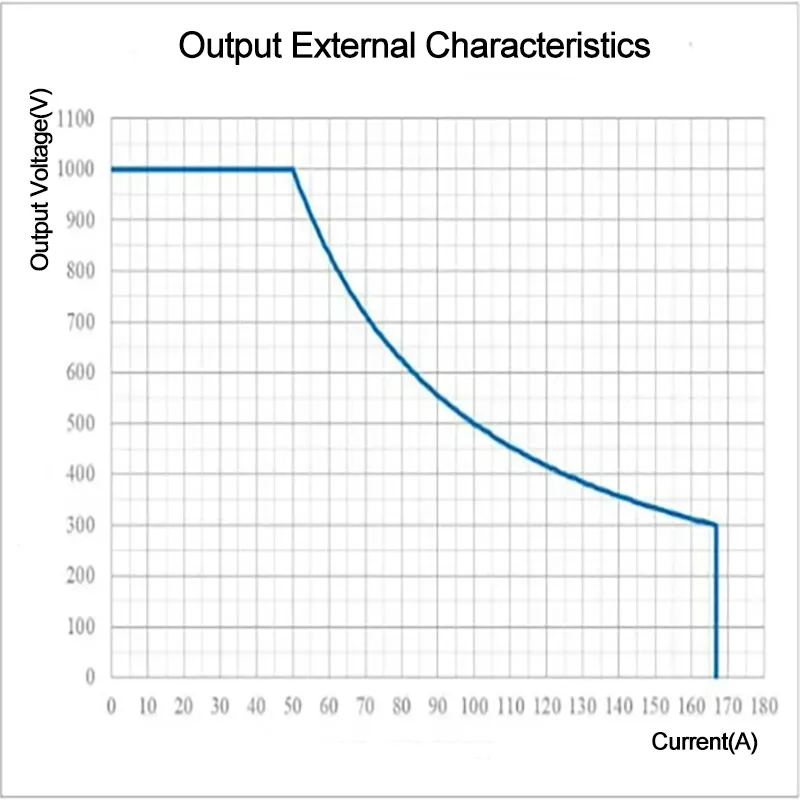

Constant power range	20kW(300~1000V)	30kW(300~1000V)	40kW(300~1000V)	50kW(300~1000V)
Output current range	0~66.7A	0~100A	0~133.3A	0~166.7A
Efficiency	Highest efficiency >96%, rated efficiency >95%
Operating Environment
Operating temp	-40℃~75℃, derates from 55℃
Acoustic Noise	<65dB

Company Profile

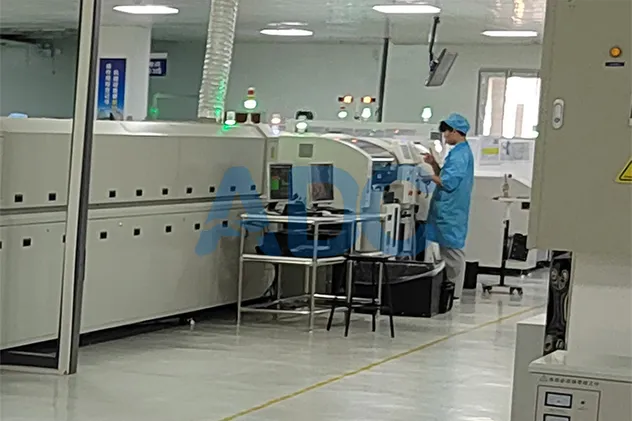

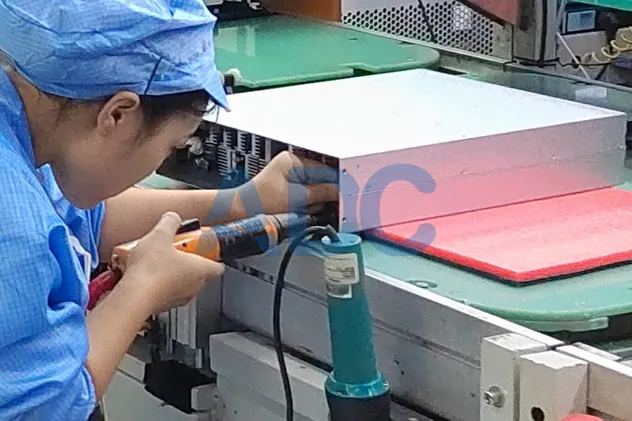

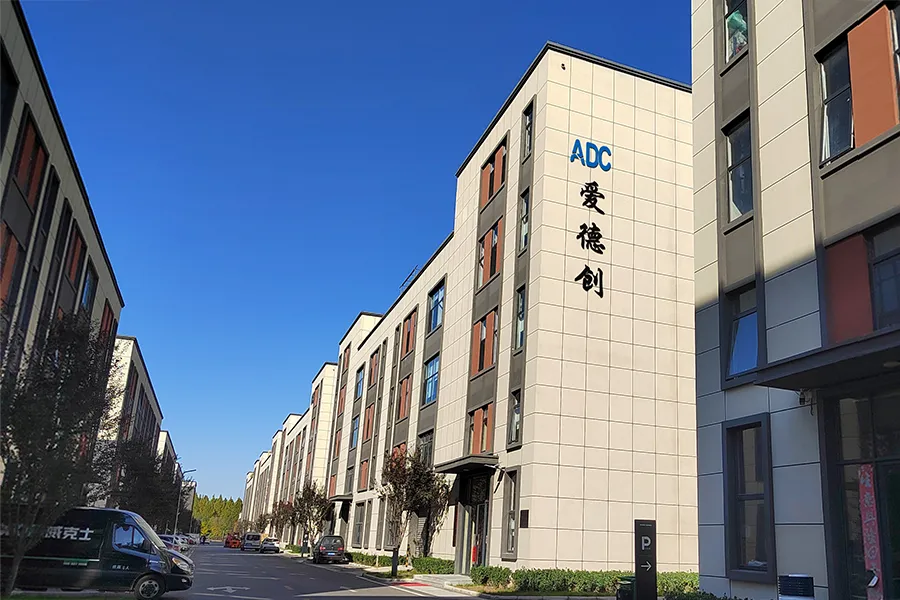

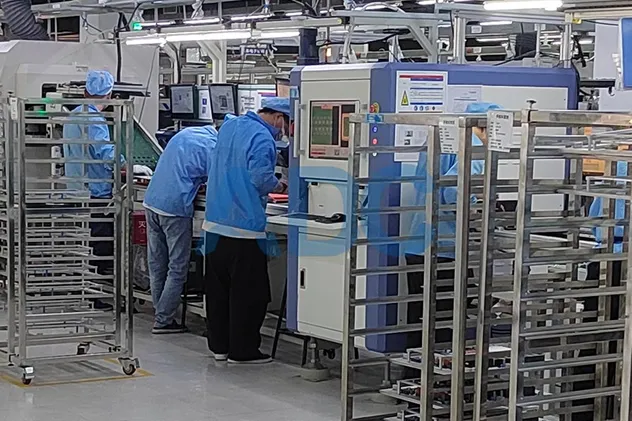

With over 15 years in power technology, we specialize in AC to DC, DC to AC conversion, battery monitoring, solar power, and new energy system developments. Our facilities include 40,000 m² of production space and ISO9001/ISO14001 certification.
