Product Description

📋

Overview

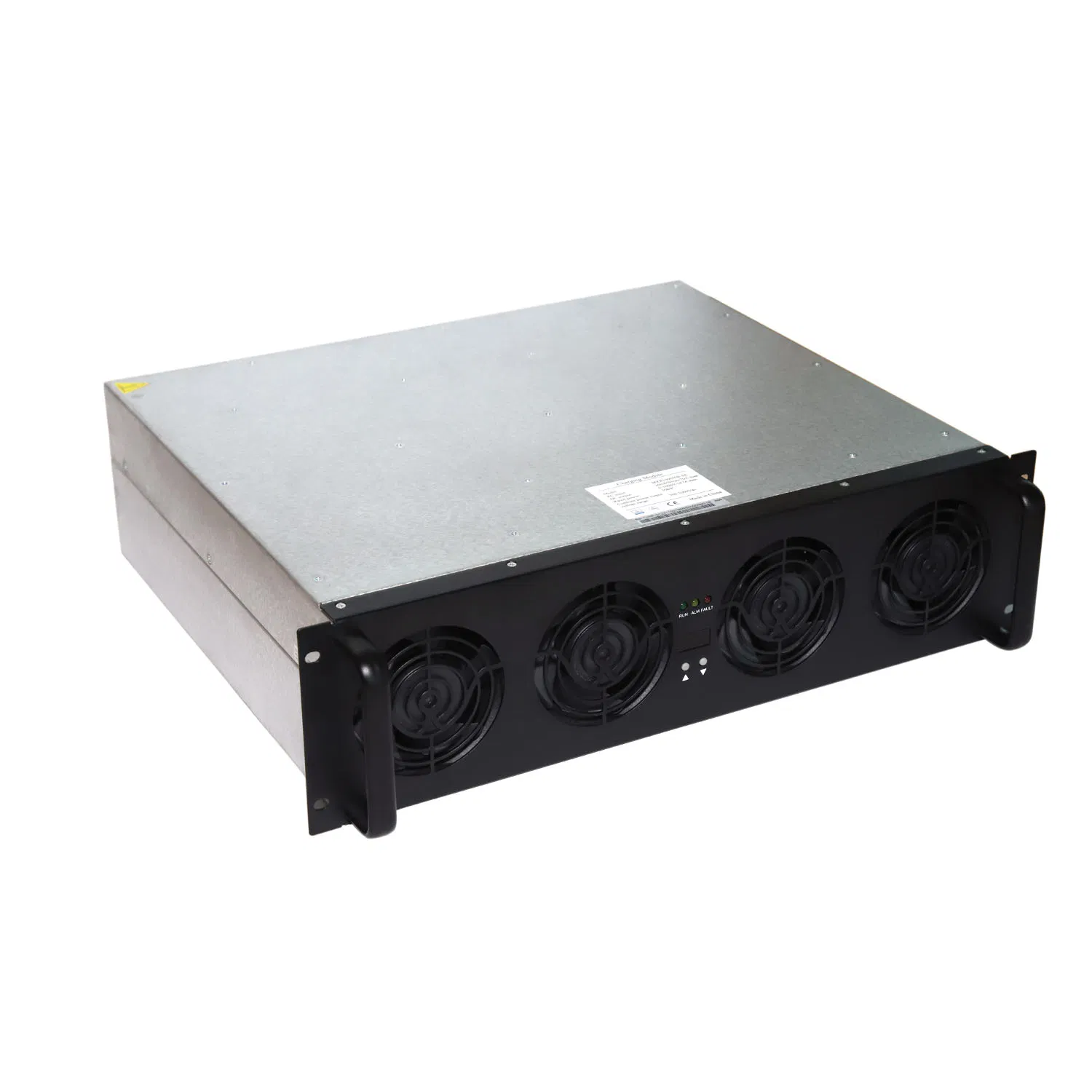

MXR40050B is a high-power AC/DC charging module specially designed for high-end charging scenarios of electric vehicles. Rated output power is 50 kw, and supports 260VAC~650VAC three-phase four-wire system (A/B/C +PE) input. The output voltage range is 0 ~ 400VDC with a maximum output current of 200 A. It supports silent mode setting, where noise is reduced to less than 55dB.

Model NO.

MXR40050B

Input Voltage

260-650VAC

Output Current

0-200A

Cooling Method

Forced Air Cooling

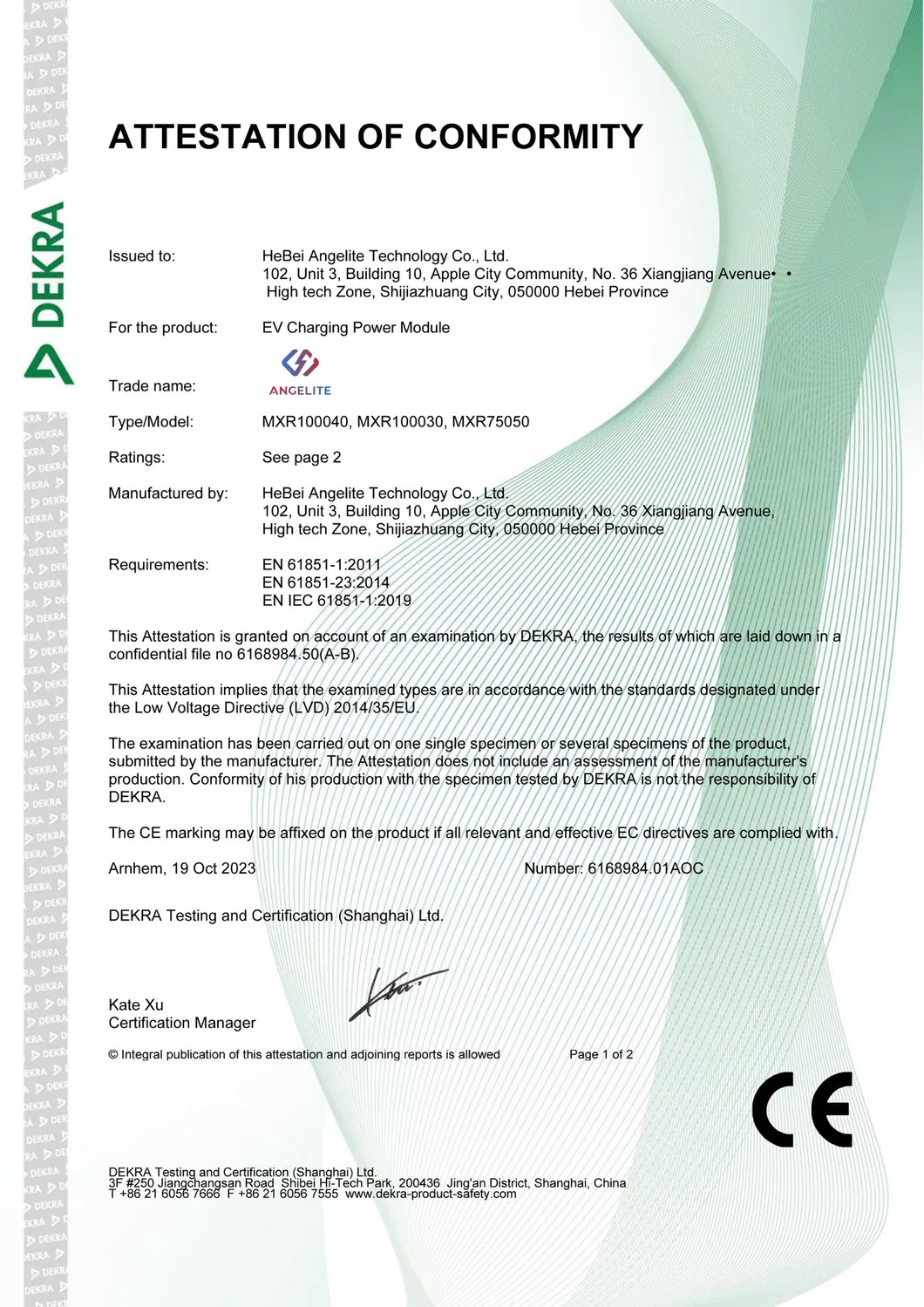

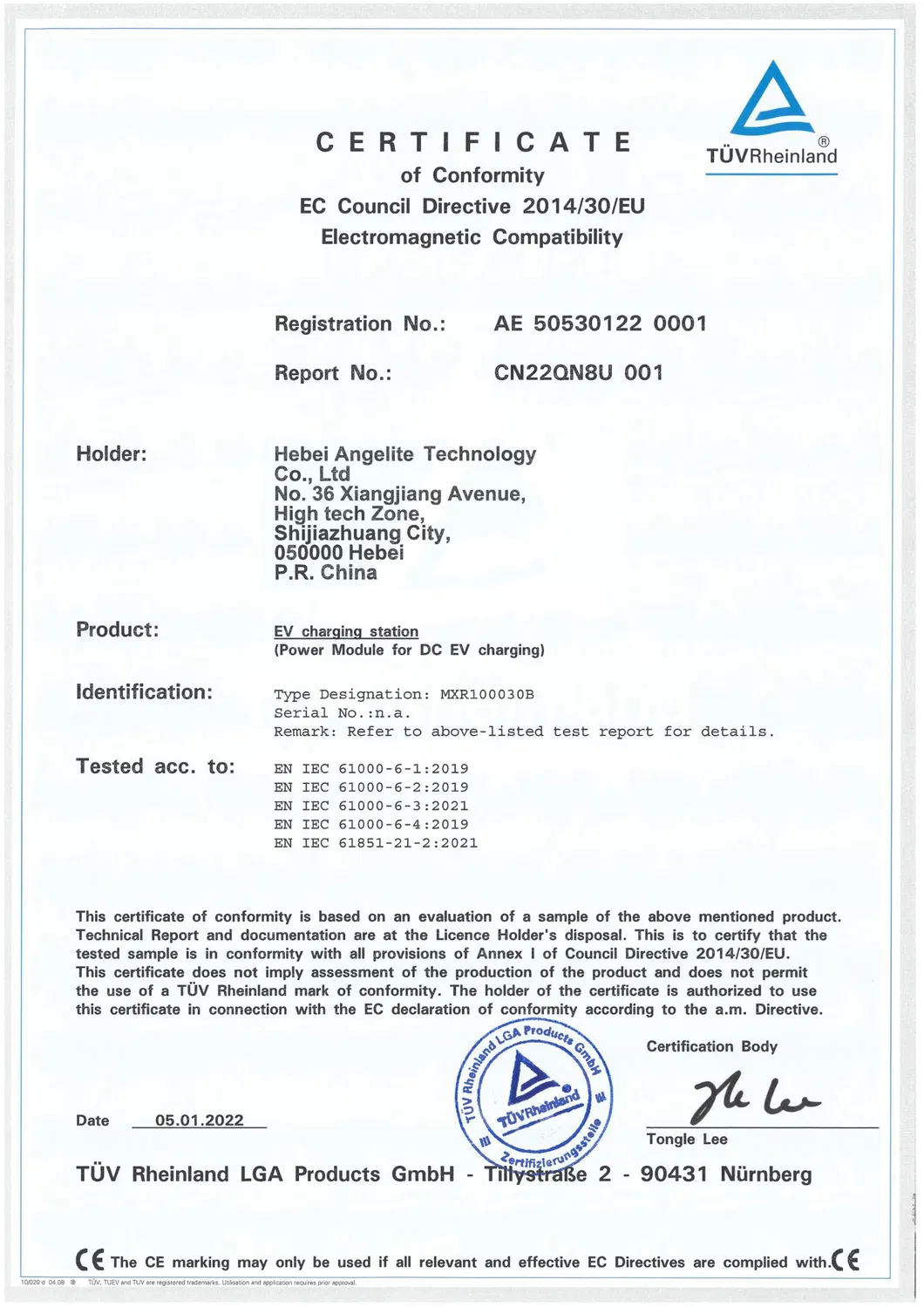

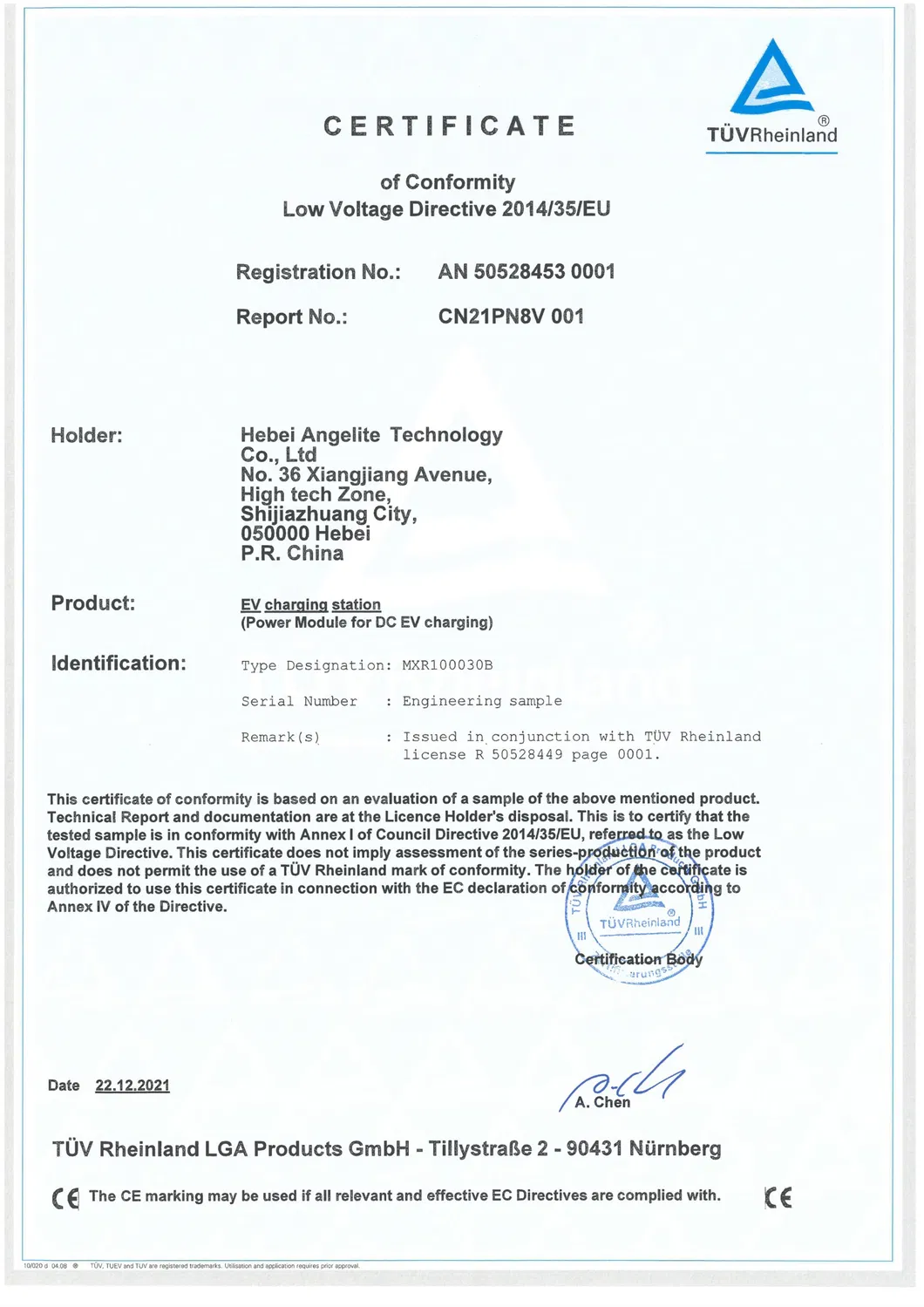

Certification

CE, ISO, TUV, RoHS

Warranty

12 Months

⚡

Key Features

Low noise: support silent mode (55dB, 60dB)

High protection: isolated sensitive components

Ultra-high efficiency: >97%

Ultra-high power density (40W/in³)

Ultra-high reliability (MTBF>1,000,000h)

Ultra-high power factor (0.99)

Compatible with AC and DC input

Wide temperature range: -40ºC~+75ºC

Wide output current range: 0 ~ 200A

Support hot swap function

Perfect intelligent protection

CAN bus communication & group setting

⚙️

Product Parameters

Dimensions	125mm(H)440mm(W)380mm(D)
Communication mode	CAN bus

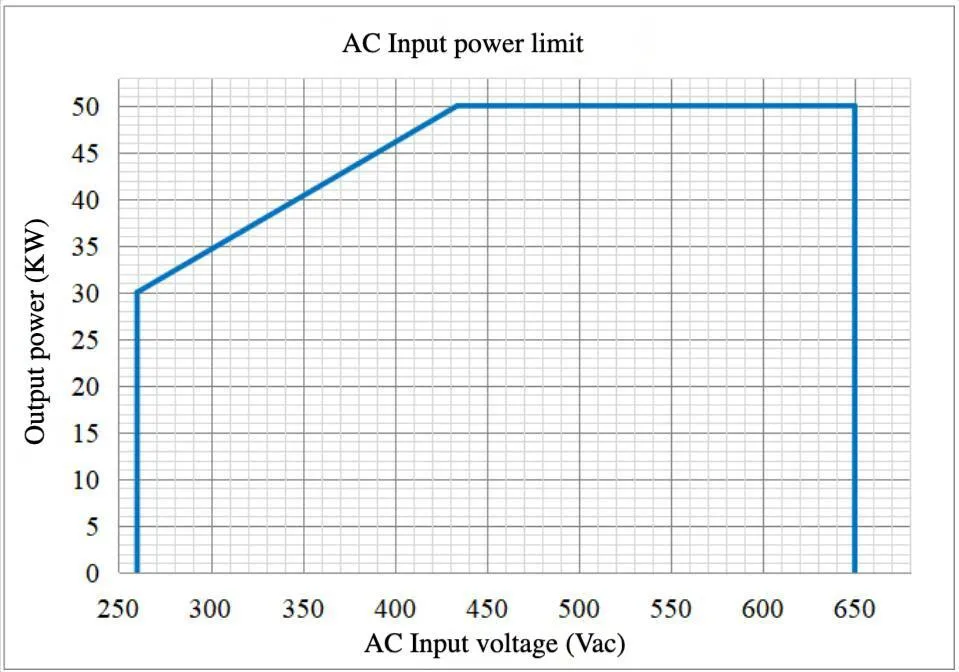

Input voltage	260Vac-650Vac, three phase+PE
Power factor	≥0.99
Output power	50kw @ output voltage ≥300Vdc

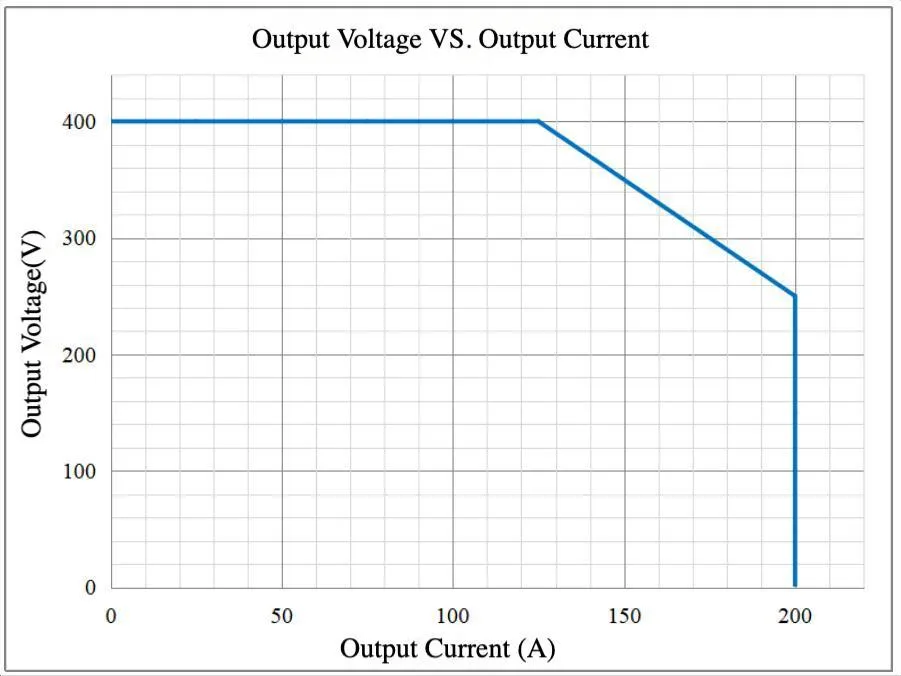

Voltage range	0Vdc-400Vdc (Default: 200Vdc)

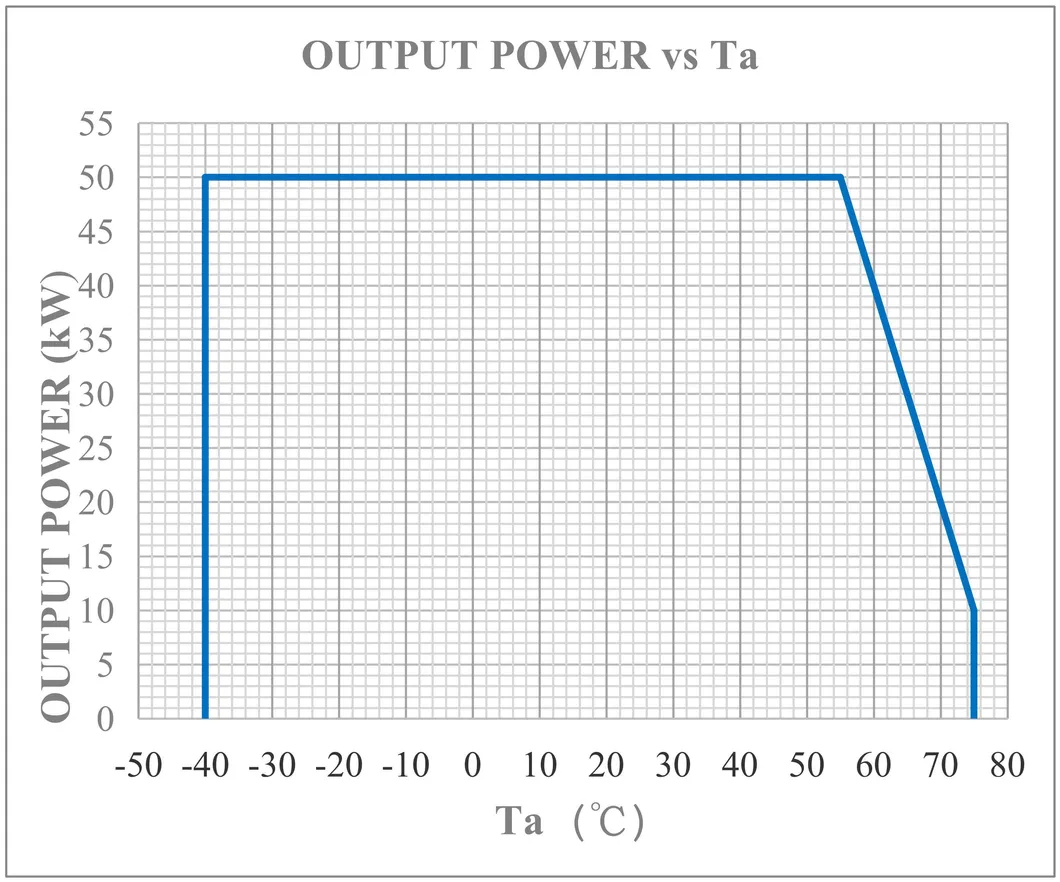

Operating temperature	-40°C to +75°C
Compliance	IEC61851-21-2:2018; EN61851-21-2-2017
