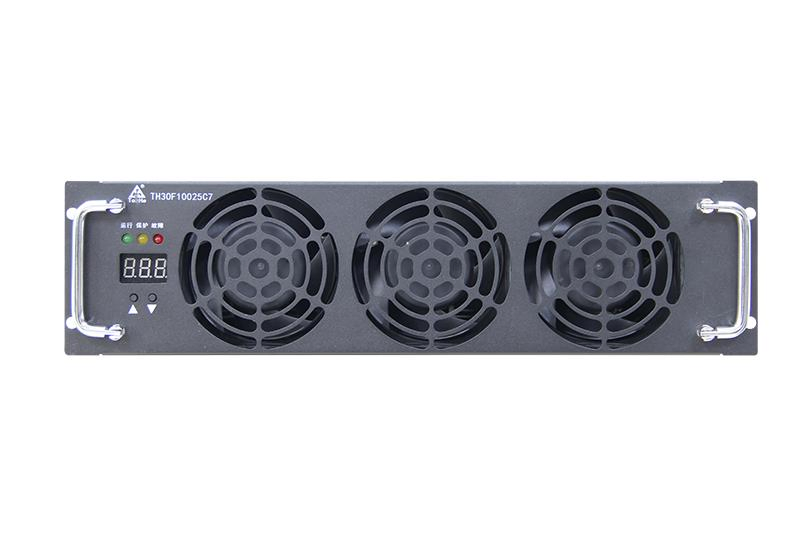

This product is three-phase 380VAC input, using the industry leading resonant voltage type double-loop control resonant switching power supply technology and three-phase three-level power factor correction technology. It offers significant advantages including small size, light weight, high efficiency, and high reliability.

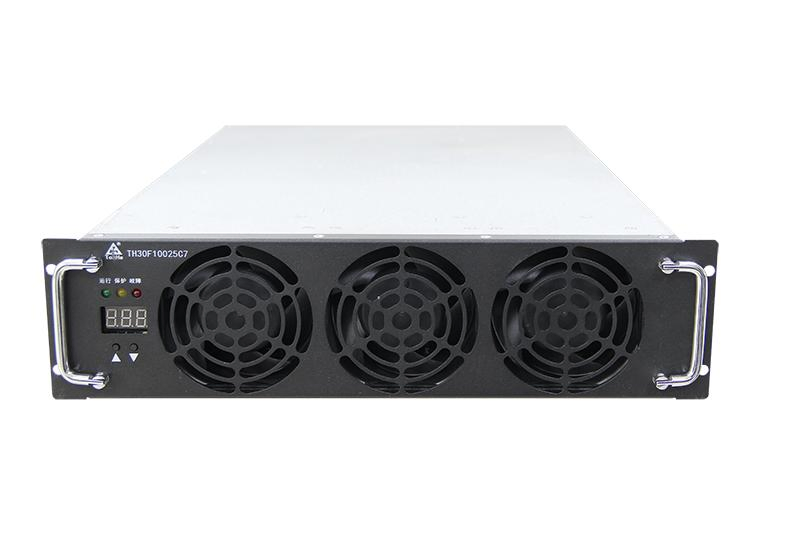

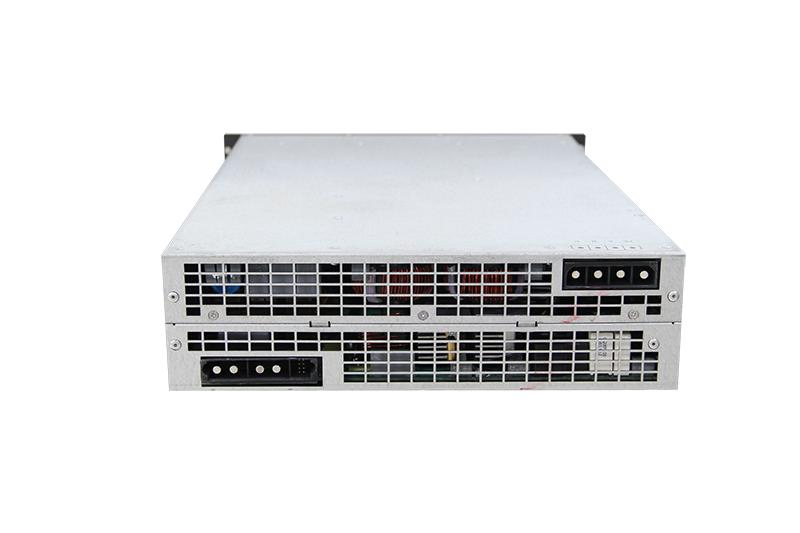

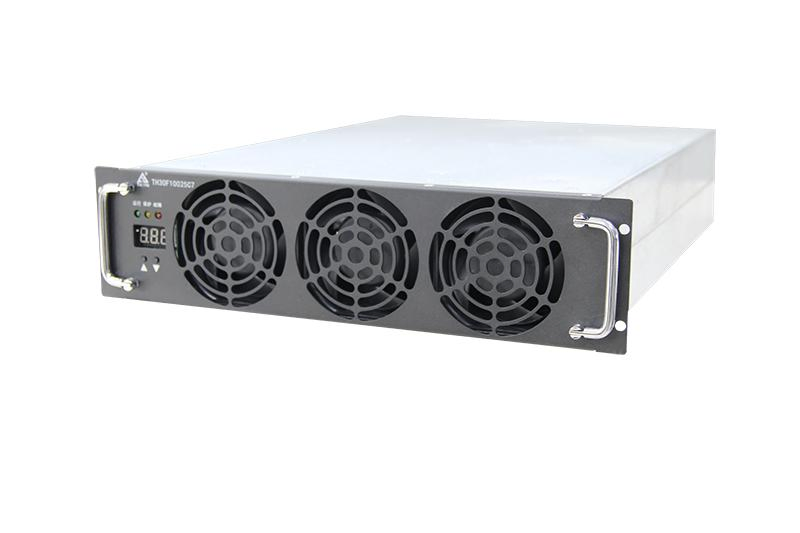

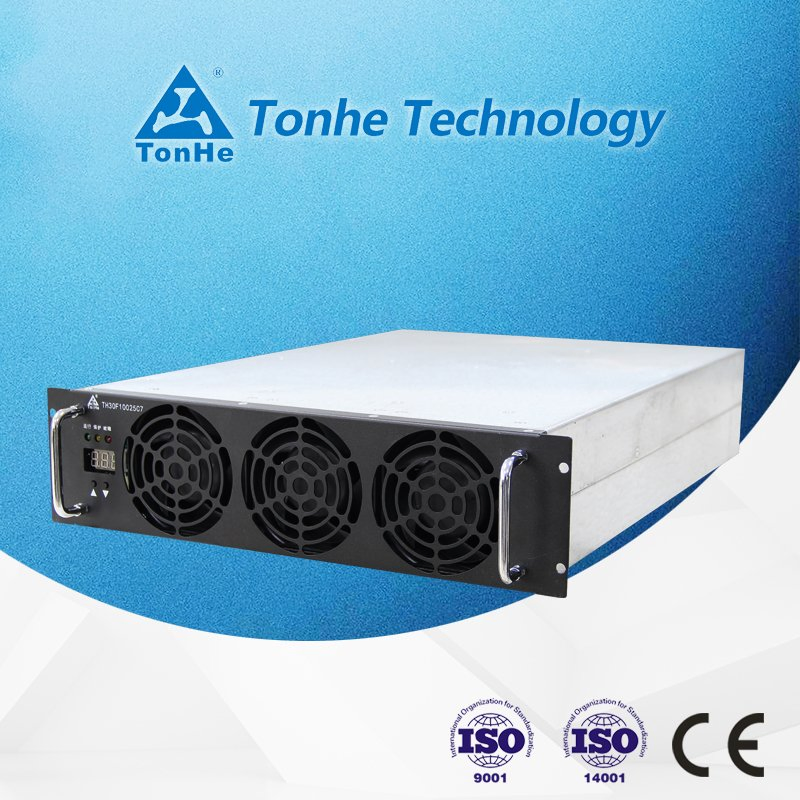

| 30kw/1000v Power Module Specification | Model: TH30F10025C7 | |
|---|---|---|
| Input Features | Input Voltage Range | 285V ~ 475V |
| Input Frequency | 50Hz ± 10% | |
| Power Factor | ≥ 0.99 | |
| THD | ≤ 5% | |
| Output Features | Output Voltage Range | 150 ~ 1000V DC |
| Max Output Current | 80A | |
| Constant Power Range | 1000-250VDC constant 30KW | |
| Efficiency | ≥ 96% | |
| Voltage Accuracy | ≤ ±0.5% | |
| Communication Protocol | CAN | |
| Environmental | Working Temp | -30 ~ +75ºC (50ºC derating) |
| Humidity | 5%RH ~ 95%RH (no condensation) | |
| Cooling | Fan Cooling | |
| Physical | Dimension (L*H*W) | 460*218*84mm |
| Weight | ≤ 13kg | |

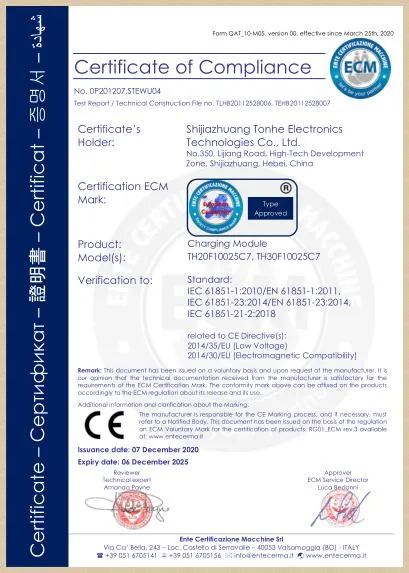

CE CERTIFICATE:

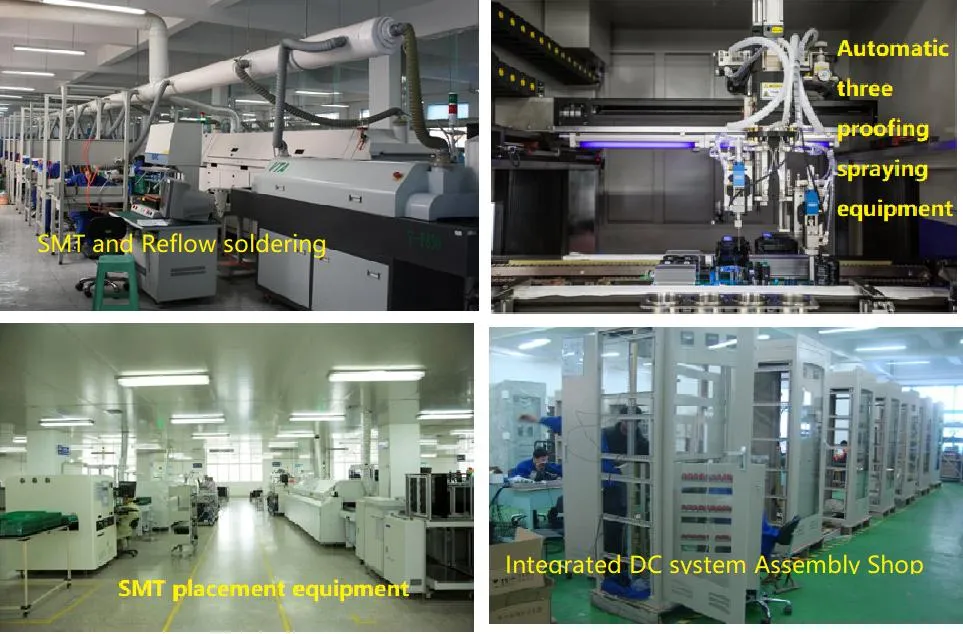

Manufacturing Center:

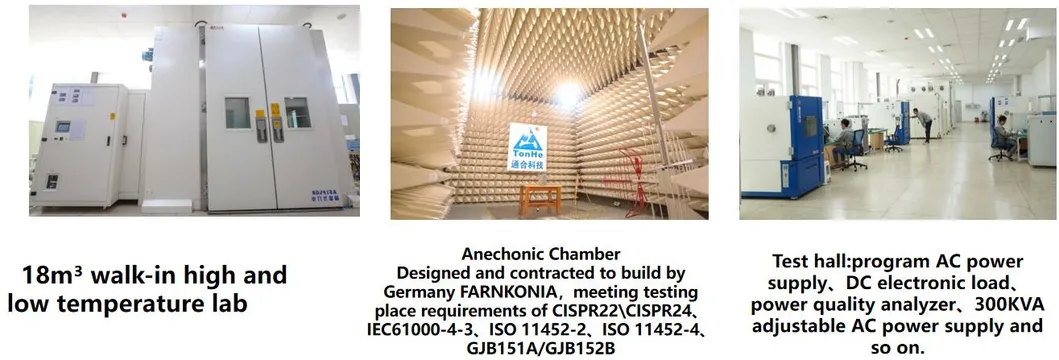

Test Center:

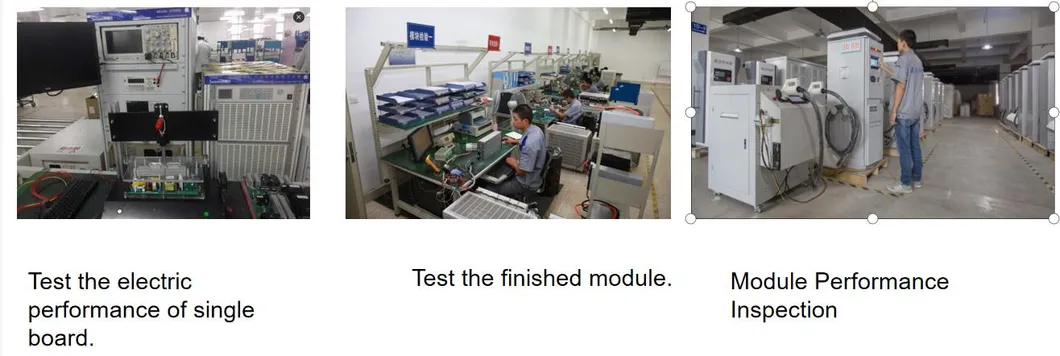

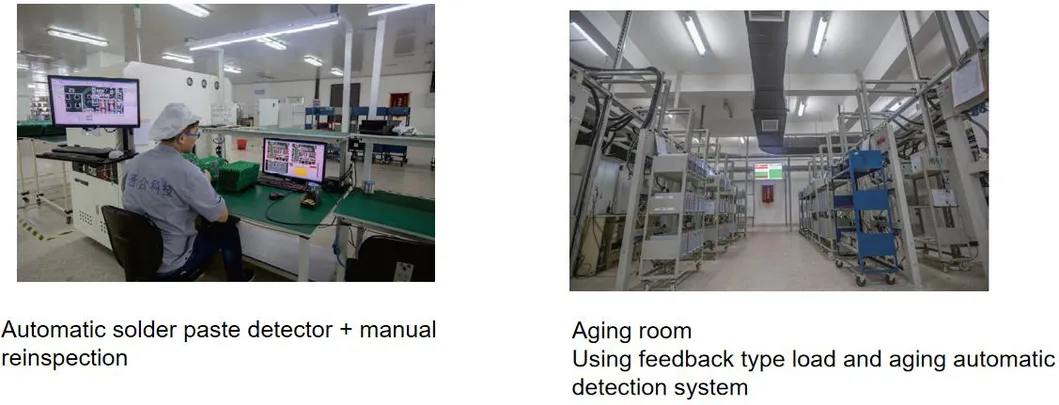

Quality Guarantee:
