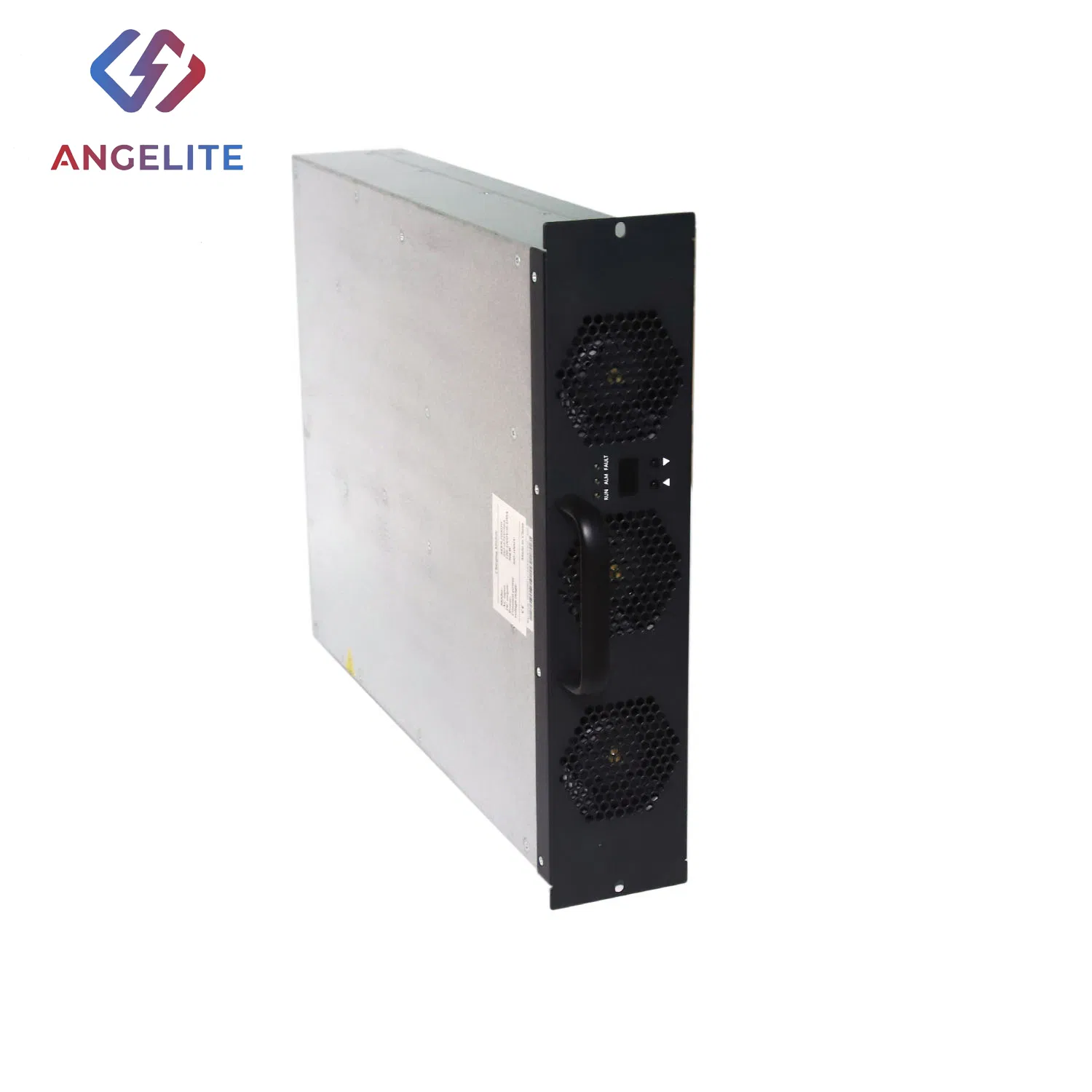

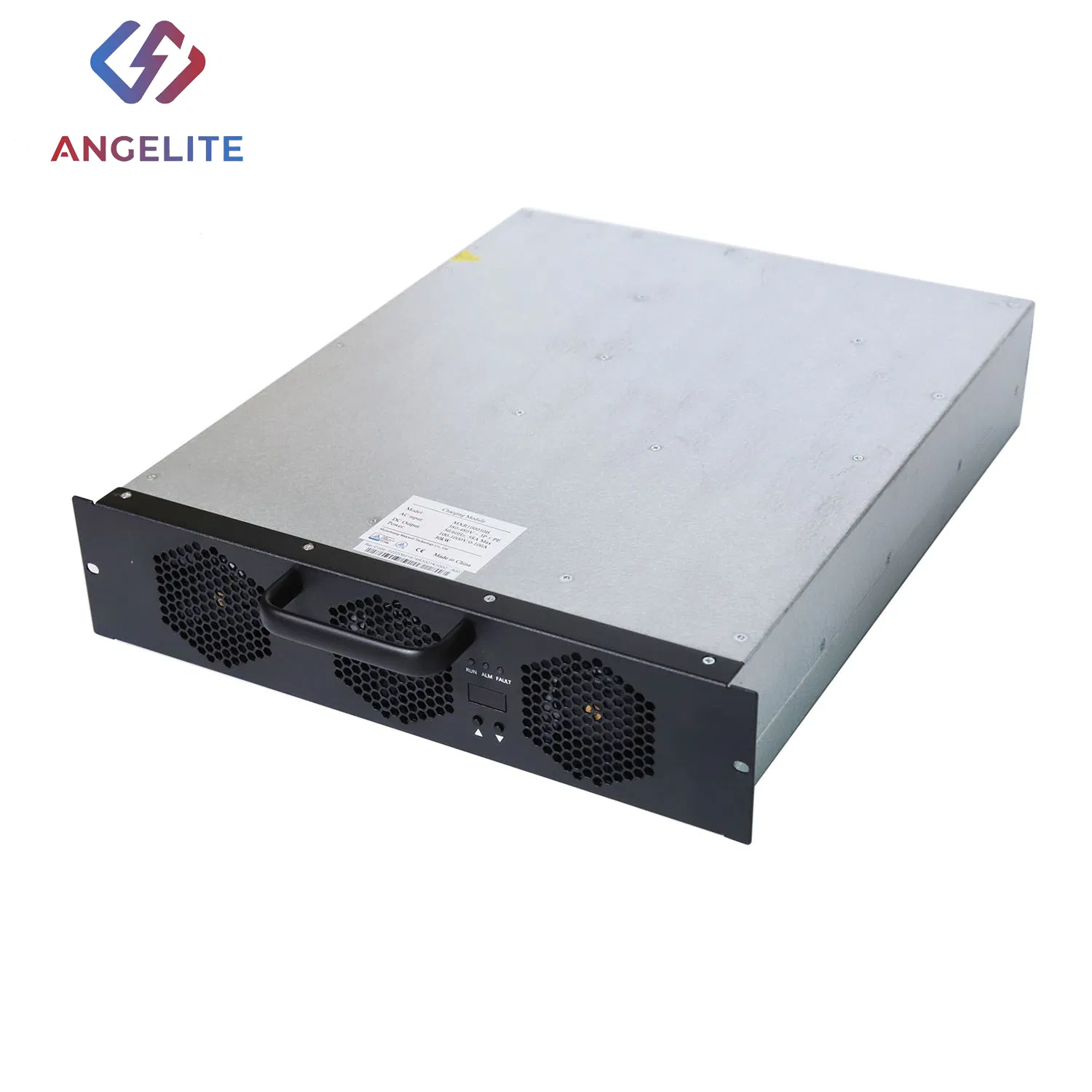

30kw EV Charging Power Modules for DC Charging Station

1 / 5

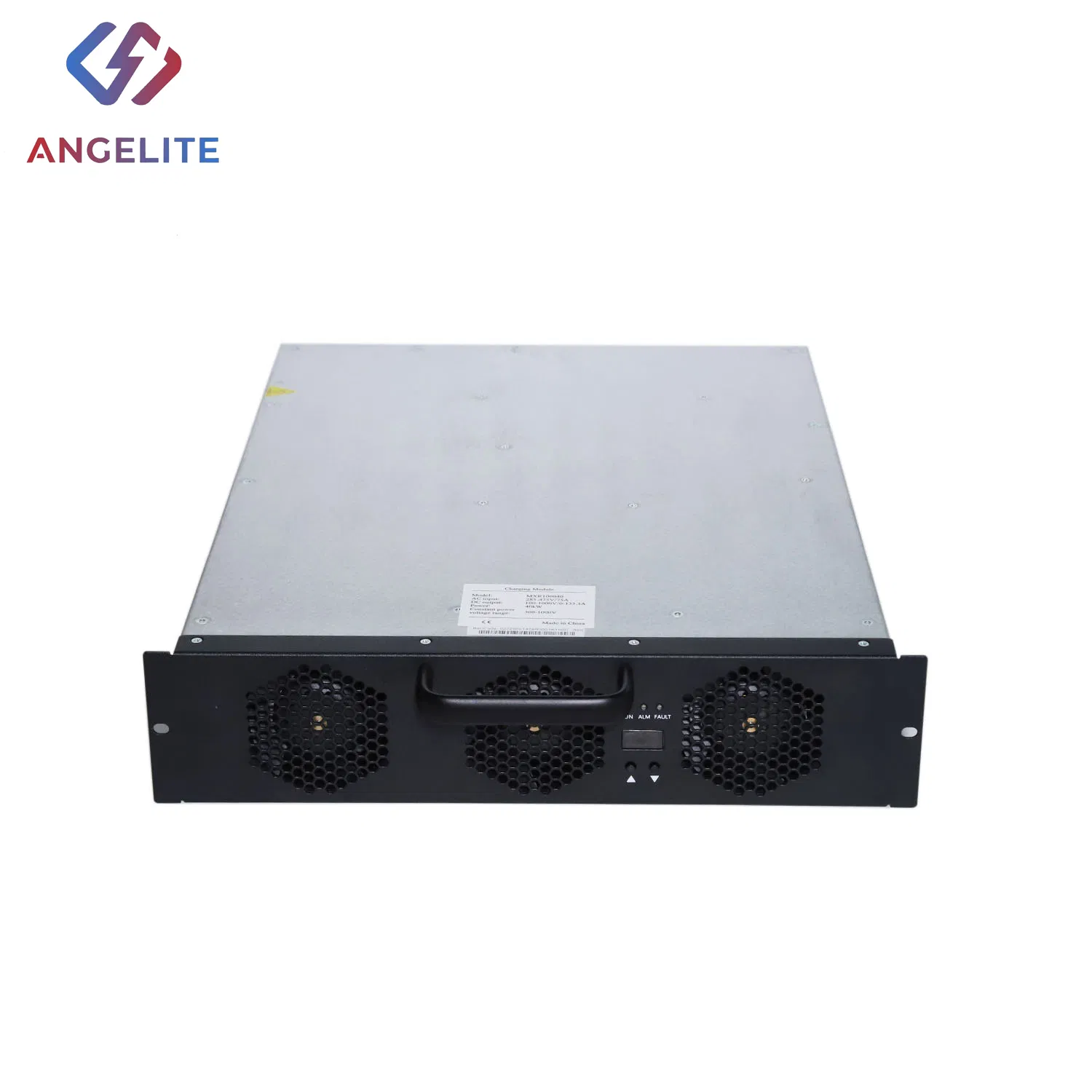

30kw EV Charging Power Modules for DC Charging Station

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Product Overview

The MXR100030 features significant advantages in ultra-high full-load operating temperatures and an ultra-wide constant power range. This module is characterized by its high reliability, exceptional efficiency, high power factor, and power density. It supports a wide output voltage range with low noise and minimal standby power consumption, ensuring excellent EMC performance for modern charging solutions.

Model NO.

Mxr100030

Input Voltage

285-475VDC, Three-Phase+PE

Input Current

<60A

Warranty

12 Months

Cooling Mode

Forced Air Cooling

Certification

CE, ISO, TUV, RoHS

Efficiency

>95.5%

Dimensions

85*360*459mm

HS Code

8504409999

Production Capacity

300,000 pieces/Year

Key Features

⚡

Wide Voltage Range: 100 ~ 1000Vdc output, perfectly suitable for various EV models.

🔋

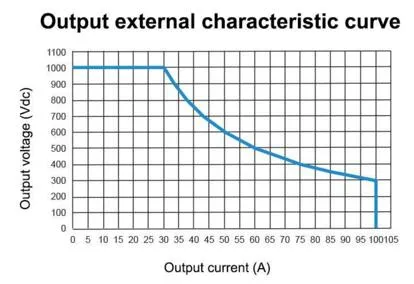

Constant Power: Delivers 30kW constant power output within the 300V~1000V range.

🌡️

Extreme Temp Tolerance: Operates efficiently in temperatures ranging from -40ºC to 75ºC.

🍃

Energy Saving: Full load efficiency exceeds 95.5%, reducing operational costs.

🔇

Ultra-Low Noise: Optimized design to improve the user charging experience.

🛡️

High Reliability: Built-in residual pressure relief loop to enhance system safety.

Technical Specifications

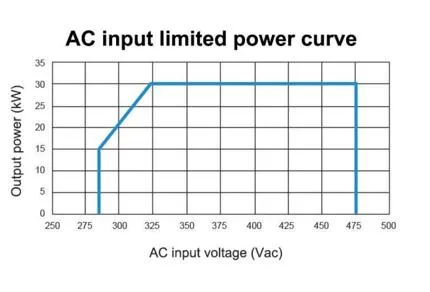

Input Characteristics

Item	Parameters
Input Voltage	285Vac-475Vac, three-phase+PE
Input Current	<60A
Grid Frequency	45Hz-65Hz
Power Factor	≥0.99
ITHD	≤5%

Output Characteristics

Item	Parameters
Output Power	30kw
Voltage Range	100-1000Vdc
Current Range	0-100A
Voltage Accuracy	≤±5%
Current Accuracy	≤±1%
Current Sharing Imbalance	≤±3%
Ripple Peak-to-Peak	≤1%

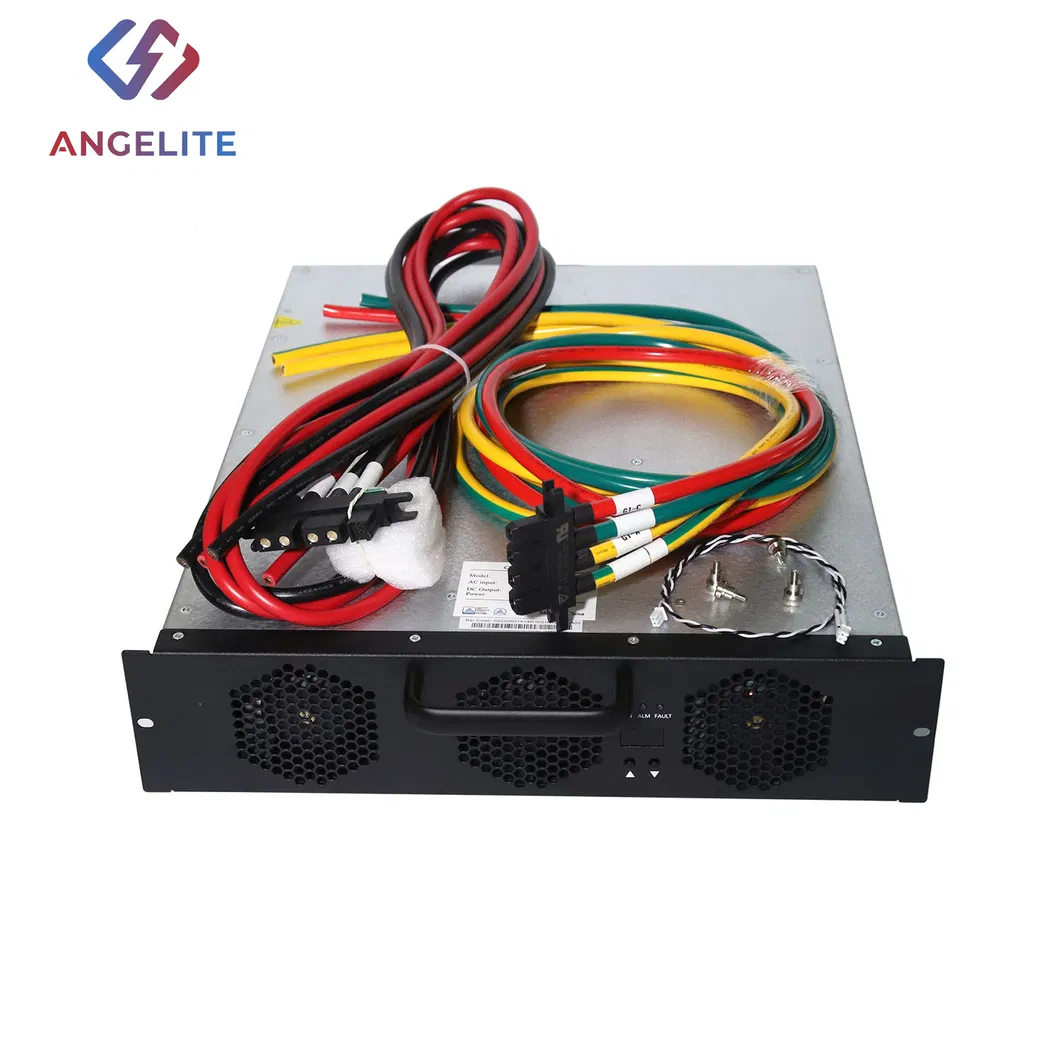

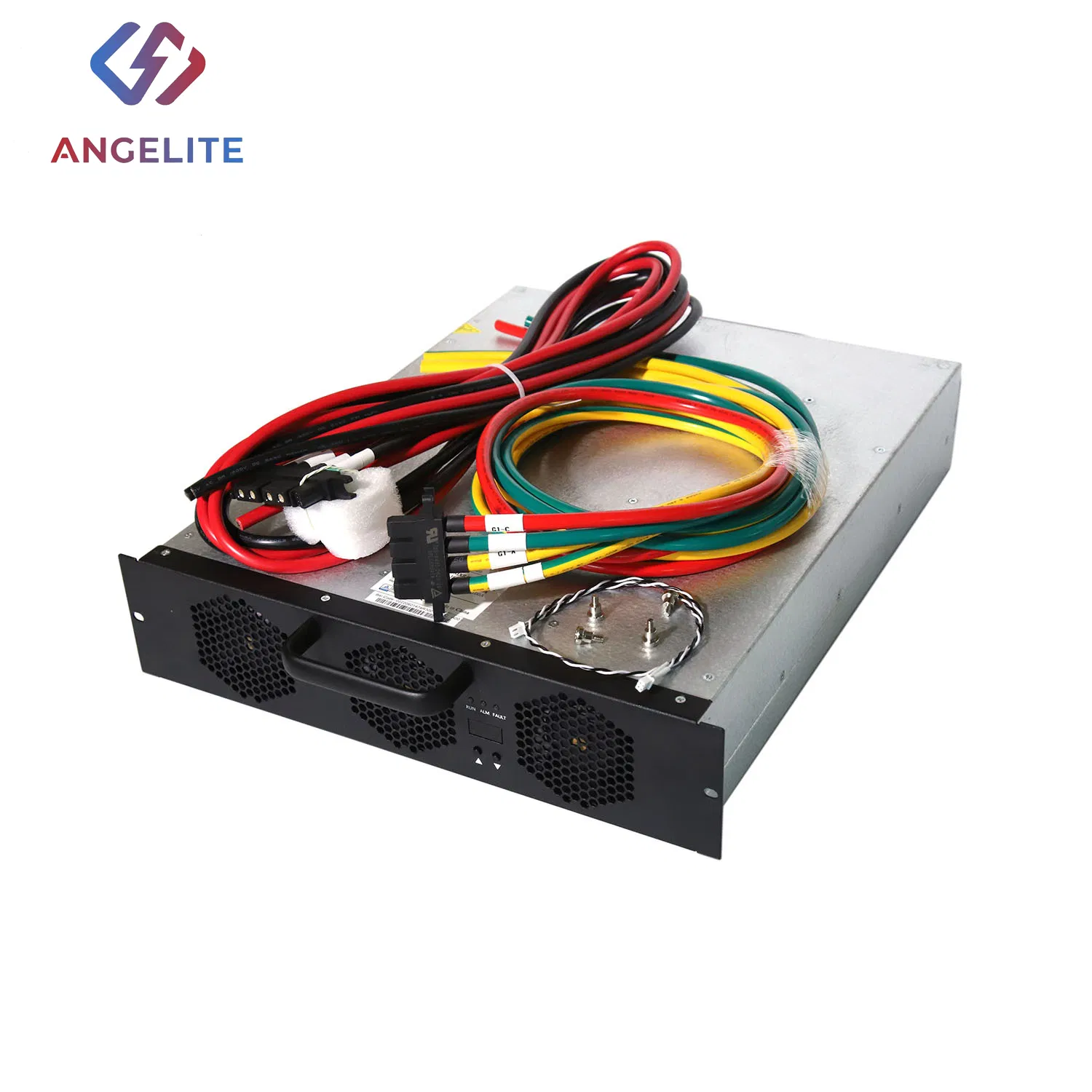

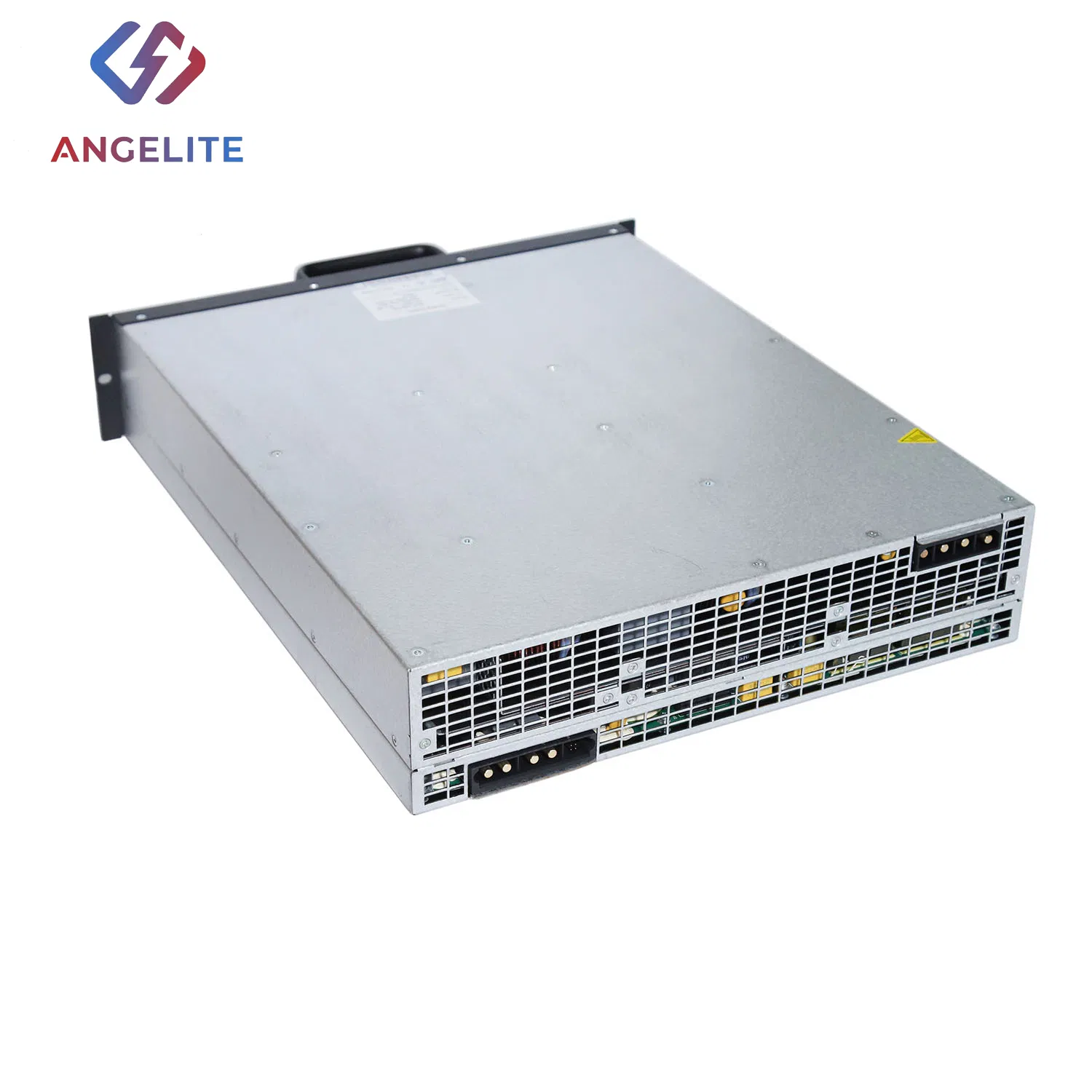

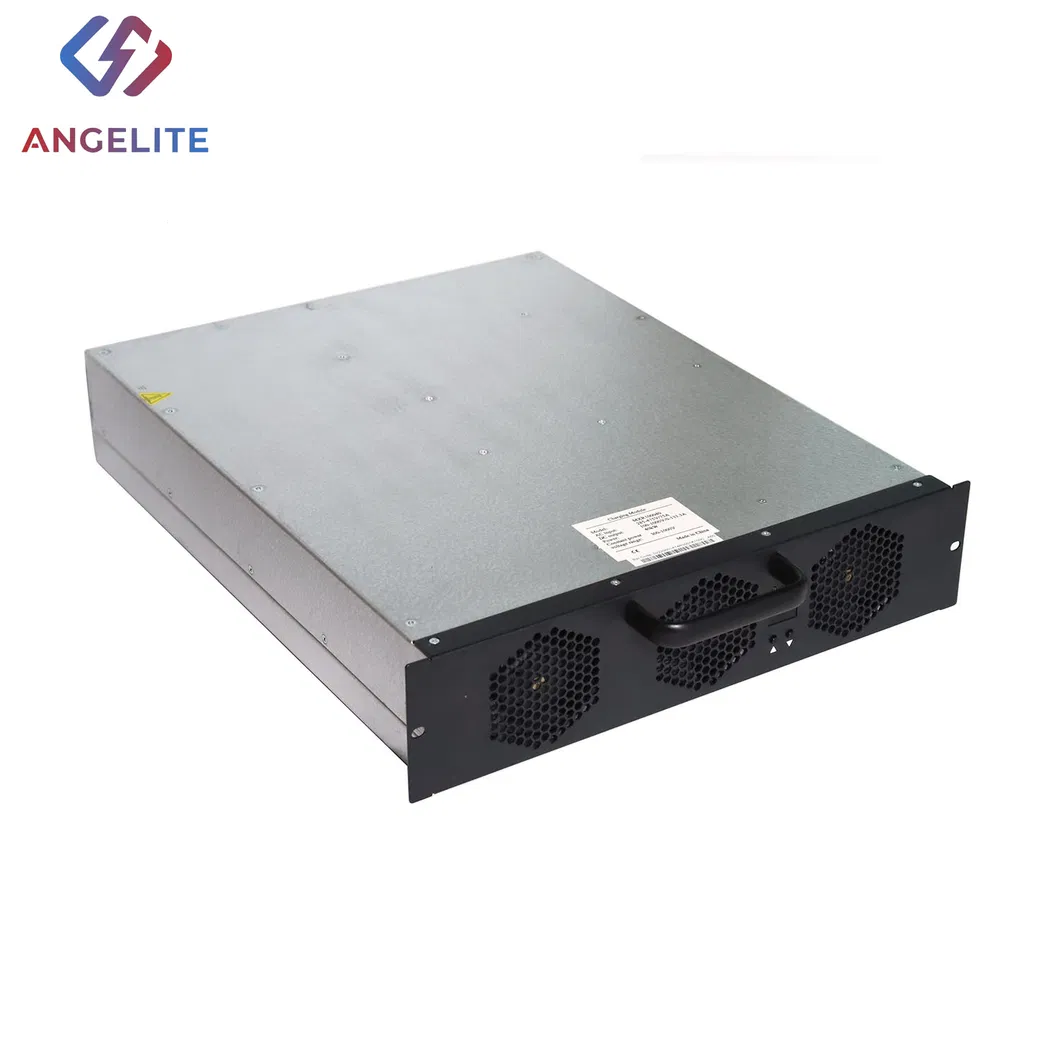

Detailed Photos

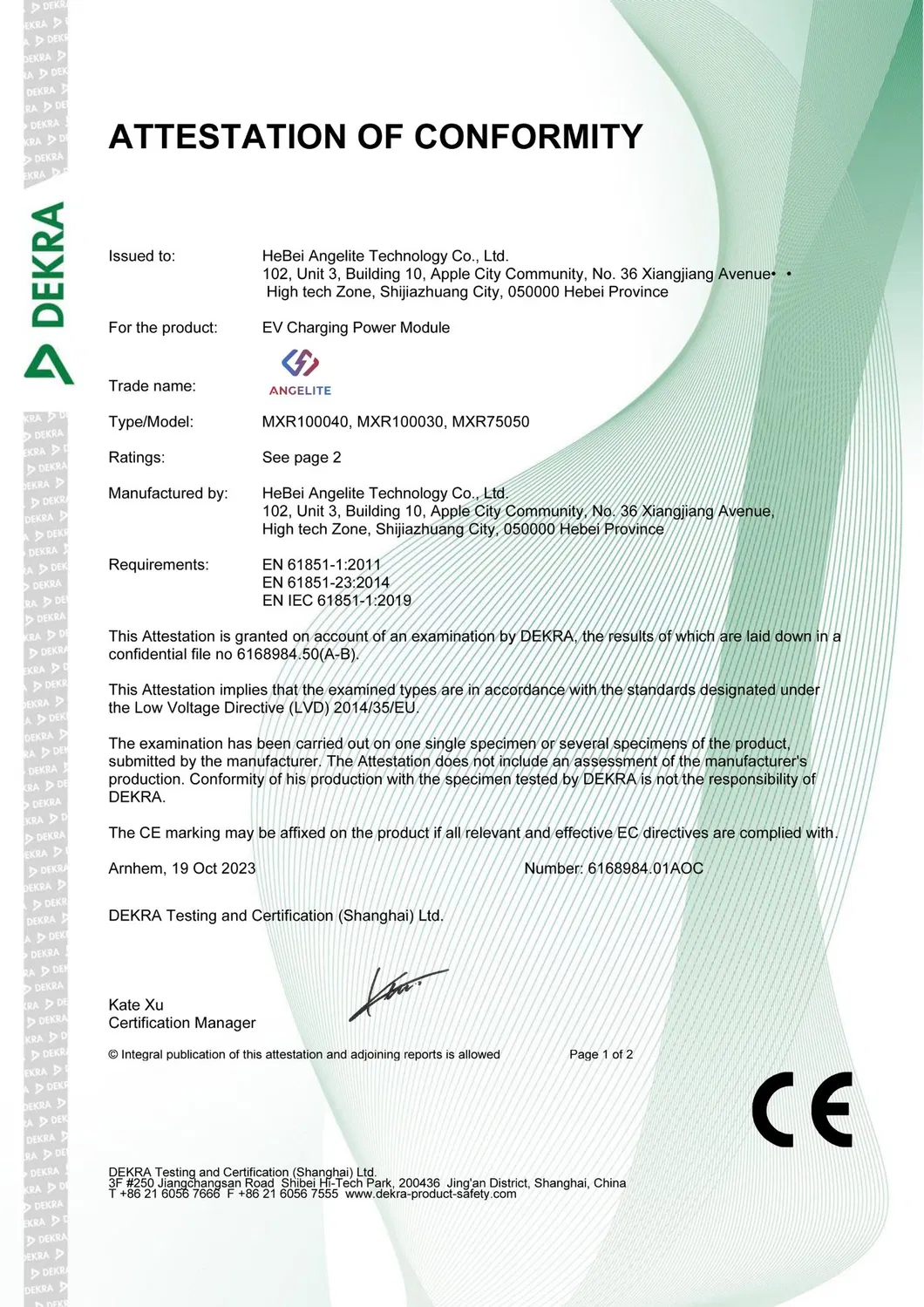

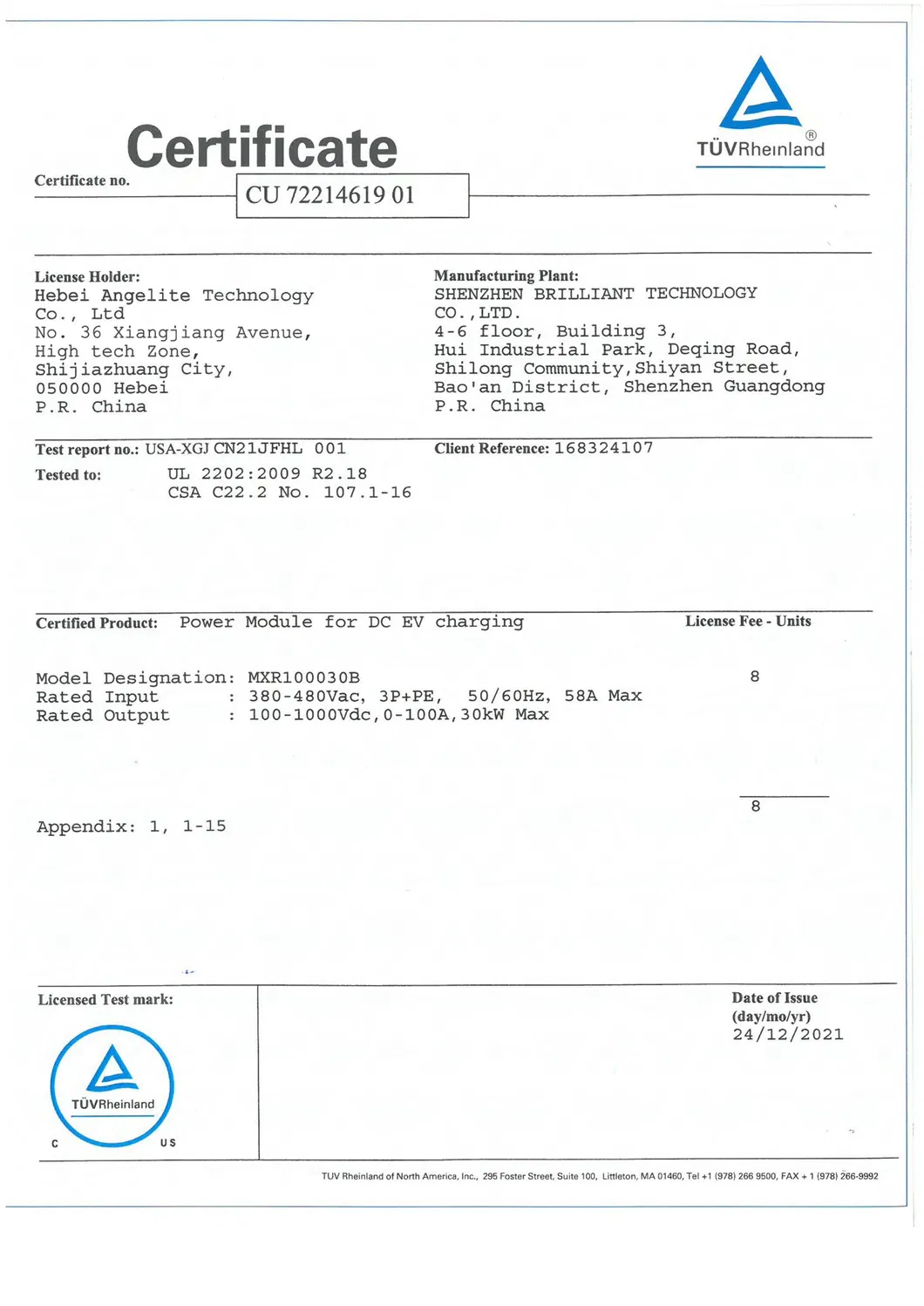

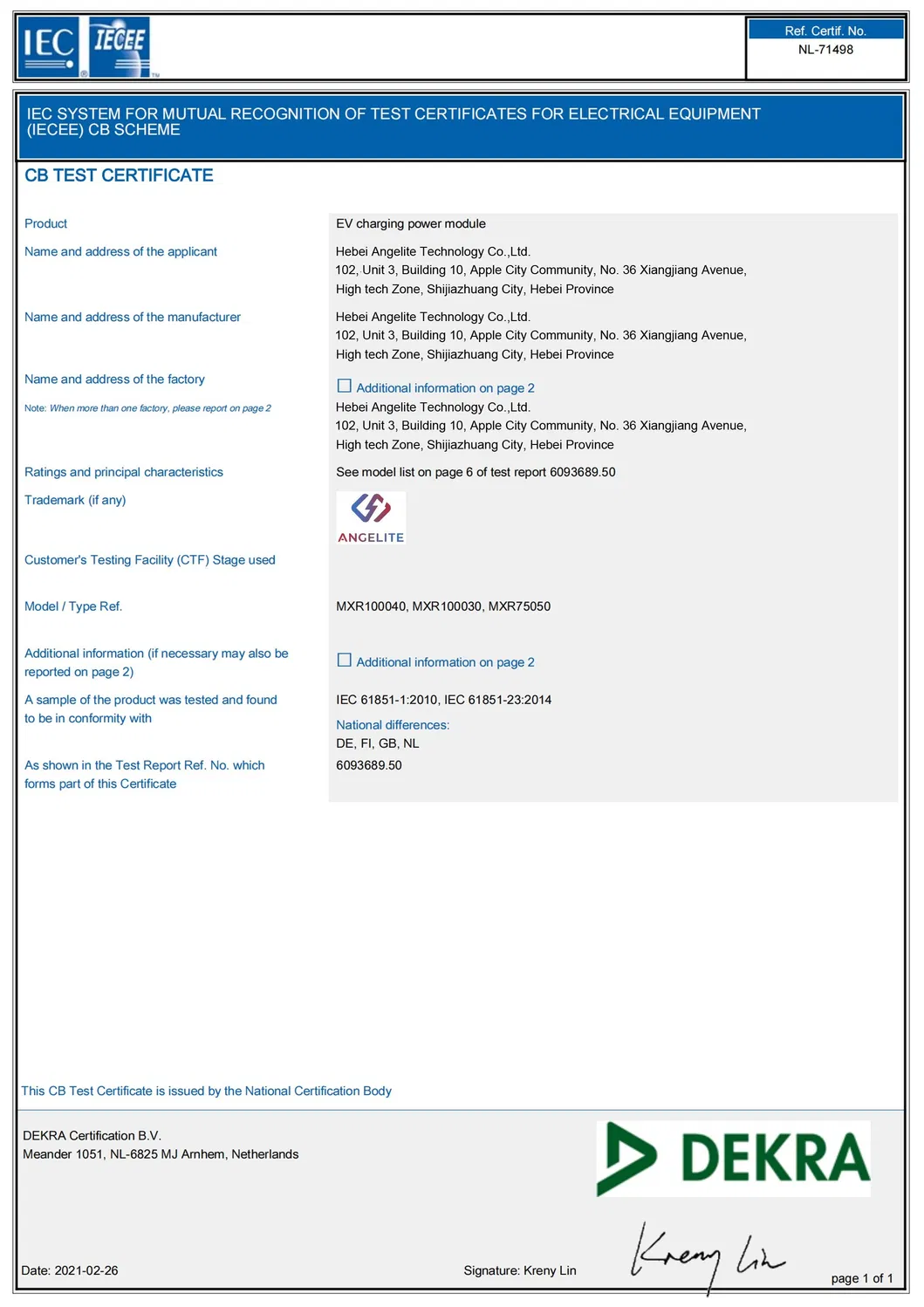

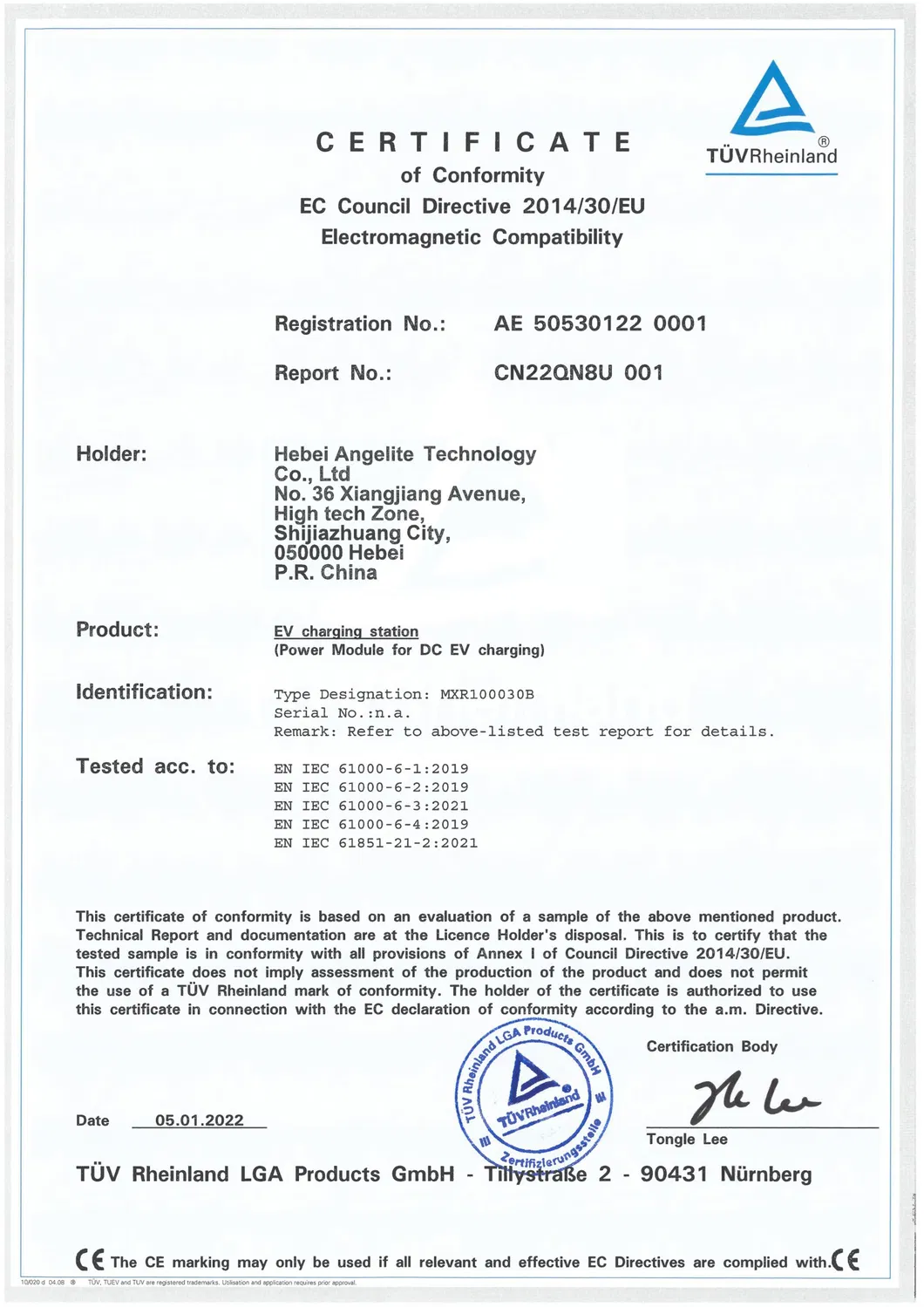

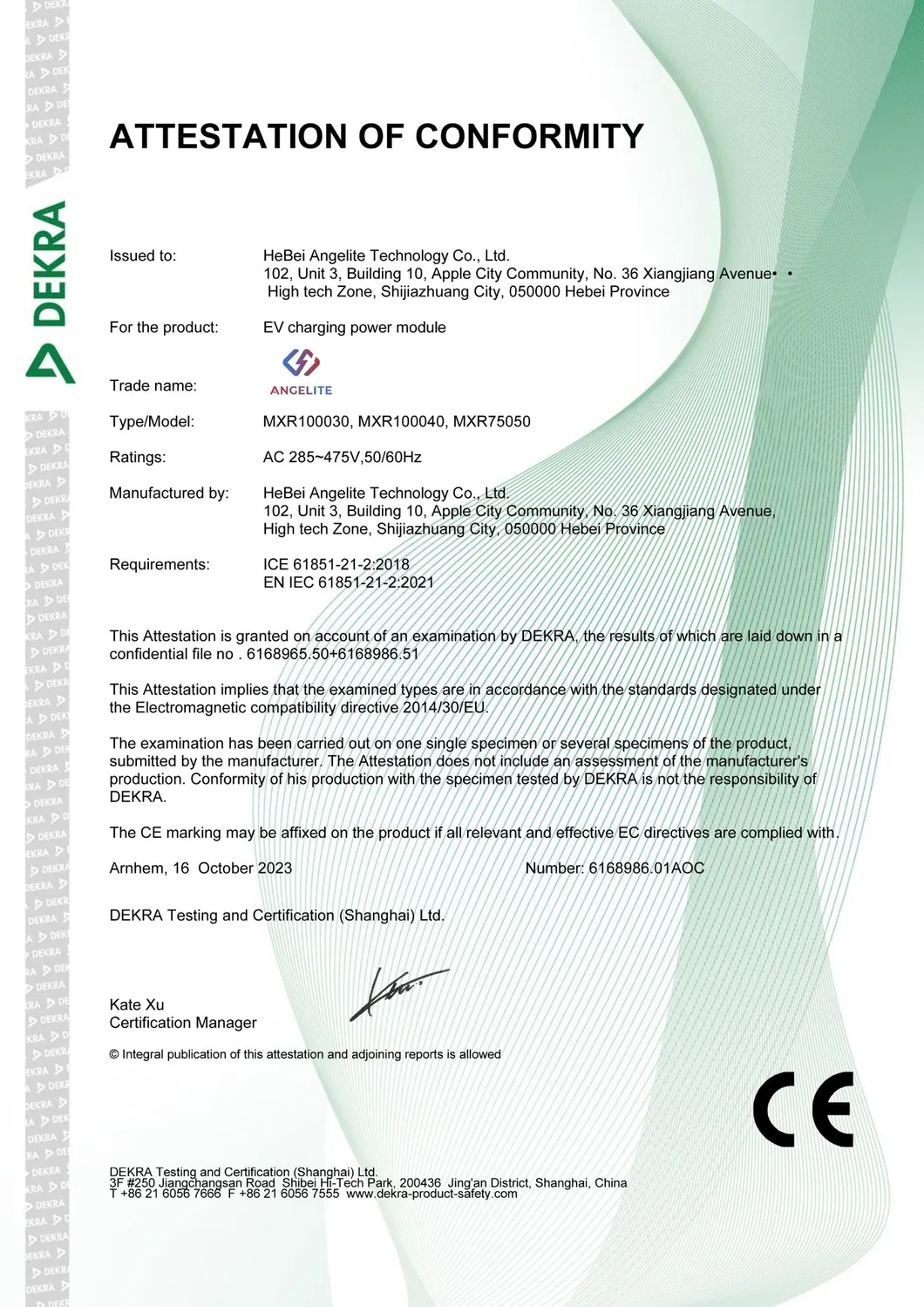

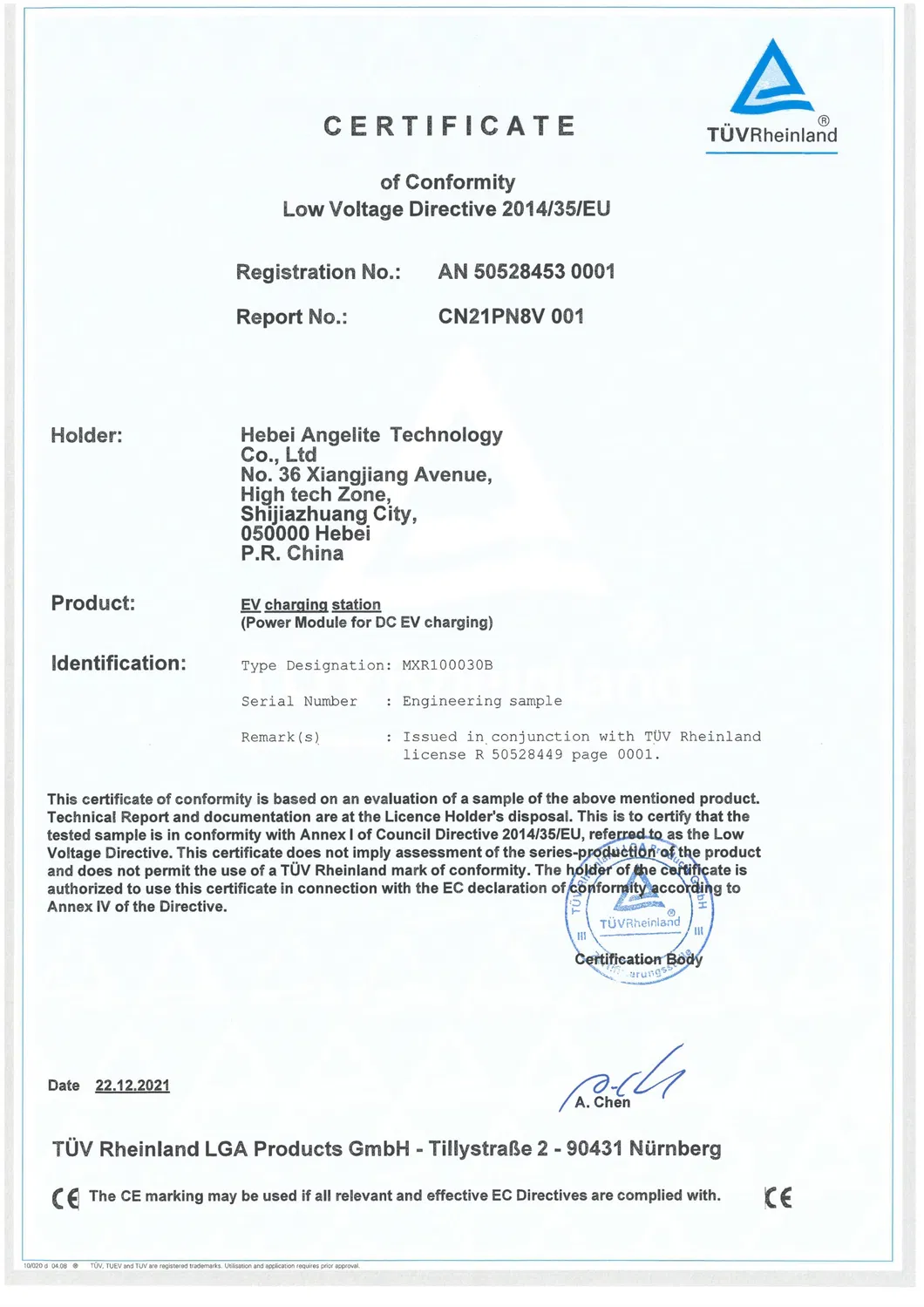

Certifications

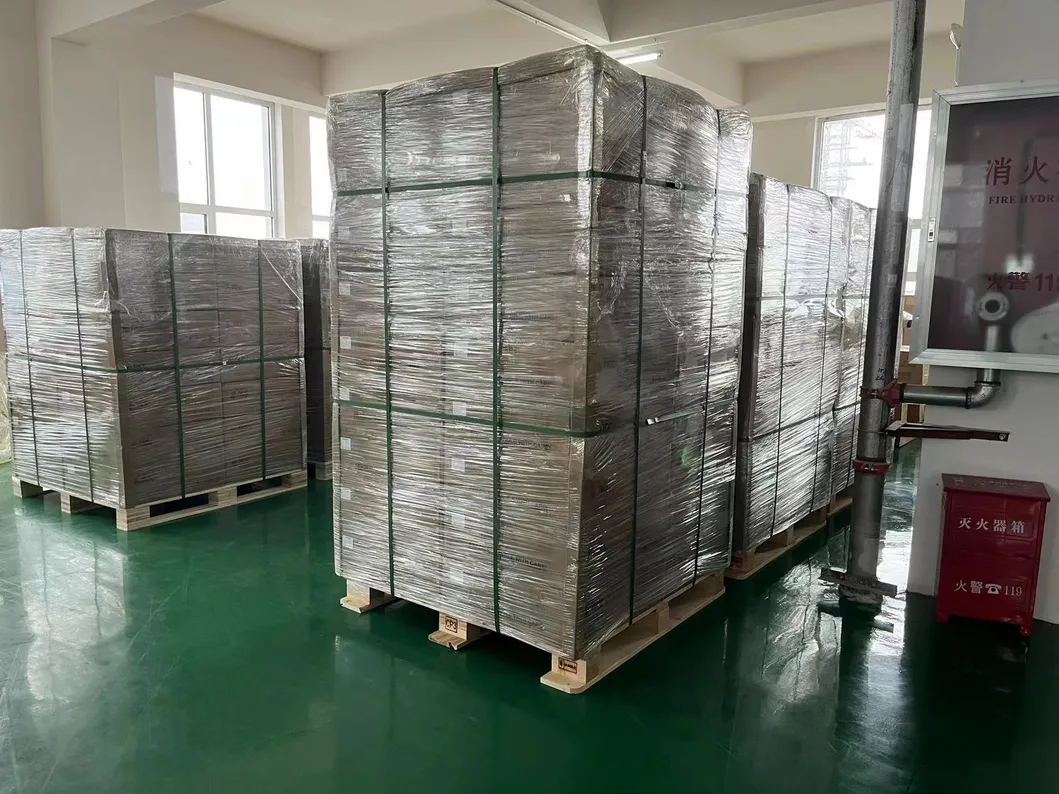

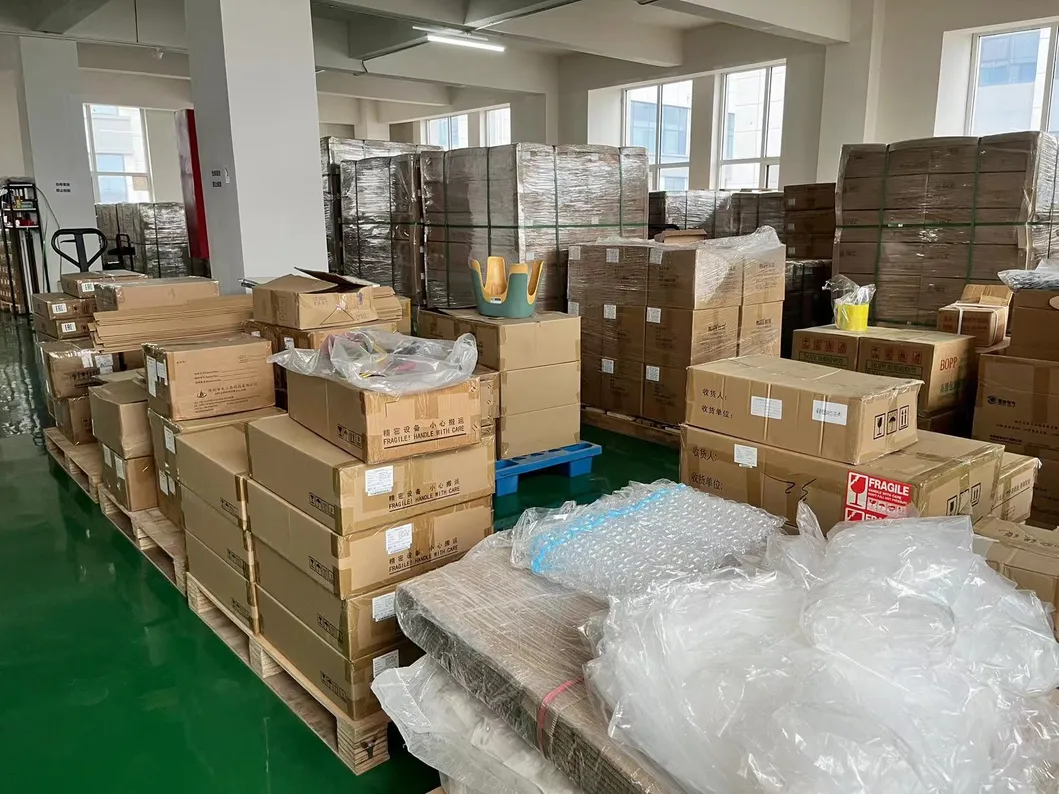

Packaging & Shipping

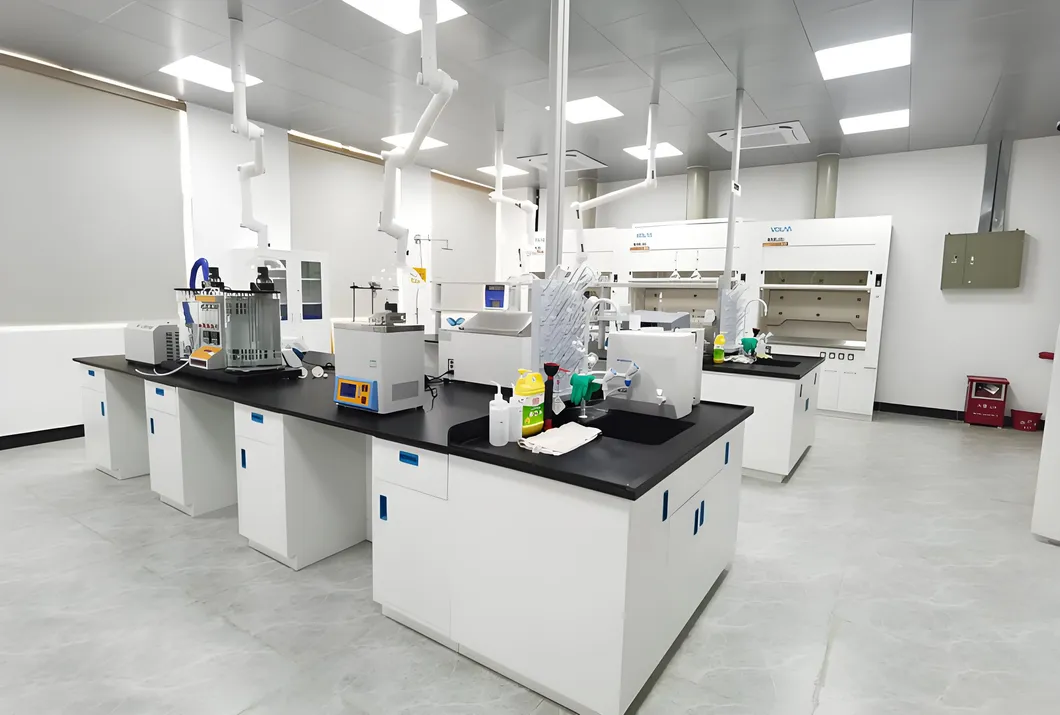

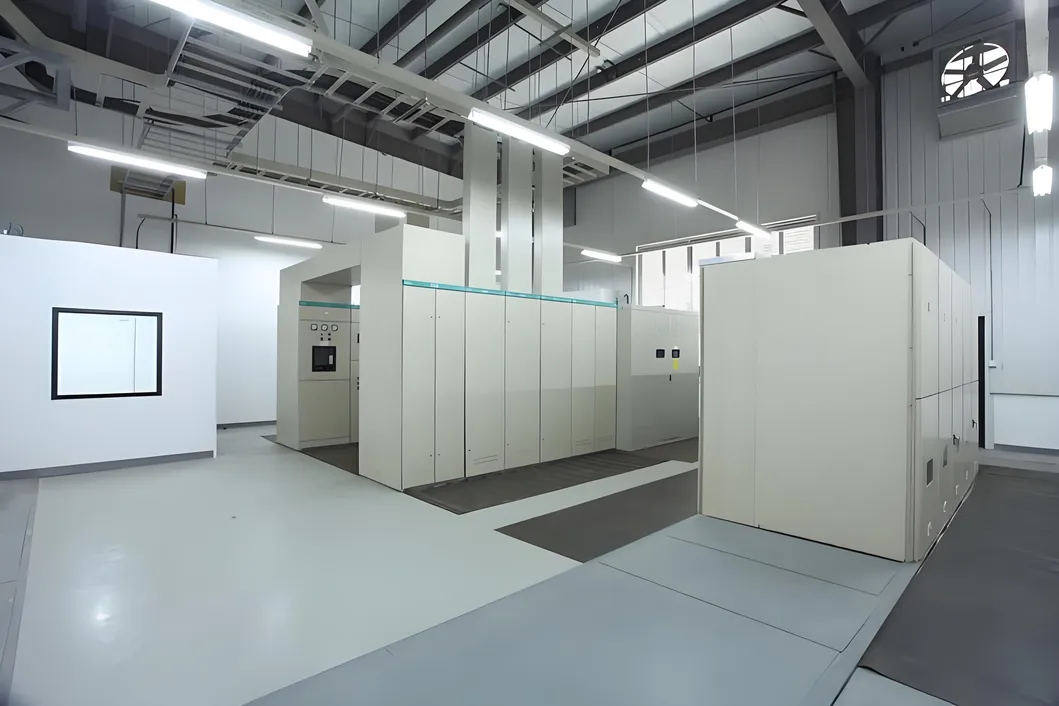

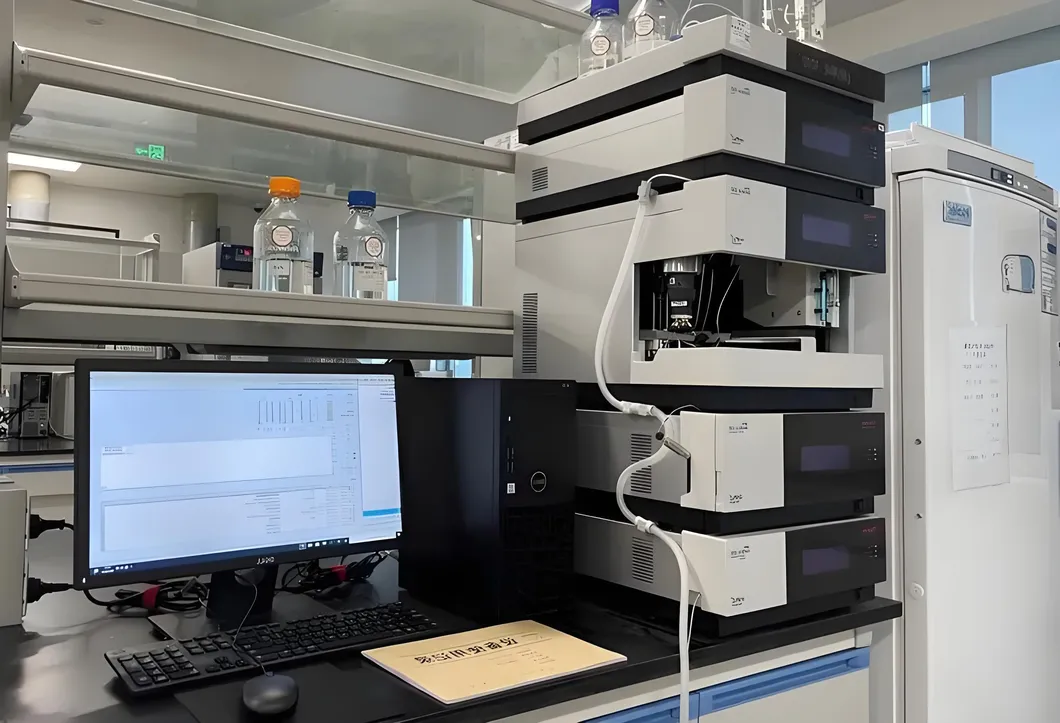

Company Profile

The company focuses on the research and development, production, and sales of power electronic products, positioning services for mid-to-high-end DC power supply system manufacturers. Based on owning independent intellectual property rights, the company insists on independent research and development and technological innovation, providing customers with equipment support and services to realize growth in corporate and customer value together.

Currently, the company's products are widely used in automotive, electric power, railway, metallurgy, communications, and other fields, with performance cases spread across the country and around the world.
