40kw AC/DC Converter(Rectifier 100-1000V DC Charging Module for EV Charging Station

1 / 5

40kw AC/DC Converter(Rectifier 100-1000V DC Charging Module for EV Charging Station

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview

Model NO.	MXR100040
Number of Charging Interfaces	One Pile with Multiple Charges
AC Input	285VAC~475VAC, Three Phase+PE, 80A
DC Output	100VDC~1000VDC, 0~133.3A
Dimensions	85mm(H)360mm(W)459mm(D)
Certification	CE, ISO, TUV, RoHS
Efficiency	>95.5%
Cooling Mode	Fan Cooling
MTBF	500,000 Hours
Power Factor	0.99
After-Sales Service	1 Year Warranty
Type	EV Charger Power Module

Product Description

Output Power	15KW	20KW	30KW	40KW	50KW	60KW
Product Type	AC-DC, DC-DC, Bidirectional Power Module, Liquid Cooling Module

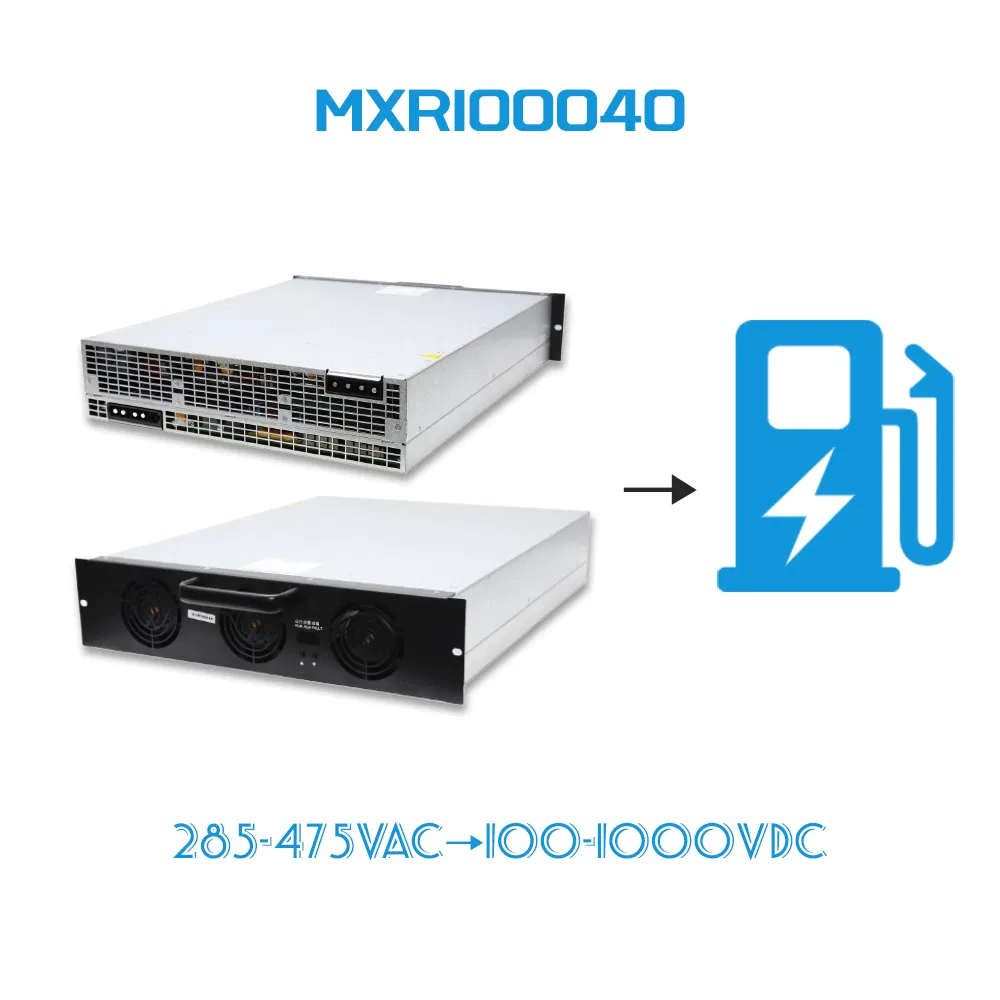

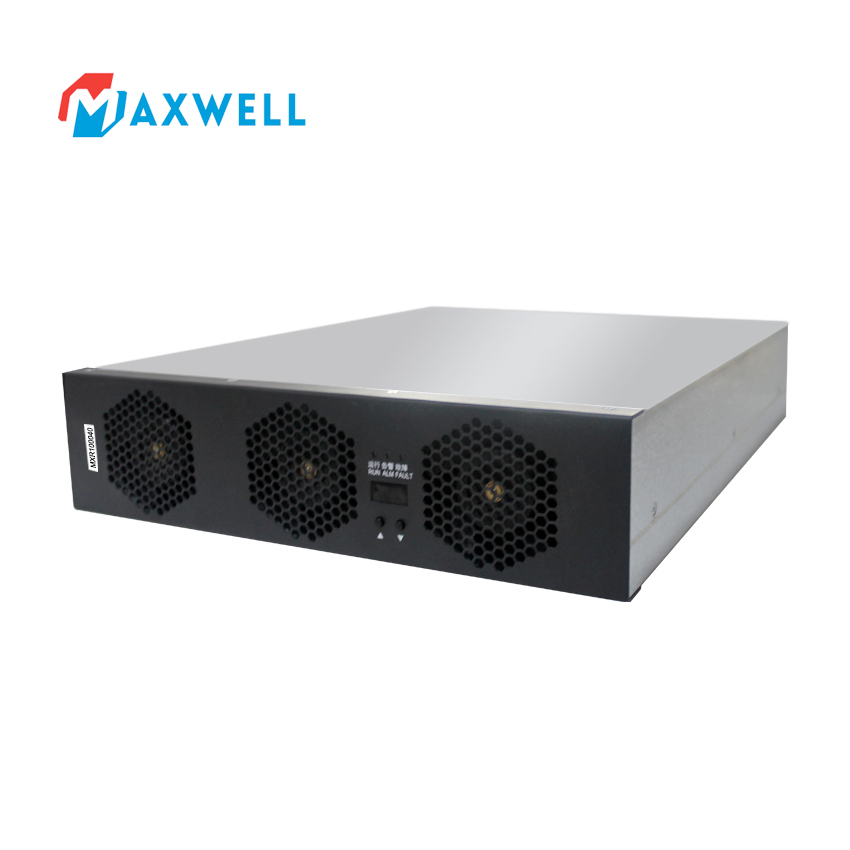

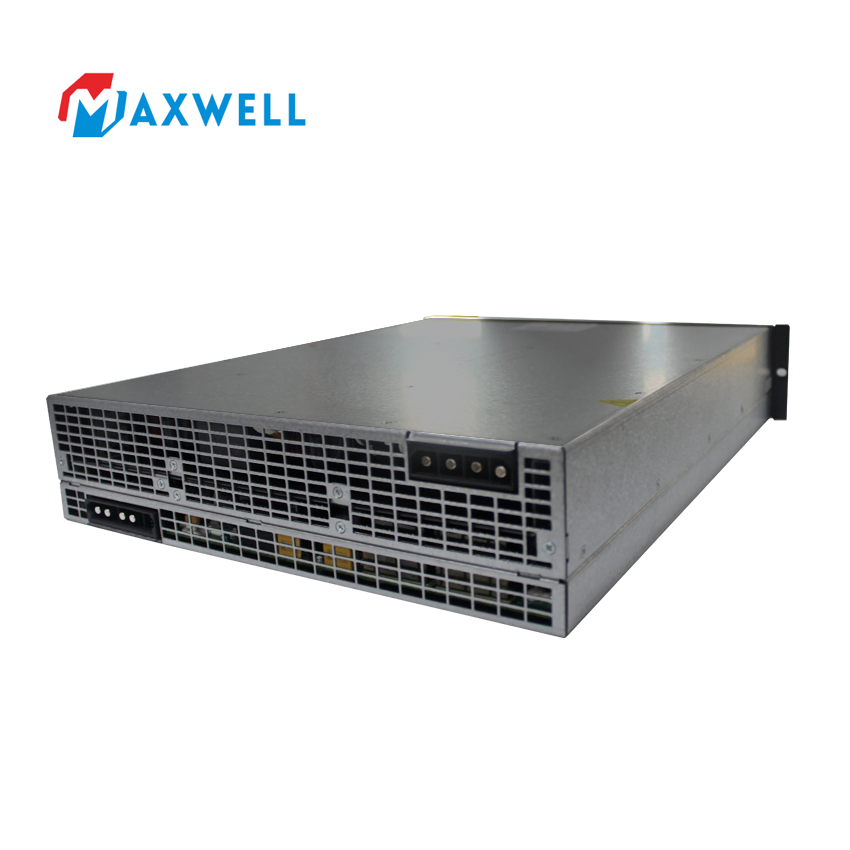

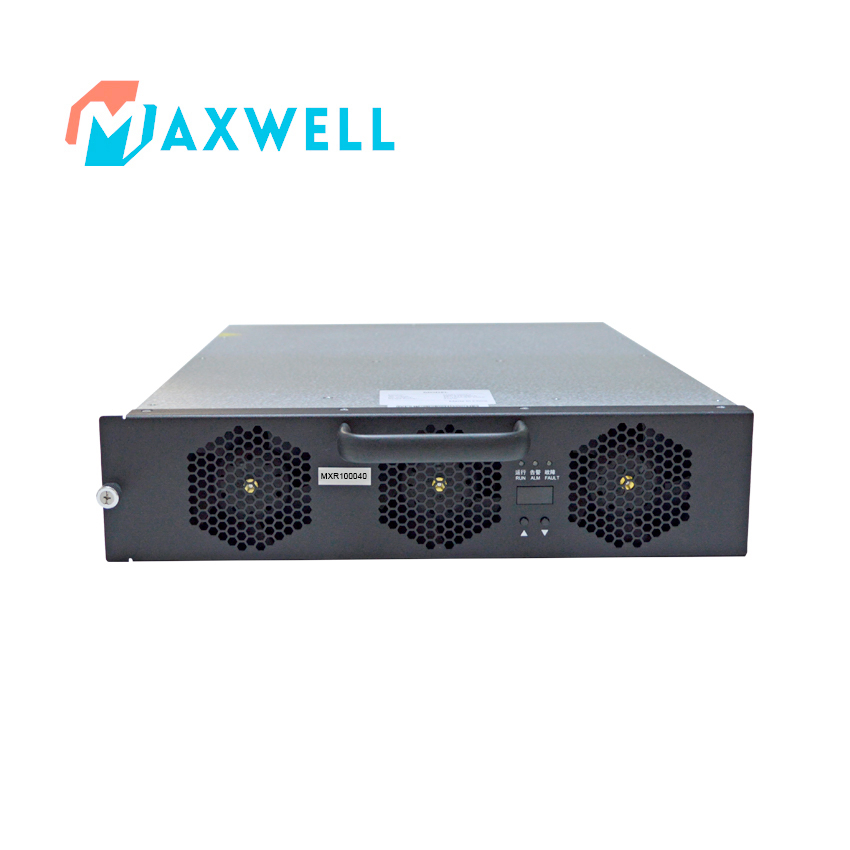

MXR100040 is a high-performance charging power module developed for the electric vehicle charging pile industry. It features prominent advantages in ultra-high full-load operating temperatures and an ultra-wide constant power range, addressing the critical needs of modern EV infrastructure.

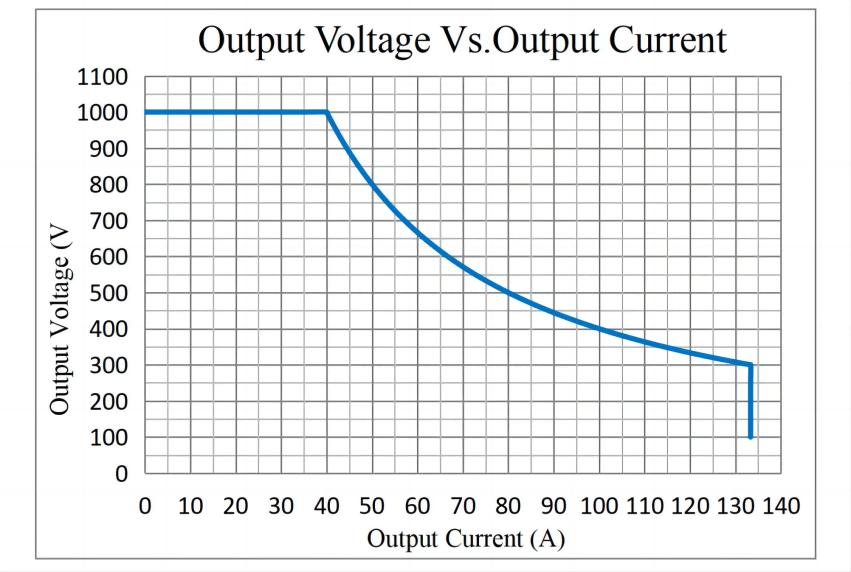

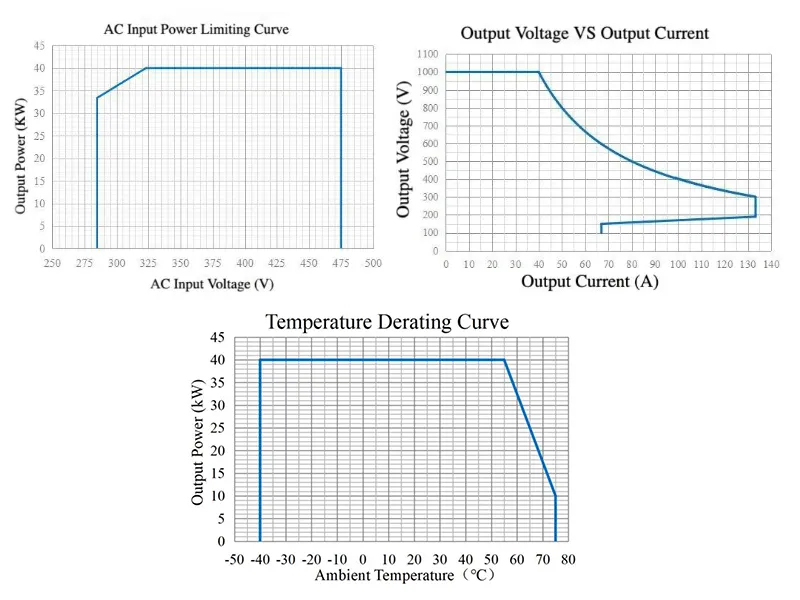

01 Wide Constant Power Range: 300-1000V

02 Ultra low standby power: <13W

03 Ultra low THD: ≤5%

04 Wide operating temp: -40~60ºC

05 Wide voltage input: 285Vac~475Vac

06 Peak efficiency: ≥95.5%

Product Applications

Production Excellence

Packaging & Shipping

Generally, goods are packed in kraft cartons with or without pallets. For authorized partners with legally registered patents, we can provide customized branded packaging solutions according to specific requirements.

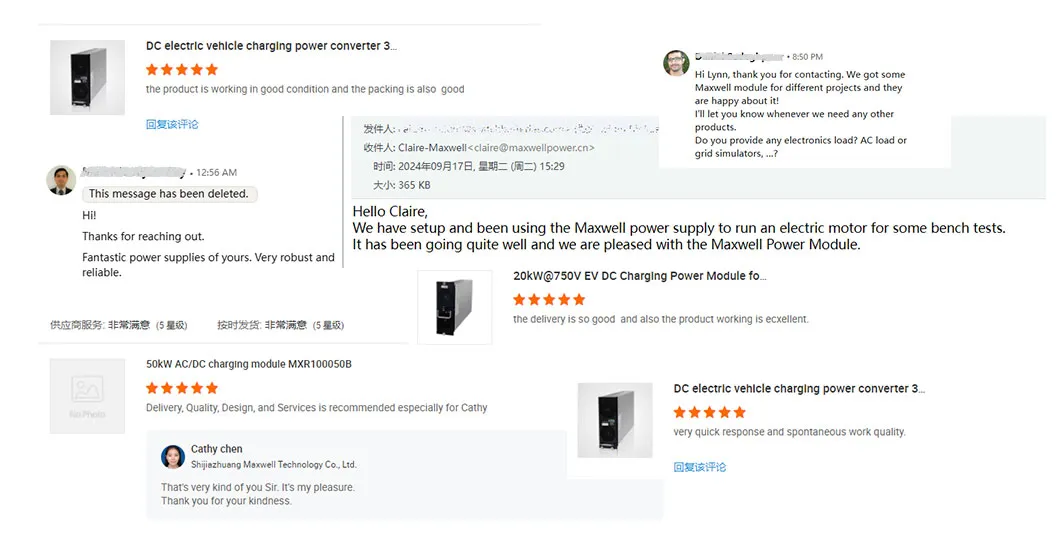

Customer Evaluation

Frequently Asked Questions

Can you explain the differences in global DC fast charging standards?

Currently, there are several key standards worldwide including CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), and GB/T (China). Our modules are designed to integrate with various system configurations.

How do we receive after-sales support for the EV DC charger module?

We provide comprehensive technical training, including written materials, instructional videos, and face-to-face training for technical personnel. For urgent situations, professional technicians are available for on-site support.

What customized services are available?

We offer a wide range of OEM and ODM solutions tailored to specific customer requirements and regional market standards.

What are the accepted terms of payment?

We typically accept T/T (Telegraphic Transfer) in advance or Irrevocable L/C (Letter of Credit) at sight.

What is the typical delivery timeframe?

Standard delivery is usually completed within 2-3 weeks after order confirmation, depending on order volume and customization needs.

What is the peak efficiency of this power module?

The MXR100040 power module achieves a peak conversion efficiency of ≥95.5%, significantly reducing energy loss during the charging process.
