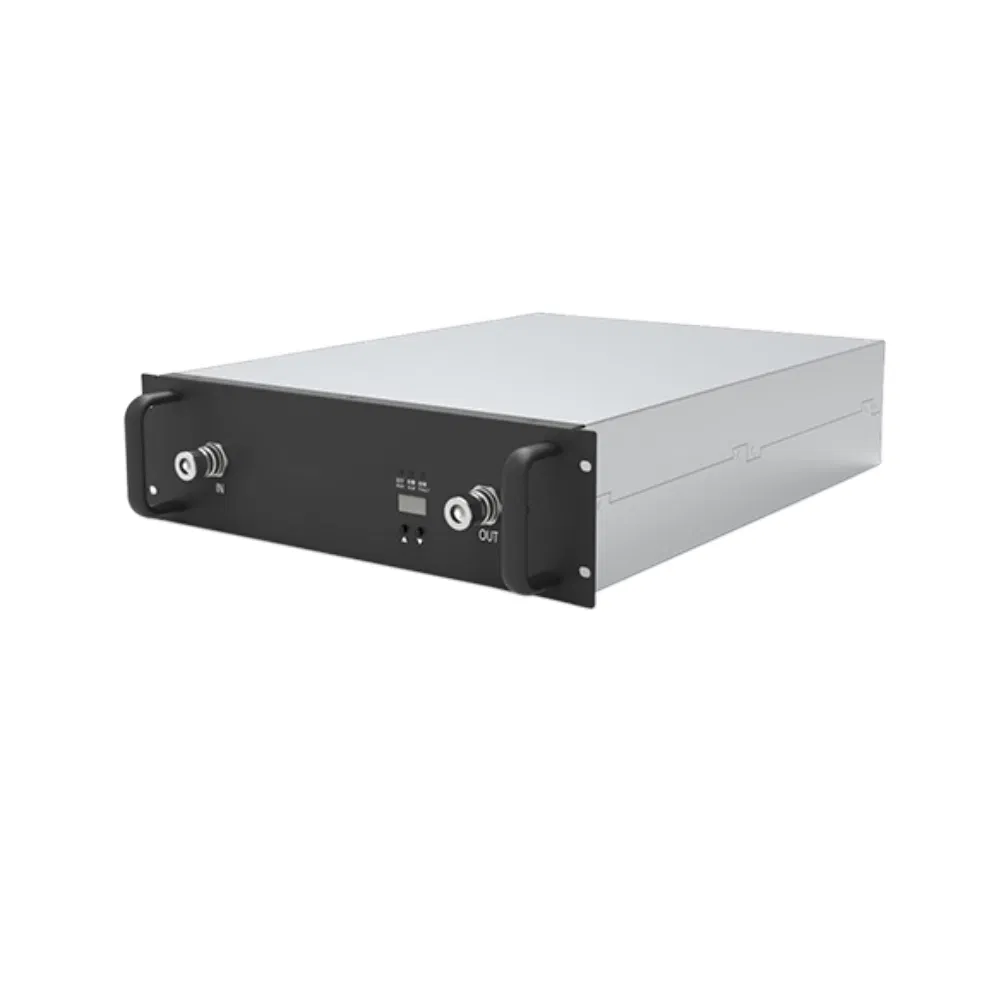

40kw@1000V Liquid Cooling DC EV Charging Power Module

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO.
MXR100040L
Location
Public Use
Charging Interfaces
One Pile with Multiple Charges
Start Mode
RFID, Credit Card, Mobile Remote
Power Supply
3phase+PE
Cooling Mode
Liquid Cooling
Communication
CAN Bus
Warranty
1 Year
Input Voltage
260-530VAC
Output Voltage
50-1000VDC
Certification
CE, ISO, TUV, RoHS
HS Code
8504409999

Product Description

MXR100040L is specially designed for EV DC chargers with liquid cooling requirements. The module is equipped with high efficiency, high power density and high reliability. It has cleared CE TUV certification with class B level.
Developed to address charging pile industry shortages, it features prominent advantages in ultra-high full-load operating temperatures and an ultra-wide constant power range. High power factor, low noise, and excellent EMC performance make it a leading choice for modern infrastructure.

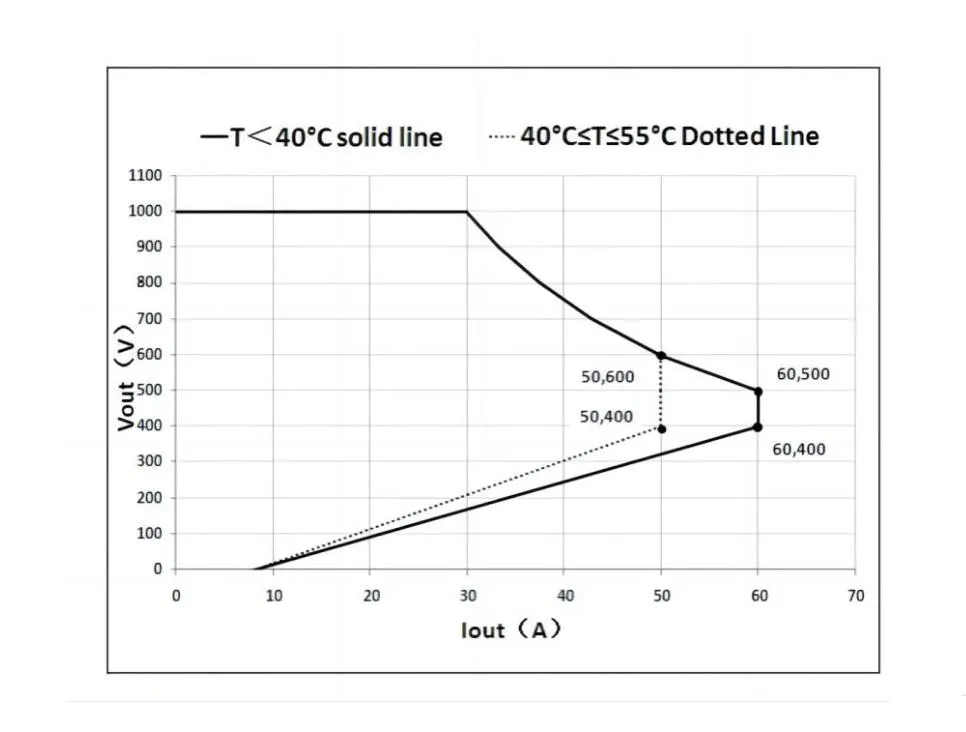

Liquid Cooling DC EV Charging Power Module Side View

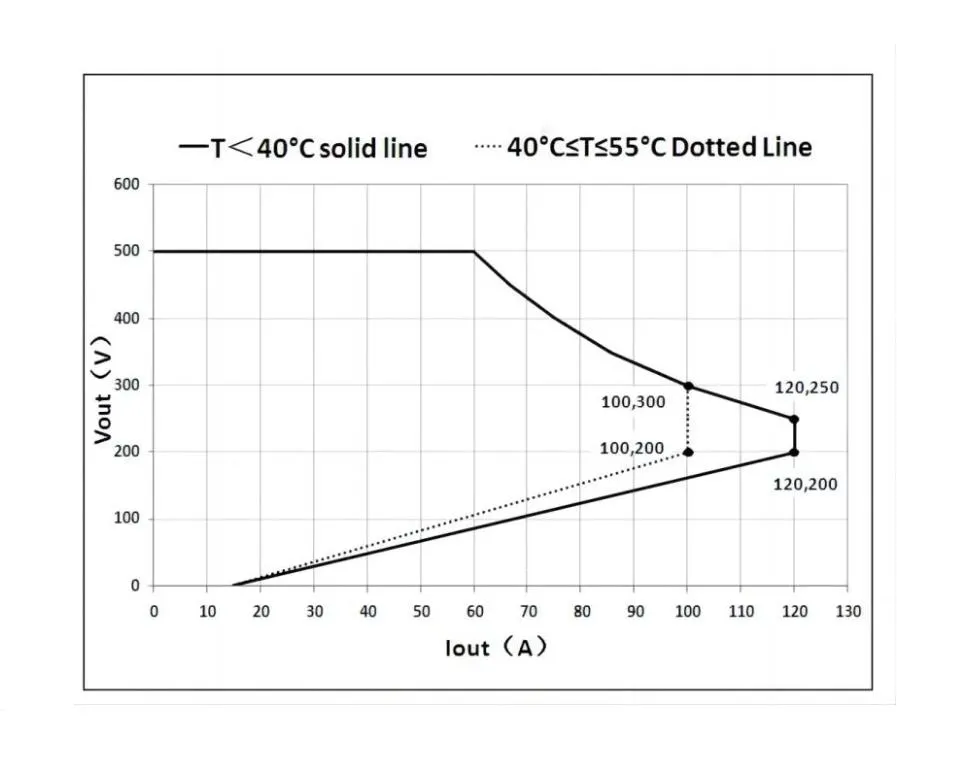

Liquid Cooling DC EV Charging Power Module Front View

Technical Parameters

Dimensions100mm(H) * 340mm(W) * 470mm(D)
Communication ModeCAN bus
Input Voltage260-530Vac, three phase+PE
Power Factor≥0.99
Output Power40kw @ output voltage ≤1000Vdc
Voltage Range50Vdc-1000Vdc
Operating Temp-40°C to +75°C

Quality Certifications

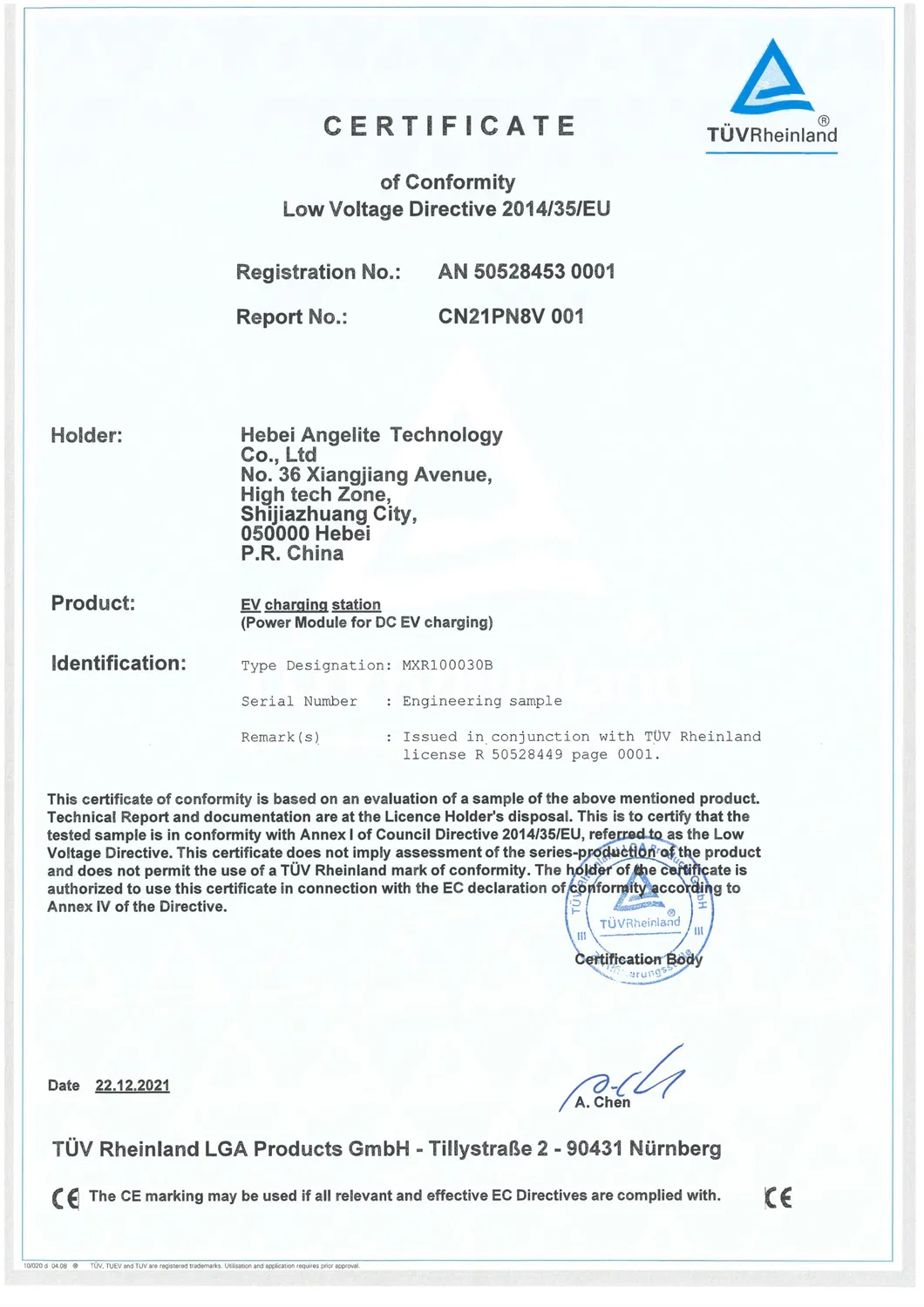

Certification 1

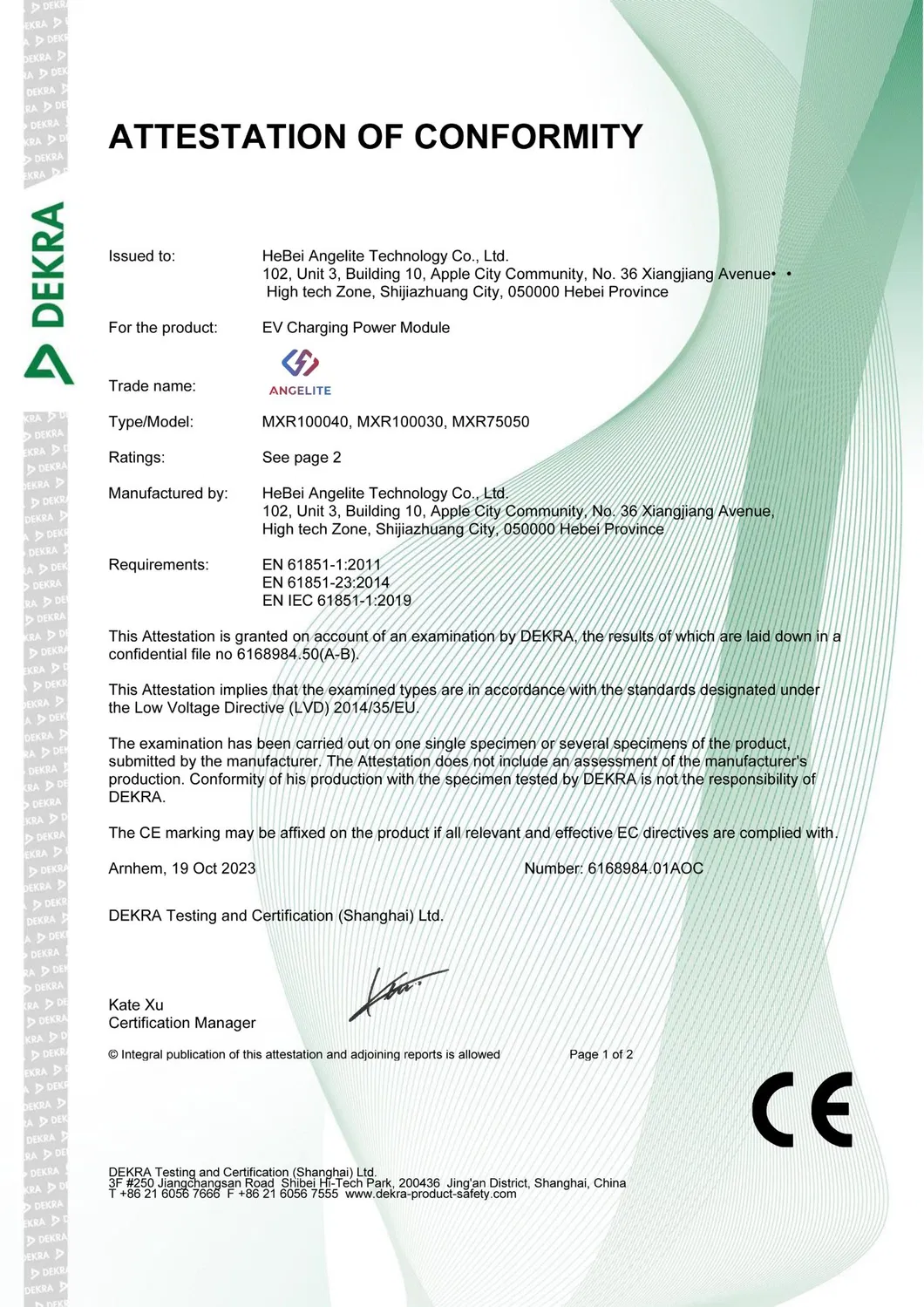

Certification 2

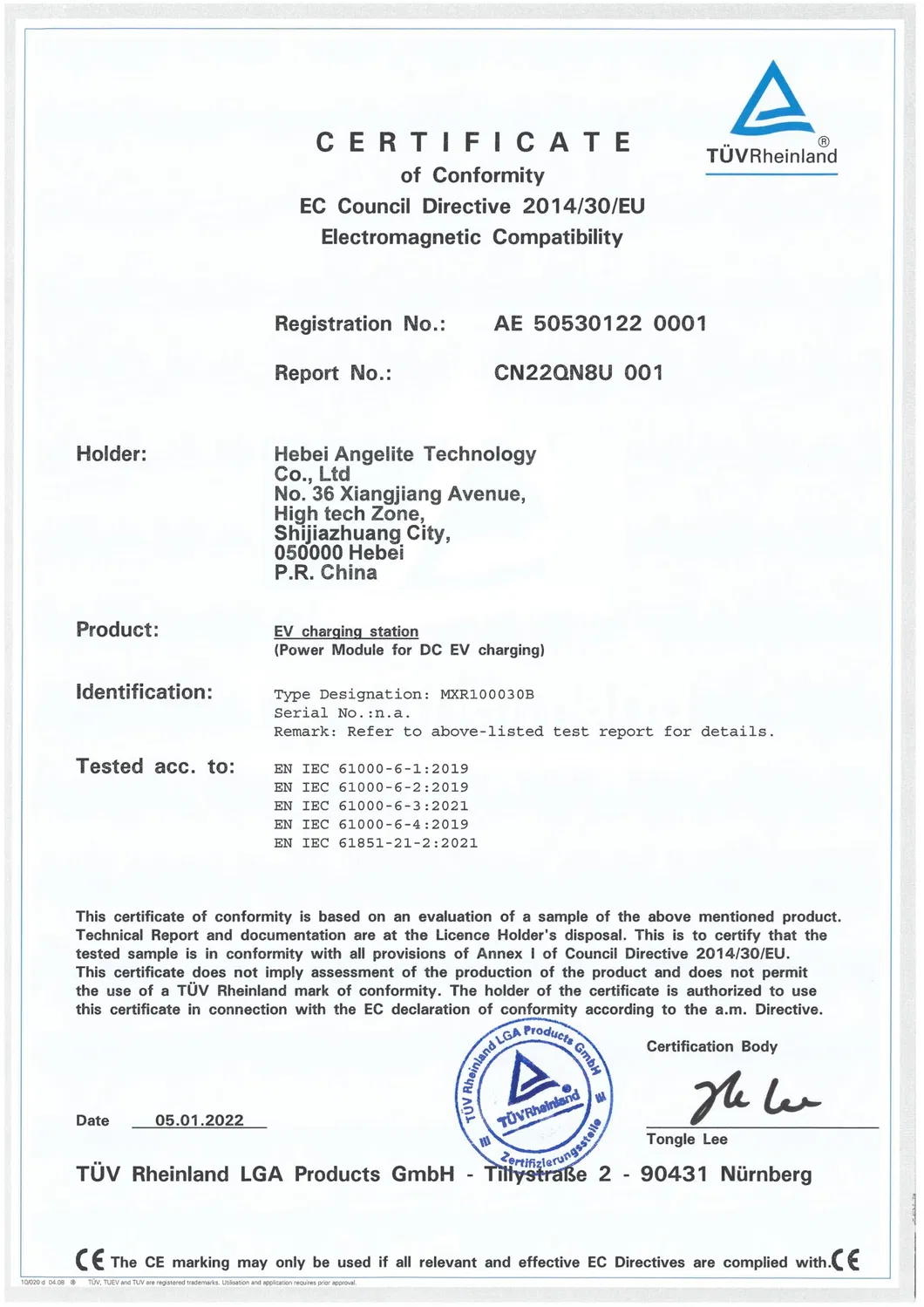

Certification 3

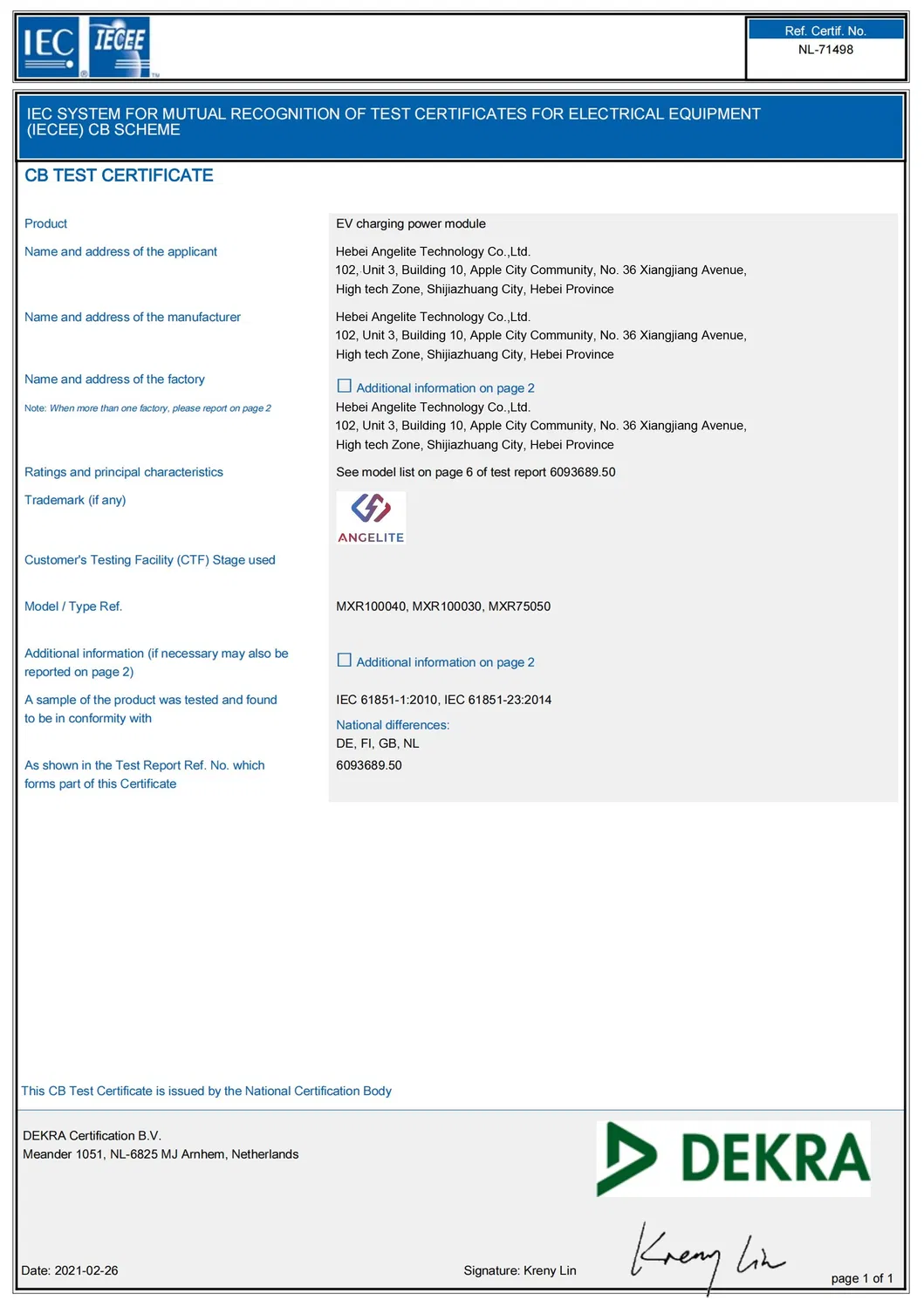

Certification 4

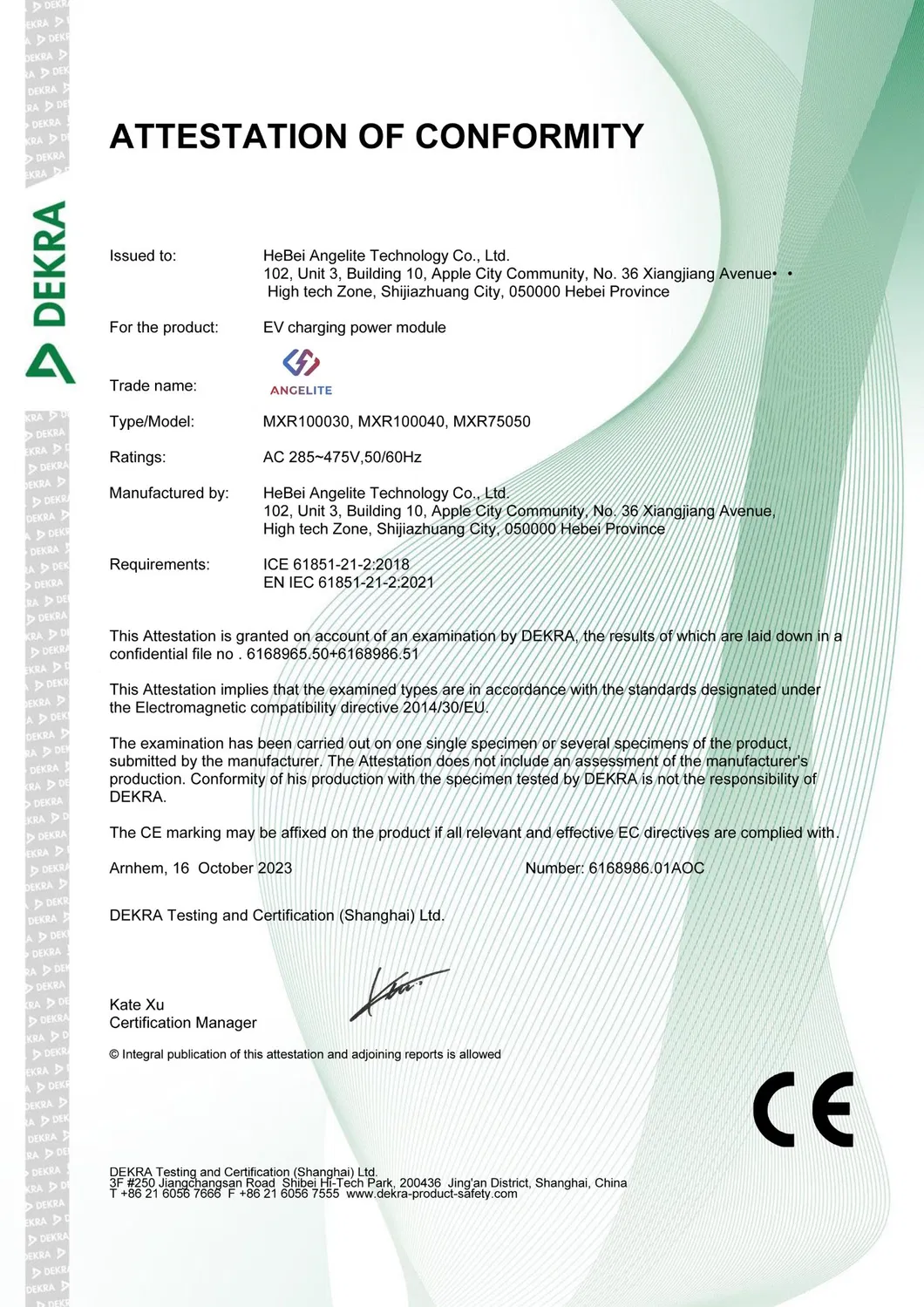

Certification 5

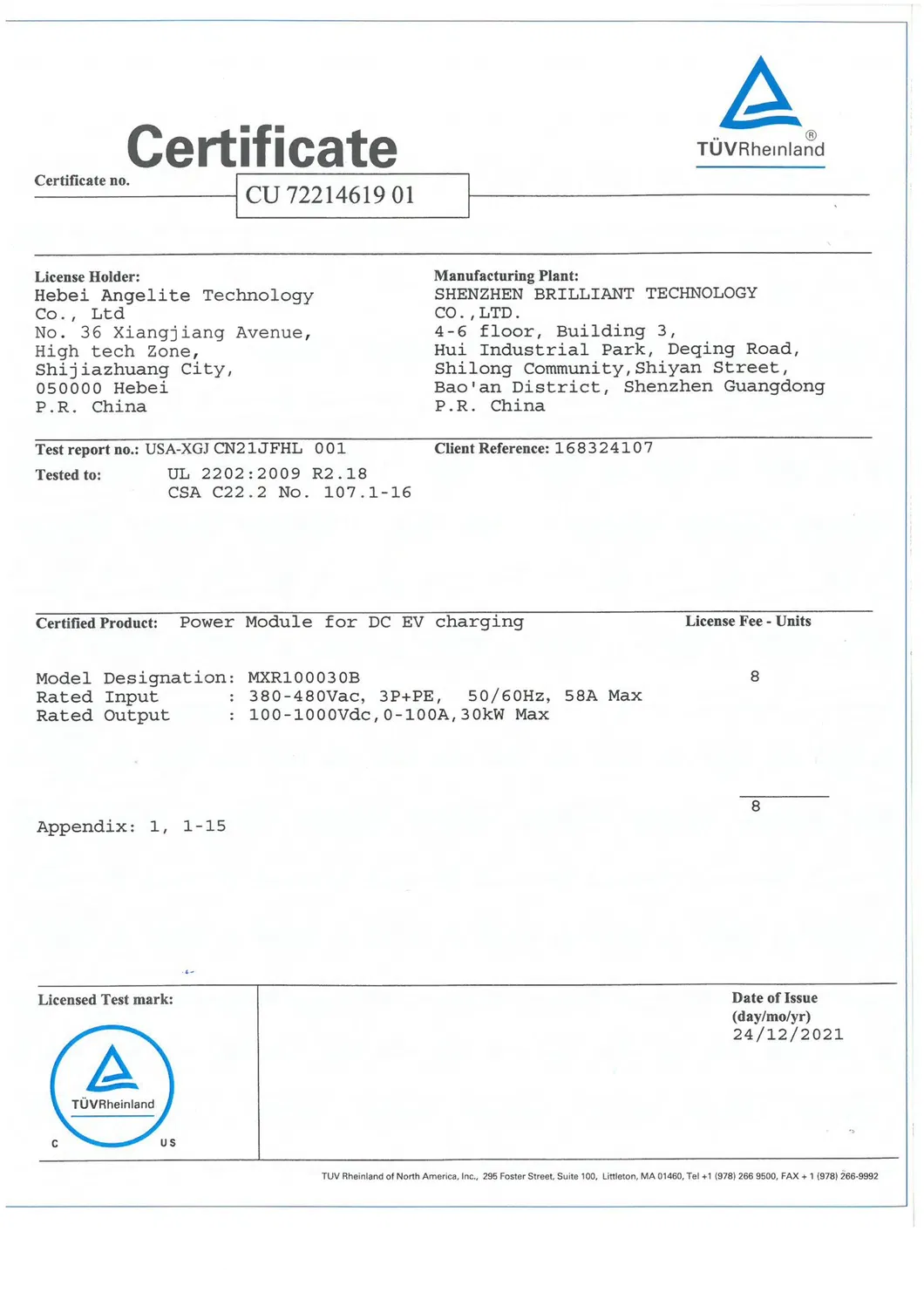

Certification 6

Packaging & Shipping

Packaging Process 1
Packaging Process 2
Packaging Process 3

Industry Expertise

Research and Development Center

We focus on the research and development, production, and sales of power electronic products, positioning services for mid-to-high-end DC power supply system manufacturers. Based on owning independent intellectual property rights, we insist on independent research and development and technological innovation to provide customers with high-value equipment supporting services.

Currently, our products are widely used in automotive, electric power, railway, metallurgy, communications, and other fields, with performance cases spread globally.

Frequently Asked Questions

Q1: What is the maximum output power of the MXR100040L?
The module provides a maximum output power of 40kW at output voltages up to 1000Vdc.
Q2: What are the main benefits of liquid cooling in this module?
Liquid cooling ensures high reliability, lower noise levels, and the ability to operate efficiently even at ultra-high full-load temperatures.
Q3: What is the input voltage range supported?
The module supports a wide input voltage range of 260-530Vac, designed for three-phase + PE power supplies.
Q4: Does the module support remote monitoring?
Yes, it supports CAN bus communication, allowing for mobile remote operation and real-time monitoring of charging parameters.
Q5: Is this module compatible with ultra-fast charging requirements?
Absolutely. With a 1000V maximum output and 40kW power density, it is ideal for modern high-speed DC EV charging infrastructure.
Q6: What certifications does the product hold?
The MXR100040L has cleared CE and TUV certifications with Class B level EMC performance.
