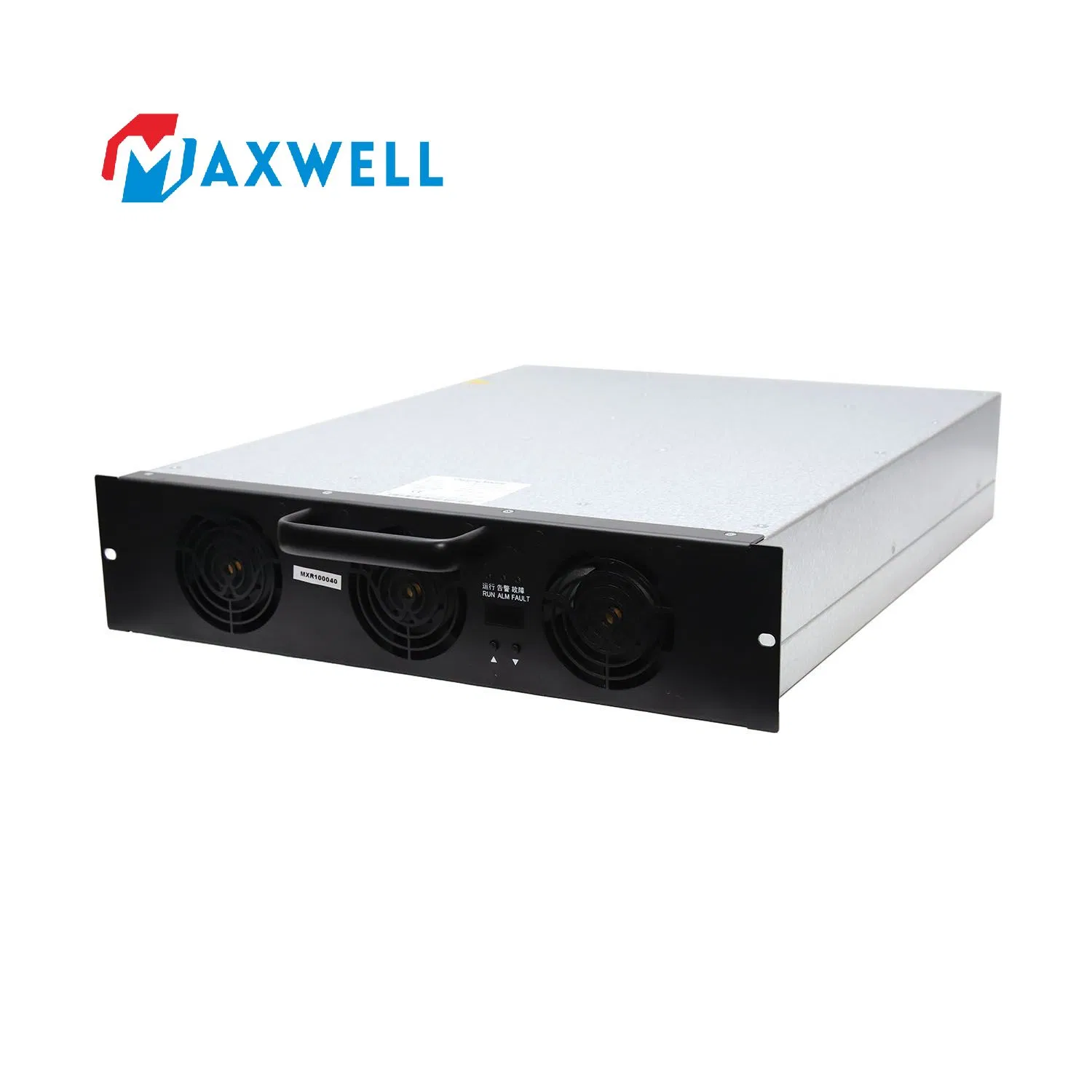

Electric Vehicle battery Charging Power Module 40kw EV Charging Converter

1 / 5

Electric Vehicle battery Charging Power Module 40kw EV Charging Converter

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

MXR100040

Installation

Wall Mounted

Charge Method

Quick Charge

Cooling Mode

Fan Cooling

Weight

21kg

Parallel Modules

60PCS

MTBF

500,000 Hours

Input Current

80A

Output Current

0~133.3A

Power Factor

0.99

Type

EV Charger Power Module

Certification

CE, ISO, TUV, RoHS

⚙️ Basic Specifications

Model	MXR100040
Efficiency (Full Load)	≥95.5%
Communication Protocol	CAN bus
Dimensions	85mm(H)360mm(W)459mm(D)
Input Voltage	285 Vac~475 Vac, 3 phase+PE
Output Voltage	100 Vdc~1000 Vdc
Output Derating	Above 60ºC

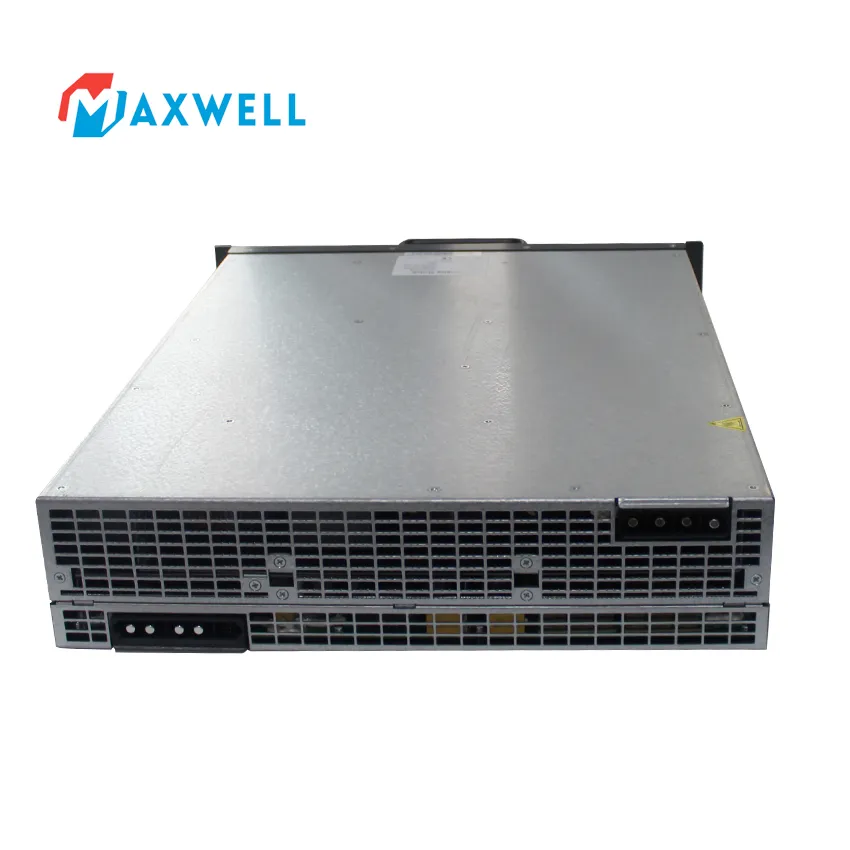

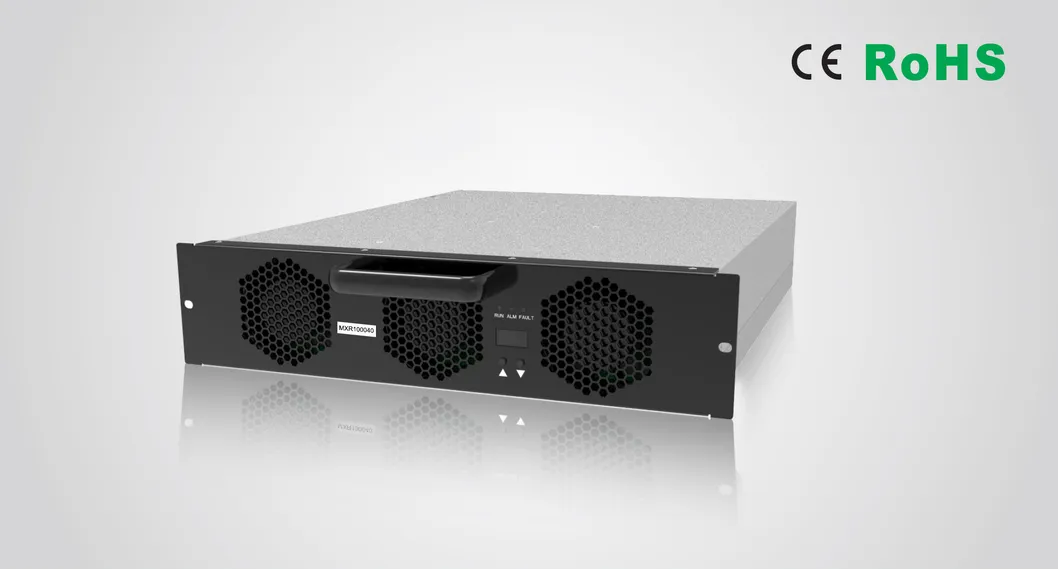

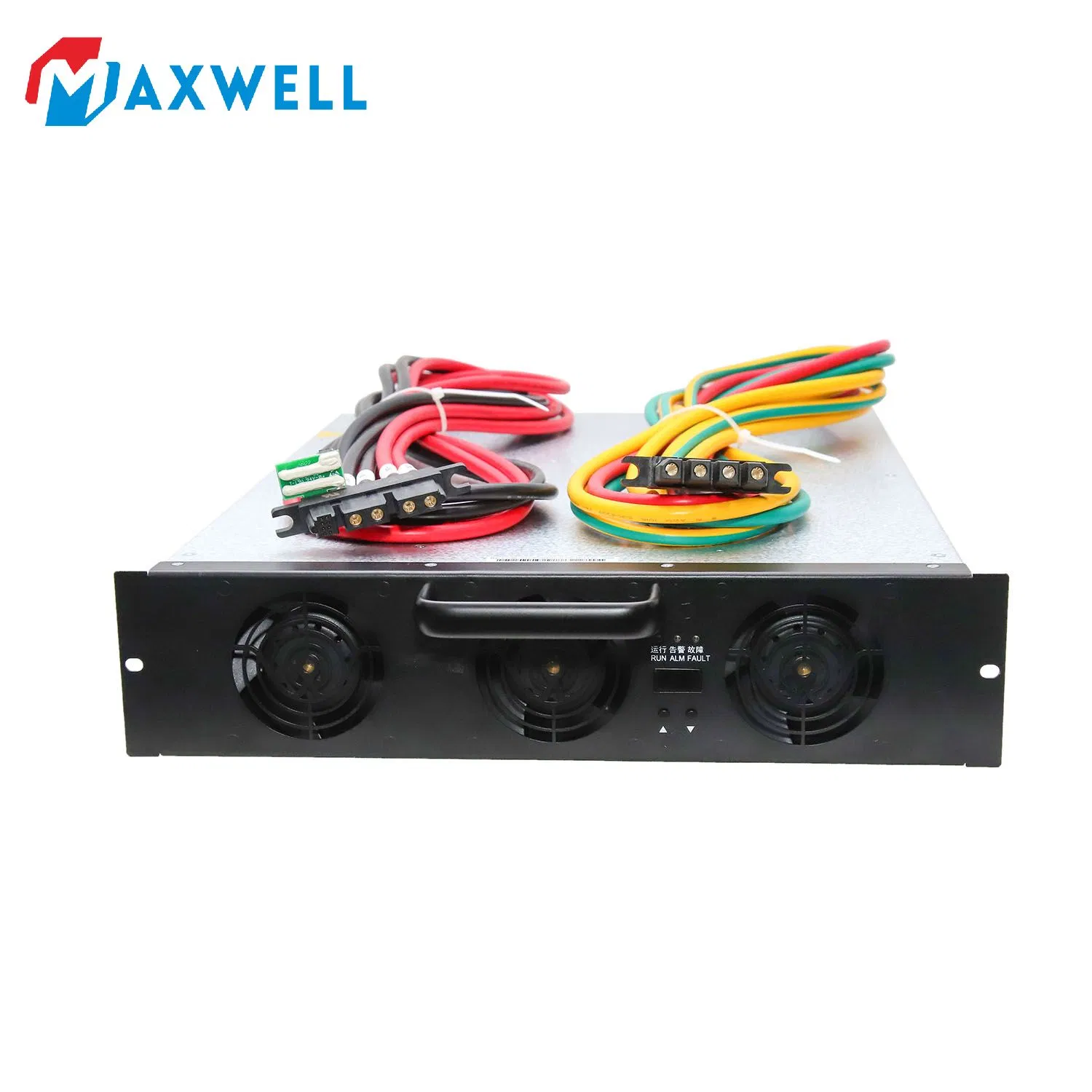

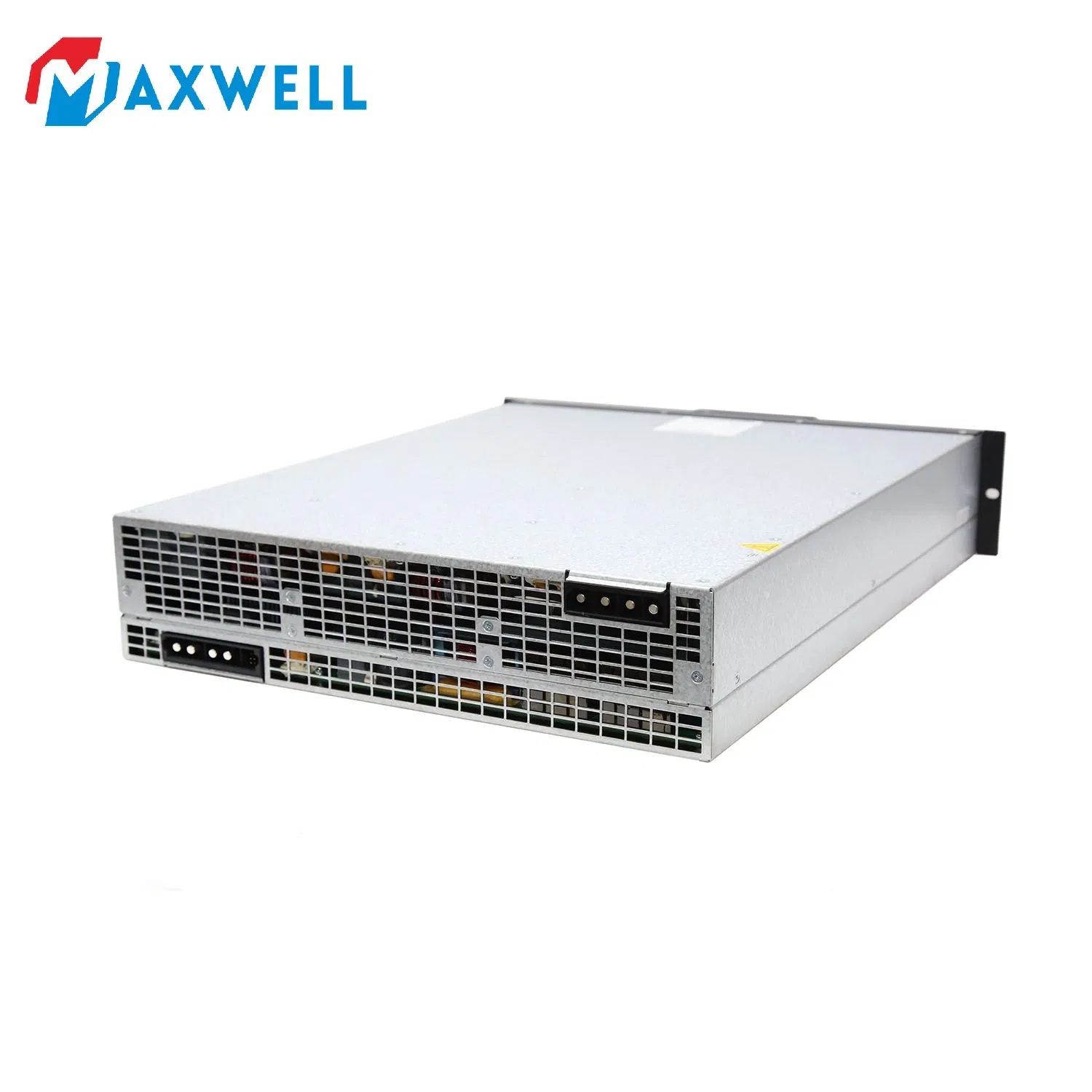

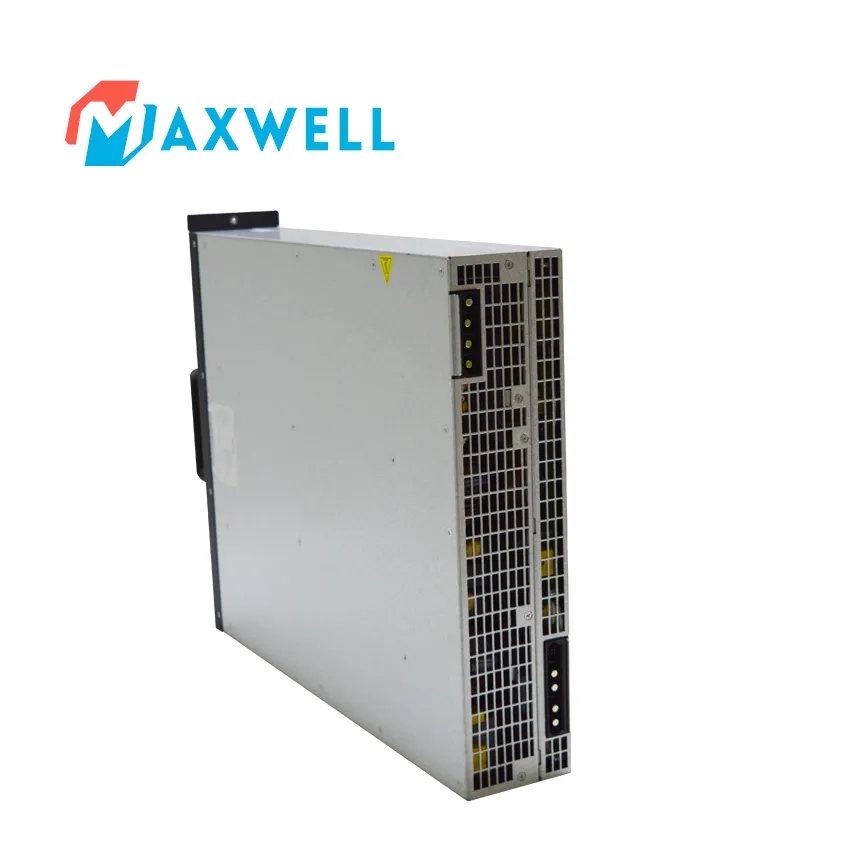

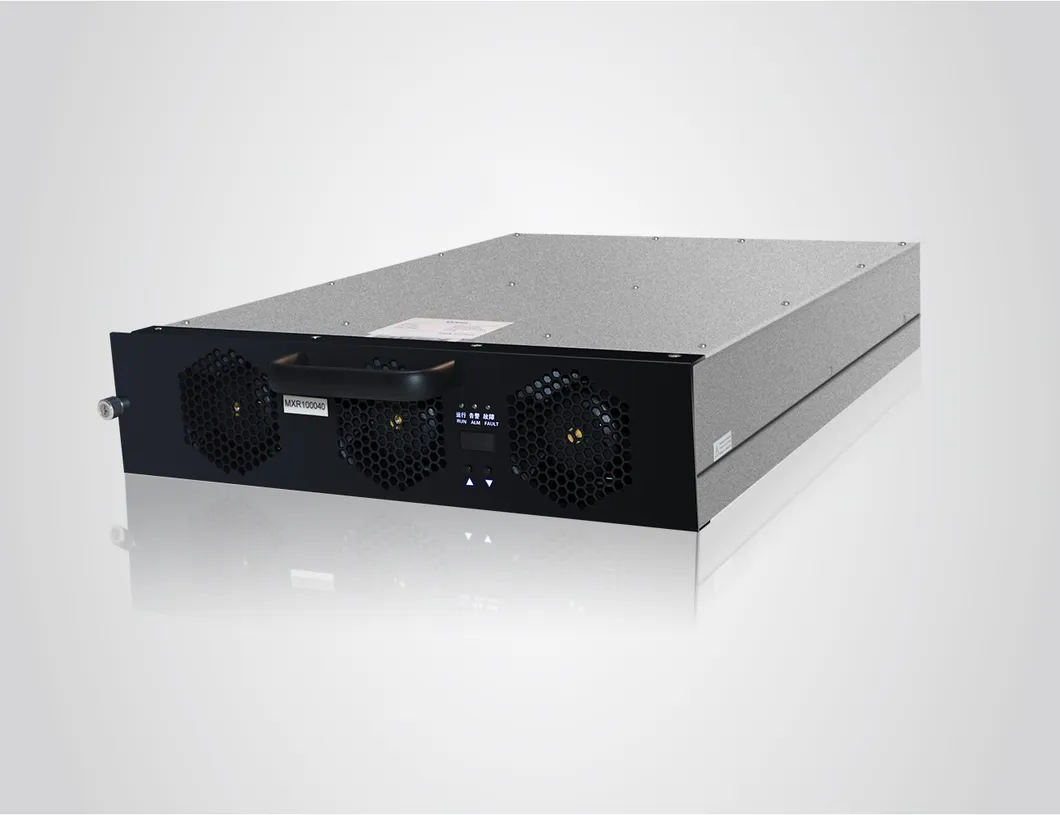

📷 Detailed Photos

💡 Function & Product Features

Hot Swap: Adopts plug-in technology for convenient installation and maintenance.
Current Sharing: Modules automatically share current with an unbalance degree of less than 3%.

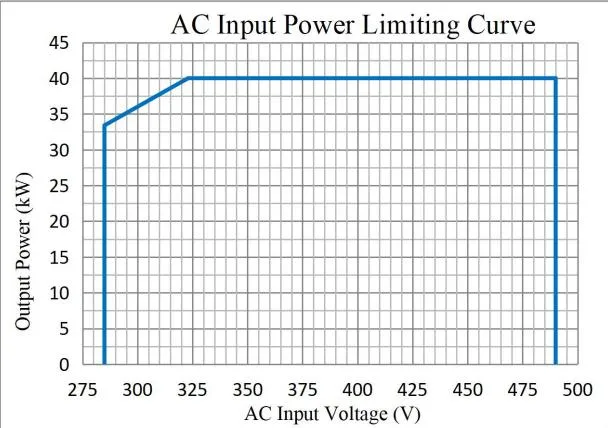

Input Limited Power Control: Maximum power output maintained between 323Vac and 475Vac.

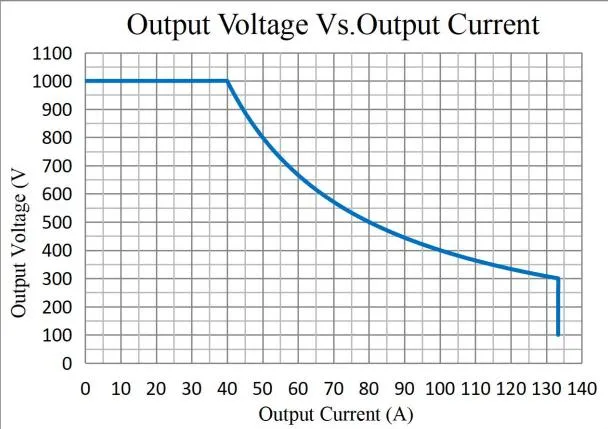

Output Constant Power Control: Rated output power of 40kW at allowable voltage ranges.

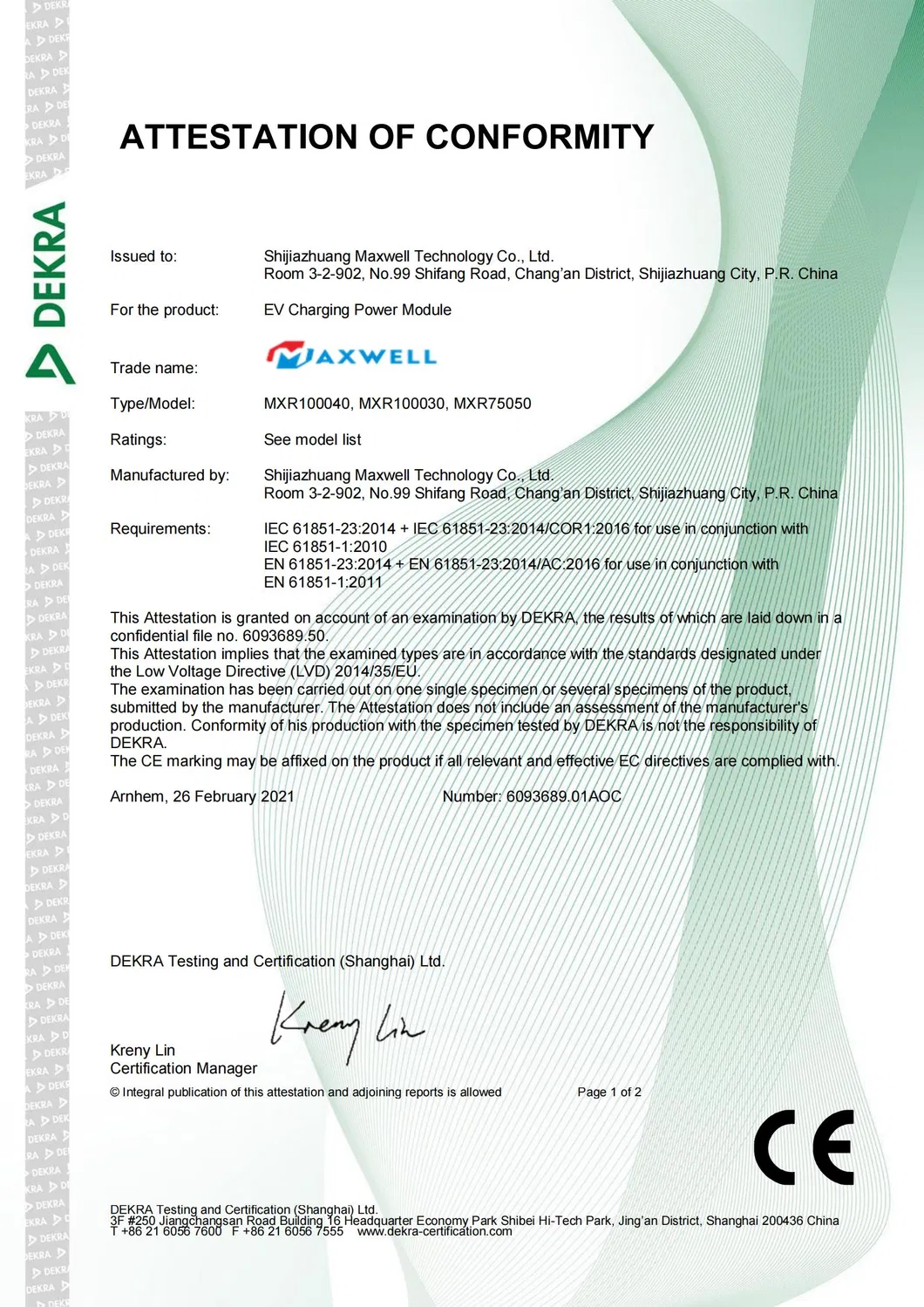

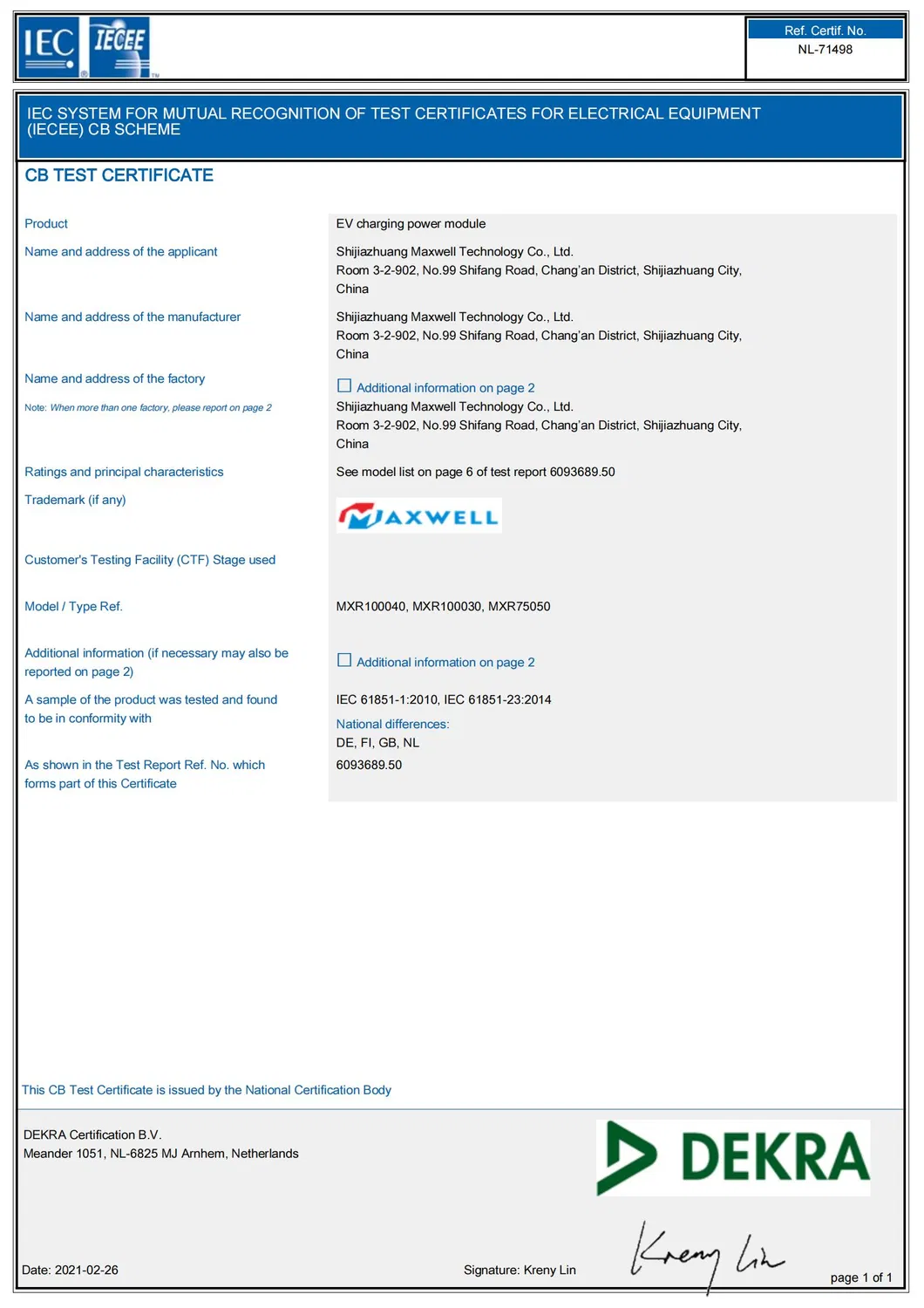

🏆 Certifications

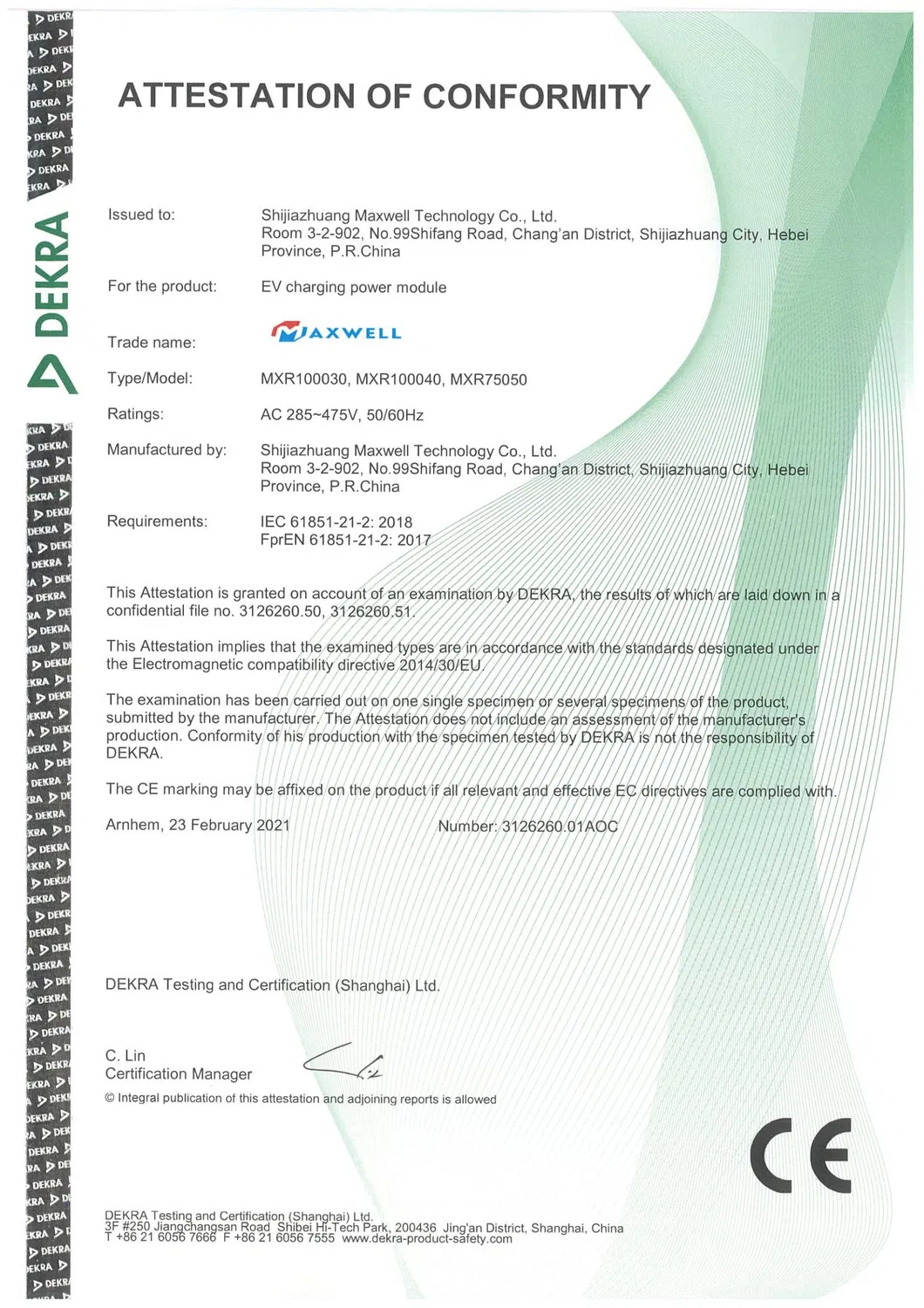

CE / TUV / EMC	EN IEC 61000-6-1:2019; EN IEC 61000-6-2:2019; EN IEC 61000-6-3:2021; EN IEC 61000-6-4:2019; EN IEC 61851-21-2:2021

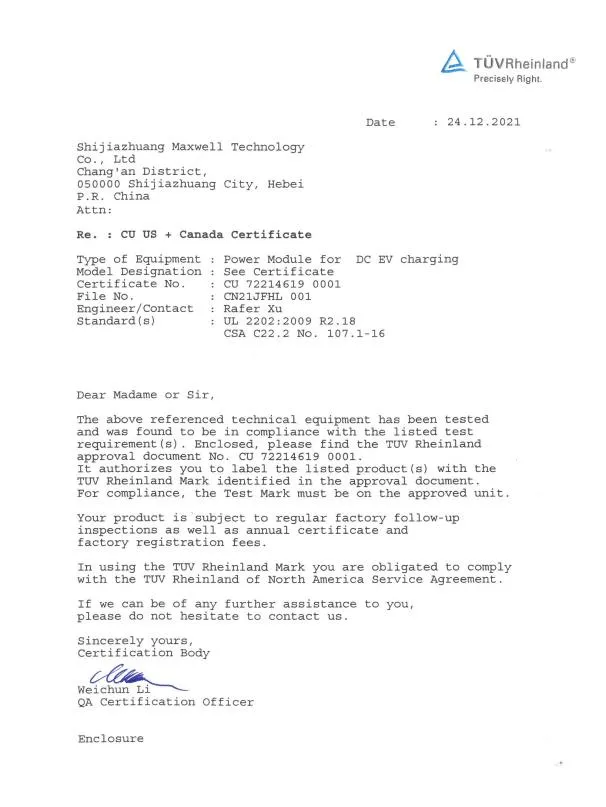

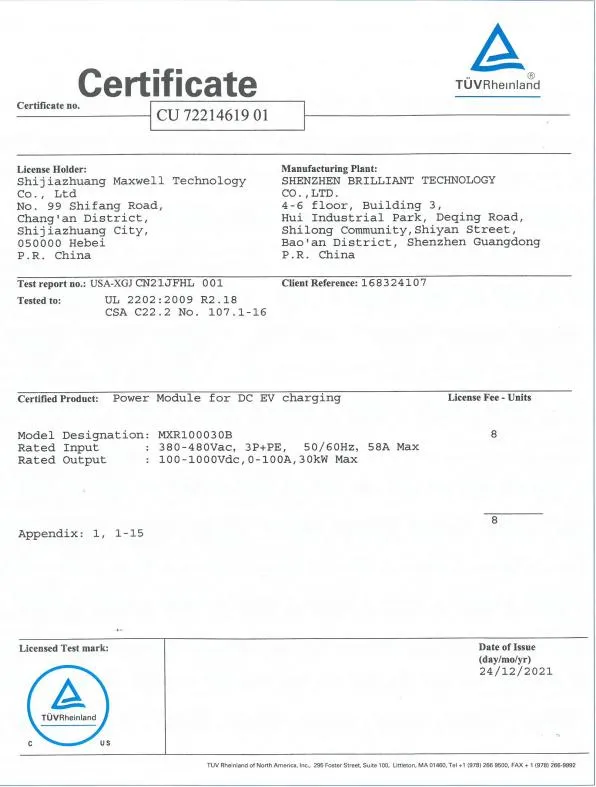

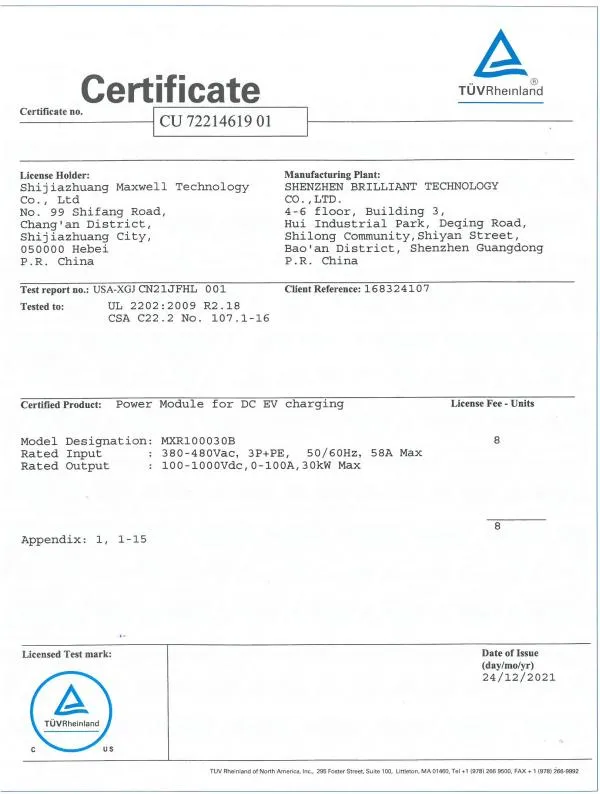

cTUVus	UL 2202:2009 R2.18; CSA C22.2 NO.107.1-16

📦 Packaging & Shipping

🏢 Industry Background

Established in 2009, the initial focus was on power converters for the power industry. Since 2014, strategic directions shifted towards photovoltaic, energy storage, and new energy sectors. Current product offerings for new energy charging include 1000V 20KW, 30KW, 40KW, and 50KW modules. Energy storage (V2G) solutions include the MXR80025, MXR75027, and MXC75050B models. The roadmap for the next 3-5 years involves continuous iteration of charging modules to meet evolving market needs.

🛠️ After Sales Service

Warranty Period: 12 Months

Support Terms: In the first 6 months, free replacement is provided for non-human damage (shared freight). During the second half of the year, free repair services are available. Technical assistance from engineers is provided throughout testing processes.

❓ Frequently Asked Questions

Q1: What is the maximum efficiency of the MXR100040 charging module? A: The module reaches a full-load efficiency of ≥95.5%.

Q2: How many modules can be connected in parallel? A: Up to 60 units can be connected in parallel to meet high-power requirements.

Q3: Is the charging module easy to maintain? A: Yes, it features hot-swap plug-in technology, making installation and maintenance extremely simple.

Q4: What happens if the output temperature exceeds 60ºC? A: The module includes an output derating function when temperatures rise above 60ºC to ensure system safety.

Q5: What are the main certifications for this product? A: The module is certified by CE, TUV, ISO, RoHS, and cTUVus (UL 2202 standards).

Q6: What is the MTBF (Mean Time Between Failures) for this module? A: The MTBF is rated at 500,000 hours, ensuring long-term reliability.
