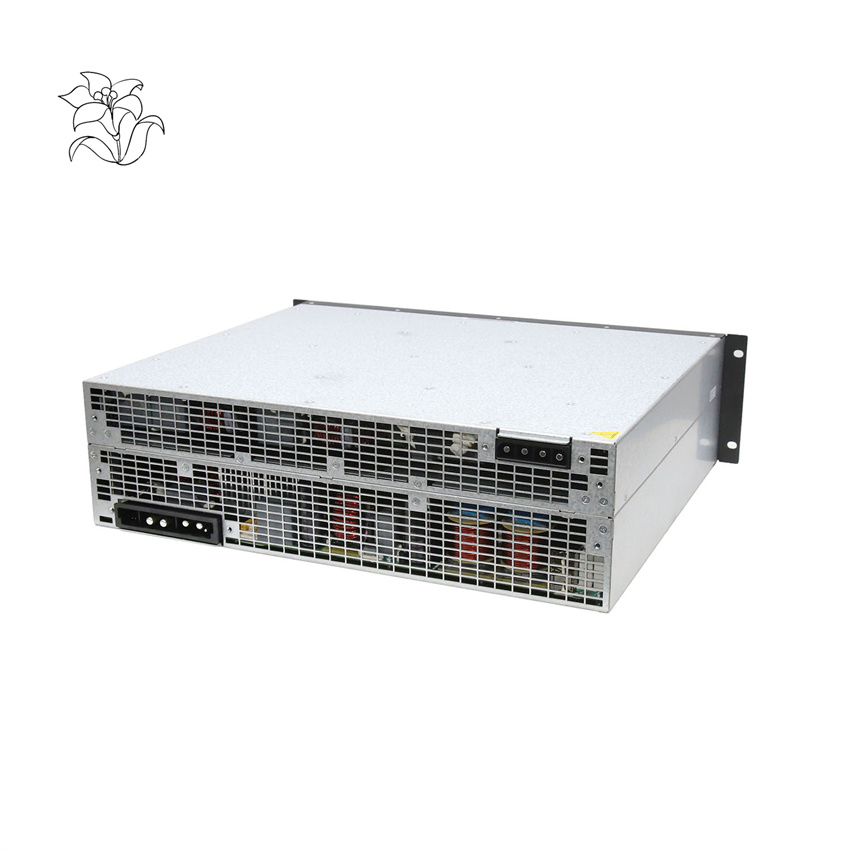

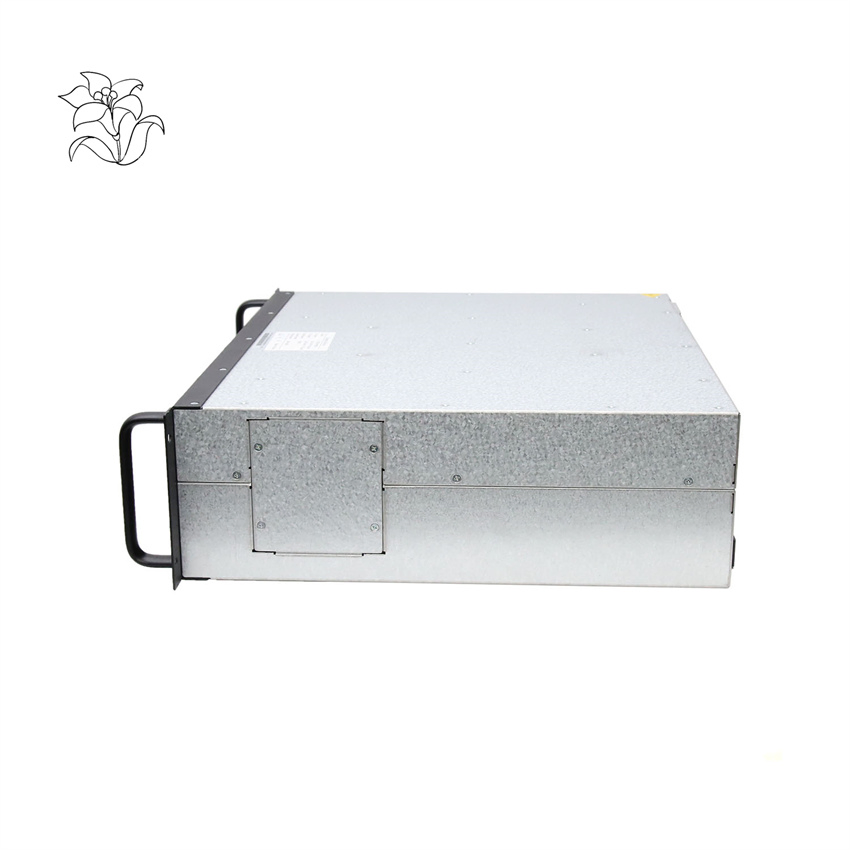

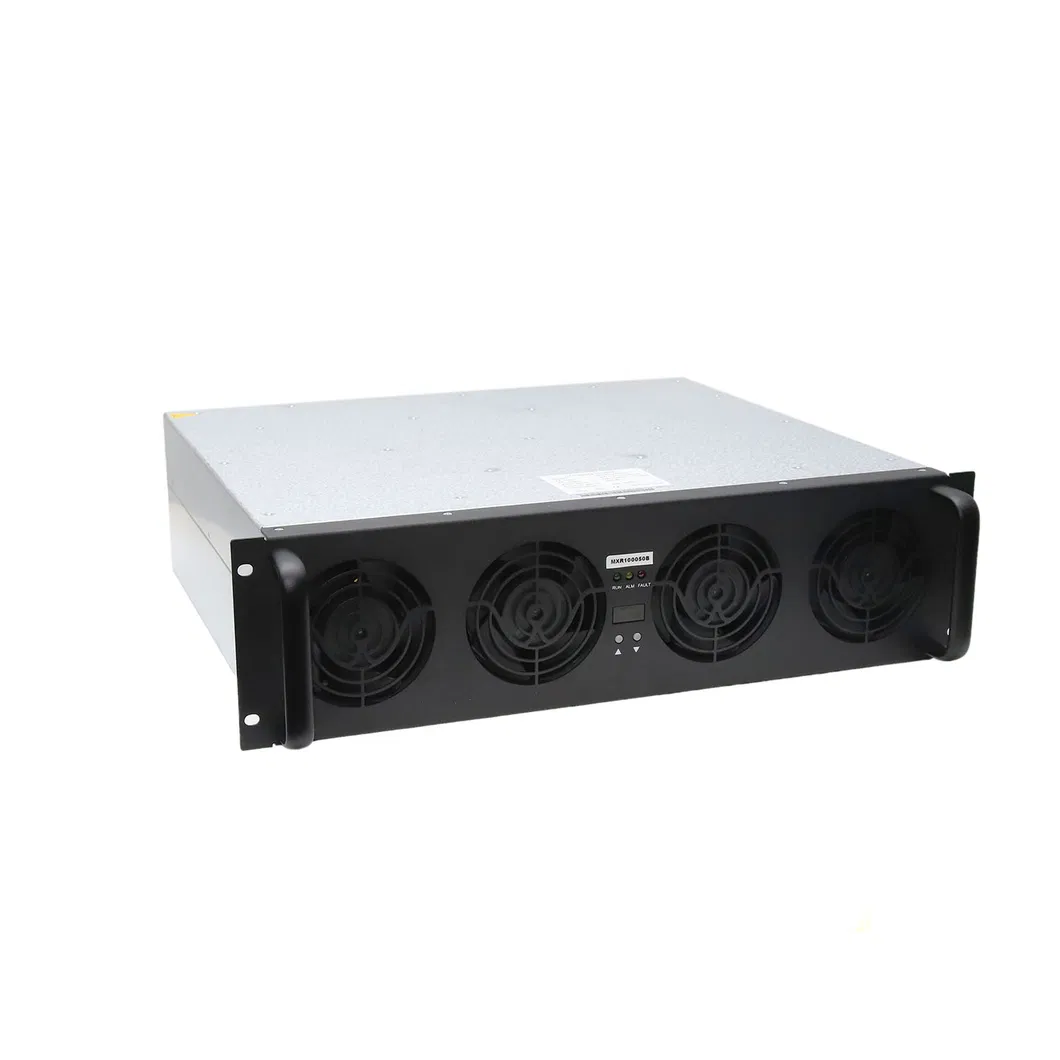

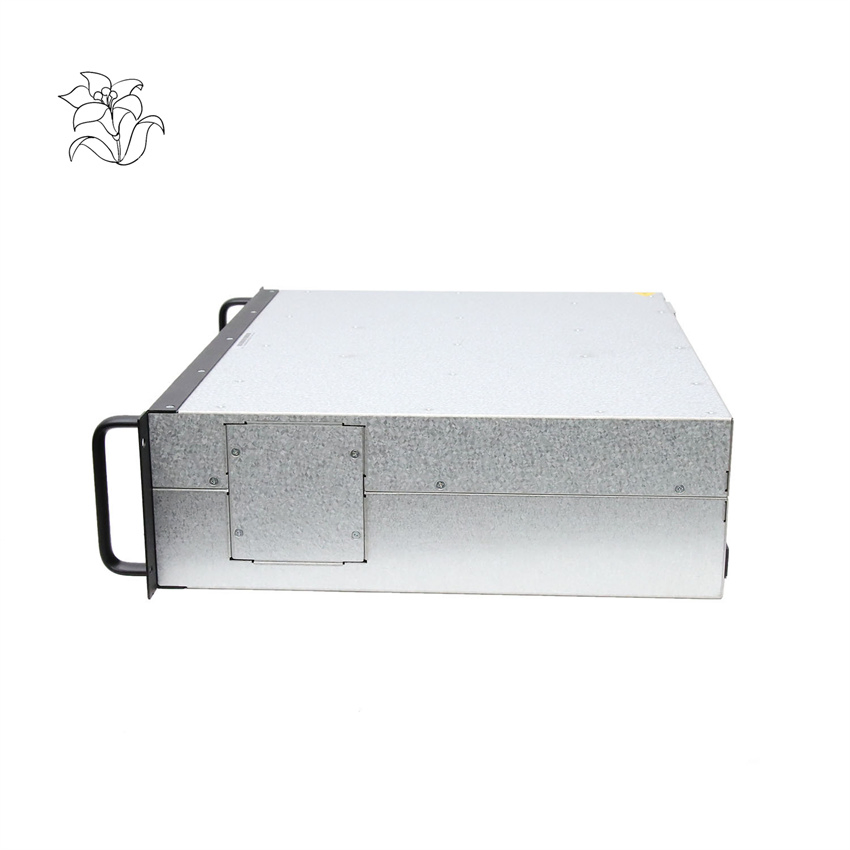

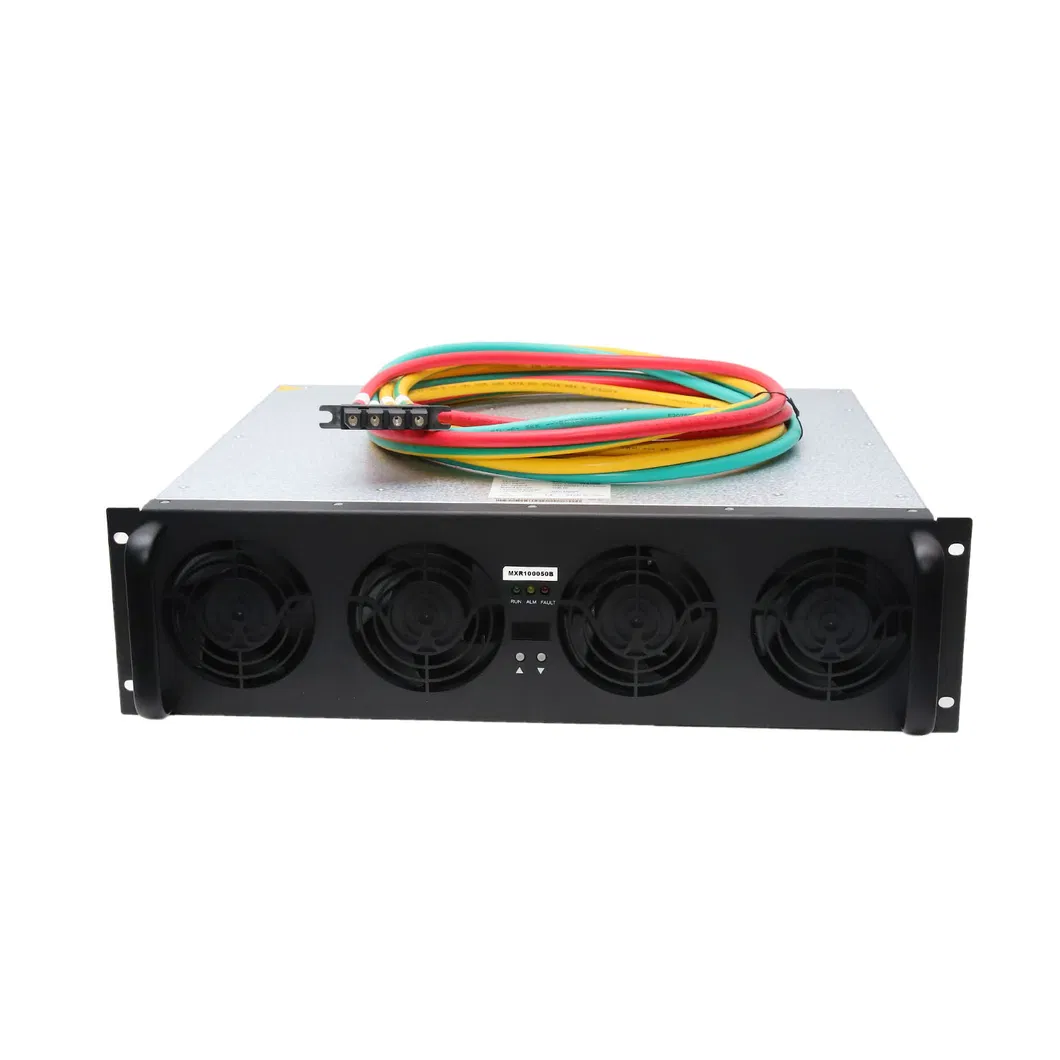

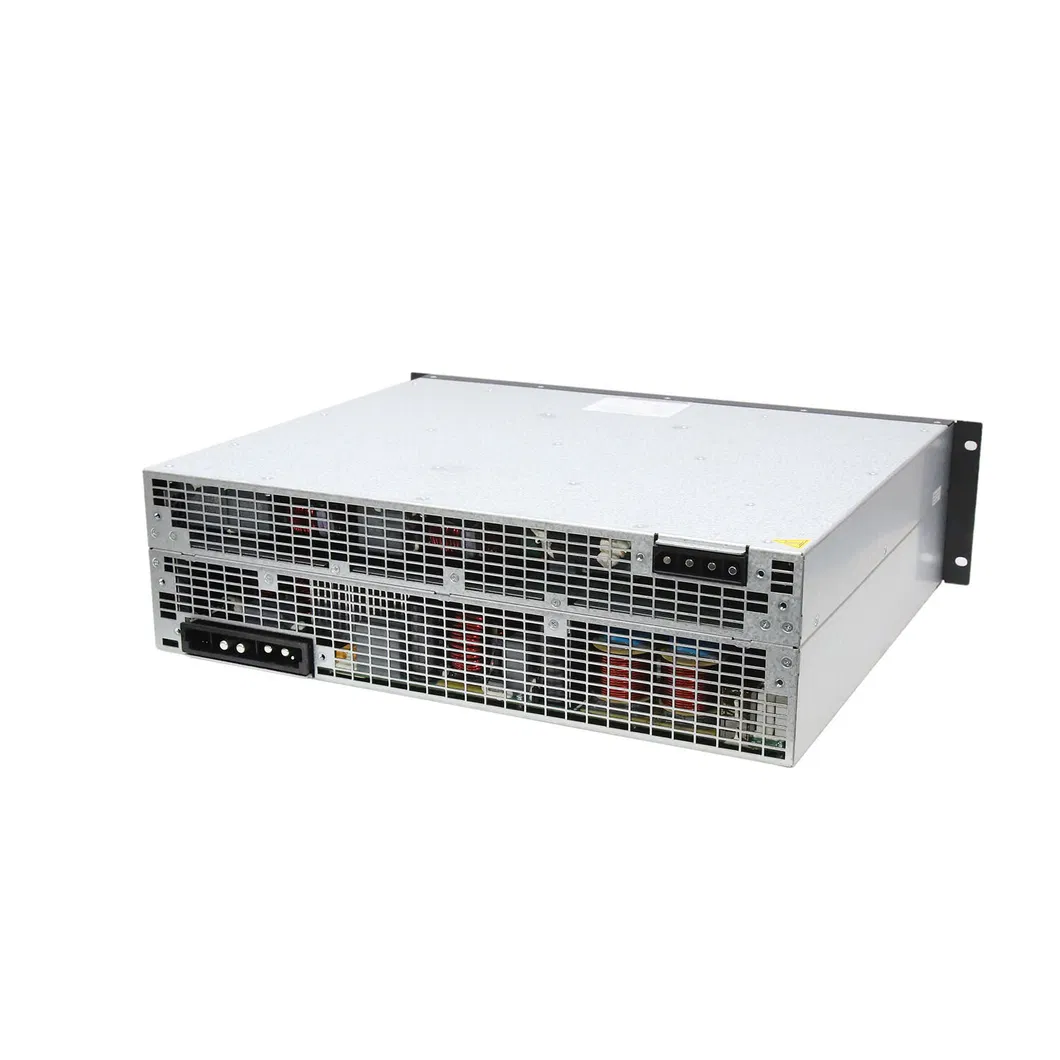

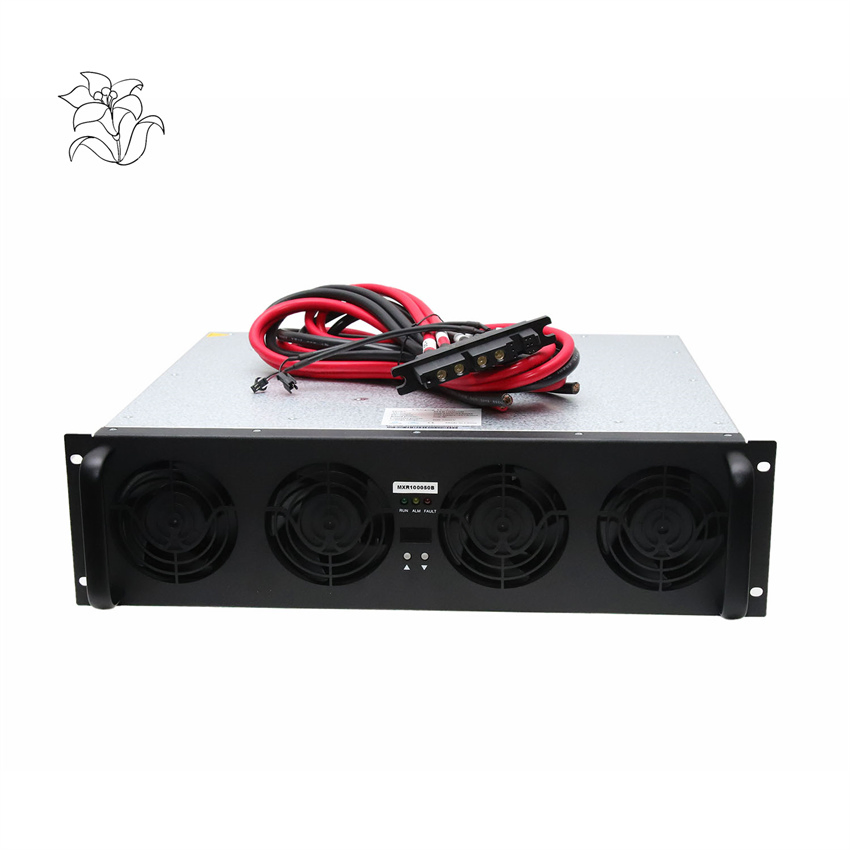

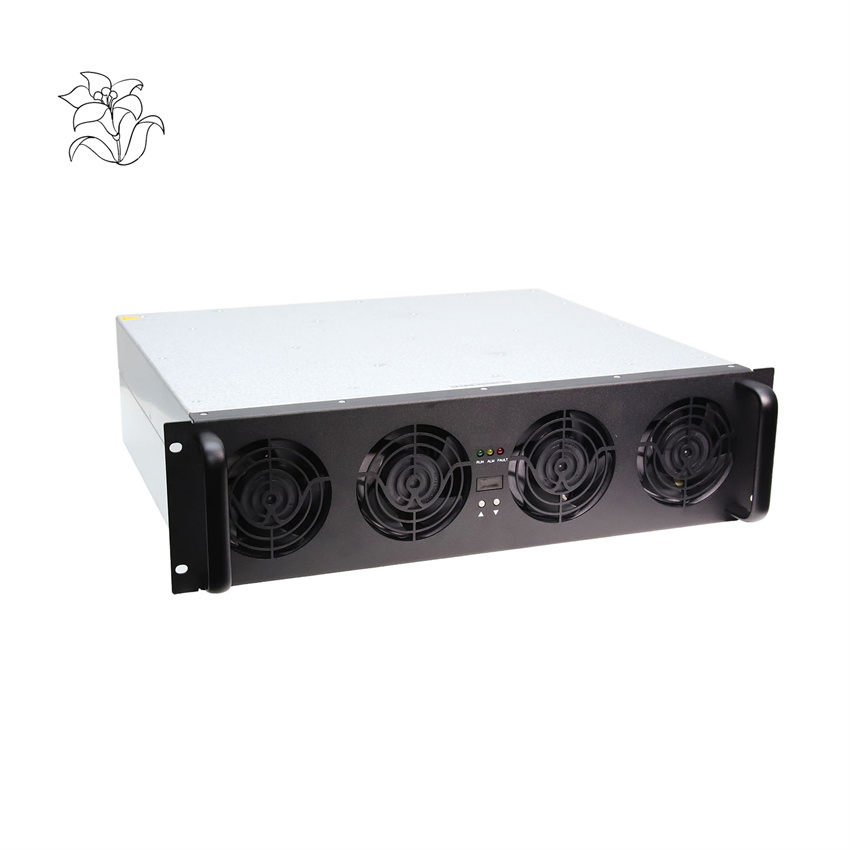

50kw 1000V Acdc Power Module EV Charging Station CE UL Certified

Basic Info

Model NO.	MXR100050B
Charging Interfaces	Can Bus
Location	Public Use
Installation	Floor Type
Charge Method	Quick Charge
Input Voltage	260VAC-530VAC
Output Voltage	0-1000VDC
Output Current	167A
Power Supply	3phase+PE
Product Name	EV DC Charging Module
Communication Mode	Can Bus
Parallel Quantity	Max Number 60 Units
Type	Fast EV Charging Station
Warranty	12 Months
Specification	125440380 mm
HS Code	8504409999
Production Capacity	10,000/PCS Per Month

Product Parameters

MXR40050B is a charging power module developed for the shortage of charging pile industry. It has prominent advantages in the two major industries of ultra-high full-load operating temperature and ultra-wide constant power range.

Power Range
Output Power	15KW	20KW	30KW	40KW	50KW
Product Type	AC-DC, DC-DC, Bidirectional Power Module, Liquid Cooling Module

Input Characteristics

Item	Parameters
Input Voltage	260Vac-530Vac, three-phase+PE
Input Current	<100A
Grid frequency	45Hz-65Hz
Power Factor	>0.99 (Load >50%)
ITHD	<5% (Load >50%)

Output Characteristics

Item	Parameters
Output Power	50kw
Voltage Range	0-1000Vdc
Current Range	0-167A continuously adjustable
Voltage Regulation accuracy	≤±5%
Stabilized Current accuracy	≤±1% (Output current ≥20% Max current)
Ripple Peak-to-Peak	<1%
Current Imbalance	≤±5% (Output current ≥50% Max current)

Certifications

Packaging & Shipping

Generally, we pack our goods in kraft carton with pallets or not. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Package Size	56.00cm * 52.00cm * 39.00cm
Package Gross Weight	35.000kg

Frequently Asked Questions

1) Can you explain the differences of global DC fast charging standards?

Till now, there are 5 kinds of DC fast charging standards: CCS-1, CCS-2. CHAdeMO, GB/T and other.

2) If we purchase your EV DC charger module, how to get your after-sales support?

Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work. When encountering an urgent situation, we will also send professional technicians to provide on-site support.

3) What are your customized services?

We provide various OEM and ODM solutions, details to be based on customer's requirements.

4) What is your terms of payment?

T/T in advance or Irrevocable L/C at sight.

5) How about your delivery time?

The delivery would be made with 2-3 weeks after the order to be confirmed.
