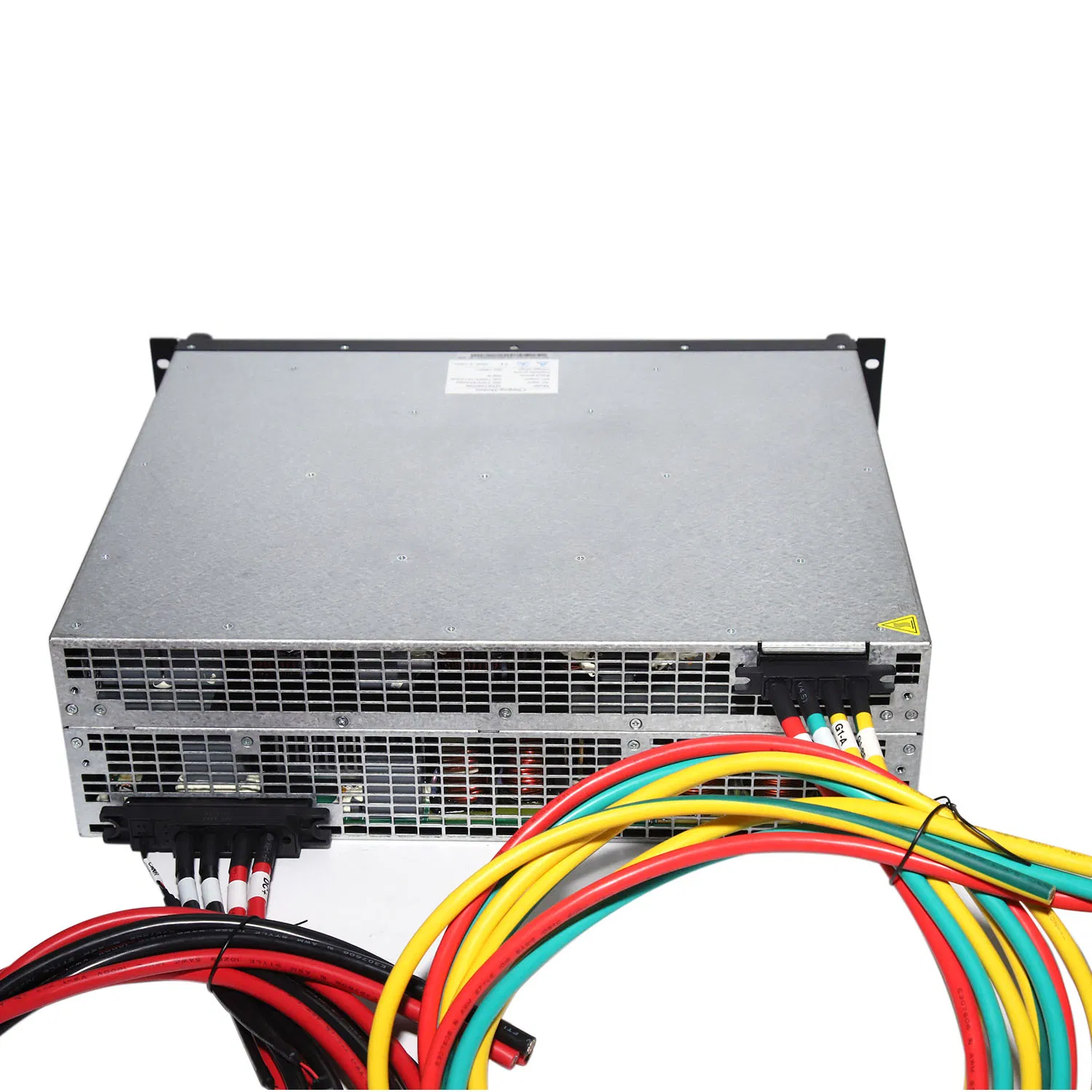

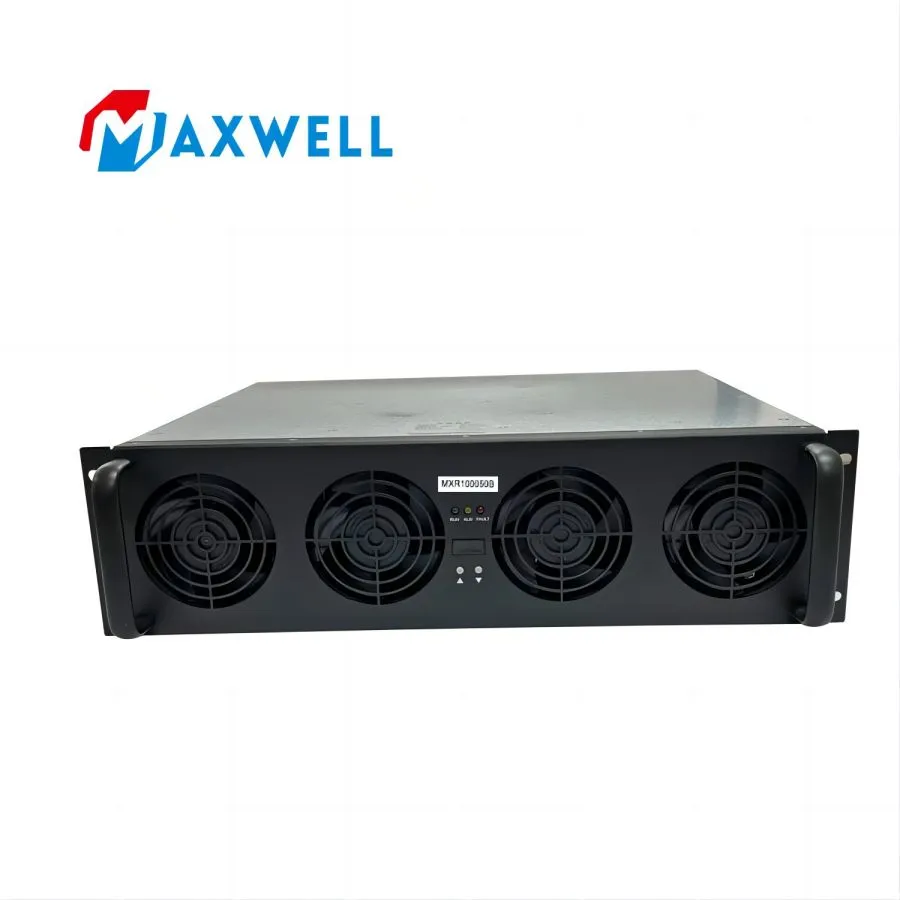

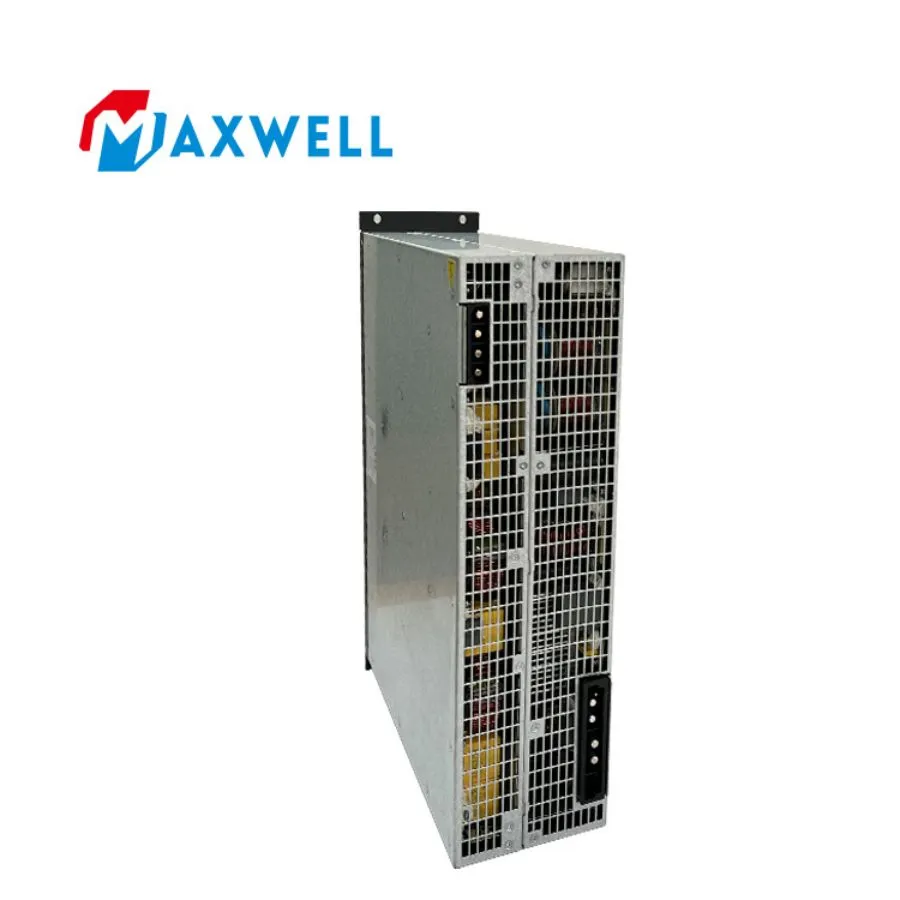

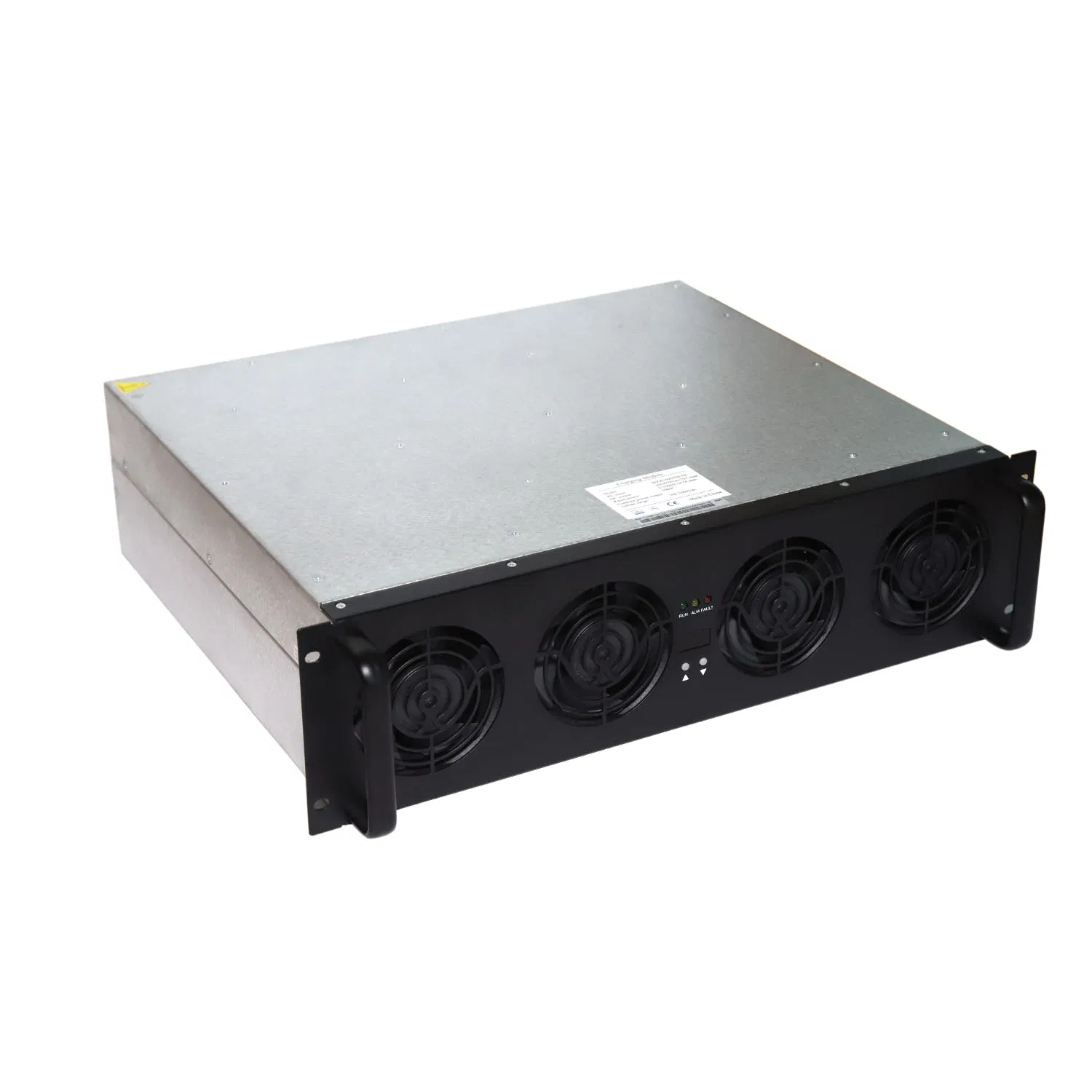

Zap Charger
1 / 5
| Parameter | Details |
|---|---|

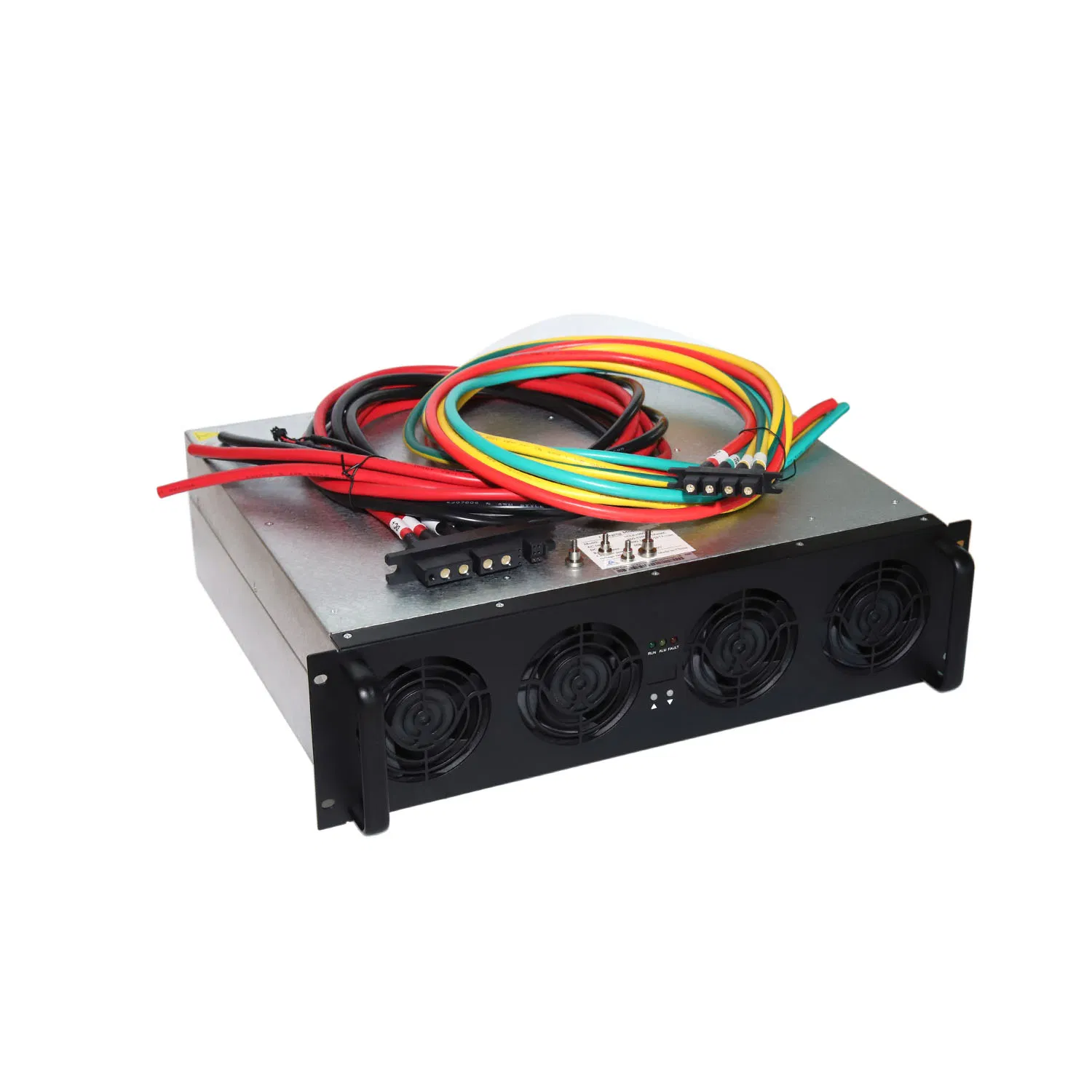

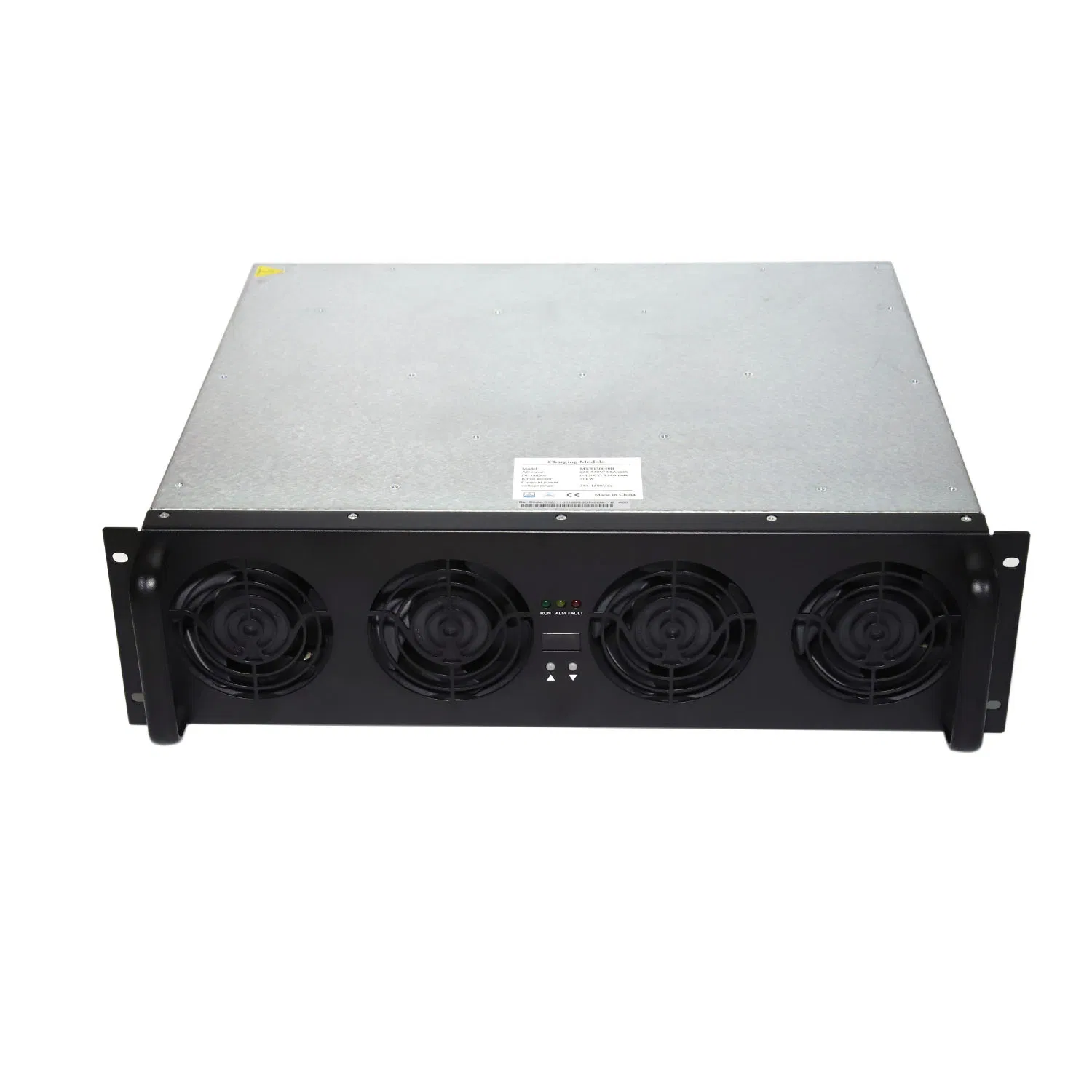

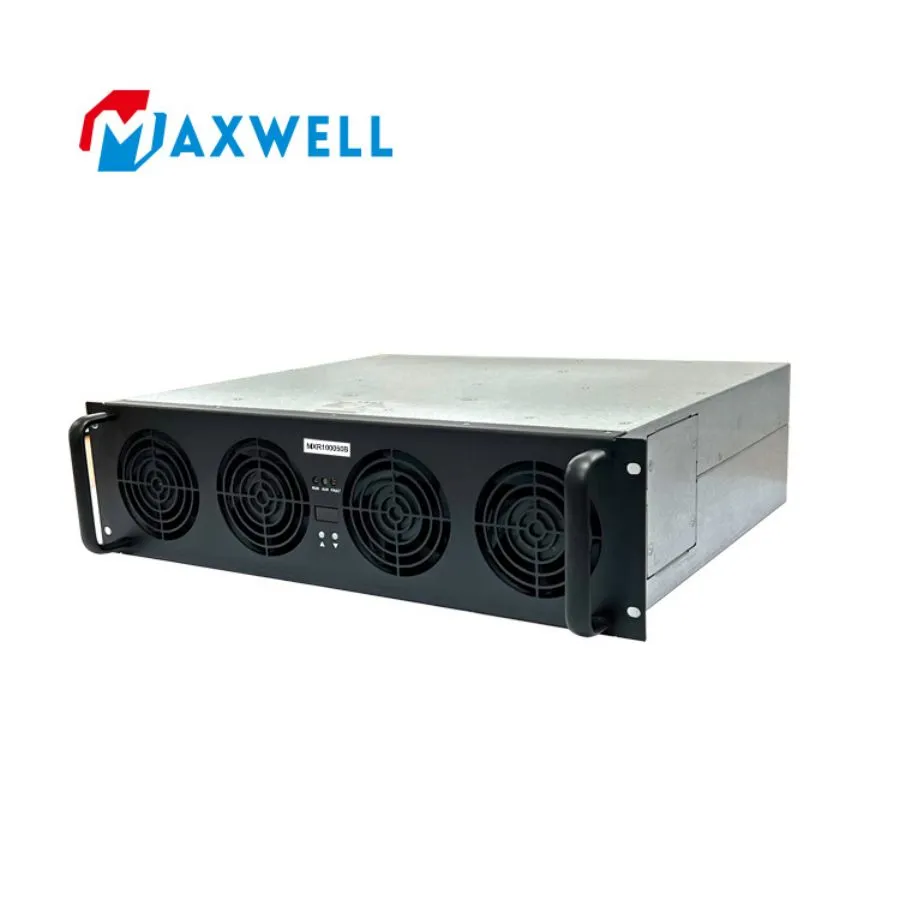

| Model | MXR150050B |
| Efficiency (Full Load) | ≥95.5% |
| Communication Protocol | CAN bus |
| Dimensions | 125mm(H)*440mm(W)*410mm(D) |
| Input Voltage | 260 Vac~530 Vac, 3 phase+PE |

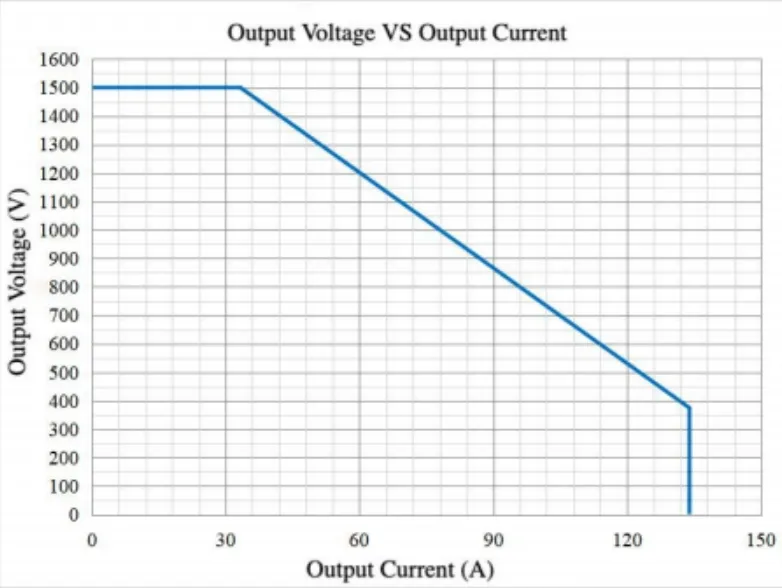

| Output Voltage | 0 Vdc~1500 Vdc |
| Output Derating | Above 55ºC |
1. Hot Swap Technology: The charging module utilizes advanced plug-in technology, ensuring high convenience for both installation and routine maintenance.
2. Precision Current Sharing: Modules automatically balance current distribution with an unbalance degree of less than 5%.

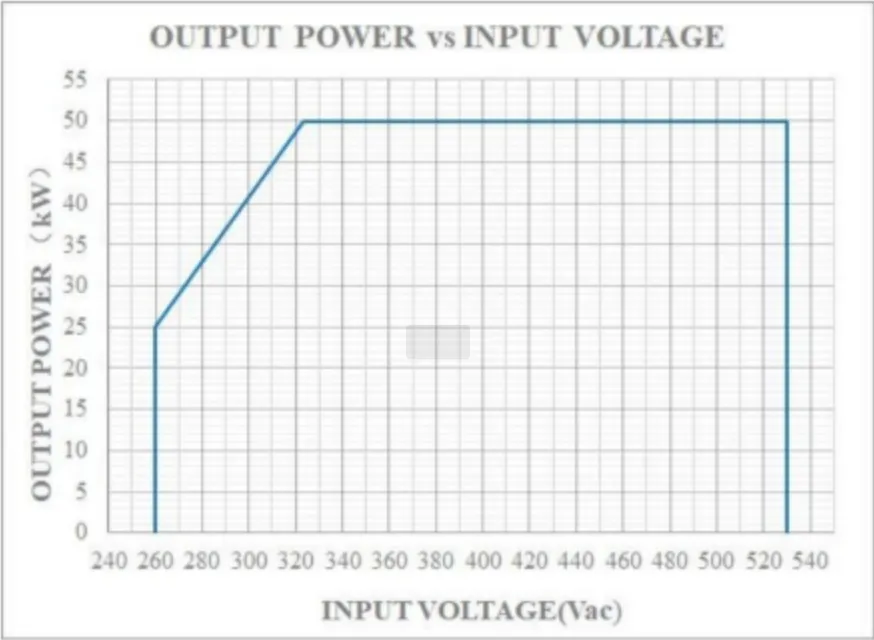

3. Intelligent Power Control: Between 323Vac and 530Vac input, the module maintains maximum power output. The MXR150050B provides a steady 50kW rated output power.

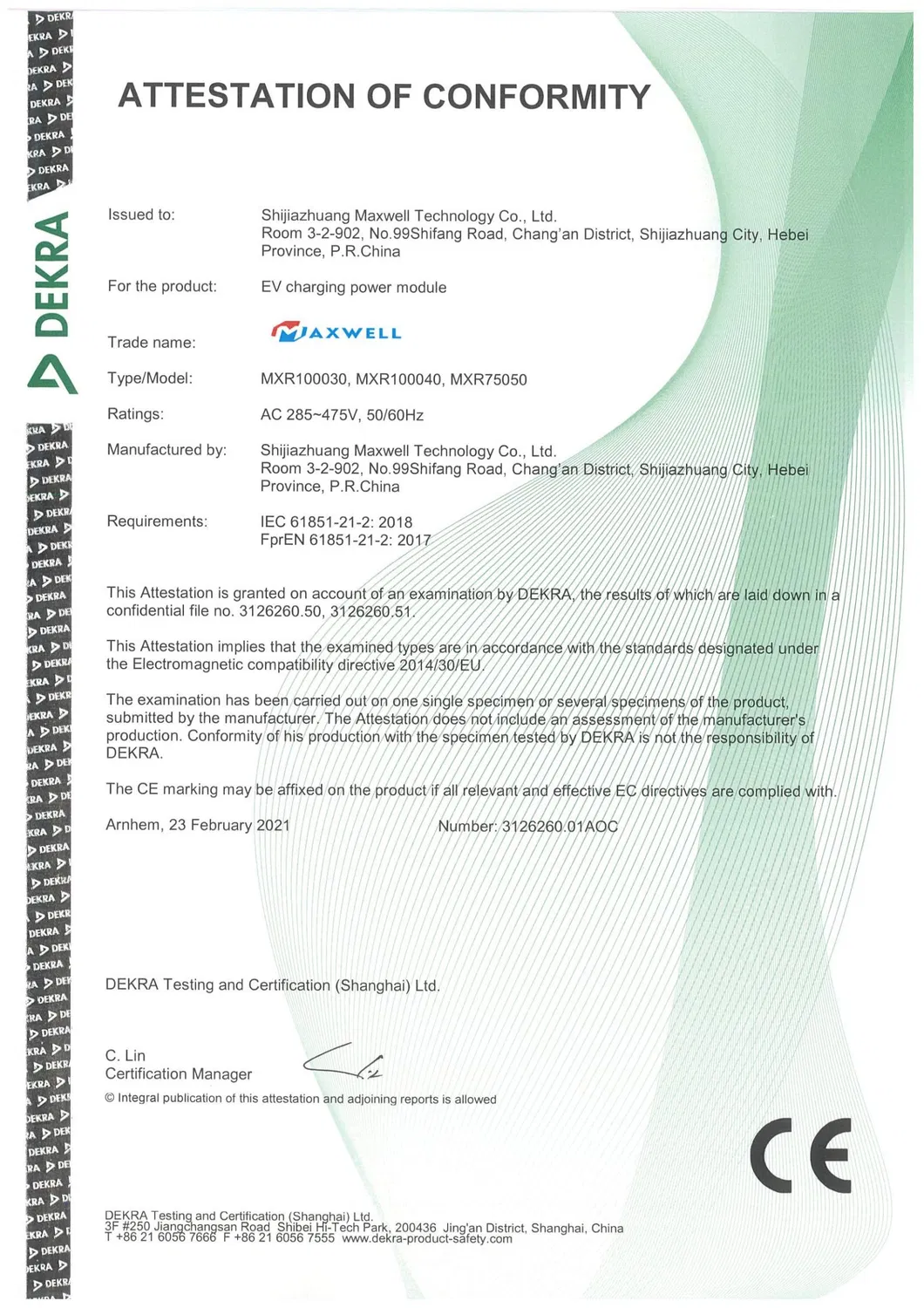

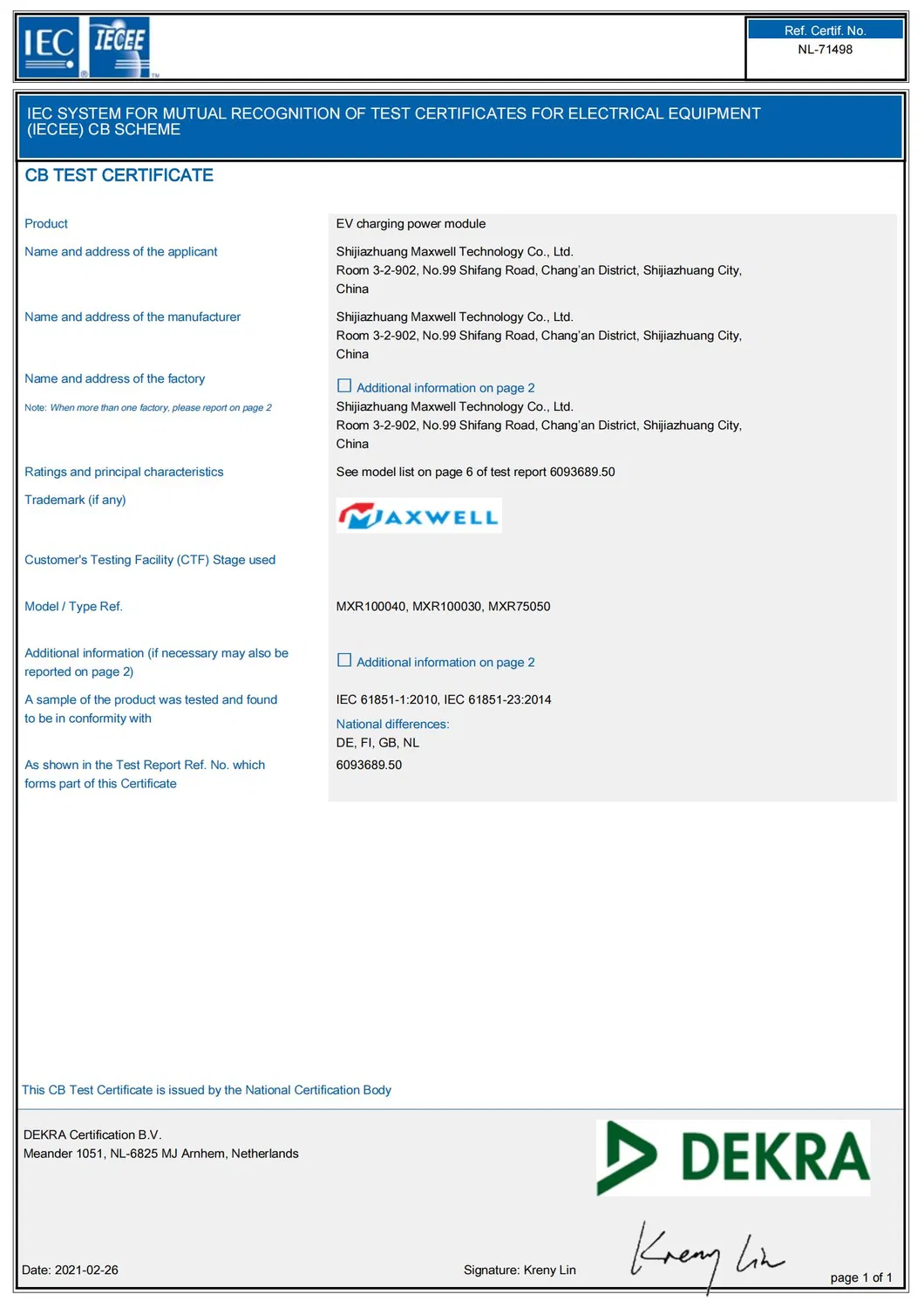

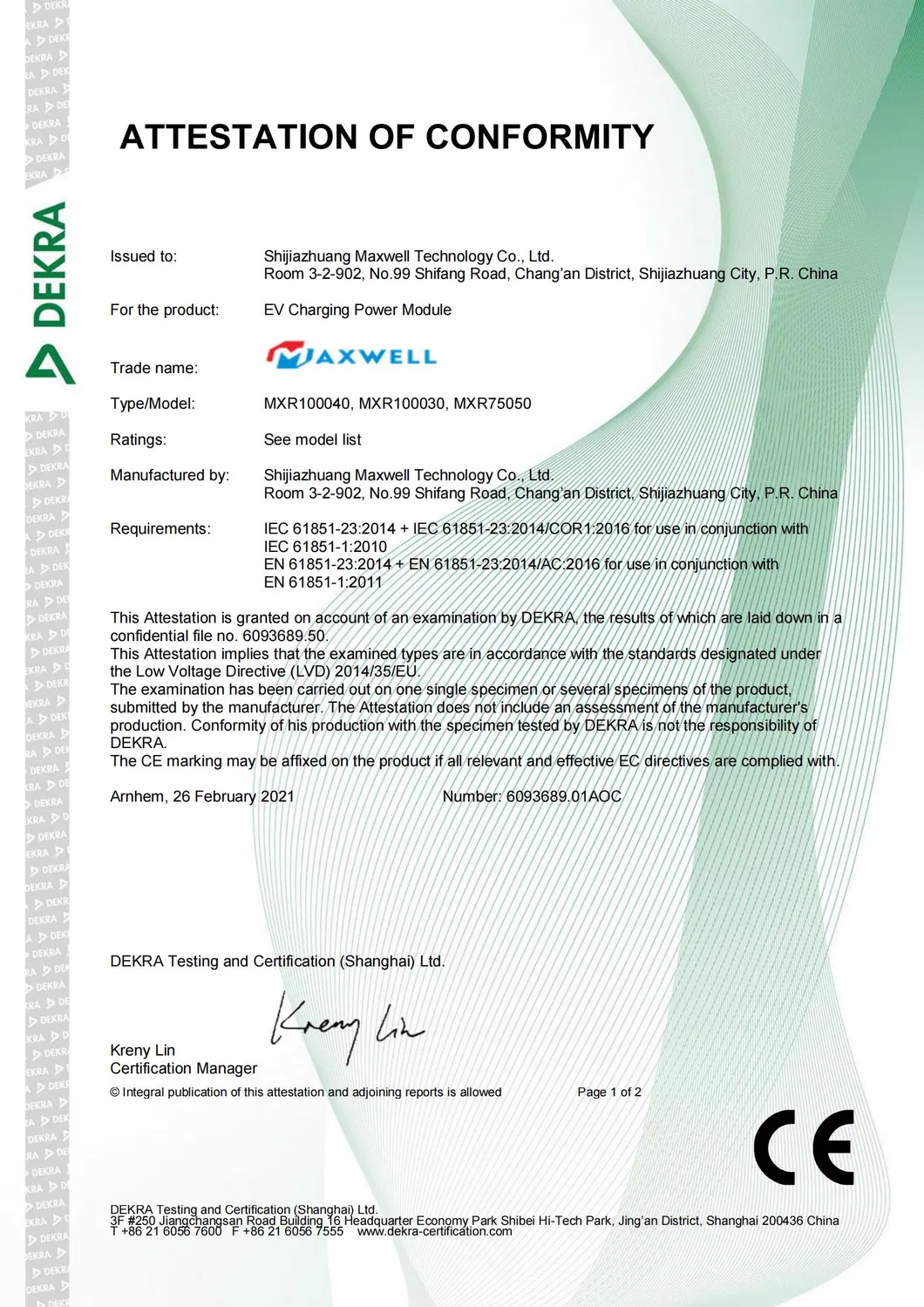

| CE / TUV / EMC | EN IEC 61000-6-1:2019; EN IEC 61000-6-2:2019; EN IEC 61000-6-3:2021; EN IEC 61000-6-4:2019; EN IEC 61851-21-2:2021 |

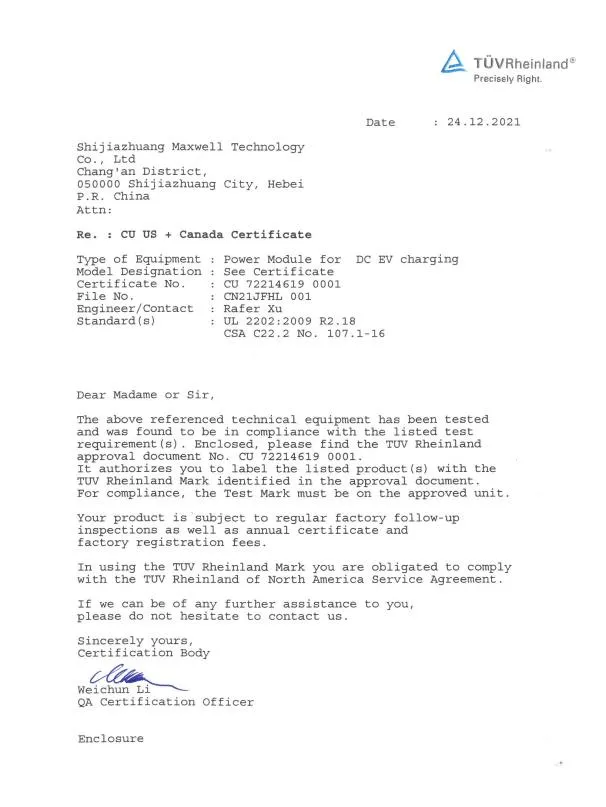

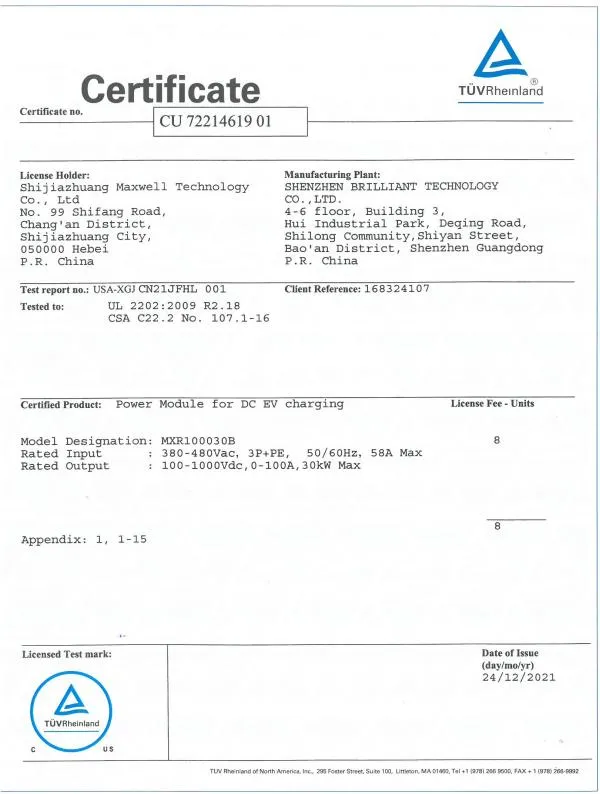

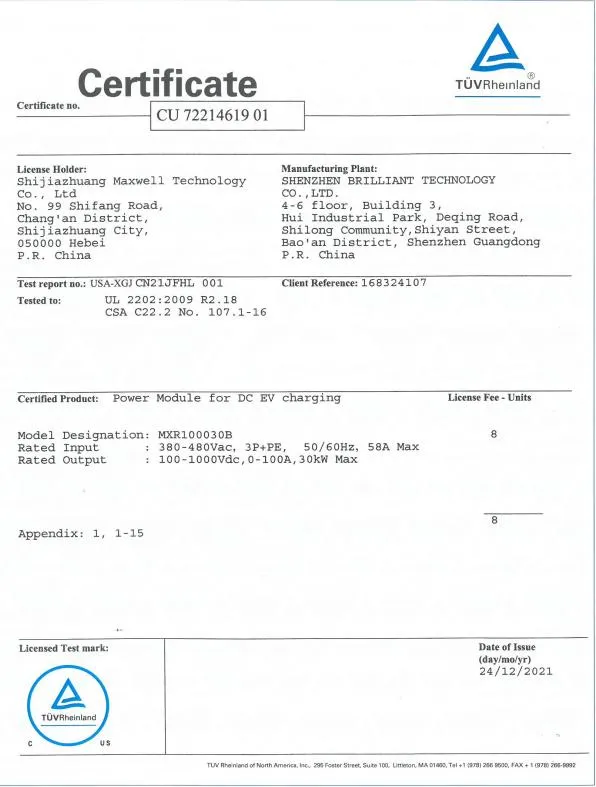

| cTUVus | UL 2202:2009 R2.18; CSA C22.2 NO.107.1-16 |
Founded in 2009, our focus began with power electronics and converters. In 2014, recognizing the potential of photovoltaic energy and EV storage, we shifted our strategic direction towards new energy solutions.
Our current portfolio includes high-capacity charging modules: 1000V 20KW, 30KW, 40KW, and 50KW, as well as V2G energy storage products like the MXR80025 and MXC75050B.
We provide a 1-year warranty. For the first six months, any non-human damage qualifies for a free brand-new replacement (shared freight). During the remaining six months, we provide free repair services and full technical engineering support for your testing processes.
