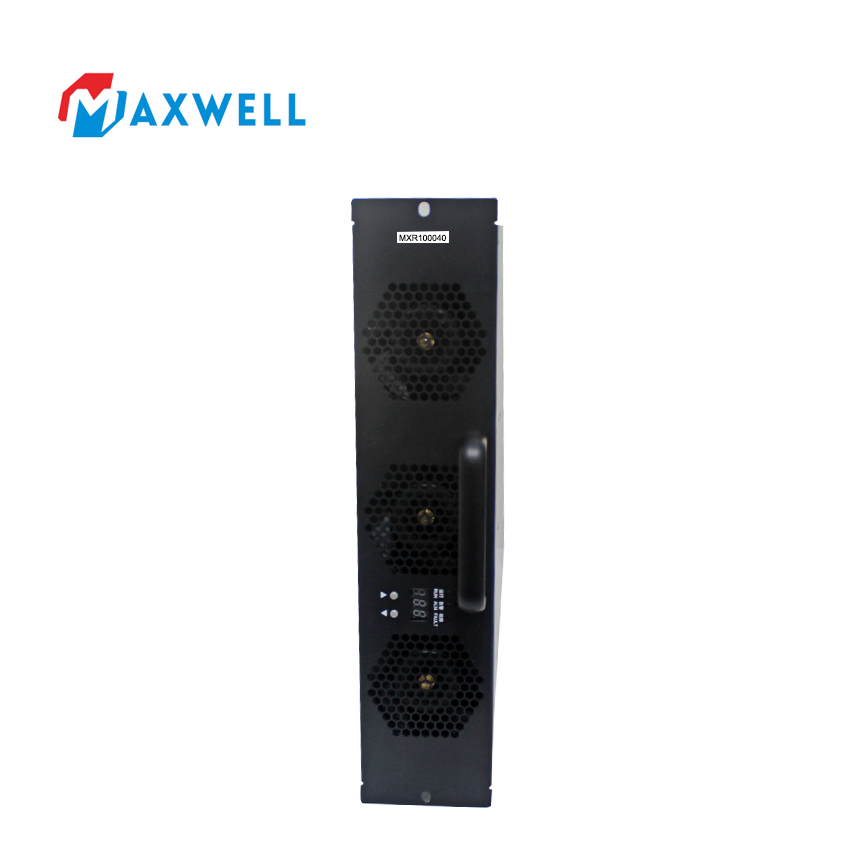

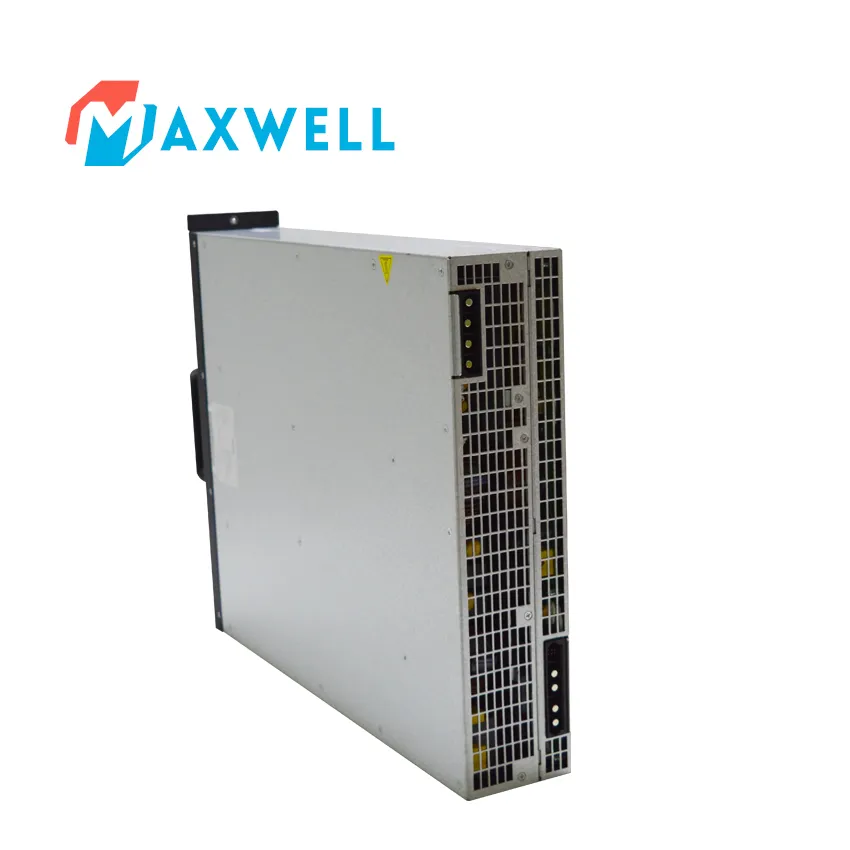

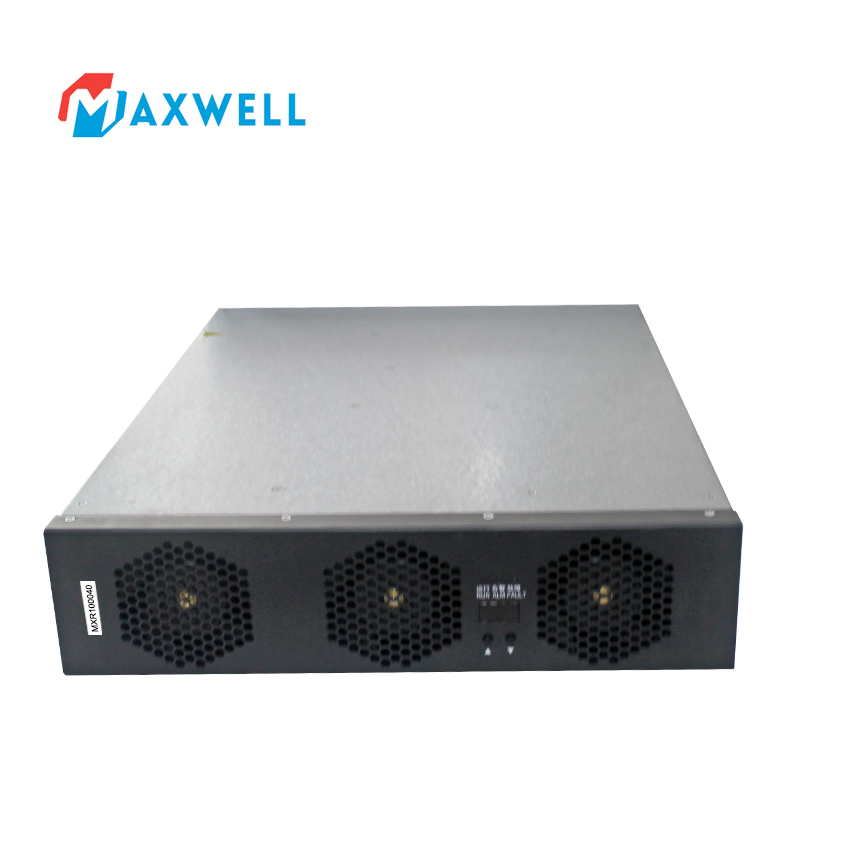

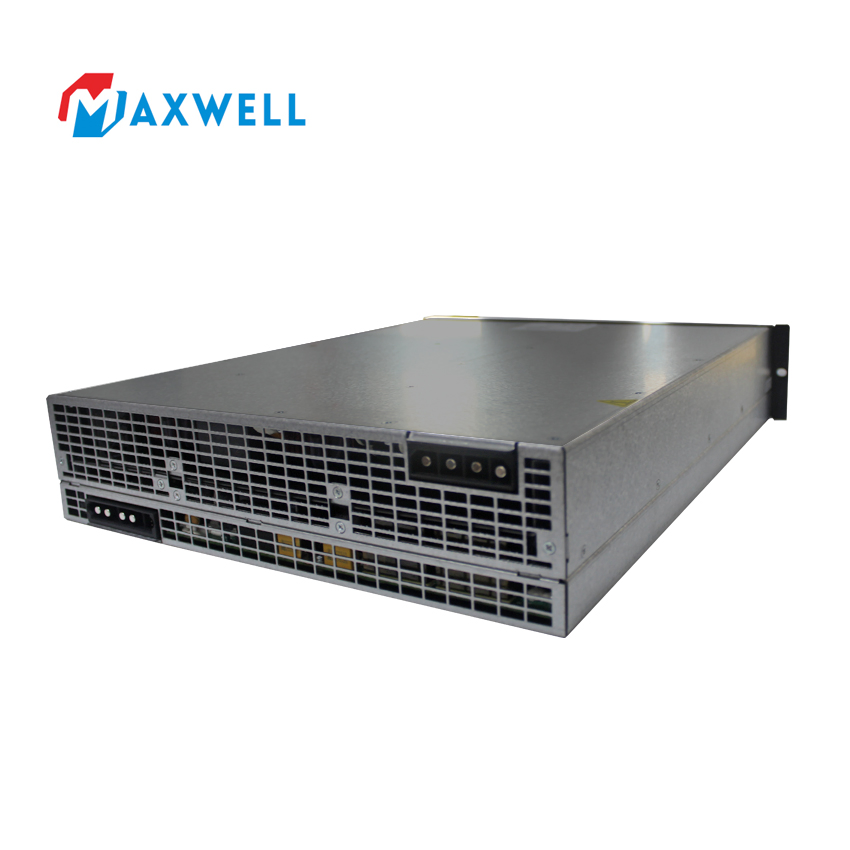

| Model NO. | MXR100040 |

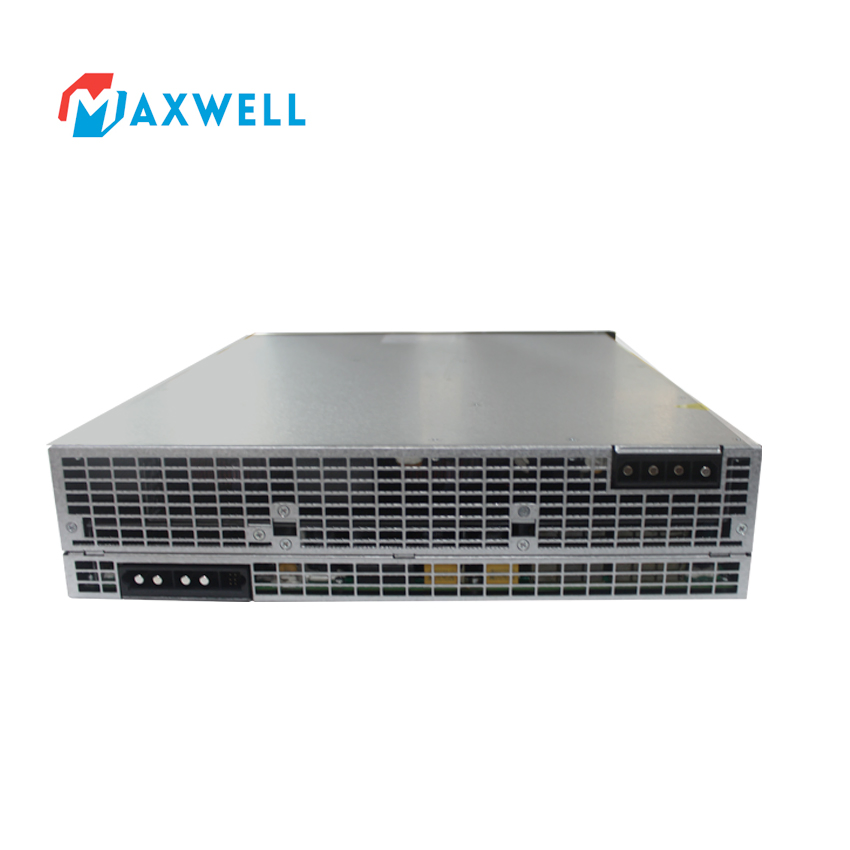

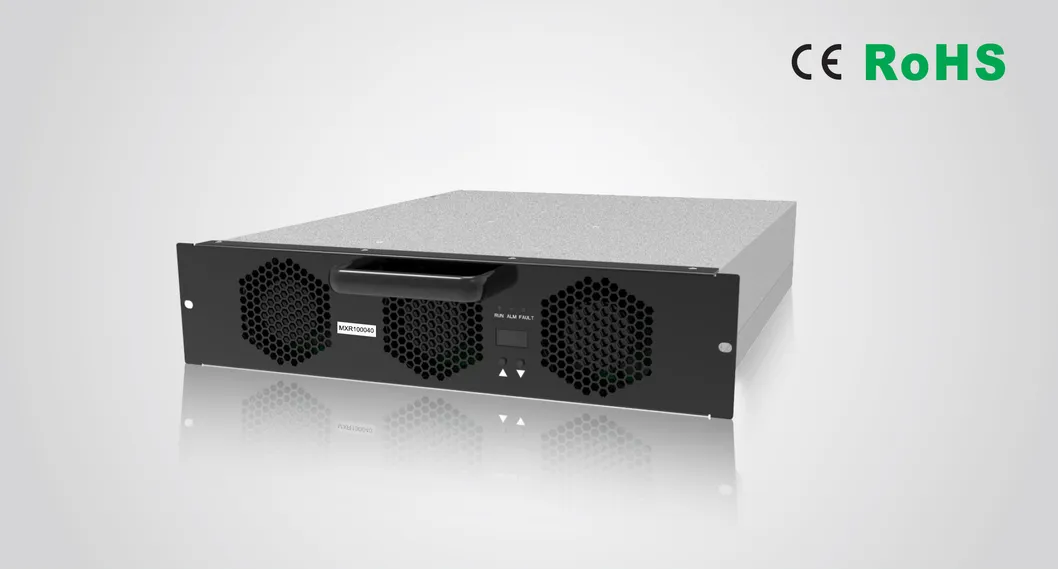

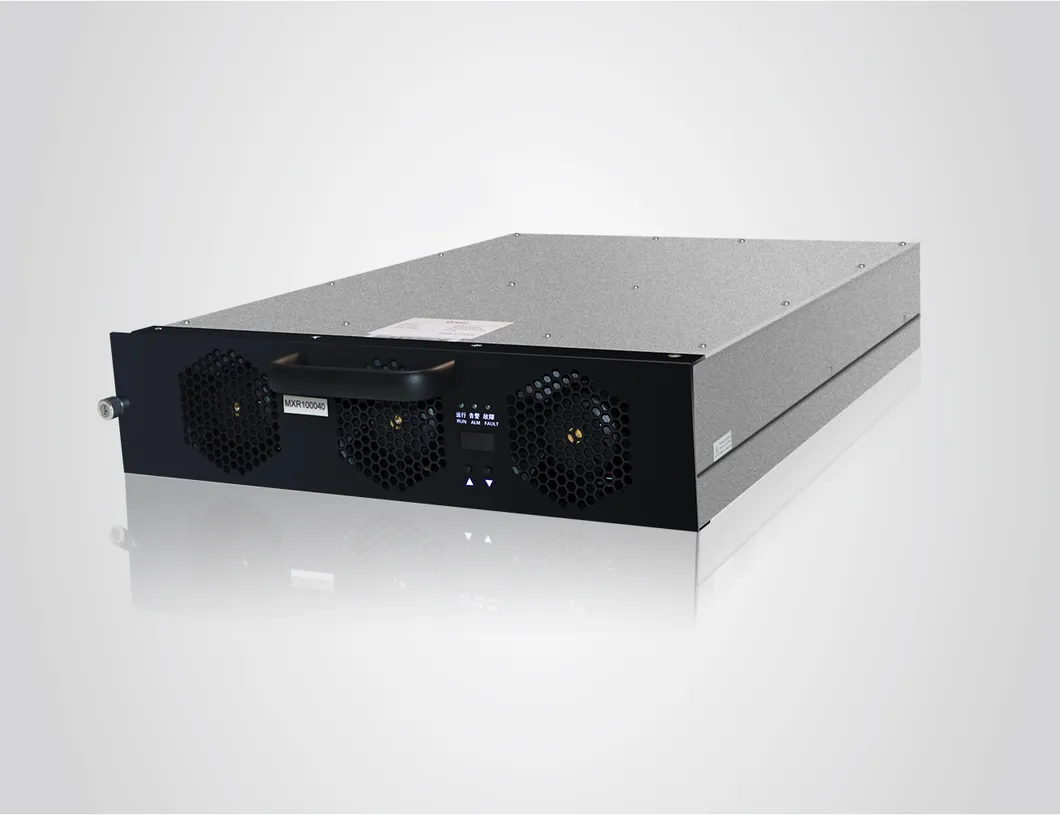

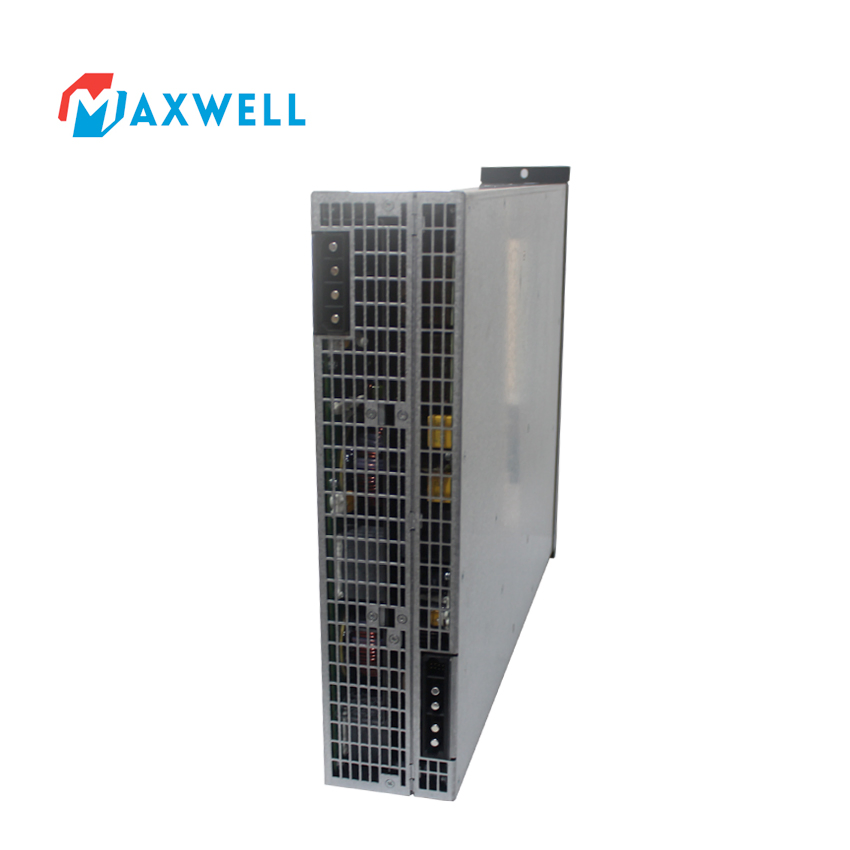

| Type | EV Charger Power Module |

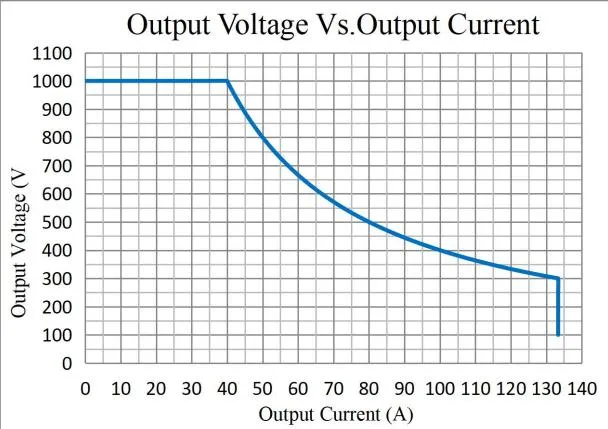

| Output Current | 0~133.3A |
| Power Factor | 0.99 |
| Efficiency | ≥95.5% |

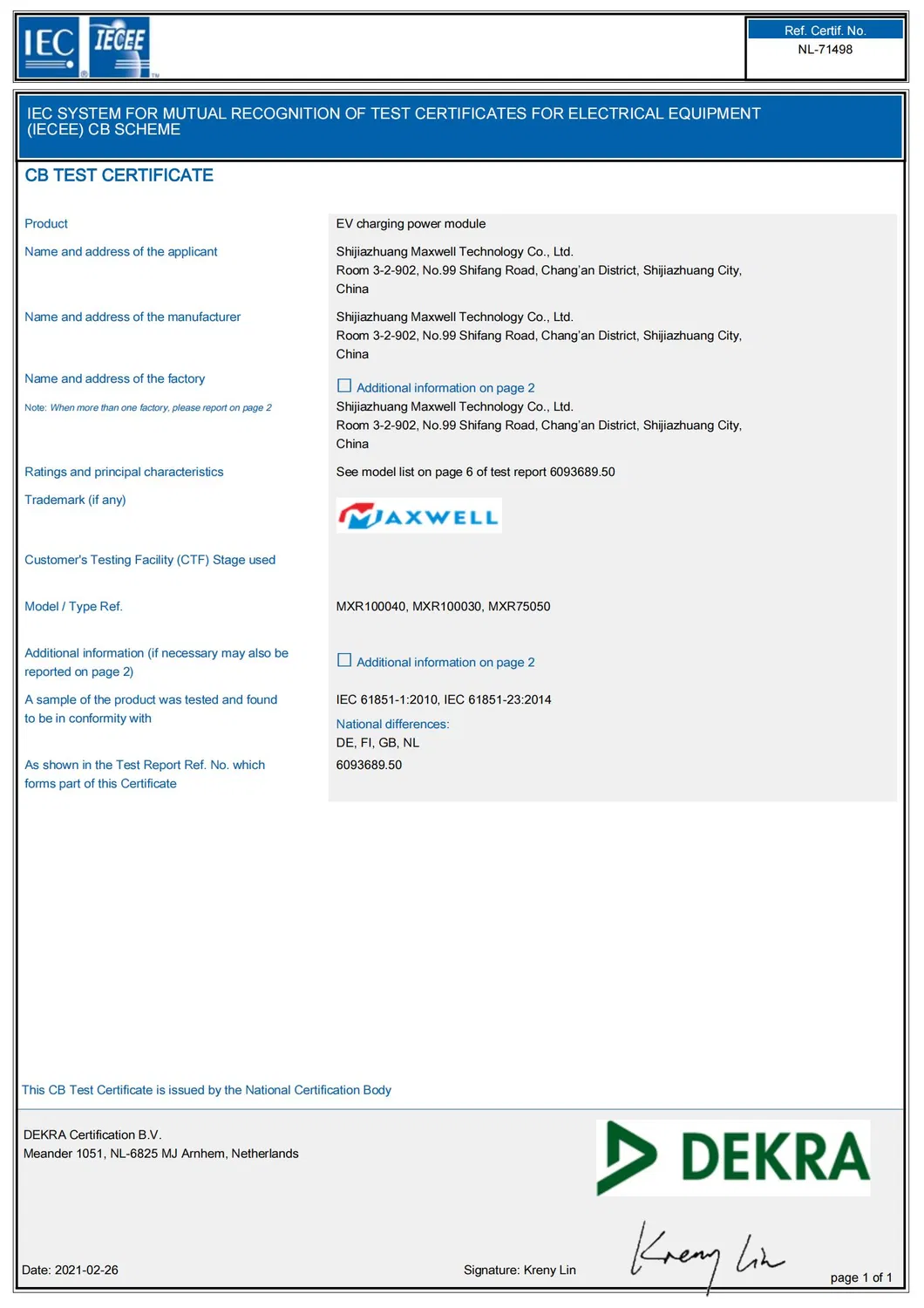

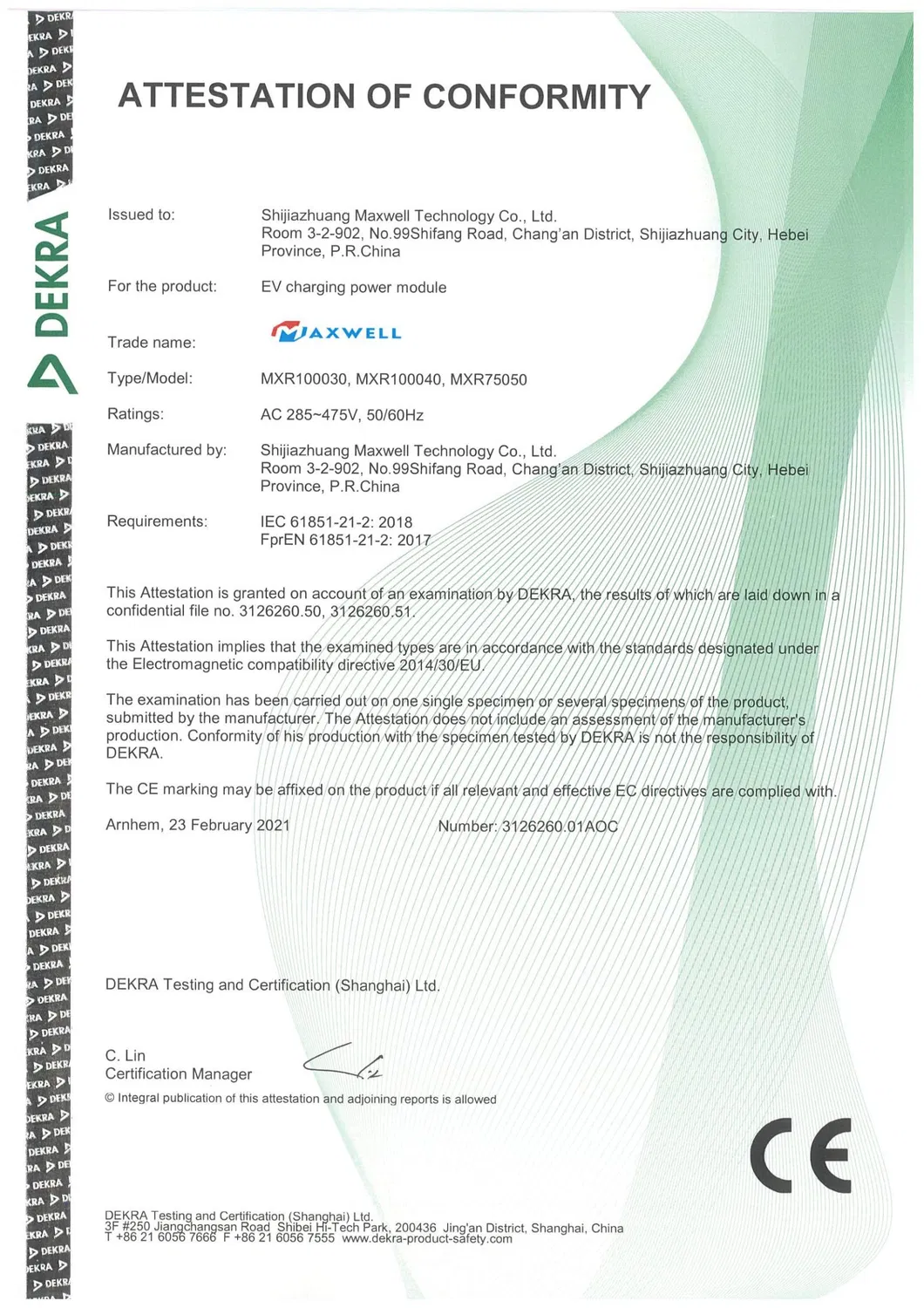

| Certification | CE, ISO, TUV, RoHS |
| Parallel Modules | Up to 60PCS |
| Warranty | 1 Year |
| Communication | CAN bus |
| Dimensions | 85mm(H)*360mm(W)*459mm(D) |

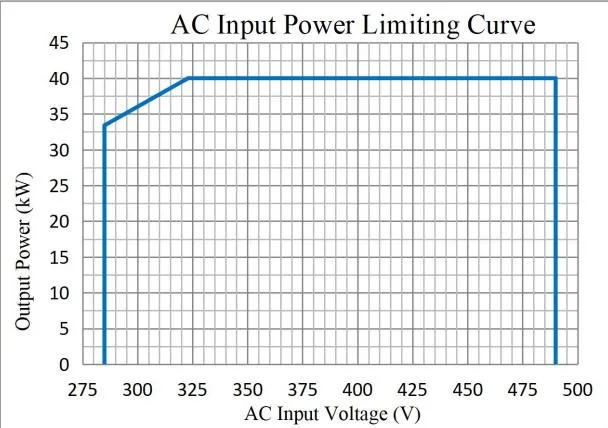

| Input Voltage | 285 Vac~475 Vac, 3 phase+PE |
| Output Voltage | 100 Vdc~1000 Vdc |
| Output Derating | Above 60ºC |
| MTBF | 500,000 Hours |
| CE/ TUV / EMC | EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019, EN IEC 61851-21-2:2021 |

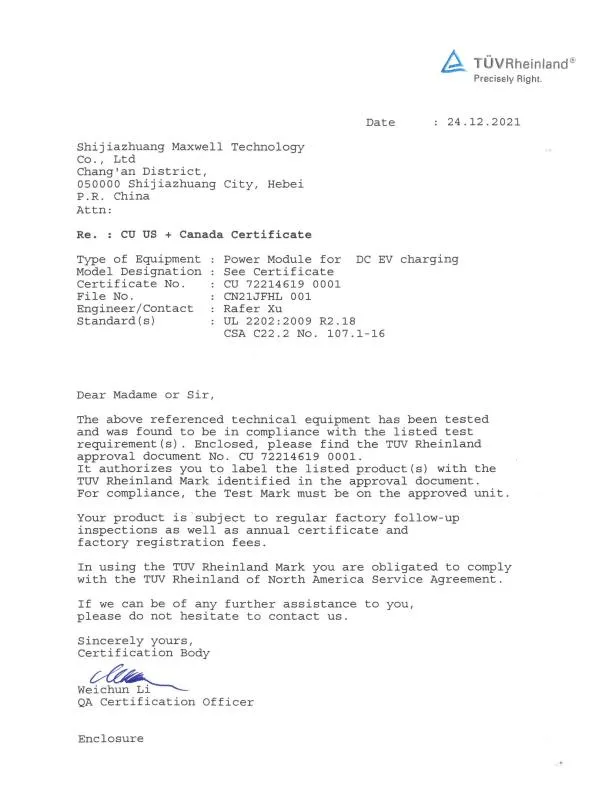

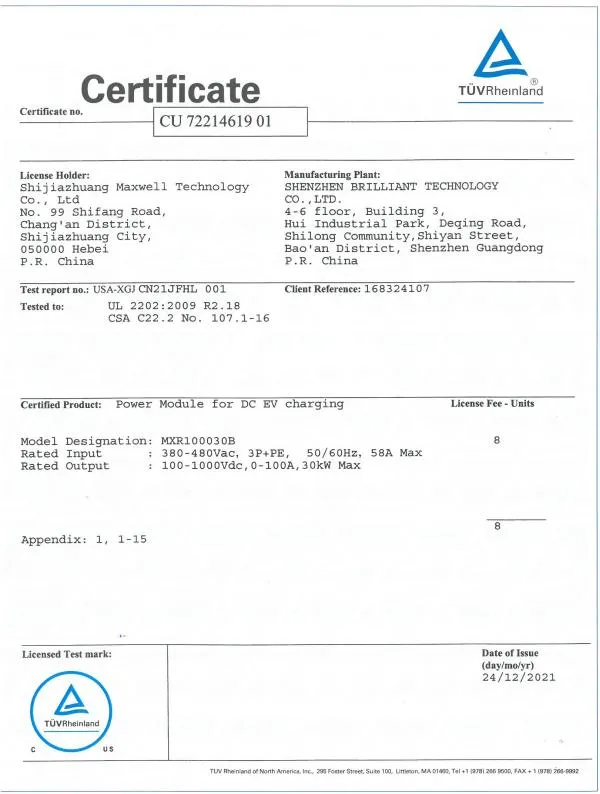

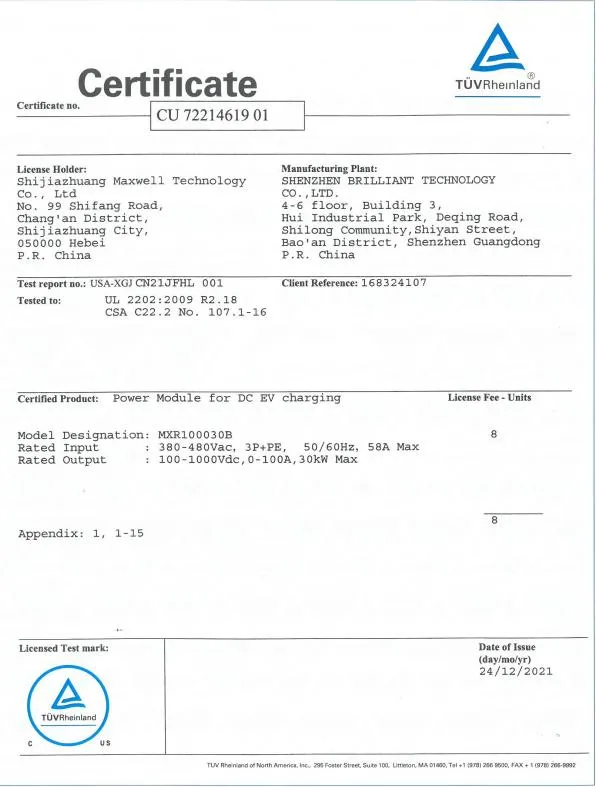

| cTUVus | UL 2202:2009 R2.18; CSA C22.2 NO.107.1-16 |
Established in 2009, our company originally focused on power electronics and power converters. After years of development and exploration, we foresaw significant opportunities in photovoltaic, energy storage, and new energy sectors starting in 2014.
Current product range: 1000V 20KW, 1000V 30KW, 1000V 40KW, 1000V 50KW Charging Modules.
Energy storage (V2G) solutions: MXR80025, MXR75027, MXC75050B etc.
Our long-term strategy involves continuous iteration of charging modules to meet evolving market needs and establishing strategic partnerships within the charging infrastructure industry.
Warranty Period: 1 year
For non-human damage within the first 6 months, we provide a free replacement of the module. During the second half of the year, we offer free repair services for non-human damage. Our engineering team is available to provide full technical assistance during your testing and installation processes.
