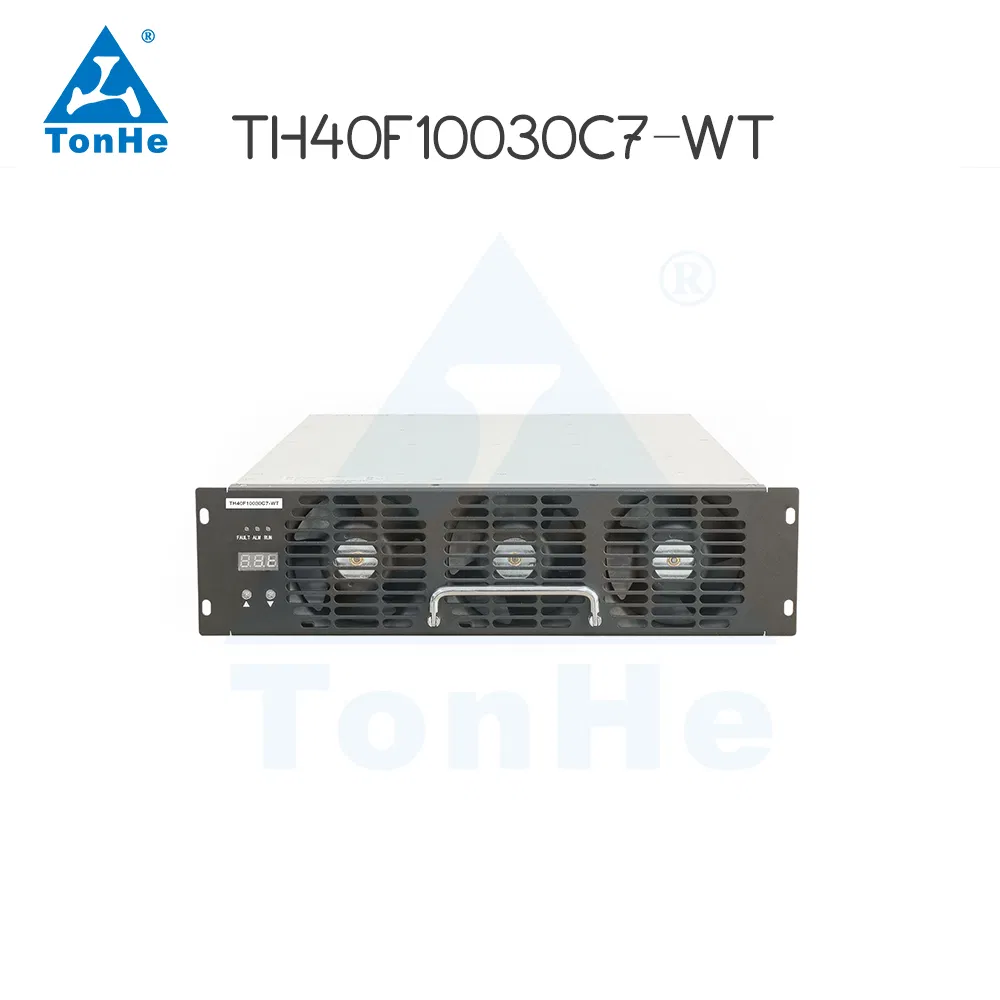

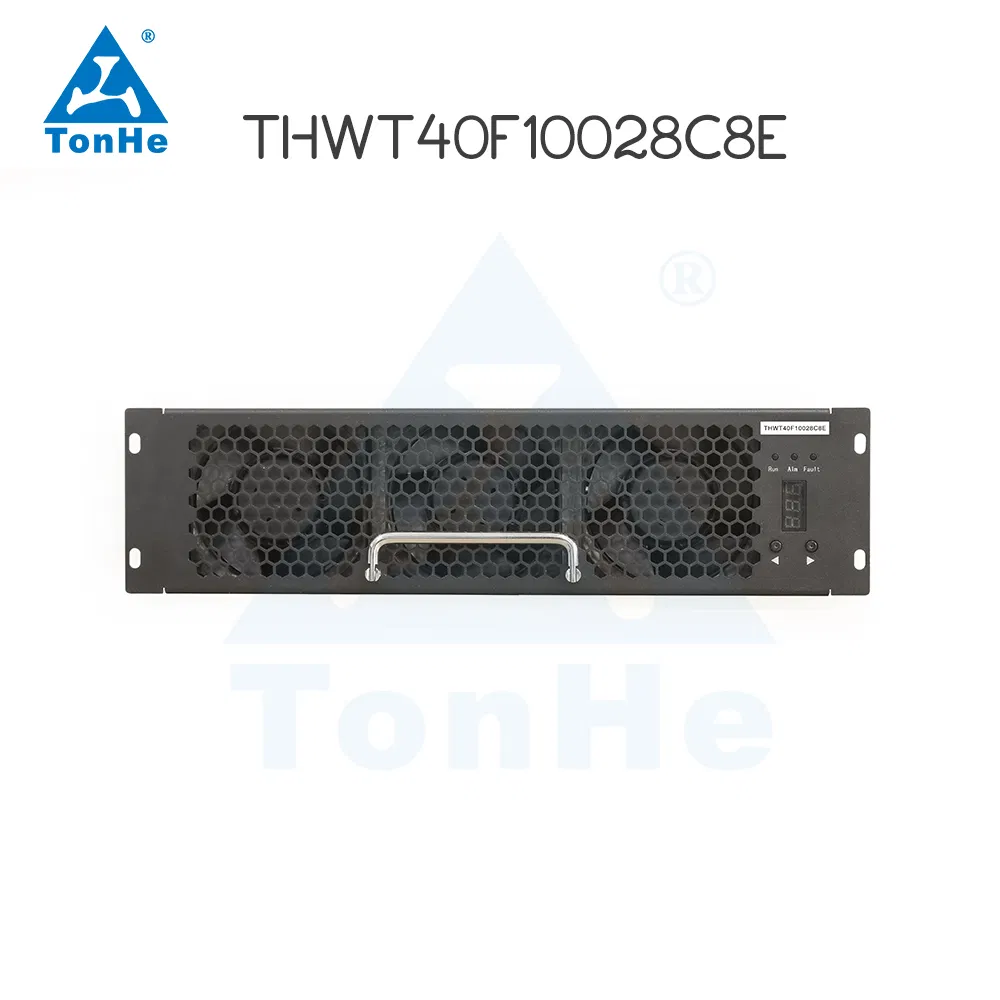

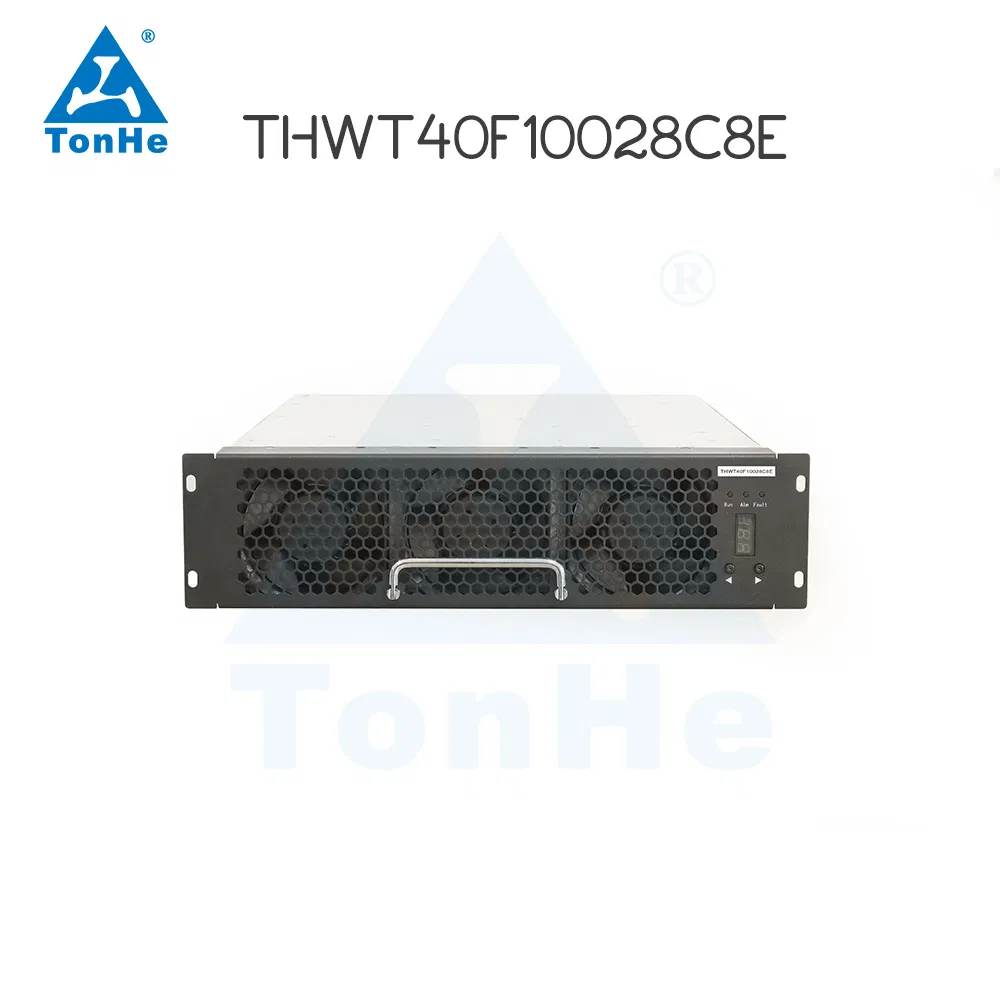

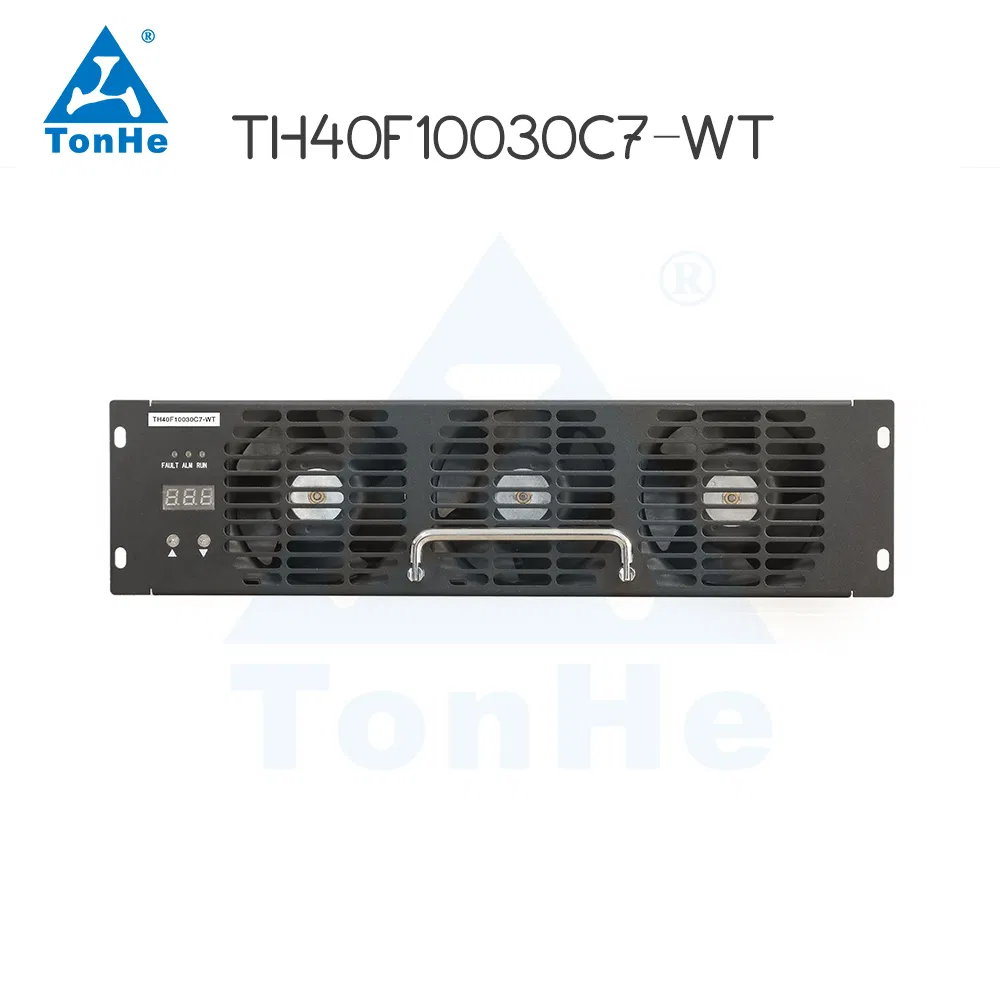

AC/DC Power Module Converter Rectifer for EV Charger Fast Charging Station for Evse Hebei Shijiahzuang Tonhe 1000V

1 / 5

AC/DC Power Module Converter Rectifer for EV Charger Fast Charging Station for Evse Hebei Shijiahzuang Tonhe 1000V

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

EV Charging module

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

RFID Authentic

After-Sales Service

Yes

Type

Fast EV Charging Station

Certification

CE, ISO, TUV

Warranty

12 Months

Transport Package

Carton

Specification

TH30F10030C8-WT

Origin

China

HS Code

8504401990

⚙

Product Technical Features

Input Features

Item	Parameters	Remark
Operating Voltage(AC)	285~475V, rated voltage 380V	See voltage/power curve
Input Frequency(HZ)	45~55	-
Power Factor	Full load ≥0.99	-
THD	Full load ≤5%	-
Standby Power Consumption	<12W	-

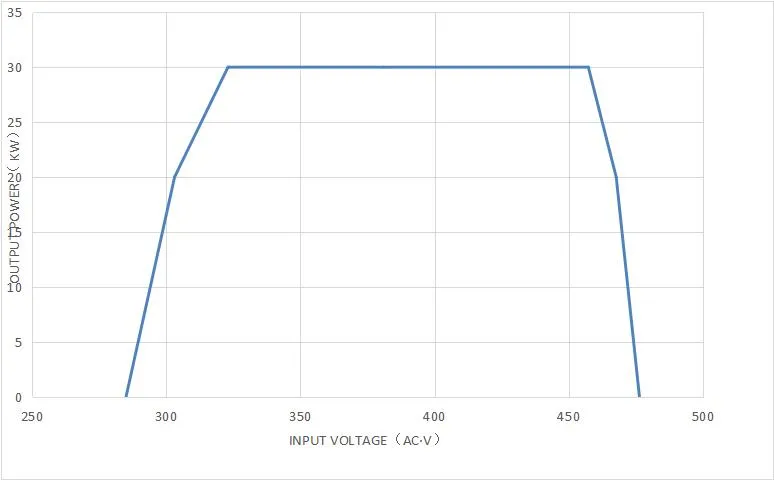

Input voltage/output power curve

Output Features

Item	Parameter	Remark
Output Voltage Range(DC)	150~1000V	-
Max output current(A)	120	-
Output constant power interval	250~500VDC, 500~1000VDC	-
Output current limit range	Max 120A, set between 2~120A	See voltage/current curve
Voltage Stabilization Accuracy	≤±0.5%	-
Current Stabilization Accuracy	≤±1%	Load 20%~100%
Peak efficiency	≥95.5%	-
Soft start time(S)	3~8	-
Communication Protocol	CAN	-

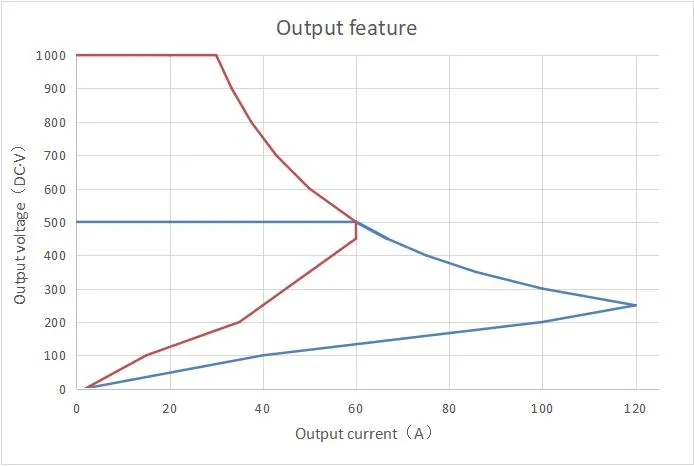

Output voltage/output current

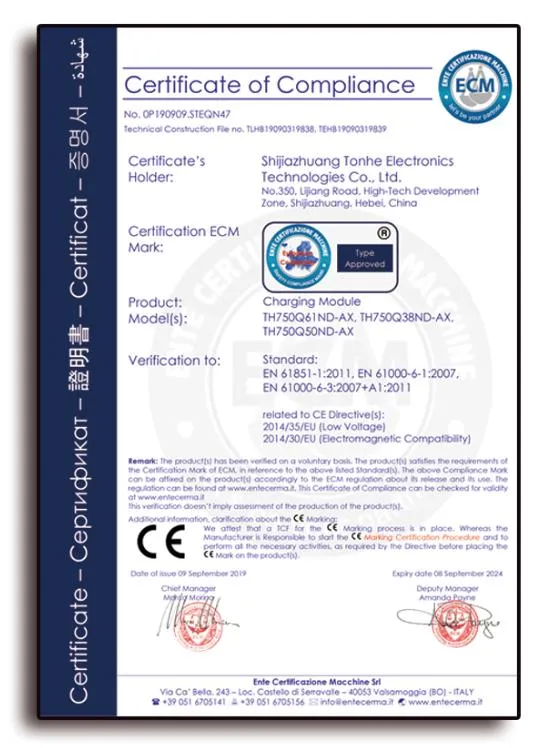

CE CERTIFICATE

✔

Manufacturing & Quality Control

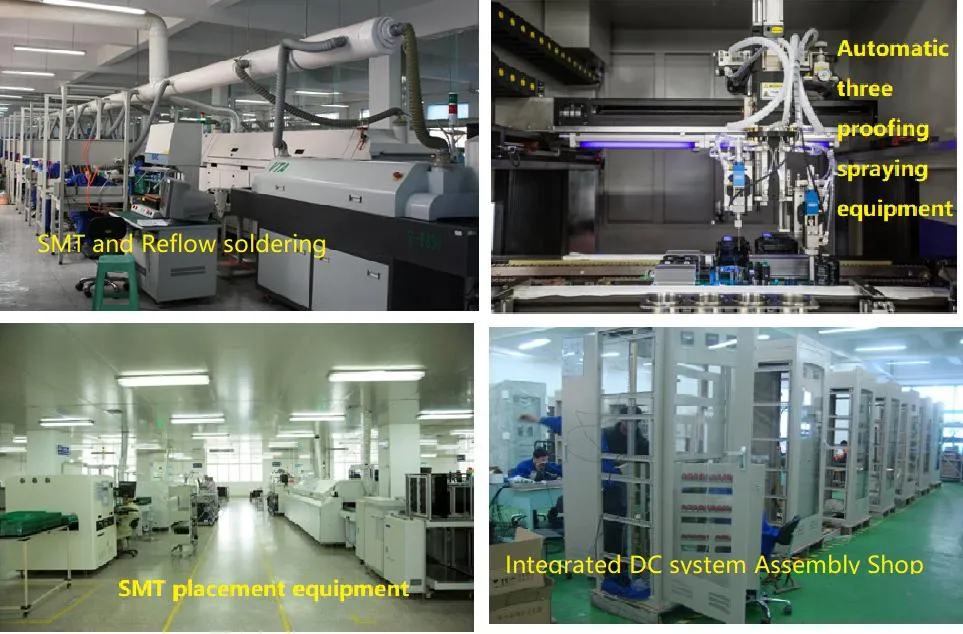

Manufacturing Center

Test Center Facilities

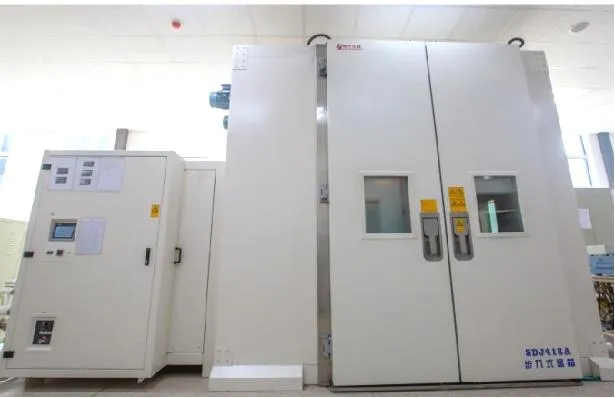

18m³ walk-in high and low temperature lab

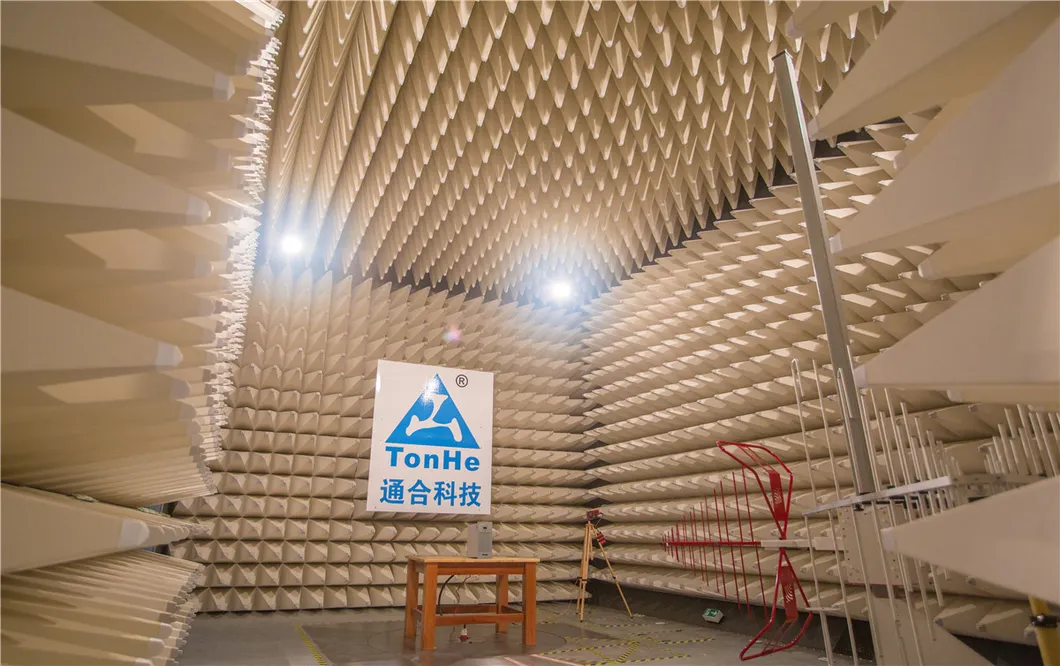

Anechonic Chamber: Designed to meet testing requirements of CISPR22, CISPR24, IEC61000-4-3, ISO 11452-2, and more.

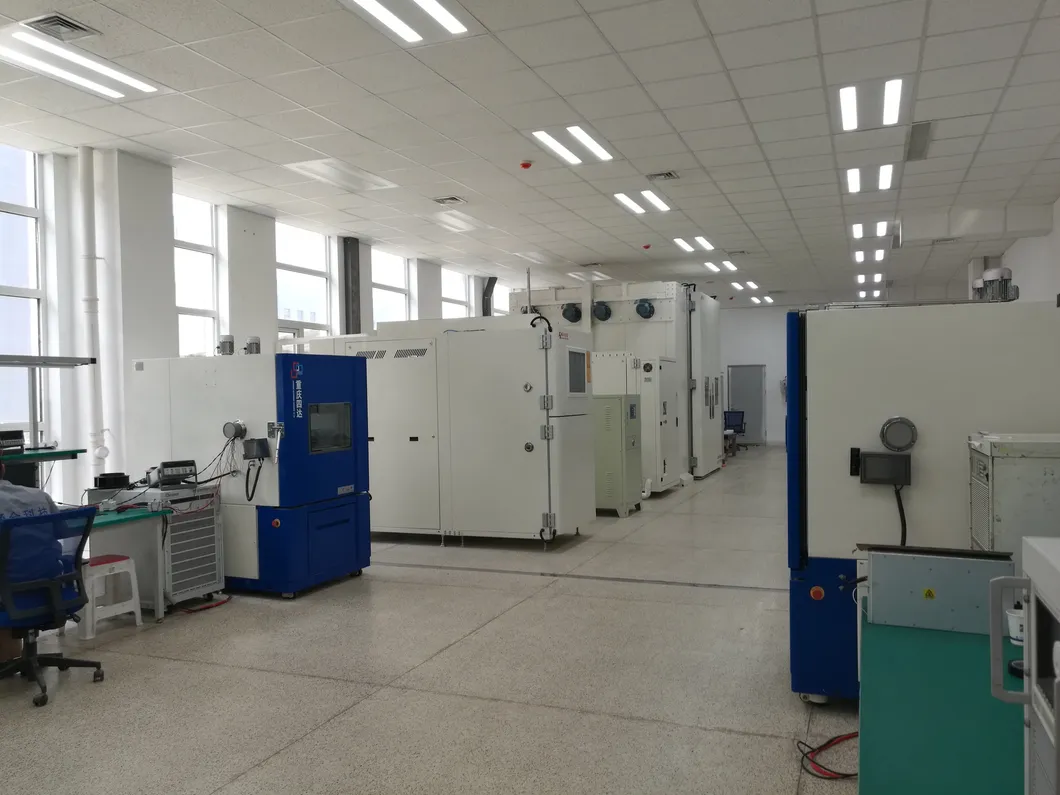

Test Hall: AC power supply, DC load, and power quality analyzer.

Frequently Asked Questions

What is the output voltage range of this charging module?

The module supports a wide output voltage range from 150V to 1000V DC, making it suitable for a variety of electric vehicle types.

What is the maximum efficiency of the unit?

The unit achieves a peak efficiency of ≥95.5%, ensuring minimal energy loss during the fast-charging process.

How is the communication handled between modules?

The system utilizes the CAN communication protocol for stable and efficient data exchange and module synchronization.

What safety certifications does this product hold?

This charging module is fully certified with CE, ISO, and TUV standards, ensuring it meets international safety and quality requirements.

Does it support parallel module operation?

Yes, it supports parallel configuration with a current sharing imbalance of ≤±5% when the parallel average current is more than 5A.

What kind of testing has this equipment undergone?

The equipment has been rigorously tested in high/low temperature labs and anechoic chambers meeting CISPR and IEC standards for electromagnetic compatibility and durability.
